Hidden Hitch Trailer Hitch for the 2010 Hyundai Sonata

Hidden Hitch Trailer Hitch

(23 reviews)


Code:   60816

Retail:$212.13

Price:$146.95


Shipping Special

Shipping Weight: 26.53 pounds

Quantity:






Hidden Hitch Trailer Hitch Receiver with Drawbar - Custom Fit - Class I - 1-1/4" - 2010 Hyundai Sonata

Specially designed for light-duty applications, this fully welded Hyundai Sonata trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance. Drawbar, pin and clip included.

Features:

  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your Hyundai Sonata
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Easy, bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Black powder coat finish covers e-coat base for superior rust protection
  • Sturdy, square-tube design
  • Drawbar, pin and clip included


Specs:

  • Receiver opening: 1-1/4" x 1-1/4"
  • Rating: Class I
    • Maximum gross trailer weight: 2,000 lbs
    • Maximum tongue weight: 200 lbs
  • Limited lifetime warranty


etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.



60816 Hidden Hitch Class 1 Trailer Hitch Receiver





Video of Hidden Hitch Trailer Hitch Receiver with Drawbar - Custom Fit - Class I - 1-1/4"


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

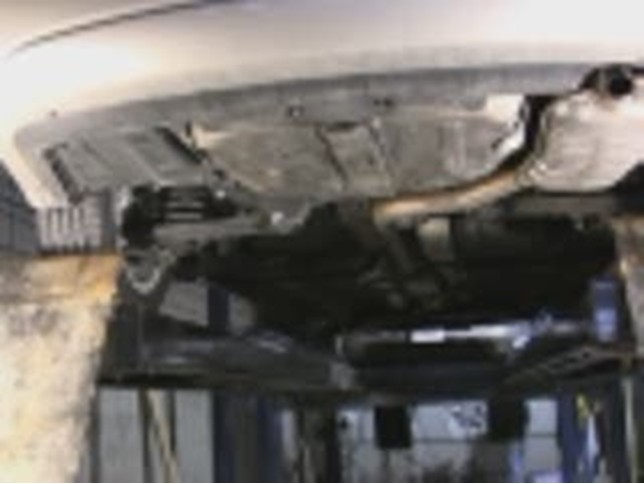

Video Hitch install 2010 Hyundai Sonata
Trailer Hitch Installation - 2010 Hyundai Sonata
Video install trailer hitch 2009 hyundai sonata 60816
Trailer Hitch Installation - 2009 Hyundai Sonata - Hidden Hitch
Video install trailer hitch 2007 hyundai sonata 60816
Trailer Hitch Installation - 2007 Hyundai Sonata - Hidden Hitch

Video Transcript for Trailer Hitch Installation - 2010 Hyundai Sonata

Today on this 2010 Hyundai Sonata we are going to install part number 24757 from Draw-Tite. This also applies to part number 60816 from Hidden Hitch. The first thing that we need to do to start off is we need to remove this panel right here. What is going to happen is the arm of the hitch is going to go right through this part of this right here. So we are just going to take it down and leave it off. It really does not serve much of a purpose and the hitch will be in the way anyways. It looks like there are two fasteners hiding back here too, one here and here. You can see that this is where, if the vehicle had dual exhaust, it would be in this spot here. So that is what that panel did, basically enclosed that area. 0:38

With the panel down, now we can see the attachment points on the vehicle. We are going to use this hole right here which has factory threads inside which makes it easy. And it is also going to use the center tie-down loop on the on the trunk panel. It is going to be the same thing over on the passenger side. However, the exhaust is going to be right next to it so it will be a little tight of a working area. But, we should not have to take down the exhaust. The first thing we do to start installing the hitch, we will start off with the U-bolt that goes over the tie-down point first. We will hang the hitch from that and then we will leave it loose so we can work our hitch around to line up with the holes on the side of the frame. 1:18

A quick bit about these fasteners. This is the bolt that goes inside the frame rail and this is the conical tooth washer. And they go together just like that. Okay, we have that one installed but we are going to leave it loose because we still need some working room back over on the other side, and that is going to be on the passenger side with the exhaust. Once we have all of our bolts started, then we can go ahead and snug them down into place. Alright, now that we have all of the bolts snugged down, we will go ahead and torque the bolts down as specified in the instructions. With those few steps our hitch is already installed and there you have it for part number 24757 from Draw-Tite. From the top of the receiver opening down to the ground on this particular vehicle it is 10-1/2 inches. And from the center of the hitch pin to the outer edge of the bumper is about 6 inches.




Customer Reviews

Hidden Hitch Trailer Hitch Receiver with Drawbar - Custom Fit - Class I - 1-1/4" - 60816

Average Customer Rating:  4.8 out of 5 stars   (23 Customer Reviews)

Specially designed for light-duty applications, this fully welded vehicle trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance. Drawbar, pin and clip included.


- 60816

by: Sam D.05/06/2013


Installation of the hitch was a disaster. I expected to do the job in an hour or two with only minor part removal. This was not the case. The reason for purchasing the hitch was based on the instructions and video stating the hitch bolts to the existing car frame using existing welded nuts in the frame. This is not the case at all. The hole was there but no threaded nut. I had to remove the complete bumper and all the parts hidden by the bumper shroud. Then I had to remove the bumper extensions which go into the car frame and are used to hold the bumper in place. This allowed me access to the square tube frame and put a nut on the inside of the frame where your instructions stated the welded nut was supposed to be. It turns out the welded nut does exist but is much further in the frame (about 8 inches more) but would not work because the exhaust (mufflers) would be in the way to get the supports in place used by the hitch and were on the opposite side of the frame. I finally got the hitch installed which took more than 10 hours of real work (not clock time). Knowing what I know now I would have never bought the hitch and the wiring kit. It is not that the hitch was defective it was being mislead on the install time and the work involved to get the hitch installed. I restore cars as a hobby so I am very familiar with working on cars and modifying parts to get them to fit. I would definitely NOT consider this a DIY project for someone that does not have extensive knowledge of cars and the proper tools to do the installation. As stated with the wiring kits, I purchased twice before from eTailor and I liked their product. Unfortunately this installation was NOT the case. Sorry to see the quality drop to such a "poor" state. 79107






- 60816

by: Mac E07/08/2013


Hitch and other items delivered on time. The hitch was supposed to ship with a draw-bar (ball mount) but it wasn't in the box. Which by the way was excellent packaging. Called upon receipt and checking the box and was told the missing item would be sent out today (Monday). Very good customer service. The hitch itself was easily installed and the video proved to be invaluable. I will save a trip to the storage lot to deliver the tow caddy by pulling it with the vehicle that will be pulled behind the motor home. This is my second purchase from them and have been very satisfied on both occastions 88385






- 60816

by: Richard D08/29/2013


I was very pleased with the hitch and wiring harness. The installation of the hitch went ok tight working conditions without benefit of being able to raise car off the ground, however a good product and good fit. The installation of the wiring harness was very easy, a fine product. I don't like wasting my money! The purchase of the tube cover was a waste of money, due to the fact that the hitch came with one. Your rep. should have made me aware of that. Overall I am very satisfied with the products and the prompt delivery. Thank You ! 97471






- 60816

by: Dave H07/27/2013


So far I like the ease of how it installed according to my mechanic. He said the hardest part was cleaning out the holes in the frame to prepare them for the hitch bolts. Looked very discreet on the rear of my Hyundai. Now as for Etrailer.com. What a knockout of a company. They hit on all the notes for great performance. Was really impressed. Special Kudos to Wayne - he do know his stuff. But so did the other person I talked to. Amazing experience! 91955






- 60816

by: Dale D.02/28/2011


The product was delivered on time. The wiring kit was very easy to install after reviewing the video. The trailer hitch lined up prefectly and the hardware fit great. This company provides a very good product at a most reasonable price. I am a very satisfied customer and will be looking here first for all my trailer needs. 8109






- 60816

by: robert P04/16/2011


thank you it ws very easy to install and i had to do it in my drivway on the dround your right about the time it taked just 45 min for me to do it now i will see how it will tow my small 14 ft boat as it seems it will do great thanks again 11857






- 60816

by: jon lennedy03/01/2012


I got the trailer hitch in a short time Like the video said it takes about 30 mins.and it did I want to thank etrailer for fast service and the great job the call center does. I will let my friends know about etrailer. Thank you, JON 32834






- 60816

by: Claude H. Jr.12/29/2013


Quick delivery. Very clear instructions. Easy to install. I cleaned the threaded nuts that were in the frame of the car just to avoid complications. Cut a slot in the plastic trim that had to be removed so it could be replaced. 111437






- 60816

by: Ed W05/13/2014


The hitch was much easier to install than expected. Had the whole thing connected in about 30 minutes--and I am not any type of mechanic. Looks good, is hidden under the bumper, very good product. 130339






- 60816

by: Joan04/15/2013


Ordered on Monday, arrived on Friday, installed (easily) on Saturday. Can't complain about that. Quality and price were both good. I haven't used it yet, but I'm sure it will do the job. Thanks. 76178






- 60816

by: Jeff V05/24/2012


A friend and i did the complete installation in a couple of hours. Everything fit as was supposed to and all parts were included. Good job e trailer.....The hitch and lights worked Great...thanks 41584






- 60816

by: Chris D.04/13/2012


Ridiculously easy install it was so quick I thought I missed a step. Excellent product and the customer service is exceptional, etrailer staff made sure shipment was on time, thanks. 37102






- 60816

by: Dietrich S04/21/2011


Good Products at a good price. I was amazed how well they followed up on the shipping. They sent me e mails every step of the way. What a Great Company! Dietrich from West Bend Wi. 12171






- 60816

by: Alan L.07/04/2011


Simple installation with provided hardware, wiring harness just plugs into existing plugs/tail lights, great fit. Took less than hour to install with wiring. Looks great. 18466






- 60816

by: Sean F.07/06/2011


Arrived quicker than expected. Easily installed in about 20 minutes. Meets up to it's name, you can barely tell it's even there. Fit perfect. 18751






- 60816

by: Ed W.09/16/2012


Received product quicker than expected. Great quality. Installed in the approximate time stated in the instructions. Thank you. 54837






- 60816

by: Martin12/06/2012


Following the video and instructions made it a simple bolt into place installation, easy enough for a beginner to do. 60824






- 60816

by: Willie B05/14/2012


30 minutes to install receiver and wiring harness. As described no problems. 40401






- 60816

by: Quinn09/05/2014


Fast delivery, fit perfectly on Sonata. Easy and quick installation. Thanks 150182






- 60816

by: Bob L05/28/2011


Very easy to install. Only trouble was getting around the exaust. 15590






- 60816

by: Gary W.12/17/2012


always on time very helpfull on the phone ordering 61689






- 60816

by: matthew03/12/2013


fit just fine. installed very fast 70075






- 60816

by: t.green10/31/2012


great! 58457




23
23


Ask the Experts about this Hidden Hitch Trailer Hitch
Do you have a question about this Trailer Hitch?


  • Recommendation for Carrying a Mobility Scooter with a 2009 Hyundai Sonata
  • The only way to carry a mobility scooter with a 2009 Hyundai Sonata is to install a trailer hitch and tow a small trailer. All of the trailer hitches available for your vehicle are Class I hitches. This means there are limited accessories and limited tongue weight capacity. Fortunately we have a solution for this. First you will need a trailer hitch like # 60816. It comes with the correct ball mount, hitch pin, and clip. You will need a 2 inch ball, # 19258, for the trailer I recommend. The...
    view full answer...

  • Does the Exhaust have to be lowered to Install a Trailer Hitch on a 2009 Hyundai Sonata
  • Installation on a 2009 Hyundai Sonata with single exhaust is going to be nearly identical as in the video showing installation of Hidden Hitch Trailer Hitch, # 60816, on a 2010 model. The two different years are part of the same generation and the hitch attaches the same way in both models. This is quite possibly the easiest installation I have seen for a hitch. Even the instructions, which I have linked for you, have just 2 steps. Neither our installers nor the hitch manufacturer mention...
    view full answer...

  • Drawbar that Comes with a Class 1 Trailer Hitch Receiver for the 2006 Hyundai Sonata
  • Hidden Hitch, item # 60816, comes with drawbar, item # 3592. This drawbar has a 2-1/8 inch rise and is to be used in the rise position only on your vehicle see instructions. Class 1 hitches are factory tested for safety and the recommended drawbar is the only drawbar that should be used for that vehicle, in the position recommended.
    view full answer...


Do you have a question about this Trailer Hitch?



Hyundai Sonata Accessories




Weight Carrying Capacity
Gross Towing Weight (GTW):
2,000 lbs.

Tongue Weight (TW):
200 lbs.


Weight Distribution Capacity
Hitch does not allow
use of weight distribution


Trailer Hitch Installation Instructions 60816 Installation instructions 60816 Installation Instructions

Tech Tip
On vehicles with single exhaust, the appearance panel which covers driver's side frame rail must be removed.No drilling required for installation,,,

Manufacturer Estimated Installation Time



Recommended Wiring:
Hidden Hitch 118557
118557

Recommended Balls:

1-7/8" hitch ball - 19256


2" hitch ball -19258
