Item # 13424
Confirmed To Fit
To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.
This item qualifies for free shipping
Shipping Weight: 30 lbs
This fully welded trailer hitch receiver bolts onto your GMC Acadia's frame with no welding required. Powder coated steel is sturdy and corrosion resistant.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Fascia door panel must be removed for hitch installation and may not be able to be reattached. No drilling required for installation , Do not cut or splice vehicle wiring. Only use approved T-One or see auto dealer for trailer tow wiring kit
Video of Curt Trailer Hitch Receiver - Custom Fit - Class III - 2"
Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

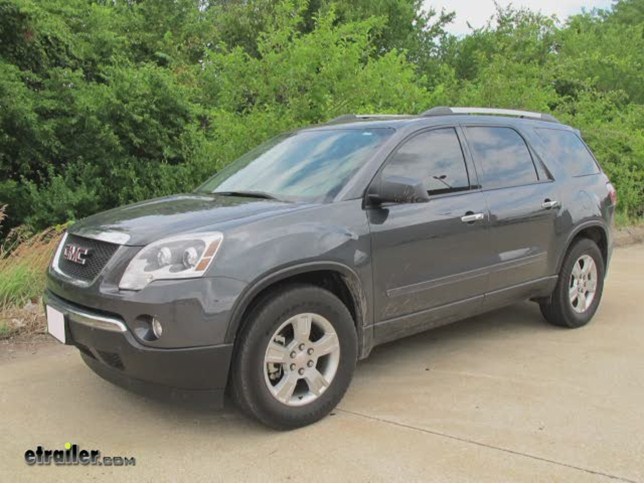

Today on our 2016 GMC Acadia, we're going to review an install. The CURT hitch, part number 13424. All right, now here's what our hitch is going to look like once installed. The hitch itself is a robust design for this application. It's got a square cross tube, and goes into a full welded construction. Here on either side of our receiver tube is our easy to access chain hold downs.
Going all the way through the receiver tube, there's our 5/8 pin hole for securing our attachments. This is our class three, two inch by two inch receiver tube. It's capable of up to 500 pound ton weight and a 5,000 pound tow capacity. When coupled with a weight distribution hitch, you can get up to 600 pounds ton weight and a 6,000 pound tow capacity. One of the really nice features about this installation is how easily the fascia door will go back on, even with our hitch in place. It covers up that hitch when it's not in use.
Simply put the fascia back in place and lock down the two corner tabs, and now our hitch is completely covered. We're ready to head on down the road. Then once we're ready to use our hitch, with our trailer or accessory, simply unlock those two corner tabs, pull that fascia door off, and our hitch is there and we're ready to hook up and head on down the road. Next, I'll give you a couple measurements to assist your selecting accessories for your new hitch. From the center of the hitch pin hole to the outermost edge of the bumper is 4 1/2 inches. From the top of the receiver tube opening down to the ground is 18 inches.
This will assist your selecting accessories such as a ball mount, bike rack, or cargo carrier. To begin our install, we need to remove the rear fascia panel. To do that, we simply unlock it, one on each corner, and we'll pull it down. It'll release the fasteners here across the top. Next, we need to lower the exhaust, but before we do that, we want to put a safety strap in place to help hold the weight of the exhaust once we remove the hangers. We're going to have a total of three rubber isolators that need to be removed from the metal hangers.
To do that, we'll first spray each one with a spray lubricant. We have one here on the inside of the muffler, one on the outside of the muffler, one forward of the rear axle, just behind the front muffler. To remove each one of these rubber isolators from the metal hanger, we're going to use a pry bar or pliers just to slide one end off. Just like that we've lowered the exhaust, and exposed the frame rail. Now, we're going to have a total of six attachment points, three on each side. These attachment points here in the bumper beam are pre-drilled holes. Note, in some application they can also be well nuts. You'll have hardware for both options. Here at the frame rail, we're going to have two weld nuts. These weld nuts are built into the frame by the manufacturer, so only simply add hardware to secure the hitch. Before we attempt to install the new hardware, we're going to want to clean out the weld nut, because over time they build up with rust, dust, dirt, and debris. To clean it out, we're going to use a spray lubricant, and our half-inch nylon tube brush, part number 814092. We'll thoroughly clean out the threads of that weld nut to make sure our new fastener install nice and easily. Now, for each of the weld nuts, we're going to have a 12 millimeter bolt. Those will be supplied with the install kit. Now we know it threads in nice and easily, we'll go ahead and repeat the same process for the remaining weld nut attachment points. For each of the weld nut attachment points, we're going to have the 12 millimeter bolt and half-inch cockle tooth washer. The teeth of the washer will face the hitch, as the bolt will go through the hitch attachment point and then into the weld nut. For applications like this one that just have the pre-drilled holes here in the bumper channel, we'll be installing a half-inch carriage bolt and block. We'll feed them into place, down through the attachment point, and then once the hitch is in position we'll install our flange nut to secure it. To get our hardware in place, we're going to use the half-inch bolt leader that's supplied with the install kit. Let's go ahead and starting installing our hardware here into the bumper channel. We'll take our bolt leader, feed it through the attachment point, and out the end of the frame. Once we have access to it, we'll go ahead and install the block, sliding it onto the bolt leader. Then we'll take our carriage bolt and thread it into the end. Next, we'll feed them into the bumper channel separately, first the block and then the bolt. Now, using the bolt leader, we can pull them into position. The bolt will engage the block, and we'll go ahead and leave the pull wire attached, which will assist with getting our hitch up into place without pushing that hardware back up into the bumper channel. Keep in mind, each process we do here on one side, we have to repeat identically on the opposite side. There's all of our attachment points and hardware the same. We're now ready to install our hitch. It's a good idea to get an extra set of hands to help you hold the hitch while you install your fasteners. We'll feed the pull wires through the center attachment points, and then bring the hitch up to the frame. Once we have the hitch up to the frame, we can go ahead and install our bolt into the weld nut, and it'll hold the weight of the hitch. Keep in mind as we install each fastener to just tighten them down hand tight this time. Once we have the bolts in place, we'll go ahead and remove the pull wires and install our two flange nuts to secure the hardware here at the center. Just like that, we've got all our hardware in place, and we're ready to tighten it down. All right. Now with all our fasteners tightened down, we'll go ahead and torque to specifications as indicated in the instructions. Now with all our fasteners tightened down and torque specifications, we'll go ahead and reinstall the exhaust. Once we have the exhaust back in place, we'll go ahead and remove our safety strap. Just like that our hitch is installed, and we're ready to hit the road. That will do it for the review and install of our CURT class three, two-inch receiver tube hitch, part number 13424, on our 2016 GMC Acadia.
Average Customer Rating: 4.9 out of 5 stars (72 Customer Reviews)This fully welded trailer hitch receiver bolts onto your vehicle's frame with no welding required. Powder coated steel is sturdy and corrosion resistant.
by: Lewis H.01/19/2016
Yes the curt trailer hitch reliever was easy to install as you said that it would be. I was pushed for time and had to do it at night in the cold weather, but it was done in time to pick-?? my uhaul to load and head to Pittsburgh the next day. Thank you for sending it out so soon. Your website was easy to use. Product was just what I needed for my 2012 Enclave. 235817
by: Dave S.03/15/2015
Installation wasn't bad, and pretty much what the instructions said for a 2010 Traverse LS. The hardest part was probably chasing the rust out of the threads in the mounting holes since the road salt hadn't been kind to them and I bought it used. Lots of penetrating oil and going back and forth on the bolts to get them to thread in. I did need to grind the access holes slightly to get the heads of the mounting bolts through. I had better luck putting the spacers in place first, then threading the fish wire through the spacer and the mounting hole to pull the bolts in place. There's enough room to get the bolts past each other in the channel. Leave the fish wires attached to the bolts until the hitch is in place. Removing the muffler hangers will make it much easier to get to the mounting bolts on. All told, it took me probably 1.5 hours, but I was working by myself, and the first half hour was spent just getting the mounting holes clear. 178324
by: Dan C07/16/2013
Very easy install on my 2013 GMC Acadia. It took me about 40 minutes to install (and I was taking my time). It came with easy instructions and everything that I needed to install it (including the wires to fish the bolts through the bumper). Overall, I am very happy with this product. 89748
Item came quicker than promised. I had the dealership install hitch. They did in about 30 minutes and it looks great. Mufflers do need to be dropped in order to install frame bolts . Just a suggestion if you have a dealership that you regularly go to it's worth it to have them install as they have the correct tools to do the job. 215173
by: Jim H08/18/2014
Installation was a breeze. It took about 30 minutes, I used 2 floor jacks and got it done in my driveway. 147254
by: joey D07/30/2016
I purchased this hitch for my enclave. the etrailer site allowed me to just enter my vehicle details and it told me which one i need and provided a video and picture of how it worked and looked. Great site, easy to use and the hitch was excellent and sturdy as well. I decided in the end not to put it on as it is in the high 90's here in Florida. Just didn't feel like crawling under the truck. However I did talk to the mechanic shop that installed it for me and they said it is one of the easier after market hitches and wiring kits they ever installed. I used Christian Brothers Automotive in North Port Fl who were just fantastic as well. 277768
by: Cheapass Ron01/30/2013
I'm just your run-of-the-mill exceptionally satisfied customer. Full disclosure: I'm a cheapa$$. After I found what I wanted from etrailer, I surfed the part numbers looking for a cheaper source. After a few minutes, I asked myself "what the heck am I doing? etrailer.com has put up the money and time in a great website and fantastic how-to videos, and even if they're more expensive, they *deserve* my business - they earned it." So I bought. Additional full disclosure: nobody was cheaper. Don't waste your time looking. Oh, the hitch and wiring kit fit perfectly. What else would you expect? 64625
by: Greg B.08/21/2016
Bought this hitch to install on a 2011 Chevy Traverse. Easy to install, my car didn't have the weld nuts at the rear, but everything I needed was included in the kit. It was a little challenging snaking the bolt through the frame but not too bad. The hitch fit great and looks great. Directions were easy to follow. The only thing I'd add, is that on older vehicles, plan on chasing the threads on the weld nuts. Someone suggested this to me, I'm glad I did it, made the job much easier. 286078
by: Jeff W.02/24/2012
etrailer service and delivery were excellent. Reciever fits to position as instructional videos say. Took me an hour to install - that's what I expected. I ran into difficulty with the space in access holes and spacers at bumper part of mount... had to improvise just a bit. There is a small problem to address with contact with the muffler for my 2011 Traverse, but I'm hoping for an easy adjustment of some kind to give a little bit more room. Thanks e-trailer! 32497
by: Stan Z.07/11/2012
I have a new GMC Acadia 2012. The installation was easy and fast. We (I had a helper) installed the hitch even without lowering the car exhaust. It took around 15 minutes. The only tool needed was 19mm (or 3./4") wrench. Very good product and well made. 47517
by: Nat J02/28/2011
Hitch was very easy to install and fit perfect with most of it not showing. Directions were simple, easy to read and follow. I decided to trim the plastic panel and replace it around the receiver for a more finished look. 8095
by: Jennifer I03/30/2015
So my phone call started out... "I'm a single mom and I have no clue what I need but I know what I want to do...." Nicole got me exactly what would fit for my car and all of the additional accessories to make it work long term. Couldn't be happier - everything arrived exactly as ordered and early!! Terrific company! and whoever Nicole is... she deserves a raise! 181511
by: Ben D06/03/2015
Although I have just installed the product and my first use will be in another week, the ease of installation was exactly what the customer service representative told me it would be. It was pretty easy. She also made great recommendations with regards to the product itself, detailing the construction of the product, manufacturing processes and other details. 200194
Product is well built and fit perfectly for my application on a Chevy Tranverse. The installation video on thier website for the hitch and wiring harness made the installation quick and painless. The items were shipped quickly and arrived as prommised and E trailer communicated all of this through e mails. I would definetly reccommend this product and supplier. 48869
by: Steve A.11/15/2010
A cakewalk The hitch arrived when promised and was a breeze to put on my 2011 traverse. The instructions were easy to read and follow. I was done in less then an hour. The wire that was included to fish the bolts through the frame worked like a charm. The wiring harness went on in 20 minutes. I couldn't be happier. Thanks for selling great products. 3619
by: Carlos C.06/24/2015
I love my new hitch, looks great, was really easy to installed, only took me 30 mins. to do it! I highly recommend this product!! 206860
by: Jose G01/10/2017
It's been a really helpful product because at my work I constantly use my truck to pull a trailer to haul products and when my truck is on the shop I use my Acadia with its hitch ready to pull anything when I needed it's been really helpful all this year , great material easy to install I'm really satisfy with my hitch . 331611
by: Len H11/04/2011
2011 Chevy Traverse LT1 Installation was easy. However, the bolt head was too large for the access holes. Most of the time for installation was used filing the access holes to get the bolts through the frame. I was able to reinstall bumper fascia after installation. Installation took about 45 minutes. 26552
by: Joe F06/08/2016
Solid product, well made and includes all necessary parts. Easy videos to follow online, and an overall pleasant experience with great customer service. Highly recommend. This is my second hitch from eTrailer and I will continue to use them whenever I can. 259193
by: Louie P08/19/2016
etrailer shipping was excellent with updated status for easy tracking. The hitch is well built, installed the hitch and wiring kit with little difficulty and fit perfectly on my 2012 GMC Acadia. I would definitely recommend etrailer. Thank you!! 285657
by: James nickolson03/06/2015
I am very satisfied with every aspect of your company. The timing and efficiency of order and divert was excellent. I will be using your company again in the future. Thank you!!! James Nickolson 177226
I installed this hitch on a 2010 Chevrolet Traverse so that I could mount a bike rack on the car. The hitch went on very easily just as instructions indicated. No issues or problems at all. Total installation time was 20 minutes or so. 248291
by: Butch H.07/26/2016
It said on the instructions that installation would take 30 minutes for professionals and 60 minutes for amateurs. Count me a professional. Simple installation. Good looking hitch. Sorry I don't have pictures because it was so hot today. 276457
Great product. I was able to track it the whole time. It arrived on time and was easy to install. It took a lot less time than it was estimated. The instructions were great and the website is very helpful with installation videos. 52956
Excellent quality, durable This hitch is well made quality. It fit perfectly on my GMC Acadia, installed with little difficulty. I did have to lower the exhaust, but the rubber mounts slipped off easily. You get what you pay for. 1825
I received the item a lot sooner than expected, I have not installed yet, will do this weekend. My previous hitch order I had the same quick delivery and install was a breeze on my sedan vith the on-line video. Thanks Etrailer. 50669
I needed my products quick but 3 days ordered to door step is way more than anyone could ask for. Also the instructional videos are great and easy to understand. Look for me in the future, I will be a repeat customer. 337051
by: greg s.08/13/2015
Paint and welds are really nice on this hitch for 2012 Acadia. It will be great for my atv trailer and also will use for the bike rack. The installation was easy and the matched up nice with mounting holes on the suv 218922
by: Jerry S09/10/2012
Took a little longer than 30 minutes to install, but only because I tried to not disconnect the mufflers from the frame. Fishing the back bolts through the bumper was kind of weird, but was not hard at all. 54166
by: Min A.08/02/2011
Great customer service, fast shipping. updated of status of shippment for easy tracking. Product was excellent, easy and fast installation. i would recommand to everyone to buy from etrailer. Thank you!! 20915
by: Paul M.03/07/2011
I received the tow hitch on time. installed it after work with no problems. the hardware was included with the instructions to both tow hitch and harness. very happy with the purchase. 8730
Fast shipping and great customer service, as I ordered it Friday and received on Tuesday. Looks great installed! 67061
This product was a perfect match for my vehicle. It was easy to install. From the time I ordered this product, to receiving it and installing was about 5 days total. Thanks. 339707
Perfect fit with all the needed hardware. I was able to reinstall the original bumper cover to hide the hitch until it is time to use it. The cover pops off and on easily. 18440
by: Bob B07/22/2015
This fit perfectly on my 2014 Traverse. I did it on the ground and it was very easy. Very good quality. Everything you need comes with it. Very happy with it. 213533
by: Charles P.12/27/2016
Purchased Curt Trailer Hitch and Wiring Harness for my 2011 Chevy Traverse. Good value and was able to install myself. Would definitely recommend. 329770
Great product. Fast shipping! The video of the install was very helpful. I would rather see it done vs. read instructions. Great selling point. 321065
by: Scott S07/13/2012
So simple to install, looks great, super customer service picking out the hitch. I am happy and recomend etrailer to everyone........ 47769
Quick delivery, perfect fit. Only took 12-15 minutes to install. Completely hidden with the hitch off and the plastic cover on. 21038
by: william cantwell02/03/2011
Product was delivered in great time and took approxiamately 25 minutes to install as I did not have to lower the exhaust system. 6620
The product was great and exactly as advertised. Installation was fairly easy as well. Prompt shipping. Highly recommended 248701
by: wally r03/16/2011
Man, this was easy to install. great detail drawing and instructions to install the hitch. It took me 20 mins to install 9514
I recieved it in a very timely manner,and the good thing was it was the right trailer hitch.Thanks for all your help. 25880
2012 Chevy Traverse. quality hitch and the trim door fit back on the truck with a perfect fit after the install. 50538
Great product. As described. Free shipping was fast and the item arrived in perfect condition in a sturdy box. 211754
by: Walter Apelt03/09/2016
As with the earlier note. Quick delivery, great quality and fast installation. Very pleased Thanks W 240360
Needed hitch for my GMC Acadia. This shipped and was received quickly. Installed easily. Very satisfied 80822
by: Rob S.11/04/2016
Product was installed in about 30 minutes. Plan on using it with a utility trailer and a popup camper. 313917
Fast shipping, Great communication. I have been very pleased with everything I ordered from etrailer. 29114
Awesome product !! Went on real easy and everything worked great ! Can't wait to get the boat out !! 178285
