FITS 2016 Ford F-150
Curt Trailer Hitch Receiver - Custom Fit - Class III - 2"

Curt Trailer Hitch Receiver - Custom Fit - Class III - 2"

Item # C13118

lowest price pledge

Retail:$204.61

Our Price: $126.95

You Save: $77.66
Trailer Hitch
Confirmed to Fit
2016 Ford F-150

without factory hitch

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

This item qualifies for Free Shipping

Shipping Weight: 39 lbs

Quantity:
In Stock, Ships Today
Trailer Hitch C13118 - 900 lbs TW - Curt
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed

Customer Photos

Videos


  • Curt
  • Class III
  • 2 Inch Hitch
  • 6000 lbs GTW
  • 900 lbs TW
  • Custom Fit Hitch
  • Concealed Cross Tube
  • 10000 lbs WD GTW
  • 1000 lbs WD TW
Curt trailer hitch for your 2016 Ford F-150 are available from etrailer.com. Installation instructions and reviews for your Ford trailer hitch. Expert service, and cheapest trailer hitch price guarantee. etrailer.com carries a complete line of Curt products. Order your Curt Trailer Hitch Receiver - Custom Fit - Class III - 2" part number C13118 online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (126)
  • Q & A (25)
  • Videos (1)
  • Photos
  • Why etrailer?

2016 Ford F-150 - Curt Trailer Hitch Receiver - Custom Fit - Class III - 2"

This fully welded trailer hitch receiver bolts onto your Ford F-150's frame with no welding required. Powder coated steel is sturdy and corrosion resistant.


Features:

  • Custom fit is designed specifically for your Ford F-150
  • Precision, robotic welding maximizes strength and improves fit
  • Bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Gloss black powder coat finish over protective base coat offers superior rust resistance
  • Sturdy, square-tube design
  • Ball mount, pin and clip sold separately
  • Made in the USA


Specs:

  • Receiver opening: 2" x 2"
  • Rating: Class III
    • Maximum gross trailer weight: 6,000 lbs
      • Maximum GTW when used with weight distribution: 10,000 lbs
    • Maximum tongue weight: 900 lbs
      • Maximum TW when used with weight distribution: 1,000 lbs
  • Limited lifetime warranty


etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.



13118 Curt Class 3 Trailer Hitch Receiver



C13118 Installation InstructionsInstallation Details C13118 Installation instructions
Weight Carrying Capacity
Gross Towing Weight (GTW):
6,000 lbs.

Tongue Weight (TW):
900 lbs.


Weight Distribution Capacity
Gross Towing Weight (GTW):
10,000 lbs.

Tongue Weight (TW):
1,000 lbs.



No drilling required Manufacturer Estimated Installation Time

Tech Tip

No drilling required for installation , Spare tire will need to be lowered or removed temporarily for hitch installation

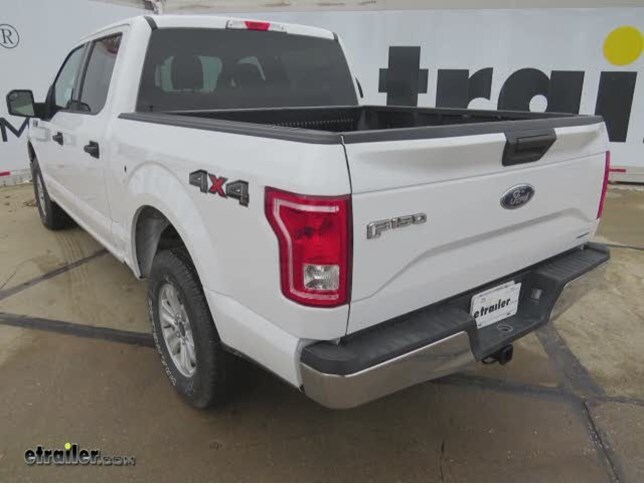

Video of Curt Trailer Hitch Receiver - Custom Fit - Class III - 2"


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Trailer Hitch Installation - 2016 Ford F-150 - Curt

Today on our 2016 Ford F150 we're going to take a look at and show you how to install the Curt Custom Fit Class 3 Trailer Hitch Receiver. This is part number C13118. Here's what our hitch looks like installed. As you can see it's going to be recessed just slightly under our bumper. We won't have to worry about hitting our legs or anything. This is definitely a more hidden hitch than what I've seen on some of the other ones.

Some of the other ones tend to hand down a little bit further here with the tube, whereas this one's kind of tucked up and in. Gives this a nice clean look from the back. We're really only going to see our bracket, that comes down here holding our receiver tube opening, our safety chain connection points, and maybe a little bit of that tube. Got a 5/8 diameter pin hole. That's going to work for securing all of our items into our hitch. Plenty of room on each side for whatever of the class 3 accessories you'd like to use, whether it's just a standard pin and clip or an anti rattle device or something like that.

You can see this offers the rolled steel safety chain connection points. Plenty big opening there. I don't think getting safety chains and stuff like that connected is going to be an issue at all. We've got out 2 inch by 2 inch receiver tube opening here. Now this is going to give us a tongue weight rating of 900 pounds and a gross trailer weight rating of 6,000 pounds. If we go to a weight distribution set up, tongue weight's going to go up to 1,000 pounds and our gross trailer weight rating is going to go up to 10,000 pounds.

We just want to be sure to look in the owner's manual of the F150 and see what it's rated at and we'll go off of whichever of those numbers are going to be the lowest. A few measurements that you're going to find helpful in selecting your ball mount, bike rack, or hitch cargo carrier, will be from the ground to the inside top edge of a receiver tube opening, so about 20-1/4 inches. Then from the center of our hitch pin hold to the outer most edge of our bumper we've got about 3-1/4. Now the first thing we're going to want to do is get these spare tire down and out of the way. In your application, you're probably just going to loosen it up. Today we're going to remove ours completely. Here you can see a ground stud.

We want to remove that temporarily. That's going to uncover one of our mounting locations. Now that screw we're going to give that back to the customer or you want to hang on to it. There will be a replacement that comes with our hardware kit. Then we want our U shaped spacer to go right there over our hole. Let's use a little bit of tape, hold it in place right there. Now let's go do the same thing over on the driver side, with the exception we won't have the ground stud to deal with. Now we can slide one of our pool wires through our spacer. You see it's going to come out right down here on the bottom side of the frame rail. What we'll do is place on one of our spacer blocks. We can thread on one of our carriage bolts here. Take your spacer up in the frame. While it's still in the frame there we're able to just get the bolt where it comes through our spacer. We'll go over to the passenger side and do the same thing there. Now for our forward attachment point, we're going to have a large hole and two smaller holes. We're going to use the smaller of the holes. Just like before, we'll go through that hole. We can go out the access hole. Just like before, one of our spacers will go over and we'll thread in our carriage bolt. Our spacer goes in, then our bolt. Just like before, we want to pull that bolt through the spacer. That way when we have it inside we'll have our hitch up here, it'll put out pretty easily for us. One thing that we want to remember on this side and on the driver side for our forward mounting location . you need to have an additional spacer block between the hitch and the frame to space that out. Definitely keep that in mind as we're getting ready to put our hitch into position we want that spacer to be there. Now we're going to take our fish wires from the outside of the hitch toward the inside. It's a good idea to have an extra set of hands to try to help you get it up into position. Once we've got them both pulled through we just kind of allow it to rest there. We'll take our provided flange nut and just get those threaded down onto our bolts. We'll go over and do the same thing on the other side. Let's go ahead and snug down our hardware. Then we can look in the instructions and find our torch specifications and get all four of our bolts torched down properly. Now we'll take our ground and we want to flatten out that tip that sticks off of it there. We'll thread that bolt right back in the original mounting location. We're using the new bolt. It's going to be a little bit longer than the factory bolt and we'll just snug it on down. With our spare tire back in place that completes today's installation of the Curt Custom Fit Class 3 Trailer Hitch Receiver, part number C13118, on our 2016 Ford F150.
