FITS 2016 Ford F-150
Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"

Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"

Item # 75216

lowest price pledge

Retail:$307.67

Our Price: $175.21

You Save: $132.46
Trailer Hitch
Confirmed to Fit
2016 Ford F-150

without factory hitch

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

This item qualifies for Free Shipping

Shipping Weight: 58 lbs

Quantity:
In Stock, Ships Today
75216 - Class III Draw-Tite Trailer Hitch
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed

Videos


  • Draw-Tite
  • Class III
  • 2 Inch Hitch
  • 6000 lbs GTW
  • 900 lbs TW
  • Custom Fit Hitch
  • Visible Cross Tube
  • 12000 lbs WD GTW
  • 1200 lbs WD TW
Draw-Tite trailer hitch for your 2016 Ford F-150 are available from etrailer.com. Installation instructions and reviews for your Ford trailer hitch. Expert service, and cheapest trailer hitch price guarantee. etrailer.com carries a complete line of Draw-Tite products. Order your Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2" part number 75216 online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (2)
  • Q & A (3)
  • Videos (1)
  • Photos
  • Why etrailer?

2016 Ford F-150 - Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"

Fully welded Ford F-150 trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.


Features:

  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your vehicle
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Tested Tough - safety and reliability criteria exceed industry standards
  • Easy, bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Black powder coat finish covers e-coat base for superior rust protection
  • Stylish, round-tube design
  • Ball mount, pin and clip sold separately


Specs:

  • Receiver opening: 2" x 2"
  • Rating: Class III
    • Maximum gross trailer weight: 6,000 lbs
      • Maximum GTW when used with weight distribution: 12,000 lbs
    • Maximum tongue weight: 900 lbs
      • Maximum TW when used with weight distribution: 1,200 lbs
  • Limited lifetime warranty


Draw-Tite Tested Tough

Draw-Tite Tested Tough

Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.



Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.


In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.


etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.



75216 Draw-Tite Class 3 Trailer Hitch Receiver - Max-Frame

87685 Hidden Hitch Class 3 Trailer Hitch Receiver

Replaces 75910



75216 Installation InstructionsInstallation Details 75216 Installation instructions
Weight Carrying Capacity
Gross Towing Weight (GTW):
6,000 lbs.

Tongue Weight (TW):
900 lbs.


Weight Distribution Capacity
Gross Towing Weight (GTW):
12,000 lbs.

Tongue Weight (TW):
1,200 lbs.



No drilling required Manufacturer Estimated Installation Time

Tech Tip

Hitch requires a factory step bumper. No drilling required for installation , Spare tire will need to be lowered or removed temporarily for hitch installation , Installation requires OEM factory bumper and brackets




California residents: click here

Video of Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2"


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

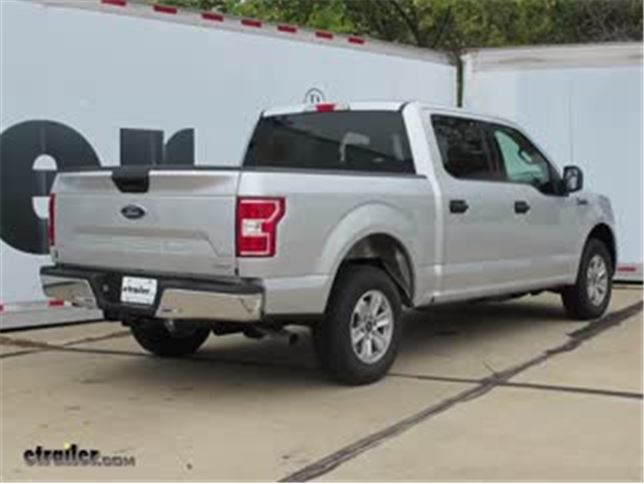

Video Transcript for Draw-Tite Max-Frame Trailer Hitch Installation - 2018 Ford F-150

Speaker 1: Today on our 2018 Ford F-150, we're gonna take a look at and show you how to install the Draw-Tite Max-Frame custom fit class III trailer hitch receiver, offering the two inch by two inch receiver tube opening. It's part number is 75216.Here's what your hitch is gonna look like installed. As you can see, it sits just inside the edge of the bumper there, gives you a really nice, clean look. Gonna have the rounded cross tube that's gonna come to both side plates that are gonna go up and make connection with our frame. Also, a few connection points in behind the bumper.Now this is a class III hitch, so you can see we've got the two inch by two inch receiver tube opening. Makes it very, very versatile, especially with the ball mounts and things like that.

There's many different rises and drops available. You want to be sure you choose one of those that's rated for class III, but there are also other tons of other class III accessories out there on the market.Now, to secure those items in place, you always want to use that forward pin hole location. It's gonna be slightly larger. It's five eighths of an inch in diameter, so there's gonna be plenty of room there, so whatever type of anti-rattle bolt, locking hitch pin, or just regular pin and clip you choose, should work out fine. Now, one type of anti-rattle device that's available is the J pin stabilization system.

That's the only time we're gonna use that smaller hole closer to the rear, and that's just made to kind of lock your item in place and prevent it from wiggling around.Now, as far as safety chains go, you'll see we've got a plate style connection point here with a nice, large hole. So, your smaller utility type chain should work out well with no real issues getting them on and off, and also even if you go to the larger clevis style hooks and stuff like that, gonna be able to connect them without any problem.You can see our truck's equipped with the four pole plug here. Not a lot of interference with the hitch and the four pole, so that would still be usable. However, if you decide to upgrade that four pole to a seven pole, they do have a bracket right here that'll make it easy to mount that in place. Three pre drilled holes there will accept the bracket and hold your seven pole, and then you can have the best of both worlds, have your seven pole and four pole available for use.Now, as far as weight ratings on our hitch go, we're gonna have a 900 pound tongue weight rating, that's the maximum downward force we can put here at the receiver tube opening.

And if offers a 6,000 pound gross trailer weight rating. That would be total weight of your trailer and anything you we're to load up on it. It is also rated for use with weight distribution, so if you use inaudible 00:02:16 bars, spring bar setups, something like that, the tongue weight rating's gonna go up to 1,200 pounds. Gross trailer weigh rating is gonna go up to 12,000 pounds. That definitely makes this the ideal Draw-Tite hitch for use with weight distribution.

Of course, you will want to check your owner's manual on your F-150 to see what its tow rating is, and not exceed that.Now, a couple of measurements you're gonna find helpful in selecting your ball mount, bike rack, or hitch cargo carrier. Will be from the ground to the inside top edge of our receiver tube opening, we're gonna have about 19 and a half inches. Then from the center of our hitch pin hole to the outermost edge of our bumper, it's about two and a half.Now, to begin the installation, you may want to loosen or remove your spare tire. That's gonna be up to you. But it can provide better access to some of the hardware and getting it in place.We're gonna have on each side of the vehicle three attachment points, and they're gonna be exactly the same. The lower attachment point is gonna be right down through the center of this large hole. You're gonna use a carriage bolt and a spacer block, and that's gonna sit right on top. And they do provide pull wires for you, to help you get this in position. As you can see, it's fairly open. And usually you can do it just by hand. We'll want to position it so our block rests on top and our bolt comes down through, and we're gonna do that on both sides.Now the two other attachment points we're gonna on each side are gonna be right on the backside of the bumper. They're gonna be the bolts that the flange nuts are on that hold the bumper in place. Again, we're gonna have two of these on each side of the vehicle, and before loosening these, our hitch sits in behind them, we really need to support our bumper. So, I'm gonna do a cam buckle strap here on my bracket and then we'll run this forward and connect it on the frame. Now, what we want the straps to do are to pull inward on the bumper while we take those nuts off. That'll allow us to put our hitch in place, and put our nuts back on. We're also gonna support it from underneath with a jack stand to keep it from rolling down and away from the truck.Now, for the two nuts, you're gonna need a 21 millimeter socket, and we'll begin to loosen them up. Once we have them removed, we're gonna hang onto them. We're gonna be reusing them for our hitch. I'm gonna head to the passenger's side and do the same thing there.Now we need to pull our jack stand down so we have room for our hitch to come through. As you do that, you definitely want to make sure you have plenty of support and just watch that bumper and make sure it's not rolling out or coming off the truck, and then we can get our hitch put up in position and our nuts reattached.Now, our hitch is also gonna use two forward attachment points on our frame rail. We've got a hole located right here on the outside of the frame rail, it's gonna be right here, and then if we go straight back, there's another hole right here. We're gonna be using the lower hole. You see there's two together there, we're gonna be using the lower here, and the lower here.Now, to get our hardware in place, we can use our pull wire. We want to go through the hole. We want the bolt to come through, and then we'll guide it back. We're gonna come out the larger hole right here on the side of the frame. Place on one of our spacer blocks, thread on one of our carriage bolts, get that thread in frame, and we'll just gently pull through. We'll just gently pull on that wire, and see our bolt will come through the frame rail. Once it gets engaged in that spacer block, we just want to let it rest back in the frame. We'll do that same thing for the one closer to the rear of the truck. Then we're gonna go to the passenger's side, and we'll do the same thing there.Now, with the help of an extra set of hands, we're gonna get our hitch lifted up into position. The side plates need to go between the spring and the frame here, and we'll bring our pull wires through those brackets from the indie towards the outside. Now, once we have the back of the hitch plate here on our bumper bolts, it's a good idea to put one of your nuts on there. That'll just keep everything held in place. And we'll come to our forward attachment points. I'm gonna start pulling on the pull wire, and we'll get that pulled right through the hole. Now we can put our conical tooth washer. You can see the teeth we want facing up towards the hitch, and our hex nut on all three of our carriage bolts on both sides. Got these and the ones up here. Let's get our other flange nut put on there.Now we're ready to go through. We're gonna snug down all of our hardware. We'll use the 21 again for the bumper nuts, and then for our carriage bolts, we're gonna use a 19 or three quarter inch.Now if you'll look in the instructions, you're gonna find the torque specifications. You want to go through and torque all of our fasteners down to be the appropriate specification.Now we'll get our straps pulled down. If you removed the spare tire, just get that put back up in place, and after that, the hitch is gonna be ready for use.With everything torqued down properly and back in place, that's gonna completely our installation of the Draw-Tite Max-Frame custom fit class III trailer hitch receiver, part number 75216 on our 2018 Ford F-150.


Customer Reviews

Draw-Tite Max-Frame Trailer Hitch Receiver - Custom Fit - Class III - 2" - 75216

Average Customer Rating:  5.0 out of 5 stars   (2 Customer Reviews)

Fully welded vehicle trailer hitch is strong and durable. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.

- 75216
by:

Always great service. Parts are always perfect 476043



- 75216
by:
2017 Ford F-150

Perfect every time. This company is Great to deal with and does business the Right Way !!! 470220


2
2

Ask the Experts about this Draw-Tite Trailer Hitch
Do you have a question about this Trailer Hitch?


  • Recommended Way to Carry a Kayak for a Ford F-150
  • As long as you have a 2 inch receiver on your 2016 Ford F-150, I recommend the Thule Goalpost # TH997. This is one of our better options for kayak carriers and installs directly into your hitch. In addition to this carrier I recommend using a roof rack to secure your kayak to the roof of your truck instead of the foam blocks. If you have the SuperCrew Cab, the Rhino Rack Aero Bar Roof Rack kit is a great option. This include the Crossbars # RRVA150S-2, the Legs # RRRLKVA, and the Fit...
    view full answer...

  • What is the Difference Between Draw-Tite Trailer Hitches 75938 and 75216 for a 2016 Ford F-150
  • Draw-Tite trailer hitches # 75216 and # 75938 for the 2016 Ford F-150 have a few differences. Hitch # 75216 has additional attachment points and different mounting flanges than # 75938. The capacities are the same unless weight distribution is used. If weight distribution is used hitch # 75216 is rated for 1,200 pounds tongue weight and 12,000 pounds gross trailer weight. On the other hand # 75938 is rated for 800 pounds tongue weight and 8,000 pounds gross trailer weight when weight...
    view full answer...

  • Installation Hardware Needed for Installing the Draw-Tite # 75216 on a Ford F-150
  • If you are needing the entire trailer hitch and hardware then the part number on our site that you are looking for is part # 75216 which is compatible with the following vehicles: 2015 - 2018 Ford F-150 without factory hitch 2017 - 2018 Ford F-150 Raptor without factory hitch For just the hardware to mount the trailer hitch to your F-150 you would just need the part # RHK. If you already have the trailer hitch then just go to this product page and select "Draw-Tite" from the drop-down...
    view full answer...
