Hidden Hitch Trailer Hitch for the 2006 Ford Escape

Hidden Hitch Trailer Hitch

(7 reviews)


Code:   90108

Retail:$255.47

Price:$173.95


Shipping Special

Shipping Weight: 31.91 pounds

Quantity:






Hidden Hitch Trailer Hitch Receiver with Drawbar - Custom Fit - Class II - 1-1/4" - 2006 Ford Escape

Specially designed for light-duty applications, this fully welded Ford Escape trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance. Drawbar, pin and clip included.

Features:

  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your Ford Escape
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Easy, bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Black powder coat finish covers e-coat base for superior rust protection
  • Sturdy, square-tube design
  • Drawbar, pin and clip included


Specs:

  • Receiver opening: 1-1/4" x 1-1/4"
  • Rating: Class II
    • Maximum gross trailer weight: 3,500 lbs
    • Maximum tongue weight: 300 lbs
  • Limited lifetime warranty


Image of Ford Escape exhaust with vibration dampener

Some Escape models beginning with the 2010 model year have a vibration dampener installed on the tailpipe which interferes with the installation of this hitch. The dampener can be removed and left off or welded onto the other side of the exhaust pipe.



Image of Ford Escape exhaust with vibration dampener

etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.



90108 Hidden Hitch Class 2 Trailer Hitch Receiver





Video of Hidden Hitch Trailer Hitch Receiver with Drawbar - Custom Fit - Class II - 1-1/4"


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video install trailer hitch 2011 ford escape 90108
Trailer Hitch Installation - 2011 Ford Escape - Hidden Hitch
Video install trailer hitch 2009 ford escape 90108
Trailer Hitch Installation - 2009 Ford Escape - Hidden Hitch
Video install trailer hitch 2008 ford escape 90108
Trailer Hitch Installation - 2008 Ford Escape - Hidden Hitch
Video install trailer hitch 2005 ford escape 90108
Trailer Hitch Installation - 2005 Ford Escape - Hidden Hitch
Video install trailer hitch 2005 mazda tribute 90108
Trailer Hitch Installation - 2005 Mazda Tribute - Hidden Hitch

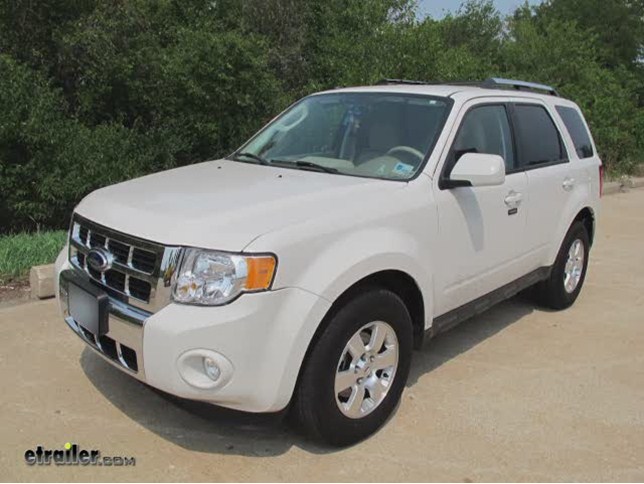

Video Transcript for Trailer Hitch Installation - 2011 Ford Escape - Hidden Hitch

Today on this 2011 Ford Escape were going to install part number 90108 from Hidden Hitch. This is what the hitch looks like when its installed on vehicle. Next well go ahead and give you some measurements to help you out in selecting some accessories, such as a bike rack or a cargo carrier. From the top of the receiver opening down to the ground will be 17 inches, and from the center of the hitch pin hole to the edge of the bumper will be one inch. Now Ill go ahead and show you how the hitch is installed. The first thing were going to do is go ahead and install our hardware into the frame of the vehicle.

Well be looking at the drivers side, and this will be repeated exactly the same way on the passengers side. Well start off by running a bolt leader into the existing hole on the side of the frame. Theres two of theme. Well run it out the access hole through the end of the frame. Well install our block and our half inch carriage bolt and run it through the frame and pull it out.

Our kit only comes with two wire pulls, so were going to use an additional two more for the other side, and that will be part number 80101-1. Once we have all our hardware installed on the frame we can go ahead and lift the hitch in position. As we lift it up well take the wire pulls and pull them through the holes in the hitch. Once the hitch is in place well pull our bolts through and then attach our hardware. Now when we install the rest of the hardware were going to install a conical tooth washer, and make sure that the teeth on the washer go toward the hitch, and then well install the nut behind it.

Well leave all our hardware loose until all the hardware is installed. With all our hardware installed, we can go ahead and tighten the bolts down, and the torque them down as specified in the instructions. With that, that will finish it for our install of part number 90108 from Hidden Hitch on our 2011 Ford Escape.









Customer Reviews

Hidden Hitch Trailer Hitch Receiver with Drawbar - Custom Fit - Class II - 1-1/4" - 90108

Average Customer Rating:  5.0 out of 5 stars   (7 Customer Reviews)

Specially designed for light-duty applications, this fully welded vehicle trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance. Drawbar, pin and clip included.


- 90108

by: Cap n Rick06/23/2013


2011 Escape Bike hitch and wiring harness. Videos were extremely helpful. Installed yesterday after a week in bed with a virus. It helps when your neighbor has a body shop (tools) and can come haul you out from under the car if he doesn't see any movement in 15 min. Have some extra wire ties handy and you will be ok. I put two coats of etching primer and 2 more coats of white automotive enamel on my hitch so it would match my body paint. If you are working by yourself , do the front two bolts first , lift the hitch ( w/ draw bar in) up on a bucket with some shims until the back holes line up then cinch them up. This is my second e-trailer hitch I,ve done, won't go anywhere else. 85618





Comments

The hitch has been everything I expected. I have used it mainly as a bike hauler and for a cargo rack. I painted mine white to match the Ford Escape and I have a problem where the safety chains attach. They scrape all the paint off showing the black, but a little touch up once in awhile solves the problem. I just dont like to see rust stains forming around the welds. I would buy this product again.

Cap n - 06/24/2014

5056

- 90108

by: Frank P04/20/2013


This is a nice hitch, planning on using it for a bike rack and a little come-behind trailer. My ordering experience was excellent: shortly after the initial order, I realized I needed to change something. Called and it was taken care of quickly and easily. Great customer service! It also shipped and arrived quickly. Installation was also straightforward on my 2010 Escape. It took me slightly over an hour. You will want a second pair of hands to lift and hold while youre fitting the bolts if youre solo, Id suggest planning out your propping method because the hitch is fairly heavy. The fish wires work very well. However, the bolt head would not fit through the access hole on my Escape. Once I realized I could put it through head-first and then it would reverse itself while in the shaft, it was good. Also I needed a 3/4 socket not 7/8 as the instructions said. But hey, its done and looks good. Cant wait to tow something! 77022






- 90108

by: Bob M09/04/2013


Yes, I received the hitch a few days ago, and actually, I just had it installed this morning by my mechanic. So far, it's working great. I've attached two pictures. I appreciate the quality product and great customer service. Have a good day! 98130






- 90108

by: lloyd forrer08/13/2011


very happy both hitches were good quality and everthing i needed to install was part of the package. they fit nicely, only thing was i wish i would have got 2 of the hidden hitch plugs instead of 1 i think it looks nice in the kia soul, but no big deal. overall excellent service, excellent fast shipping, and excellent product. thanks lloyd 21801






- 90108

by: LarryK05/16/2011


Great Experience. My son and I had it installed on my 2010 Escape Hybrid in 20 minutes and that included looking for the right socket for the torque wrench. Ordering was easy and delivery quick. Just in time to put my new hitch and wire to work. Thank you 14229






- 90108

by: Gary B10/23/2013


A one half hour install by myself thanks to the great video! My only problem was that I didn't have a deep socket for my torque wrench but got by with the closest metric size. Delivery was one day earlier than projected too. 104880






- 90108

by: mark keohane08/22/2011


thanks for the hitch. item just as described. fairly easy to install. this is for a bike rack and should work just fine. 22536




8
8


Ask the Experts about this Hidden Hitch Trailer Hitch
Do you have a question about this Trailer Hitch?


  • Can a Trailer Hitch be Installed on a 2011 Ford Escape with Exhaust Vibration Dampener
  • If your 2011 Ford Escape does have a vibration dampener, it will need to be removed for hitch installation of # 90108. The dampener can be left off or relocated by welding it to the other side of the exhaust pipe. The name Hidden Hitch is the brand. It does not necessarily indicate if the hitch is in fact hidden or not. If you look at the instructions I have linked, you will see a drawing of what the hitch looks like once installed. You will see that the center of the hitch pin hole...
    view full answer...

  • Trailer Hitch Recommendations for a 2011 Ford Escape with Vibration Damper on Exhaust
  • Yes, I do have a recommendation for you. This question has come up before and we contacted hitch manufacturers to determine fit. The Hidden Hitch trailer hitch # 87626, Curt hitch # 13650, and Draw-Tite hitch # 75751 will all fit your 2011 Ford Escape with the vibration damper on the exhaust. Out of these the most popular is the Hidden Hitch. I have included a link to the installation instructions. If you plan on doing some towing, I recommend the etrailer ball mount kit # 989900. It...
    view full answer...

  • Will Hidden Hitch # 90155 Fit a 2011 Ford Escape Without Any Modifications
  • I spoke with my contact at Hidden Hitch and he said the Hidden Hitch # 90155 is no longer available. It is a Class II 1-1/4 inch hitch. He said it will fit the 2011 Ford Escape with no modifications. Part number # 90155 was discontinued because of fitment issues with the newer Mercury Mariners. Hitch part numbers that are now available to fit the 2011 Ford Escape include the Hidden Hitch Class II 1-1/4 Inch Hitch, part # 90108 and the Curt Trailer Hitch Receiver with Drawbar Class II...
    view full answer...

  • Hitch Comparisons for a 2009 Ford Escape Limited 4wd
  • The main difference between these two hitches is that the Draw-Tite Hitch, part # 36501, does not include a ball mount pin and clip, whereas the Hidden Hitch does. Both of these hitches are so similar that they share the same instructions, and include or recommend the same ball mounts, Draw-Tite Ball Mount, part # 36051, and trailer wiring kits, Draw-Tite Custom Fit Wiring kit, part # 118251. I attached installation instructions to the # 90108 and the # 118251, as well as attached a...
    view full answer...

  • Can the Spare Tire on a 2011 Ford Escape be Retained with a Hidden Hitch 90108 Installed
  • I spoke to my contact at Hidden Hitch and he told me that there are no restrictions for the Hidden Hitch # 90108 that would prevent you from being able to retain your OEM spare. Basically, as long as your spare is the original factory spare that came with the vehicle the # 90108 would not interfere at all. I attached an installation video and instructions for you to check out also.
    view full answer...

  • Trailer Hitch and Transmission Cooler Recommendations for 2009 Ford Escape V6 Towing Boat Trailer
  • All of the trailer hitches we offer for your 2009 Ford Escape V6, whether a 1-1/4-inch Class II or a 2-inch Class III type, share a 3500-lb towing capacity. All can be seen on the link at right, including the 2-inch Class III type Curt # 13650. The linked article explains the various hitch classes and their capacities, for your reference. My online research on the Ford Towing Guide website does indicate that the non-hybrid V6 Escape can have up to a 3500-lb towing capacity. You can check...
    view full answer...


Do you have a question about this Trailer Hitch?



Ford Escape Accessories




Weight Carrying Capacity
Gross Towing Weight (GTW):
3,500 lbs.

Tongue Weight (TW):
300 lbs.


Weight Distribution Capacity
Hitch does not allow
use of weight distribution


Trailer Hitch Installation Instructions 90108 Installation instructions 90108 Installation Instructions

Tech Tip
May be necessary to drill one access hole in frame. Vehicles using the 40455 wiring may need to see a local Ford dealer for a relay. The relay is needed to activate the tow package wiring circuit.Drilling required for installation,Fits Hybrid models as well,,

Manufacturer Estimated Installation Time



Recommended Wiring:
Hidden Hitch 118426
118426

Hidden Hitch 40455
With Tow Package Use:40455

Recommended Balls:

1-7/8" hitch ball - 19256


2" hitch ball -19258

If you have any questions you can contact our customer service department.
