Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4"
Draw-Tite

Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4"

Part Number: 24756
In Stock
$207.29
Retail:$327.59
You Save: $120.30
Trailer Hitch

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

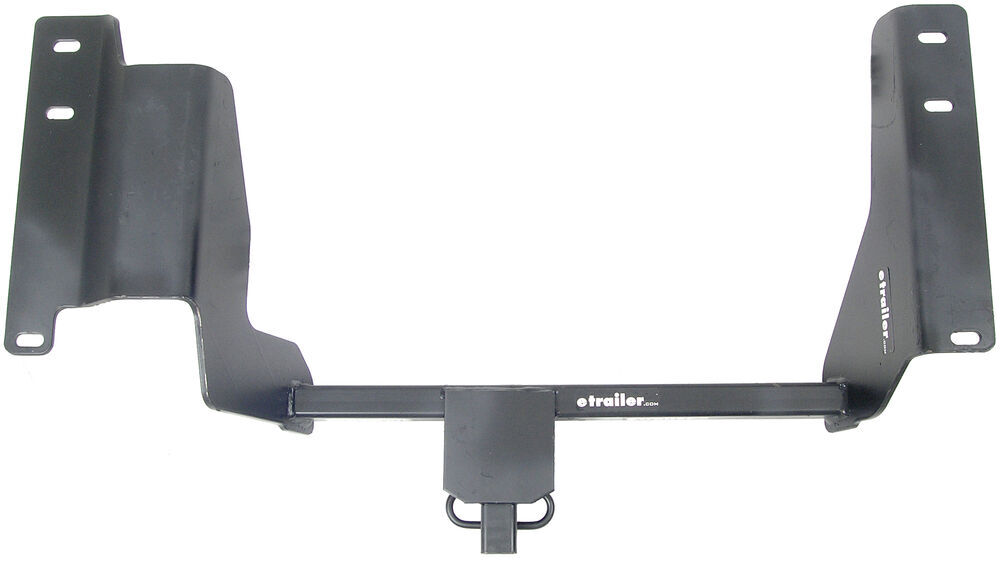

Product Images

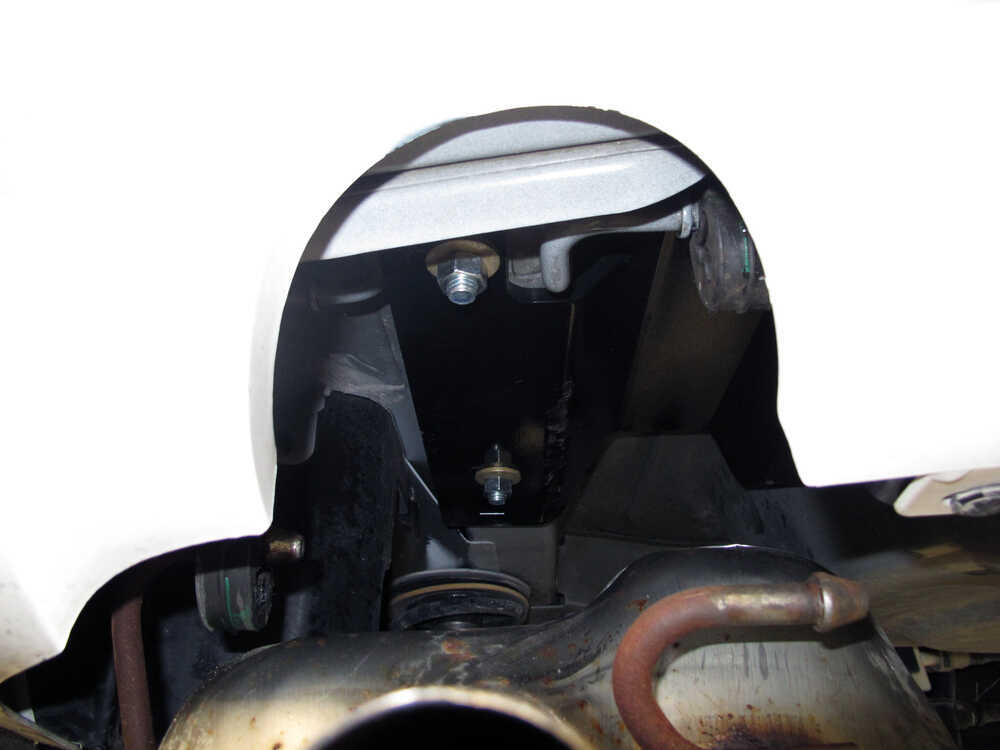

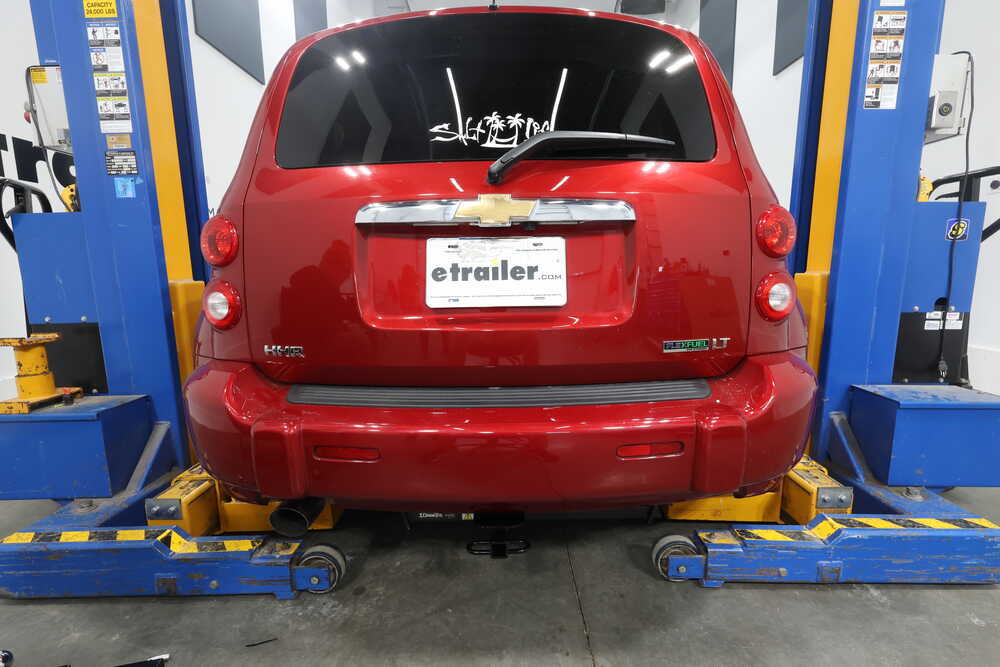

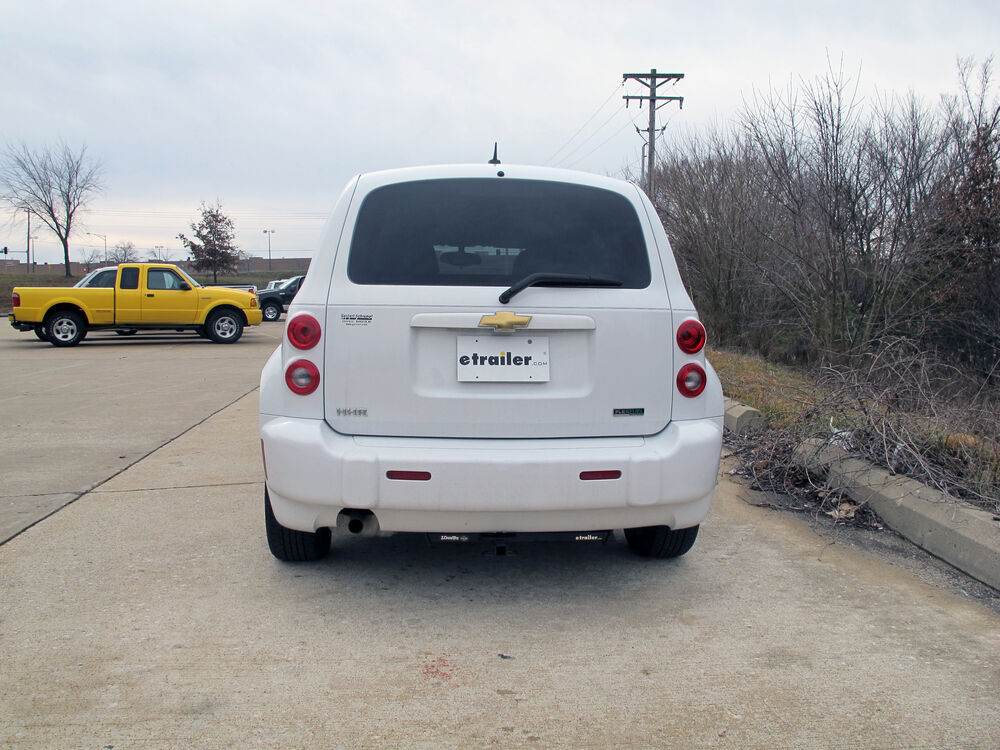

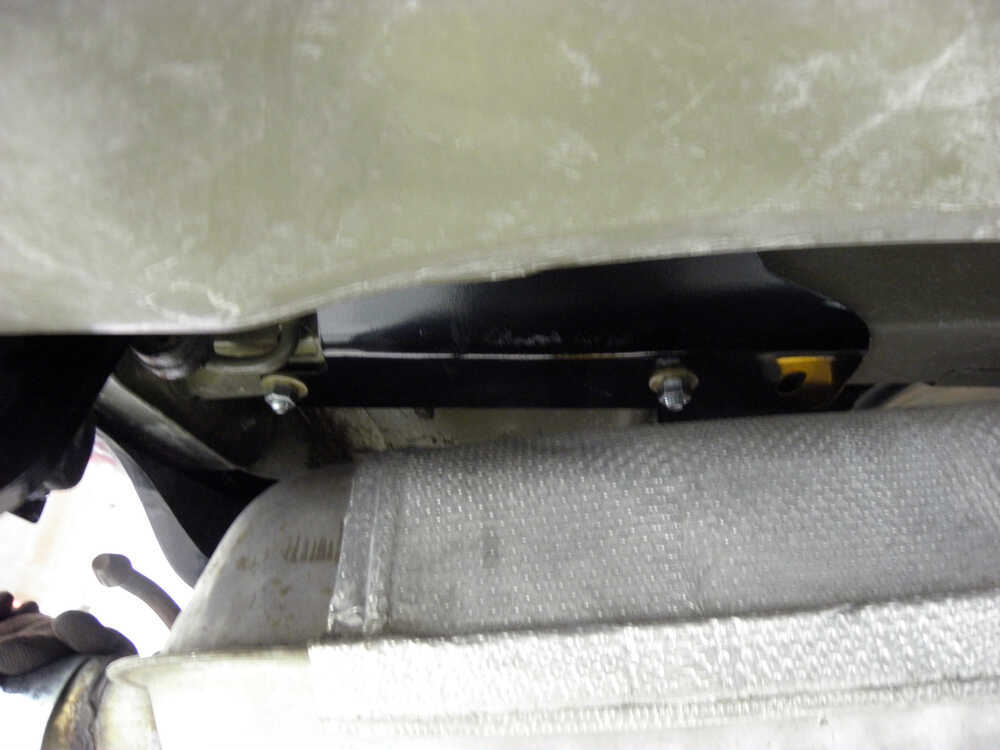

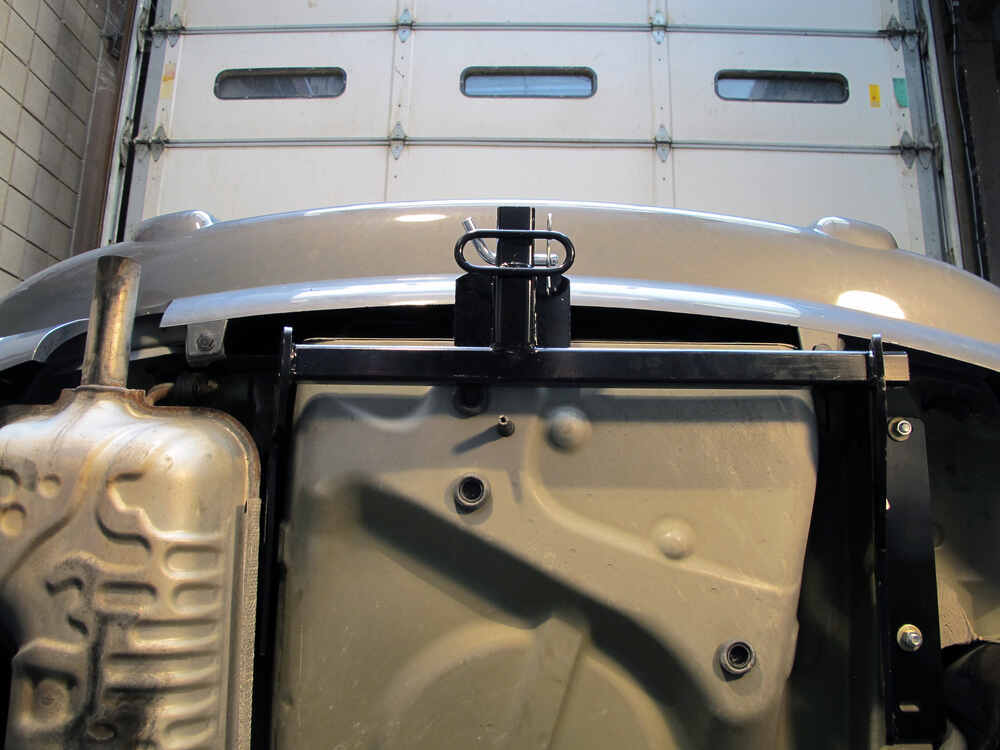

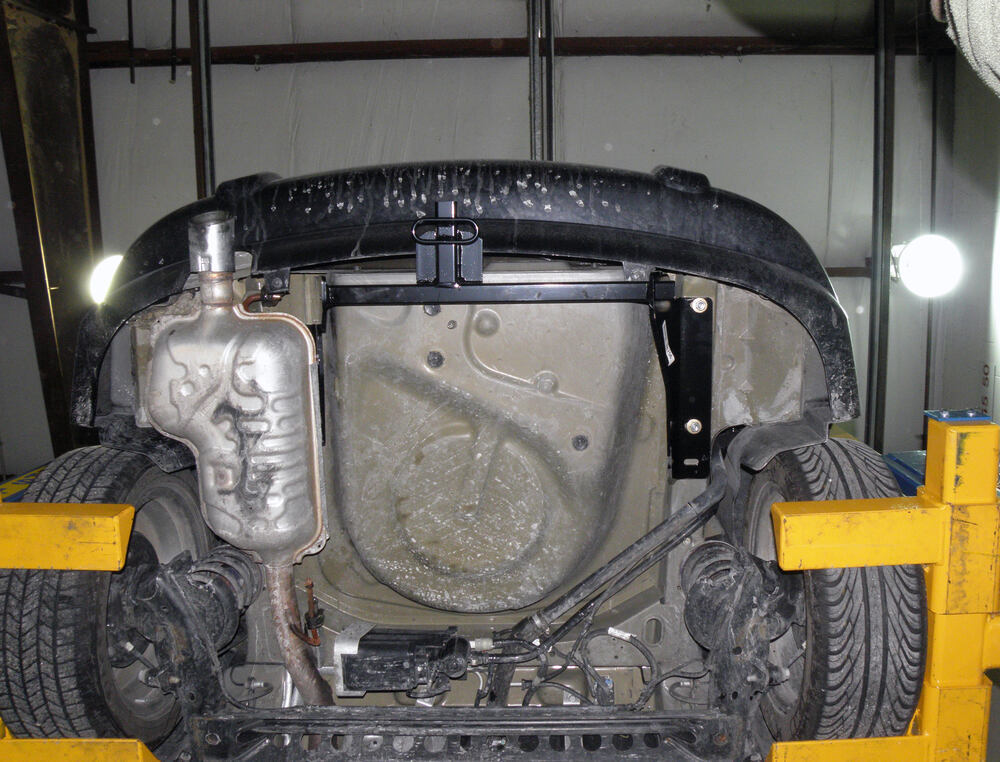

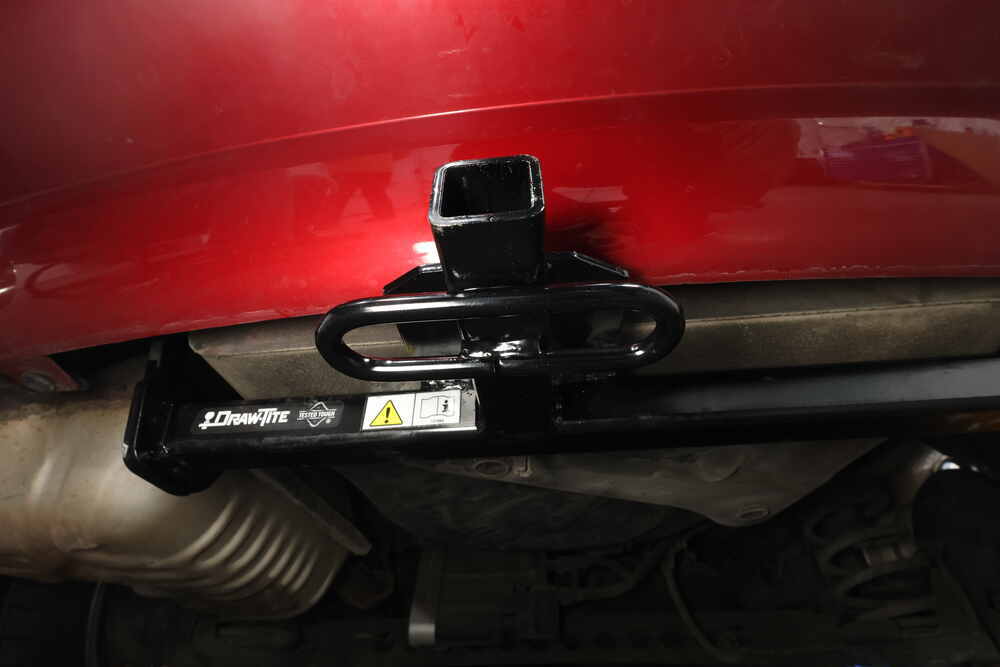

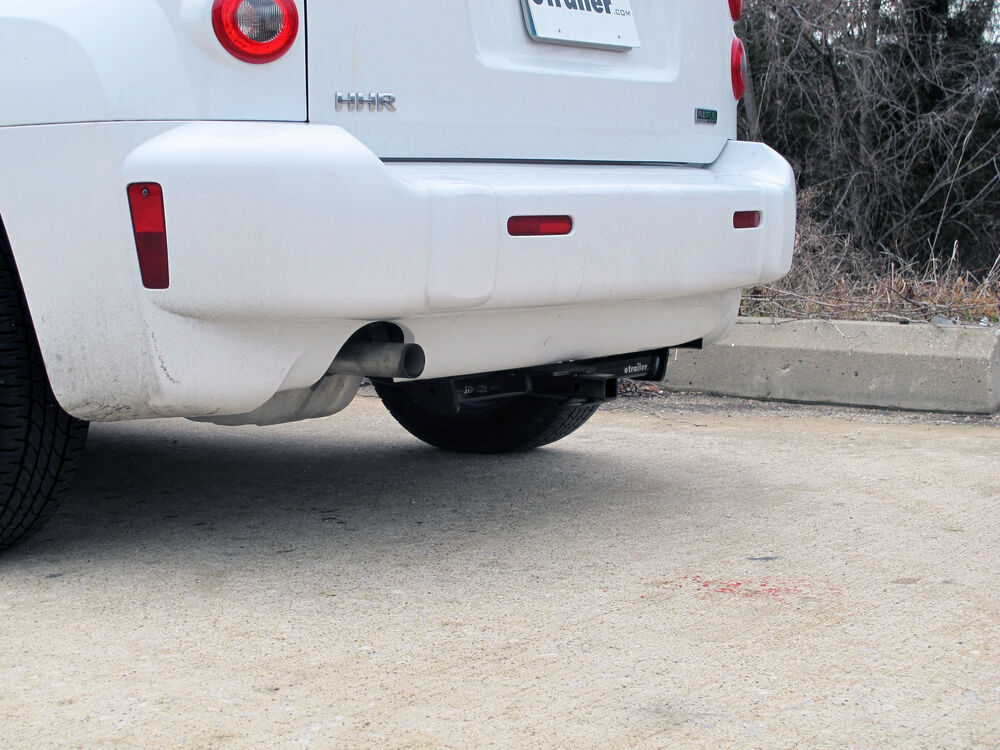

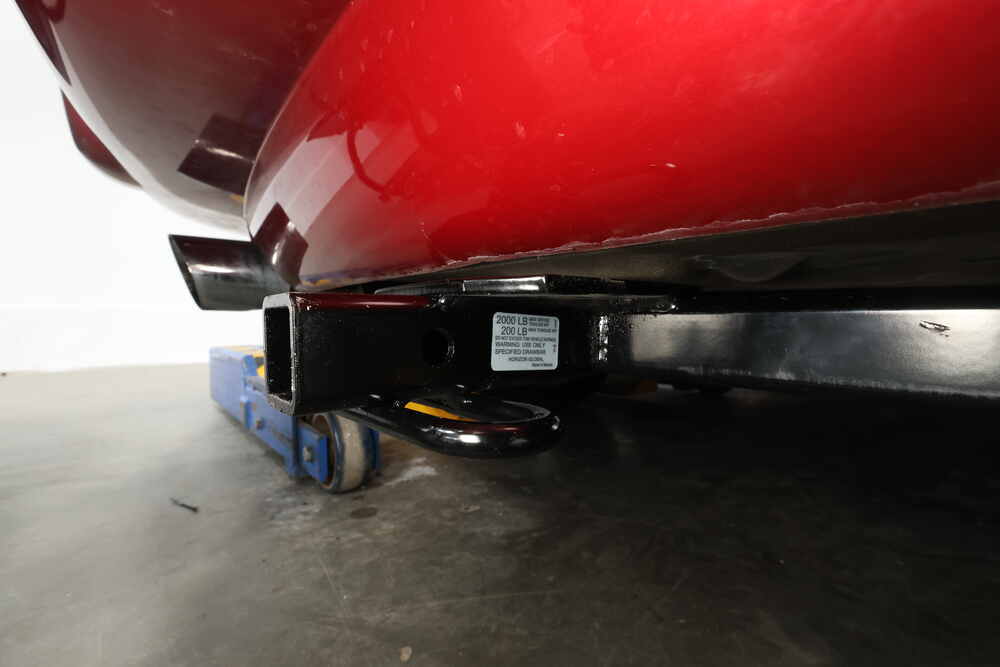

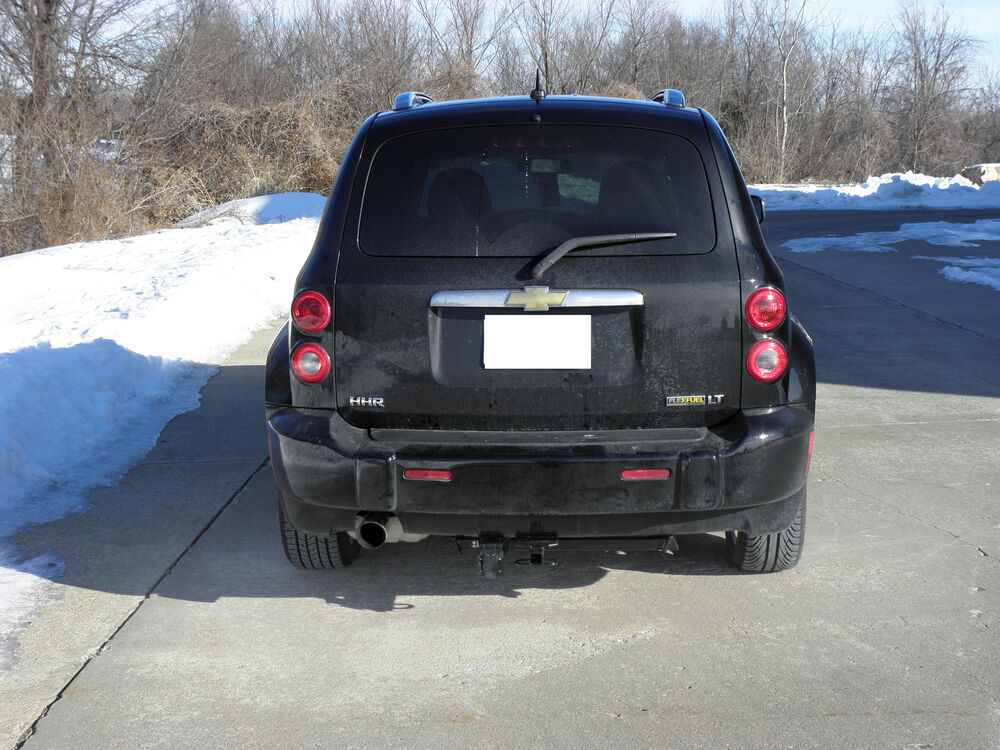

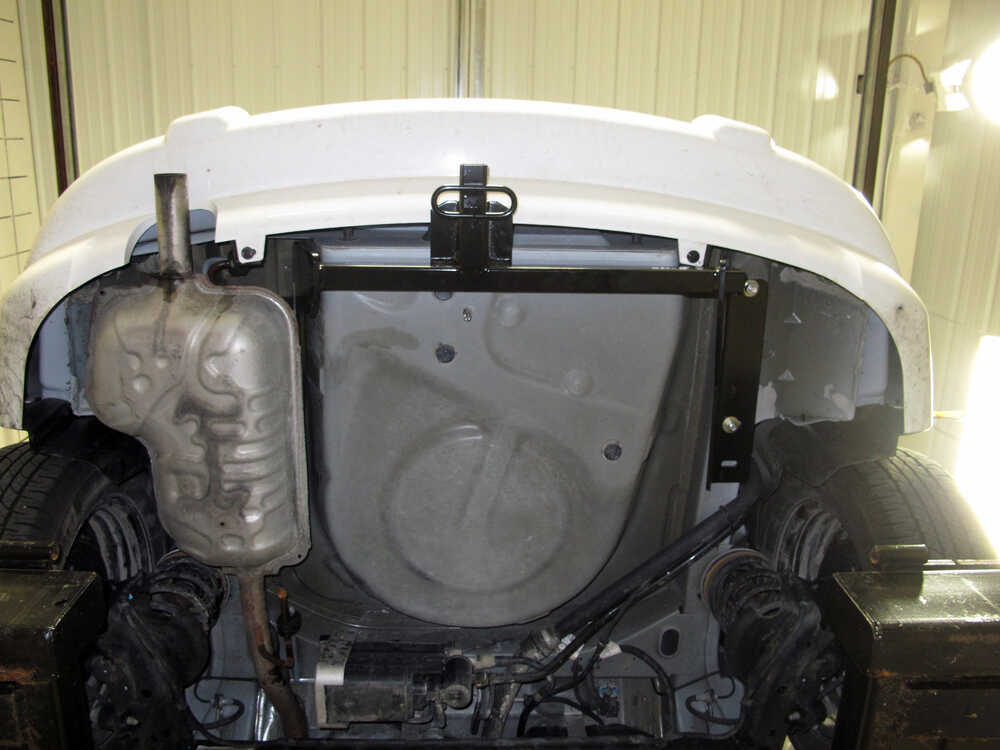

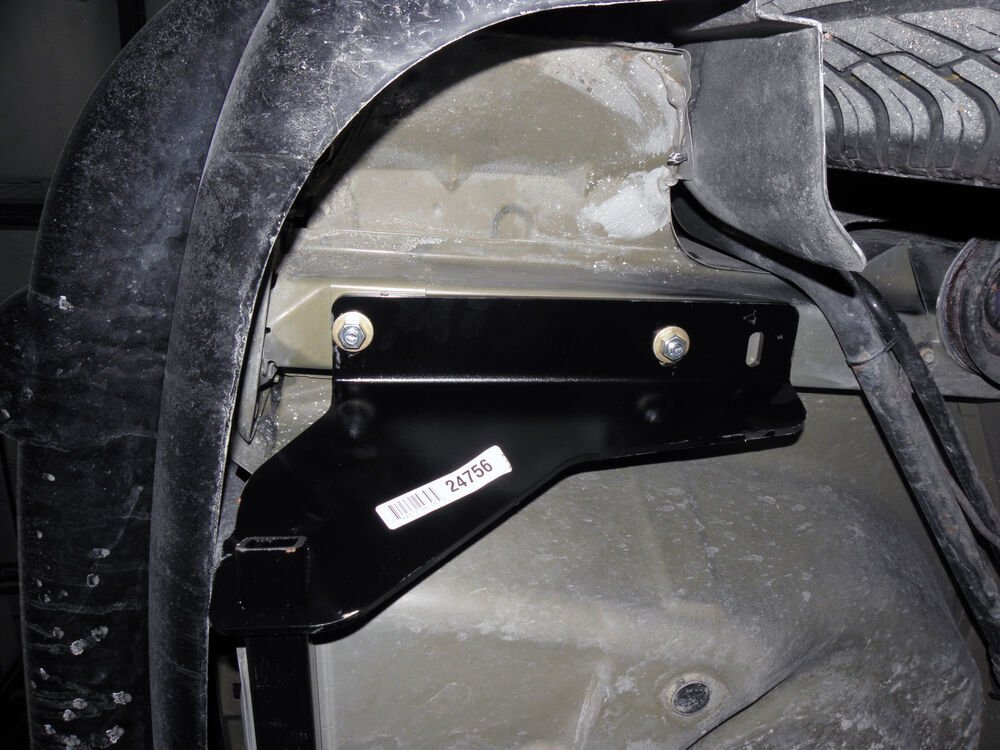

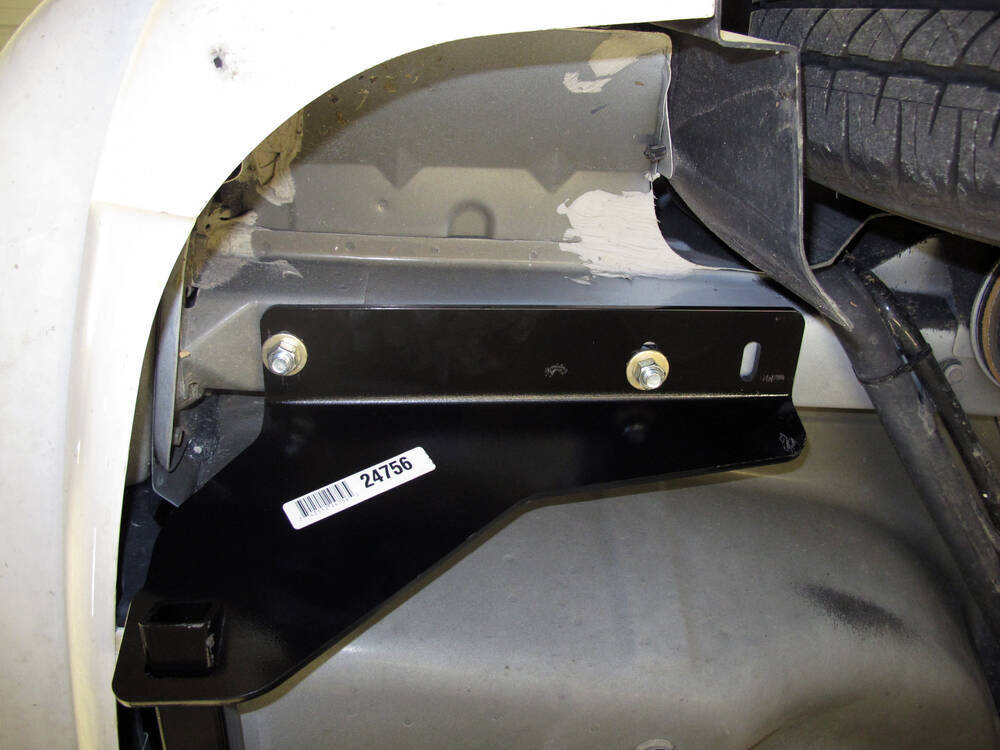

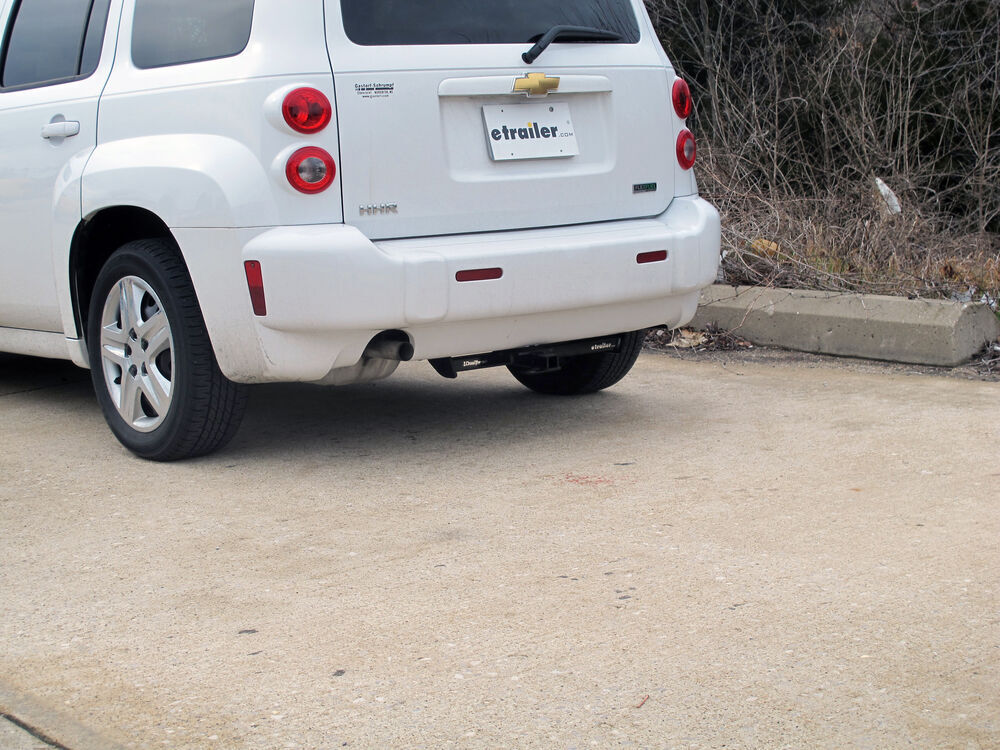

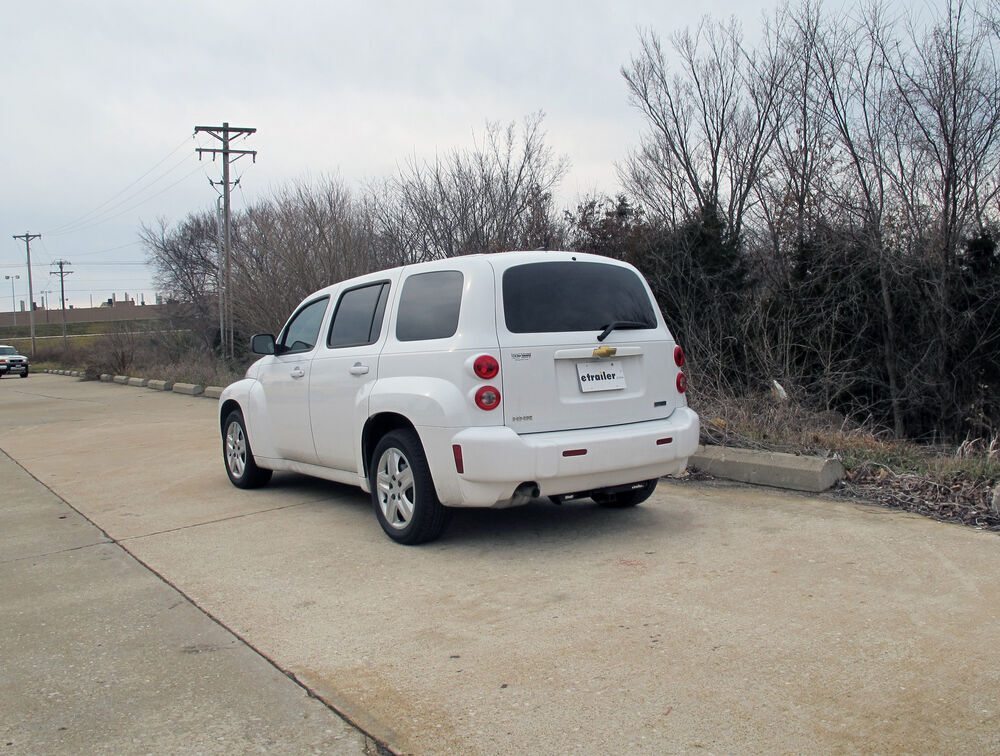

In Use/Installed

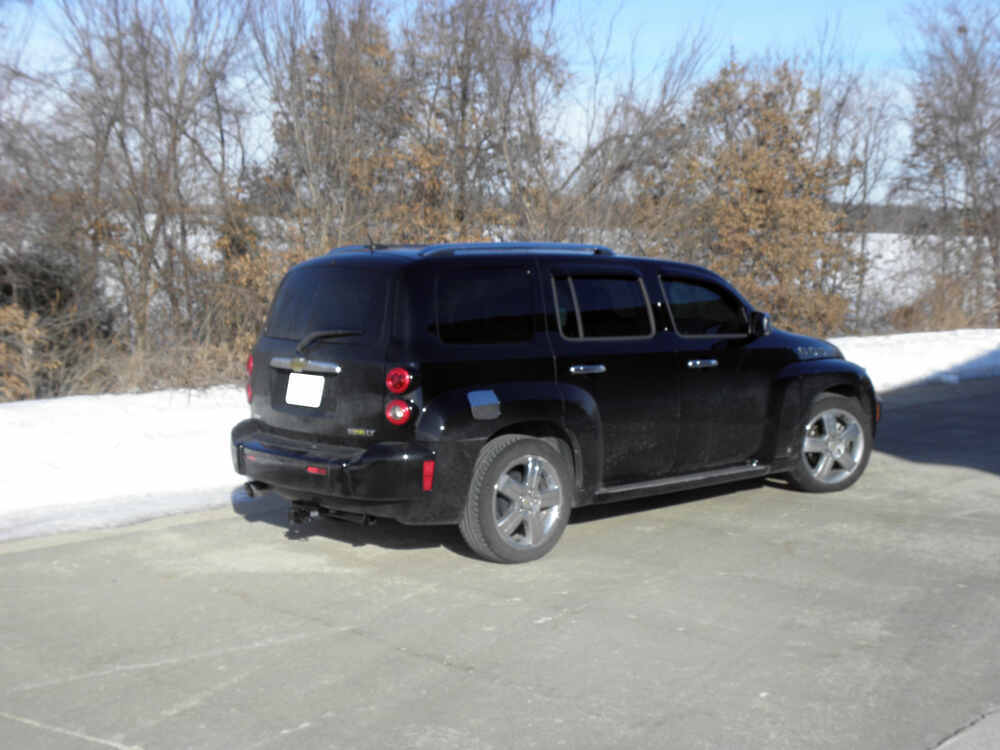

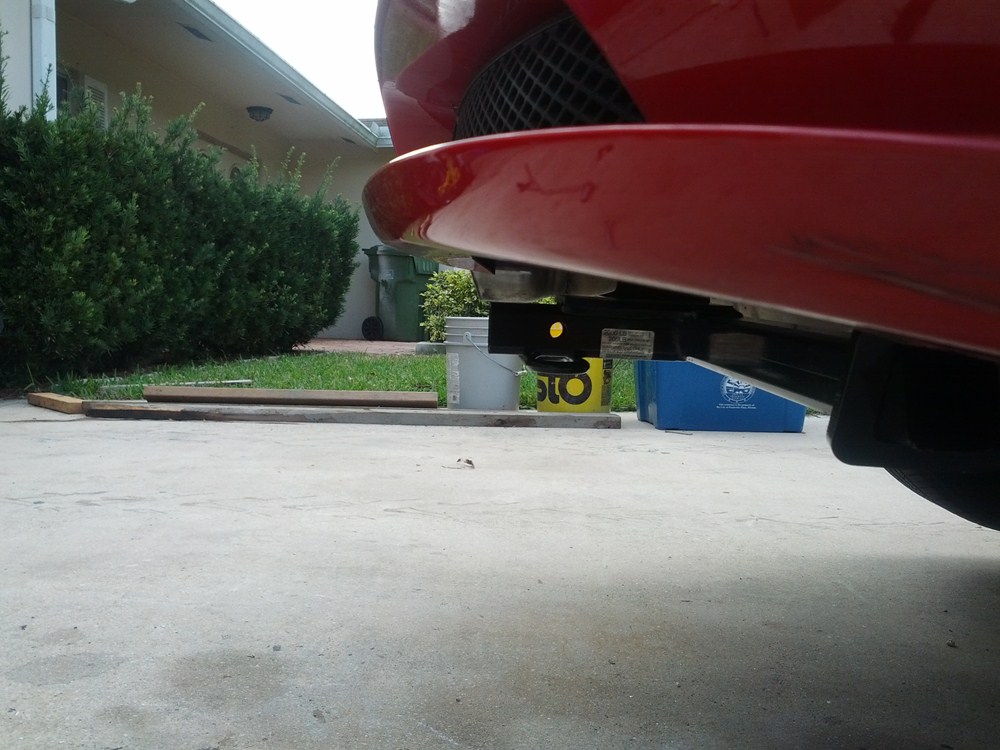

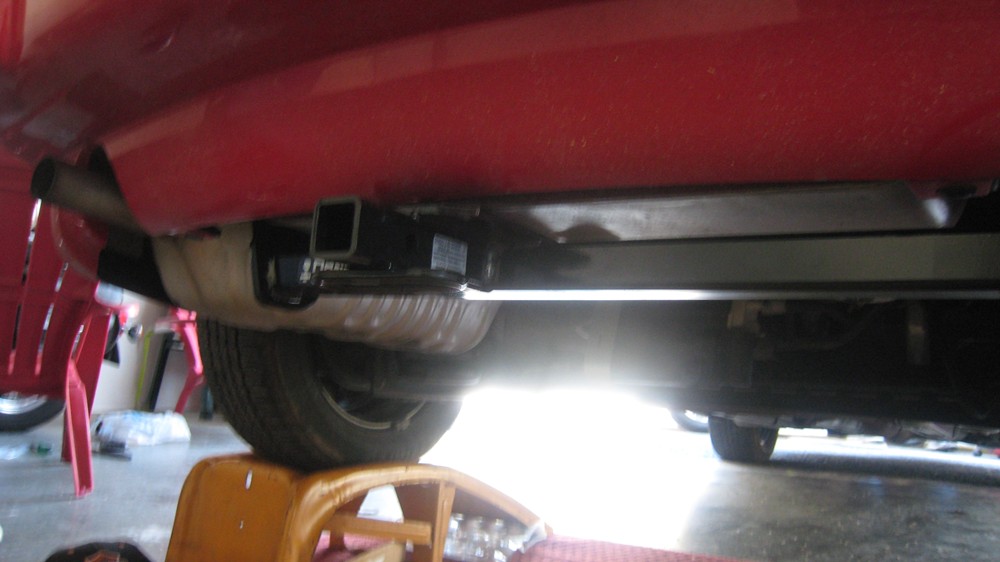

Customer Photos

This fully welded, corrosion-resistant vehicle trailer hitch receiver is perfect for your light-duty towing needs. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. Drawbar sold separately. Great Prices for the best trailer hitch from Draw-Tite. Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4" part number 24756 can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (167)
  • Q & A (0)
  • Photos

Draw-Tite Trailer Hitch - 24756

  • Class I
  • 1-1/4 Inch Hitch
  • 2000 lbs GTW
  • Visible Cross Tube
  • 200 lbs TW
  • Draw-Tite
  • Custom Fit Hitch

This fully welded, corrosion-resistant vehicle trailer hitch receiver is perfect for your light-duty towing needs. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. Drawbar sold separately.


Features:

  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your vehicle
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Tested Tough - safety and reliability criteria exceed industry standards
  • Bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Black powder coat finish covers e-coat base for superior rust protection
  • Sturdy, square-tube design
  • Drawbar and pin and clip sold separately


Specs:

  • Receiver opening: 1-1/4" x 1-1/4"
  • Rating: Class I
    • Maximum gross trailer weight: 2,000 lbs
    • Maximum tongue weight: 200 lbs
  • Requires a bolt leader (not included) for installation
  • Limited lifetime warranty


Draw-Tite Tested Tough

Draw-Tite Tested Tough

Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.



Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.


In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.


etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.



24756 Draw-Tite Class 1 Trailer Hitch Receiver - Sportframe

60815 Hidden Hitch Class 1 Trailer Hitch Receiver

Installation Details 24756 Installation instructions

This Product Fits The Following Vehicles



California residents: click here


Ratings & Reviews

4.8

168 reviews
This fully welded, corrosion-resistant vehicle trailer hitch receiver is perfect for your light-duty towing needs. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. Drawbar sold separately.

by:

Installed easily



by:

great every thing fit nothing missing good videio



by:
2011 Chevrolet HHR

The directions were a bit lacking. The product was good.



by:

super service - installation was just as the video showed - thanks



by:

Fast service. Amazing actually, way WAY above normal. Thank you.



by:
2011 Chevrolet HHR

This product fit perfect and was easy to install



by:

Excellent service as usual. Product arrived on time in good shape.



by:

Extra ordanary customer service and great products ,easy to install



by:

Great BuyThis is one of the easiest installs I have done. It was great working with etrailer



by:

Very easy to install,directions were clear and concise,thank you.



by:

Great product. Easy to install. Arrived on time. Decent price.



by:
Chevrolet Cobalt

like the looksjust put it on my cobalt ss and was impressed by how hidden it is and how far back you actually have to be to see it



by:

The review I read were correct....... Very easy to install



by:
2006 Chevrolet Cobalt

Excellent hitch...easy install and customer service is exceptional.



by:
Chevrolet

Excellent product. The Chevrolet dealer installed this hitch, harness wiring, etc., in an hour and a half.



by:
2007 Chevrolet HHR

Excellent product- well made; nice welds, nice finish, and easy to install.



by:

Excellent product and service.Ordered the product from etrailer on Monday afternoon, and reciieved it about 52 hours later. Installed it just as their video shows. I didn't have a lift, like in the video, but the install went well, even with the car on the ground. Thanks etrailer!



by:
2007 Chevrolet HHR

This product is awesome. My husband was able to install it in just about 40 minutes as suggested in the video. The stringer tool included made the job MUCH easier.



by:

Great productFantastic shipping time to SC. Two Days. Everything I ordered came in one box in perfect condition. Watched video and read instructions. Did install exactly to the letter of the instructions, and install went perfect. Install time was about 35 minutes. Wiring harness took about maybe 40 minutes. Works perfect, again no problems. Strongly recommend products.



by:
2008 Chevrolet HHR

I HAD THE HITCH AND WIREING INSTALLED IN LESS THAN AN HOUR I WAS SUPRISED THERE WASNT A UNEXPTED PROBLEM GREAT PRODUCT IT WAS WHAT YOU PROMISED

THANK YOU

P.S THE DEALER WANTED $300.00 TO DO THIS



by:
Chevrolet HHR

Fast shipping and great communication. Thislooks like a very sturdy and well made product.
I put mine on an HHR SS. There were concerns over interference with the shroud, but this is virtually nill. Anything you can see requires you to lay down and look up. I couldn't install it for a couple months after I got it because of the endless rain. My only complaint so far was the difficulty of installation. What a total PITA. Especially the fish tape that wouldn't come off the bolts for anything after fishing them through the holes. It ended up getting bent to crap each time. The kit really needs a seperate fish tape for each bolt. Eventually I got it installed in about three hours, (long enough for my stereo to kill the battery). The name is right. You can hardly tell it's there.



by:

installed in less than an hour, half the price of any competitor in our area (wi). I did this alone no assistance from wife or kids. Only suggestion that is not listed in the instruction is to remove all the exhaust hangers not just the 3 and ream out both back holes, not just the one. GREAT PRODUCT!



by:
2010 Chevrolet HHR

Just got around to install my hitch on 2010 HHR. Went just as the video shown. Great company, great shipping, great information what else can I say. Thanks I will be doing more business with you in the future.



by:
Chevrolet Cobalt

Super fast getting here and the installation was easy. I am very pleased with the hitch on my Cobalt SS turbo coupe.



by:

Outstanding!This hitch is easier to install than the video shows.


25
168
Show More Reviews

See what our Experts say about this Draw-Tite Trailer Hitch

  • Hitch Recommendation for a 2009 Chevy Cobalt Coupe
    If your 2009 Chevrolet Cobalt is not an SS then you would want a Curt Trailer Hitch, part # C11430. I attached installation instructions as well as a link to a video of this hitch being installed on a similar vehicle as yours below. If your Cobalt is an SS then you could use a Draw-Tite Hitch, part # 24756, like you referenced. I attached installation instructions and a video of this hitch being installed on a vehicle that is similar to yours below also. You may also be interested in...
    view full answer...
  • Replacement Hardware For A Draw-Tite Trailer Hitch For My 2009 Chevrolet HHR
    You need the replacement hardware kit for the Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4", part # 24756. If you go to our website and enter part # RHK, in the search bar, you will be taken to the replacement hardware kit link for trailer hitches. Then you enter your hitch number in the drop down menu, in your case it is 24756, and hit "Add to Cart" to place your order. I have included a video installation of this trailer hitch on a 2010 Chevrolet HHR below.
    view full answer...
  • Will Kuat Bike Rack B202-114 Fit on a 2007 Chevy Cobalt SS Coupe
    The clearance for bike rack # B202-114 is going to be 7-1/2 inches from the center of the hitch pin hole to the back of the upright bar on the bike rack. To determine if this rack would have enough clearance to fit on your 2007 Chevy Cobalt, I recommend measuring from your hitch pin hole to a point past your bumper and any other items that might interfere with the bike rack installation. If this measurement is less than 7-1/2 inches, the Kuat bike rack would work well for your application. If...
    view full answer...
  • Trailer Hitch Recommendation for a 2011 Chevy HHR
    Curt and Draw Tite are not the same company. Curt is it's own company whereas Draw Tite is made by Cequent which also makes Reese, Hidden Hitch, and Pro Series hitches. They are all great brands that I would feel comfortable recommending for your 2001 Chevy HHR, but for your vehicle I would go with the Draw Tite part # 24756 since it has the most positive reviews over all of the other hitches available. Plus, if you were to use a non-supported hitch accessory like a bike rack you wouldn't...
    view full answer...
  • Recommended Trailer Hitch Receiver For 2008 Chevy Cobalt LT 2 Door
    Your 2011 Chevy HHR has two trailer hitch receivers available which fit all trim levels of the HHR: the Draw-Tite # 24756 and the Curt # C11447. Neither of these two hitch receivers are confirmed to fit your 2008 Chevy Cobalt 2 Door LT. The correct receiver available for your vehicle is the Curt # C11430. I have attached an installation video for you. It is never recommended to use parts that are not designed specifically for your vehicle.
    view full answer...
  • Would Thule T2 Bike Rack Clear Rear Bumper of a 2006 Chevy Cobalt SS with Draw Tite Hitch Installed
    With the Draw Tite Hitch part # 24756 installed on your 2006 Chevy Cobaly SS the Thule T2 Classic part # TH9045 would fit and clear the rear bumper if folded down. It wouldn't have enough clearance to fold up though. Since your vehicle would have 6 inches between the hitch pin hole and the furthest point out on the rear bumper there really isn't going to be a platform bike rack that would fold up.
    view full answer...
  • Is there an Adapter to Use Class II Accessories with a Class I Trailer Hitch on a 2008 Chevy HHR
    The issue is not exactly the depth of the receiver but the stop that is punched into it, see picture. This stop does not allow the use of Class II accessories as a safety precaution to keep users from overloading a Class I trailer hitch. I can sell you an adapter that will work with the Class I hitch, # HTAD, but it will expand the receiver from a 1-1/4 inch to a 2 inch and you still would not be able to use the Class II accessories. Also, the use of an adapter will reduce the tongue weight...
    view full answer...
    Image 1 for
  • Drawbar Recommendation for a 2006 Chevy HHR with a Hidden Hitch # 60815
    I did a little research and found that the draw bar came with your Hidden Hitch Trailer Hitch Receiver with Drawbar, part # 60815 (no longer available), is the Sportframe Drawbar 4 inch Rise, part # 3594. Since your hitch is a Class I hitch it is not recommended that you use any drawbar other than the one that the hitch manufacturer recommends otherwise you will void your warranty. The reason they are very particular about using the right rise/drop drawbar is that if you were to get rear-ended...
    view full answer...
  • Choosing the Correct Trailer Hitch and Accessories for a 2008 Chevy Cobalt LT1
    For the 2008 model year, the Draw-Tite trailer hitch # 24756 fits the Sport, Sport Sedan, and SS Coupe models of the Chevy Cobalt. If you have a regular sedan or coupe model you would need the Curt hitch # C11430. The underside of each may look similar but the mounting locations and hitch design are different which is why there are different hitches for each. I have included links to the installation instructions for both hitches for you to view. If you require the first hitch, 24756,...
    view full answer...
  • Is There a Trailer Hitch for 2010 Chevrolet HHR With Heavy Tongue Weight Capacity
    The only trailer hitches that fit a 2010 Chevy HHR are Class I hitches with a 1-1/4 inch receiver, 2,000 lb towing capacity and 200 lb tongue weight capacity. The reason is because these vehicles simply don't have the capacity for that much extra weight, and aren't designed with that purpose in mind. Five hundred pounds is a very large amount of tongue weight, and the only vehicles that have hitches with that much capacity are large trucks or SUVs. The only option to transport a mobility...
    view full answer...
  • Trailer Hitch for a 2009 Chevy HHR SS to Use with Kuat Transfer Bike Rack
    I checked with Curt and trailer hitch # C11447 will fit your 2009 Chevy HHR SS model! You mentioned that you want to use the hitch for a bike rack. If you choose the Curt hitch then Curt also says you have to use stabilization strap # 18050 when using this hitch for any non-trailer load (such as a bike rack or cargo carrier) per their warranty requirements. If you don't want to have to use the strap then I recommend the Draw-Tite hitch, # 24756, because it does not require the use of the...
    view full answer...
  • Installation Time for a Hitch on a 2009 Chevrolet HHR
    For this particular installation I do not see a difference in the installation so I believe the difference is just in the amount of time the manufacturers stated at the time of engineering. The installation is essentially the same for all of the hitches (see link) offered for the 2009 Chevrolet HHR. I would allow a bit more time, maybe 1-1/2 hours, for the installation if working off of the ground without a lift.
    view full answer...
  • Trailer Hitch Receiver Fit For 2006 Saturn Ion Red Line
    While we do have a trailer hitch receiver fit for your 2006 Saturn Ion Red Line, the # 75278 will not fit the Red Line models. Instead, there is a different hitch that is designed to fit your Red Line: - Draw-Tite Sportframe Trailer Hitch Receiver # 24756
    view full answer...
  • Does the Rear Bumper have to be Trimmed to Install a Trailer Hitch on a 2011 Chevy HHR
    If you have a 2011 Chevy HHR and it is an SS model, there is a small section that needs to be trimmed in the rear fascia for the hitch to fit properly. I have included a link to the installation instructions that shows where you would need to to trim. On non-SS models, you should not have to trim and the isntallation should be like the video I have linked. If you plan on doing some towing, the hitch comes with the proper ball mount, pin and clip. For a 1-7/8 inch ball use # 19256 and for...
    view full answer...
  • Trailer Hitch Recommendation for a 2011 Chevy HHR
    Curt and Draw Tite are not the same companies. Draw Tite and Hidden Hitch are made by the same company so they are basically the same. But Curt is it's own company by itself. For most vehicles all of the hitch manufacturers will go with a very similar design that uses the same installation points on the vehicle. In the case of your 2011 Chevy HHR all of the hitches do look very similar with a few minor differences. The hitch I would recommend is the Draw-Tite part # 24756 because it doesn't...
    view full answer...
  • Parts Needed to Tow a Trailer with a 2006 Chevy HHR
    According to the owner's manual for the 2006 Chevy HHR the maximum towing capacity of the vehicle is 1,000 pounds. If you are able to get the weight down to that then you can tow a trailer using the following parts: Trailer hitch # C11447 Ball mount # C45520 2 Inch Ball # C40018 or 1-7/8 inch ball # C40001 Wiring harness # 118407
    view full answer...
  • Why Draw Tite Trailer Hitch Over Curt for a 2007 Chevy HHR For Bike Rack
    In general we recommend the Draw Tite hitches over the Curt for bike racks since Curt hitches require the use of a stabilizer strap when the hitch is carrying a non-supported load like a bike rack. So for a 2007 Chevy HHR the Draw Tite hitch part # 24756 would be the best option. The most popular bike rack we carry that has been confirmed to fit this vehicle is the Thule Camber 2 part # TH9058. We asked our demo and install guys to name their favorite, most easy-to-use bike racks and...
    view full answer...
  • Needing Receiver Hitch for 2008 Chevy HHR SS
    We do indeed offer two different Class I receiver hitches that are compatible with your 2008 Chevy HHR SS. I recommend Draw-Tite # 24756. If you were planning on towing, you might also need the following: A ball mount Wiring harness with 4-pole trailer connector, part # 118407 2 inch trailer ball, part # 19258 1-7/8 inch trailer ball, part # 19256 Locking hitch pin, part # e98879 When choosing accessories like a bike rack, make sure to choose a rack that is compatible with a Class I...
    view full answer...
  • Mounting Bolt Torque Rating for Draw-Tite Trailer Hitch Receiver # 24756
    The mounting bolt torque rating for the Draw-Tite Trailer Hitch Receiver, # 24756, is listed in the installation instructions which I have attached for you.
    view full answer...
  • Best Method To Haul 3 Or More Bikes On A 2011 Chevrolet HHR
    I do have an option that will allow you to carry more than two bikes on your 2011 Chevrolet HHR however, the Draw-Tite Sportframe Trailer Hitch Receiver part # 24756 and Curt Trailer Hitch Receiver part # C11447 are the only two hitch receivers available for your vehicle. As they are both a Class I hitch receivers, you will be limited to carrying two bikes on the rear of the vehicle with a hitch receiver per the manufacturer's. The most cost effective options would involve the use of...
    view full answer...
  • Trailer Hitch Availability for 2011 Chevy HHR
    For your 2011 Chevy HHR we only have 1-1/4 inch hitches like the # 24756 since the vehicle is lighter duty. The 2 inch hitches are only seen on vehicles with higher capacities like trucks or SUVs.
    view full answer...
  • Which Class I Ball Mount to Use with Draw-Tite Hitch # 24756 for 4-Inch Rise on 2008 Chevrolet HHR
    Draw-Tite hitch # 24756 is a light-duty 1-1/4-inch Class I hitch that installs in your 2008 Chevrolet HHR without need to drill any new holes on the car's frame. It requires use of a compatible Class I ball mount # 3594 which offers a 4-inch rise. With this ball mount you can use 1-7/8-inch hitch ball # 19256. If you refer to the linked photo you'll see the mount's dimensions. This 10-inch-long ball mount will provide both enough clearance at your bumper and the required 4-inch height...
    view full answer...
    Image 1 for
  • Replacement Hardware for Draw-Tite Trailer Hitch Receiver to Move it From Older to Newer Chevy HHR
    We do have just the replacement hardware for your Draw-Tite trailer hitch receiver, part # 24756. Use part # RHK and select Draw-Tite from the drop down menu and enter 24756 in the model number. This orders the exact same hardware that was originally included. I've included a link to a video of the hitch being installed for you.
    view full answer...
  • Differences Between Trailer Hitch Receivers for a 2008 Chevrolet HHR LT1
    The differences between the Draw-Tite # 24756 and the Curt # C11447 trailer hitches for your 2008 Chevrolet HHR are that the Draw-Tite has a welded tab that keeps you from using Class II trailer hitch rated accessories and it doesn't have a collar while the Curt doesn't have the welded tab and it does have a collar. The Curt also requires the use of a stabilizer strap # 18050 for all non-trailer accessories like a bike rack or cargo carrier. Attached are installation videos and instructions...
