Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4"

Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4"

Item # 24826

lowest price pledge

Retail:$200.25

Our Price: $100.95

You Save: $99.30
Trailer Hitch

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

This item qualifies for Free Shipping

Shipping Weight: 29 lbs

Quantity:
In Stock
Draw-Tite Custom Fit Hitch - 24826
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted succesfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
Draw-Tite Custom Fit Hitch - 24826
Draw-Tite 1-1/4 Inch Hitch Trailer Hitch - 24826
Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4" Visible Cross Tube 24826
Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4" 200 lbs TW 24826
24826 - Visible Cross Tube Draw-Tite Trailer Hitch
24826 - 200 lbs TW Draw-Tite Trailer Hitch
Draw-Tite 200 lbs TW Trailer Hitch - 24826

In Use/Installed

24826 - Visible Cross Tube Draw-Tite Trailer Hitch on 2012 Honda Fit
Draw-Tite Trailer Hitch - 24826 on 2012 Honda Fit
Draw-Tite Custom Fit Hitch - 24826 on 2012 Honda Fit
24826 - Visible Cross Tube Draw-Tite Custom Fit Hitch on 2012 Honda Fit
24826 - 200 lbs TW Draw-Tite Custom Fit Hitch on 2012 Honda Fit
24826 - 200 lbs TW Draw-Tite Trailer Hitch on 2012 Honda Fit

Customer Photos


  • Draw-Tite
  • Class I
  • 1-1/4 Inch Hitch
  • 2000 lbs GTW
  • 200 lbs TW
  • Custom Fit Hitch
  • Visible Cross Tube
This fully welded, corrosion-resistant vehicle trailer hitch receiver is perfect for your light-duty towing needs. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. Drawbar sold separately. Lowest Prices for the best trailer hitch from Draw-Tite. Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4" part number 24826 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (182)
  • Q & A (78)
  • Videos (5)
  • Photos
  • Why etrailer?

Draw-Tite Trailer Hitch - 24826

This fully welded, corrosion-resistant vehicle trailer hitch receiver is perfect for your light-duty towing needs. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. Drawbar sold separately.


Features:

  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your vehicle
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Tested Tough - safety and reliability criteria exceed industry standards
  • Bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Black powder coat finish covers e-coat base for superior rust protection
  • Sturdy, square-tube design
  • Drawbar and pin and clip sold separately


Specs:

  • Receiver opening: 1-1/4" x 1-1/4"
  • Rating: Class I
    • Maximum gross trailer weight: 2,000 lbs
    • Maximum tongue weight: 200 lbs
  • Limited lifetime warranty


Draw-Tite Tested Tough

Draw-Tite Tested Tough

Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.



Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.


In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.


etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.



24826 Draw-Tite Class 1 Trailer Hitch Receiver - Sportframe

60218 Hidden Hitch Class 1 Trailer Hitch Receiver



24826 Installation InstructionsInstallation Details 24826 Installation instructions

This Product Fits The Following Vehicles

2009 - 2014 Honda Fit



Video of Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4"


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

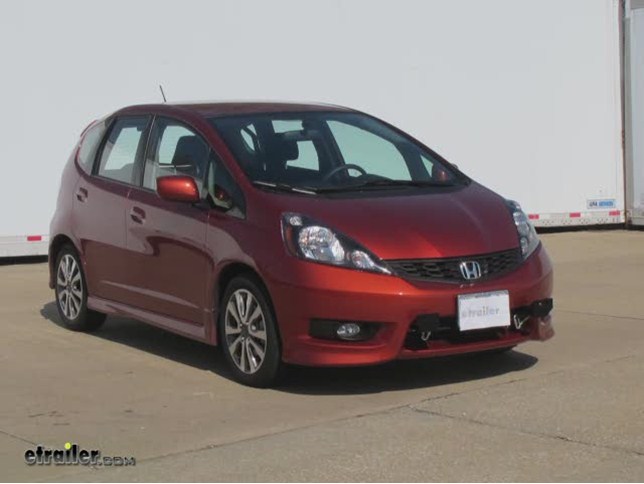

Video Transcript for Trailer Hitch Installation - 2013 Honda Fit - Draw-Tite

Speaker 1: Today on our 2013 Honda Fit, we're gonna be installing the draw tight support frame trailer hitch, part number 24826.So with our hitch installed, this is what it's gonna look like. It's a smaller hitch, so it hides well. But it is gonna be below the vehicle, and it is gonna be noticeable. It has a square tube design that's gonna be rigid, and also look nice. It's custom designed for your Honda Fit. It's gonna curve right around your exhaust, and bolt right up without any drilling or welding required.It's a Class 1 hitch with a 1 and 1/4 inch receiving tube.

It uses a half inch hitch pin. It has a reinforced plate on top for extra durability, and a loop style safety chain holder. It has extra large holes here, so it'll work with several types of safety chains of various sizes. It has a black powder coat finish that's gonna look great, and be rust and corrosion resistant.It's gonna have a tongue weight of 200 pounds, and that's the pressure going down at the end of your receiver. And a gross trailer weight of 2,000 pounds, and that's the towing capacity that it can haul behind it.Now in helping you choose accessories for your Class 1 hitch, we're gonna give you some measurements.

From the center of the hitch pin hole to the back edge of the bumper, it's gonna be about 1 and 1/2 inches. Now from the top inside edge of the receiving tube to the ground, it's gonna be about 9 and 3/4 inches. It comes with all the hardware you need to get it installed. Let's show you how to do that now.To begin our installation, we need to make a few preparations on the vehicle. We're gonna start by removing this tab and trimming out some of this panel, so our hitch will sit flushly against the frame.

To remove the tab here, you can use a screwdriver or this is a body panel remover tool. Once you pop the middle out, then the rest of the tab will come out, and now we can trim this out of the way.We can use a pair of tin snips here, and we're just gonna trim along the edge, and now our hitch will be able to sit flush on the frame. If you have any unsightly trimmings, you can just take a razor knife to go in there and clean that up. It's not necessary, but it will make it a lot easier if you lower the exhaust a little bit. So we're gonna go ahead and drop it out of the way.

We're gonna put a support strap in place for when we lower the exhaust, to keep it from . preventing any damage. Now we need to take the hangers off the exhaust here. You can use some silicone lubricant so it can slide off easier, and then just using a pry bar or similar tool, just press your hangers off it. That'll give us a lot more room.Now that we've got our exhaust out of the way and our panel trimmed, we can prepare to install our hardware. Now our spacers aren't gonna fit, so we're gonna need to add a little key hole right here. So you can just use a file to slot this out. And now we'll repeat this on the other side. Now we need to feed our hardware in. To start, you're gonna take your coiled wire, feed it into the hole that you just keyed. We're gonna go back to the large hole here. It can help to use your finger, like a pinky, to catch the coiled end and help bring it back down.To feed our hardware in, we're gonna use the coiled wire provided, we're gonna start at the smaller hole towards the front of the vehicle, feed the coiled end in, and feed it down through the hole. I like to bend the end here a little bit, just to keep the wire from falling back through the hole on us. Now we'll take our spacer, feed it over the coiled end, slide it up into place, take our carriage bolt, thread it onto the coil then, and pull that back through.Now we're gonna put our hardware in for our keyed hole. You'll take the coiled end, put your spacer over it, thread your bolt into the coiled end, push the bolt up, and feed your spacer up in, and then pull it back down. Now we'll repeat this same step on our passenger side. Now that we've got all our hardware in place, this is a good time to put your exhaust back up 'cause it'll get in the way when putting your hitch up.Now with an extra pair of hands, we're gonna help lift our hitch into place. You just start by feeding the wire through your hardware, through your holes in your hitch. Once you've got it fed through, you'll need to install the passenger side first, by lifting it around the exhaust. Once you've got that side lifted up, then your passenger side should lift right into place. Once you've lifted up into place, you wanna go ahead and get a bolt started, so that way it'll hold it up there.You'll start with a conical tooth washer with the teeth facing up, followed by a nut. Once you've got one in place on both sides, the hitch should hold itself better. With it now supported, go ahead and pull your wire off and reinstall the rest of your hardware. With all the hardware in place, we can go back and tighten it all up. Now we're gonna go back and torque all of our hardware for the specifications in our instructions. You'll use an 11/16 inch socket to tighten them down.And that completes our installation of the draw tight support frame trailer hitch, on our 2012 Honda Fit.


Customer Reviews

Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4" - 24826

Average Customer Rating:  4.7 out of 5 stars   (182 Customer Reviews)

This fully welded, corrosion-resistant vehicle trailer hitch receiver is perfect for your light-duty towing needs. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. Drawbar sold separately.

- 24826

by:

2010 Honda Fit


Was as easy as it gets to install. Feels very solid construction, and should work very well to carry bike rack on my Honda Fit. 559713



- 24826

by:

2013 Honda Fit


Great Product. I spent much longer than the estimated time but stopped to take lots of photos. A couple notes on install... -- Taking off the passenger side wheel give you some space to work and makes your life 100x easier. Also made it possible to do the job without dropping the muffler and I was super glad. Mechanics probably have a trick to get those rubber hangers off in 2 seconds but I fought with it for 20 minutes before giving up. -- The spacers are only 0.04in larger than the hole in the frame so you don't need to take away much metal at all when you make the keyway. You'll need a small (less than 1" wide) file with a fine tooth. The frame material is only maybe 14-18ga steel. -- The fish wires are coiled pretty tight in the packaging. Straighten them out a bit before starting to make it easier to get through the frame -- If you're doing the job yourself and you've got an extra jack stand, use it to prop up the hitch so you don't have to support it's full weight while you're starting the first bolts. -- The plastic wheel well guard is easy to trim down using a sturdy utility knife with a new blade -- Didn't need to trim the exhaust heat shield. -- There's some left-right adjustment room in the mounting holes so check that the hitch receiver is centered before tightening everything down. (last pic taken before I did this.) Haven't attached the bike rack yet or tried it out but expect no problems. Install is tight and no rattles from exhaust or trim. Very Happy! 541748



- 24826

by:

2010 Honda Fit


Good discounts offered online. Shipping was quick and product fit perfectly. 557348



- 24826

by:


First, I can only comment on the install. I have not used the hitch, yet, but I will shortly. The install could be made much easier with the use of 2 people and some small hands. Access to the bolt, which sits above the muffler, proves mighty difficult. It's certainly not made any easier when you do it yourself. Otherwise the install went fairly smoothly. The unit fit nice and snug, without any manual manipulation. A deep socket 11/16ths is a very good socket to have around. My standard socket set was not deep enough to completely seat the bolts on the washers. Overall install was not difficult. Cumbersome but not difficult. All of the supplied bolts, washers, spacers and pull wires worked perfectly. I can't wait to throw my bike rack on this. 189776



- 24826

by:


I ordered the Draw-Tite Sportframe Trailer Hitch Receiver for my Honda Fit and it FIT perfectly! Installation was as easy as the video and the 1.25">2.00" adapter I ordered at the same time fit the receiver so perfectly that there is ZERO rattle. It was as if it was machined to perfect tolerance. In Summary: 1) Cost was probably half that of a professional installation 2) Shipment was < 1 week 3) Shipping & Handling: $0.00 4) Time was less than 20 minutes. 5) Tools were minimal, 1 socket, 1 pry bar for exhaust hangers 6) Anesthetics: Looks factory installed. Just like example photos 7) Suggestions for Improvement: Absolutely none! 86916



- 24826

by:


Happy with the product, though because I am an amateur mechanic I failed to do the obvious: check that all the nuts and bolts fit before the installation! One nut was the wrong size disabling my car until I found a ride to the hardware store for the correct size replacement nut. 162234


Comments

Very happy with the hitch, works very well with the bike rack I bought, all is forgiven for the wrong sized nut!

Wolf S - 11/22/2015

15972

- 24826

by:


Mine is a 2010 fit with the sport package and this fit perfectly. I highly recommend watching the video to master the techniques for using the screw-on wires to pull the bolts through the frame (this technique is a time saver!). Keep these wires attached until you are ready to put on each nut because it's easy to bump them back into the frame. Also, I did not detach and lower the muffler as shown in the video but you can work around the muffler if you have a bit of dexterity. I worked at a slow pace and the installation time was 2 hours (although 40 minutes is clearly possible). 17245



- 24826

by:


I think this will work well on my 2010 honda fit. Install took 1:45 by myself and without use of a jack (didn't seem worth the added hassle). Thanks for the video. 3 gripes: 1: Drilling or chiseling the frame should be unnecessary if etrailer would just make the rectangular "washers" slightly thinner. This would greatly reduce install time & tools. 2: The receiver tube is BARELY (within 1/8") long deep enough for my saris bike rack. I had to remove the plastic clip on the end of the saris rack in order to get the pin hole to line up. This meant that i could not use my threaded/lockable saris pin. 3: Install was difficult, since my muffler barely dropped when i removed the hanger, so i needed long-reach tools to get past the muffler. Also, a class 1 hitch has relatively few uses, but i guess i shouldn't expect to be able to tow a boat with my honda fit. 236206



- 24826

by:

2012 Honda Fit Sport


I will always use etrailer.com for any hitch purchases! The installation instructions that came with the hitch were sub-par (I believe they are from the manufacturer) HOWEVER, etrailer has created a tutorial video for almost every hitch they sell and these videos couldn't make it any easier! Installation took about an hour with two people. The video covered the entire process thoroughly. The hitch looks great on my girlfriends 2012 Honda Fit Sport and the bike rack was a much needed accessory! 76321


Comments

Its been a year, the hitch is still working flawlessly. My review of the hitch and installation are above. This followup review is of etrailer in general. I dont think Ive ever had a better online purchasing experience. Best customer service, great product, good prices, and the most useful custom installation videos! You guys are killing it. Ill be back when I need to purchase a hitch for my next vehicle!

Bradley - 04/16/2014

3594

- 24826

by:

2009 Honda Fit


Thanks to the excellent video tutorial, I was able to install this quickly and easily. A couple of suggestions for others who plan on installing this yourself: * Cut up the cardboard box and lay it flat on the ground behind and extending under your car. Put the hitch on it and you can slide it under the car and back out much more easily, as well as sliding yourself under the car more easily. * Once you cut the small notches in your frame, spray each with a bit of rustoleum and give it a few minutes to dry before installing the hitch. * On my 2009 Honda Fit, I did not have to move the muffler much at all. This is because I picked up the part of the hitch which bolts above the muffler and slid it into the bumper inside the hole for the muffler, right over the muffler pipe. It wraps nicely around the muffler pipe and will slide through the bumper and into place quite easily. * If you are doing this alone, get the car jack out and start on the muffler side. After you've placed all the bolts and washers, slide the muffler side of the hitch through the muffler hole in the bumper and into place, leaving the other end sitting on your cardboard on the ground. Put the car jack under the muffler end of the hitch and extend it until the hitch is touching the frame, with the bolts sticking through the hitch holes. Put on the washers and nuts and get them started, but don't tighten them all the way. Now move the car jack to the other end of the hitch and use it to hold that end of the hitch in place while you get the washers and nuts started. Once all four nuts are started and attaching the hitch to the car frame, now you can tighten them all. * Use a foot-long extension on your torque wrench when you're finishing off the nuts so you don't have to reach around the muffler. PRESTO! I can carry my bikes! 151680



- 24826

by:


Product went on great. I backed my car up onto my ramps, rolled under on my creeper, and went to work. Enlarging the holes to slip the mounting plates was easy with a hammer and chisel, and I was able to hold the hitch in place with my knee while I bolted it on. The powder coat on the hitch I bought is flaking from the factory in TWO places. That's ridiculous. I expected better quality. I need to use the hitch tomorrow though, so no time to send it back. If I lived in the North, I'd ask for a return, but the flaking won't do any harm here in the South, since our cars don't get rusty from road salt. 107367


Comments

Powder coat hasnt degraded elsewhere over a year, and the hitch still works great. Ive towed utility trailers, a small camper trailer, and a wood chipper. All went without any trouble. The hitch is stout and was up to the task.

Dave Z - 11/14/2014

7657

Thanks for the follow up and feedback about your Draw-Tite hitch. If you need to do some minor touch ups we recommend a good high quality spray paint to prevent any further rust or damage.

-- Rachael H - 11/14/2014


- 24826

by:

2014 Honda Fit


Hitch bolted right up, 2014 Honda Fit. 30 minute install. Rather than following installation instructions and enlarging holes in frame rails. I installed bolts from top, through 2 factory holes already in trunk floor. The 2 access holes just needed enlarged a little bit. But this avoided me working under car. The supplied wires to fish bolts through frame worked fantastic. The funky hitch design allows for plenty clearance around the muffler for an easy install. I gave it four stars because it flexes a little more than I care to see, but so far its working great. Overall I am pleased with its performance. 30 minute install. including, locating alternate frame access holes under carpet. 171918



- 24826

by:

2010 Honda Fit


2010 Honda Fit here. Took me about 2 hours to install, I have only basic tools and no garage to work in. The part fit perfectly, installation was straightforward. Would have been a little easier if I'd had a second pair of hands to help when hanging it up after putting the bolts in, but I managed alone. Looks great, should be all set for the move! 121684


Comments

Served admirably for the move! I havent used it since, but its still on the car. The mouth area got a little rusty salted roads... but I cleaned it up with a brush and WD-40. Seems fine since.

Steve M - 03/21/2015

10190

- 24826

by:


Because I did not have anyone to install this on my car, I took it into my autobody/mechanic place. I told him about your online video on how to install it. He viewed it, installed it, no problem, and was really, really, impressed by your company and product. When I picked up my car an hour later, he said that he had never heard of E-Trailer but after reading several reviews and checking out your very helpful video, he said that he was very impressed and he had no problem on the install. I was afraid that it might be super expensive, but I was only charged for an hour's work at $56.00! Wonderful experience all around, and for my mechanic to like you, well, that's saying something! Thank you also for the E-mail feedback. I just didn't buy a product from an "unknown, mysterious, online company never to be heard from again after I paid for my hitch". On the contrary, Patrick was very nice in following up with me to answer any questions or concerns. Thanks to Dream Maker Products in Florida for leading me to you! I will certainly order from you again and tell anyone who asks about your great company. I am sure, too, that my mechanic will spread the word as well. Thank you!! Kristina 86827



- 24826

by:


excellent product, very pleased, fits tight up under the car, I was able to install in just 45 minutes like you said, would have been faster but after I pulled my muffler out of the way I didn't realise it had to go in before the hitch...at least I just had the bolts set loose. Tips for the 2013 fit, shoot some lubricant on the rubber muffler mounts to make them slide off easier, I used a large pair of channel locks to "tear" the small amount of frame needed to elongate the back bolt holes and make sure the muffler is on top of the hitch when lifting into place to final bolt but leave it loose until hitch bolts are tight. It took an hour and 13 minutes to install the wiring kit, a bit tricky since the car wires are so small, on the fit the right turn wire comes from the drivers side so I didn't have to run the wire across the car. Thanks for a great product at a great price. 138736



- 24826

by:

2013 Honda Fit


Hitch arrived promptly and installation was very straightforward. You will need some sort of rotary tool or ginder to cut a 1/16 in groove into two of the frame holes to get the nut plates to fit into the frame. Believe it or not you can actually install the hitch by yourself and without dropping the exhaust although it does take some flexibility. Overall great product and great price. 2013 Honda Fit Sport 5 door 97123



- 24826

by:


This may have been the best online purchasing experience that I have ever had. Customer Service was UNREAL and answered questions via email on a Sunday. I had perfect access to shipping and tracking from the get-go. Trailer hitch arrived within four days, and shipping was free. If EVERY online retailer worked as efficiently and as professionally as etrailer.com the world would be a much, much better place. To be honest, I am still sort of in awe at how well this company is run. I haven't even installed the hitch on my wife's car yet (just arrived today) but from here on out it's all my responsibility and the posted reviews surely make it sound like a no-brainer. And the online video has already laid out what needs to be done. Etrailer.com has gone above and beyond all my expecations. What a great experience. Every hitch I buy from now on will come from these guys, zero doubt about that. Great, great people. Thanks etrailer.com! 304080



- 24826

by:


very easy to install . very well built . thanks 2010 Honda fit . 551782



- 24826

by:

Ford Edge


This is the first trailer hitch I've owned or installed so I have little to compare it to. My overall impression is that the hitch sits too low to the ground and is less rigid than I feel comfortable with for hauling bikes. It's also rather heavy in part because it loops around the exhaust. It was easy to install and has worked well but I'm considering building my own hitch that is more rigid, puts the receiver higher off the ground and has more ground clearance. Regarding installation, while it's true that no drilling is required, you are still supposed to put a notch in your "frame" rails so that the 1" backing washers fit through the 7/8" hole. I opted to grind the 1" washers on one side to make them about 7/8" wide so they'd fit through the holes without modifying the body. For a custom-designed hitch, I wasn't pleased that they didn't just include washers that fit...the Fit...in the first place. I like to keep my OEM rust proofing intact if at all possible. I painted the edge of the washers where I ground them down so they don't rust either. Regarding the hitch height, with Swift Sport springs that lower the car about 1/2", my receiver is about 8" off the ground and result in my brand new Yakima Highlite 3 bike rack to scrape entering/exiting my driveway apron (which is pretty steep). When I put 2 adult bikes and 1 kid trailer bike on the Highlight 3 (<110 lbs total w/bike rack), the hitch had WAY more bounce/flex than I felt comfortable with, especially when you tilt the rack down to access the trunk. So I added an extra strap attached to my Yakima roof rack to give the bike rack some extra support. I'd prefer not to do that. In summary, if you need an easy to install hitch that will support a bike or two, tow a light trailer and don't mind grinding into your car's frame a bit, this is a decent hitch for a nice price. It's far from perfect for me though. 134686



- 24826

by:


I installed this hitch on a 2009 Honda Fit. The on-line video made this real simple to do. It was simpler in concept than it was to do in practice, due to working under a car, holding the heavy hitch in place and working in limited space. to make it easier, I backed the car up tire ramps. Then I used a little jack to raise the hitch into position and held it up using some adjustable straps. Once I got the weight off of my arm, it was much simpler. The directions to move the muffler out of the way was really helpful. I sprayed the rubber doughnuts with silicon spray and they popped right off the muffler. The wire bolt holders are absolute genius! That made it so simple to get the bolts positioned in the hole that are in the car frame. The only problem I had was the muffler heat shield gets trapped under the hitch and that was not mentioned in the on-line video. The heat shield is metal and can't be cut away like the plastic panel on the other side of the car. Since I am only towing a little 4 x 4 foot bicycle trailer that only weighs 100 pounds, I just torqued up the bolts and pinned the muffler heat shield under it. I don't think it'll be a problem. On the driver side, I cut away the plastic liner like the instructions said and the hitch fit perfectly against the body frame. Overall it took me about 2 hours to do, not because it is hard to do, but I'm 70 years old and don't work as fast as I used to do. Great product and easy to install. And it works great for towing my little bicycle trailer. 191039



- 24826

by:

Chevrolet Silverado 1500


Very easy install! One man install using a just 2 passenger-side wheels on the curb to get some room under the Fit, and some seat cushions to not kill my back. Including the 4 wire bolt leaders was pure genius. Seeing the video was great - I used some bike chain oil (couldn't find my WD-40) to ease the muffler hangers off. A long screwdriver and gentle pressure is all you need. An old braided belt was to hold the muffler out of the way, and then hold the hitch in position. Got it on snug - need a deep-well 11/16 socket and torque wrench to finish the job. Pictures show the Swagman 2-bike rack. I like the way the rack goes from the hitch to give some ground clearance on driveways, ramps, etc. Great deal - great price - great service on delivery - easy install thanks to the video - will let you know how the Swagman does after a 1500 mile trip! 33060



- 24826

by:


Before ordering this hitch, I watched the etrailer.com installation video to see if this was really a DIY project. Looked straight forward so I made the leap. Once the hitch arrived I unpacked it, gathered the recommended tools (all three of them) and watched the video again as a refresher. Then on the driveway in front of all the neighbors, I proceeded to install it with no cussing and no bloody knuckles! Total time including watching the video: 40 mins. Then I tackled the trailer wiring kit. Talk about easy, 20 minutes later car is back together and ready for my Yakima Rock and Roll trailer that should arrive tomorrow. Had some concern that the remote braking system for towing the Fit behind our RV was going to interfere but not a bit. Great service and great products etrailer! 96016



- 24826

by:


You guys are great! First, shipping was very expedited, the package arrived a lot earlier than promised and the item is simple great quality. Also you took the time to look for an installer for me in my area but ended up doing it myself, I just followed the instructions of the video you sent to me and that was very easy. I can only say now, thank you very much for your service, Im very happy with my new toy!!! 122327



- 24826

by:

2013 Honda Fit


One 80 yr old and one near that age tried to attach the Draw-Tite hitch to a 2013 Honda Fit. After struggling for an hour and a half we decided to wait until our 50 yr old son could help. With him doing 3/4 of the work it took about 45 minutes to install the hitch. Good service, prompt free shipping and clear instructions. I will use etrailer again when the need arises. 541244



- 24826

by:


Etrailer has a great website. It describes the product very well. Has many references and videos on install combined with reviews made this a very easy product to get and installation was easy and as described. However the product was poorly made. The powder coating had huge bubbles in several places and had chipped off. I decided to install it instead of returning it. The product will rust over time and the flaws wont be visible from the outside. When I was installing the hitch everything went great until I tried to do final adjustments before torqueing down the bolts. The hitch receiver tube was not sticking out straight. When I crawled under the car and looked. The tube is welded on about 5 degrees off of 90 degrees so I had to install the whole product on as much of an angle to compensate. It still sticks out at an angle. Will it effect use. Probably not, but it is on a new car. Have not contacted Etrailer yet. 110638


Comments

We are sorry to hear about the hitch. We will be in contact with you shortly.

-- Patrick B - 12/20/2013

2434

- 24826

by:


A great product, installed the hitch receiver and the T-One Wiring Harness on my 2011 Honda Fit in just under an hour. Would have been much faster, but had to find some of my tools that the grandkids had been playing with. A very easy install after I found out how to remove the inside fender panel. It just snaps on, go figure. 77961


Comments

Hitch is doing great.

Jan M - 05/16/2014

4233

- 24826

by:


Fast free shipping, was able to install in about an hour with the help of a buddy who had a pair of ramps. Didn't end up needing the rotary tool shown in the installation video to widen the holes on the frame--a metal file worked just fine for that. Very satisfied! 181955


Comments

Overall, great! With the particular bike rack I use the hitch for Thule Doubletrack 2-bike and the particular car Ive got it mounted to 2012 Honda Fit Sport, it tends to drag a little bit coming out of some driveways. But I knew that was a possibility with a low-clearance vehicle, and its not the fault of the hitch at all. Ive been very happy with it.

Jordan - 03/30/2016

17315

- 24826

by:

2012 Honda Fit Sport


Installation was on a 2012 Honda Fit Sport. The video produced by etrailer.com was VERY HELPFUL. The instructions leave a bit to the imagination. The video shows exactly where the wheel well plastic trim needs to be cut and the importance of dropping the exhaust before attempting to "keyhole" the right side. A third pair of hands (or a floor jack as I used) is very helpful to raise the hitch while bolting on the hardware. 61561



- 24826

by:


This was so easy to install. Works well. Love it! 542465



- 24826

by:

2014 Ford Mustang


etrailer shipped me the wrong part at first. Lady on the phone was skeptical and needed proof of the mistake via picture. Once that was sorted they shipped me the right part across the country through UPS ground while my car was waiting on it in the shop, after I asked for them to expedite it. Not terribly impressed. The products themselves seem fine. 515263



- 24826

by:


Received quickly. Showed garage the install video and was on the road in an hour. They seemed impressed with ease of installation. Solid hitch for my Honda Fit . Use for bike rack. Happy with purchase. 382728


Comments

Hitch working great. May try pulling small trailer with brakes if I find right one.

Pete L - 05/19/2018

38710

Thanks for the follow up Pete. If you are shopping around for a small trailer, keep in mind that you will want to abide by the lowest rated component of the system. This hitch is rated for upd to 2,000 pounds gross towing weight, but your Fit may not be rated for as much weight. Additionally if you are using a trailer with brakes, you will need to make sure that you either use a surge coupler or get a brake controller and the necessary wiring needed for activation the trailer brakes. I have provided several links to the products you may want to consider and some of our help articles that provide a more compressive explanation of some of our products and installation.

-- Rachael H - 5/21/2018


- 24826

by:

2011 Honda Fit


Shipped fast and arrived when it said it would. Fit 2011 Honda Fit perfectly and easy to install. Do recommend. 512221



- 24826

by:

2009 Honda Fit


Perfect fit and easy to install. I got it for a bike rack and it works great. Everything necessary for install was included and the video made it a no brainer to get all set up. etrailer was great through the whole transaction as well; fast processing, shipping and great communication. 504419



- 24826

by:

2013 Honda Fit


The product was very easy to install but by video install instruction one thing was not mention and that is if you don't lift up the muffler on the right side to be over the hitch you will not be able install the muffler on the hangars. 502683



- 24826

by:

2010 Honda Fit


I bought the hitch for my 2010 Honda Fit so I could mount a bike rack. The video instructions specific to my car made the installation straight forward. With common tools and a second pair of hands, I installed it in less than a hour. 502623



- 24826

by:

2009 Honda Fit


Works great! 502128



- 24826

by:


Very quick shipment. I'm sure the product will function fine but it came in with chips in the paint in multiple spots so i'm going to have to touch it up to avoid rusting in spots. There are some scuff marks near a bolt hole, makes me wonder if it's already been installed/returned in the past. 480139



- 24826

by:

2009 Honda Fit


This product fit my Honda Fit perfectly. This is my third hitch receiver bought from etrailer, and this is the 3rd time i've been extremely satisfied with the entire experience. The fit has always been perfect. The install videos are extremely useful. The estimated times to install are weirdly accurate. The prices can't be beat. The shipping is incredibly fast. I recommend people use your company all the time, and I am extremely greatful for your continued amazing service. 464148



- 24826

by:


After slotting the rear holes it was an easy assembly hindered by working alone at ground level with minimal space beneath a Honda Fit, which was no fault of the product. 460502



- 24826

by:


trailer hitch went in very well - the utube videos were helpful 449215



- 24826

by:

2009 Honda Fit


Trailer hitch is working great on my 2009 Honda fit. Put it on in Florida, attached two bikes to hitch and then drove across the country to Santa Barbara, hitch performed great. Lots of possibilities. 442007



- 24826

by:


Easy to install. Works perfect. 427198



- 24826

by:


The hitch was pleasantly easy to install, fits well on the car, and feels pretty solid for hauling bikes around on a rack. 419407



- 24826

by:


Spoke to Katie D to place an order and got nothing but outstanding help and advise. Products got here two days after the order! Haven't had a chance to install the hitch, but know it will work well. So nice to have such tremendous customer service. Have already referred a friend and will not hesitate to order other products from etrailer! Thanks Katie. You are great! 410932



- 24826

by:


Easy to install and perfect fit! 403533



- 24826

by:


Product appears to be well made and fits like it should. One bolt position is partially blocked by the muffler and is kind of hard to put the washer and nut on. Other than this the installation was as described and fairly easy to do. My only complaint is that the hitch had several scratches on it and I had to touch it up to prevent rust. 364936



- 24826

by:


Just what I needed to attach a bike rack for two. Solid and durable. Prior to the install, I had to call etrailer tech support and the young lady answering my questions was superb. My son has since bought a rack and adapter bar to haul his MTB. 358845



- 24826

by:


The hitch and electrical hook up were just what I expected. The video was very helpful and provided all the information I needed to successfully install the hitch and lights on the first try. 359640



- 24826

by:

2012 Honda Fit


The hitch arrived this afternoon for my Honda Fit and inside of an hour and 10 minutes later, this 70ish male was washing his hands. This has to be one of the best designed bolt on hitches that I have ever installed, and I've installed a few in my time. The only recommendation I would have is, if you are going to install it by yourself, have a few pieces of scrap wood handy to help support one end of the hitch while you attach the other end to the body of the vehicle. Other than that, this hitch install is a no-brainer. The Honda Fit is not much of a tow car, and the hitch won't be used for that, but to support a bicycle carrier, a wheel chair carrier for my bride, and a support for my kayak, this hitch will fit my needs very well. Thanks, Etrailer, you sell a great product at an excellent price and your shipping policy is great. Thanks very much for your help. 347714



- 24826

by:


I received the hitch super fast after ordering! The hitch was in excellent condition and the installation could not have been easier. The videos and instructions were perfect. I will definitely be purchasing from etrailer in the future. Thanks etrailer!! 345114


79
217
Show More Reviews

Ask the Experts about this Draw-Tite Trailer Hitch
Do you have a question about this Trailer Hitch?


  • Bike Rack Recommendations for the 2010 Honda Fit Sport
  • The options for carrying bikes on your 2010 Honda Fit are hitch mounted bike carriers and roof mounted bike carriers. There are no trunk mounted bike racks that are recommended for use on the 2010 Honda Fit or Fit Sport 5 door. The roof rack option consists of the Thule Traverse Roof-Rack Foot Pack, item # TH480, the Thule Load Bars - 50 inches Wide, item # THLB50, and the Thule Roof-Rack Fit Kit for Traverse Foot Packs, item # THKIT1465. You would then need a roof rack mounted bike...
    view full answer...

  • Recommended 2 Bike Rack For 2013 Honda Fit Sport Where Trunk Mounted Racks Won't Fit
  • I reached out to my contact at Thule and they confirmed they do not have any fits for your 2013 Honda Fit Sport Model. They said the reason is the factory spoiler is not strong enough to support the straps. All of our manufacturers exclude the Sport model for this reason. My recommendation is to use the Draw-Tite Sportframe Trailer Hitch Receiver - Custom Fit - Class I - 1-1/4" # 24826 and then use the Thule Doubletrack Platform-Style 2 Bike Rack # TH990XT which is a confirmed fit.
    view full answer...

  • How Can Three Bikes Be Carried with 2011 Honda Fit
  • Due to the limited tongue weight capacity of the Class I receiver available for the Honda Fit, only two bikes may be carried on any bike rack installed on it. The problem is not entirely with the weight of the bikes, but with the fact that additional bikes will place the load further rearward from the receiver opening. This places additional leverage on the receiver, which can damage the receiver as well as its attachment points to the vehicle. Have you ever slipped a length of pipe over...
    view full answer...

  • Hitch Recommendation for a 2009 Honda Fit Sport for Carrying a Bike Rack
  • Since you plan on carrying a bike rack on your 2009 Honda Fit I would recommend you get the Draw-Tite Hitch, part # 24826. If you only plan on carrying a bike rack I would recommend the # 24826. I attached installation instructions for these hitches for you to check out. The Curt hitch, # 11064, is also a good hitch that is available for your vehicle, but it requires the use of a stabilizing strap when used with bike racks so it would not be my first choice. Now, for a bike rack...
    view full answer...

  • Solution for Having to Use a Hitch Stabilizer Strap on a 2012 Honda Fit Sport with Spoiler
  • I looked up pictures of your 2012 Honda Fit Sport and the top spoiler would make attaching the stabilizer strap # 18050 not as easy as on vehicles without the spoiler. The best option would be to install a hitch on your vehicle that does not require the strap like the Draw Tite part # 24826. Only Curt has the stabilizer requirement when using a non-supported load like a bike rack or cargo carrier so ideally the Draw Tite hitch would be your best option. Otherwise you could also run...
    view full answer...

  • Hitch model comparison for 2009 Honda Fit - 24826 vs 60218
  • Great question! These hitches are almost identical, but what separates them is that one (60218, no longer available)comes with the recommended drawbar, pin and clip. Both are well engineered, rated for 2,000 lbs gross towing weight, have limited lifetime warranties and black powder coated finish for great corrosion resistance.
    view full answer...

  • Vehicle Warranty Restrictions For Towing A Small Trailer With A 2009 Honda Fit
  • The Draw-Tite Class I 1-1/4 Inch Hitch # 24826 hitch is rated to tow up to 2000 pounds, but this does not necessarily mean your 2009 Honda Fit is capable of towing this much. If it does not list a towing capacity in your owners manual then there is usually a reason why they do not. Installing an aftermarket hitch does sometimes void vehicle warranties, but this would be something you would need to discuss with your Honda dealer. The hitch manufactures produce hitches for the Honda...
    view full answer...

  • Availability of Bike Rack To Fit a Honda Fit Sport Model
  • To carry a bike on your Honda Fit Sport model would require the use of a hitch and a hitch bike rack. The Honda Fit Sport uses a rear roof line spoiler that will prevent the use of a trunk mounted bike rack. None of the manufacturers of trunk bike racks that we carry will offer a bike rack that will fit the Sport model. If your Honda Fit is a 2009 to 2013 model year I would recommend the Draw-Tite Class I 1-1/4 Inch Hitch, part # 24826. Since the hitch for your vehicle will be a Class...
    view full answer...

  • Will the Saris Thelma 2 Bike Carrier fit the Draw-Tite Class I Hitch # 24826 on 2010 Honda Fit
  • The Draw-Tite Class I 1-1/4 Inch Hitch, part # 24826, is a Class I hitch for the 2010 Honda Fit. It will not accept any hitch accessories that have to be installed in a Class II or Class III hitch. A Class I hitch will have a stopper inside the receiver to prevent the hitch pin hole from lining up if used with a Class II or Class III hitch accessory. This keeps you from overloading the Class I hitch. You will want to check that the Saris Thelma 2 bike carrier will work in a Class I 1-1/4...
    view full answer...

  • Will a Class III Trailer Hitch Fit on a 2013 Honda Fit Sport
  • Trailer hitches are vehicle specific and Curt hitch # 13534 is designed to fit a 2008 to 2013 Toyota Highlander. It will not fit a 2013 Honda Fit. Trailer hitches for the Honda Fit are much smaller because the vehicle is not as capable as a larger SUV or truck. That is why they only make Class I trailer hitches for it. I have included a link to the trailer hitches that will fit your vehicle. If you are looking for a hitch to carry something like a bike rack then I recommend Draw-Tite...
    view full answer...

  • Keeping Kuat Sherpa Bike Rack Safe From Exhaust Heat on 2009 Honda Fit
  • Sorry to hear about your bike rack, though I believe I have a solution which can prevent your Kuat Sherpa 2.0 # SH12B from further damage. What you can do is use a hitch adapter, the Brophy # HT5R, to 7" of length and 5-1/2" of rise to your current hitch. The only issue with using an adapter is that it cuts your tongue weight capacity in half. So when using this adapter, the 200 lbs tongue weight capacity of your Draw-Tite # 24826 becomes only 100 lbs. The Sherpa weighs less than 35...
    view full answer...

  • Recommended Trailer Hitch for 2009 Honda Fit
  • The hitches compatible with the Honda Fit are all Class I hitches. Class I hitches have a 1-1/4 inch hitch receiver opening and a lesser weight capacity than Class III hitches with a 2-inch receiver opening. I have included a link to an FAQ article on the hitch classes for you. A Class I hitches will still allow you to attach 2-bike bike racks and do some light towing. To complete your tow setup you may be interested in the following products: 1-7/8 inch Hitch Ball # 19256 Tow...
    view full answer...

  • Recommendations for Carrying 3 Bikes with a 2012 Honda Fit Sport
  • I have an option for carrying your bikes on your vehicle, but I checked with Thule and our other trunk mounted bike rack manufacturers and there are no trunk mounted bike rack options for your 2012 Honda Fit Sport because of the factory spoiler that is on your vehicle. You could install a hitch like our Draw-Tite Trailer Hitch # 24826 on your vehicle and then get a hitch mounted bike rack. The only issue is that since the hitches available for your vehicle are Class I you would be limited...
    view full answer...

  • Can Class II or III Hitch Accessories be Adapted to Fit a Class I Trailer Hitch on a 2010 Honda Fit
  • The Draw-Tite Trailer Hitch, # 24826, for your 2010 Honda Fit is a Class I hitch. This means that in addition to the 1-1/4 inch receiver, it has a tongue weight capacity of 200 pounds. Anything attached to the trailer hitch, in this case a bike rack and bikes, will count against that tongue weight capacity. The use of an adapter will reduce the tongue weight capacity by 50 percent, bringing it down to 100 pounds. The weight of the bike rack and bikes would have to be less than 100 pounds...
    view full answer...

  • Bike Rack and Hitch Recommendation for 2012 Honda Fit Sport
  • Because there are no hitch fits for the Sport models of the 2012 Honda Fit you would have to go with a hitch option. Which the hitch route is better all around anyway as it provides a more secure install point for the bike rack and it won't touch the painted surfaces of your vehicle. The most popular bike rack we carry that has been confirmed to fit this vehicle is the Thule Roadway 2 part # TH912XTR. We asked our demo and install guys to name their favorite, most easy-to-use bike racks...
    view full answer...

  • Recommendation to Carry a Cargo Bag Behind a 2013 Honda Fit
  • I have an option for you to carry a cargo bag at the rear of your 2013 Honda fit, but due to the size and design of the spoiler on your 2013 Honda Fit I would not recommend using the Rightline Cargo Bag part # RL100B90 as it would put too much strain on your spoiler. I think your best option would be to install a hitch on your vehicle and use a hitch mounted cargo carrier with a cargo bag. For a hitch I would recommend the Draw-Tite Sportframe Trailer Hitch Receiver # 24826. This...
    view full answer...

  • Will Swagman Chinook 2 Fit on 2012 Honda Fit with Class I Hitch Installed
  • For your 2012 Honda Fit with a Class I hitch like the Draw Tite part # 24826 installed the Swagman Chinook part # S64683 would fit and work well. This is a very solid platform bike rack that will work well for you.
    view full answer...

  • What is the Tongue Weight Capacity of 2010 Honda Fit Hitch from Draw-Tite 24826
  • The Draw-Tite hitch for a 2010 Honda Fit, part # 24826, has a 200 pound tongue weight capacity. This means that the combined weight of the bikes and bike rack must not exceed 200 pounds. Both the tongue weight and trailer weight capacities are listed in the instructions for the hitch that I have linked below. I would also check the vehicle owner manual to see what the tongue weight capacity of the Fit is. If it is less than 200 pounds, you must abide by the vehicle figure. When towing,...
    view full answer...

  • Trimming Plastic Shield on 2010 Honda Fit To Install Draw-Tite Class I 1-1/4 Hitch
  • The plastic shield on the drivers side of the Fit will need to be partially disconnected then trimmed to mount the Draw-Tite Hitch, part # 24826. You will want to pull out the plastic push tab that is connected to the vehicle frame and then trim the plastic trim tab to where is sits flush against the frame rail. The hitch will mount directly against the plastic tab, but make sure the hitch sits flat against the frame rail and that the plastic trim is not between the frame rail and the hitch. The...
    view full answer...


Do you have a question about this Trailer Hitch?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality trailer hitch for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer hitch information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Test Fit:
Joe V
Expert Research:
Michael L
Video Edited:
Zack K
Video Edited:
Andrew K
Written by:
Lindsey S
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Jameson C
Video Edited:
Jacob T
Expert Research:
John H
Video Edited:
Andrew L
Expert Research:
Adam R
Video by:
Kathleen M
Updated by:
Laura H
Test Fit:
Shane T
Expert Research:
Jeffrey L
Video by:
Alan C
Photos by:
Sam P
Test Fit:
Randy B
Updated by:
Amanda M
Updated by:
Jenny M
Video by:
Jonathan Y

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.



Product Experts Available Now!

Call 800-298-8924


^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
