Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.
/
Curt/
Class II/
1-1/4 Inch Hitch/
3500 lbs GTW/
300 lbs TWItem # C12110
To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.
This item qualifies for Free Shipping
Perfect for light-duty towing, this custom, vehicle trailer hitch receiver features fully welded, gloss powder coated steel construction. Drawbar sold separately.
Features:
Specs:
Note: All non-trailer loads - bike racks, cargo carriers and so forth - should be supported with stabilizing straps. Failure to properly support these loads will void your hitch warranty from Curt.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
2004 - 2008 Toyota Solara
Video of Curt Trailer Hitch Receiver - Custom Fit - Class II - 1-1/4"
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

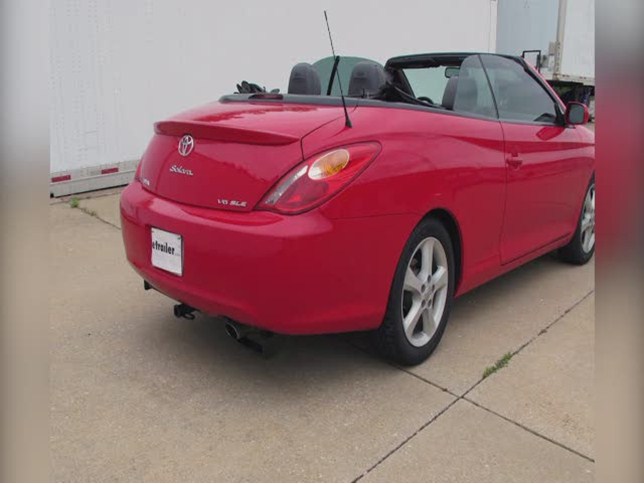

Today on our 2006 Toyota Solara Convertible, we'll be installing the Curt trailer hitch receiver, part number c12110. Here's what the hitch looks like installed on our vehicle. Now we'll go ahead and give you a couple of measurements to help you choose some accessories for your hitch, such as a bicycle rack, cargo carrier, or ball mount. From the center of the hitch pin hole to the outermost edge of the bumper is approximately 5 inches, and from the top of the opening in the receiver to the ground is approximately 11 1/2 inches. Now let's go ahead and install our hitch. There are five locations that will be used to mount the hitch to the vehicle: three on the driver's side, and two on the passenger's side. All five of the hardware locations will all be using the same M10 hex bolt and 3/8ths conical tooth washer. You want to make sure that when installing the washers that the teeth face the hitch at all times. Now for the driver's side, two of the weld nuts have been exposed to the weather. We're going to need to use a nylon tube brush and some spray lubricant to clean them out. The nylon tube brush is number 814092. The two on the passenger's side will utilize the same two holes that hold the outermost exhaust hanger at the rear of the vehicle.
Now it's a good idea to go ahead and get an extra set of hands to help you raise the hitch up into place. Now on the passenger side, you want to make sure that the hitch goes in between the frame and the exhaust bracket. Now that we have at least one bolt and washer installed on each side, we'll go ahead and put the other three in. With all the hardware installed, we'll go ahead and tighten it down. Now we'll go ahead and torque it to the manufacturer's specification. That will conclude our installation of the Curt trailer hitch, part number c12110 on our 2006 Toyota Solara convertible.
.
Average Customer Rating: 5.0 out of 5 stars (7 Customer Reviews)
Perfect for light-duty towing, this custom, vehicle trailer hitch receiver features fully welded, gloss powder coated steel construction. Drawbar sold separately.by: Randy03/30/2018
2007 Solara coupe. I bought this just to mount a bike rack. Its well designed and heavily constructed. I don't believe it would have any trouble with a small trailer. I installed the hitch by myself in about 20 min. I did it with the car on the ground. The box it came in made an excellent pad to lie on while installing. The fit was perfect. the only tool I needed was a socket, ratchet and extension. I thought I was missing a hole in the frame until I discovered the hole was covered with a very thin tape dot. Very hard to see it, even with a light under the car. My only wish was that it could have went over the muffler instead of under it. Its not that big of a deal but the hitch would have been less visible that way. The Curt was lower priced than the Reese. I don't see how the Reese could be any better. Very happy with the product and the shipping time. 490882
by: Darcy L01/30/2015
Product heavy duty, excellent service. Will do business with etrailer again solora2007 171905
Great. Excellent fit
by: Dlshow02/12/2016
I have purchased several hitches from Etrailer over the years. My experience has always been Par Excellent! That is a rare thing in this day and age of companies that don't care. About the customer but only their bottom line. I have always found their service, price ans quality to be the best. When I would call to ask a question there was consistently a customer care rep that knew their products and could answer my questions. I love Etrailer! 237608
by: Susan B10/04/2016
The trailer hitch fits perfectly on my 2008 Toyota Solara. It took approx 20 minutes to install. My vehicle already had the pre-drilled holes (which were taped up by the manufacturer) which made to installation a snap. I purchased this solely to use with my hitch mounted bike rack so that I have full access to my trunk so that I can still drive around with the roof down on my car. LOVE THE PRODUCT. 303218
by: Brad H.09/20/2017
Every part excellent quality. Perfect fit, all parts were exact for my vehicle. Watched the video on youtube for wiring and being a mechanic for over 50 years was able to connect signal lights all from driver side of harness. Instead of leaving plug inside trunk I wired through the rubber outlet to the back of the hitch ready for use. Very happy highly recommend etrailer. 434501
by: Steve08/04/2013
Order experience was great. No wait time and order was completed in a few minutes. Hitch shipped the same day and arrived when promised. Completely satisfied with the hitch. Installation was a breeze. Highly recommend etrailer and Curt trailer hitch. 93143
by: Ray S01/12/2017
One of the best if not the best service I have ever had !! Great people to work with. Use them. 332113
Yes, after one year I am still very happy with this hitch. No complaints whatsoever. I am completely satisfied.
