This durable, fully welded Chrysler Pacifica trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance.
At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.
Video of Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2"
Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

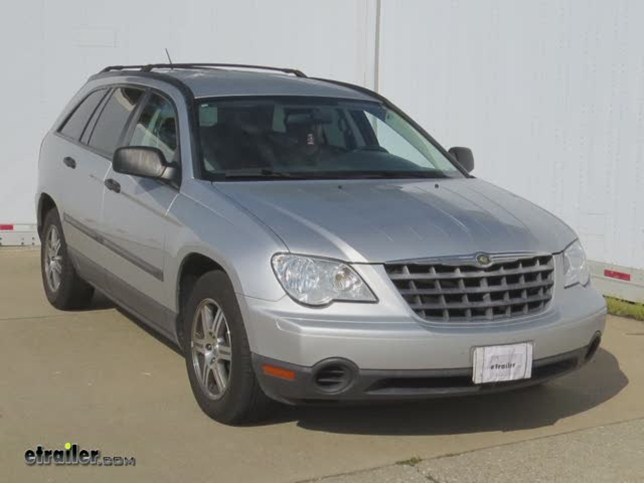

Today on our 2008 Chrysler Pacifica we'll be installing hidden hitch, part number87432. This is what ourhitch will look like once installed. Next we'll go ahead andgive you a couple measurements to assist you with selecting accessories for your new hitch. From the center of the hitch pinhole to the outermost edge of thebumper is three and one quarter inches, from the top of the receiving tube to the ground is eleven and a half inches. This will assist your selecting accessories, such as a ball mount, bike rack, or cargo carrier. Now we'll go ahead with installation. We'll go ahead and point out the attachment points.
We'll have a total of four attachment points on each side, two in the bottom of the frame and two in the side of the frame. Three of these attachment points are either pre-drilled or cut-out holes in the frame by the manufacturer. The fourth attachment point for each side will be the welled nut that we will remove one of the manufacturer's bolt from.Note: first we've gone ahead lowered and removed the spare tire for the ease of installation. Next we'll begin by lowering the exhaust. We'll put a safety strap underneath to help support the weight.
To lower the exhaust we'll remove the two rubber isolators from the back of themuffler that's secured to the metal hangers. To remove the rubber isolator from the metal hanger, we'll spray each one with some spray lubricant and just use our pry bar to pry the rubber isolator off the metal hanger. Now that we've removed the rubber isolator from the metal hanger, we can use the safety strap to safely lower the weight of the exhaust out of the way to gain access to frame rail here on the passenger side. Let's go ahead and remove the bolt now. We'll set that bolt aside as it will not be reused. We'll use the new hardware provided with our install kit.
Next we'll go ahead and install the half inch carriage bolt and block.This will be the forward attachment point in the bottom of the frame. Taking our pole wire, going through the attachment point and out the access hole, we'll then slide on the block and thread on a carriage bolt. We'll feed the block and bolt into the frame and then pull them into position. Once in place, we'll go ahead and remove the half inch bolt leader. Now we're ready to go ahead and prepare our hitch for installation. Getting sandwiched between the hitch and the frame at the half inch carriage bolt will be a half inch flat washer.
To make it easier to install the hitch and the flat washer, we'll go ahead and tape the flatwasher directly to the hitch. Now with that done, we're ready to go ahead and put our hitch in place. It's a good idea to get an extra set of hands to help you hold the hitch while you install your fasteners.As we put the hitch up into position, we'llinstall the new twelve millimeter bolt, while with a half inch conical tooth washer the teeth to the washer are facing the hitchinto the manufacturer's well nut that we removed the manufacturer's bolt from. Then once we have that supporting the weight of the hitch, we can go ahead and install our conical tooth washer and half inch nut for our half inchcarriage bolt. Next we'll install the hardware into the side of the frame, using our half inch bolt leader we'll go through the attachment point and out the access hole in the bottom of the frame. There we can slide on the block and thread on the carriage bolt, feed the block and bolt into the frame and then pull them into position. Once in place, we'll remove the bolt leader and install the half inch split lock washer and the half inch nut. We'll go ahead and repeat the same process for our fourth and final attachment point, keep in mind each process we do on one side we'll repeat identically on the opposite side. Now with all the hardware in place we'll go ahead and tighten it down. Next we'll torque to specifications as indicated in the instructions. Now with our hitch secured and torque tospecifications, we're ready to reinstall the exhaust. With our exhaust reinstalled, we'll go ahead and remove the safety strap and this will complete the install of our hidden hitch, part number 87432 on our 2008 Chrysler Pacifica.
Average Customer Rating: 4.8 out of 5 stars (29 Customer Reviews)This durable, fully welded vehicle trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance.
by: Steven R.03/27/2012
I'm not that mechanically inclined when it comes to vehicles and when I called around to get quotes for a hitch the cheapest was $425 for parts and labor. Then I came across etrailer.com. They made me feel confident I could do this myself for a fraction of the cost. Cheaper price for the parts too. The video online was spot on and took me step by step to putting my hitch on and it was SO AMAZINGLY EASY!!! The video doesn't miss a thing. My new hitch looks and works great and is very well crafted. etrailer.com is a top notch company. Already recommended it to my whole family! 35256
by: Glen C.07/24/2011
The videos on the etrailer.com web site were instrumental, though I had to watch them several times as the video progressed from step to step quickly. I worked on my back with the rear of the car elevated on metal ramps. While I supported the exhaust pipes, they did not fall as warned on the video. In fact, the free hanging mufflers did not drop enough to slide the hitch into place on the frame. I had to hand pull one muffler down so the hitch would slide over it. I had my wife assist with positioning the hitch into position, but everything else I did myself. When moving the hitch into position on the frame, I put a nut on one of the half-inch bolts so that it did not get knocked into the frame while I focused on the other side. In the end it came out perfect. I'm very happy with the result and with the satisfaction of doing the installation myself. 20140
by: Tom F.04/04/2013
Very easy installation, everything I needed was in the kit. I watched the installation video before I got started and I have to say I was a bit sceptical about the fish wire. I was pleasantly surpirised, it worked perfectly. I took my I-pad out to the car and did the installation step by step with the video. The video was very descriptive and the installation went smoothly. The hardest part was removing the muffler isolators. I used the wiring harness video for installation of the wiring and again used the I-pad to go step by step with the video. Great product, it looks very well built. I don't expect to have any problems with it. 74252
by: Ted H.03/11/2011
This is the second hitch I ordered from etrailer.com and as before the hitch is great quality sold at a good price. etrailer.com excells at support online with top-quality, application specific installation videos and instructions. I also really appreciate the email contact throughout the entire ordering and shipping process-- I know just where everything stands. The only negative was that the box the hitch arrived in was busted up so the frame mounting ends of the hitch were sticking out. These had gotten banged up and the powder-coat had chipped off in several spots. Nothing a minute with a rattle-can of paint couldn't take of, but it's a shame that the top-quality anti-rust coating Hidden Hitch uses was compromised. The first hitch I odered was just fine, but it was shaped a bit different, and perhaps the box it was in was handeled better by UPS. etrailer remains my "go to" place for everything I need for towing/trailer parts. 9086
by: Paul B.09/16/2008
Grab a six pack!! Get a lot of beer and about 4 hours time. I didn't have a lift so take that into consideration... But you half to remove the muffler first - just remove the two bolts. Second issue, is the hitch itself is very bulky to handle under the car. Fishing the bolts through is not hard but difficult at times. The attachments are almost all bolts and flat washers...like I said "Beer"!! End product is awesome and everything came like promised - service is excellent. Thank you eTrailer!! 1285
by: Mike W06/15/2015
Rating would have been Excellent if it weren't for a problem with the mounting hardware. The four of the six 3" long carriage bolt brackets did not have the proper size square hole in them and needed modification before the carriage bolt would fit. Secondly, the fishwire works wonderfully. I suggest a 2nd wire be included as those who don't use it as often as those in your videos are a bit more rough on it. 203382
by: Steven B06/25/2012
This item installed exactly are instructed. However what made this product rate as excellent is the installation video. As I was under my vehicle with my ipad doing the install I was greatfull for the video. Also the little spring wire tool is a god send. I am telling all my truck buddies about ETrailer.com. I would send a photo but it looks exactly like the photos already on the site. A PERFECT FIT. 45558
by: John K.04/10/2014
Everything was shipped- hitch fitup was great- unfortunately 5 of the 6 blocks had square openings which did not fit the carriage bolt. Bolts would not sit inside the block. Added 2 hours to the installation. Too bad- everything else worked great- but the blocks had to be modified. Also, some explanation of which direction the conical washed is assembled would help too. 124503
hidden hitch makes a nice hitch,have had four of them and all stood up great with my vehicles.this hitch is for our pacifica which i will pull my fishing boat with or our little motorcycle camper in bad weather(we don't mind rain when camping).have not installed yet, just to cold in my garage but will get the heater going some weekend soon...John 63494
by: Joe Z11/22/2013
Very Happy with the hitch and the install,it went just like the video, the only problem I had was with the feed wire, the first bolt went o.k. until I tried to remove the feed wire, it would not come off the bolt and when It did, it was stretch out and made the install of the other bolt's a little harder.other then that I'm happy with the hitch. 108211
by: Russell love07/15/2015
I don't believe that I could ever bought a better hitch for my vehicle, it fets perfect and I installed my self with no problems at all. it's very well built and looks great. When I pull my boat I know there will be know problems at all, every body loves the way it looks and fits so nice, thank you for building one great hitch that I can trust. 211963
The Receiver was exactly like the video showed. No problems installing. I could tell while installing that there was a lot of thought and engineering that went into developing this receiver. It arrived in about half the time it was suppose to. Everything was there. The cost was great!! I would recommend to anyone at anytime. Great experience!! 41935
by: Floyd Burton02/05/2015
Very nicely designed hitch, and it fit perfectly on my 2007 Chrysler Pacifica. Your installation video was well done and helped me very much to install the hitch. I am 85 1/2 years old and I put the hitch on in the Patio of our Winter home in Alamo, Texas. I may use it to pull my other car home. Thank you very much. Floyd 172559
by: Steve G02/20/2015
Installed the sucker today in about 25 minutes at the gas station, and that was only because we had to stop and rewatch the etrailer video on my model of car. Follow the instructions, and its easy as pie. Box was a little dinged up on arrival, but that hardly matters. 175510
by: Russ B04/26/2012
Extremely pleased with service. Surprised how quickly you got it to me. Ordered Monday and got it Wednesday. Thought I would already have it installed except ran into a problem with a bolt on the car. Will let you know how the installation goes when complete. 38449
A1 all the way around 70926
by: Jim W.02/08/2012
Product very Easy to install. Installation videos are great help. I also purchased the wiring harness. Wonderful product also. I am pulling a Trailer with DJ and Karaoke Equipment. I didnot take any pictures, Sorry! 31325
Product was as described and a great price. Arrived quickly. Box was beat up but item not damaged. I would order frometrailer.com again. The VIDEOS made ALL the difference! Great website. 75946
Exactly as described. Instructions were good. Video was great. Would have been nice to have two of the wire fishing tools. We stretched the one out and had some issues. 95386
by: C JAMES01/14/2013
Excellant product. Installed easily just as documented. As far as etrailer itself, great service and delivery cost was incredible, ~$7 vs 100 shipping from Autozone?? 62946
by: Anthony B.05/25/2015
Holes in frame matched perfectly. Eight big bolts to hold a trailer hitch on, and I didn't have to drill any holes is an example of good engineering. 196585
by: Todd S.05/11/2012
Hidden hitch was exactly as I had expected and was easy to install. Took me an hour to hour and half to mount the hitch and wiring. 40158
by: Jim K08/19/2014
Prompt and fast delivery. Complete and quality product. easy installation. Very happy with my purchase. Jim K. 147407
Product was delivered expeditiously, and online instructional videos made it simple to fit. Thanks etrailer.com! 74880
Easy instalation You online video installation guide works great. I just wish the wiring was as easy. 1612
by: Terry K.06/09/2011
This hitch worked out great. Very easy to install, just as the video showed. Thank you. 16634
by: Donny T12/05/2011
Great upgraded to faster shipping for free got item in 3 days will buy from them again 27778
by: Bill G08/21/2013
Excellent product and super fast handling and shipping. 96170
Came on time and was easy to install. 191577
