FITS 2014 Chevrolet Impala Limited
Draw-Tite Trailer Hitch Receiver - Custom Fit - Class II - 1-1/4"
Draw-Tite

Draw-Tite Trailer Hitch Receiver - Custom Fit - Class II - 1-1/4"

Part Number: 36407
In Stock
$234.27
Retail:$407.85
You Save: $173.58
Trailer Hitch
Confirmed to Fit
2014 Chevrolet Impala Limited

Will this fit?

To see if this custom-fit item will work for you please tell us what vehicle you'll use it with.

Add to cart
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

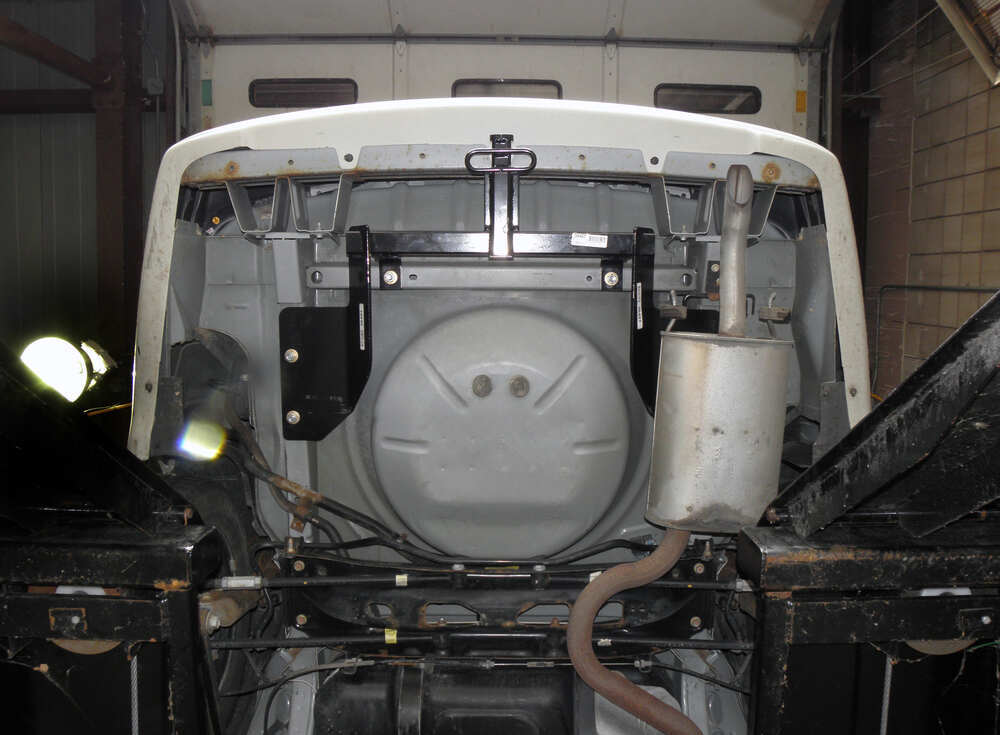

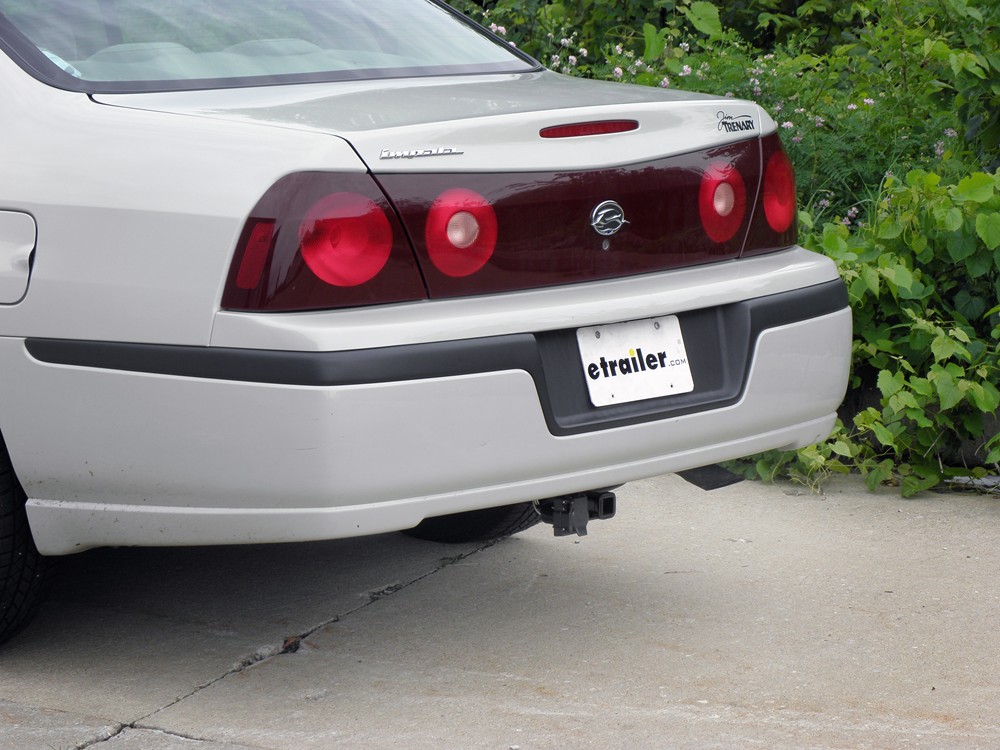

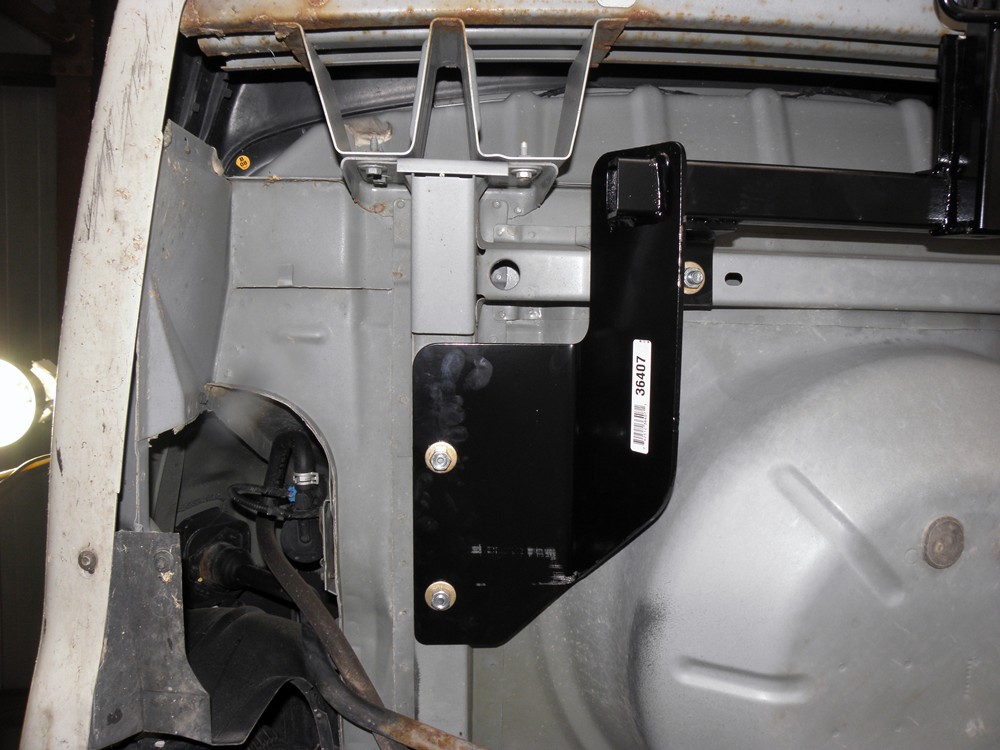

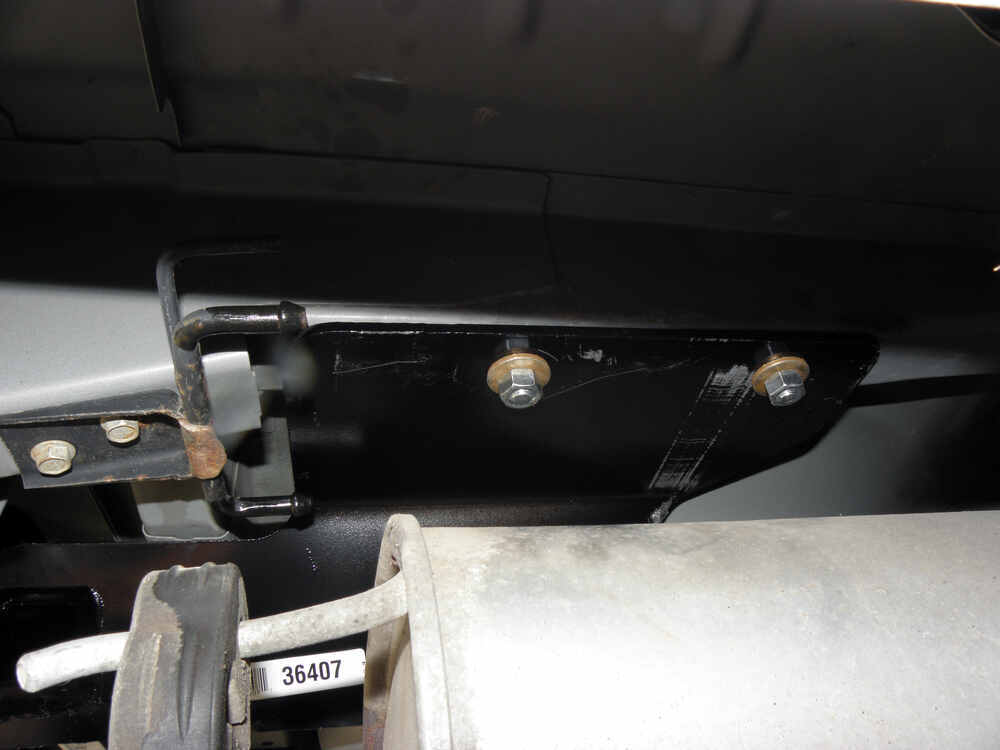

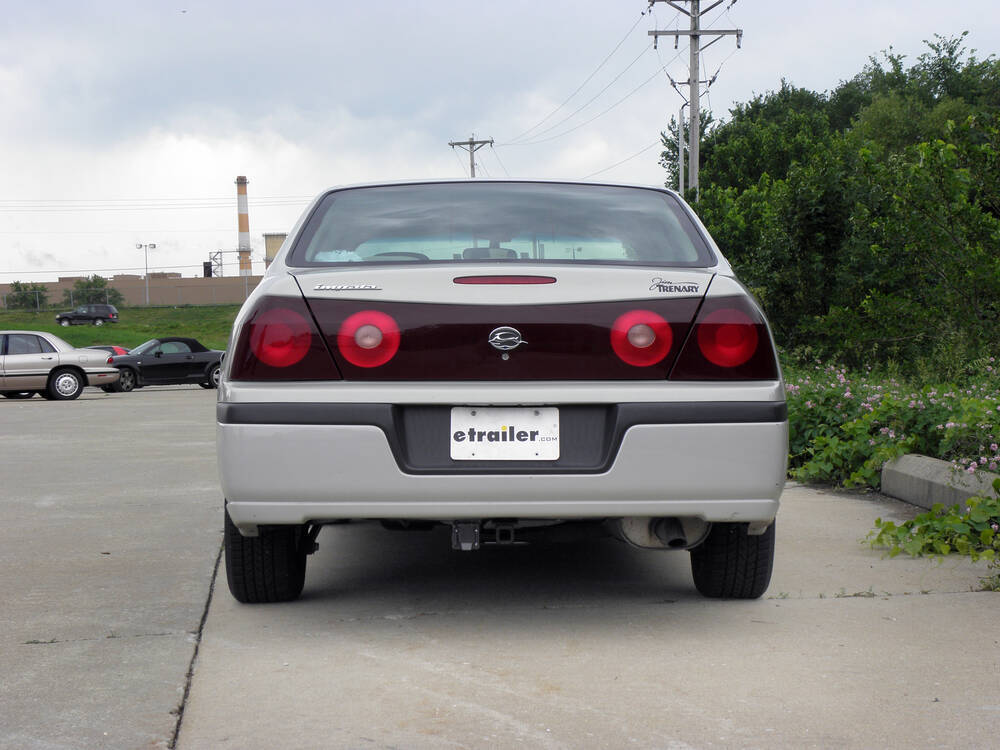

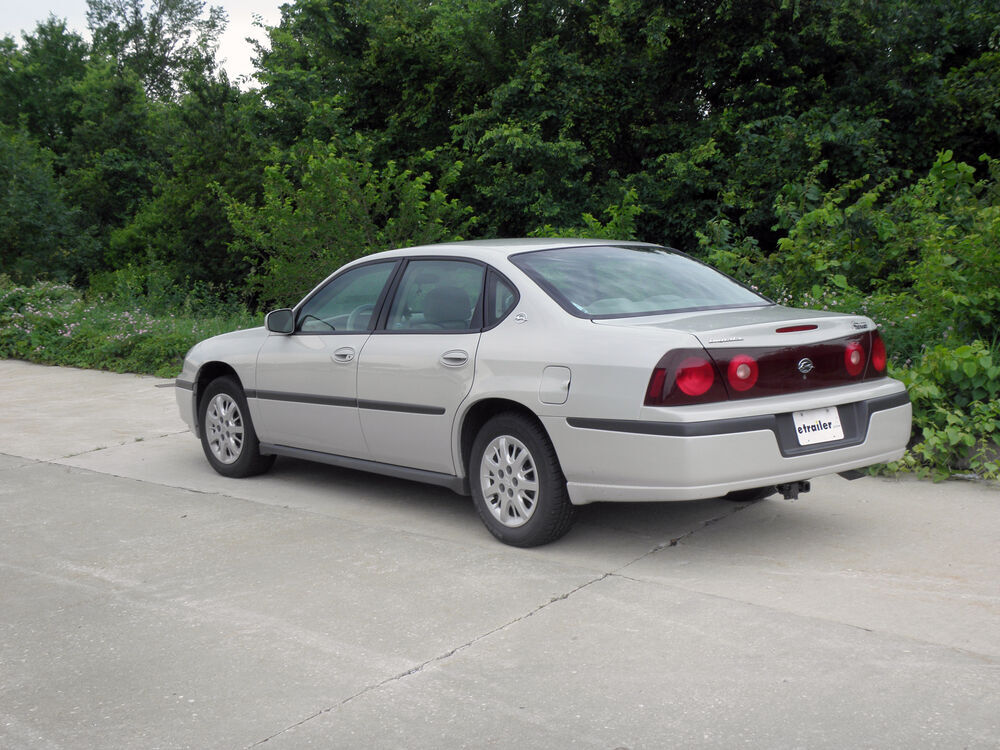

In Use/Installed

Customer Photos

Call etrailer.com at 1-800-940-8924 for expert service. We are your Chevrolet trailer hitch experts, and offer a great price. etrailer.com carries a complete line of Draw-Tite products for your Chevrolet Impala Limited 2014. Draw-Tite Trailer Hitch Receiver - Custom Fit - Class II - 1-1/4" part 36407 from Draw-Tite can be ordered online at etrailer.com. Complete trailer hitch installation instructions and technical support.
  • All Info
  • Reviews (287)
  • Q & A (0)
  • Photos

2014 Chevrolet Impala Limited - Draw-Tite Trailer Hitch Receiver - Custom Fit - Class II - 1-1/4"

  • Class II
  • 1-1/4 Inch Hitch
  • 3500
  • Concealed Cross Tube
  • 300
  • Draw-Tite
  • Custom Fit Hitch

This fully welded, corrosion-resistant Chevrolet Impala Limited trailer hitch receiver is perfect for your light-duty towing needs. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. Drawbar sold separately.


Features:

  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your vehicle
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Tested Tough - safety and reliability criteria exceed industry standards
  • Bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at etrailer.com
  • Black powder coat finish covers e-coat base for superior rust protection
  • Sturdy, square-tube design
  • Drawbar and pin and clip sold separately


Specs:

  • Receiver opening: 1-1/4" x 1-1/4"
  • Rating: Class II
    • Maximum gross trailer weight: 3,500 lbs
    • Maximum tongue weight: 300 lbs
  • Limited lifetime warranty


Draw-Tite Tested Tough

Draw-Tite Tested Tough

Draw-Tite's Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.



Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.


In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.


etrailer.com Technical Support

At etrailer.com we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.



36407 Draw-Tite Class 2 Trailer Hitch Receiver

90137 Hidden Hitch Class 2 Trailer Hitch Receiver

Installation Details 36407 Installation instructions
Weight Carrying Capacity
Gross Towing Weight (GTW):
3,500 lbs.

Tongue Weight (TW):
300 lbs.


Weight Distribution Capacity
Hitch does not allow
use of weight distribution



No drilling required Manufacturer Estimated Installation Time

Tech Tip

No drilling through vehicle frame required for installation , Exhaust must be temporarily lowered for installation




California residents: click here


Customer Satisfaction Score:

Ratings & Reviews

4.8

290 reviews
This fully welded, corrosion-resistant vehicle trailer hitch receiver is perfect for your light-duty towing needs. Draw-Tite's Tested Tough guarantee ensures that this hitch exceeds industry standards. Drawbar sold separately.

by:

Paint on hitch looks good installed easy would buy a hidden hitch again.



by:

Received in three days and installed in less then one hour.... looks great .... hidden hitch.



by:

Shipment was much quicker than expected, Thank you!

It would have been nice to know that 4 fish wires were included in the parts package. It was not mentioned on the site that I could see. It prompted me to purchase some just in case none were supplied.
I like this hidden hitch better than the Draw-Tite version. The cross bar supporting the draw bar passes through the frame plates that bolt to the vehicle frame. Draw-Tite butt welds the cross bar to the frame plates...IMO not as strong of a design! Price was right too! I am pleased with this Hidden hitch!



by:

very good



by:

Easy to install, excellent



by:

Excellent



by:

Fit as discribed and ez install.



by:

Good system. Strong material. Easy Install. Thanks.



by:
2007 Chevrolet Impala

Fast shipping , installed and working great



by:
2002 Chevrolet Impala

Look forward to do business with you again! Product was a perfect fit.



by:

very good quality/even had shipping upgraded at no additional cost.



by:

36407 Trailer HitchExcellent Shipping, Excellent Product,Superior Website.



by:
2007 Chevrolet Impala

It was easy to install,Wire Harness, made that easy also.



by:
2012 Chevrolet Impala

Delivered quickly and fit perfectly. Thank you.



by:

Hitch was easy to install and the fit was very good.



by:

This hitch fit perfectly and installed easily. I'm pleased.



by:
2012 Chevrolet Impala

Quick delivery, great fit, installation time (with exrta hands) about right. On-line video big help.



by:

installed fast and easy just had to follow instuctions and was delivered fast thanx



by:
Chevrolet Impala

Recieved the product in three days with free shipping. Very easy ordering process, I would definitely recommend thie site and product to anyone.



by:

ver y nice,went on in parking lot at work in ten min. wiring was a snap I ordered more stuf to go with it,thank you



by:

Shipping was fast, and the hitch installed in less than 40 min (with the help of 5 year old grandson) I will definatley do more shopping here in the future thanx



by:
2006 Chevrolet Impala

The product was exactly what I was looking for. And the product arrived quickly and in great shape.



by:

I recieved the item and without any past knowledge of instalation found , with the video and directions it was really simple .



by:

I haven't had a chance to put this on the vehicle yet, but it sure was quick getting here. The video for putting it on is EXCELLENT. At first I was concerned about ordering it from a company I have never dealt with before but I received e-mails right away and that made me feel better.



by:

Hitch was everything I thought it would be. Looks great. Recieved it in timely quicker than I expected. Everything that I ordered was sent. Thank you for your hard work and concern about taking such good care of your customers, like myself. I am quite satisified,


25
290
Show More Reviews

See what our Experts say about this Draw-Tite Trailer Hitch

  • Is Trailer Hitch For 2008 Chevrolet Impala Guaranteed To Fit
    The trailer hitches we offer for your 2008 Impala are guaranteed to fit. These hitches are designed specifically to fit your car frame. The trailer hitch you came from is the Curt, part # C12252. This is a Class ll hitch and it has a 1-1/4 inch receiver opening. The other trailer hitch is the Draw-Tite, part # 36407. This is also a Class ll hitch with a 1-1/4 inch receiver. I recommend the Draw-Tite hitch because it does not require a stabilizing strap like part # 18050 for all non-trailer...
    view full answer...
  • Trailer Hitch Receiver to Fit 2016 Chevrolet Impala Limited
    We have two trailer hitch receivers to fit your 2016 Chevrolet Impala Limited and they're both 1-1/4 inch Class II receivers. The Draw-Tite # 36407 and the Curt # C12252. They both have a maximum gross trailer weight of 3,000 pounds and a maximum tongue weight of 300 pounds. The Curt does require the use of a stabilization strap, part # 18050, in order to be in compliance with their warranty whenever carrying non-trailer loads. For this reason I suggest the Draw-Tite. If you're going...
    view full answer...
  • Trailer Hitch Fit Recommendation for 2014 Chevy Impala Limited
    For your 2014 Chevy Impala Limited the Draw Tite hitch part # 36407 that you referenced has been a confirmed fit and would work well. For trailer wiring you then would want the part # C59236 which has been confirmed as a fit. The ball mount you would want is the part # 36061. For hitch balls you would want the # 19258 for a 2 inch ball and part # 19257 for a 1-7/8 inch ball.
    view full answer...
  • Parts Needed to Tow a Trailer with a 2005 Chevrolet Impala
    I do have an option for you but your 2005 Chevrolet Impala would not be rated for anywhere near the tongue weight you would need for a cargo carrier and 370 lb wheelchair. The tongue weight capacity of your vehicle is likely between 100-150 lbs but you can verify this in your owner's manual. The only way that you would be able to safety haul around the wheelchair would be with a small utility trailer like the Detail K2 Mighty Multi Utility Trailer part # K2MMT4X6. In order to haul this...
    view full answer...
  • Which Hitch for 2006 Chevy Impala would be Most Concealed
    I have the info you are looking for, but the Hidden Hitch and the Draw Tite hitches are basically the same thing as they are both made by the same company. Curt is different as it is a completely different company. The Curt is going to have the edge on which is the most concealed as it is the most recessed under the bumper. The Draw Tite # 36407 is going to sit just as high as the Curt # C12252 but it would stick out more horizontally. I attached pictures of both installed on a vehicle...
    view full answer...
    Image 1 for Image 2 for
  • Trailer Hitch and Towing Capacity of a 2008 Chevrolet Impala
    From my research the 2008 Chevy Impala can tow up to a 1,000 pound trailer. You want the loaded trailer to stay under 1,000 pounds. As far as not scraping the ground I'm not sure what you're referring to but if the trailer is not overloaded and is loaded with the tongue weight between 10 and 15 percent of the trailer's weight then you shouldn't have any issues. You also want to make sure the trailer is level when towing. As for the hitch receiver I recommend the Draw-Tite # 36407. ...
    view full answer...
  • Recommended Trailer Hitch Receiver For 2005 Chevrolet Impala
    I have another option for you but the Curt Trailer Hitch Receiver - Custom Fit - Class III - 2" # C13315 you were looking at is only confirmed to fit select Mazda CX-5's. There is not a class III hitch available for your 2005 Chevrolet Impala so I recommend the Draw-Tite Trailer Hitch Receiver - Custom Fit - Class II - 1-1/4" # 36407. This hitch has a 300lb tongue weight rating and 3500lb trailer weight rating so it will be perfect for carrying a bike rack, cargo carrier, or even a ball...
    view full answer...
  • Draw-Tite Trailer Hitch Receiver Fitment and Curt Wiring For a 2002 Chevrolet Impala
    For your 2002 Chevrolet Impala I recommend the Draw-Tite Trailer Hitch Receiver # 36407 as it is a custom fit for your Impala. This Class II receiver is rated for 300lbs of tongue weight and trailer load capacity of 3,500lbs. Be sure to not exceed the weight capacities given by Chevrolet for your Impala. The Draw-Tite Sportframe Trailer Hitch Receiver 24990 that you found is custom fit for a 2019-2021 KIA Forte Sedan, except models without factory frame weldnuts. A Curt Vehicle Wiring...
    view full answer...
  • What Trailer Hitch Will Fit On My 2011 Chevrolet Impala
    Without knowing exactly what trailer hitch you have on your 2004 Chevrolet Impala I don't know if it will work on your 2011. However, two out of the three trailer hitches we carry for the 2004 Impala are also compatible with the 2011 Impala, the Draw-Tite Class II Frame Receiver Hitch # 36407 and the Curt Class II Receiver Hitch # C12252. If your hitch is not one of these then it may not fit and you would want to purchase one of the hitches above. Between the two hitches I would suggest...
    view full answer...
  • Bike Rack Options to Carry 50 Lb Electric Bike on 2013 Chevy Impala
    Thank you for the photo! I do have a solution for you, however, no trunk bike rack has the capacity to carry the weight of your electric bike. According to my research, your son's Ancheer electric bike weights approximately 50 lbs and most trunk bike racks max out at 35 lbs per individual bike, including the Thule Passage # TH910XT you were checking out. Your only option is to install a trailer hitch for use with a hitch mounted rack. This eliminates any potential issues with the factory...
    view full answer...
    Image 1 for
  • Will Bike Rack 11 in of Clearance from Hitch Pin Hole to Upright Mast Fit on Draw Tite Hitch 36407
    When we installed the Draw Tite hitch part # 36407 we found that from the center of our hitch pin hole to the outermost point of the bumper is 6-1/2 inches. If your bike rack has 11 inches from it's pin hole to the back of the upright mast this would easily clear.
    view full answer...
    Image 1 for
  • Fit of Trailer Hitches on a 2012 Chevrolet Impala with Dual Exhaust
    Trailer hitch receivers are often designed to fit multiple years and model trim packages of vehicles. They work with the variations between those years and models to cover a larger range with one part. So sometimes the pictures or videos we have are on models that aren't exactly the same as your but the install will be very similar, if not identical. For example, the Draw-Tite # 36407 will fit the Chevrolet Impala from 2000 to 2013 and the Impala Limited from 2014 to 2016. This hitch...
    view full answer...
  • Tongue Weight Rating for a Draw-Tite for a 2002 Chevy Impala Transporting an Electric Scooter
    The maximum tongue weight rating for this Draw-Tite Trailer Hitch # 36407 that you referenced is 300 lbs. The weight of your electric scooter and ramp combined equals 271 lbs, and if that is all the weight that would be on the hitch then yes you would be fine. My only question is if by ramp do you mean scooter carrier? Because if not, you will need to factor that weight into the total as well. If are in need of a scooter carrier you should check out the OldenKamp Scooter Carrier # RHWC1114....
    view full answer...
  • Parts Needed to Tow Boat Trailer with 2005 Chevy Impala
    We have everything need to get your 2005 Chevy Impala set up for towing a small boat trailer. Starting with the trailer hitch, the Draw-Tite Class 2 Trailer Hitch Receiver # 36407 that you referenced is confirmed to fit your vehicle and is what I recommend going with. The Class II hitch gives you a strong unit and will make it easy to find compatible accessories down the line (such as bike racks and cargo carriers) if you ever decide to use the hitch in that manner, since it has the...
    view full answer...
    Image 1 for
  • Will the Draw-Tite Class II Trailer Hitch # 36407 Fit on a 2009 Impala LTZ with Dual Exhaust
    Yes, the Draw-Tite Class II Trailer Hitch, item # 36407, is designed to work with the dual exhaust models. There is not a lot more time, or trouble, required for installation on dual exhaust models. The only difference is that you have to lower the drivers side exhaust as well as the passengers side. We have an installation video on a 2007 model that has the dual exhaust for you to review, see link. I have also included a link to the installation instructions for you to review. Some...
    view full answer...
  • Will the Curt Trailer Hitch Receiver # C11433 Fit a 2004 Chevrolet Impala
    I do have a solution for you, but the Curt Trailer Hitch Receiver # C11433 is not compatible with your 2004 Chevrolet Impala. For a similar trailer hitch you will want to go with the Draw-Tite part # 36407. This is a Class II hitch with a 1-1/4" receiver opening. It is rated for 3,500 lbs Gross Towing Weight (GTW) and 300 lbs Tongue Weight (TW). You will want to check your owner's manual for any special instructions or weight restrictions as well. I attached an installation video and...
    view full answer...
  • What Trailer Hitch And Wiring Harness Is Recommended For A 2005 Chevrolet Impala
    I would recommend the Draw-Tite Class II 1-1/4 Inch Hitch # 36407. It is a Class II hitch with a 3,500 lbs. towing capacity and a 300 lb. tongue weight capacity. I am sending a link to the installation instructions on the hitch. If you will be towing with the hitch, you will need ball mount part # 36061. You will also need a hitch ball like the Tow Ready 2 Inch Hitch Ball # 19258. For wiring, you will use the Curt Wiring Harness # C56116. This harness will plug into the vehicles taillights...
    view full answer...
  • Can a 2008 Chevrolet Impala LTZ Tow a Snowmobile
    Your owners manual is the best resource to use when determining towing capacities of your vehicle, see section 4. I found a copy of the owners manual for a 2008 Chevrolet Impala and Chevy states that an Impala can tow a trailer, but the gross trailer weight must not exceed 1,000 lbs. Keep in mind, Chevy gives the Impala a maximum towing capacity of 1,000 lbs assuming the driver is the only additional weight in the vehicle. If there will be additional passengers and cargo in the vehicle,...
    view full answer...
  • Easy, No-Hassle Hitch and Bike Rack Combination for a 2010 Chevrolet Impala
    No, the manufacturer of the Draw-Tite Trailer Hitch, # 36407, for the 2010 Chevrolet Impala does not require the use of a stabilizing strap, part # 18050, for carrying a bike rack and bikes within the capacity of the hitch and vehicle. I have added a link to instructions for you to review. For a bike rack, I would recommend the Yakima HoldUp 2 Bike Rack, # Y02445. This rack is the one most often purchased by our customers who own the Chevrolet Impala. We have a video review of this rack...
    view full answer...
  • Hardware Included for 2005 Chevy Impala Hitch
    All of our hitches are shipped with all the hardware necessary to install it. I have included a link to a video showing a hitch installation on a 2005 Chevy Impala that you may find helpful. You can also see the parts list on the attached instructions.
    view full answer...
  • Can Hitch Extender be Used on Class II Hitch to Carry 4 Bikes With 2012 Chevy Impala
    You can certainly use an adapter like the Hitch Adapter 1-1/4" to 2" Trailer Hitch Receiver (Class II Only) # 80303 to carry your bikes on your 2012 Chevrolet Impala. The one thing you have to keep in mind here is that the use of any adapter is going to reduce the capacity of the hitch by 50%. This means that the tongue weight on your Draw-Tite Trailer Hitch Receiver # 36407 will drop from 300 lbs to 150 lbs. As long as you do not exceed the 150 lbs between your bike carrier and the bikes...
    view full answer...
  • How Much of Trailer Hitch # 36407 is Visible Once Installed on a 2000 Chevy Impala
    Based on the pictures that are on the product page (the last 2 show it the best), and the image in the upper left corner of the instructions that I have linked, the receiver will be the only part of the hitch easily visible once installed on your 2000 Chevy Impala. If you plan to do some towing the recommended ball mount is # 36061 for use with ball # 19256 (1-7/8 inch diameter) or # 19258 (2 inch diameter). For trailer wiring, you would use # C56116. I have included a link the installation...
    view full answer...
  • 3 & 4-Bike Carrier Options for 2011 Chevrolet Impala
    No 4-bike trunk-mount racks are made for any car due to the extreme weight load this would present. The chance for damage to the trunk or rear hatch from all that weight (easily 150-lbs between the 4 bikes and the weight of the rack itself) would be too much for the car. We do offer 3-bike trunk racks for your 2011 Chevrolet Impala that you can see on the linked page. I like the Thule # TH56BV as it fits over most spoilers and includes locks. If you need to carry 4 bikes you can instead...
    view full answer...
  • Bike Rack Options for a 2008 Chevrolet Impala LT
    The Thule Passage 3 Bike Carrier Trunk Mounted Bike Rack, part # TH911XT, that you referenced would work on your 2008 Impala for carrying your 2 or 3 aluminum bikes. I attached instructions for this rack below as well as a review video of this product. Since you are only carrying 2 bikes you could also use the 2 bike version, # TH910XT. Another option you have is to get a Draw-Tite Trailer Hitch for the 2008 Impala by Chevrolet, part # 36407, and then use a Thule Camber Bike Carrier for...
    view full answer...
