Trailer Hitch > 2004 > Cadillac > SRX

2004 Cadillac SRX Hidden Hitch Trailer Hitch Receiver Class III - 2"

Hidden Hitch Trailer Hitch

(3 reviews)

Code:   87661



Shipping Special

Shipping Weight: 53 pounds


2004 Cadillac SRX - Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2"

This durable, fully welded Cadillac SRX trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance.

Confirmed to fit your 2004 Cadillac SRX


  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your Cadillac SRX
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Easy, bolt-on installation - no welding required
    • Complete hardware kit and installation instructions included
  • Lifetime technical support from the experts at
  • Black powder coat finish covers e-coat base for superior rust protection
  • Stylish, round-tube design
  • Ball mount, pin, and clip sold separately


  • Receiver opening: 2" x 2"
  • Rating: Class III
    • Maximum gross trailer weight: 3,500 lbs
      • Maximum GTW when used with weight distribution: 5,000 lbs
    • Maximum tongue weight: 350 lbs
      • Maximum TW when used with weight distribution: 500 lbs
  • Limited lifetime warranty Technical Support

At we're committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at etrailer perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you'll receive comes straight from an expert in the towing and automotive field. We've installed it, we've wired it and we've towed with it, so whatever your question, we can answer it.

87661 Hidden Hitch Class 3 Trailer Hitch Receiver

Video of Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2"

Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

Video Transcript for Trailer Hitch Installation - 2004 Cadillac SRX

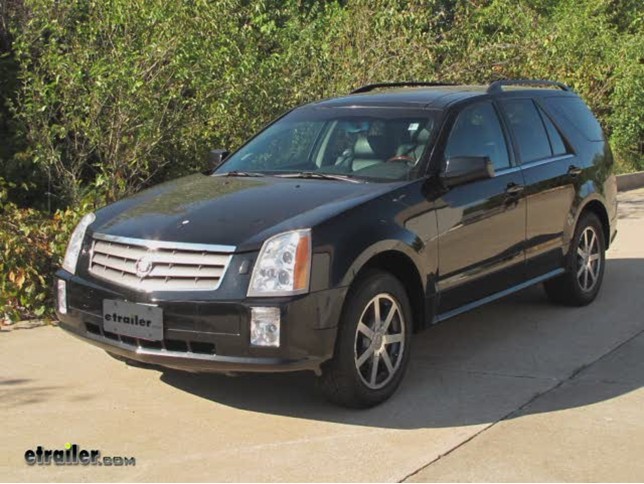

Today on this 2004 Cadillac SRX, were going to install part number 75174 from Draw-Tite. Its also applied to part number 87661 from Hidden Hitch. This is what the hitch looks like when its installed on the vehicle. Next well give you some measurements that will help you out in selecting some accessories. From top to the receiver opening down to the ground on this particular vehicle is going to be 14 3/8 inches. From the center of the hitch pinhole to outside edge of the bumper is going to be 1 inch.

Now Ill go ahead and show you how the hitch is installed on the vehicle. First thing we need to do is go ahead and lower the spare tire once youve done already. And then the next thing you need to do is lower the exhaust. Were also going to use a strap on our exhaust just to hold it in place looking to control over a more easier when we lower it down. Were going to spray down our rubber hangers with some lubricant two in the back and one going towards the front.

We can use just a simple pry bar to pry off the hangars. Now our next step is actually remove the bell part of the hanger from the vehicle. After three bolts removed, one on each side of the frame and one on the bottom, we have to do that because this lower stud right here, we actually had to take a cut off wheel and cut it off flat as possible. We had our driver side done; were going to passenger side and remove that bracket as well. All right the next step is go ahead and start throwing the heat shield out.

We held a hitch up to it to see how much we may need to cut out and we made an outline on our heat shield. All right, this is the area we need to cut out; however, this heat shield had seen better days theres a natural brake back here. So we should go all the way up with that and on this side were actually bind it up and fold it out of the way and be fine. Well repeat same process on the driver side as well. Okay, we did a couple of tests with the hitch to make sure the heat shield is out of the way.

Once were satisfied with that, well go ahead and start cleaning out the weld nuts in the frame. These are three locations for weld nuts, here, here and here. And theres going to be identical on both sides of the car. Were going to spray down the holes with some lubricant and were going to run a hitch bolt in and out a few times to help clean them out. Now this is an older vehicle, so chances are were going to use a thread tap to really clean these out. To help clean up thread, well be using tube brush and thats for part number 814092. This vehicle also has an air compressor mounted right here, so we have to remove these two bolts and tilt it down. Now, the hanger brackets that we had removed, well go ahead and put them back into place. At this point, we can go ahead and install the hitch. We definitely want to get extra hands to help hold it up there, hold it in position while you get the bolts threaded in. And then well flag down a bolt and then torque them down as described in the instructions. All right next we can go ahead and reinstall the air pump. The hitch has a hole in it so you can reinstall it and use the factory to fasten it. And on the backside here, the kit provides a block so it sits even. Now Ill go and put the heat shield back into place. Well just bend them back down. And then we can go ahead and reinstall our exhaust back onto the hangers. And with that that finished our reinstall of part number 75174 from Draw-Tite.

Cadillac SRX, 2004 Owners Who Purchased this Trailer Hitch Also Bought...

Replacement parts available for this product

Customer Reviews

Hidden Hitch Trailer Hitch Receiver - Custom Fit - Class III - 2" - 87661

Average Customer Rating:  5.0 out of 5 stars   (3 Customer Reviews)

This durable, fully welded vehicle trailer hitch receiver features a powder coat finish over an e-coat base to ensure superior corrosion resistance.

- 87661

by: Troy F.03/18/2014

I ordered the hitch and bought the wiring kit for it as well and I am very pleased with the product. The hitch was heavy and very durable - looked good and fit like a glove. Installation was simple and the install video was a great tool to view before and during install. I would highly recommend this hitch to anyone also having a second person to help with install is a must. 121225


Troy, What year is your SRX and how difficult is it to install the wiring kit? Did the video come with the hitch?Any additional insight would be great. Thanks!

comment by: Erik F - 07/02/2014


- 87661

by: Frank J11/22/2010

Product Quality Quality was very good and installation was simple 3700

- 87661

by: marie N.11/22/2011

this company was very much on top of things with quick service 27298


Ask the Experts about this Hidden Hitch Trailer Hitch
Do you have a question about this Trailer Hitch?

  • What is the Difference Between Hidden Hitch 87661 and Draw-Tite 75174 for a 2007 Cadillac SRX
  • Hidden Hitch # 87661 and Draw-Tite # 75174 are the same design. They are sister companies that share their designs. The difference between these two hitches is the gloss or sheen on the finish. The Hidden Hitch is a duller finish than the Draw-Tite. Either one will work fine, it is just a matter of finish preference. Most of the hitch is tucked up underneath the bumper, but the receiver is visible. I have added a link to the instructions that show you where the hitch is positioned in...
    view full answer...

  • Trailer Hitch, Wiring, Ball Mount Kit and How to Determine the Towing Capacity of 2006 Cadillac SRX
  • The limiting factor when towing with your 2006 Cadillac SRX is what the vehicle is capable of according to the manufacturer. You will need to check your owners manual for the towing capacities of your vehicle. This information can also sometimes be found on a sticker on the driver side door. The Hidden Hitch Trailer Hitch, # 87661, is rated for 3,500 pounds gross trailer weight and 350 pounds of tongue weight capacity. If your SRX is able to tow that much, be sure not to go beyond the...
    view full answer...

Do you have a question about this Trailer Hitch?


At we guarantee:

Highest quality trailer hitch for the best price.

Real product know-how.

  • We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. This helps you get the right product the first time.
  • Every day our teams test, review, assemble and install our products. Our modern installation facilities allow our expert installers and customer service representatives to actually install and use the items we sell, so you can get real advice, from a real person who has the knowledge and expertise needed to solve your problem.

Most detailed, accurate trailer hitch information available.

  • Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.

Information for this part was:

Test Fit:
Joe V
Video Edited:
Zack K
Video Edited:
Andrew K
Written by:
Lindsey S
Expert Research:
Patrick B
Expert Research:
John H
Updated by:
Laura H
Video Edited:
Dustin K

Installations, made easy.

  • We love helping people.
  • We have the most highly trained customer service, hands-on experience, step by step videos and installation instructions. We are prepared to answer any question, give advice, or troubleshoot any problem you come across.

Fast shipping.

Personalized service for life.

  • We provide one-on-one, personalized service from the ordering process through the life of your product.

Trusted since 1946.

  • We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.

Weight Carrying Capacity
Gross Towing Weight (GTW):
3,500 lbs.

Tongue Weight (TW):
350 lbs.

Weight Distribution Capacity
Gross Towing Weight (GTW):
5,000 lbs.

Tongue Weight (TW):
500 lbs.

Trailer Hitch Installation Instructions 87661 Installation instructions 87661 Installation Instructions
No drilling required

Tech Tip
No drilling required for installation , Minor heat shield modification may be required , Exhaust must be temporarily lowered for installation

Manufacturer Estimated Installation Time

Recommended Wiring:
wiring 119179KIT

Most Popular Ball Mount:
Hidden Hitch 2923

1-7/8" hitch ball - 19260

2" hitch ball - 63845

2-5/16" hitch ball - 63847
