B&W Tow & Stow 2-Ball Mount - 2" Hitch - 3" Drop, 3-1/2" Rise - 7.5K - Black

B&W Tow & Stow 2-Ball Mount - 2" Hitch - 3" Drop, 3-1/2" Rise - 7.5K - Black

Item # BWTS10035B
lowest price pledge
Retail:$227.42
Our Price: $199.00
You Save: $28.42
Trailer Hitch Ball Mount
This item qualifies for Free Shipping
Shipping Weight: 26 lbs
Quantity:
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

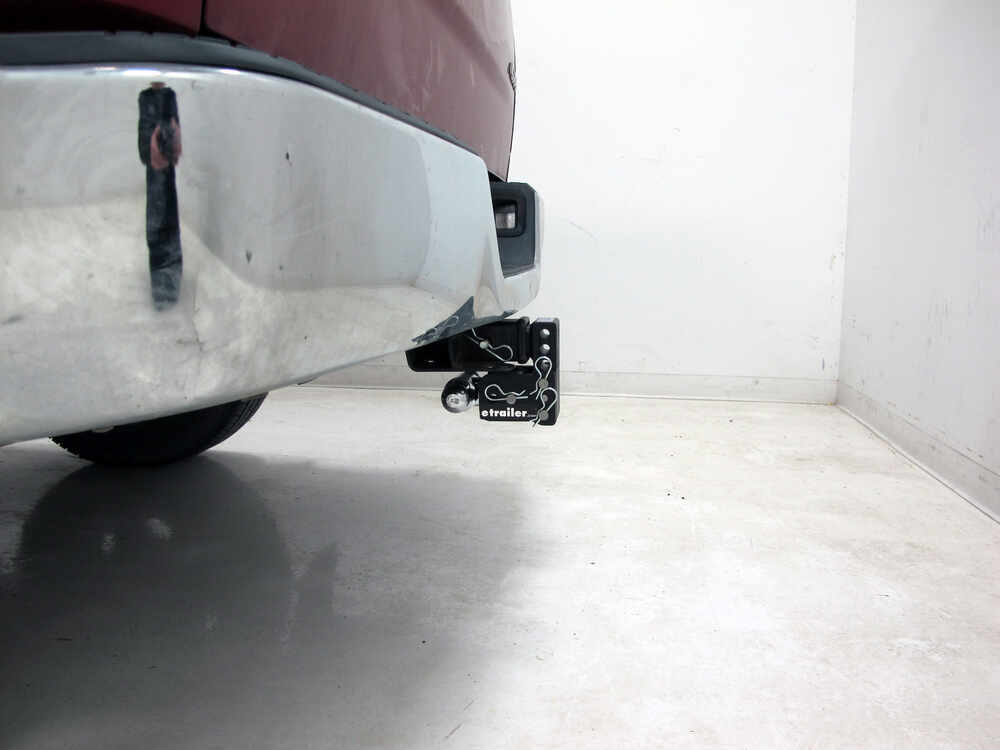

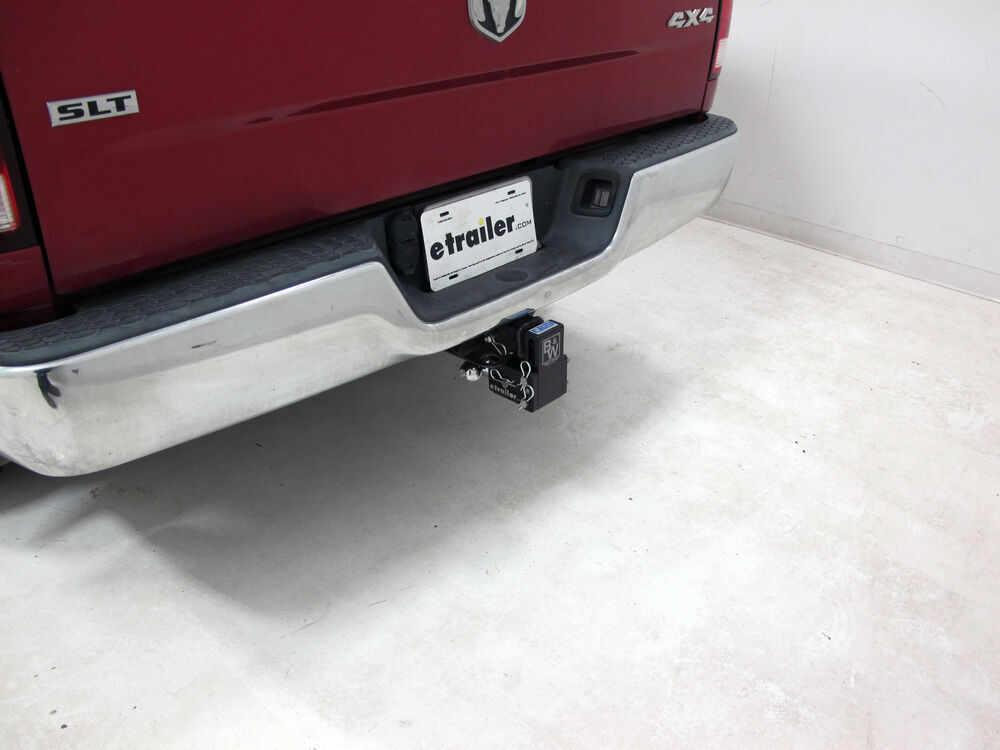

In Use/Installed

Customer Photos

Need help with installation?
Locate installers near me
Easily stow the ball and mounting platform on this heavy-duty, dual-ball ball mount beneath your hitch for a sleek look when you are done towing. Tow up to 3,500 lbs with the 1-7/8" ball or 7,500 lbs with the 2" ball. Lowest Prices for the best trailer hitch ball mount from B and W. B&W Tow & Stow 2-Ball Mount - 2" Hitch - 3" Drop, 3-1/2" Rise - 7.5K - Black part number BWTS10035B can be ordered online at etrailer.com or call 800-298-1624 for expert service.
  • All Info
  • Reviews (1999)
  • Q & A (87)
  • Photos
  • Why etrailer?

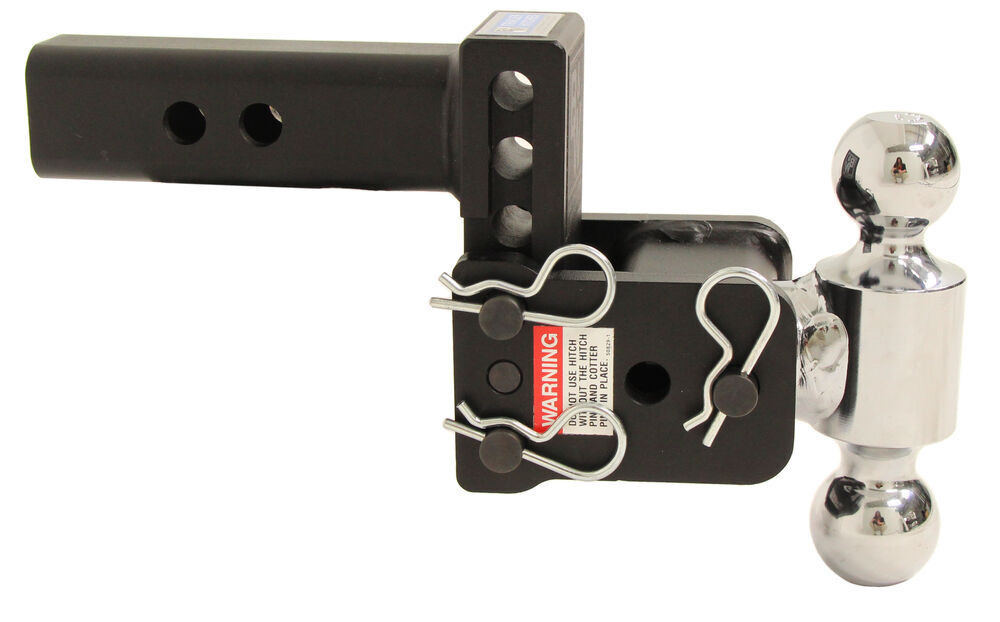

B and W Trailer Hitch Ball Mount - BWTS10035B

  • Fits 2 Inch Hitch
  • Adjustable Ball Mount
  • Drop - 3 Inch
  • Rise - 3 Inch
  • 1-7/8 Inch Ball
  • 2 Inch Ball
  • Two Balls
  • Class IV
  • 7500 lbs GTW
  • B and W
  • Steel Shank - Matte Black
  • Steel Ball

Easily stow the ball and mounting platform on this heavy-duty, dual-ball ball mount beneath your hitch for a sleek look when you are done towing. Tow up to 3,500 lbs with the 1-7/8" ball or 7,500 lbs with the 2" ball.


Features:

  • Ball mount with built-in hitch balls lets you hook up your trailer to your tow vehicle
    • Shank slides into hitch receiver
    • Ball provides connection point for trailer coupler
  • Stowable design lets you store ball and mounting platform underneath your vehicle
    • Remove pins holding ball mount platform in place on shank
    • Flip platform underneath the hitch
    • Reinsert pins and clips to secure ball mount platform for travel
  • Adjustable height lets you tow trailers of different heights with the same vehicle
    • Slide ball mount up or down along shank and secure in place with included pins and clips
  • Anti-theft design ensures ball mount platform can't be removed when Tow & Stow is installed in hitch
    • No additional locks required to prevent platform and balls from being removed
  • 2 Different-size hitch balls let you tow trailers with different coupler sizes
    • To switch ball, simply remove pin, rotate balls, and reinsert pin
  • Dual-process chrome plating on balls provides excellent rust resistance
  • Black powder coated shank is corrosion resistant
  • Stainless steel pins create sturdy, rust-resistant connections
  • Durable steel construction with high yield tubing offers superior strength
  • Hitch pin and clip or hitch lock sold separately
  • Made in the USA


Specs:

  • Application: 2" x 2" trailer hitch receivers
  • Gross towing weight:
    • When used with 1-7/8" ball: 3,500 lbs
    • When used with 2" ball: 7,500 lbs
  • Distance from center of hitch pin hole to center of hitch ball:
    • Hitch pin hole closest to ball: 9-1/4"
    • Hitch pin hole farthest from ball: 10-3/8"
  • Distance from center of hitch pin hole to pin hole in mounting block:
    • Pin hole closest to mounting block: 3-3/4"
    • Pin hole farthest from mounting block: 4-7/8"
  • Maximum drop: 3"
  • Maximum rise: 3-1/2"
  • Incremental height adjustment: 1"
  • Minimum clearance: 11" from ground to lowest point on Tow & Stow hitch
  • Limited lifetime warranty


Note:

  • Requires a minimum of eleven inches of clearancebetween the ground and the lowest part of the hitch
  • Without adequate ground clearance, the hitch may hit theground or other objects such as steep driveways or curbs
  • Striking any obstacle may cause damage to the hitch that could affect its integrity

The B&W Tow & Stow adjustable ball mount lets you tow a variety of trailers with different tongue heights. Having both a 1-7/8" ball and a 2" ball allows for even more versatility, making this the ultimate go-to ball mount if you own multiple trailers.


Easily Adjusts and Stows

B&W Tow & Stow Ball Mount Operation

To switch the hitch ball, simply remove the pin holding the balls in place and rotate the entire block that the balls are mounted on until the ball you want to use is on top. Then replace the pin to secure the block in place.


Adjusting the height of the ball is just as easy. Remove the pins holding the ball mount platform in place and slide the platform up or down along the shank to the desired position. Once you have found the correct height, reinsert the pins and replace the clips.

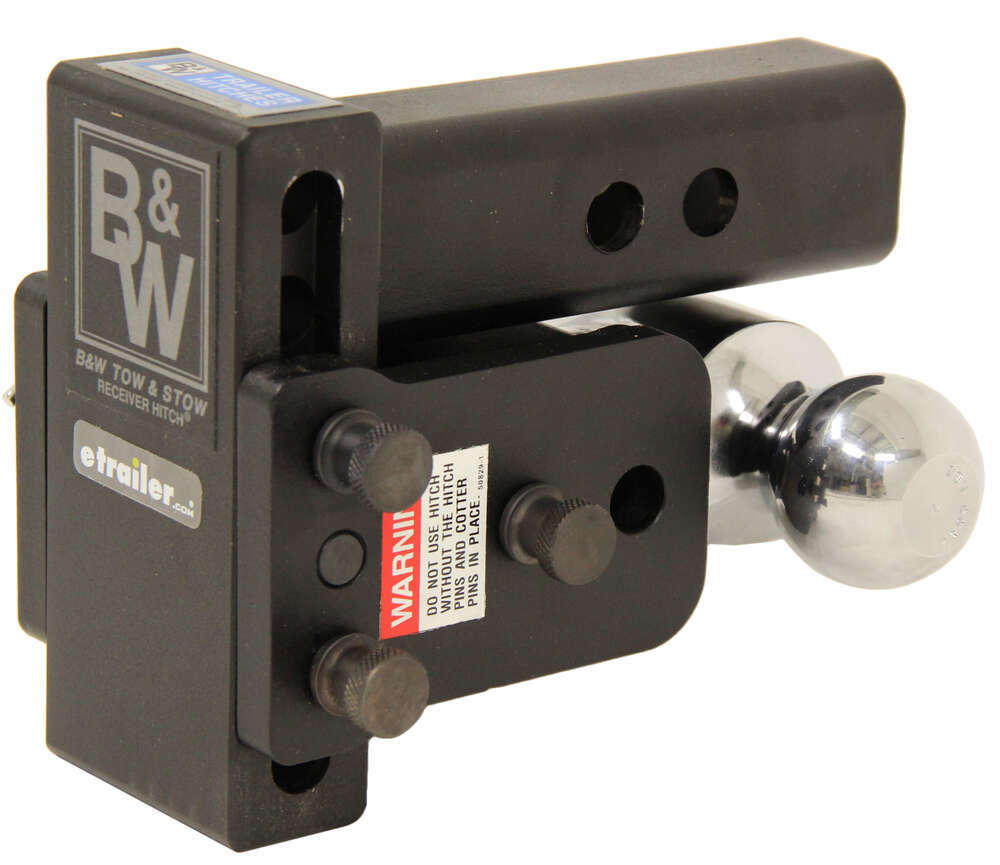

When you're not towing, you can flip the ball mount platform around and stow it beneath your hitch so that you won't bang your shins. Just remove the pins to slide the ball platform down along the channel and up the back side so that the hitch balls face towards your vehicle. Then replace the pins.


Built-In Anti-Theft System

The Tow & Stow ball mount features a channel that runs along both sides of the shank. This channel not only allows you to slide the ball mount platform up and down to adjust the ball height, but it also prevents removal of the platform when the ball mount is installed, which will help prevent theft of your trailer.


Single Dimensions

A slot is cut into the adjustment channel near the top of the shank. To remove the ball mount platform from the shank you will need to remove the entire ball mount from your hitch. Then remove the pins that hold the platform in place. Flip the platform around to the stowed position on the rear of the shank, and then slide it up until the center pin lines up with the slot in the shank. Pull the platform out towards the rear of the shank until the pin pops out of the adjustment channel.


When the Tow & Stow is secured in your hitch receiver, you will not be able to remove the ball mount platform. This is because the slot in the shank is positioned in such a way that the collar on your hitch will block the pin on the platform from being able to leave the channel. Even if the pins holding the ball mount platform in place are removed, the platform will still be confined to this channel. So, as long as a hitch lock is used to secure the entire ball mount in your hitch receiver, and a coupler lock is used to prevent your trailer's coupler from being disengaged from the ball, your trailer will be secure.


How to Measure Drop on Adjustable Ball Mount


TS10035B B and W Stow and Tow Dual Ball Mount - Model 6 - 1-7/8" Ball and 2" Ball - Black
