MaxxTow Trailer Dolly with 1-7/8" Hitch Ball - Black Powder Coated Steel - 600 lbs

MaxxTow Trailer Dolly with 1-7/8" Hitch Ball - Black Powder Coated Steel - 600 lbs

Item # MT70225
lowest price pledge
Retail:$168.98
Our Price: $94.94
You Save: 44%
Trailer Dolly
Orders above $99 qualify for Free Shipping
Shipping Weight: 30 lbs
Quantity:
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Customer Photos

Videos

Need help with installation?
Locate installers near me
Quickly and easily move your small trailer with this sturdy steel dolly. Just hook up to the included 1-7/8" hitch ball and maneuver your trailer into place. All-terrain tires and comfort-grip handle make positioning a snap. Lowest Prices for the best trailer dolly from MaxxTow. MaxxTow Trailer Dolly with 1-7/8" Hitch Ball - Black Powder Coated Steel - 600 lbs part number MT70225 can be ordered online at etrailer.com or call 800-298-1624 for expert service.
  • All Info
  • Reviews (296)
  • Q & A (79)
  • Photos
  • Why etrailer?

MaxxTow Trailer Dolly - MT70225

  • 600 lbs Capacity
  • Manual Dolly
  • MaxxTow
  • 1-7/8 Inch Ball
  • Black Powder Coat
  • 17 Inch Tall
  • Steel

Quickly and easily move your small trailer with this sturdy steel dolly. Just hook up to the included 1-7/8" hitch ball and maneuver your trailer into place. All-terrain tires and comfort-grip handle make positioning a snap.


Features:

  • Trailer dolly lets you move your small trailer
    • Bring trailer to tow vehicle for fast hookup
    • Easily wheel trailer into garage or storage space
  • Chrome-plated hitch ball makes for effortless hookup
  • Long handle provides leverage, making it easy to manage the load
    • Rubberized coating on handle ensures good, comfortable grip
  • 2 Pneumatic, all-terrain tires on sturdy steel rims offer excellent support
  • Black powder coated steel frame is strong and rust resistant


Specs:

  • Ball size: 1-7/8"
    • Shank diameter: 3/4"
  • Maximum trailer weight: 600 lbs
  • Tire size: 12" diameter x 4" wide
  • Wheel spacing (outside to outside): 26"
  • Distance from center of hitch ball to handle: 43"
  • Handle width: 10-1/2"
  • Distance from top of hitch ball to ground: 17"
  • 90-Day warranty

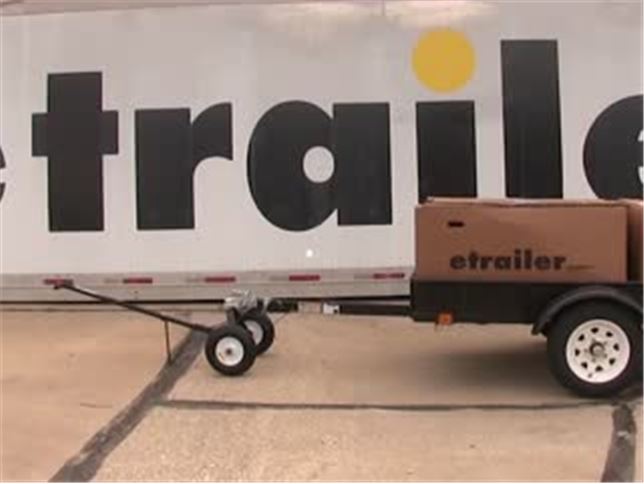

70225 Maxx Tow Trailer Mover






Customer Reviews

MaxxTow Trailer Dolly with 1-7/8" Hitch Ball - Black Powder Coated Steel - 600 lbs - MT70225

Average Customer Rating:  4.7 out of 5 stars   (296 Customer Reviews)

Quickly and easily move your small trailer with this sturdy steel dolly. Just hook up to the included 1-7/8" hitch ball and maneuver your trailer into place. All-terrain tires and comfort-grip handle make positioning a snap.

- MT70225
by:

MaxxHaul: Model 70225; Serial FS1903009654 This review is based on two events. First, the assembly, and second, the application. ASSEMBLY: The best feature of this implement is the instruction manual / parts catalog © 2012 edition. This document lists instructions on how to assemble, and in what order, as well as tabulating a set of specifications on one page while devoting an entire other page to a parts blowup with reference numbers and quantities. After reading this document and looking at the stuff that came in the box, it took roughly a half-hour to get wheelsup and ready to rock. The one slight improvement I would suggest is for prospective end-users to obtain sixteen (16) Grade-8, Metric size 10 or SAE size ½ inch flatwashers and put them under the bolt heads because the elongated bolt holes in the chassis can sure use a friend. ASSEMBLY RATING Four (4) stars. APPLICATION: It was necessary to use the swing-down trailer jack to get the dollie under the hitch receiver on the splitter tongue. My error was to not immediately chock the two load tires and the two dollie tires. When attempting to snap closed the ball lock, with the trailer and dollie un-chocked, the effect was to snap the dollie trailer ball out of the hitch receiver and then, just like a trebuchet, wing the tow arm right over the hitch, dropping the hitch to flat on the ground and narrowly missing my noggin. It was that fast. In order to recover the trailer it was necessary to employ the shop scissor jack under the frame and lift the tow bar to where the swing-down adjustable trailer jack could be re-deployed and the tow bar raised once again to where the 1-7/8” ball could slide in under the receiver. However, the triangular support iron under the dollie’s handle, when seated on the ground, put the trailer ball and supporting iron at an acute angle. This is what jammed up the ball lock before. The remedy was to raise and support the triangle with four inches of blocking that would afford the dollie frame to be perpendicular to the receiver, and that way the ball lock would operate correctly. Please note that when the ball was correctly seated and the trailer ball lock engaged, the dollie no longer would pop out of connection. The four chocks on the dollie wheels, plus the four chocks on the lot splitter wheels could then be removed and the rig manhandled over to the woodpile. It was necessary to pull out an old stakebody wooden utility trailer to set up next to the splitter. The trailer looks like it weighs little, but the frame is welded pieces of pipe. Once again I went and hooked things up without chocking all four wheels and the trailer dollie once again popped out and swung over, narrowly missing my noggin once again. Application Rating Four (4) stars. There’s no way for MaxxHaul to anticipate every app, and it behooves the end user to equip his dollie plant with all the correct PPE as the Real Step One. Photo 1: The receiver needs to be raised. Photo 2: The dollie handle seen right after popping over the hitch. Photo 3: The extra equipment needed to safely get my trailer dollie connected.



- MT70225
by:

Inexpensive Trailer Dolly that allows me to easily adjust my pop up trailer inside my small, two car garage. It beats back breaking lifting and adjusting to position the trailer in a tight space. I wondered if the included 1 and 7/8 inch ball would work with my 2” ball hitch but there wasn’t an issue. An exact fit isn’t needed since you’re just making adjustments and not speeding down the highway at 70mph (but easy to swap out to a 2” ball if needed).



- MT70225
by:

The MaxxTow Trailer Dolly with 1-7/8" Hitch Ball - Black Powder Coated Steel - 600 lbs does a wonderful job. Before I purchased it, I was concerned that having the hitch ball above a single axle would yield a situation where it was unstable (as indeed it would be if you lifted the handle significantly and then let go). In usage, however, I observed no such instability. It is well engineered such that one can pull the trailer and then lower the handle and it will remain in a safe position. The materials are quite strong enough for the job; I observed no straining or bending of the ball supports nor axle. The pictures show it attached to our partially loaded utility trailer. The trailer is 1200 - 1500 lb and the motor generator inside is 1200 lb. The dolly allows me to move the trailer inside our building without running an internal combustion engine and fouling the air. On the road, with the utility trailer as a second towed vehicle, it will allow disconnecting the utility trailer from the first trailer and moving it out of the way to allow backing the first trailer.


Comments
After a year and some use, it still works well.
Craig M - 10/14/2017



- MT70225
by:

Bought this to move my 14 ft travel trailer around in my garage and it works great. I had to change the ball to match my hitch but that is no big deal. It makes it easy to move the trailer around as my garage has very limited side clearance around the trailer. Very pleased with the product and have recommended it to several of my neighbors who also own small trailers. It is great for maneuvering boat trailers also.


Comments
The dolly is still working great-it makes it easy to move the trailer into my storage building without hitting the sides.Great product.
Bob M - 04/24/2021


- MT70225
by:

Love this little dolly!! Well built and really does the trick. I can maneuver my 14' boat and trailer from my drive, over my lawn and up a slight incline to it's storage place very easily. I'm not a young person anymore and this really helps.



- MT70225
by:

Had to weld a higher extension on the ball with a brace to make the perfect height for my truck hitch . But it work out great



- MT70225
by:

First, owning a dolly is a must. I move a 1200lb trailer and a 1800lb trailer around. Use it all the time. What don’t like is the grips slide off. I could buy bicycle grips but I think the manufacturing spec should have better grip material. But price/use. Well worth it!



- MT70225
by:

I like this dolly. It's made with quality materials. The large pneumatic tires make moving the boat easier. After one summer next to the boat in a drysail area there was some rust developing so this past winter I repainted and also used a rust converter. This dolly is head and shoulders above most of the other dollies in the drysail area!


Comments
Great. I really like the larger tires as it makes moving the trailer much easier. Pneumatic tires are great on gravel parking lots, too. I did repaint it to eliminate small amounts of rust. It is out in the weather at a drysail marina.
Chris B - 06/27/2021


- MT70225
by:

I have a 16 foot enclosed trailer that is approximately 6 ft wide. I have customized it with diamond plate and there's a whole bunch of stuff in it. I was going to purchase a $580 geared trailer Dolly because I was afraid that I would need assistance moving my trailer. I went with this product, and guess what it really works. I don't know what people are complaining about, there is only about 4 nuts and bolts that are required to put this thing together not including the ball which easily attaches. I literally had this thing together in less than 10 minutes. I did everything hand tight then I took two sockets to tighten on each side of the nut and bolt. I used the trailer dolly for the first time tonight after inflating the tires. I used my Harbor Freight air compressor I put in between 38 and 40 lb on each tire. I was able to easily move the trailer which was quite shocking to be frank, Plus I was able to easily maneuver the trailer as well. I live in a manufactured home park so I am parking my trailer which is about 8 feet high on my carport. I have a three-car carport and putting my trailer on the carport in the first position saved me about $100 per month in storage fees. I will have to move my trailer each time I want to use it with my RV to go on an RV trip with my motorcycle. This trailer dolly is without a doubt without equal as far as cost benefit. Now I do have an inclined portion of my carport from the street in the manufactured home park. I did need my wife to push of the back of the trailer because my trailer is very heavy to get it onto my carport. Once it got to the level area I was easily able to move the trailer on my own. I do caution you that if there's going to be an incline you are probably going to want somebody behind you pushing the trailer if it's as heavy as mine. I am very happy with my purchase and I highly suggest that you get one yourself. My trailer does have a 2in hitch so I am going to be putting a 2-inch ball on my trailer dolly just to ensure that it is locked in. With the one and 7/8 ball with a 2-inch hitch it does come out even with the latch down. Balls are very cheap at other stores



- MT70225
by:

I ordered the pictured trailer dolly as I was looking for a method to move my personal watercraft trailer. My driveway is sloped and the storage pad where the trailer is kept is adjacent to my home and gated. The entry through the gate is rather narrow and to back the trailer into the storage pad is difficult. Looking to maneuver the trailer easily was my goal and I had considered several powered trailer dollies but their cost is prohibitive. I came upon the manual dolly on [online] and ordered it finding it's cost reasonable and its features seemingly filling the bill. It arrived ahead of schedule and my wife and I assembled it in about half and hour. We found that it's height was within about half an inch of my truck's trailer hitch height, which was perfect. It maneuvers the trailer precisely and easily, allowing me to back it close to its storage area and then push it into position with little effort. Everything about the whole transaction was simple straightforward and exactly as I expected. Further, I've found a resource in etrailer.com that I will use often for my trailering needs.


Comments
Very well!! I eventually purchased a electrically powered trailer dolly as I had also acquired an 18 foot car hauler trailer which is a bit too heavy to move with The Maxxtow dolly, though small movements can be made. The Maxxtow dolly is still used to position and move my other jet ski trailer after the larger car hauler is located. All in all, a very convenient accessory to my collection of wheeled conveyances.
Gary C - 09/21/2020


- MT70225
by:

Does the job. This is very well built. I was able to move this 600 lb. camper in and out of my shed. Easier to maneuver than with a small tractor in the tight space. The only thing I could want more out of this dolly is to have a park break. Having a slight slope I needed to put stop blocks inside the shed before moving the trailer in. I'd suggest having a second person help if you have any slope to your parking area. Glad I bought this.



- MT70225
by:

Dolly is simple, but perfect for my needs. I use it to move my pop up camper from my backyard to the front where I can hook up to my truck. Works great for this purpose



- MT70225
by:

I'm able to turn my popup 180 degrees by myself. My driveway is off an alley, so backing in isn't an option. I drive in as if parking in the garage, unhook and turn the trailer around and out of the way. The only problem I've had is when the dolly is 90 degrees to the trailer the dolly wheel contacts the front jack and won't move unless I back off. Not a fault of the dolly, I'm just working in a very tight space.


Comments
Continues to work as expected. The tires need air periodically. Well worth having.
Jim T - 06/27/2020


- MT70225
by:

Very well built, Took about 30 min to assemble, package was very strong, all parts included.



- MT70225
by:

WOW! Why didn't I get this trailer dolly years ago! It is great, well made and my wife had no problem putting it together in a half hour. Moving the trailer around the yard is an easy task now! Thank you!



- MT70225
by:

It was easy to assemble. Sturdy construction. I couldn’t make one for less money.



- MT70225
by:

Nice product; I can now move my 500 lb trailer up and down my sloped driveway and into my garage without (too) much effort. The large diameter wheels help reduce effort but unfortunately the tires can rub against the trailer hitch when making a very tight turn which can cause issues in tight quarters.



- MT70225
by:

Good sturdy product. Easy to assemble. Great price.



- MT70225
by:

This is just what I needed to maneuver my small camper trailer around my drive way. It's short and hard to back up and this helps a lot. It seems well built and assembled quite easily. Ah yes the tires are large enough if I have trouble backing into a camp site I can use it to get where I need to be. Perfect.


Comments
As I stated in my original review this is perfect. I havent change my mind. It still does everything I ask of it.
Michael P - 05/15/2020


- MT70225
by:

works great moved a 3000lb, 8' trailer with ease



- MT70225
by:

Quality of dolly is excellent but assembly instructions are below average, particularly in the description of the hardware used. Fortunately the assembly was rather simple. I use the MaxxTow Trailer Dolly to move a 6x10 utility trailer in and out of a gravel covered parking area. GVW is 3200 lbs and tongue weight is about 400 lbs. The dolly works well for me and makes the maneuvering of my utility trailer quite easy.


Comments
Still going strong. The dolly is remarkably unaffected by the sun and rain here in Arizona.
Bob D - 01/09/2016



- MT70225
by:

As many others have pointed out - poor instructions, so just look at the pictures, put the bolts in loosely to start, and then tighten everything. Moves our Scamp travel trailer (1300 pounds, 190 pound tongue weight) easily over uneven gravel pad that is grown in with grass. Would be an absolute breeze on a hard surface. Very well-built of heavy steel. Shipping was dang near instantaneous!


Comments
One year later and I just now used it again to reposition the trailer for summer. NO PROBLEMS at all with this item. Not sure what I would do without it!
Bob M - 05/11/2016



- MT70225
by:

Trailer dolly MT70225 arrived a day late due to the adverse weather conditions in Nashville, TN. No problem. Packaging carton by Etrailer and the packaging by Maxxtow was outstanding. The only complaint I had was that the Parts List on page 5 of the Instruction Manual & Parts Catalog did not agree with hardware that was received. It appears Maxxtow has updated the type of hard-ware provided and has not updated the parts list. I at first thought parts were short. That could be confusing to some people. Cosmetic only. If they update assembly diagram and parts list they need to also update the instructions in Page 4, paragraphs 1 thru 7.


Comments
I have used it to move my two-wheeled car dolly around the yard and moving car dolly to rear of motor home. We take it with us when we camp to move the car dolly away from motor home for storage while we camp. Im 74 years old and it does the trick.Im happy with unit.
larry p - 02/14/2015



- MT70225
by:

Very solid and well built. Makes moving and maneuvering my camper easy. Hard to believe all the trouble I had Before I got this. Definitely rates 5 stars and then some!


Comments
Same as my original statement, the dolly is fabulous!
Tony - 06/29/2020


- MT70225
by:

Move a boat, tear drop camper, and utility trailer all around a 40’ x 60’ driveway area, without a problem.


Comments
excellent
Rick N - 12/03/2020

29
300
Show More Reviews

Ask the Experts about this MaxxTow Trailer Dolly

  • Trailer Dolly Compatibility with Lock N Roll Hitch
    A standard trailer dolly like # MT70225 is not directly compatible with the Lock N Roll hitch system. There is not a dolly designed to work with that system, however if you were to use a similar system with the ability to attach to a hitch ball, then a dolly could be utilized. I recommend instead of the Lock N Roll you could use the Ark Articulating Off-Road Coupler for 2" Receivers - Trailer Side - 2" Ball # AR44FR which works with a hitch ball and thus would work with a dolly.
    view full answer...
  • Recommended Trailer Dolly for Maneuvering 4,500 lb Trailer Into Storage Area
    The MaxxTow Trailer Dolly with 1-7/8" Hitch Ball - Black Powder Coated Steel - 600 lbs # MT70225 is far too small an option for your trailer. This style tow dolly has a max weight of 600 lbs total weight so your 4,500 lb dry weight is far exceeding capacity. The CE Smith Heavy Duty Trailer Dolly with 1-7/8" Hitch Ball - Black - 700 lbs # CE27550 is the only one rated for tongue weight and that would work, but you would most likely need a different hitch ball size. Due to the size of...
    view full answer...
    Image 1 for
  • Difference Between MaxxTow MT70225 and MT70881 Trailer Dollies
    The difference between the two is that the # MT70881 can be pulled manually, or the handles can be folded inward and the integrated clevis could be attached to the clevis hitch of an ATV and used to move a trailer around. The # MT70225 can only be used by hand, it doesn't provide the clevis attachment. Both can handle trailer weights up to 600 lbs. I've linked to demonstration videos for both products.
    view full answer...
  • Can I use the MaxxTow MaxxHaul # MT70225 to Move a 1300-lb Teardrop Trailer?
    The weight capacity listed for trailer dollies like the MaxxTow MaxxHaul Dual Pull # MT70225 is almost always the total trailer weight. For example, MaxxTow states that this dolly should not be used with any trailers that weigh more than 600-lbs and this is the case with most trailer dollies similar to this one. We've personally used this on trailers that weigh more that 600-lbs and I honestly don't think your 1,300-lb tear drop camper will be much of an issue, but if you choose to...
    view full answer...
  • Trailer Mover for Use with 16-Foot 3500-lb Airstream Sport Travel Trailer
    The trailer mover I suggest for your 3500-lb Airstream Sport travel trailer is the Trailer Valet 5X model # STC-V211. This 2-speed chain-drive trailer mover simply clamps on to either side of your A-frame (no welding and no drilling) and it can handle the loaded trailer tongue weight up to 500-lbs. It features an automatic brake for your safety. You can hand-crank the Valet or use the cordless drill adapter # TVDA to give you a really easy method for maneuvering the trailer into tight...
    view full answer...
  • Recommended Trailer Dolly For Boat Trailer On Flat Concrete Surface
    Since you said the concrete is smooth and flat it should be pretty easy to move your boat around with a trailer dolly I recommend like part # MT70225. This dolly has a 600-lb trailer weight capacity and has a 1-7/8 inch ball attached. The dolly has 12-inch tires.
    view full answer...
  • Trailer Dolly Recommendation for Moving Boat Trailer Into Garage with Bevel at the Door
    First of all, thank you very much for your service, and thank you for providing an entertaining read. Using a tow dolly instead of your current trailer jack will definitely help make moving your loaded boat trailer much easier. We do have options like the MaxxTow # MT70225 which is a cost-effective solution but if you are already experiencing some back issues then this isn't a very viable option, plus it only has a trailer weight capacity of 600 lbs. Instead, something like the Trailer...
    view full answer...
    Image 1 for
  • Can a 2 Inch Trailer Hitch Ball be Mounted on the MaxxTow Trailer Dolly
    You could put a 2 inch ball on in place of the 1-7/8 inch ball on the MaxxTow dolly # MT70225. However, it is not necessary. For a dolly, you do not have to have the same size ball as what the coupler on the trailer requires. That is why all the dollies that we carry have a 1-7/8 inch ball. It is the smallest size and will fit all couplers that take a 1-7/8 inch or larger ball. I can personally attest to this. Just yesterday I used this exact dolly to move a trailer outside that had...
    view full answer...
  • Air Pressure for Tires on MaxxTow Trailer Dolly
    The MaxxTow trailer dolly # MT70225 uses 4.10/3.50-6 lawn and garden tires rated for 24 psi. You can check the tire sidewall on your model to make sure that is the proper psi rating on yours.
    view full answer...
  • Can I Use a Trailer Dolly to Move a Loaded Trailer
    The MaxxTow Trailer Dolly, part # MT70225, has a 600 lbs trailer weight capacity, meaning that as long as your trailer's weight is below 600 lbs loaded it will work fine.
    view full answer...
  • Recommended Trailer Dolly for Moving Pop-Up Camper Trailer into Garage
    If you can't use your tow vehicle to move your pop-up camper into your garage then your best option is a trailer dolly like the MaxxTow # MT70225. This cost-effective dolly features pneumatic (inflatable) tires and a 1-7/8-inch hitch ball. It can handle a trailer with a weight as high as 600-lbs. You might want to have some wheel chocks like # MT70072, and a competent helper, for safety when moving the trailer especially if it will be moved on an incline.
    view full answer...
  • Using MaxxTow Trailer Dolly # MT70225 to Move Pop-Up Camper
    Moving trailers for short distances is exactly what a trailer dolly like the # MT70225 was designed for. According to MaxxTow, the dolly has a 600 lb capacity, which according to MaxxTow means the trailer can't weigh more than 600 lbs. The Rack 'em Trailer Dolly, part # RA20 would be a better choice. As long as the trailer's tongue weight is less than 500 lbs, this dolly would work great.
    view full answer...
  • Dolly Recommendation to Make Moving a Pop Up Camper by Hand Easy
    For your situation the easiest dolly solution we have is the Trailer Valet XL part # TVXL2. This attaches to the coupler ball and gives you an easy to turn crank which turns the wheels of the dolly allowing it to easily be moved. Standard dollies like the # MT70225 will be much more difficult to move. Especially in gravel. The Trailer Valet can be used in gravel if it's packed pretty tight and not super deep. I attached a review video link for this for you to check out as well. This is...
    view full answer...
  • Height of From Top of Ball to Ground on MaxxTow Trailer Dolly
    From the top of the hitch ball on the MaxxTow Trailer Dolly part # MT70225 to the ground measures 17 inches.
    view full answer...
    Image 1 for
  • Recommended Trailer Dolly for 4,500 Pound Travel Trailer
    For a travel trailer weighing 4,500 pounds, I recommend going with the Trailer Valet XL Trailer Dolly # TVXL2. The Trailer Valet XL is going to offer much better support for the tongue weight of your trailer than a standard trailer dolly. The Trailer Valet XL has a tongue weight capacity of 1,000 pounds and a gross trailer weight capacity of 10,000 pounds, so it will work well with your travel trailer. I've attached a review video of the Trailer Valet XL for you. A traditional trailer...
    view full answer...
  • Recommended Trailer Dolly for Positioning Trailer in Garage
    For the least amount of effort when moving your smaller InTech Flyer Pursue camping trailer around I suggest the Trailer Valet 5X Swivel Jack and Trailer Mover # STC-V211 that bolts on to the trailer A-frame. This dolly features 2-speed hand crank operation or you can use the drill attachment # TVDA which lets you power the dolly using a cordless drill. This means all you need to do is steer it as the drill powers the wheels. The other primary method for making trailer maneuvering easier...
    view full answer...
  • Low Cost Trailer Dolly for Use with 2-Inch Trailer Coupler
    If your trailer has a 2-inch ball coupler you can still use the 1-7/8-inch MaxxTow Trailer Dolly # MT70225 to move it to and from your storage position. While it would not be appropriate to tow with different sizes of ball and coupler use of a tow dolly with the smaller 1-7/8-inch ball should be no issue. If you did find that the coupler's fit on the ball was too loose, you could simply install a 2-inch hitch ball in place of the standard ball.
    view full answer...
  • Trailer Dolly Options for Moving a 3,400 lb Fully Loaded Trailer
    You can try using a trailer dolly like the MaxxTow # MT70225 rated for 600 lbs Tongue Weight (TW) but 3,400 lbs is quite a lot to move by hand. I recommend using a Trailer Valet to assist you in moving the trailer which makes it much easier. The 5X # STC-V211 mounts to the trailer frame and can support up to 500 lbs of TW. It allows you to use the hand crank or a power drill, using the bit # TVDA, to effortlessly move the trailer around. A trailer's TW should be 10-15% of the loaded...
    view full answer...
  • Is MaxxTow Trailer Dolly MT70225 Rated for Gross Trailer Weight or Tongue Weight
    The MaxxTow trailer dolly # MT70225 has a maximum trailer weight rating of 600-lbs so the maximum tongue weight would be a fraction of this. Since this is a manual dolly that will be "powered" by one person the 600-lb weight limit is really the most trailer weight a single individual would be able to physically push around.
    view full answer...
  • Height of the 1 7/8 hitch ball on the the MaxxTow Trailer Dolly with 1-7/8 inch Ball - 600 lbs
    The distance from the top of the ball to the ground when the dolly is fully assembled is 17 inches. As long as the trailer weight is under 600 lbs it should make no difference if the trailer has 15 inch tires or not.
    view full answer...
  • Trailer Dolly Capable of Moving Small 1900 lb Travel Trailer
    The MaxxTow # MT70225 trailer dolly has a 600 lb capacity. According to MaxxTow, the total weight of the trailer cannot exceed the 600 lb capacity, so your trailer would be too heavy. Rack'em makes a # RA20 dolly that can handle trailers with tongue weights up to 500 lbs. Since yours would be between 200-300 lbs, this particular dolly would work great for you. As you can see by checking out the customer reviews, the Rack'em dolly is highly rated by our customers.
    view full answer...
  • Best Dolly Solution for Moving Boat Trailer into Garage
    We have one standard dolly that would be rated for the weight of your boat trailer with the Rackem part # RA20. As long as the tongue weight is under 500 lbs this dolly is rated for the weight of the trailer. Your best solution will be a Trailer Valet XL like the part # TVXL2 which connects to the coupler and uses a crank handle to allow you to move the trailer easily. It also has an automatic brake too when you release the crank which may come in handy trying to navigate the curb you...
    view full answer...
  • Can the MaxxTow Trailer Dolly # MT70225 be Used on 2-5/16 inch Ball Coupler
    Yes the MaxxTow Trailer Dolly # MT70225 will fit a 2-5/16 inch hitch ball. The reason this uses a 1-7/8 inch ball is because that is the smallest size ball which ensures that it will fit into every coupler. A coupler would not need to get securely latched to the ball of this dolly since you would only be moving it a few feet. You wouldn't have to worry about the trailer becoming disconnected from the dolly because gravity would hold it down. Also, if this was latched to a coupler and...
    view full answer...
  • Will MaxxTow Trailer Dolly work with 750 lb Trailer
    Sorry, the MaxxTow # MT70225 is only rated for trailers weighing up to 600 pounds. You could use the Trailer Valet # TVXL2 which has a capacity of 10,000 pounds.
    view full answer...
  • What is the Axle Diameter for MaxxTow Trailer Dolly
    We actually use the MaxxTow trailer dolly, # MT70225, here to move trailers around when needed. So I took some digital calipers outside and measured the diameter of the axle. It is just under 1 inch (0.98 inches). I also made a video for you showing the calipers at that measurement.
    view full answer...
  • Recommended Trailer Movers for 6 x 12 Enclosed Trailer
    The MaxxTow Trailer Dolly # MT70225 is an ideal way to move an empty trailer around the garage or driveway. Dual all-terrain pneumatic tires provide solid traction on many surfaces and the included 1-7/8-inch hitch ball fits all coupler sizes. If you think the trailer's weight may be too much for unassisted one-person moving then a product like the Trailer Valet # STC-V211 might interest you more. This product functions as BOTH a swing-up trailer jack and a trailer mover that can be...
    view full answer...
  • Recommended Trailer Dolly for 16 Foot Long Enclosed Trailer
    The tongue weight and total weight will be important factors in choosing the correct trailer dolly, but I'll give you some general options that would cover different possibilities. If the total weight of the trailer is 10k-lbs or less, and the tongue weight is less than 1000-lbs, I recommend going with the Trailer Valet XL since it's going to allow you more control of the trailer. The Trailer Valet XL has a handle that allows for easy steering, a chain drive system to help make moving...
    view full answer...
  • Large VS Smaller Diameter Wheels and Tires For Trailer Dolly
    Larger Tires will be able to roll over obstacles easier and are less likely to sink into soft spots due to a larger surface area. The amount of force required to move will also go down with the larger wheels. Be sure to check the height of your frame when you operate the dolly. If the tires are to big they can contact your frame and reduce maneuverability. With solid tires you won't have to worry about flat tires and maintaining air pressure. But you will lose the flex that a pneumatic...
    view full answer...
  • Is Weight Capacity of MaxxTow Trailer Dolly # MT70225 for Trailer Weight or Tongue Weight
    The total trailer weight capacity associated with the MaxxTGow Trailer Dolly # MT70225 is 600 pounds. They do not state the rated tongue weight. You might assume that if your trailer was properly loaded with no more than 15% of the total weight supported at the tongue, that it then could hold around 90 pounds.
    view full answer...
  • Dolly Recommendation for Moving Utility Trailer In and Out of Garage
    The MaxxTow dolly # MT70225 is designed for much lighter trailer than what you have. For something similar that would make getting the trailer in and out very easy you'd want the part # TVXL2 which has a crank handle that turns the dolly wheel so that you aren't having to drag the trailer around. I attached a review video for this for you to check too.
    view full answer...

Do you have a question about this Trailer Dolly?




  • Why etrailer.com?

    At etrailer.com we guarantee:
  • Highest quality trailer dolly for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer dolly information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Employee Leah B
Edited by:
Leah B
Employee Mike L
Expert Research:
Mike L
Employee Michael H
Expert Research:
Michael H
Employee Jameson C
Expert Research:
Jameson C
Employee Adam R
Expert Research:
Adam R
Employee Lori W
Expert Research:
Lori W
Employee Jeffrey L
Expert Research:
Jeffrey L
Employee Victoria B
Expert Research:
Victoria B
Employee Zack K
Video Edited:
Zack K
Employee Dustin K
Video Edited:
Dustin K
Employee Lindsey S
Written by:
Lindsey S
Employee Patrick B
Installed by:
Patrick B
Employee Hayden R
Installed by:
Hayden R
Employee Wilson B
Updated by:
Wilson B
Employee Amanda M
Updated by:
Amanda M
Employee Hannah L
Updated by:
Hannah L

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.


Product Experts Available Now!
Call 800-298-1624
