Spare Tire Carrier - Horse Trailer

Redline Trailer Cargo Control

(8 reviews)

Code:   413200



Shipping Special

Shipping Weight: 5.98 pounds


Redline Trailer Cargo Control - 413200

Spare tire carrier commonly used on horse and livestock trailers. The carrier is normally welded above the trailer's gooseneck.

  • Fits Wheels with 5, 6, and 8 Bolts

Video of Spare Tire Carrier - Horse Trailer

Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.

Video Transcript for Redline Trailer Cargo Control 413200 Review

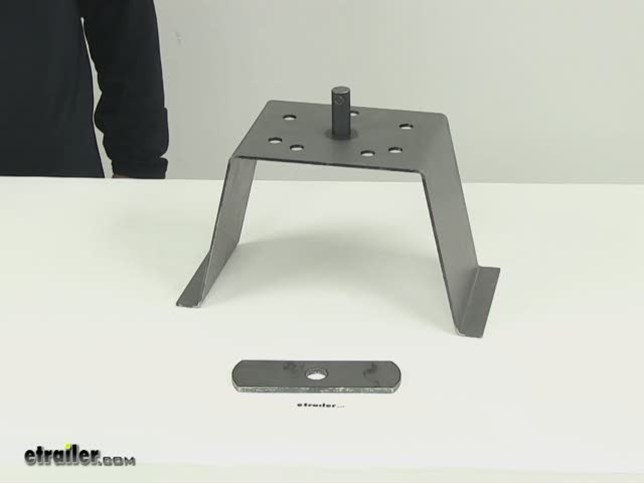

Today we're going to be taking a look at part number 413200. This is the Spare Tire Carrier. This is commonly used on horse and livestock trailers, but it can be applied to many different applications. It is a weld-on installation. It's got a nice, solid steel construction with a raw finish so it doesn't require much prep work when you are ready to install it on to your application. Now the carrier is normally welded above the trailer's gooseneck.

It is designed to fit wheels with 5, 6, and 8 lugs. You can see here it's got the numerous mounting patterns. Now it does not come with any hardware. What we're going to recommend is using some half inch diameter bolts. You want to make sure they're long enough to go through your wheel as well.

The bolts are going to install from the backside. They're going to go through, they would extend out, and then you would place your wheel on, and then you would need to place on some nuts on the other side of those bolts. I'm going to recommend using at least 3 bolts to securely and safely hold your spare tire onto this unit. Again, solid steel. We're going to go over some measurements real quick and then I'll explain what this piece is right here. Overall measurement, outside edge to outside edge, is going to be 12-11/16 of an inch.

The inside width from this point here to this point here is about 10-1/2 inches. Going this direction, outside edge to outside edge, we're looking about 6 inches. Taking the measurement from the bottom to the top of the pin, 9-1/8. Bottom to the top of this portion here, we're looking about 7-1/8 of an inch. Now the way this works is this would simply weld on to your trailer.

We got the nice little wings out here so that's going to allow you to easily weld this on. You would already have your bolts installed through the half inch diameter holes. Again, I'm going to recommend at least 3 of them. Then what you would do is you would place your spare tire over the pin here, thread on the nuts with how many bolts you have installed, place this over the pin and then the pin is going to feature a 5/16 inch diameter hole. That way you can install a padlock and lock your spare tire on to the carrier. That's going to do it for our review of part number 413200. This is the Spare Tire Carrier. Again, solid steel construction with a nice raw steel finish. .

Customers compare 413200 to these similar products

Customers Who Purchased This Trailer Cargo Control Also Bought...

Customer Reviews

Spare Tire Carrier - Horse Trailer - 413200

Average Customer Rating:  4.9 out of 5 stars   (8 Customer Reviews)

- 413200

by: Gorignak05/30/2015

Great mount for the $$$$ I wish they offered these in 2 different depths for larger and smaller tires. I'll get a second one next order. Folks....this company is in the top 5% of internet companies to deal with. Superlative on all fronts...VALUE, selection, information, shipping$$, shipping speed, customer service......Oh, did I mention VALUE. They have all my business. Jeeeez....I wish the rest of the world was like these folks. 198749

- 413200

by: Steve B06/26/2014

I found this to be excellent product!! Not only could I put it where I wanted but it had all the wholes needed to hold my boat trailer tire for me without having to drill them myself. I bought the tire nut lock which I found not necessary because the unit has a very good lock system already built on it. Good quality steel and it will last longer than the boat will. THX Steve 137779

- 413200

by: David A.06/13/2015

Awfully good quality for this low price. Could not have asked for a better product for the money spent. Very satisfied with this product. Having my trailer modified for my new motorcycle. This spare tire carrier will work out nicely. Dave 203123

- 413200

by: marlin05/19/2014

Great product, decent steel. Holes were perfect for wheel studs. 131317

- 413200

by: Jess08/07/2015

Holds spare tire very well. Good steel, was easy to weld on. 217555

- 413200

by: Dave W.05/09/2014

Good transaction, correct product shipped quickly. 129724

- 413200

by: Drexel W08/27/2015

works great great product heavy duty 222152

- 413200

by: H Mark03/18/2011

Great service and quick delivery 9713
