Securing large, heavy cargo is quick and hassle-free with these ratcheting tie-downs that permanently bolt onto your trailer. Heavy-duty straps have a quick-release, self-retracting design for super-simple loading and unloading. 3,500 lbs Max load. Call 800-298-8924 to order CargoBuckle Cargo Tie Downs part number IMF18800 or order online at Free expert support on all CargoBuckle products. Guaranteed Lowest Price and Fastest Shipping for CargoBuckle G3 Retractable Ratchet Tie-Down Straps - Bolt On - 2" x 6' - 1,167 lbs - Qty 2. Cargo Tie Downs reviews from real customers.
Select Your Vehicle

View Cart

Cargo Tie Downs > Tie Down Strap > Ratchet Strap > S-Hooks > Retractable Straps > 6 Feet Long > 2 Inch Wide > 1167 lbs > CargoBuckle

CargoBuckle G3 Retractable Ratchet Tie-Down Straps - Bolt On - 2" x 6' - 1,167 lbs - Qty 2

CargoBuckle Cargo Tie Downs

(62 reviews)

Code:   IMF18800



Shipping Special

Shipping Weight: 6.03 pounds


CargoBuckle Cargo Tie Downs - IMF18800

Securing large, heavy cargo is quick and hassle-free with these ratcheting tie-downs that permanently bolt onto your trailer. Heavy-duty straps have a quick-release, self-retracting design for super-simple loading and unloading. 3,500 lbs Max load.


  • Heavy-duty, bolt-on tie-downs let you secure cargo in your truck bed or trailer
    • Permanently mount to a flat surface with included hardware
  • Self-retracting straps automatically wind up into the built-in housings
    • Maintains constant tension on straps for minimal ratcheting when tightening straps down
    • Keeps straps neatly stowed when they're not in use
  • Ratchet mechanisms make it easy to tighten down straps and maintain tension on straps
    • Wide, rubber-coated SUR-Grip handles are easy to hold and easy to operate with 1 hand
    • Dual safety locks ensure that each ratchet arm stays in open or closed position
  • Push-to-release levers quickly and easily loosen straps when you're ready to unload
  • Vinyl-coated steel S-hooks help protect your cargo from scuffs and scratches
  • Durable construction offers long-lasting performance
    • Corrosion-resistant steel body
    • Seat-belt-quality polyester webbing
    • Sturdy plastic housing and stainless steel spring


  • Strap dimensions: 2" wide x 6' long
  • Safe working load limit (WLL): 1,167 lbs
  • Maximum load (break strength): 3,500 lbs
  • Mounting bolt dimensions: 3/8" diameter x 1-3/4" long
  • Quantity: 2 ratchet straps
  • 1-Year limited warranty

Note: Tie-down straps must be chosen according to their safe working load limit (WLL). The weight of the secured cargo must not exceed the combined WLL of the straps being used. For example, if you are using straps with a WLL of 500 lbs each to tie down a load weighing 1,000 lbs, then you need at least 2 straps to safely secure that load. It is recommended that you always use straps in pairs.

CargoBuckle G3 Retractable, Bolt-On Tie-Downs

CargoBuckle's third-generation tie-down straps bolt to your trailer and simplify the securing and unloading of your cargo. They have a self-retracting design, so there is constant tension on the strap and minimal ratcheting is required to secure your load. Dual safety locks keep the ratchet arm in the open or closed position, so the ratchet will not accidentally loosen or tighten up.

Instead of always having to find and store tie-down straps that hook to the anchor points on your trailer, you'll always find CargoBuckle straps right where you need them. Just pull up on the hook and strap, attach the hook to your cargo, and then operate the ratchet a few times. No more searching for a tie-down strap or dealing with extra webbing that flaps in the wind. And when you're ready to unload, simply push the release lever on the ratchet, free the hook from your cargo, and let the strap retract back down into the ratchet housing.

Using the included hardware, you can permanently mount the 2" wide ratchet straps to any flat surface. Or you can incorporate various adapters (sold separately) to use the tie-downs as either standard straps with S-hooks or as E-track straps. Angled brackets (sold separately) let you mount the straps at a 45-degree angle so that they are easier to access.

F18800 Cargo Buckle G3 Retractable Ratcheting Tie-Down Cargo Straps by IMMI - 2" x 6' - 3,500 lbs Max Load - Qty 2

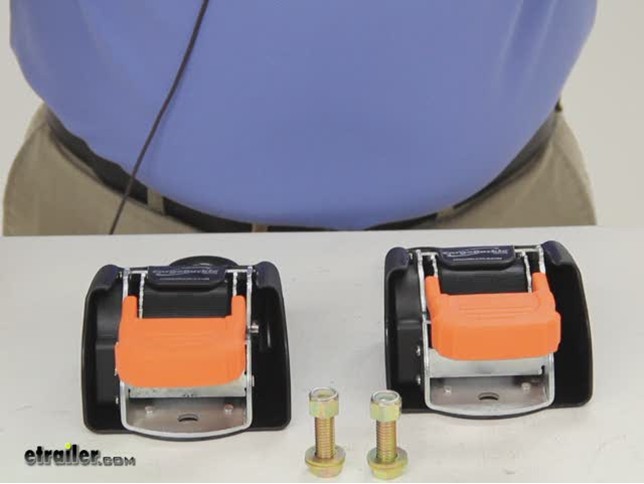

Video of CargoBuckle G3 Retractable Ratchet Tie-Down Straps - Bolt On - 2" x 6' - 1,167 lbs - Qty 2

Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Transcript for CargoBuckle Cargo Tie Downs Trailer Cargo Control IMF18800 Review

Today we're going to review part number IMF18800. These are the CargoBuckle G3 Retractable Ratcheting Tie-Down Straps. These tie-downs will help secure large heavy cargo to your trailer. They are quick and hassle-free with the CargoBuckle G3 ratchet system. They do feature a quick release self-retracting design, and they use a permanent bolt-on installation. These do tighten down quickly with the sure-grip rubber-coated handle.

Makes it easy to grip and control with one hand. There is a push-button release which is located right under the handle, what that does is that it allows the handle to move up and down. This also has dual safety locks and what that is on the housing on each side is a cut out, and that'll allow the handle to be put in a lock position. It does have a vinyl-coated steel S-hook which will help protect your cargo from any scratches and it is designed to permanently mount to your trailer or your truck with one bolt and the mounting hardware is included. This ratchet is a durable construction, corrosion-resistant steel body.

The strap is seatbelt-quality polyester webbing. It is all covered with a sturdy plastic housing and also has a stainless-steel spring on the inside. The dimension on the strap will be 2 inches wide by 6 feet long. Does have a maximum load strength or breaking strength of 3500 pounds. The actual safe working load limit for it would be 1/3 of that, which would be 1167 pounds.

This part number does contain 2 of the ratchet straps, and the mounting hardware. It does have a 1 year limited warranty. And just to give you a quick demonstration on how it operates is if you pull up on the release, move the handle all the way into the upright position, that'll allow the strap to extend out and retract back. So when you hook it to your tie-down point, it'll keep tension on the cargo. And then if you pull up on the release and move it down into the ratchet position, that'll allow you to snug it up.

And once you get completely tight, pull up on the release, move it into the lock position, that'll keep the strap across your. And when it comes time to unload it, just pull up on the release, move it the all the way into the upright position, that'll allow you to remove the hook from the tie-down point and your strap will retract back into your housing. And that should do it for part number IMF18800.
