Hydraulic Brake Kit - Uni-Servo - Free Backing - Dacromet - 10" - Left/Right Hand - 3,500 lbs
(385 reviews)
Price: $122.86
In Stock
Hydraulic Brake Kit - Uni-Servo - Free Backing - Dacromet - 10" - Left/Right Hand - 3,500 lbs
Item # AKFBBRK-35-D
Our Price: $122.86
This item qualifies for Free Shipping
In Stock
- All Info
- Reviews (385)
- Q & A (0)
- Photos
- Why etrailer?
etrailer by AxleTek Trailer Brakes - AKFBBRK-35-D
- 3500 lbs Axle
- Hydraulic Drum Brakes
- 10 x 2-1/4 Inch Drum
- 14 Inch Wheel
- 14-1/2 Inch Wheel
- 15 Inch Wheel
- Boat Trailer
- Snow Trailer
- Free Backing
- etrailer
Marine-grade, free-backing hydraulic drum brakes won't engage in reverse, even if your actuator is activated. Automotive-grade friction pads are long-lasting. Dacromet-coated backing plates resist rust. Fit 14" to 15" wheels.
Features:
- Marine-grade hydraulic drum brake assemblies are great for boat trailers
- Designed for use with surge-type trailer brake actuators
- Free-backing design lets you back up without engaging the trailer brakes, even if the actuator is activated
- Fall-away brake shoes only anchor on drums when brakes are engaged as trailer is moving forward
- Automotive-grade friction material is molded to brake shoes
- Pads are fully bonded - not riveted - to shoes for long life and more braking torque
- Less chance of cracking and crumbling that can lead to mechanical lockup, thanks to tapered edge and circular grinding
- Periodic manual adjustment required
- Fine-tooth brake adjustment gears allow for a more precise setting
- Dacromet coating on backing plates offers superior corrosion resistance
- Ideal for use on a boat or snowmobile trailer
- Durable enough for saltwater applications
- Stainless steel springs are durable and rustproof
- Aluminum hydraulic cylinders resist rust
- Single plunger design
- Adjuster plugs (included) cover access holes to keep dirt and grime out of the assemblies and off of the shoes
- Left-hand (driver's-side) brake assembly, right-hand (passenger's-side) brake assembly, and mounting bolts included
- Nuts and lock washers (BRKH10B) sold separately
- QAI and CSA certified
Specs:
- Application: most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO
- Dimensions: 10" diameter x 2-1/4" wide
- Mounting flange bolt pattern: 4 bolt
- Wheel size: 14" and 15"
- Axle rating: 3,500 lbs
- Limited 1-year warranty
Note: Because free-backing brakes are designed to eliminate nearly all friction between the brake shoes and the drum when you are driving in reverse, a trailer breakaway kit will not be effective should your trailer disconnect from your tow vehicle while you are backing up.

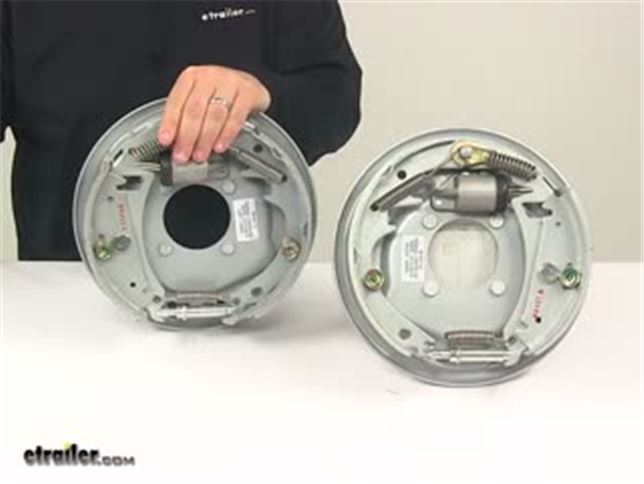

Free-Backing Brake Assembly
Free-backing brakes let your trailer move in reverse without the brakes being activated by your surge actuator. These brakes are needed if your actuator does not have a reverse lockout, which is a mechanism that ensures that the actuator does not activate when your rig moves in reverse.
Each of these free-backing hydraulic brake assemblies has a fall-away shoe, which provides full braking when your trailer is moving forward, but supplies only limited friction when the trailer is moving in reverse. During normal forward braking, the fall-away shoe expands to catch your brake drum. When driving in reverse, however, the fall-away shoe's extra spring will overcome the pressure from the brake cylinder. This keeps the leading edge from catching on the drum, so the shoe will not fully pivot into the drum. This exerts a smaller amount of friction, just enough to provide a minimal amount of braking when in reverse.
These trailer brake assemblies act as part of your trailer's hydraulic braking system. A hydraulic trailer brake actuator is required for these brakes to function.
Thoroughly Tested for Safety
These brake assemblies meet the requirements for certification by the Canadian Standards Association (CSA). The CSA creates standards, which when complied with ensure a safe and quality product. These brake assemblies underwent extensive testing to measure stopping distances when braking. These brakes have also been tested by QAI for braking performance in a complete automotive setup and under real-world conditions to provide the most realistic scenario for the everyday driver.
Automotive-Grade Friction Material
Each shoe on these brake assemblies is lined with automotive-grade friction material for improved stopping performance and longevity. The friction material is fully bonded onto the surface of the brake shoe. This lining is custom-molded for a perfect fit. The edges are tapered to ensure long-lasting performance. This taper, along with the circular grinding that the lining undergoes, helps to prevent cracking and crumbling. This durability helps to prevent mechanical lockup, which can occur when brake shoes are excessively worn or broken.
The friction material is also SAE-N certified, which means that it is an environmentally safe product that complies with California and Washington regulations regarding the composition of brake pads. As a result, this material not only provides high-performance braking that can endure the test of time, but it is also environmentally friendly and safe for use throughout the United States and Canada.
B10H-73 AxleTek 10" X 2-1/4" LH Hydraulic Brake Assembly - Free Backing - Drivers Side - 3.5K Axles - Dacromet Coat
B10H-74 AxleTek 10" X 2-1/4" RH Hydraulic Brake Assembly - Free Backing - Passengers Side - 3.5K Axles - Dacromet Coat
Customer Satisfaction Score:
98% were satisfied with this product
2% of customers were not satisfied
- Wrong item was ordered
- Arrived Damaged
- etrailer mistake
Customer Reviews
Hydraulic Brake Kit - Uni-Servo - Free Backing - Dacromet - 10" - Left/Right Hand - 3,500 lbs - AKFBBRK-35-D
Average Customer Rating: 4.8 out of 5 stars (385 Customer Reviews)
Marine-grade, free-backing hydraulic drum brakes won't engage in reverse, even if your actuator is activated. Automotive-grade friction pads are long-lasting. Dacromet-coated backing plates resist rust. Fit 14" to 15" wheels.by: Dave 08/30/2022
Had to replace the old 20+ year old Attwood brake system. Both the brake assemblies and the coupler are working great.
by: Larry11/12/2019
I restored an old concrete buggy that I purchased surplus from a rental company. It was in pretty bad shape. I got it sand blasted. I painted it with Rustoleum. I installed new brake parts, master cylinder, and wheel bearing kits. Pretty big project but it came out great! Now I have a great little dual-axle dump trailer designed to carry a cubic yard of ready mix. Works great for short loads of concrete and for drain rock and landscape materials too.
I had to use JB Weld to get a good seal on the new plastic master cylinder cylinder-to-brake-hose connection, which was a pain because it leaked and required multiple attempts to fix. Plastic threads on the plastic master cylinder didn't seal with teflon tape. They are easy to over torque/strip! Maybe I did that initially, but JB Weld fixed the problem.
etrailer brake assemblies were easy to install and of very good quality. Fast shipping. Thanks!
by: Brett09/28/2022
I am sure overall product would have been good. etrailer Products typically are good quality. I ordered this because it stated it would be shipped in 3 days. After over a week I called their warehouse and it had not even been pulled from the shelf. This was not during covid. There were no other shipping delays. They told me the product was on their shelf just had not been pulled because of staff shortage and likely would still be a few days. This is the reason for the 2 star review. I had to cancel my order and reorder from another vendor which I could have done in the beginning and saved my boat being down a couple of weeks.
by: Chris04/18/2022
I installed these on my 1995 dual axle DHM trailer which carries my '95 closed bow Ski Nautique. The finish is stout and set up very easy. Had a bit of a challenge installing one nut on each side due to close tolerances between the backing plate and axle support but once on, the remaining three when on easily. Recommend doing this over trying to replace just the shoes.
by: David 09/27/2022
Would have been easier if I would halve pressed out the mounting studs and reused the original nuts and bolts. There was no way to torque the bottom nuts. Overall very satisfied with this product
by: Bruce S12/15/2020
Good product, fit very well and easy to adjust when installed ( lubricated the adjuster anyway) After a year of in and out of the salt water once a week for the season they look very good, a little rust, but not bad. Will see next year how they stand up.
Comments
Update: brake pad came off and locked up trailer wheel yesterday. Told only 1 year warrantee on workmanship issue. 2 years and now I need new brakes because they failed.
Bruce S - 08/26/2022by: Tye01/10/2022
The product looked great and I got great service. I was unable to use the brakes, though because I needed 5 hole backing plate instead of the 4 hole backing plate. I never got around to seeking a return, my fault.
by: Corey09/04/2022
Poor packaging from etrailer led to the galvanized coating being scraped off one during shipping. As well as the bleeder cap being broken on one and missing on the other. Sold as a pair.
by: Michael06/19/2022
Pretty good replacement for my trailer. Only issue I had was lack of nuts and lock washers. The stud size and threads weren’t the same as my old brakes, so I had to run to the store to purchase 8 lock washers and nuts. Probably spent more on gas than the hardware. 7/16”, 20 tpi for future reference.
by: Kevin S.03/14/2017
This review is for the Hydraulic Brake Kit - Uni-Servo - Free Backing - Dacromet - 10" - Left/Right Hand - 3,500 lbs - AKFBBRK-35-D. This worked perfectly on my 2008 Bear pontoon trailer with Axis branded 3,500 lb tandem axles and hydraulic surge brakes on one axle. It all went together smoothly without issue and after repacking the bearings and bleeding the system, the brakes now work again. A special thanks to Jameson for your time and recommendation on this kit, it was spot on!
by: Micheal05/26/2022
Joshua was excellent!! He took my order for 4 trailer brake assemblies and it was shipped the same day. The parts are an exact replacement for what was on my 2004 ezloader trailer.
by: Richard 08/28/2021
It was a very easy replacement.
Comments
No problems with the brakes after a year of use.
Richard - 08/29/2022by: Sharon 10/05/2022
Quality products at great prices
by: Tim 11/11/2022
Perfect replacement
by: James 08/16/2022
Fantastic transaction. I will definitely use them again.
by: Mike C07/24/2018
Fantastic way to repair brakes on trailer. Actually less cost than buying individual parts to complete the job. Both sides completed in under 2 hours. Will be sure to tell everyone i know that has trailers to used this site for all of their needs. This is the 2nd trailer we have done brakes on,
Extremely happy i found this site.
by: Walter Collier12/12/2018
Here is some pictures of the before and after pictures of my boat trailer brake restoration. I contacted your customer service and told them what I wanted to do and they sent me all the parts that I needed. Everything went very smooth and all parts fit perfect. Thank you so much for your help and expert advice. Thanks again
by: John03/26/2022
FIRST ROAD TRIP AT FIVE IN THE MORNING A LARGE DoE CAME UP OUT OF THE DITCH IN FRONT OF US. THE BRAKES WORKED SO WELL THAT I AM ABLE TO WRITE ABOUT THE EXPERIENCE
by: John09/06/2018
Excellent product that replaced 25 year old brakes on a boat trailer at a fraction of the price that local dealers wanted for them. I found all of the parts I needed by searching the site and everything installed very easily.
by: Phillip08/17/2021
Very poorly packaged, since the brake assembly and the grease seals were packaged together with just an envelope to protect the seals they naturally were smashed but also the brake pads were misaligned and the brake shoes had several chips on the pad surface
the brake pads don't concern me that much but I need you to send replacement seals
Comments
I apologize for the poor box and damage. Customer Service will be reaching out to you.
--
Sierra K - 08/23/2021by: Jeremy07/03/2020
Perfect fit..... works great ....thank u
Comments
Still working great
Jeremy - 07/05/2021by: Michael04/26/2018
The loaded marine grade backing plates made my job super easy. The fit was perfect and went smooth. I would like to see new nuts supplied with the studded backing plate. My order was processed fast and I received it quickly. Packaging was great.
by: Willie 08/25/2022
Brakes were easy to adjust and install.
by: John 09/20/2021
I bought these to replace a set I bought three years ago, one of the wheel cylinders got stuck, so I just replaced with these. basically when they come in the mail you just bolt them on and go. I have a bolt trailer and sometime put it in salt water. the salt water eats everything. The thing that is nice about e trailer is fast shipping and good costumer service over the phone.
by: Wayne T01/17/2018
My new brakes look and fit great. This made the replacement on my Heritage boat trailer very easy. The quality looks great and should last me a long time.
Thanks etrailer for your help!
