Electric Trailer Brake Assembly - 10" - Right Hand - 3,500 lbs

Item # AKEBRK-35R

lowest price pledge

Retail:$41.95

Our Price: $29.60

Accessories and Parts

Orders above $99 qualify for Free Shipping

Shipping Weight: 9 lbs

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
etrailer accessories and parts trailer brakes 10 x 2-1/4 inch drum electric brake assembly - right hand 3 500 lbs
etrailer accessories and parts trailer brakes 10 x 2-1/4 inch drum
etrailer accessories and parts electric drum brakes brake assembly akebrk-35r
etrailer accessories and parts electric drum brakes brake assembly
etrailer accessories and parts trailer brakes 10 x 2-1/4 inch drum electric brake assembly - right hand 3 500 lbs
etrailer accessories and parts trailer brakes electric drum brake assembly - 10 inch right hand 3 500 lbs
etrailer accessories and parts trailer brakes 10 x 2-1/4 inch drum
etrailer accessories and parts trailer brakes brake assembly akebrk-35r
etrailer accessories and parts trailer brakes 10 x 2-1/4 inch drum
etrailer accessories and parts trailer brakes brake assembly akebrk-35r
etrailer accessories and parts electric drum brakes 10 x 2-1/4 inch akebrk-35r
etrailer accessories and parts electric drum brakes brake assembly akebrk-35r
etrailer accessories and parts brake assembly 10 x 2-1/4 inch drum akebrk-35r
etrailer accessories and parts brake assembly 10 x 2-1/4 inch drum akebrk-35r

In Use/Installed

accessories and parts etrailer trailer brakes electric drum in use
accessories and parts etrailer brake assembly 10 x 2-1/4 inch drum akebrk-35r
accessories and parts etrailer electric drum brakes 10 x 2-1/4 inch akebrk-35r
accessories and parts etrailer trailer brakes 10 x 2-1/4 inch drum electric brake assembly - right hand 3 500 lbs

Customer Photos

etrailer accessories and parts trailer brakes brake assembly akebrk-35r
etrailer accessories and parts trailer brakes brake assembly akebrk-35r
etrailer accessories and parts trailer brakes brake assembly akebrk-35r
etrailer accessories and parts trailer brakes brake assembly electric - 10 inch right hand 3 500 lbs
etrailer accessories and parts trailer brakes brake assembly akebrk-35r
etrailer accessories and parts trailer brakes brake assembly akebrk-35r

  • Trailer Brakes
  • Electric Drum Brakes
  • Brake Assembly
  • etrailer
  • 10 x 2-1/4 Inch Drum
  • RH
  • Manual Adjust
  • 3500 lbs
Passenger's-side electric trailer brake measures 10" x 2-1/4". Brake pads are made of durable friction material for improved braking and longevity. E-coated backing plate resists rust. Fits 13" to 15" wheels. Call 800-298-8924 to order etrailer accessories and parts part number AKEBRK-35R or order online at etrailer.com. Free expert support on all etrailer products. Guaranteed Lowest Price and Fastest Shipping for Electric Trailer Brake Assembly - 10" - Right Hand - 3,500 lbs. Accessories and Parts reviews from real customers.


  • All Info
  • Reviews (438)
  • Q & A (72)
  • Videos (2)
  • Photos
  • Why etrailer?

etrailer Accessories and Parts - AKEBRK-35R

Passenger's-side electric trailer brake measures 10" x 2-1/4". Brake pads are made of durable friction material for improved braking and longevity. E-coated backing plate resists rust. Fits 13" to 15" wheels.


Features:

  • Electric brakes are easier to install and offer more user control than hydraulic brakes
    • Requires only an electric brake controller (sold separately) - no actuator or hydraulic lines necessary
  • Automotive-grade friction material is molded to brake shoes
    • Pads are fully bonded - not riveted - to shoes for long life and more braking torque
    • Less chance of cracking and crumbling that can lead to mechanical lockup, thanks to tapered edge and circular grinding
  • Periodic manual adjustment required
    • Fine-tooth brake adjustment gear allows for a more precise setting
  • E-coated backing plate resists wear and corrosion
  • Adjuster plugs (included) cover access holes to keep dirt and grime out of the assembly and off of the shoes
  • Brake mounting bolts are included
    • Nuts and lock washers sold separately
  • QAI and CSA certified


Specs:

  • Application: most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO
  • Configuration: right hand (passenger's side)
  • Dimensions: 10" diameter x 2-1/4" wide
  • Mounting flange bolt pattern: 4 bolt
  • Wheel size: 13", 14", and 15"
  • Axle rating: 3,500 lbs
  • Limited 1-year warranty


Manual-Adjust Brake

With repeated use of this brake assembly, the brake shoes may move out of alignment, causing less efficient braking performance. To keep the brake shoes aligned and the brake assembly performing correctly, you should perform routine maintenance.


This brake assembly should be adjusted after installation and then as needed for the life of the brake. To adjust the brake, use a brake adjustment screw tool (sold separately) to turn the adjustment gear on the inside of the assembly. Continue to turn the gear until the drum surrounding the brake catches on the brake pads enough so that the hub can no longer be turned easily by hand. Then reverse the gear by about 10 clicks. A properly adjusted brake should drag slightly on the brake drum.


Thoroughly Tested for Safety

This brake assembly meets the requirements for certification by the Canadian Standards Association (CSA). The CSA creates standards, which when complied with ensure a safe and quality product. This brake assembly underwent extensive testing to measure stopping distances when braking. This brake has also been tested by QAI for braking performance in a complete automotive setup and under real-world conditions to provide the most realistic scenario for the everyday driver.


Automotive-Grade Friction Material

Each shoe on this brake assembly is lined with automotive-grade friction material for improved stopping performance and longevity. The friction material is fully bonded onto the surface of the brake shoe. This lining is custom-molded for a perfect fit. The edges are tapered to ensure long-lasting performance. This taper, along with the circular grinding that the lining undergoes, helps to prevent cracking and crumbling. This durability helps to prevent mechanical lockup, which can occur when brake shoes are excessively worn or broken.


The friction material is also SAE-N certified, which means that it is an environmentally safe product that complies with California and Washington regulations regarding the composition of brake pads. As a result, this material not only provides high-performance braking that can endure the test of time, but it is also environmentally friendly and safe for use throughout the United States and Canada.



B10E-22 AxleTek 10" x 2 1/4" RH Electric Brake Assembly - Passengers Side - 3.5K Axles

Compare to Dexter 23-27






Video of Electric Trailer Brake Assembly - 10" - Right Hand - 3,500 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for etrailer Trailer Brakes AKEBRK-35R Review

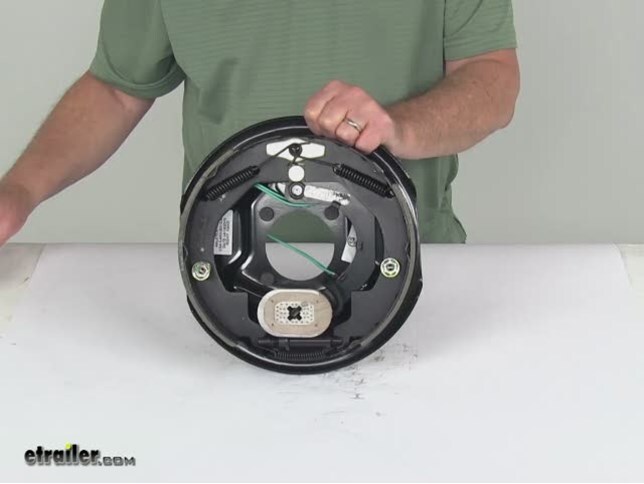

Today we're going to take a look at the 10" Right Hand Electric Brake Assembly for 3500 lb axles. Electric brakes are easier to install and they offer more user control than hydraulic brakes. An electric brake assembly will require only an electric brake controller which we do sell separately, so there's no actuator hydraulic lines necessary. The brakes used on this assembly are lined with an automotive-grade friction material. This friction material's fully bonded. It is not riveted to the shoes. It gives you a longer life and more braking torque.

The lining also uses tapered edges and they do a circular grinding of it to prevent cracking and crumbling that can lead to mechanical lock-up. This is a manual adjustment brake assembly, so it does need periodic manual adjustments. It does have a fine-tooth brake adjustment gear down here at the bottom. This allows for more precise setting and there is no break-in period needed for these. The backing plate on this is a nice e-coated finish to help resist wear and corrosion. The other nice thing is they do include a rubber adjuster plug that goes in the adjuster opening.

There's a hole right here that you can put your tool through to adjust your brakes. Lots of times these assemblies don't have plugs in them, and what will happen is dirt sometimes can get into there. Once you have your drum on here, the dirt can get in there and cause problems, so you do want to have a plug in there to prevent any dirt or debris from getting into your brake assembly. Also, if you'll notice it does come with the mounting bolts already installed on here to install on your brake flange. The nuts and the lock washers, they are sold separately. This brake assembly is certified for QAI, which is Quality Assurance International ...

and CSA, which is Canadian Standards Association. The size on this is a 10" by 2 1/4" passenger side electric trailer brake assembly. Passenger side is the right hand size. Now, the size, when they say 10" by 2 1/4, basically what they're saying is the 10" is the diameter. Right here you put a ruler on it.

You see the 10", and the 2 1/4 is the width of the shoe, so 2 1/4", and again this is the right hand or passenger side. The easiest way to tell that . now when you do get it it does have stickers on it that'll say "right hand" and "left hand" but when those stickers come off the easiest way to tell is look at the pad of the shoe and you'll notice that this shoe has shorter pad than this one. This one's a lot longer than this one. The shorter shoe will always point towards the front of the trailer, so that means the shorter one, if it's on this side points to the front. This is the right hand side or passenger side. This is designed for axles that are rated 3500 lbs. This is designed also to fit a 4-bolt brake mounting flange. You can see the 4 bolts here, so you want to make sure the brake-mounting flange on your axle is designed for the 4-bolt pattern. This does use the 10" drums and this is an electric brake assembly so you do need to supply power to this magnet for it to work properly. If you'll notice, on the back of the assembly there's 2 green wires that come out. One of these will connect to your brake feed to supply power to the magnet, and the other one connects to the ground. They're both green, so either wire can be used for either function. It doesn't matter which one's hooked up to which. That should do it for the review of the 10" Right Hand Electric Brake Assembly for 3500 lb axle.
