Titan Disc Brake Kit and Leverlock Actuator w/ Electric Lockout - Tandem, 3,500-lb Axle

Item # T4843200

lowest price pledge

Retail:$1,095.28

Our Price: $828.09

Trailer Brakes

This item qualifies for Free Shipping

Shipping Weight: 155 lbs

Estimated Delivery: Friday, October 19

Enter a zip code for a more accurate estimate.

Quantity:

Only 3 in stock. Order soon.
Trailer Brakes T4843200 - 14 Inch Wheel,14-1/2 Inch Wheel,15 Inch Wheel - Titan
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

Trailer Brakes T4843200 - 14 Inch Wheel,14-1/2 Inch Wheel,15 Inch Wheel - Titan
Trailer Brakes T4843200 - Brake Kit with Actuator - Titan
Titan Brake Kit with Actuator Trailer Brakes - T4843200
T4843200 - 3500 lbs Axle Titan Trailer Brakes
Titan Trailer Brakes - T4843200
T4843200 - 14 Inch Wheel,14-1/2 Inch Wheel,15 Inch Wheel Titan Disc Brakes
Titan Disc Brake Kit and Leverlock Actuator w/ Electric Lockout - Tandem, 3,500-lb Axle 14 Inch Wheel,14-1/2 Inch Wheel,15 Inch Wheel T4843200
Titan Disc Brakes - T4843200
Titan Brake Kit with Actuator Trailer Brakes - T4843200
Titan Disc Brake Kit and Leverlock Actuator w/ Electric Lockout - Tandem, 3,500-lb Axle 14 Inch Wheel,14-1/2 Inch Wheel,15 Inch Wheel T4843200
T4843200 - 3500 lbs Axle Titan Disc Brakes
Trailer Brakes T4843200 - 14 Inch Wheel,14-1/2 Inch Wheel,15 Inch Wheel - Titan
Titan Disc Brakes - T4843200
T4843200 - 3500 lbs Axle Titan Trailer Brakes
Titan 3500 lbs Axle Trailer Brakes - T4843200
T4843200 - Brake Kit with Actuator Titan Disc Brakes
Titan Disc Brake Kit and Leverlock Actuator w/ Electric Lockout - Tandem, 3,500-lb Axle 3500 lbs Axle T4843200
Titan Disc Brake Kit and Leverlock Actuator w/ Electric Lockout - Tandem, 3,500-lb Axle 3500 lbs Axle T4843200
Trailer Brakes T4843200 - 5 on 4-1/2 - Titan
Titan Disc Brakes - T4843200
Titan Disc Brakes - T4843200
Titan Disc Brakes - T4843200
T4843200 - 3500 lbs Axle Titan Trailer Brakes
T4843200 - 3500 lbs Axle Titan Trailer Brakes
Titan 5 on 4-1/2 Trailer Brakes - T4843200

Customer Photos

Videos


  • Disc Brakes
  • 3500 lbs Axle
  • 14 Inch Wheel
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • Titan
  • Brake Kit with Actuator
  • 5 on 4-1/2
Kit includes everything you need to switch your trailer over to disc brakes for improved performance and greater stopping power. Leverlock adjustable-ball actuator features easy-to-use latch and electric reverse lockout. Lowest Prices for the best trailer brakes from Titan. Titan Disc Brake Kit and Leverlock Actuator w/ Electric Lockout - Tandem, 3,500-lb Axle part number T4843200 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (20)
  • Q & A (80)
  • Videos (1)
  • Photos
  • Why etrailer?

Titan Trailer Brakes - T4843200

Kit includes everything you need to switch your trailer over to disc brakes for improved performance and greater stopping power. Leverlock adjustable-ball actuator features easy-to-use latch and electric reverse lockout.


Features:

  • All-inclusive kit has everything you need to switch your trailer over to disc brakes
    • 4 Disc brake end kits
      • Hub-and-rotor assemblies
      • Grease seals, bearing protectors, races and bearings
      • Calipers with mounting brackets and caliper-mounting hardware attach to 4-bolt brake flanges
        • Hardware for attaching bracket to flanges sold separately
      • Hub/rotors and calipers are constructed of dacromet for superior corrosion resistance
    • Titan Leverlock brake actuator with electric lockout (T47154007K)
      • Hydraulic actuator synchronizes trailer brakes with tow vehicle brakes
      • Electric reverse lockout lets you back up without actuating trailer brakes
        • Built-in shield protects solenoid valve from the elements
      • Leverlock coupler mechanism ensures easy, secure connecting
      • Adjustable-ball design fits 1-7/8", 2" and 50-mm balls
      • Zinc plating is corrosion resistant
      • Breakaway kit included
    • Line kit with brake lines and fittings for a tandem axle
  • Disc brakes deliver better performance
    • Consistent stopping even at highway speeds
    • Shorter stopping distance than most drum brakes
  • Bolt-on installation - mounting hardware not included
    • Assembly required


Specs:

  • Application: tandem-axle trailers
    • Axle capacity: 3,500 lbs
    • Wheel size: 14" to 15"
  • Overall rotor diameter: 9-3/4"
  • Bolt pattern: 5 on 4-1/2"
  • Brake flange configuration: 4 bolt
  • Actuator:
    • Ball size: 1-7/8", 2" or 50 mm
      • Some adjustment may be required
    • Mounting: 3" wide channel tongue
    • Capacity: 7,000 lbs
    • Maximum tongue weight: 700 lbs
  • 1-Year warranty


Note: This kit will not work with Dexter D60 axles.



Bearing, Race and Seal Information

  • Bearings
    • Inner bearing: L68149
    • Outer bearing: L44649
  • Races
    • Inner race: L68110
    • Outer race: L44610
  • Seal: RG06-050
    • Inner diameter: 1.719"
    • Outer diameter: 2.565"


Complete Kit Includes:

  • Leverlock trailer brake actuator with electric reverse lockout
  • (4) Hub-and-rotor assemblies with bearings, races, seals and bearing protectors
  • (4) Disc brake calipers with mounting brackets
  • Replacement solenoid valve
  • Hydraulic line kit
    • (1) 12-27/32" Long flexible hose
    • (4) 17-3/4" Long, 90-degree flexible hoses with inverted flare fittings
    • (1)19' Long steel line
    • (2) 66" Long steel lines
    • (1) 30" Long steel line
    • (2) 17" Long steel lines
    • (1) 4-1/2" Long steel line
    • (5) Hose brackets
    • (5) Hose clips
    • (3) Tees with brackets
    • (8) Line-retaining clips

Disc Brakes

An increasing number of trailer owners are switching over to disc brakes, and with good reason. Disc brake calipers have only one moving part, as opposed to the many moving parts you find with drum brakes. This means that with disc brakes there are fewer parts to maintain, fewer parts to get damaged and fewer parts to repair or replace, thus reducing the cost of maintenance.


Performance increases as well. Disc brakes deliver consistent braking even at highway speeds, unlike drum brakes, which often show a substantial drop in braking torque at higher speeds. In addition, disc brakes offer a much shorter stopping distance than drum brakes.


Model 60 Leverlock Trailer Brake Actuator

Titan's complete disc brake kit makes the conversion easy. Designed for tandem-axle trailers, this kit includes not only the disc brake assemblies themselves - along with all the necessary lines, fittings and mounting hardware - it also contains the Model 60 Leverlock actuator. This hydraulic brake actuator has a higher psi rating for disc brake applications and includes an electric reverse lockout so that you can back up without activating your trailer's brakes. To use the lockout feature, you must have a 5-pole flat, 6-way round or 7-pole wiring harness.


Hydraulic Line Kit

Note: If you intend to run brake lines along the axles of your trailer to install disc brakes - as is often done for boat trailers - you will need 2 additional hoses (T4890700 - sold separately) and 2 extra hose clips (T0776400 - sold separately) with brackets (T0776300 - sold separately) to complete the installation.


Tandem Torsion Axle Brake Line Kit

  • (A) 12-27/32" Long flexible hose (T0777300)
  • (B) 17-3/4" Long, 90-degree flexible hoses with inverted flare fittings (T4890700)
  • (C) 19' Long steel line (T4336000)
  • (D) 66" Long steel lines (T1086600)
  • (E) 30" Long steel line (T1061900)
  • (F) 17" Long steel lines (T1062200)
  • (G) 4-1/2" Long steel line (T1086700)
  • (H) Hose brackets (T0776300)
  • (I) Hose clips (T0776400)
  • (J) Tees with brackets (T0778500)
  • (K) Line-retaining clips (T0936600)


47154007K Titan Zinc-Plated, Leverlock Brake Actuator - Disc - Adjustable Ball - Bolt On - 7,000 lbs

10HREKITBB Titan Disc Brake End Kit - Qty 4

4830000 Titan Tandem Torsion Axle Tubing Kit

T4748800 Replacement Solenoid Valve

4843200

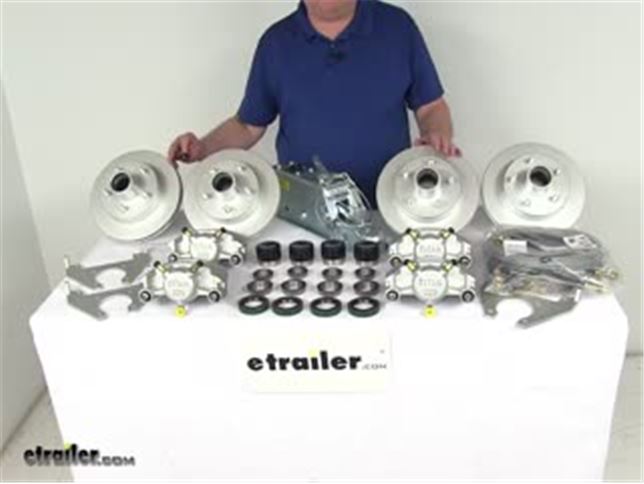

Video of Titan Disc Brake Kit and Leverlock Actuator w/ Electric Lockout - Tandem, 3,500-lb Axle


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Titan Trailer Brakes T4843200 Review

Speaker 1: Today we're going to take a look at the Titan dacromet finish disc brake kit, and lever lock actuator with electric lockout, for tandem 3,500 pound axles. Now this all inclusive kit has everything you need to switch your trailer over to disc brakes. And disc brakes will deliver better performance, gives you more consistent stopping, even at highway speeds, and shorter stopping distances than most drum brakes.This part will include everything shown here, laid out on the table. It includes four disc brake end kids. So you'll get four of the dacromet finished hub and rotators assembly, with the five on 4-1/2 inch bolt pattern. You'll get all the bearings, both inner and outer bearings you would need.

The bearing races will be pre installed in the hubs. The double lip grease seals are included. And the bearing protectors are all included also.You also get four of the dacromet finished calipers with the mounting brackets. And the stainless steel bolts are included to install the caliper to the mounting bracket. Now the hardware to attach the mounting brackets to your brake mounting flange, that is sold separately.

Also comes with the brake pads in the calipers. Comes with this Titan bolt on, zinc plated lever lock brake actuator with a 7,000 pound capacity. Now this hydraulic actuator'll synchronize your trailer brakes with your tow vehicle brakes. It is a lever lock coupler design. This ensures easy, secure connecting.

You just push on it to unlock it, open it up, drop it onto the ball, and then push it down, and it'll lock into place.It is an adjustable ball design. It is designed to fit 1-7/8 inch diameter hitch balls, two inch, and 50 millimeter balls. The whole actuator is zinc plated for corrosion resistance. The break away kit at the top here, is all included. And one of the main features, I want to turn this around just so you can see what we're talking about.

At the very back, it does include an electric reverse lock out cylinoid. This'll let you back up without actuating your trailer brakes. And if you notice, has a shield installed on it, to protect the cylinoid.This actuator is a bolt on installation. There's your mounting holes right there.e and the mounting hardware to install this is not included. And it also comes with the brake line kit, with the brake lines and fittings for a tandem axle.A few specs on this kit. The application, again, is for tandem axle trailers. The axle capacities would be 3,500 pounds each. The wheel size that'll fit on these is 14 inch diameter to 15 inch diameter. The overall rotor diameter, edge to edge, is 9-3/4 inches. We had mentioned the bolt pattern is five on 4-1/2 inches. And the brake mounting flange configuration, in other words, the mounting flange that's on your axle, needs to be a four bolt design. That's what this'll bolt to.And the actuator right here itself, again, we mentioned the ball size it'll fit on is 1-7/8 inch diameter, two inch, or 50 millimeter. The mounting, this is designed to mount onto a three inch wide channel tongue. The weight capacity on the actuator is 7,000 pounds. And the maximum tongue weight is 700 pounds.But that should do it for the review on the Titan dacromet finish, disc brake kit and lever lock actuator with electric lockout for tandem 3,500 pound axles.


Customer Reviews

Titan Disc Brake Kit and Leverlock Actuator w/ Electric Lockout - Tandem, 3,500-lb Axle - T4843200

Average Customer Rating:  4.3 out of 5 stars   (20 Customer Reviews)

Kit includes everything you need to switch your trailer over to disc brakes for improved performance and greater stopping power. Leverlock adjustable-ball actuator features easy-to-use latch and electric reverse lockout.

- T4843200

by:


Order was shipped right away and received in less than a week. Complete set. Everything you need except wheel bearing grease and brake fluid. Swapping out the old drums and installing the discs was pretty straight foward. All bearings and hardware included with bearing races pre-installed. I did purchase separately 16 grade 8 mounting bolts rather than re-use mine. Instal took me about 8 hours of labor. I did strugle with the steel brake line instalation. While directions seem simple, it doesn't quite work out that way. Steel tubing needs to be mounted on the trailer frame. In order to transition from the frame to the axel, you need some type of rubber connection since the axel is moving and the frame is not. Tech support confirmed, I need to mount all steel lines to the frame. So after running the 19' line to the frame rail just past my rear axle, the 30" section is about 36" too short to reach the frame rail in front of my front axle. End result, I had to re-use a 48" piece of tubing that I just removed. All in all, I made it work. Hind sight, I would have ordered with the Kodiak flex line kit for $100. Would have made installation a whole lot easier for sure. Installation of brake lines took me about 5 hours with boat on the trailer. Titan actuator and bleeding. First off, directions for bleeding actuator with a 2x4 are rediculous. I quickly found out this is not going to work. Requires a lot of pressure to force closed. What they don't tell you is how difficult it is to pull the actuator back into place. I have a suction device that I use to remove engine oil from the dip stick tube. I simply attached a 1/4" ID clear plastic hose to the bleed valve, gave it a few pumps, cracked the bleed valve and BINGO. Perfect suction. Worked like a dream. Just be sure to be standing at the actuator reseviour to keep it full of fluid. Level drops quickly using this method. I bled each caliper 3 times over 3 day period. I also found the Titan actuator a little difficult to connect to 2" hitch ball. I had to pull forward and backwards a bit to both couple and uncouple hitch in order to lock into place and unlock. Perhaps it will get easier as I get used to it, but is was a little frustrating in comparision to my old actuator. Road Test. I pulled forward and applied brakes in short bursts to get the caliper cylinders to move all the way out to make contact with pads and rotor. After about 3 brake applications, you need to check actuator fluid level. I did this about a dozen times, refilling reseviour 3 times. Also, DO NOT over fill reseviour once you have everything final adjusted. Application pressure will force out fluid thru fill cap. Directions say fill to 3/4 full. Good advice. Overall I am very pleased with both eTrailer and the Titan product. 185272



- T4843200

by:


I do not recommend purchasing this kit!! First issue was the packaging the parts came in. The heavy calipers and rotors were packed in a box, loose, with the bearings and seal. Bearings and seal were just in a plastic bag. No packing material to keep the heavier parts from damaging them. One of the seals was damaged bad enough that I had to purchase another one locally and install. Second issue was one of the calipers had a casting of "China" in large letters. Only one of the four calipers had this casting. They proudly advertise "Made in America" on the website. Third issue was the fact that several parts were missing in the shipment: The bleeder valves, dust covers for bleeder ports, banjo bolt and block assembly adapter and bolts to mount caliper to adapter plate were all missing. So during shipping, the two ports on all of the calipers, were open to atmosphere, inviting contamination. The pictures on the website clearly show yellow plugs installed in one port and the bleeder valve with cover installed in the other. The banjo bolt assembly is an odd, non automotive size and was impossible to purchase locally. I immediately started trying to call etrailer customer support line. After several days of sitting on hold, each time for about an hour, I finally got through. The agents response was "I will have to contact the manufacturer and get back to you". I asked if they had these parts on the shelf. The response was no, we do not. So if I need spare parts in the future, they will not be able to provide them. I asked how long that would be and they responded with: "hopefully before the end of the day". Two days later I got an email saying simply that " I have contacted the manufacture and I am waiting for them to respond". Another 3 days pass and I finally get another email stating that the parts will be shipped with a delivery date that ended up being 9 days after the initial contact with etrailer agent. So overall, it took a little over 3 weeks from the date of the order to finally get all the parts I purchased. There were no apologies from the agent of any kind, an offer to discount the order or even a credit toward additional purchases. This is a very long ways from "71 Years of Great Customer Support". 410068



- T4843200

by:


First off, the customer service was top-notch. Questions that I had were answered quickly and smartly. I did have issues that I’ll get into, but responses could not have been more helpful. Shipping was fast, and given that the total order was about 150lbs. the free shipping was a real treat since the product was about the same price as other vendors that charged for shipping. Everything arrived in good condition with proper packaging. I ordered the disk brake set with lines and actuator. I also bought 4 springs. Now for the dislikes: No instructions with anything. Nothing. The “Instructions” button on the website was empty too. I was on my own. Not that it was super complicated, but I had to redo a couple of things when I realized I had done them out of order or improperly. Instructions would have saved me this time and aggravation. Google was my friend. The bolts that connect the brake mounting flange to the axle flange were not included, and this was not noted on the web page. Not a great expense, but my work for the day was done when I realized that the hardware was not included with the kit and my shop was closed. Bolts to mount the actuator to the trailer were not included either. Again, not a great expense, but at least TELL ME that I’ll need to have them on hand. The steel brake lines were WAY too long for my double axle trailer. Since I did not have a flare tool for cutting and reflaring, I had to bend the lines into this Dr. Seusse looking rig to get every thing to fit, and even then the mounting brackets were useless since it was nearly impossible to get everything to fit right and still have the bracket come out at the correct angle to mount to the axle/trailer. There was also an issue with the bearings. In one of the hub kits I got two inners and no outer bearing. That’s not etrailer’s fault though. I had to get one from my shop, and etrailers put one in the mail to me immediately. All in all though, I would buy from etrailer again and I would recommend them. 187809



- T4843200

by:


The packages came pretty quick. My trailer was originally equipped with disc brakes however they were not maintained by the previous owner and everything except the main part of the frame was rusted completely. I’m glad the main frame is aluminum otherwise I’d have to buy a new trailer. I was very happy with the shipping time from when my order was placed to when it was shipped. UPS didn’t really take care of the packages and it looked like they were tossed around but luckily no major damage occurred. Everything I ordered were in the 3 packages I received. I just replaced the trailer tongue a couple days ago and upon prepping the axels for the brake system that arrived I noticed the axels were rusted beyond repair to the point I can’t even drop the boat in the river to install evertything because I fear one good pot hole or bump and the axels will separate. I’m going to pick the new axels this weekend and install them along with the new brake system. Everything looks fantastic so far and I cannot wait to get this done so I can take my boat out again. I would love to submit before and after pictures once the brakes and new actuator have been installed 540454



- T4843200

by:


eTrailer, outstanding service and super fast shipping!! I can't believe I recieved over 100lb worth of boxes free! Now to the actual kit: product as advertised. Complete kit to start new or convert from drum. I have never installed brakes myself, so this was the first time. No directions provided with the boxes except for some coded text for the accentutor. So don't expect to have step by step install guide. (Unless you actually read the email eTrailer sends you which I didn't do until I was about to write the review) The Titan site sucks too and don't hope for directions there either. When you install the calipers, 2 of them will have the bleed valves at the bottom so be sure to swap them up. I had a hard time bleeding the brakes following the Titan directions which are to use the 2x4 method. Luckely my buddy Will showed up and showed me that the cover on the accentutor can be removed. Once you do that you can just pump them using the brake away lever. Other than that, I am super happy with the product and eTrailer has new loyal customer. 175078



- T4843200

by:


5 weeks later and the project is finished. Would I still buy from Etrailer? Yes. Was it easy? No. Salesman assured me that the actuator would work for my trailer so I ordered. After receiving product...good shipping.. determined that the actuator was too small after my specifically asking if it was the right part. Hassled with return and ordered the right part. Finally got this all straightened out. New actuator came with broken cap...no problem they sent me a new one once the had one in stock a month later. there are no instructions that come with these parts so you are on your own as far as the install is concerned. The only issue with this was the plates that the calipers mount to can go on 2 ways with only a small difference either way so it took a couple of tries to get this right but other than that it all worked out in the end but would have saved me a great deal of time and hassle had they answered my questions right when I first ordered. 187879



- T4843200

by:


All 6 boxes of my shipment arrived with no damage. All parts were wrapped and packaged well inside the box. Have not installed kit yet but all the parts appear to be good quality. The staff was very helpful with all of my questions and followed up when with me when they didn't know the answer to one of my questions about the rotor. I'll share that question and answer here. Two of the 4 rotors had a channel ground out of the edge. See Picture. Marti didn't know the answer but contacted her tech department and they informed us that this is how Titan will balance the rotor at the factor. 458391



- T4843200

by:


Order was shipped and I received it quickly. The amount of tubing that came with the kit was not quite enough. I had to get some extra brake line from the local parts store and cut/flare it to work. It was not difficult running the tubing however a complete flex line kit would have been much quicker and easier. This kit would not clear my 13" wheels and had to go with 14's. When I was bolting the wheels on I accidentally messed up the threads on one of the wheel studs. Called etrailer, titan, etc. and nobody had replacement wheel studs for it. I finally found the correct wheel studs. They are made by UFP and the part # is 32498. 232979



- T4843200

by:


Great kit, awesome quick delivery. Would be good to include axle nut cotter keys to lock the nut with in the kit. Everything else included except brake fluid. Be sure to bench bleed the master cylinder on the surge brake before bleeding the brakes. Also had to torque the bolt holding the brass swivel block to the caliper to 40 ft lbs to make it seal. Have them installed, haven't pulled the trailer yet. Looks like a great product 42801



- T4843200

by:


Awsome! 1985 dual axle boat trailer upgrade. Everything fit and works perfectly. Customer service responded immediately with sending missing solenoid protector cover. Highly recommend kit. Brakes work great! 526631



- T4843200

by:


I am a Marine Mechanic in the Pacific Northwest and these kits get everything thrown at em.100% humidity "never quits raining". Tequila shots got lime but no salt.Thats ok just lick the fender on your car and guaranteed to harden your arteries. I use these kits mainly on salt water trailers and they are awesome if you take the time to wash the trailer after exposed . Just my 2 cents 431737



- T4843200

by:


This company is great! Kept me informed from the minute I ordered. Was normal shipping time quoted, then they told me that due to manufacturer issue they wouldn't be able to deliver till middle of January! My package came three days later and was also part of their free shipping program for Christmas! Great company can't say enough about them! 327381



- T4843200

by:


I received the disk brake kit and started to install it, it is well designed and the quality is top notch. I hope to finish up tomorrow the only thing left is the brake lines and the bleeding. It has been an easy install. i would recomend to anyone want to go from drums to disk. The price was also great. 63159



- T4843200

by:


Installed on trailer that was previously drum brakes. Had no significant problems with installing new four wheel Titan Disc Brakes. All parts were in the kit and instructions were clear. They function great and have had no problems. 301817


Comments

I have now had the boat 24 foot on three hundred-plus mile trips and several to near by reservoir. Brakes have performed perfectly. Improvement over drum brakes is significant. Would not hesitate to orderuse Titan product from etrailer again. Thanks for following up.

Don W - 10/02/2017

28616

- T4843200

by:


Excellent brakes, very fast shipping even to Alaska, all parts necessary were included. Will highly recommend etrailer. The only thing needed is a set of instructions but the kit is pretty easy in any case. 185262



- T4843200

by:


Folks at etrailer, I just got a chance to install this kit. So far it has proven to be very good. All went well except for lack of basic instructions. Caliper mount plate embossed. 432965



- T4843200

by:


This is the second trailer I put these on and I'm very pleased with the brakes. I recommend them to my friends. Thanks for checking a year later. 483251



- T4843200

by:


Amazing fast delivery and super easy installation. Thanks So Much! 483235



- T4843200

by:


great kit. semi easy to install. working great. 121544



- T4843200

by:


Poor installation instructions 162279



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


Installed in Spring 2011. System is bad because: 1) Design of hydraulic tubing kit is very bad. Kit does not allow for the removal of the brake calipers without disconnecting the hydraulic brake line. To repack the wheel bearings the hard tubing brake lines at the caliper must be removed. Frustrating to have to bleed the brakes each time the wheel bearings need to be repacked. A good kit would contain a rubber brake lines for each caliper so the calipers can be removed without needing to bleed the brakes. 2) Outer race of inner hub bearing is a not a common part. OD is 2.328" which is about 0.040" smaller than a standard, common, easy to find, 1-3/8" bearing. To replace the bearing, you must purchase a 1-3/8" bearing, through away the outer race ($$$) and purchase a hard to find outer race (more $$$$). Lost the use of my boat for 2 weekends while waiting to receive this odd size outer race. WHY NOT MAKE THE HUB FOR A VERY COMMON 1-3/8" BEARING THAT CAN BE FOUND AT ANY PARTS STORE??? What if the bearing fails along the road?!? Leave your boat there for a week while trying to find this odd size race? Strongly suggest that you buy and carry extra bearings and the odd-ball 2.328" OD race if you buy this brake kit. Outer bearing is a common 1-1/16". Seal is a common 1-23/32" seal. 3) Hubs are poor quality. One bearing bore on one of the hubs is oversize by 0.0007". Bearing race spins in hub. Thank goodness for Locktite bearing retainer compound! Hubs are pure junk! Check the fit of the bearing races as soon as you get this kit! 43485



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


I have a 1999 Zieman double axle boat trailer. I had issues with the coupler sticking, in turn dragging my trailer brakes. Needless to say, they needed to be replaced. I found this kit after talking to the extremely knowledgeable customer support folks at etrailer.com. A few measurements and part numbers later, I was in business. As always, the order process was pleasant and the parts arrived ahead of expectation. The installation went very smooth. Tandom axle trailer, yet brakes only on the rear. The old drums came off nicely and the new rotors and calipers installed quickly and easily. The instructions show the calipers at the 12:00 o'clock position, so make sure you rotate them to 3:00 and 9:00 respectively. The new steel brake lines were exactly the right size and installed in the same holes/brackets as the old lines. I was able to bleed the brakes by myself on an inclined driveway and a clear hose into a clear container. I just used gravity in my favor. Lastly, I installed a 5-way flat and bought the 7pole to 5pole adapter for my truck. I was very impressed after the first road test. What a difference! These brakes work great and are a quality product. Wouldn't expect anything else from etrailer.com. Be sure to add more bearing grease after the first few pulls. I have bearing buddies which make knowing when to add grease very easy. This is a no-brainer upgrade to older drum based trailers. 43877



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


I had a lot of issues with a used Boat trailer I Just purchased. The surge break system was totally shot. So I decided to upgrade to disc brakes. The kit arrived in two day, The kit was very complete and easy to understand after viewing the Videos on the site. The one problem I had was I should have ordered the bolt set for the kit. I had planed to use the old bolts but they were a bit to short. After the bolt set arrived the install went very quickly. Tip Use a hand operated Vacuum pump to bleed the brake lines. (They are available at other stores for about $20) Be sure to keep the master cylinder full of fluid. Everything now works great. 503932



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


I bought a boat in June. Boat and trailer weigh in at about 2,750lbs. Not enough to legally require brakes in my state but heavy enough that I drove out of my way to avoid a particularly steep hill on the way to the river boat ramp. I installed the brakes myself; it took the better part of a Saturday afternoon to do it. Admittedly, the second wheel went a lot faster than the first. The hardest part is running the hydraulic lines. Actually it is the planning stage of where to run them. Make sure you buy or borrow a tubing bender for this part. It would be a lot easier if the boat were off the trailer (if you can put in and dock it for the day that would be great). I've not been running with the brakes for a summer season, on local roads and interstates. Not a problem in the world with them. The stopping power on them is great, almost like the boat is not there. Without them, when you hit the brakes, the trailer would push against the hitch and push the truck forward like a kick in the tail. That goes away with trailer brakes. This project was definitely well worth the investment. 24274



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


If the intended market for this kit is a trailer-maintenance professional, the kit is OK. If the intended market is a DIY boat owner, then some caution is in order. I am the later. I am not a mechanic, or anything close to one. I did complete the installation, and the brakes work perfectly. 141885


Comments

Thank you for your follow-up message just another example of the excellent customer service provided by e-Trailer. Not enough can be said about thattopic.The trailer brakes worked excellent - no issues at all.

William S - 07/20/2015

13509

- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


Product shipped super fast. The directions were simple, complete, and easy to follow. Installation was easy and fun, even for a guy with minimal hand tools and NO prior experience working on trailers. They look great, even after a lot of highway driving. Best of all, I am completely blown away at how well these brakes work. They stop my 5000lb boat and trailer very efficiently. I have a lot more confidence towing my boat in heavy traffic now. I would recommend these brakes to ANYONE who tows a heavy trailer. 46734



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


I have had this brake package installed on my boat trailer for about a year. The real world, on road performance is very good. The braking power is noticeable but smooth. I gave the product 4 stars (not 5) because the "Made in China" cover that protects the reverse lock-out solenoid is rusting even though my boat and trailer are stored indoors. SUGGESTION: I think the Kit should include or Etrailer.com should suggest the correct 7 prong plug that would include the circuit to supply the reverse lockout. My electric skills are good and I was able to install the correct plug. However if a customer is replacing their entire brake system it would stand to reason they would need all the pieces to complete the install. I'am a returning customer at Etrailer.com and will continue to be. 499541



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


my order came faster than i expected, when i opened the boxes and seen the care that was taken, i knew i made the rite choice in choseing( etrailer). my trailer had larger spindel nuts that made useing the buddy caps that came with my kit unuseable! i notified the company and the next day the problem was solved !!!!to me a good company is only as good as the people that work there ,and etraier should be rated 10 stats, the team makes it so !!!!!!!!!!!!!!!! thanks people of etrailer, i will recomend your co. and use it every time i have a problem with any of my vehicals needs!!!!!!!!!! i have been side tract to finish my brake overhaul cause of the hollidays, but will send pictures. 328991


Comments

I had completed the job , sorry I didnt take any pictures! But in the same time of this job , I had the opertunity to buy a larger boat that was to big for a trailer ! I am now trying to sell my smaller boat and trailer that hasnt left my property sense its completion! Im sure that it will all work as you promised! Yall havent let me down yet ! Thanks again for all your hard work and effort to be all of what yall advertise! Thanks .Augie

augie b - 12/31/2017

32451

- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


Overall an excellent kit that I would highly recommend to anyone replacing drums with disc brakes on a trailer. Very well thought out. Just a couple of suggestions not mentioned in the online info. You will need a brake line flaring tool, no kit can exactly match the lengths of brake lines for every trailer. There were also no instructions with the brake caliper mounting kits, the mounting bracket has a slight offset to one direction and you can't tell until completely done if it's on correctly. Lastly, the inner bearing races were not seated completely in the discs. All minor inconveniences that were easily fixed. 201676



- t4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


Installation pictures. 408363



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


Installed on a boat trailer and has been working good! In my case other parts were needed in order to use an extended tongue, but found them all at etrailer.com with the help of their excellent customer service team! 567280



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


Hello, Thank you for the opportunity to review this product. Overall I am extremely pleased. The price was a major selling point as this was a total conversion on a 1992 boat trailer. The installation was straight forward with no modifications to the axle needed. Every part fit together as advertised and knowing that help was a phone call away was reassuring. My fishing buddies have all had good words about the fit and finish and how much more modern the trailer looks with the upgrades. Thank you again for the great product and the timely service. 241390


Comments

I am still very satisfied

matt d - 03/23/2017

22948

- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


While I have not had a chance to go through the packages that arrived yesterday. I was pleasantly surprised that they did arrive way ahead of schedule. I also can not thank Katrina B. enough on her help with correcting my mistake with an online order. She was pleasant the whole time, and has followed up with me to make sure that everything is good. Once I get the packages opened and installed I will be writing another review on the parts. For my part Customer Service goes a long way in to making a happy customer. Thanks Katrina 425051



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


Worked as advertised. I needed an extra long hose and axle sleeve . They arrived in two days. I have an 18ft Lund. When I stop my truck with the boat, The truck stop the same as without the boat. I live in the Pacific Northwest and fish Washington, Oregon and Idaho. The disc brakes have been a great addition. 501956



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


Before ordering a brake kit for boat trailer, I contacted eTrailer to discuss my trailer and the specific kit I would require to complete the addition of adding brakes. Not only were they technical, but also provided updates when my order was delayed. The only negative complaint I have is that the kit didn’t have instructions. It seems like a straight forward job, but instructions are always helpful if you run into a snag. Overall, great experience and would recommend eTrailer to others. 550664



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


Had an issue with some missing parts (caliper slider sleeve missing), however etrailer is taking care of that. The parts are all manufactured in China, but everything did fit and work well so far. When it comes to disc brakes on a trailer that is going to be dipping into salt water on a regular basis, it doesn't make sense (to me) to go for the real costly parts when they will need to be replaced again in several years no matter how much rinsing you do when you pull it out of the water. 561842



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


I installed this brake kit on my boat trailer that originally had no brakes. Installation was fairly easy as I installed it by myself except for bleeding the brakes. Keep in mind that this kit has no installation instructions. Any info I needed to install was found by watching online videos. You may need a brake line flaring tool as some of the brake lines were much longer than I needed. The Road test with brakes installed seem to work well. I would recommend this kit. 546153



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


I received the brake kit later than expected due to an inventory problem. No problem to me. The day I received the kit I dry fitted all the components and they all seem to fit fine. One small adaption to the fender support will be necessary, but other than that all seems to be a go. I am installing this on a master tow dolly to reduce the wear on the tow vehicle. Have purchased many items from etrailer over the years and I am very pleased with there service. Thank You 373474



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


Upgrading the brakes on my 19' boat trailer. Kit was complete and easy to install. It would be helpful to include the link to the installation video. Removal of the old brakes and hitch went very quickly, Installation was straight forward after reviewing the video. 409586


Comments

They are working fine Made the trip from Alabama to California Lake Tahoe, lake Mendocino and Lake Sonoma no issues New brakes and tire working fine

Tommy T - 07/23/2018

41377

- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


The kit arrived in a timely manner. All in packages in good shape, nothing missing or damaged. Installed on trailer with no trouble, I do recommend you watch the video on the web site prior to starting install. To do a good clean job of installation you should beg, borrow or purchase a double flare tool where you can install everything the right length rather than coiling the tubing. Looks good and works fine!! 457182



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


Service from etrailer was fast and everything I ordered came. The Titan brake kit with actuator works well. The installation instructions for the brakes is completely wrong. Just use it as a parts guide only. You should only be doing this yourself if you have your mechanical act together so the wrong instructions won't be an issue. I would recommend this kit from etrailer to replace your old drum brakes with. 47473



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


This was ez install for my boat trailer Complete kit made everything simple from actuator thru connection to the new disc brakes I installed. Still works like expected. I keep it covered when not in use, so a year later, my actuator has zero rust and works 100% like new. Very good product. I read the reviews, and was glad that I followed the positive feedback on this brake actuator. 321648



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


Instruction were horrid. And wrong. Hoses were for a torsion suspension, not leaf spring type, with three very short hoses. I ended up reusing the old hose, which was twice as long. What was supplied was different than what was listed and shown in the pics. Having said all that, they work as advertised. Very happy with the performance. 28908



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


A delay in shipping my order,that believe was not etrailers fault, once the parts for my brake kit were in they shipped very quick. Only suggestion l have is to mention that when converting brakes from drum style to disk that some minor modifications my be needed. 437141



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


installed easily .replaced drum brakes on a 1995 eagle boat trailer was missing 2 bolts from the mounting hardware kit. just went to the local hardware store to buy them. easier and quicker than contacting you 549657



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


I will follow this up in a few weeks. hubs great, bearings great, disk & pads great. Not one single instruction, caliper can go on top bottom front or back I put it on the back, based on pictures from reviews, 545450



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


My second set. First set to replace old drum brakes and this set to add brakes to second axle. Straight forward install and easy service. You need trailer brakes, this is the one to buy. 555176



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


Titan disc brake kit was easy to put on all parts fit perfect only problem was the Kodiak red eye bearing protectors 1.98 on both axles came off on first trip on the highway. 284409


Comments

Everything still working good only problem is the reverse actuator is not working.

Frank A - 08/16/2017

27237

- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


Product is good . Installation instructions were non existent but we figured it out not a big deal. We have yet to pull the trailer but I can't see there being any problems. 261663



- T4843100

by:

Review from a similar Titan Leverlock Model 60 in Trailer Brakes


No installation instructions.... I'll figure it out, but it's a pain and time consuming to figure this out with nothing to go on! Unacceptable.. 268533


56
70
Show More Reviews

Ask the Experts about this Titan Trailer Brakes
Do you have a question about this Trailer Brake?


  • Converting Hydraulic Drum Trailer Brakes to Disc Brakes on a Boat Trailer
  • You could put disc brakes on just the one axle, but I recommend going ahead and installing them on both since the trailer is set up for it already. This will reduce wear and tear on both the trailer and the vehicle and a little extra expense now will end up saving you money down the road. We do have a 2 axle kit, # T4843200, that is just a little more cost than the T4843300 kit you have referenced. The main difference between these two kits is that the 2 axle kit I recommended does not...
    view full answer...

  • Recommended Kit for Converting EZ Loader Boat Trailer Drum Brakes to Titan Disc Brakes
  • The item you selected, Titan Disc Brake Kit and Leverlock Actuator w/ Electric Lockout, part # T4843200, is zinc coated to prevent corrosion. To prevent warping, I would recommend allowing the brakes to cool after driving a long distance before backing your boat into the water. I would recommend The Titan Disc Brake Kit, part # T4843200, for a boat trailer rather than the Galphorite Coated Assemblies. With any brake assembly, heat can remain around the bearings and can be sucked in...
    view full answer...

  • Titan Disc Brake Kit # T4843200 for EZ Loader Boat Trailer
  • The Titan Disc Brake Kit, part # T4843200 will be compatible with your trailer as long as your existing hubs use # L68149 inner and # L44649 outer bearings and a 10-19 grease seal. You will also want to confirm that the bolt pattern of your existing wheels is compatible with the 5 lug on 4-1/2 inch bolt circle discs included with the kit. The surge or hydraulic coupler included with the kit does include an electric lock out that will connect to the reverse light circuit of the tow vehicle....
    view full answer...

  • Selecting a Disc Brake Conversion Kit for Tandem Axle Boat Trailer for Use in Salt Water
  • The Titan Disc Brake Kit you referenced, part # T4843200, is a complete kit that includes all components from the actuator with electric lockout to the brake lines, calipers, hubs/rotors, mounting flanges, bearings, seals and hardware required for installation. This kit works with 3500-lb axles, has a 5-on-4-1/2 bolt pattern, uses a 4-bolt brake flange and fits your 13-inch wheels. The actuator fits a 3-inch wide channel tongue and has 600-lb tongue weight and 6000-lb gross trailer weight...
    view full answer...

  • Will Titan Disc Brake Kit # T4843200 Fit Tandem Axle Boat Trailer w/ 3500 Axles
  • We do have a kit with a larger capacity coupler available, Titan Disc Brake Kit and Actuator w/ Manual Lockout - Tandem, part # T4843200. I would recommend this kit, but you will need to check a few things to make sure it will work on your trailer. You will need to check your bolt pattern and wheel size, check your bearing numbers, check to see if the other axle has a brake mounting flange, and measure the trailer tongue. To make sure that your bolt pattern is 5 on 4-1/2 inches, you...
    view full answer...

  • Will the Titan Disc Brake Kit # T4843200 Replace the Reliable Brand Disc Brake System
  • It sounds like you are on the right track to confirming if the Titan Disc Brake Kit, # T4843200, will be a compatible replacement to your Reliable disc brakes. Since the Titan hubs/rotors use the same bearings as your Reliable hubs/rotors, they will fit on the same spindle. Also, diameter of the Titan rotors will be 1/2 inch smaller than your current rotors, but that will not affect the installation or compatibility. The included actuator will replace your current Titan D60 actuator...
    view full answer...

  • What Material Is Used For The Titan Disc Brake Caliper And Caliper Hardware, #T4843200,
  • On Titan Disc Brake Kit and Leverlock Actuator w/ Electric Lockout - Tandem, # T4843200, I called Titan to verify the materials and they said the calipers are cast iron, the caliper hardware is stainless steel and the bleeder screw is brass. The piston in the brake caliper is made of stainless steel.
    view full answer...

  • Will the Titan Disc Brake Kit # T4843200 Work on a Trailer With Dual Axles at 3700 lbs Each
  • The Titan Disc Brake Kit and Leverlock Actuator, # T4843200, can be used on a trailer with dual axles rated at 3,700 lbs each, however, if the trailer is loaded beyond the capacity of the brakes, then they will not be as effective as they would be within capacity. Keep in mind that this kit is designed for 14 or 15 inch wheels with a 5 on 4-1/2 inch bolt pattern. I would also recommend checking your wheel bearing and seal part numbers and make sure they match the bearings and seals...
    view full answer...

  • Drum to Disc Brake Conversion Kit for EZLoader Adjustable Bunk-Style Tandem Axle Boat Trailer
  • Thank you for providing your trailer specifications. This information is helpful. However, trailer manufacturers may use different axles for a given trailer model, based on parts availability, and this means the only sure way to know the bearings used is to pull them to find the bearing numbers. So in order to confirm the correct kit for converting your tandem axles to disc brakes we will need either the numbers from your outer and inner bearings, and grease seals, or you will need to...
    view full answer...

  • Recommended Disc Brakes for a Magic Boat Trailer with 3,500 Pound Tandem Axles
  • Adding a disc brake system will be a great addition to your Magic boat trailer. The parts you will need are a brake mounting flange, spindle, disc brake assembly, hydraulic disc brake actuator and brake line kit. I recommend the Kodiak disc brake kit # K2R35DKG because it has rust resistant disc brakes and is great for boat trailers. The cast iron, slip on over the hub rotors are great because you won't need to replace your entire hub assembly. Note, as long as your bolt pattern is...
    view full answer...

  • Drum to Disc Brake Conversion For Actuator
  • The Titan Trailer Coupler, part # T4079200, is for use with hydraulic drum brakes, and does not have the reverse lockout feature, or the solenoid installed. If you have changed the system from drum to disc, you need to be aware that the disc brake system has a higher pressure requirement. The actuator should be compatible with a disc brake system. Disc brake systems require 1500 psi, where drum brake systems require 1000 psi. I have attached an FAQ article explaining the parts needed to...
    view full answer...

  • Electric Trailer Brakes That Stopped Working Moving Forward But Work in Reverse
  • When there is bizarre trailer brake behavior the first place to check is the trailer connectors for corrosion. Check out the trailer connector on your tow vehicle for corrosion and clean as necessary. Electric trailer brakes aren't really designed to work well in reverse. You should feel a slight drag, but nothing like the braking power the assemblies would have while traveling forward. They could be out of adjustment, but most likely they wouldn't just go from working normally to...
    view full answer...

  • Surge Brake Coupler Recommendation for 2-5/16 Inch Hitch Balls
  • If you are looking for just a surge coupler that is designed to work on 2-5/16 inch balls you could use a Titan Zinc-Plated, Adjustable-Channel Brake Actuator # T4822800. This will work with disk brakes, has a capacity of 14,000 lbs and will work on 2-5/16 inch balls. However, we do not have a disk brake kit with a surge coupler kit that is designed for 2-5/16 inch balls. If you need hydraulic lines you would want a Deluxe Hydraulic Line Kit # 9579-2. If you also need hubs/rotors I would...
    view full answer...

  • Will the Titan Disc Brake Kit # T4843200 Fit on a 2003 Triton Elite 18 Dual Axle Snowmobile Trailer
  • The Titan Disc Brake Kit and Leverlock Actuator w/ Electric Lockout for Tandem, 3,500-lb Axles, item # T4843200, is designed to replace the Surge brake coupler, all of the brake lines and fittings, the hub/rotors, and the brake calipers. Everything is included for both axles. The only way to be sure this kit will work on your trailer is to check the wheel bearing and seal part numbers and match them to those included in the # T4843200 kit and to measure the tongue on the trailer to make...
    view full answer...


Do you have a question about this Trailer Brake?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality trailer brakes for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate trailer brake information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Expert Research:
Jackie C
Expert Research:
Michael L
Written by:
Lindsey S
Expert Research:
Robert G
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Reno H
Expert Research:
Jameson C
Video Edited:
Jacob T
Expert Research:
John H
Updated by:
Adele M
Expert Research:
Adam R
Video by:
Kathleen M
Photos by:
Jim W
Expert Research:
Rachael H
Expert Research:
Jeffrey L
Installed by:
Randy B
Photos by:
Zach O
Updated by:
Sarah W
Updated by:
Amanda M
Updated by:
Hannah L

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.



Product Experts Available Now!

Call 800-298-8924


^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
