Kodiak Disc Brake Kit - 8" Rotor/Hub - 5 on 4-1/2 - Dacromet - 2,000 lbs

Kodiak Disc Brake Kit - 8" Rotor/Hub - 5 on 4-1/2 - Dacromet - 2,000 lbs

Item # K2HR2D

lowest price pledge

Our Price: $249.72

Trailer Brakes

This item qualifies for Free Shipping

Shipping Weight: 42 lbs

Quantity:
In Stock
K2HR2D - 1/2 Inch Studs Kodiak Disc Brakes
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Videos


  • Disc Brakes
  • 2000 lbs Axle
  • Hub and Rotor
  • 10 Inch Wheel
  • 12 Inch Wheel
  • 13 Inch Wheel
  • Kodiak
  • 1/2 Inch Studs
  • Brake Set
  • 5 on 4-1/2
Trailer disc brake kit includes 2 assemblies with Dacromet-plated rotors, hub spacers, calipers and mounting brackets. Assemblies fit 2,000-lb axles with 10" to 13" wheels. The 8" rotors feature a 5 on 4-1/2 bolt pattern. Lowest Prices for the best trailer brakes from Kodiak. Kodiak Disc Brake Kit - 8" Rotor/Hub - 5 on 4-1/2 - Dacromet - 2,000 lbs part number K2HR2D can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Q & A (13)
  • Videos (1)
  • Photos
  • Used (1)
  • Why etrailer?

Kodiak Trailer Brakes - K2HR2D

Trailer disc brake kit includes 2 assemblies with Dacromet-plated rotors, hub spacers, calipers and mounting brackets. Assemblies fit 2,000-lb axles with 10" to 13" wheels. The 8" rotors feature a 5 on 4-1/2 bolt pattern.


Features:

  • Brake assemblies make it easy to change from an idler axle to a disc brake axle
  • Disc brakes deliver better performance than drum brakes
    • More consistent stopping, even at highway speeds
    • Dramatically shorter stopping distance
  • Maintenance costs are lower than for drum brakes
    • Fewer moving parts to maintain, repair and replace
  • Dacromet plating provides superior corrosion resistance for freshwater or saltwater use
    • 300- to 400-Hour salt-spray rating
  • Slip-on, cast iron, over-the-hub rotors mount to the included hub spacers
    • Hub spacers replace standard idler hubs
      • Use industry-standard bearings and seals (sold separately) - races included
    • Rotors are vented to prevent heat-related damage by effectively dissipating heat
  • Cast iron calipers are self-adjusting for smooth, equal braking
    • Cast iron construction does not flex like aluminum
    • Low-drag design retracts piston farther than other calipers for a cooler-running brake
    • Stainless steel piston is 2-1/4" in diameter - 30 percent larger than other brands
      • More braking torque than the competition
    • High-performance, ceramic brake pads
  • Ductile iron mounting brackets provide strength and durability
    • Side-support design ensures that load is placed on bracket, not bolts
    • Extra embossing for additional thread contact ensures tight, secure mounting for caliper guide bolts
    • 4-Bolt brake flange mounting configuration - weld-on flange available (sold separately)
  • Kit includes 2 full brake assemblies
    • 2 Dacromet-plated cast iron rotors
    • 2 Dacromet-plated cast iron hub spacers
    • 2 Dacromet-plated cast iron calipers
    • 2 Dacromet-plated ductile iron caliper-mounting brackets
    • 4 Stainless steel caliper-mounting bolts
  • Hydraulic brake actuator and lines (sold separately) are required for brakes to be activated
    • Requires psi rating of at least 1,500
  • Made in USA


Specs:

  • Fits:
    • Axle capacity: 2,000 lbs
    • Wheel size: 10" to 13"
  • Bolt pattern: 5 on 4-1/2"
  • Rotor diameter: 8"
  • Brake flange configuration: 4 bolt
  • Wheel stud diameter: 1/2"
  • 3-Year warranty


Bearing, Race and Seal Information

  • Bearings (sold separately)
    • Inner bearing: L44649
    • Outer bearing: L44649
  • Races (included)
    • Inner race: L44610
    • Outer race: L44610
  • Seal: RG06-020 (sold separately)
    • Inner diameter: 1.500"
    • Outer diameter: 1.987"

Disc Brakes

More and more people are switching their trailers over to disc brakes, and with good reason. Disc brakes deliver consistent braking - even at highway speeds - unlike drum brakes, which often show a substantial drop in braking torque at higher speeds. In addition, disc brakes offer a substantially shorter stopping distance than drum brakes.


Disc brake calipers have only one moving part, rather than the many found in drum brakes. This means that there are fewer parts to maintain, fewer parts to get damaged and fewer parts that will require repair or replacement, thus reducing maintenance costs.


Rotors and Hub Spacers

Kodiak's slip-on, cast iron rotors work in conjunction with the included hub spacers to easily convert your idler axle to a disc brake axle. The hub spacers are designed to replace your standard idler hubs, and they come furnished with races and wheel bolts (bearings and seals are sold separately). Once the spacers are in place, the rotors can be slipped on. With a separate rotor and hub, you can easily repair or replace just one element of your brake system without having to junk the whole thing.


Calipers

Kodiak calipers are constructed of cast iron to prevent flexing. Less flex means more braking torque, resulting in smooth, even braking every time. The corrosion-resistant stainless steel piston is 30 percent larger than standard pistons, ensuring shorter stopping distance and increased torque. In addition, the unique low-drag design of Kodiak's calipers allows the piston to retract farther than in most standard models, giving you a cooler-running brake.


Mounting Brackets

Designed for axles with 4-bolt brake flange configurations, the included mounting brackets are made of heavy-duty ductile iron that is embossed to provide additional threading for guide bolts. The added thread strength ensures a tighter, more secure connection between the caliper and bracket. Another unique feature of Kodiak's brackets is the side-support angle, which guarantees that the load is carried by the bracket, rather than the bolts.



2/RCMHS-8-2-DAC-K Kodiak Disc Brakes - 2 Wheel Set - 8" Rotor and Hub Spacer - Dacromet Finish - 2,000 lbs



K2HR2D Installation InstructionsInstallation Details K2HR2D Installation instructions


Video of Kodiak Disc Brake Kit - 8" Rotor/Hub - 5 on 4-1/2 - Dacromet - 2,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Kodiak Trailer Brakes - Disc Brakes - K2HR2D Review

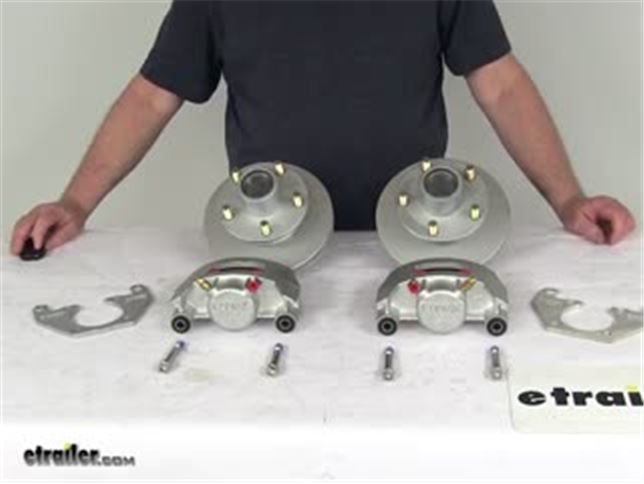

Speaker 1: Today we're gonna take a look at the Kodiak Dacromet Disc Brake Kit with the 8" hub and rotor, five and 4-1/2" full pattern for 2,000 pound axles. Now this brake assembly makes it very easily to upgrade from drum brakes to disc brakes for better performance. This brakes will deliver better performance than drum brakes cause you get more consistent stopping, even at highway speeds. And dramatically shorter stopping distances. Also, the maintenance costs are lower than for drum brakes cause you have few moving parts to maintain, repair and replace.Now this kit will include two full brake assemblies. It includes two dacromet plated cast iron rotors.

The two dacromet plated cast iron hub spacers that are already installed. Two of the dacromet plated cast iron calibers with the four stainless steel caliber mounting bolts and then inaudible 00:00:47 two dacromet plated ductile iron caliber mounting brackets. Now the dacromet plating provides superior corrosion resistance for fresh water or salt water use. Right here they have a slip on cast iron over the hub rotor that'll mount, two a these included, spacers.The hub spacers will replace your standard ivor hubs. Now this does use industry standard bearings and seals that we do sell separate on our website.

Now the bearing races will already be pre-installed into the hub. The rotors, you can see are vented to prevent heat related damage by dissipating the heat. And the calibers they are a cast iron caliber. They're self adjusting for smooth equal braking. The cast iron construction does not flex like aluminum.

It is a low drag design so it retracts the piston further than other calibers for a cooler running brake.And I just wanna show you . Let me take the aluminum pads out here. Here is the stainless steel piston in here. It's 2-1/4" in diameter. It's about 30% larger than other brands, sort of give you more braking torque than the competition and they do come with the high performance ceramic brake pads.

Now the ductile iron mounting brackets, they do provide strength and durability. They give you side support angle design that'll ensure that the load that the load is placed on the bracket, not just the bolts. Does have extra embossing for additional thread contact to ensure nice tight secure mounting for the caliber guide bolts. And you can see it is a design is for a four bolt brake flange mounting configuration.Now hydraulic brake actuator and brake lines are required for these brakes to be activated. We do sell those separately on our website. You do wanna make sure that the brake actuator and the lines that you get will have to have at least a 1500 psi rating. These parts are made in the U.S.A. Again, it's designed to fit 2,000 pound axles. The wheel size it'll fit on these is anywhere from 10" to 13" diameter. The bolt pattern is a five around 4-1/2" bolt pattern. The rotor diameter edge to edge is 8" and the wheel stud diameter is a 1/2". But that should do it for the review on the Kodiak Dacromet Disc Brake Kit with the 8" hub and rotor, five, one 4-1/2" bolt pattern for 2,000 pound axles.

0
0

Ask the Experts about this Kodiak Trailer Brakes
Do you have a question about this Trailer Brake?


  • Hydraulic Disc or Drum Trailer Brakes for 10 Inch Wheels
  • We have several options for trailer brakes that will fit a 10 inch wheel. For a 10 inch wheel you will need a 8-1/2 inch hub and drum assembly such as # T1544500042 which has a 5 on 4-1/2 bolt pattern. Then for hydraulic drum brakes we have just one option, # T4442000 for the right side and # T4442100 for the left side. These are designed for 3,000 pound axles. For disc brakes we have the following options: For 2,000 pound axles we have # K2HR2D. For 3,500 pound axles we have #...
    view full answer...

  • What is the Depth of the Hubs in Kodiak Disc Brake Kit K2HR2D
  • On the Kodiak disc brake kit for 2,000 pound axles # K2HR2D it measures 3.45 inches from the hub face to the brake mounting flange. Compare that to the hubs you have now to determine if the disc brakes will make the wheels further from the trailer. I have included a picture as well showing some other dimensions.
    view full answer...

  • Disc Brake Kit Recommendation for Spindle that Measures 1 inch in Diameter
  • What is the diameter of the spindle where the inner bearing rides? If it is also 1 inch we have the Kodiak disc brake kit part # K2HR2D that will fit the spindle. Otherwise if you have a different dimension there we wouldn't have a fit.
    view full answer...

  • Parts Needed to Add Hydraulic Disc Brakes to Shorelandr 2-Jetski Trailer
  • Since your Shorlandr 2-Jetski Trailer will be used around and most likely backed into water, I recommend going with hydraulic disc brakes because they lack electrical parts. First, if the axle on your trailer does not already have brake mounting flanges, these must be attached behind the existing hub assembly on each side. Most axles have these, but if it does not, you will need to either replace the axle with one that has brake flanges already welded into place or purchase flanges separately...
    view full answer...

  • Will the Kodiak Disc Brake Kit # K2HR2D Fit an EZ Loader Trailer with 2,500 lb Axles 12 Inch Wheels
  • There are a few additional factors to consider other than the wheel size before determining if the Kodiak Disc Brake Kit, # K2HR2D, will fit on your trailer. According to Kodiak, this kit was designed to fit 10 inch to 13 inch wheels, so they will work with 12 inch wheels as long as the wheels have a 5 on 4-1/2 inch bolt pattern. I have attached a help article on how to determine your bolt pattern if you do not know your bolt pattern. The best way to make sure this brake kit will be...
    view full answer...

  • Parts Needed to Add Hydraulic Disc Brakes to Pontoon Boat Trailer Used in Salt Water
  • You can refer to the linked article on adding hydraulic disc brakes to a trailer for a complete recap of the items needed and the things to consider about the available options. I also linked our page for disc brake kits that work with 12-inch trailer wheels. We have kits rated for both 2000-lb and 3500-lb axles. The best available option for a corrosive salt water environment will be Dacromet-finish brakes like the 3500-lb-rated kit # K2HR35D-8 or the 2000-lb-rated kit # K2HR2D. Stainless...
    view full answer...

  • Disc Brake Kit for Trailer with 2,200 Pound Axle and 14 Inch Wheels
  • The hub spacers on the Kodiak Disc Brake Kit # K2HR2D referenced in your question simply provide an attachment point for the rotors. They should not cause the wheels to stick out further on your trailer but to be sure you can also take a quick measurement on your existing idler hubs. On these hubs there is a 3.45 inch distance from the hub face to the brake mounting flange. You can compare this to your current hubs to see if there will be any difference. This particular kit is the only...
    view full answer...

  • Can the Kodiak Disc Brake Kit Part # K2HR2D Be Used with 16 Wheels
  • I do have an option for you but the Kodiak Disc Brake Kit part # K2HR2D only works with 10"-13" wheels as the hub/rotor combinations is not large enough for use with 16" wheels. The wheels would physically fit on the hub assuming you have a 5 on 4-1/2" bolt pattern but would not be rated for the wheel size. You would also need to confirm that your trailer's spindle uses L44649 bearings for both the inner and outer seat. Your best option would be to change wheel size from a 16" diameter...
    view full answer...

  • Selecting Compatible Disc Brake Kit for 1977 Trailer with 13-Inch Wheels
  • The disc brake kit you referenced, Kodiak Disc Brake Kit # K2HR2D, fits 2000-lb axles and is compatible with 13-inch wheels. To ensure these hub/rotor assemblies will fit your spindles you'll need to verify the bearing numbers in your current hubs and choose a disc brake kit that uses the same bearings. You also need to verify your axle capacity to select a kit that will offer enough stopping power. The brake caliper mounts in this kit will be compatible with your existing 4-bolt brake...
    view full answer...

  • Troubleshooting Weak Trailer Brakes on 2015 Jayco X20E
  • Before you swap out the brakes have you tried manually tightening the assemblies to get them to grab harder? On electric drum brakes there is a star wheel at the bottoms of the assemblies that you can turn using a flat head screw driver or brake adjusting tool # W80630. Turning the wheel one way will bring the shoes closer in and turning it the other way pushes the shoes out more. You will adjust the brakes using that wheel until there is a slight but constant drag of the shoe pads...
    view full answer...

  • Can the Calipers of the Kodiak Disc Brake Kit K2HR2D Mount in 12:00 Position
  • Mounting the calipers of the Kodiak brake kit part # K2HR2D in the 12:00 position will still work. Since the bleeders would still be on top of the setup the air will still bleed out of them. Basically the calipers can install in nearly all positions but in the standard positions bleeding is a bit easier since air wants to float up.
    view full answer...

  • Do Disc Brake Hubs Stick Out Further than Drum Brake Hubs
  • All of our trailer wheels have a zero offset which means that the mounting flange for the wheel is centered in the wheel. This means that the wheel would stick out about half the width of the wheel/tire past the hub/drums of the trailer. If instead you were asking about the wheel location relative to going from drum to disc brakes like with the kit # K2HR2D the wheel would end up in the same location.
    view full answer...

  • Aluminum Car Trailer Restoration and Replacement Brake Recommendations
  • Thanks for the feedback, and I am glad that you are finding our website helpful! For your 1989 Trailex CT-7031 all aluminum trailer with the specifications that you provided there are three options for restoring or replacing the brakes for this trailer. The three options are similar to what you mentioned, and are: 1.Hydraulic Drum, which is the most cost effective. 2.Hydraulic Disc, which is more expensive, but provides better performance. 3.Electric drum, which is most cost effective...
    view full answer...
