Dexter Disc Brake Assembly - 10" Hub/Rotor - 5 on 4-1/2 - Dacromet - 3,500 lbs

Dexter Disc Brake Assembly - 10" Hub/Rotor - 5 on 4-1/2 - Dacromet - 3,500 lbs

Our Price: $258.27
You Save: $41.21
Trailer Brakes
This item qualifies for Free Shipping
Shipping Weight: 30 lbs
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

In Use/Installed

Need help with installation?
Locate installers near me
This hub-and-rotor assembly is constructed of Dacromet for superior corrosion resistance and is designed to fit trailers with 3,500-lb axles, 4-bolt flanges and 14" to 15" wheels. Races, bearings and grease seal included. Great Prices for the best trailer brakes from Dexter. Dexter Disc Brake Assembly - 10" Hub/Rotor - 5 on 4-1/2 - Dacromet - 3,500 lbs part number T10HREKITBB can be ordered online at or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (16)
  • Q & A (0)
  • Photos
  • Why etrailer?

Dexter Trailer Brakes - T10HREKITBB

  • Disc Brakes
  • 3500 lbs Axle
  • Hub and Rotor
  • 14 Inch Wheel
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • Boat Trailer
  • Snowmobile Trailer
  • 5 on 4-1/2
  • Dexter

This hub-and-rotor assembly is constructed of Dacromet for superior corrosion resistance and is designed to fit trailers with 3,500-lb axles, 4-bolt flanges and 14" to 15" wheels. Races, bearings and grease seal included.


  • Kit can be used either on new-application disc brakes or for converting from electric drum brakes
  • Set includes:
    • Hub-and-rotor assembly

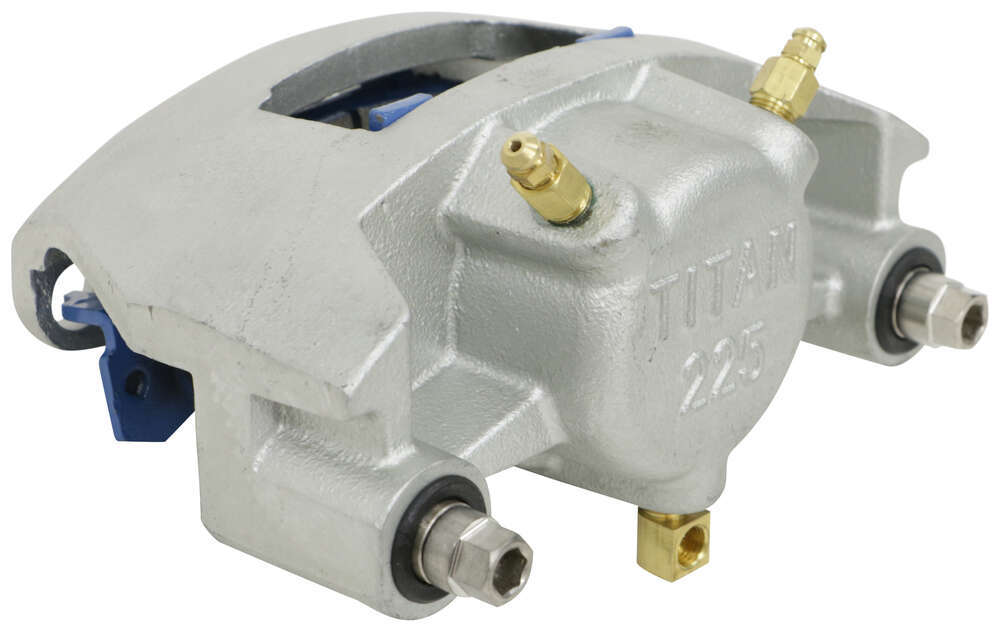

    • Cast iron caliper
    • Mounting bracket with hardware - fits 4-bolt brake flange
      • Hardware for attaching bracket to flanges sold separately

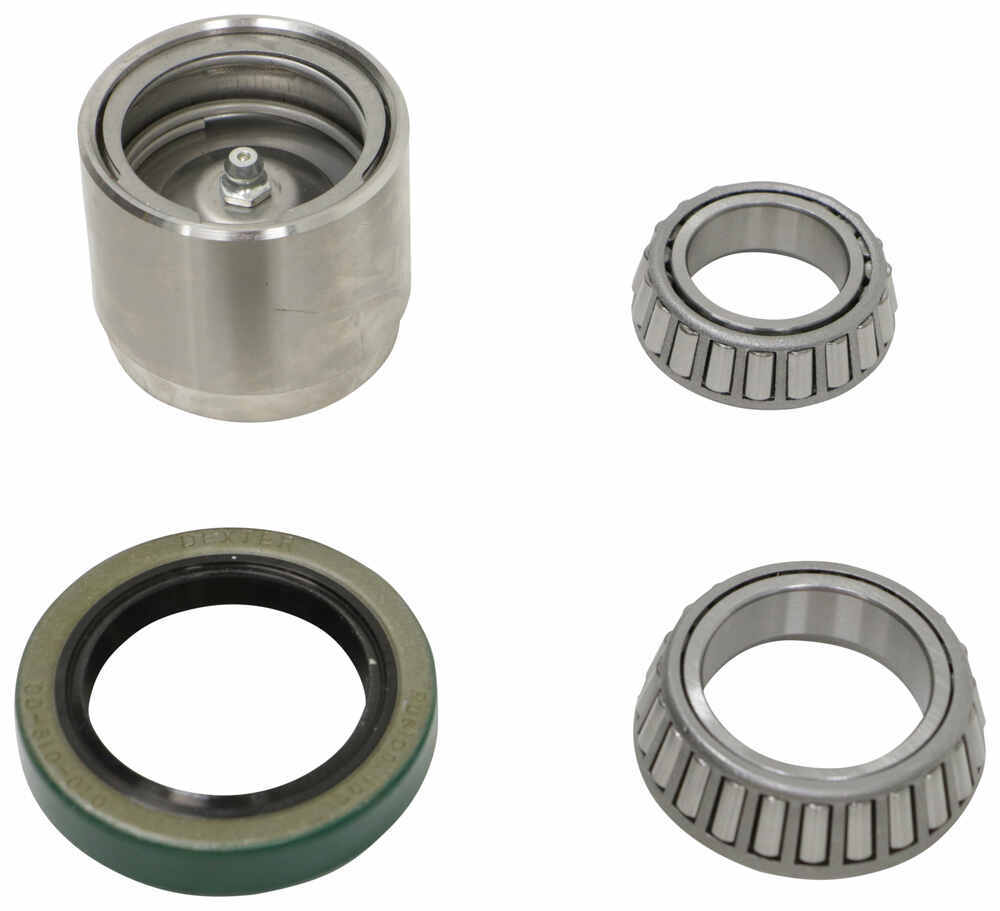

    • Grease seal, bearing protector, races and bearings
  • Dacromet construction resists rust and corrosion


  • Fits:
    • Axle capacity: 3,500 lbs
    • Wheel size: 14" to 15"
  • Bolt pattern: 5 on 4-1/2"
  • Overall rotor diameter: 9-3/4"
  • Brake flange configuration: 4 bolt
  • Wheel bolt diameter: 1/2"
  • 3-Year warranty

Bearing, Race and Seal Information

  • Bearings
    • Inner bearing: L68149
    • Outer bearing: L44649
  • Races
    • Inner race: L68111
    • Outer race: L44610
  • Seal: RG06-050
    • Inner diameter: 1.719"
    • Outer diameter: 2.565"

Note: Disc brakes require a higher line pressure (1,500 psi) than standard drum brakes (1,000 psi). To achieve this pressure, a brake actuator with a 1,500-psi rating is required.

An increasing number of trailer owners are switching over to disc brakes, and with good reason. Disc brake calipers have only one moving part, as opposed to the many moving parts you find with drum brakes. This means that with disc brakes there are fewer parts to maintain, fewer parts to get damaged and fewer parts to repair or replace, thus reducing the cost of maintenance.

Performance increases as well. Disc brakes deliver consistent braking even at highway speeds, unlike drum brakes, which often show a substantial drop in braking torque at higher speeds. In addition, disc brakes offer a much shorter stopping distance than drum brakes.

K71-890-00 Dexter Axle Disc Brake End Kit

Replaces Titan 4841400EKIT and 10HREKITBB

Customer Satisfaction Score:

Customer Reviews

Dexter Disc Brake Assembly - 10" Hub/Rotor - 5 on 4-1/2 - Dacromet - 3,500 lbs - T10HREKITBB

Average Customer Rating:  4.6 out of 5 stars   (16 Customer Reviews)

This hub-and-rotor assembly is constructed of Dacromet for superior corrosion resistance and is designed to fit trailers with 3,500-lb axles, 4-bolt flanges and 14" to 15" wheels. Races, bearings and grease seal included.


Knowledgeable, patient and willing to help even when my part numbers weren't working! Will did an excellent job working on alternatives to find the right fit. First try, parts arrived on time and fit great. Thank you!


I ordered this kit so to have spare parts for the Titan disc brake kit which I installed from my previous order. From past experience I discovered it is always good to have these parts available and on hand for when a wheel bearing destroys itself on a Sunday morning 500 miles from nowhere and a person should be prepared with the knowledge how to do this work on the shoulder of the road by ones self! So much for roadside service it just doesn’t work for all locations as those insurance company’s advertise.
In short even with the best of quality parts(which I am happy to say etrailer has always supplied me with) there will be failures which can put a big hole in vacation budget!
This kit was just as advertised and includes everything to replace one complete hub assembly ,bearings ,disc brake and rotor (just what you would need for that roadside repair).
Also many thanks to the folks at etrailer for delveloping such a good Hydraulic disc brake kit to replace the horrible electric brakes that came with our trailer.
They never really worked well no Mather what special adjustments or service that was performed on them! The trailer manufacturers should be ashamed for ever using them in the first place and for safety’s sake electric brakes should be outlawed!


Customer service is amazing I will be ordering all my trailer needs from etrailer


The brake system is awesome. The best trailer brakes I have ever owned. Unfortunately I had a rock kick up, jam between the trailer frame and brake causing damage to one assembly. The people at etrailer are great to deal with and everything I needed arrived quickly. The entire swap over took less than an hour as the setup is so simple.


These discs are noticeably stronger than my old drums. I was happy to find this kit came with everything I needed for install.


This brake assembly has been working great for me. It was easy to install (see install video on etrailer site if needed) and gives me great piece of mind. This brake assembly has seen over 1500 miles so far for me.


Brake rotor/caliper kit worked like a charm. Will definitely buy from again!!


This is a great product and was exactly as advertised. The shipping and packaging was done very well and arrived to my door in perfect condition. Shipping was fast and the price was amazing, if I was to source the parts locally it would have cost over triple the price. Thank you for your service.


Received a wrong part in a brake kit I ordered the correct part was sent and all is good.



The right stuff. The right time. 10/10 would buy again



Product is pretty good. Service was great. Thanks Lisa!!




The best customer service!


See what our Experts say about this Dexter Trailer Brakes

  • Installation Instructions for the Titan Disc Brake Assembly # T10HREKITBB
    Installation of the Titan Disc Brake Assembly, item # T10HREKITBB, is fairly straight forward. You attach the mounting bracket, included in the kit, to your axles brake mounting flange. Then the rotor/Hub is installed on the trailer spindle with the bearings seal and bearing buddy. Finally the disc brake caliper is attached to the mounting bracket and the brake line is installed to the caliper.
    view full answer...
  • How to Position Brake Caliper for Trailer Disc Brakes
    The caliper for the Titan Disc Brake Assembly # T10HREKITBB will sit partly over the rotor with the piston-side towards the inside of your trailer with the mounting bracket on the spindle-side of the spindle brake-mounting bracket. I have attached some photos for you to reference as well as an installation video that you can check out for the installation.
    view full answer...
    Image 1 for Image 2 for
  • Parts Needed to Convert Surge Drum Brakes to Electric Disc Brakes
    Please refer to the linked FAQ article that concerns converting from drum to electric-over-hydraulic disc brakes. This explains all the components required. I have also attached a link that will take you directly to some examples of the disc brake kits we have available. If you could let me know what you are trying to replace, I can make a specific recommendation for you.
    view full answer...
  • Replacement Disc Brake Kit for Boat Trailer with UFP 2513 Brake Assemblies
    Yes the kit you need is the part # T10HREKITBB that you referenced which you'd need two sets of since you have a tandem axle trailer. This does come with the correct bearings and seal too which would be all that you'd need.
    view full answer...
  • Solution for Needing Replacement Hub/Rotor for Titan Trailer Brake Assembly
    We do have some replacement hub/rotors for Dexter and Kodiak brake setups but Titan does not offer just the hub/rotor so our only option is the part # T10HREKITBB that you mentioned which includes the new caliper.
    view full answer...
  • Replacement Rotor/Hub for Titan Disc Brake Kit Part T4843800
    In order to replace a rotor/hub that came with the Titan Disc Brake Kit part # T4843800 you will want to use the Titan Disc Brake Assembly part # T10HREKITBB which comes with everything that you need in addition to a new caliper and brake pads. This cannot be ordered without the caliper and brake pads unfortunately but this option will give you spare parts if needed which is never a bad thing to have on hand.
    view full answer...
  • Replacement 3,500 Pound Titan Disc Brake Assembly on Trailer
    The current replacement disc brake assembly for the Titan Kit you currently have is indeed the Titan Disc Brake Assembly # T10HREKITBB that the shop installed on your trailer. This kit includes the hub and rotor assembly, the cast iron caliper, the mounting bracket and hardware. The overall rotor diameter is 9-3/4 inches. The original/older model of this assembly is no longer available from the manufacturer. I did speak with my contact at Titan and was able to confirm that there is a...
    view full answer...
  • Recommendation for Electric Over Hydraulic Brakes on a Single Axle Trailer
    We don't have a kit already put together but we can get you exactly what you need. You will simply order the following items to get this job done. 2- Titan Disc Brake Assembly - 10" Hub/Rotor - 5 on 4-1/2 - Dacromet - 3,500 lbs part # T10HREKITBB 1- Titan Hydraulic Brake Lines and Fittings for Single-Axle part # T4829900 1- Titan BrakeRite II Severe-Duty Electric-Hydraulic Actuator Kit part # T4835700 Upgrading to disc brakes can make a world of difference when it comes to braking performance...
    view full answer...
  • Disc Brake Kit Recommendation for Boat Trailer With 3,500-lb Axles
    If you have the same boat trailer as you did in your previous question, which has 3,500 lb axles and 13 inch wheels, then the only kit that we offer for your trailer is the Titan Disc Brake Kit # T4843300. The thing about this kit is that it comes with a coupler, which you already have, and the hub/rotors that you were not wanting. This kit includes the combination of a few different kits. Since you already have an actuator, the kits that you would need are the Disc Brake Assembly (2...
    view full answer...
  • How to Make Fulton A60 Swinging Coupler Compatible with Disc Brakes
    Thank you for all of the info! I did some digging and found out that your older Fulton A60 swing away actuator was actually a UFP A60 actuator on a Fulton coupler hinge like part # FHDPW330300. I was able to speak with my contact at Dexter who said you can make your drum brake actuator compatible with disc brakes by changing out the master cylinder with kit # DX44FR. If you don't already have disc brakes I am linking our selection for you to filter through. If you'd like a recommendation...
    view full answer...
  • Replacement Hub and Rotor Assembly with 5 on 4-1/2 Bolt Pattern for 3,500 Pound Trailer Axle
    From my research the hub and rotor assembly you're looking for is for a 3,500 pound axle with a 5 on 4-1/2 bolt pattern. It uses bearings # L68149 and # L44649 and has a Dacromet finish for marine use. If the bearing numbers match you can use # T10HREKITBB for a replacement. You need the complete kit with the rotor and caliper because you can't mix brands between calipers and rotors. The bearing kit that goes with it is # BK2-100
    view full answer...
  • Are There Rebuild Kits for Titan 3,500 Lb Disc Brake Kits
    I do have an option for you but we don't have any rebuild kits per se for Titan Disc Brake Calipers. That said, we do have replacement disc brake calipers such as the Replacement Disc Brake Caliper part # K71-773-02 for passenger side or part # K71-773-01 for driver side. These calipers are designed for the 3,500 lb kits with 10" rotors that have a caliper part number of 4841200. The other option would be to replace the entire assembly, the Dexter Disc Brake Assembly part # T10HREKITBB...
    view full answer...
  • Replacement Rotor Hub and Bearings For Titan Disc Brake Assembly # T10HREKITBB
    We have the Kodiak 10" Hub-and-Rotor Assembly # KHR10D that has the same 5 on 4-1/2" bolt pattern and dacromet coating as the one in the Titan Disc Brake Assembly # T10HREKITBB. You will need the Inner Bearing # L68149, Outer Bearing # L44649, and Grease Seal # 58846. We also have the Bearing Buddy Bearing Protectors # BB1980A-SS if you also need those.
    view full answer...
  • Trailer Axle With Electric Brakes Options
    The electric brakes we offer for a 7,000 lb axle are electric drum brakes like part # 23-181 for the right hand, and part # 23-180 for the left hand. The highest rated electric disc brakes we offer are electric-over-hydraulic and for 3,500 lb axles. This is the Titan Disc Brake Assembly, part # T10HREKITBB. The largest axle we offer is a 3,500 lb axle like the Trailer Axle w/ Electric Brakes, part # e43SR. This axle measures 89 inches hub face to hub face and includes electric drum brakes,...
    view full answer...
  • Replacement Surge Brakes for a 23.5 Hunter Sailboat Trailer
    If you were looking to simply replace the hydraulic brakes then I recommend the Hydraulic Brake Kit part # AKFBBRK-35-D with the Trailer Hub/Drum Assembly part # AKHD-545-35-G-EZ-K (2). If you were looking to upgrade to disc brakes then I recommend the Titan Disc Brake Assembly part # T10HREKITBB (2). In regards to the brake lines, the HydraStar Hydraulic Brake Line Kit part # HS496-251 would have you covered. Please note, if you upgrade to disc then you'll also need a new actuator like...
    view full answer...
  • Parts Needed to Change Electric Brakes on a Tandem Axle Trailer to Electric-Over-Hydraulic Disc
    For a disc brake assembly I recommend going with the Kodiak Disc Brake Assembly # K2HR712DS for 1/2" diameter studs or Kit # K2HRCM1337-9DAC for 9/16" diameter studs. Both of these kits are for 7,000 lb trailer axles. For the inner bearing use part # 25580, outer bearing use part # 02475, and grease seal use part # RG06-070. If you have two 3,500 lb axles on your trailers I recommend the Titan Disc Brake Assembly # T10HREKITBB (2 for each axle) which comes with inner bearing # L68149,...
    view full answer...
