12-1/4" x 3-3/8" Driver's-side electric trailer brake assembly fits 8,000-lb to 9,000-lb axles. Mounting flange has a 4-bolt pattern. Self-adjusting brakes require little maintenance. Fits 15" or larger wheels. Lowest Prices for the best trailer brakes from Dexter Axle. Dexter Electric Trailer Brake Assembly - Self-Adjusting - 12-1/4" - Left Hand - 8K to 9K part number 23-434 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
252.97
52
My Vehicle:change vehicle

Price: $252.97

Dexter Electric Trailer Brake Assembly - Self-Adjusting - 12-1/4" - Left Hand - 8K to 9K

Item # 23-434

Retail:$264.78

Our Price: $252.97

This item qualifies for free shipping

Quantity:

In Stock.
zoom in icon
zoom out icon
pop out icon replay 360 icon

Product Images

Dexter Axle Trailer Brake
Dexter Axle Trailer Brake
Dexter Axle Trailer Brake
Dexter Axle Trailer Brake

Videos


  • Electric Drum Brakes
  • 8000 lbs Axle
  • 9000 lbs Axle
  • 12-1/4 x 3-3/8 Inch
  • Dexter Axle
  • Self Adjust
  • Left Hand Side
  • Brake Assemblies



Dexter Axle Trailer Brakes - 23-434

12-1/4" x 3-3/8" Driver's-side electric trailer brake assembly fits 8,000-lb to 9,000-lb axles. Mounting flange has a 4-bolt pattern. Self-adjusting brakes require little maintenance. Fits 15" or larger wheels.


Features:

  • Electric brakes are easier to install and offer more user control than hydraulic brakes
    • Requires only an electric brake controller (sold separately) - no actuator or hydraulic lines necessary
  • Self-adjusting brakes automatically adjust to deliver optimum performance and braking power
    • No need for manual brake adjustments
    • Proper adjustment leads to better brake efficiency and less wear on your tow vehicle's brakes
  • Mounting bolts and hardware sold separately
  • Made in the USA


Specs:

  • Application: most standard hub-and-drum assemblies, including Dexter and Lippert (LCI)
  • Configuration: left hand (driver's side)
  • Dimensions: 12-1/4" diameter x 3-3/8" wide
  • Mounting flange bolt pattern: 4 bolt
  • Wheel size: 15" or larger
    • Compatible with 12-1/4" hub/drums
  • Axle rating: 8,000 lbs - 9,000 lbs
  • Limited 5-year warranty


K23-434-00 Dexter Electric Brake Assembly, LH 12-1/4" x 3-3/8" - Self Adjust - 8K to 9K

Replaces 23-434








Related Products



Customers compare 23-434 to these similar products





Customers Who Purchased This Trailer Brakes Also Bought...



Replacement parts available for this product





Premium - This item

Dexter Electric Trailer Brake Assembly - Self-Adjusting - 12-1/4" - Left Hand - 8K to 9K


Dexter Electric Trailer Brake Assembly - Self-Adjusting - 12-1/4" - Left Hand - 8K to 9K
Dexter Axle Trailer Brakes

2 reviews

Code: 23-434


Retail:$264.78

Our Price: $252.97


  • Trailer Brakes
  • Electric Drum Brakes
  • Brake Assemblies
  • Self Adjust
  • 12-1/4 x 3-3/8 Inch
  • Left Hand Side
  • 8000 lbs Axle
  • 9000 lbs Axle
  • Dexter Axle


12-1/4" x 3-3/8" Driver's-side electric trailer brake assembly fits 8,000-lb to 9,000-lb axles. Mounting flange has a 4-bolt pattern. Self-adjusting brakes require little maintenance. Fits 15" or larger wheels.

more information →
Economy
Price: $52.96
$200.01 Less

Dexter Electric Trailer Brake Assembly - 12" - Left Hand - 6,000 lbs


Dexter Electric Trailer Brake Assembly - 12" - Left Hand - 6,000 lbs
Dexter Axle Trailer Brakes

77 reviews

Code: 23-105


Retail:$62.26

Our Price: $52.96


  • Manual Adjust
  • 12 x 2 Inch
  • 6000 lbs Axle
  • 14-1/2 Inch Wheel
  • 15 Inch Wheel
  • 16 Inch Wheel
  • 16-1/2 Inch Wheel


12" x 2" Driver's-side electric trailer brake assembly fits 6,000-lb axles. Mounting flange has a 5-bolt pattern. Fits 14-1/2" to 16" wheels.

more information →
Value
Price: $109.52
$143.45 Less

Electric Trailer Brake with Dust Shield - Self-Adjusting - 12-1/4" - Right Hand - 10,000 lbs


Electric Trailer Brake with Dust Shield - Self-Adjusting - 12-1/4" - Right Hand - 10,000 lbs
etrailer Trailer Brakes

10 reviews

Code: AKEBRK-10R


Retail:$193.95

Our Price: $109.52


  • Right Hand Side
  • 10000 lbs Axle
  • 15 Inch or Larger
  • etrailer


Self-adjusting passenger's-side electric brake measures 12-1/4" x 3-3/8". Brake pads are made of durable friction material for improved braking and longevity. E-coated backing plate resists rust. Dust shield protects from debris.

more information →
Premium
Price: $203.84
$49.13 Less

Dexter Electric Trailer Brake Assembly - Self-Adjusting - 12-1/4" - Left Hand - 9K to 10K


Dexter Electric Trailer Brake Assembly - Self-Adjusting - 12-1/4" - Left Hand - 9K to 10K
Dexter Axle Trailer Brakes

10 reviews

Code: 23-450


Retail:$228.66

Our Price: $203.84


  • 10000 lbs Axle


12-1/4" x 3-3/8" Driver's-side electric brake fits 9,000-lb to 10,000-lb axles. Mounting flange has a 7-bolt pattern. Self-adjusting brakes require little maintenance. Fits 15" or larger wheels.

more information →

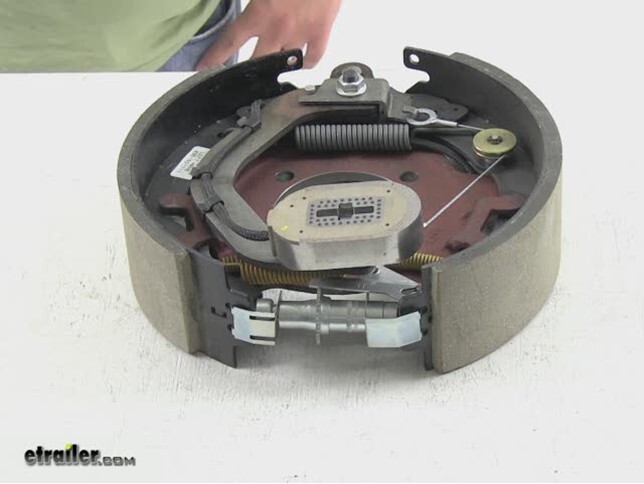

Video of Dexter Electric Trailer Brake Assembly - Self-Adjusting - 12-1/4" - Left Hand - 8K to 9K


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.




Video Transcript for Dexter 12-1/4" x 3-3/8" Left Hand Electric Trailer Brakes Review

Today, we're going to show you Dexter Self-Adjusting Electric Brake Assembly for Left-Hand Side, part number 23-434. This is a 12-1/4" by 3-3/8" brake assembly. We'll measure the diameter across the shoes and there is 12-1/4". And we'll measure the width of the shoes and there is 3-3/8". When paired up with the right-hand side brake assembly, these brakes are good for use on trailer axles rated at 8,000 or 9,000 pounds. It uses a 4 bolt mounting pattern.

So you want to check your axle to make sure these will fit. There is a pair of wire leads that you use for your electrical connections. It doesn't matter which one you use for ground and which one you use for your power feed just as long as you have a good electrical connection. This is a self-adjusting system, meaning that when you first install the brakes, you will need to manually adjust them and set the proper tension. You'll adjust enough when there is an even amount of light drag all the way around the hub.

Once you have set up the first time, every time you back up the trailer with the brakes applied, this cable will be pulled and if some slightness is to be taken out, the star wheel will automatically be advanced. This is an electric brake assembly. So you want to make sure not to use it on boat or marine trailer applications. The way the assembly works, as the wheel and hub is spinning around and you apply brakes inside the vehicle, this magnet will be activated that will attach to the hub drum inside. As the hub drum drags on the magnet, you'll pull this arm, which in turn opens up the brake shoes and applies pressure.

We know that this is for left-hand side. We have the short shoe that needs to face the further trailer and the long shoe that will need to face towards the back. And that does it for the Dexter Self-Adjusting Electric Brake Assembly for Left-Hand Side, part number 23-434.


Customer Reviews

Dexter Electric Trailer Brake Assembly - Self-Adjusting - 12-1/4" - Left Hand - 8K to 9K - 23-434

Average Customer Rating:  5.0 out of 5 stars   (2 Customer Reviews)

12-1/4" x 3-3/8" Driver's-side electric trailer brake assembly fits 8,000-lb to 9,000-lb axles. Mounting flange has a 4-bolt pattern. Self-adjusting brakes require little maintenance. Fits 15" or larger wheels.


- 23-434

by: michael mays09/27/2016


Hey,man i love my brakes. i bought my trailer from crags list and it had no brakes. it was plum dangerous ,i put your brakes on my self and i have hauled my cattle to market and from farm to farm many times, there is nothing like good brakes. thanks so , so much. mike mays. 300850



- 23-434

by: Lee S.02/27/2017


Excellent product-easy install-still working well after a year 346225

2
2


Ask the Experts about this Dexter Axle Trailer Brakes
Do you have a question about this Trailer Brake?


  • Replacement Hub and Electric Brakes for Older Camper
  • I was not able to find any Dexter part with the reference 21-17 but part # BP08-155 is a Dexter replacement electric trailer brake adjustment spring for right and left brakes assemblies # 23-435 and # 23-434. These self-adjusting 4-bolt electric drum brakes assemblies are for 8K and 9K axles. These brakes measure 12-1/4-inches x 3-3/8-inches. Parts # 23-105 and # 23-106 are 12 x 2-inch 5-bolt electric brake assemblies that are intended for 6000-lb axles. We do offer replacement brake...
    view full answer...

  • Need Brake Assembly For Dexter Trailer Hub And Drum - 8,000 lbs Axles - 8 on 6-1/2, # 8-218-9,
  • You mentioned a 12-1/2 inch drum, but Dexter only list a 12-1/4 inch X 3-3/8 inch drum. The parts that I am recommending are for the Dexter Hub and Drum, # 8-218-9, which is the 12-1/4 inch X 3-3/8 inch drum. I have the complete brake assemblies for the Dexter Trailer Hub and Drum - 8,000 lbs Axles - 8 on 6-1/2, # 8-218-9. The complete assemblies would contain the magnets, actuating arms, brake shoes and springs and cast backing plate. If you have the 4 bolt flange the brake assemblies...
    view full answer...

  • Availability of Electric Brake Drum Assembly for # 8-285-11 Dexter Trailer Hub and Drum
  • The Dexter Trailer Hub & Drum Assembly, part # 8-285-11UC3, that you have referenced, is the # 8-285-11 hub and integrated drum with the bearings, races, seal, cap, and lug nuts for a Dexter 8,000-lb axle. The electric brake drum assembly that fits the 8-285 hub and integrated drum would be the Dexter Electric Brake Assembly-Left Hand, part # 23-434, for the left side and Dexter Electric Brake Assembly-Right Hand, part # 23-435. These brake assemblies are for use on 8,000-lb and 9,000-lb...
    view full answer...

  • Replacement Brake Assemblies for Dexter 8-285 Oil Bath Hub and Drum for 8,000 Pound Axle
  • For your 8-285 hub and drum similar to the Dexter Hub and Drum, Oil Bath # 8-285-9UC3 for 8K pound axles, the Dexter Electric Brake Assembly, Right Hand # 23-435 and Left Hand # 23-434 are the correct fit brake assemblies for your axle. Another great option for replacement trailer brake assemblies are the Electric Trailer Brake with Dust Shield, Left Hand # AKEBRK-8L and Right Hand # AKEBRK-8R. These brake assemblies have the 12-1/4 inch x 3-3/8 inch size needed for your hub, are designed...
    view full answer...

  • Will The Brake Assemblies For A 7 Bolt Flange Work With The 4 Bolt Flange?
  • For a 9,000 lb axle with 4 bolts, you will want the Dexter Electric Brake Assembly, RH 12-1/4" x 3-3/8", # 23-435 and the matching left side assembly # 23-434. These are the only assemblies for the 4 bolt mounting plate and the 7 bolt plates are not compatible. Unfortunately, the Electric Trailer Brake with Dust Shield - Self-Adjusting - 12-1/4" - Left Hand - 10,000 lbs, # AKEBRK-10L, is an example of the 7 bolt flange that is not compatible with your axle.
    view full answer...

  • Mounting Flange Bolt Pattern for Dexter 4 Bolt 8k Brake Assemblies
  • For Dexter 8k rated brake assemblies that have 4 bolt mounting pattern and are 12-1/4 x 3-3/8 inch you would be referring to the part # 23-434 which has 3-5/8 inches between the left and right holes and 3-7/16 inches between the top and bottom holes. I attached a picture that shows this.
    view full answer...

  • Recommended Brake Assemblies and Hubs with Oil Bath For Dexter 8,000 lb Axles
  • For your 8,000 lb axle hubs with oil bath, I recommend the Trailer Hub and Drum Assembly - 8,000-lb Axles - 8 on 6-1/2 - Oil Bath, # 8-285-10UC3-A. The brake assemblies I recommend to match the hubs are the Electric Trailer Brake with Dust Shield - Self-Adjusting - 12-1/4" - Left Hand - 8,000 lbs # AKEBRK-8L and # AKEBRK-8R for the right hand side. You may want the Brake Adjustment Spoon for Drum Brakes # W80630 for the initial adjustment, but these brakes with self-adjust after that. If...
    view full answer...

  • Trailer Brake Assemblies for 12 X 3-3/8 inch Brakes with 4 Mounting Holes on a 1991 Kountry Aire
  • I checked with my contact at our supplier and found that the axles on your trailer are one of two brands. With the 4 bolt pattern they are either Hayes/AL-KO, 8,000 lb. axles with 12 by 3-3/8 inch brake assemblies or they are Dexter 10,000 lb. axles with 12-1/4 by 3-3/8 inch brake assemblies. If your brake assemblies are the 12-1/4 by 3-3/8 inch assemblies and you have the Dexter 10,000 lb. axles then you can use the # 23-434 and # 23-435 assemblies to replace your trailer brake assemblies....
    view full answer...

  • Recommended Brake Flange, Brakes, And Hub And Drum For 8,000-lb Axle
  • Typically, a 3-1/2 inch diameter axle like you said you have on your trailer is an 8,000-lb axle. The brake mounting flange on the axle that is designed for a 3-1/2 inch axle is part # 4-50. The flange mounting holes measure 3-5/8 inches between the left and right holes and 3-7/16 inches between the top and bottom holes. The hub and drum we offer that is designed for 8,000-lb axles is part # 8-285-11UC3. This includes the drum, bearings, races, seal, cap, and lug nuts. For electric...
    view full answer...

  • Are 8k Dexter Trailer Hubs a Fit for Both Sides of the Trailer
  • Trailer hubs are not directional like brake assemblies are. The number you mentioned is very similar to the # 8-285-11 which is a fit for both the right and left side of the trailer. The electric brake drum assembly that fits the 8-285 hub and integrated drum would be the Dexter Electric Brake Assembly-Left Hand, part # 23-434, for the left side and Dexter Electric Brake Assembly-Right Hand, part # 23-435.
    view full answer...

  • 12-1/4 x 3-3/8 Inch Electric Trailer Brakes for 9K and 10K Trailer Axles
  • There are 2 different sets of 12-1/4 x 3-3/8 inch brake assemblies and the difference between them is the mounting patterns they have. Electric brakes # 23-450 and # 23-451 will bolt to either a 5-hole or 7-hole mounting flange and they are for 9K to 10K axles which is what the hub # 9-44-1 is for. Electric brakes # 23-434 and # 23-435 will bolt to a 4-hole flange. So if you look at the flange your brakes are mounted to now and see just 4 holes in a square pattern you would use...
    view full answer...

  • Replacement Electric Drum Brakes and Hub/Drum Assembly for Dexter Axle
  • I was able to contact Dexter Axle and get the information on your axle. The p12 that you referred to has to do with the location of the plant that manufactured your axle. The direct replacement for your drum brakes would be the Right Hand Assembly # 23-435 and the Left Hand Assembly # 23-434. These are the self-adjusting brakes with the 4 bolt pattern to match with your brake mounting flange. The Hub & Drum Assembly - 8 on 6-1/2 - Oil Bath # 8-285-9UC3 comes with the correct hub,...
    view full answer...

  • Dimension of Center Hole/Axle Bore on a 8,000lbs Dexter Brake Assembly
  • Good news! I can help get you the measurement you were looking for. The center hole size on the # 23-434 brake assembly, which is also referred to as the axle bore diameter is 3-7/8 inches. The center hole on the hub # 8-218-9 you were looking at is 4-9/16 for the older style and 4-3/4 inches for the newer style.
    view full answer...

  • Mounting Bolt Pattern for Dexter 8K - 9K Brake Assembly # 23-434
  • Great news, I was able to go out into our warehouse and measure the mounting holes on this brake assembly. The center to center width measurement is 3-5/8 inches. The height measurement is 3-7/16 inches center to center. I have added an image for you to see my exact measurements.
    view full answer...

  • Can Dexter Brake Dust Shield Work With Electric Brakes
  • The Dexter Brake Dust Shield, part # D036-115-20 can be used with hydraulic or electric brake assemblies. This backing plate is designed for 8,000 and 9,000 brake assemblies part # 23-402, # 23-403, # 23-434 and # 23-435.
    view full answer...

  • Replacement Brake Assemblies for Dexter 8-10k Axles
  • We do not have any trailer brake magnets that are rated for that high of an axle. We do have the Dexter brake assemblies part # 23-450-451 which are a replacement set of assemblies for 9k or 10k axles by Dexter. For an 8k assembly we have the part # 23-435 for the right hand side and part # 23-434 for the left hand side.
    view full answer...
