10" Electric Trailer Brake Assembly - Right Hand - 3,500 lbs

Dexter Trailer Brakes

(112 reviews)


Code:   23-27

Retail:$45.72

Price:$35.95


Shipping Special

Shipping Weight: 9.56 pounds

Quantity:






Dexter Trailer Brakes - 23-27

10" x 2-1/4" Passenger's-side electric trailer brake assembly fits 3,500-lb axles. Mounting flange has 4-bolt pattern.

Features:

  • 3,500 lbs Capacity per Pair
  • Mounts with 4 Bolts (included)
    • Bolt holes are 2-7/8" apart, center to center
  • Uses 10" Hub/Drums
  • Nuts, lock washers and adjuster plugs sold separately


Exploded Electric Brake Assembly

23-27 10" Electric Brake Assembly - Right Hand

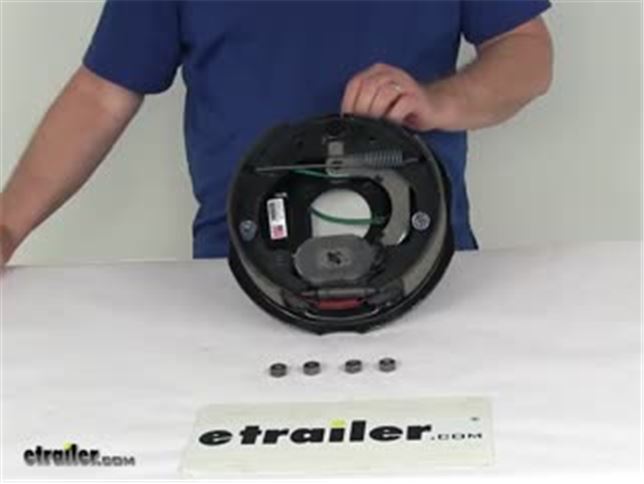

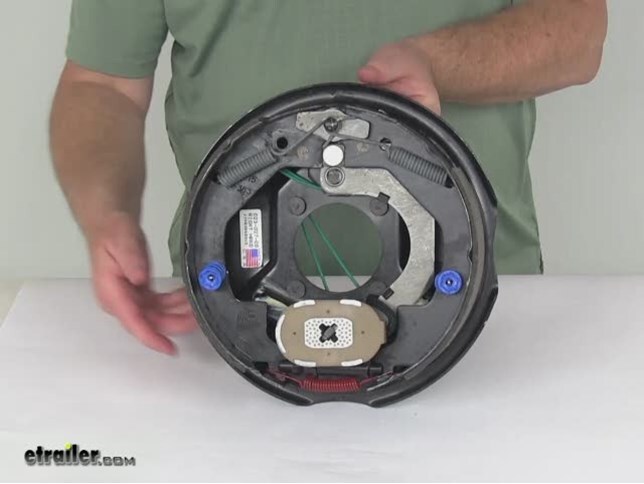

Video of 10" Electric Trailer Brake Assembly - Right Hand - 3,500 lbs


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.

Video Demo Dexter Trailer Brakes 23 27
Dexter Trailer Brakes 23-27 Review

Video Transcript for Dexter Trailer Brakes 23-27 Review

Today we are going to review part number 23-27. This is the Dexter ten-inch electric brake assembly for the right hand side. This electric brake assembly will measure ten inches by 2-1/4 and the way that is measured is the diameter of the shoes across. Its ten inches and the width of the shoe will be 2-1/4. This is passenger side brake assembly, which is the right hand side, and the way you can tell that is the shorter shoe will face the front of the trailer and the longer shoe will face the rear of the trailer. When this assembly is paired with a left hand side assembly, itll be rated for an axle 235 pounds.

You can use a wheel size of 13, 14 or 15 and this brake certainly does have a four bolt-mounting flange as you can see here. It does include the four studs. What you want to do is to make sure it fits your four bolt-mounting flange is if you can measure the distance between the holes. In the case they measure 2-7/8 inches. That is the distance from the center to center of the mounting flange.

This is an electric brake assembly so its not really used for marine applications. There are two wire connections to be made. One is for the brake feed, the other is for the ground and it doesnt matter which wires you use for either connection. Down here is the star wheel, which is used for adjusting the brakes and what you will, is an access hole back here that you pull the plug out. Use a brake-adjusting tool in each end and you will adjust the star wheel for the brakes to go either in or out.

And, this is an electric brake assembly and the way that would work is when power is fed to this magnet, its magnetized and will come out and sticks to the surface, inner surface of the hub and drum assembly, which will in turn pull the brake arm. This arm right here. It will attach and pull it, which will apply the brakes outward to stop the hub and drum. This part does have a limited one-year warranty and that should do it for part number 23-27.
