Dexter Nev-R-Adjust Electric Trailer Brake Assembly - 12" - Left Hand - 6,000 lbs

Item # 23-458

lowest price pledge

Retail:$161.92

Our Price: $72.53

Accessories and Parts

Orders above $99 qualify for Free Shipping

Shipping Weight: 15 lbs

Quantity:

In Stock
23-458 - Electric Drum Brakes Dexter Axle Trailer Brakes
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

3d view icon
23-458 - Electric Drum Brakes Dexter Axle Trailer Brakes
Accessories and Parts 23-458 - Brake Assembly - Dexter Axle
Dexter Nev-R-Adjust Electric Trailer Brake Assembly - 12" - Left Hand - 6,000 lbs 12 x 2 Inch Drum 23-458
Dexter Axle Accessories and Parts - 23-458
23-458 - Brake Assembly Dexter Axle Trailer Brakes
Dexter Nev-R-Adjust Electric Trailer Brake Assembly - 12" - Left Hand - 6,000 lbs Electric Drum Brakes 23-458
23-458 - LH Dexter Axle Accessories and Parts
Dexter Axle Electric Drum Brakes Accessories and Parts - 23-458
Dexter Axle 6000 lbs Accessories and Parts - 23-458
23-458 - 6000 lbs Dexter Axle Trailer Brakes
Dexter Nev-R-Adjust Electric Trailer Brake Assembly - 12" - Left Hand - 6,000 lbs 12 x 2 Inch Drum 23-458

Customer Photos


  • Trailer Brakes
  • Electric Drum Brakes
  • Brake Assembly
  • Dexter Axle
  • 12 x 2 Inch Drum
  • LH
  • Self Adjust
  • 6000 lbs
12" x 2" Driver's-side electric trailer brake assembly fits 6,000-lb axles. Mounting flange has a 5-bolt pattern. Nev-R-Adjust brakes require little maintenance. Fits 14-1/2" to 16-1/2" wheels. Call 800-298-8924 to order Dexter Axle accessories and parts part number 23-458 or order online at etrailer.com. Free expert support on all Dexter Axle products. Guaranteed Lowest Price and Fastest Shipping for Dexter Nev-R-Adjust Electric Trailer Brake Assembly - 12" - Left Hand - 6,000 lbs. Accessories and Parts reviews from real customers.


  • All Info
  • Reviews (835)
  • Q & A (97)
  • Videos (3)
  • Photos
  • Why etrailer?

Dexter Axle Accessories and Parts - 23-458

12" x 2" Driver's-side electric trailer brake assembly fits 6,000-lb axles. Mounting flange has a 5-bolt pattern. Nev-R-Adjust brakes require little maintenance. Fits 14-1/2" to 16-1/2" wheels.


Features:

  • Electric brakes are easier to install and offer more user control than hydraulic brakes
    • Requires only an electric brake controller (sold separately) - no actuator or hydraulic lines necessary
  • Nev-R-Adjust brakes automatically adjust to deliver optimum performance and braking power
    • No need for manual brake adjustments
    • Proper adjustment leads to better brake efficiency and less wear on your tow vehicle's brakes
  • Adjuster plugs (included) cover access holes to keep dirt and grime out of the assemblies and off of the shoes
  • Mounting bolts sold separately
  • Made in the USA


Specs:

  • Application: most standard hub-and-drum assemblies, including Dexter, Lippert (LCI), and AL-KO
  • Configuration: left hand (driver's side)
  • Dimensions: 12" diameter x 2" wide
  • Mounting flange bolt pattern: 5 bolt
  • Wheel size: 14-1/2", 15", 16" and 16-1/2"
  • Axle rating: 6,000 lbs
  • Limited 5-year warranty


K23-458-00 Dexter 12" Nev-R-Adjust Electric Brake Assembly for 6K Axles - LH

Replaces 23458 and 23-458

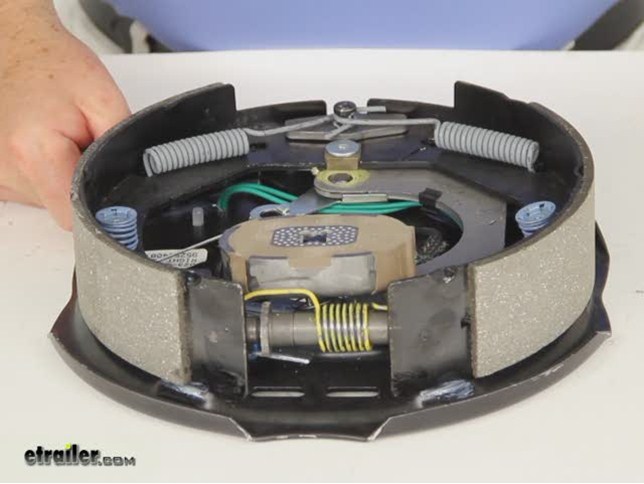

Video of Dexter Nev-R-Adjust Electric Trailer Brake Assembly - 12" - Left Hand - 6,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Nev-R-Adjust Electric Brake Assembly Initial Setup Review

Today we're going to do a tech tip video on the initial adjustment of a Nev-R Adjust electric brake assembly. I have an example here of a Nev-R Adjust brake assembly and the way you can tell that is you can see the silver lever that's attached to the actuating arm. Then there's a cable that is attached to it that will go around the pulley right here, which will attach to this lever. If you see this lever right here, it engages the notches of this star wheel. Basically, the way this works is that when you hit your brakes, the brakes are applied, this magnet will attach to the inside of the hub drum, which will pull it this way, which will pull this actuating arm. When it does that, it will pull on this cable and that will pull this lever to tighten the star wheel up so it will adjust your brakes to that situation. Now, the question we have gotten a lot of time is the initial brake adjustment on a Nev-R Adjust brake assembly will be different than a regular brake assembly. The difference is on a regular brake assembly when you install this and then put your hub and drum on and then your tire and wheel, you would spin that tire and wheel around.

Then using a brake adjustment tool, you would go to the back where the adjustment holes are, put your adjustment tool in and tighten that star wheel until it tightens down and stops the wheel and tire from turning. Then you would just back it off a few turns and that would give you the adjustment on the regular brake system. On the Nev-R Adjust system, you don't really want to do it that way. What would happen is this lever that's connected right here to the star wheel will not allow that star wheel to back off. You won't be able to back off the star wheel with this lever attached. What you'll need to do when you do an initial adjustment of the Nev-R Adjust brake assemblies, install it the same way, put your hub and drum on your wheel and tire.

You will turn your wheel and tire around until you get a slight drag of the brake shoes onto the hub. When you get a slight drag, then it is adjusted correctly. You will not want to tighten it down until it locks upbecause then what will happen is you won't be able to back off that star wheel. Now, if there's a case of where you've already done that and you're wondering why I cannot turn that star wheel to back it off the brake shoes, what youll need to do is get a small screwdriver like this and then go to the adjustment hole. These adjustment holes like where youd do your brake adjustment at, and take this small screwdriver, stick it through the adjustment hole where the lever is and then just push down on that lever and hold that lever away from the star wheel and that will allow that star wheel to go forward or backwards. Once you get your screwdriver in there, push down on this lever, hold it down, use your brake adjustment tool and go ahead and stick it in that adjustment hole, then youll be able to loosen up the star wheel.

Thats a way to, if you went ahead and already tried to adjust this and tightened it too much. That is the best way to back off that star wheel on the Nev-R Adjust electric brake assemblies.I hope that will help you. That will do it for the tech tip on the initial adjustment of the Nev-R Adjust electric brake assembly. .


Customer Reviews

Dexter Nev-R-Adjust Electric Trailer Brake Assembly - 12" - Left Hand - 6,000 lbs - 23-458

Average Customer Rating:  4.8 out of 5 stars   (835 Customer Reviews)

12" x 2" Driver's-side electric trailer brake assembly fits 6,000-lb axles. Mounting flange has a 5-bolt pattern. Nev-R-Adjust brakes require little maintenance. Fits 14-1/2" to 16-1/2" wheels.

- 23-458

by:


I bought these brakes to replace the hydraulic brakes on my newly purchased (at DOD auction) M1102 trailer. The OEM eq was almost new (2010 model) but I wanted to remove the hydraulic surge brakes for electric. They are a perfect fit and easy to install. Would have been nice to have the dust covers for the back of the housing. 166193



- 23-458

by:


Replaced old non-self-adjusting trailer brake assemblies with new self-adjusting ones. See photos of old & new. TIP: Temporarily tape new wires out of the way to avoid pinching them between the axle flange and backing plate when mounting the new brake assemblies (ask me how I know). 211142


Comments

Brakes are still working great

Gene - 07/11/2016

19302

- 23-458

by:


These are well built, easy to install brake assemblies. I had to adjust them after installation as they would not self adjust as the video states. They will be great if they do auto adjust as they wear. Price was great and they arrived in three days after my order. I will buy all my trailer parts from etrailer in the future. 111653


Comments

Best brakes ever owned, they operate better than the orig. brakes and seem to stay adjusted very well. I never have to adjust and easy to install.

Gerald J - 01/07/2015

8442

- 23-458

by:


These went on very easy, and worked great right out of the box. It was nice to have them all match. I spliced them in a couple days before going on a 1,000+ mile vacation to Arizona. They've worked flawlessly (I check them to make sure they aren't hung up). This was just one headache eliminated for the trip by just getting new brakes instead of messing around with junky old ones. We've had the toyhauler out on several other trips also. I will purchase again if I need any for another trailer. 340587


Comments

The brakes have been working great. After the initial installment and adjustment, I havent had to do any additional work to any of them. They are performing great, really better than I expected. I always test them with my brake controller when I first get back on the road and they have always worked. I have recd a few of my friends to buy any parts they need from your website as it was easy and had lots of options trailer stores around here are pretty limited.

J.D. - 02/12/2018

34640

- 23-458

by:


Perfect replacement for my 24ft Hallmark trailer. Very easy to install, just bolt on and connect the wires. With the automatic adjustment there is nothing else to do! I recommend putting some extra anti-seize to be on the safe side (I had similar brakes seize up after a big winter in the North East). Also you will need 2 plugs per assembly to cover the adjustment holes (the brakes don't come with any plug and have 2 holes!) 139198



- 23-458

by:


After reading the instructions installation was breeze.This product fit perfect & did exactly what they said it would. 230990


Comments

They work great right out of the box, i tested each one to make sure that the magnet was working before completing assembly. it was a all-day job, but well worth it.

Dennis B - 10/28/2016

21646

- 23-458

by:


Received the brakes within 4 days.. Finally got around to installing them on my 5th wheel. Nothing to it..perfect fit. Will order again from etrailer!! 222059


Comments

Hi.. thanks for the follow up.. Great products and service. Will always use you guys for my trailer supplies.

Mark - 09/14/2016

21002

- 23-458

by:


I bought a trailer that had been home-fabricated using the axles from an old horse trailer. The axles had the remnants of electric trailer brakes, but the guts were missing. I was preparing to move from Pennsylvania to Montana, and intended to tow the trailer with a boat and some loose ends, and I wanted to have the security of brakes. Although I had never attempted to do an installation of this type, there were some helpful youtube videos to guide me. The installation went well, albeit slowly, mostly due to my inexperience, and the brakes proved to work well. The drive west was smooth, and the trailer has proved to be very useful out here. As far as I can tell, everything continues to work perfectly. 272996



- 23-458

by:


Brakes arrived on time and in good condition,well packaged.All components fit perfect and were very easy to install. 194652


Comments

Work good

JB - 05/26/2016

17899

- 23-458

by:


Ordered 4 of the Nev-R-Adjust brake assemblies to replace my squeaking brakes on my 31 foot 5th wheel. I ordered them on normal shipping which was 7 to 9 days. After order was shipped I recieved an e-mail that my shipping had been upgraded and I should recieve the brake assemblies in 3-5 days. I ordered on a Wed AM and received them on my door step Friday PM. The brakes were easy to install and by viewing the dexter brake install information the setup was easy. Just returned from the 1st trip and brakes worked well and with no sqeaking. Brakes were the best price on saw on the internet. Great job etrailer and dexter. 44691



- 23-458

by:


Ordered 4 of the Nev-R-Adjust brake assemblies to replace my squeaking brakes on my 31 foot 5th wheel. I ordered them on normal shipping which was 7 to 9 days. After order was shipped I recieved an e-mail that my shipping had been upgraded and I should recieve the brake assemblies in 3-5 days. I ordered on a Wed AM and received them on my door step Friday PM. The brakes were easy to install and by viewing the dexter brake install information the setup was easy. Just returned from the 1st trip and brakes worked well and with no sqeaking. Brakes were the best price on saw on the internet. Great job etrailer and dexter. 44689



- 23-458

by:


Excellent product works great easy installation and delivery was fast would recommend to friends and family 155785


Comments

Working great

rob d - 10/13/2015

15521

- 23-458

by:


Dexter makes a nice brake assembly and etrailer does a great job of getting it to you fast at a great price! Simple to install and an easy replacement. Have bought lots of parts from etrailer and they are always great products and their staff is very well informed! I'm not an easy customer to make happy and I've always been satisfied with etrailer. Even if I could find something cheaper elsewhere I'd probably buy from etrailer. Great business model and great service. Don't change a thing and I'll be a customer for a very long time. 223254



- 23-458

by:


fast service great fit 135648


Comments

Good

glen b - 06/15/2015

12529

- 23-458

by:


The brakes fit perfectly. Have not tried them yet, but they appear to be of good quality. I really want to comment on how great the service has been through the ordering process. The parts arrived even quicker than I had been told they would. When I called for technical assistance while installing them (for torque numbers), I was immediately connected to someone who could answer my questions. This is the second time I have ordered from them, and will not hesitate to do so again. 54549



- 23-458

by:


The electric trailer brakes arrive within three days of ordering. The parts were a perfect fit. Etrailer' support is second to none! Helpful videos and live support available. The four trailer brakes were $100.00 less expensive than the nearest competitor and free shipping too! 418931



- 23-458

by:


Item: 23-458: This item Is a replacement for my 5th wheel camper. Do to the fact while traveling the brake did not release and failed on interstate I-40 late in the evening.The heat caused all the parts on the spindle to fail. The cost of replacing brakes, drum, bearing, seals, grease, plus service cost is Very Expensive after hours. Having these items on hand can save a lot of time and money. Etrailer parts are top quality and best online price. Thanks 321760


Comments

Great! I have recommended these item any times. Thanks, etrailer.com

Alan - 12/06/2017

31484

- 23-458

by:


Shipped as advertised but had some damage. However I was able to reposition one of the brake shoes with some effort. Installation was smooth...be sure to watch the video as no instructions come with the brakes. Also the dust covers are not included so save your old ones. I tested the installed brakes statically and they work. My RV will be taken on a trip soon. so a road test will be reviewed then. I have done business with etrailer before and all was well. 309552



- 23-458

by:


I needed to replace one of my trailers Dexter never adjust brake assemblies. I stayed with the Dexter OEM part and my replacement job was easy. Great product and love never adjusting trailer brakes. etrailer had the best price and really fast shipping. I received emails from their customer support team through the order placement & shipping process and even a delivery notice. Outstanding job and I will be a repeat customer. Thank you. 518994



- 23-458

by:


I just received my parts today, opened boxes and I am pleased with the quality and price! I am totally happy with the process from the time of placing the order to the time of delivery!! 3 DAYS!!! I don't think I will purchase anything from any one else. I would recommend E Trailer to all my friends! The product was everything I expected,I can't wait for the weather to break so I can get them installed. Thanks again for everything, Brian 170652



- 23-458

by:


Wanted to wait until after our most recent trip with our trailer before giving you the one year follow-up. Just pulled the trailer almost 1000 miles in the Rocky Mountains. The Nev-R-Adjust brakes & drums worked great and I felt very confident in their performance. I really appreciate not having to crawl under the trailer to adjust the brakes. All are good products and I would recommend them to all. 382045



- 23-458

by:


I ordered a set of four for my tandem axle trailer on a Friday and they arrived on Wednesday. They were Incredibly easy to install! The bolts lined up perfectly, and from start to finish took about two hours, that included repacking the bearings. Best pat is the, MADE IN USA label I am very very pleased so far. I cant wait to try them out and see if the automatic adjustment works. Thanks etrailer!! 41606



- 23-458

by:


Happy with product, but make sure when you receive your order everything is accounted for. I bought complete brake assembly, drums bearings etc... started putting everything together one wheel at a time and realized 1 bearing was left out so we are delayed another 5 days. I thought the bearing was being shipped faster but I guess not. I would have paid the additional cost if I would have known. 422538



- 23-458

by:


Product is as advertised. Very easy to install and price was great. I started to do a simple brake job on my 5th wheel trailer, but was able to upgrade to self adjusting brakes while avoiding all the hassles of purchasing the magnets, cleaning and assembling all the parts, plus having to manually adjust the brakes in installation and then again as the lining wears. 177081



- 23-458

by:


I always get great service and product from etrailer.com, but this time the brake assemblies where very loosely packed in one HEAVY box and where scratched, springs dislodged and a wire broken close to the magnet. I was able to fix the wire and reassemble the brakes with a little TLC. Thanks for great prices and free shipping (please take care in packing dept). 213939



- 23-458

by:


The brake back plates mounted as they should if properly made and they look like they are quality made. I don't know if I need the two plugs to keep dust out or not. I put the ones from the old brakes in and will buy four more. Sorry no pictures as I got caught up in putting them on. But I would buy from etrailer again as I think they are a good company. 149086



- 23-458

by:


Best thing about this brake kit is it's made in the USA. No hassle ordering and quick delivery. Did the front axle this month, doing rear axle next month. 189009



- 23-458

by:


Nuts and bolts are nuts and bolts but I can report that the self-adjusting brakes have worked well on our two-thousand mile trip this summer through the mountains of Utah, Idaho, Nevada, Oregon and Washington. They stop straight and true and don't seem to fade on those long down grades like the infamous "Cabbage Hill" near Pendelton Or. 306923



- 23-458

by:


e-Trailer ROCKS!!! I ordered this on Cyber Monday (afternoon) and received them on procrastination Wednesday. There was enough time to put them on but of course I am procrastinating for now. e-Trailer is the reason I CAN procrastinate. They have quality products and excellent customer support. HIGHLY recommend to everyone. 60191



- 23-458

by:


Got 2 RH & 2 LH Dexter brake assemblies for my 04 Jayco. It was an easy job to swap out the old assemblies for the new. The old ones were not really bad but at 11 years old I felt it was time to change. Shipping was very fast. One adjuster was out of place but it was quickly fixed using my old drum brake tools. 190940



- 23-458

by:


Great product and easy to install. I wish I had bought these before I had an RV repair shop replace my brake shoes. It was a nightmare, brakes were never adjusted correctly, magnets squealed, and poor braking. I installed these myself, and have had great (and quiet) braking since. Highly recommended. 176036



- 23-458

by:


I've had to return this and get a replacement. It is an OEM product on my trailer so I know it is a perfect fit. I can't say enough good things about the service I've received from e-trailer when I had to return this to get a replacement. I will definitely make purchases again through e-trailer. 204550



- 23-458

by:


Great product! Nice company to deal with. Highly recommended. New life for my '63 Avion T-20. 196509



- 23-458

by:


The workmanship and quality of these are second to none. After the original brakes wore out I bought the whole backing plate assembly rather than just replacing the Chinese shoes. These are MADE IN THE USA ! It was faster and easier to replace the whole set and have all the parts new. 216600



- 23-458

by:


These are built very well! Very easy to change, 4 bolts and 2 wires. I did not pre adjust the breaks, it took a few trips for the breaks to adjust to the right adjustment. If I did it again I would pre adjust the breaks and not let the self adjusting do it. Overall a very good product!! 294994



- 23-458

by:


I got this to replace the brakes on my horse trailer and they worked great!! Easy to install after taking the hubs off just remove 5 nuts bolt new assembly on. That easy. This is the 2nd set I have gotten I did a friends horse trailer last year and they love it. Thanks Etrailer!!!!! 55823



- 23-458

by:


Perfect replacement size, style, fit, and function. I used heat shrink crimps to make the connections and it went perfectly. This was a much easier job than I expected. When you break these in, you will have to adjust the electric brakes a time or two, but no biggie. 387445



- 23-458

by:


The price was great and the product was easy to install. It loses it's adjustment easily after one trip and i have to manually adjust them more often then i believe they need be. When winter breaks i will take them apart and see what can be done to solve this problem. 339494



- 23-458

by:


To whom it may concern, Item is very well built , the spec range as described. I receive product email from etrailer.com. Best online price, etrailer.com has the best diy informative videos right online with a lot of their product. Thanks. Keep up the videos. 410279



- 23-458

by:


These Dexter brakes are ALMOST complete. So why didn't they include the rubber plugs for the adjuster holes? Otherwise they seem to be well made and installed without a hitch. Can't wait to see if they really do self adjust like car brakes have for eons. 231581



- 23-458

by:


Great Job etrailer.com!!!!!! It is so refreshing to deal with a company that is concerned about customer service. Not only did I get an excellent product with great customer service, the product was MADE IN USA!!!!!!! I would highly recommend etrailer.com 56342



- 23-458

by:


The trailer brake assembly was exactly like the web page displayed, I was very pleased with the order and thought the price was reasonable, will do business with this site again when the time comes, sorry no picture, put on and on the road right away 529652



- 23-458

by:


Have always had really good service from etrailer. 410436



- 23-458

by:


Quick easy swap! Self adjust seems to work well. 216881



- 23-458

by:


Fit nicely on an 03 16' Cronkhite and an 01 18' Cronkhite trailer, which had manual adjust originally. Good replacement for worn out/weathered originals. The price was half of local stores and shipping was lightning fast (2 days) and FREE!! 164166



- 23-458

by:


I installed these brakes a year ago on my horse trailer. This was the first time I had done my own brakes. They were easy to install and work great! A few minor adjustment after about one month of use and I haven't had to touch them since. 242080



- 23-458

by:


I have not had a chance to use these brakes as I just installed them today.The shipping was really quick and I was very satisfied with the fast delivery.I look forward to not having to adjust the brakes on my camper as this is a real pain. 213949



- 23-458

by:


EASY INSTALL COMPARED TO REBUILDING EXISTING BRAKES, ALSO SELF ADJUST WILL SAVE ME SOME MAINTENANCE TIME SINCE WE PUT ON UP TO 8K MILES A YEAR WHICH NORMALLY REQUIRES SEVERAL AJUSTMENTS OF OLD BRAKES TO KEEP THEM WORKING UP TO PAR 41040



- 23-458

by:


The brakes arrived promptly and were exactly what I needed. they were the same as the original equipment brakes that were damaged in a collision. Installation went without a hitch. etrailer was great to work with as always. 426569



- 23-458

by:


I purchased 4 - 12" x 2 never adjust brake assemblies instead installing new brake shoes . This is a lot easier . Customer service was excellent with any questions I had . I will buy other products from etrailer . 189442


57
1021
Show More Reviews

Ask the Experts about this Dexter Axle Accessories and Parts
Do you have a question about this Accessories and Part?


  • How Thick Are Electric Brake Shoe Pads and When Should They be Replaced
  • On Dexter 12" Nev-R-Adjust Electric Brake Assembly # 23-458 the shoe pad thickness is 3/16 of an inch. Dexter says that you should replace the shoes if the material gets down to 1/16 of an inch thick or less.
    view full answer...

  • What Is The Difference Between the 6K and 7K Dexter Axle Electric Brake Assemblies
  • You are correct, the difference between the Electric Brake Assembly for 6K Axles, part # 23-458 / 23-459 and the Electric Brake Assembly for 7K axles, part # 23-180 / # 23-181, is that the 7K brake assembly has a stronger magnet, and also has a different compound on the brake shoes than the 6K electric brake assemblies for more stopping power. Both the 6k and 7K brake assemblies, fit the same axle. Yes, the 7K backing plates on part # 23-180 / 23-181, will fit on 6K pound axles.
    view full answer...

  • Dexter Brake Assembly Recommendations to Replace Part Number 023-357-00
  • The Dexter part number 023-357-00 is a 12x2 electric brake assembly. The correct RH assembly to use to replace what you have would be the part # 23-459 and for the LH assembly you would want the part # 23-458 if you have 6K axles. If you have 7k axles you would want part # 23-464 for the LH side and part # 23-465 for the RH side.
    view full answer...

  • Replacement Electric Drum Trailer Brakes for a 10,000 Pound Pro Line Trailer
  • Since you have Dexter brakes now, you can stick with Dexter and go with some self adjusting, # 23-458 (left hand side) and # 23-459 (right hand side). You can also use the etrailer.com, self adjusting brakes # AKEBRK-7L-SA (left hand side) and # AKEBRK-7R-SA, (right hand side). Both of these brake assemblies listed above mount with the 5 bolt pattern.
    view full answer...

  • Replacement Brake Assemblies for a Dexter D52 Axle
  • Your Dexter D52 axles should be rated at 5,200 lbs and use 12 inch brake assemblies. Going with a 6k rated brake assembly would be your best choice since they do not offer a 12 inch brake assembly with a 5,200 lb capacity. For that I would recommend the # 23-459 for the right hand side and the # 23-458 for the left hand side.
    view full answer...

  • Will Water Damage Magnets if Electric Brakes are Installed on Boat Trailer
  • Electric brakes, like the Dexter Nev-R-Adjust Electric Trailer Brake Assembly # 23-458 that you referenced, are actually becoming more and more common on boat trailers. They used to not be so common because water and electricity don't play nice together, but if you unplug the trailer before backing it into the water you will be just fine. Any trailer components that are submerged under water will wear quicker than parts that are not, but if you make sure to hose down your boat trailer...
    view full answer...

  • How to Manually Adjust Nev-R-Adjust Trailer Brake Assemblies
  • If you have a safe area where you can pull the trailer and apply the brakes several times until they're adjusted it's not absolutely necessary to pre-adjust them. However, pre-adjusting them is the safest alternative, which is why we recommend doing it that way. When you adjust Nev-R-Adjust brakes, you'll need to poke a small screwdriver through the hole in the backing plate and pull the metal tab that's just behind the adjuster towards you. As you're holding the tab away from the adjuster,...
    view full answer...

  • Will the Dexter Nev-R-Adjust Brake Assembly # 23-458 Replace the Dexter Brake Assembly # 023-466-00
  • The Dexter Brake Assembly, # 023-466-00, that you currently have is basically the same brake assembly as the Dexter Nev-R-Adjust Brake Assembly, # 23-458. They are both 12 x 2 Nev-R-Adjust electric brake assemblies for 6,000-lb axles. If you would like a right hand assembly as well, you can use part # 23-459. The only difference between these two brake assemblies is that the Dexter Brake Assembly, # 23-458, has not been certified by the Canadian Standards Association (CSA).
    view full answer...

  • Recommended Hub/Drum and Idler Hub for Timbren Axle-Less Suspension # ASR35HDS02
  • For a brake drum hub, Timbren recommends the # 8-201-9UC3-EZ from Dexter Axle, which features a 6 on 5-1/2 bolt circle. For an idler hub, go with the # AKIHUB-655-6-EZ-K. Both hubs use the # 25580 inner and # 15123 outer bearing, which is compatible with the spindle used by the Timbren # ASR35HDS02 axle-less suspension you referred to. If you go with the hub/drum, you'll also need a brake assembly. I recommend going with a Nev-R-Adjust assembly, like # 23-459 for the right side and...
    view full answer...

  • Adding Electric Drum Brakes to a Scamp Camper Trailer
  • Setting up a trailer with electric drum brakes is going to be the easier and most cost effective way of adding brakes to your Scamp trailer. Since the trailer already has the mounting flanges that will limit the amount of parts and work that will need to be done. Starting with the hub and drum assemblies since your bearings are both L44649 and you have an EZ Lube style axle you would need # 8-257-5UC3-EZ with the 5 on 4-1/2 bolt pattern. They are designed for 2,000 pound axles but will...
    view full answer...

  • Electric Drum Brake Assembly for Kaufman 3-Car Wedge Trailer 6K Axles
  • We offer 6K-rated 12 x 2-inch electric drum brake assemblies like those that came on your Kaufman 3-car wedge trailer that can be seen on the linked page. We offer both manual-adjusting and self-adjusting types. For manual-adjust brakes you can use left- and right-hand parts # AKEBRK-6L and # AKEBRK-6R which fit wheels sizes from 14-1/2 to 16-1/2-inches. If you prefer the self-adjusting type you can use Dexter # 23-458 and # 23-459. Both types use the same 5-bolt mounting flange. If...
    view full answer...


Do you have a question about this Accessories and Part?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality accessories and parts for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate accessories and part information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Photos by:
Theodore B
Expert Research:
Michael L
Video Edited:
Zack K
Expert Research:
Robert G
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Jameson C
Expert Research:
John H
Updated by:
Adele M
Expert Research:
Adam R
Expert Research:
Jeffrey L
Video Edited:
Chris R
Updated by:
Sarah W
Updated by:
Alexander C
Photos by:
Jeffrey L

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.




^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
