Dexter Idler Trailer Axle w/ Hubs - EZ-Lube - 5 on 4-1/2 Bolt Pattern - 60" Long - 2,200 lbs
(338 reviews)
Price: $260.81
Dexter Idler Trailer Axle w/ Hubs - EZ-Lube - 5 on 4-1/2 Bolt Pattern - 60" Long - 2,200 lbs
Our Price: $260.81
In-stock alternatives that can ship today
- All Info
- Reviews (338)
- Q & A (0)
- Photos
Dexter Trailer Axles
- 2200 lbs
- 60 Inch Long
- 48 Inch Long
- 5 on 4-1/2 Inch
- No Drop or Lift
- Leaf Spring Suspension
- Idler Hubs
- Dexter
- Easy Lube Spindles
Straight trailer axle measures 60" from hub face to hub face and 48" from spring center to spring center. Includes idler hubs - with bearings, races, and seals - for 8" to 12" wheels. EZ-Lube spindles for simple lubrication.
Features:
- Round axle beam acts as part of your trailer's suspension system
- Replace an axle on your trailer
- Fabricate a suspension to fit your application
- High-strength steel construction
- Bend in axle creates zero camber angle for even road-to-tread contact across the width of your trailer's tires
- Best for straight-line acceleration and steady, controlled towing
- Underslung design - spring seats welded to underside of axle for mounting leaf springs
- Low ride height makes it easier to load and unload your trailer
- Straight, EZ-Lube spindles - no drop
- Built-in grease zerks for simple lubrication
- Spring seats and spindles are welded on
- Cast iron idler hubs are sturdy and durable

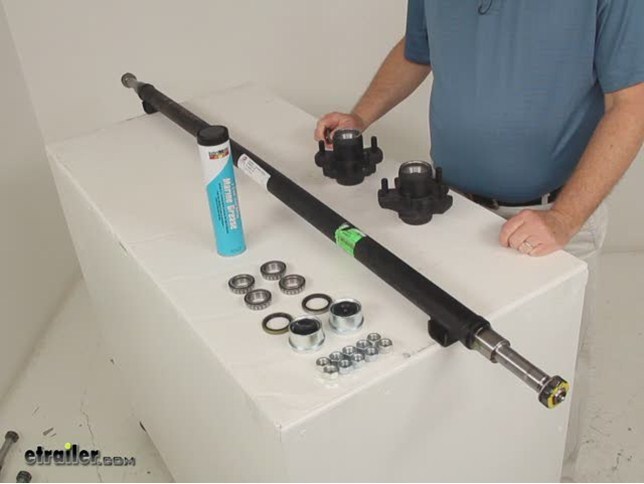

- Bearings, races, seals, grease caps, wheel studs, lug nuts, and marine-grade wheel bearing grease included
- Limited 2-year warranty
Specs:
- Weight capacity: 2,200 lbs
- Hub-face-to-hub-face length: 60"
- Spring-center-to-spring-center length: 48"
- Hub bolt pattern: 5 on 4-1/2"
- Tubing outer diameter: 1-3/4"
- Spindle size: 1-1/16"
- Grease cap outer diameter: 1.986"
- Wheel stud diameter: 1/2"
- Wheel size: 8" - 12"
Bearing, Race, and Seal Information
- Bearings
- Inner bearing: L44649
- Outer bearing: L44649
- Races
- Inner race: L44610
- Outer race: L44610
- Seal: 10-60
- Inner diameter: 1.50"
- Outer diameter: 1.987"
Axle Dimensions
There are multiple ways to measure the length of an axle beam, but the hub-face-to-hub-face and spring-center-to-spring-center lengths are the most accurate. Hub face (A) refers to the length of the axle measured from the base of one wheel stud to the base of the wheel stud on the opposite side of the axle.
The spring center (B) is the approximate width of your trailer. It is measured from the center of the spring seat on one side of the axle to the center of the seat on the other. This axle beam comes with the spring seats welded on.
If you are replacing your trailer's axle, you should be able to figure out which type you need by determining your trailer's capacity, the bolt pattern of your wheels, the brake type and the aforementioned lengths.
Dexters
Dexters are made of high-strength steel and come with spindles and spring seats welded on. The spring seats are attached to the underside of the axle so that the leaf springs (sold separately) can mount beneath the axle. The result of this underslung design is a trailer that rides a bit lower for quick and easy loading and unloading.
Each axle is manufactured to create a certain camber angle. This ensures that the angle of the wheels is correct for your towing needs. Because the primary concern when towing is maintaining controlled, in-line movement, each axle is made so that your trailer's tires will run along the pavement evenly, with contact across the width of the tread. The result is excellent straight-line acceleration for steady, in-line tracking. You might notice the bend near the center of the axle; this is what ensures the proper camber angle. Having the center ride a bit higher and the sides of the axle bent lower allows the axle to give just enough to compensate for the load.
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: 8 on 6-1/2 means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: 5 on 4-1/2 means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
Measuring the distance (D) from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
