Roadmaster Tail Light Wiring Kit for Towed Vehicles - LED Bulb and Socket - Red

Item # RM-152-LED

lowest price pledge

Retail:$98.92

Our Price: $89.95

This item qualifies for Free Shipping

Select Ground or 3 Day Shipping for delivery before Christmas

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
roadmaster tow bar wiring universal tail light mount rm-152-led
roadmaster tow bar wiring bulb and socket kit universal rm-152-led
roadmaster tow bar wiring bypasses vehicle tail light mount
roadmaster tow bar wiring bypasses vehicle tail light mount
roadmaster tow bar wiring bypasses vehicle tail light mount kit for towed vehicles - led bulb and socket red
roadmaster tow bar wiring bulb and socket kit universal rm-152-led
roadmaster tow bar wiring bypasses vehicle tail light mount
roadmaster tow bar wiring bypasses vehicle universal tail light kit for towed vehicles - led bulb and socket red
roadmaster tow bar wiring bypasses vehicle universal tail light kit for towed vehicles - led bulb and socket red
roadmaster tow bar wiring bypasses vehicle bulb and socket kit tail light for towed vehicles - led red
roadmaster tow bar wiring bypasses vehicle tail light mount kit for towed vehicles - led bulb and socket red
roadmaster tow bar wiring bypasses vehicle bulb and socket kit tail light for towed vehicles - led red
roadmaster tow bar wiring bypasses vehicle bulb and socket kit tail light for towed vehicles - led red
roadmaster tow bar wiring bypasses vehicle tail light mount
roadmaster tow bar wiring bypasses vehicle universal tail light kit for towed vehicles - led bulb and socket red
roadmaster tow bar wiring bulb and socket kit universal

In Use/Installed

2014 honda cr-v tow bar wiring roadmaster bypasses vehicle universal tail light kit for towed vehicles - led bulb and socket red
2014 honda cr-v tow bar wiring roadmaster bypasses vehicle tail light mount in use
2014 honda cr-v tow bar wiring roadmaster bulb and socket kit universal in use
2014 honda cr-v tow bar wiring roadmaster bulb and socket kit universal rm-152-led

  • Bulb and Socket Kit
  • Bypasses Vehicle Wiring
  • Roadmaster
  • Universal
  • Tail Light Mount
Roadmaster tow bar wiring for your are available from etrailer.com. Installation instructions and reviews for your tow bar wiring. Expert service, and cheapest tow bar wiring price guarantee. etrailer.com carries a complete line of Roadmaster products. Order your Roadmaster Tail Light Wiring Kit for Towed Vehicles - LED Bulb and Socket - Red part number RM-152-LED online at etrailer.com or call 800-298-8924 for expert service.



Roadmaster Tow Bar Wiring - RM-152-LED

Get the signal lights needed for towing without tapping into your towed car's electrical system. Bright LEDs mount inside your vehicle's tail light housings, and wiring runs beneath your car for a seamless appearance. 450 Lumens per bulb.


Features:

  • Tail light kit gives you brake, running and turn signal lights for your towed vehicle without tapping into its wiring
    • Bypasses towed car's electrical system completely - wiring is routed beneath the car
    • Eliminates concerns of violating the vehicle manufacturer's warranty
  • LED lights last longer, burn brighter, and activate faster than incandescent lights
    • Red diodes ensure that tail lights show red, not pink
    • LEDs generate little heat - no risk of melting lenses
  • Independent bulbs and sockets mount inside your tail lights
    • Take up less space in tail lights than incandescent bulbs
    • Require a 1" hole drilled in tail light housing

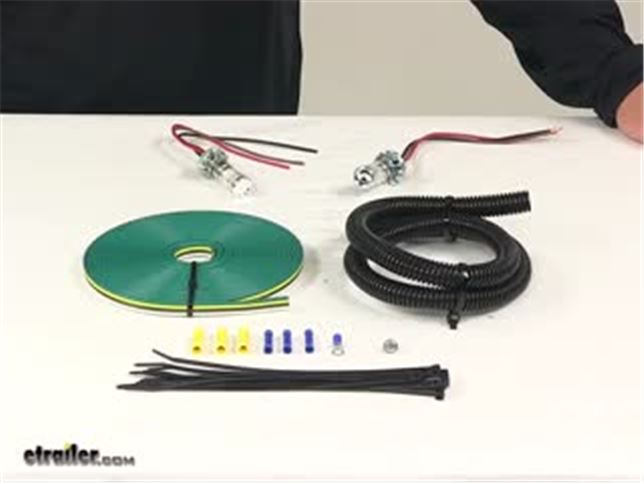

  • Necessary wiring, 2 bulbs, 2 sockets, zip-ties, and instructions included
    • Plug and extension loop for hookup to RV sold separately
  • Made in the USA


Specs:

  • Wiring harness length: 27'
  • Light output per bulb: 450 lumens
  • Overall length of bulb: 2-1/2"
  • Length of bulb from flange to top of bulb: 2"
  • Wire loom:
    • Length: 3'
    • Diameter: 1/2"
  • 1-Year limited warranty


Note: Each tail light housing on towed car must have enough room for extra bulb and socket.



152-LED Road Master Tail Light Wiring Kit for Towed Vehicles - LED Bulb and Socket





Complete Your Tow Bar Package



Related Products



Customers Who Purchased This Tow Bar Wiring Also Bought...



Replacement parts available for this product







Video of Roadmaster Tail Light Wiring Kit for Towed Vehicles - LED Bulb and Socket - Red


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Roadmaster Tow Bar Wiring RM-152-LED Review

Speaker 1: Today we're taking a look at the Roadmaster Taillight Wiring Kit for towed vehicles. Now this taillight kit gives you brake, running and turn signal lights for your towed vehicle without tapping into its wiring system. It bypasses the towed vehicle's electrical system completely so the wiring will actually be routed underneath the vehicle and held up and out of the way with the included cable ties.And the benefit of having it bypassing the vehicle's electrical system is that it really eliminates concerns of violating the vehicle manufacturers warranty. Now these are LED lights. They last longer, burn brighter and activate faster when compared to incandescent lights. The LEDs are red diodes and LEDs generate little heat so there's no risk of melting the lenses as long as you have adequate clearance in the taillight housing assembly.You'll notice that it features the independent bulbs and sockets.

They mount inside your taillights. They take up less space in the taillights when compared to incandescent bulbs and they do require a one inch diameter hole drilled in the taillight housing for the installation. It comes with what you need for the installations so you're going to get necessary wiring, two bulbs and sockets, zip ties. It does come with detailed installation instructions. Also comes with some wire loom to protect your wiring and it comes with the necessary connectors, ring terminal and a grounding screw.Now the plug and extension loop for hooking up to the RV, those items are not included and if you're in need of those you can find them at etrailer.com.

This kit is made in the USA. Wiring harness length is 27 feet long. Light output per bulb is 450 lumens. Overall length of the bulb is two and a half inches and the length of the bulb from the flange to the top of the bulb is two inches. So you want to make sure you have enough clearance in the taillight assembly for these to work.

The wire loom is three feet long and it has a half inch diameter.Now please note that each taillight housing on the towed vehicle, again, must have enough room for an extra bulb and socket. I want to hook this up to power that we can see what it looks like with power running to it. Black wire on this application is for our ground, brown is for the taillight function and then red would be for our stop and turn. So it sends out a very bright, consistent signal. Make sure I have them all connected correctly and we're going to go and turn off our overhead light so you can see it in a lower light setting.

This would be the taillights, brakes, and turn signal. That's going to do it for today's look at the Roadmaster Taillight Wiring Kit for towed vehicles.


Customer Reviews

Roadmaster Tail Light Wiring Kit for Towed Vehicles - LED Bulb and Socket - Red - RM-152-LED

Average Customer Rating:  5.0 out of 5 stars   (5 Customer Reviews)

Get the signal lights needed for towing without tapping into your towed car's electrical system. Bright LEDs mount inside your vehicle's tail light housings, and wiring runs beneath your car for a seamless appearance. 450 Lumens per bulb.

- RM-152-LED

by: Max Whitt01/27/2017


Installation was straight forward, and in my situation easy. I have used every system on the market and this system is by far the best if it will fit in your lens. I installed it on a 2014 GMC Sierra which requires the ground cable to be removed when towing, so in my case grounding to the truck was useless - just use the ground from the tow vehicle. Also a 7/8 hole saw works better than the 1" that is called far. 335870



- RM-152-LED

by: Doug H.07/27/2017


Installed LED tail light wiring kit (Brake, Tail & Signal) in 2014 GMC Sierra taillights. For towing behind motor home. LED lights are brighter than incandescent. Installation instructions easy to follow. 411584



- RM-152-LED

by: JF09/06/2017


Simple to install and no need to touch factory wiring. The best answer with today's multiple computer vehicles. 429593



- RM-152-LED

by: Daniel12/04/2017


installed it today easy as sunday morning thanks 457159



- RM-152-LED

by: Mason08/21/2017


A keeper. Thank you. 423054
