Price: $133.90

Roadmaster 4-Diode Universal Wiring Kit for Towed Vehicles - 7-Wire to 6-Wire Straight Cord

Item # RM-152-98146-7

lowest price pledge

Our Price: $133.90

This item qualifies for Free Shipping

Select Ground or 3 Day Shipping for delivery before Christmas

Quantity:

Only 1 in stock. Order soon.
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

roadmaster tow bar wiring diode kit universal
roadmaster tow bar wiring splices into vehicle tail light mount
roadmaster tow bar wiring diode kit universal rm-152-98146-7
roadmaster tow bar wiring splices into vehicle diode kit
roadmaster tow bar wiring universal tail light mount 4-diode kit for towed vehicles - 7-wire to 6-wire straight cord
roadmaster tow bar wiring splices into vehicle tail light mount 4-diode universal kit for towed vehicles - 7-wire to 6-wire straight cord
roadmaster tow bar wiring splices into vehicle universal 4-diode kit for towed vehicles - 7-wire to 6-wire straight cord
roadmaster tow bar wiring splices into vehicle diode kit
roadmaster tow bar wiring diode kit universal rm-152-98146-7
roadmaster tow bar wiring diode kit universal rm-152-98146-7
roadmaster tow bar wiring diode kit tail light mount rm-152-98146-7
roadmaster tow bar wiring universal tail light mount rm-152-98146-7
roadmaster tow bar wiring universal tail light mount rm-152-98146-7
roadmaster tow bar wiring splices into vehicle diode kit 4-diode universal for towed vehicles - 7-wire to 6-wire straight cord
roadmaster tow bar wiring diode kit universal
roadmaster tow bar wiring splices into vehicle universal rm-152-98146-7
roadmaster tow bar wiring splices into vehicle tail light mount 4-diode universal kit for towed vehicles - 7-wire to 6-wire straight cord
roadmaster tow bar wiring splices into vehicle universal 4-diode kit for towed vehicles - 7-wire to 6-wire straight cord

In Use/Installed

tow bar wiring roadmaster splices into vehicle diode kit 4-diode universal for towed vehicles - 7-wire to 6-wire straight cord
tow bar wiring roadmaster splices into vehicle tail light mount in use
tow bar wiring roadmaster splices into vehicle tail light mount 4-diode universal kit for towed vehicles - 7-wire to 6-wire straight cord
tow bar wiring roadmaster splices into vehicle universal 4-diode kit for towed vehicles - 7-wire to 6-wire straight cord
tow bar wiring roadmaster universal tail light mount rm-152-98146-7
tow bar wiring roadmaster splices into vehicle universal rm-152-98146-7
tow bar wiring roadmaster splices into vehicle diode kit in use
tow bar wiring roadmaster diode kit tail light mount rm-152-98146-7
tow bar wiring roadmaster diode kit universal in use
2017 chevrolet silverado 1500 tow bar wiring roadmaster splices into vehicle universal 4-diode kit for towed vehicles - 7-wire to 6-wire straight cord
2017 chevrolet silverado 1500 tow bar wiring roadmaster diode kit universal in use
2017 chevrolet silverado 1500 tow bar wiring roadmaster splices into vehicle diode kit 4-diode universal for towed vehicles - 7-wire to 6-wire straight cord
2017 chevrolet silverado 1500 tow bar wiring roadmaster splices into vehicle tail light mount 4-diode universal kit for towed vehicles - 7-wire to 6-wire straight cord
2017 chevrolet silverado 1500 tow bar wiring roadmaster diode kit tail light mount rm-152-98146-7
2017 chevrolet silverado 1500 tow bar wiring roadmaster splices into vehicle tail light mount in use
2017 chevrolet silverado 1500 tow bar wiring roadmaster diode kit universal rm-152-98146-7
2017 chevrolet silverado 1500 tow bar wiring roadmaster splices into vehicle diode kit in use
2017 chevrolet silverado 1500 tow bar wiring roadmaster universal tail light mount rm-152-98146-7

  • Diode Kit
  • Splices into Vehicle Wiring
  • Roadmaster
  • Universal
  • Tail Light Mount
Roadmaster tow bar wiring for your are available from etrailer.com. Installation instructions and reviews for your tow bar wiring. Expert service, and cheapest tow bar wiring price guarantee. etrailer.com carries a complete line of Roadmaster products. Order your Roadmaster 4-Diode Universal Wiring Kit for Towed Vehicles - 7-Wire to 6-Wire Straight Cord part number RM-152-98146-7 online at etrailer.com or call 800-298-8924 for expert service.



Roadmaster Tow Bar Wiring - RM-152-98146-7

This complete kit includes everything you need to connect your RV's tail, brake, and turn signal lights to your towed car. Diodes prevent feedback and wire your car to operate as a combined system. Includes a 7-way to 6-way straight adapter cord.


Features:

  • Complete wiring kit lets you connect your RV's tail, brake, and turn signal lights to your towed vehicle's lighting system
    • Wires towed car as a combined lighting system so that brake and turn signals travel along same wire
  • Diodes prevent electrical feedback and the damage it can cause to your car's electrical components
  • 7-Wire to 6-wire adapter cord allows you to run power from your RV to your towed vehicle
    • Straight cord is ideal for all-terrain tow bars and other tow bars that have channel guides
  • 6-Way socket wires to harness and mounts on towed car with included bracket
  • Sturdy, durable construction
    • Powder-coated aluminum casings protect diodes from corrosion
    • Electrical cord resists water, oil and chemicals
    • Silicone-injected plugs prevent corrosion

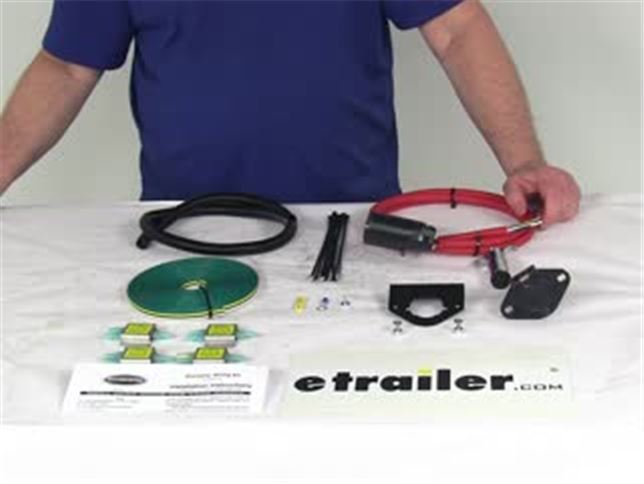

  • Kit includes:
    • 4 Hy-Power diodes
    • Wiring harness
    • 7-Way to 6-way adapter cord
    • 6-Way socket with mounting bracket
    • Wire connectors
    • Cable ties
    • 1 Ring terminal
    • 3' Long plastic loom
  • Brake light relay (RM-88400 - sold separately) may be required if used with supplemental braking system


Specs:

  • Maximum amperage: 85 amps
  • Maximum voltage: 24 volts
  • Adapter cord length: 6-1/2'
    • Wire gauge: 16
  • Wiring harness length: 30'


Note: For applications that have separate lighting, this kit will cause your brake lights to function as both brake and turn signal lights. A wiring converter (118158 - sold separately) and 2 additional diodes will be needed if you want to retain separate turn and brake signals.


Separate vs. Combined Lighting Systems

Some automobiles operate on a 3-wire system, wherein the brake signal and the turn signals travel along different wires to illuminate different lights. (Typically, these vehicles have amber turn signals.) This is referred to as a "separate lighting system". When you hook up for flat towing using this kit, your towed car's lighting system will operate in a combined fashion regardless of whether it typically has combined or separate lighting. This means that the brake and turn signals sent by your RV to your towed car will be carried on a single wire. As a result, your car's brake lights will do the flashing for the turn signals. Your vehicle will still function as designed when not hooked up to your RV.


Diode Wiring Diagram

Diode Wiring Diagram

Diode Wiring Diagram

Diode Wiring Diagram

Do You Need a Brake Light Relay?

Because this kit wires your vehicle as a combined system, a brake light relay (RM-88400 - sold separately) may be required if you use a supplemental braking system with your towing setup. A supplemental braking system depresses the brake pedal in your towed car every time you apply the brakes in your RV. So, if your towed car's brake lights illuminate when the brake pedal is pressed and the engine is off - as is the case when towing - then you need to install a relay to ensure that the lights on your towed car always act in accordance with the signals sent by your RV via the wiring harness. Without a relay, the brake signal from your towed car will override the turn signal sent by your RV when you slow down to make turns, creating a potential hazard.



RM-152 Roadmaster Universal Hy-Power Diode Wiring Kit

RM-98146-7 Roadmaster Wiring - Straight 6 to 7 - 78" Long





Complete Your Tow Bar Package



Related Products



Customers Who Purchased This Tow Bar Wiring Also Bought...







Video of Roadmaster 4-Diode Universal Wiring Kit for Towed Vehicles - 7-Wire to 6-Wire Straight Cord


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Roadmaster 4-Diode Universal Wiring Kit Installation - 2017 Chevrolet Silverado 1500

Today on our 2017 Chevrolet Silverado 1500, we're going to be showing you how to install the Roadmaster four diode universal wiring kit for towed vehicles. Part number is RM-152-98146-7. This is going to offer the seven pole to six pole round connection through a straight cord. As you can see this wiring kit's going to give us a really nice, clean plug in part on our truck here. We're able to put it right into the bumper. That our stainless steel spring here that has good tension.

It's going to keep that cover closed when not in use, prevent any moisture from getting inside. Then when ready to use it, we can simply plug it in. On your RV side, you can see we've got our standard seven pole that's going to plug into any seven pole standard connector. Now this is designed to isolate our systems form one another, so they can't back feed. The diode allows when the factory lights are in use for the factory power to run through. Just like it does normally.

But when our motor home's in use, it's going to allow that to flow through also. That diode separates them like we said. It isolates them so that when this is in use, it can't turn the corner and go back this way and when it's coming in from this direction, it can't go back into our vehicle's wiring. Now the first thing we need to do is decide where we're going to be mounting our plug. See we've got a couple areas here beside of the license plate, passenger's side, driver's side over there. Behind it there's not really anything blocking it or anything in the way.

It's just going to be this thicker heavier plastic. We're going to be mounting this directly to it, just like that. To get the right position for the center of my hole, I'm going to turn it around. Make sure that I've got it leveled out and in the position I want it. Just going to use a pick and I'll mark the middle of those two holes.

Just like that. Now I've got a mark here, mark there. I'm going to split the difference and drill my hole right in the middle. Now from my center mark, I'm going to use an inch and 3/8 hole saw and we'll get that drilled out. Now I'm going to use a little drill bit and drill out my holes here where I want my bolts to go. Should look really nice there. Now we can start getting our wiring attached. Now we'll take the length of four pole wire that comes with our kit. We've just unrolled it underneath the length of the vehicle here. Going to bring it through our hole, give ourselves plenty of slack. Just want to kind of separate your wires. Going to slide our boot over. Then we'll get all four of those stripped back. Now we'll twist each of those just to keep all the strands nice and compacted together. Now on our plug, of course we're going to have six connection points. Here's the top, so we'll rotate it straight around. The top ones for our trailer marker light. It's the brown wire. Next one's ground, which is the white wire. Next one's left turn, which is the yellow wire. Then finally our green wire's going to go here to right turn. Now if you need some kind of signal wire or something, you can use the S, which is your typically stop. That'll be like a signal wire, you can use the middle for like an auxiliary charging system if you want. We're only going to be connecting the four, so we're just going to loosen up all four of those Phillips set screws. Now again starting at the top we'll do our brown wire. You'll tighten that screw down, you certainly don't need to over tighten, so you damage your wire. You just want it to make good firm contact. Then our white is going to be next, yellow, then green. We're going to place through a machine screw. Put a flat washer on there just to give it a little bit more grab since we are mounting it in plastic rather than the metal bracket that it comes with. These are a little longer than the bolts that are provided. Now on the back side of that we're going to place a washer and a lock nut. Lock nut's very similar to what came with the kit. We're just using that washer to get a little bit more space and kind of spread out the holding force. Since we've got them started, we'll get them secured down. You'll notice we are using a nylon lock nut, that way we won't have to worry about it backing out or moving around on us. Now we're going to bring our wiring through here. You'll see the loom that runs right over here towards the drivers side. We'll use a few zip ties and attach our wiring off to that. From there we're going to run right behind the skid plate here. Along the frame rail we should be able to grab it from up above. Get that pulled through. Then there's a wire loom up there that we can attach it to. We'll bring it back right behind the upper control wire and we'll attach it to large wire loom here and we'll run all the way to the back of the truck with this wire loom. Once we get behind the body mount here, you'll see a nice solid ground. We're going to separate the white wire from the brown, yellow, and green and we're going to attach it there. Now we'll trim that off to the appropriate length, giving ourselves just a little bit of extra slack. We'll get that stripped back. We can add on our ring terminal. This is going to be provided with the kit. We'll use a 10 millimeter socket to back out the bolt. Ring terminal behind, then the bolt will go back through both of them and right back in position. At that point, we've got a good ground. Now we can continue to run our other three wires toward the back of the truck. Once we get to the back driver side corner, we'll put it out over under this side of the frame rail. We'll of course use zip ties again to keep it nice and secure. Once we get back here, we'll separate the green wire. This is going to be running over to the passenger side. Now the yellow and brown, we're going to run right up through that square hole along that back edge and that should get it right up behind our taillight for us. Now with a T15 torque bit we want to take both of the screws out that are holding the taillight in, one here and one here. You just want to pull rearward and separate the two locking tabs that are on the outside edge there. Pull our wire up. Then we're going to take this loom back so we can determine which of the wires operate the signals that we need. Just very carefully separate it, so to not actually go all the way through and cut your wiring. You'll see with the running lights on in the vehicle, the bottom and the top are going to light up here. They're also going to operate top and bottom for the blinker. Now in our kit we only need one to operate. We're going to need one running light and one blinker. Let's test the higher one because that'll give us room to mount our diodes in here. See how we've got this slack wire. Going to use our test light. Getting constant signal from the brown and our flashing signal from the green. The green is going to be the left turn and brake signal. The brown is going to be our running light signal. Okay shut that off. Running lights off and we'll turn this way we can bring our bulbs out. That'll allow us to set our taillight aside some place safe. Make sure these aren't touching anything and we'll head to the other side and we can do the same test there. Got running lights and right turn and off. We're going to have the same color here on the passenger side. Brown for running lights, green for turn signals. We're going to start by getting our brown wire cut and just a little bit lower, we'll cut our green wire. Get those stripped back. We'll separate the brown and yellow wire. I'm going to cut the yellow wire off the same length as the green factory wire. We'll pull our spade connectors off the diode. For the turn signal wire, we're going to be using all blue. Now on our factory brown wire, we're also going to add blue spade connectors. Now we're going to take that length of white wire that we trimmed off earlier. We want to combine that with the brown wire that's coming from the front. We're going to use this white wire just as a jumper wire. We can take the taillight signal from the driver side, run across with our green wire to get the running light signal over to the passenger side. Here's where we're going to use that one odd ball spade connector that's yellow. Twist both of those together. Slide our connector on and crimp it down just like before. Give each of them a pull just like all your other ones to make sure you've got a really good crimp on there. Now we'll start adding in our diodes. Start with our running lights, we just slide that back on. Bring our yellow in from the motor home. Then our blue end from the car. Now we'll do the same thing for our turn signal here. Now in this case we've got plenty of room in behind our housing. Just going to use a zip tie, zip tie our diode off to our wiring in both spots. Now that white wire let's run that right down through that same square, so it'll be in the same area's our green wire when we get down there. Then we'll get our bulbs turned back into the taillight housing. Then we'll place this in there temporarily for now just until we confirm that everything's working. Now let's head over to the passenger side. Now from the underside here we're going to run the green and white wire right across the back side of the bed with this smaller wire loom. Now this is going to go up that same square shaped hole underneath the taillight housing as we used on the driver side. Now we're just going to repeat again that same process we used on the driver side here on the passenger side. Although we don't have that yellow spade connector. The white wire is also going to get a blue spade connector since we don't have to run two wires out of it. Now we can get this on slid back into place and let's test them out. Now we can hook our truck up to either our coach or a trailer tester and we want to run through the signals. Let's start by turning on the taillights. Now we'll check the left brake. Now we'll do the left blinker. Check our right brake and our right blinker. Now we'll put our screws back in place to secure our light and head over to the passenger side. Once you've confirmed everything's working. I like to take black silicone sealant and fill in all the gaps between all the wires here. Then I'll slide my boot up on and then I'll fill the back of this cap here. That's going to prevent moisture from getting in there. It'll keep corrosion to a minimum for us. Alright, we shouldn't have to worry about any moisture getting in there. We're going to remove the small Phillips screw located in the plug side. See that's going to allow us to pull the plug out. Then you'll see a Phillips set screw right there. We'll feed our wiring in above the keeper for it. We'll connect the six wires to our plug. Now at each position there's going to be a small set screw. We'll use a small Phillips screwdriver to remove it. The power, that's our black wire that's going to go in first. That's right in the middle. It's going to bring our green wire for right turn signal. Blue wire goes to the stop signal or the S. Following that blue wire's going to be the yellow wire, left turn signal. Next up we've got our G. Next up we've got our G for ground, that's the white wire. Last one's going to be the brown wire going to the T for trailer marker or in this case towed vehicle marker. We'll bring the housing portion back over our plug. We'll line up our nut located in there. Place our small set screw back in. Then we can tighten down the Phillips here on the back with a little bit larger one. That's just going to compress that wire down. When we pull out, we won't have to worry about pulling directly on our connections. Especially with the use of the nice T handle, that'll make it a lot more convenient for us. Then we'll bring that back right into our plug. Slide it in fully. There's going to be a little keeper on that plug that's going to go behind the notch there. That'll prevent us from having any kind of accidental separations. That's going to complete our installation of the Roadmaster four diode wiring kit for towed vehicles. Part number RM-152-98146-7 on our 2017 Chevrolet Silverado 1500.
