Blue Ox Tow Bar Wiring Kit - 4 Diodes

Blue Ox Tow Bar Wiring Kit - 4 Diodes

Item # BX8848

lowest price pledge

Retail:$82.50

Our Price: $64.28

You Save: 22%
Tow Bar Wiring

Orders above $99 qualify for Free Shipping

Shipping Weight: 1.89 lbs

Quantity:
In Stock, Ships Today
Blue Ox Tow Bar Wiring Kit - 4 Diodes Diode Kit BX8848
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed


  • Diode Kit
  • Splices into Vehicle Wiring
  • Blue Ox
  • Tail Light Mount
  • Universal
Connect your towed vehicle's lighting system to your RV's to get the brake lights required for towing. Lowest Prices for the best tow bar wiring from Blue Ox. Blue Ox Tow Bar Wiring Kit - 4 Diodes part number BX8848 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (16)
  • Q & A (13)
  • Videos (6)
  • Photos
  • Why etrailer?

Blue Ox Tow Bar Wiring - BX8848

Connect your towed vehicle's lighting system to your RV's to get the brake lights required for towing.


Features:

  • Connects RV's tail, brake and turn signal lights to towed vehicle's light system

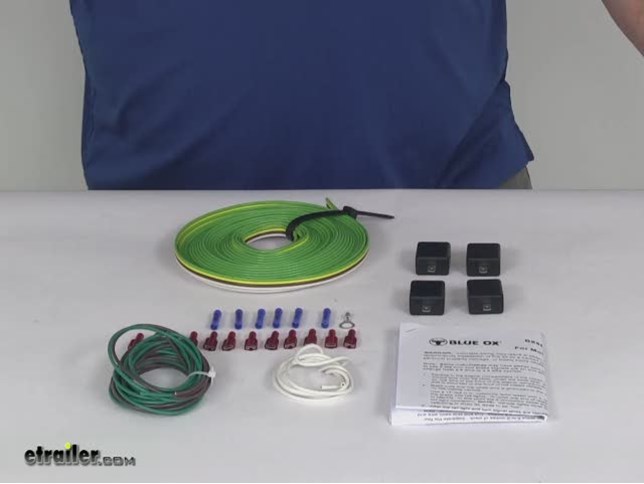

  • Includes 26' long, 4-wire harness; 4 diodes; ground wire; and detailed instructions
    • Diodes prevent electrical feedback and the damage it can cause to your towed car's electrical components
  • Made in the USA
  • 1-Year warranty


BX8848 Blue Ox Tow Bar Wiring Kit - 4 Diodes



BX8848 Installation InstructionsInstallation Details BX8848 Installation instructions



Video of Blue Ox Tow Bar Wiring Kit - 4 Diodes


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Blue Ox Tow Bar Wiring Kit Installation - 2016 Cadillac SRX

Today on our 2016 Cadillac SRX we'll be installing the Blue Ox Tow Bar Wiring Kit with 4 diodes, part number BX8848. In addition to the large spool of 4-pole, flat trailer wiring, here's what the rest of the kit consists of. Obviously, we have our 4-diode packs here to make our connections for our tail lights, our turn signals, and brakes. It will work by having the wires for the tow vehicle go in, the factor wiring go in, and then out towards the light itself, so it will utilize the factory lighting on the vehicle. We have an additional ground cable extension here, a self-tapping screw and a ring terminal to ground the wiring out to the body of the vehicle. We have a butt connector here to make our connections. Additionally, we have an extension cable here for the tail light going over to the right side of the vehicle, the right turn signal, and brake light.

Finally, we have this nice connector here which will mount to the front of our base plate, providing us with a 6-pole, round connector, so we have a connection point between our RV and our towed vehicle. This is a nice dust cover here on the back which covers up all of our connection points on this connector. This provides us a nice, clean installation and will make a very easy installation for us as well, so we can utilize the factory lights on our vehicle without having to worry about magnetic tow lights mounted on the roof of our Cadillac while we're towing it behind our RV. As you can see, we already had our fascia off our vehicle, and we started the installation on our wiring harness here by zip-tying it to the base plate prongs here. We have it wrapped with some electrical tape going back, so you'll have a nice, clean installation here with the wires being covered in electrical tape, so you don't have to worry about looking at the colored wires behind your bumper cover. If you're curious on how to get the wires through here, refer to our face plate video on our website, and you can see how to remove the fascia to make your installation easier. All right, we'll start by separating our four wires here.

Just going to trim them back here a little bit, so you can separate them like that. With those four separated, we'll strip off about a 1/4-inch of the insulation from all four wires. We'll take our 6-pole flat here, take out the dust cover, slide it over our wire like so, so we can install it properly later. With our ground terminal here on our GD loosened up, we'll take our white wire, which is our ground wire, we'll insert it into there. We'll tighten the set screw back up.

Then we'll go to the ones for the tail lights. It's the one marked TM. We'll loosen that one up. We'll take the brown wire and install that in there. Tighten the set screw. Then we'll go to the one for the right turn signal market RT.

We'll loosen that one, and that will get the green wire. Tighten the set screw. Finally, that leaves us with the yellow wire which is our left turn signal and stop light. We'll go to the one marked LT for left turn. Let's tighten that set screw down too. Double check, make sure all the wires are secure. We'll take the dust cover back, slide it back over. Now we'll seal the dust cover and the wires up with some electrical tape. This will just help keep any dirt, debris, or moisture from getting inside and causing a poor, electrical connection. We'll make sure we go all the way back to where the wires are already covered with electrical tape, so we don't have to see any of the colored wires coming through. Push it on back like so. Now we can install it on to our provided studs on our base plate here with some self-tapping screws. Now we can tighten them down fully. All right, so here's the rest of our wire that we have going from the front of the bumper to our 6-pole, round connector. We need to route this back towards the rear of the vehicle coming up by the driver's side tail light assembly. Now I'm going to go ahead and do this making sure I avoid any sources of heat such as the exhaust here or any moving parts such as the drive axles or any of the suspension components or the steering components here. Just keep that in mind while you're doing that. I'm going to go ahead and do it, and then I'm going to show you where I routed it when I'm done. Where our 4-pole, flat wiring comes through from our fascia, we have to secure it to our subframe here right underneath the transmission with a couple of zip ties. We can go ahead and cut off the excess now. Just kept it nice and secure on the subframe. Then we went over the subframe and underneath the rack-and-pinion. We secured it to the clip here that holds the factory fuel lines and brake lines in place. Then we continue following those towards the back of the vehicle, so we used the other fuel line clip here, the other one further down, and again right in front of the gas tank at this point in time. The wire wraps around the gas tank and secure it to the frame of the vehicle right here, about half way through the gas tank. It continues along the side and up towards the top, over the rear subframe here, secured to a factory wiring harness with a zip tie there, over the back half of the subframe. Secured to the wiring harness again here, routes over the rear sway bar, is secured to the frame here where the exhaust hanger mounts to, goes over the exhaust. Then finally, it's secured to a wiring harness here right below the left side of our bumper. Now we can pull this remaining wire in behind the tail light. To do that, we're going to use a pull wire. Now we can open our rear hatch to gain access to our tail lights. We'll remove this plastic panel retainer here on the side. We'll grab the handle here, and pull it out towards us. Set it aside. Now we'll take these two Phillips screws out, and grab our tail light assembly. We'll pull it towards us just like so. We will undo this wiring harness here. We'll twist out these two bolts here, and unplug it. Then we'll set the light assembly aside, so we don't damage it. Now we'll take our pull wire that we're going to use to get our 4-pole, flat wiring up behind the tail light here. I'm just using a piece of airline tubing. If you have something that's flexible but yet still somewhat rigid such as a coat hanger, that will work too. We'll just push it down behind the gap here. Here's where our pull wire came through. As you can see right now, it's touching our exhaust. That won't be an issue, because when we pull our wire all the way up, it's going to far enough away from it that it won't matter. We'll take this in here, our 4-pole, flat trailer wiring, and we will tape them together. Make sure we tape it nice and tight, so it doesn't get snagged on anything, and pull the wire off the pull wire when we're getting it through. We'll take our pull wire, and we'll pull all of our wire out here. When we're at this point, we can take off our pull wire, and set it aside. Just like we did on the front, we'll separate all four of our wires. Start with this white wire here. This is our ground wire. We'll measure off a little bit here just like that, and we'll cut off the excess. Strip off about a 1/4-inch of the insulation. Twist the wires together, so it will go into our ring terminal nice and easy. We'll take our provided ring terminal, and we'll crimp it down onto the wire just like so. Take the provided self-tapping screw, and we'll ground it to the vehicle body just like that. Now we'll take our wiring connector here which operates the LED functions of our tail light assembly. We will remove the electrical tape covering it, so we can access the wires on the inside. Now that we have about 6 inches of the factory wires exposed from underneath the electrical tape, we can test and find out which of these wires controls our tail light function on our factory lights. We'll turn our headlights on to do that and have a test light. We can see that the purple wire here in the middle controls our tail light. We'll go ahead and turn off our tail lights for the time being and make our connections. We'll take our purple wire here right about in the middle, and we'll cut it. Then we'll strip off a little insulation from both sides. We'll take some of the red spade connectors here, and we'll install it on both ends of the wire. Crimp them down. Take one of our diode packs. We'll connect the spade terminal that goes to the vehicle end to one of the inputs and the side that goes to the tail light assembly to the output. We'll tie the brown wire here which is our tail light signal from the tow vehicle wiring harness, cut off the excess, set it aside in case we need it later. We'll strip off about 1/2-inch of insulation on this one. Now the extra length of brown wire that's included with our kit, at this time we'll drop it down behind the bumper cover here just like we do with the fish wire. Now the end of the brown wire that we just dropped down, we'll strip off about 1/2-inch of insulation from it too. We'll take both brown wires now, and we'll combine them. Take another one of these red ones, and we'll crimp it on. Then we'll plug this in the other end of our diode pack. Now with the help of an assistant, we'll have them step on the brake pedal. Off, on. Okay, perfect. With our test light, we've determined that this yellow and gray wire is our brake light signal circuit, so we're going to cut this one just like we did for the tail light wire, strip off the insulation. We'll start our spade terminals on either end. Take our second diode pack here with the output side going towards the connector. Other end of the vehicle wiring there to one of the inputs. Now we will take our yellow wire, cut off the excess, strip off about 1/4-inch. I'll install our spade terminal on there. Crimp it on, plug it into the final input side. Now this will control our turn signals and our brake lights on our Cadillac when it's in tow mode behind our RV. Now just like we did on the driver's side, we'll move our passenger-side tail light at this time. Take our pull wire again and go down. Now our green wire, we'll take out some of the insulation here. We'll take the included blue butt connector, install it over the wire. We'll crimp it in place. Take our green wire extension, strip off one end a little bit, install it in the other end of the butt connector. We'll crimp it down too. We'll wrap the butt connector in electrical tape just to keep any moisture, dirt, or debris out of there and causing a short. We'll take the other end, feed it on down next to the brown wire that we already dropped down. We'll feed behind the bumper cover here, on both sides. We'll secure it to this wiring harness there with a zip tie. Then we'll tape our brown and green wire to our pull wire that we dropped down on the passenger side. Take our pull wire, four wires on up. We'll remove our pull wire from the two wires. Now we'll pull back the electrical tape that covers up the factory wiring on the passenger side just like we did on the driver's side. Now we'll turn on our headlights and find out which wire controls our tail light circuit here. It's probably going to be this gray and brown one in the middle, but we want to doublecheck. Okay, it is the gray and brown one in the middle. Now we'll cut the gray and brown wire here in the middle, strip both sides of the wire back, install two of our spade terminals onto it. Now that it's been crimped down, we can take one of our diode packs . Again with the output side going towards the connector. The other side go to one of the inputs. We'll take our brown wire here, strip off the end of it, install another red spade terminals onto it, crimp it. Install that to the other input side just like so. Now with an assistant pumping the brake pedal, we're going to test and see which signal is our brake circuit here. It's probably going to be this yellow and white one. Okay, it is the yellow and white one, so now we'll cut that wire, and strip both sides back. Install two more of our red spade connectors. Take our final diode pack, output side towards the connector. Vehicle end towards one of the inputs. We'll take our green wire, cut off some of the excess here, strip off some of the insulation, and install our last red spade connector. Crimp it on, and install that to the other input side. Now with all of our electrical connections made, we can reinstall our tail light housing. Clip in the LED portion here until it snaps into place which it did. Take our reverse light bulb, reinstall it and the factory turn signal bulb. We'll clip this back on where it was. Now we can get our light assembly back into position. Okay, with our tail light assembly pushed back into place, we'll reinstall the two screws that held it in. Put our trim panel piece back on. It will snap into place. Then we have the clip to secure it. Be sure weatherstripping sits around that like it should. I'll do the same on the driver's side now. Now that our installation's complete, we will go ahead and test our functions to make sure the vehicle's factory lighting works just fine and when it's in tow-mode and hooked up to the RV, the functions work as well. With our headlights on right now, you can see both of our factory tail lights are working just fine. I'll go ahead and step on the brake pedal, and we'll see both brake lights illuminate. All right, now with our trailer simulator here, I'll go ahead and activate our tail lights, and I'll activate our left turn signal or left brake light, because they are combined functions now since the vehicle's acting like a trailer. As you can see, that works just like the factory does. Now I'll do the right. Also works just like the factory does as well. That completes our installation of the Blue Ox Tow Bar Wiring Kit with 4 diodes, part number BX8848 on our 2016 Cadillac SRX.


Customer Reviews

Blue Ox Tow Bar Wiring Kit - 4 Diodes - BX8848

Average Customer Rating:  4.8 out of 5 stars   (16 Customer Reviews)

Connect your towed vehicle's lighting system to your RV's to get the brake lights required for towing.

- BX8848
by:

It was an easy install on our Jeep Wrangler. Works great. 629239



- BX8848
by:

Just what I need to do a proper install ation. 619901



- BX8848
by:

everything was just as listed and came as promised ...install was easy.. 616474



- BX8848
by:

The wiring harness came with enough wire and everything I needed to get it ready for towing. 605480



- BX8848
by:

Easy to install, make sure you have cable ties the kit dose not come with any 583560



- BX8848
by:

Easy install, works great! Thanks 566641



- BX8848
by:

Ordered on Saturday and received on the following Tuesday. Packaging and labeling was in great shape. Just waiting for my vehicle to arrive so I can install the equipment. I will order from etrailer again. 447971



- BX8848
by:

Quality products at good prices delivered on time. 440722



- BX8848
by:

Easy install 434020



- BX8848
by:

As always you sent me another great product for my RV it's always so easy with the instructions that are provided with your products and the quality is always top notch I really needed this to wire my TJ Sahara jeep for a tow dingy to drag around behind our motor home I was worried that wiring the brake lights, etc. the same as a trailer would have a detrimental effect on the jeeps wiring its nice to know that just looking it up on your website gave me all the info I needed and a choice of products Thank you 378020


Comments

its still a great product even after a year and I am sure it will last many more years

Jim - 05/08/2018

38318

- BX8848
by:

I'm completely satisfied. It works the way it was advertised. 281491



- BX8848
by:

Fast shipping and great service. 215853



- BX8848
by:

Great web site, Great service 166707



- BX8848
by:

Product exactly as described; great price and quick shipping. Enjoy doing business with etrailer.com 165882



- BX8848
by:

It hasen't been installed yet, but I haved used this item in the past and it worked well. 159190



- BX8848
by:

All parts and pieces there. Installed fine. 11852


16
16

Ask the Experts about this Blue Ox Tow Bar Wiring
Do you have a question about this Tow Bar Wiring?


  • Diode Tow Bar Wiring Kit Installation Video for a 2014 Jeep Cherokee
  • Yes, the Roadmaster Tow Bar Wiring Harness part # RM-154 would install in the exact same way as the Blue Ox Wiring Kit part # BX8848 that you have, so the video you referenced that I attached to the right would work as a guide.
    view full answer...

  • Recommended Wiring Kit and Other Parts to Flat Tow a 2005 Jeep Wrangler
  • Instead of using the # BX8848 wiring kit and adding a connector and umbilical cord between the Wrangler and RV I would use the # RM-15267 kit which includes everything. It will make the installation much easier and have a cleaner look once installed. I've attached an installation video on a 2007 Wrangler Unlimited which will be very similar process to yours. In reference to your other choices, the Blue Ox Alpha Tow Bar # BX7365 is an excellent choice and includes the safety cables....
    view full answer...

  • Can the LED Bulb and Socket Kit # BX88267 be Installed on a 2009 Subaru Forester for Flat Towing
  • We do have an LED wiring kit just like the Kit # BX8869 that you referenced. It is found as part # BX88267 on our site. You can use the LED kit if your 2009 Subaru Forester does not have LED tail lights and if each tail light housing has enough room for an extra bulb and socket. It could be that there is no room for an extra bulb and socket which would be why the Roadmaster Kit # RM-152-LED isn't confirmed to fit. If you do have LED tail lights (or you don't have enough room for...
    view full answer...

  • Comparing Roadmaster RM-154 and Blue Ox BX8848 Flat Towing Diode Kits
  • The Roadmaster hardwired diode kit # RM-154 for flat towing a car will not differ much from a similar kit from another maker, such as Blue Ox kit # BX8848. But since the Roadmaster kit includes a protective wire loom and has been highly-rated by many more users, I would opt for the Roadmaster kit # RM-154. I linked a series of helpful articles concerning tow bar wiring options as well as installation videos for both kits.
    view full answer...

  • Parts Needed to Flat Tow a 2015 Smart Fortwo Pure
  • All of the parts you mentioned are compatible for your 2015 Smart fortwo. Blue Ox Alpha Tow Bar - Motor Home Mount - 6,500 lbs - BX7365 Blue Ox Base Plate Kit - Removable Arms - BX1987 Blue Ox Tow Bar Wiring Kit - 4 Diodes - BX8848 I am not a huge fan of the AutoStop braking systems so I would recommend you go with a Blue OX Patriot part # BRK2012 instead. The easiest system to set up and use is the Blue Ox Patriot # BRK2019, that applies the vehicle brakes in proportion to how...
    view full answer...

  • Will the Blue Ox Diode Kit 8848 Fit a 2013 Ford C-Max
  • Yes, for your 2013 Ford C-Max the Blue Ox Tow Bar lighting kit part # BX8848 has been confirmed as a fit. I attached a link to the install instructions plus a link to a help article page on installing kits like this.
    view full answer...

  • Recommended Components For Flat-Towing 2013 Hyundai Elantra With Motorhome
  • To flat-tow your Hyundai Elantra behind your motorhome you will need 5 items. You will need base plates, a tow bar, safety cables, lighting for the Elantra, and most states now require a supplemental brake system. If your Elantra is not a GT the Blue Ox base plates, part # BX2331 would work well. The tow bar that would also work well is the Blue Ox Alpha Tow Bar, part # BX7365. This tow bar is designed with a motor home mount and will work well with the BX2331 base plates. This tow bar...
    view full answer...

  • Hazards Turn on 2012 Ford Explorer When Headlights on RV are Turned on
  • It sounds like your ground could be the problem in this situation. The Ground wire on the Blue Ox Tow Bar Wiring Kit # BX8848 needs to be run to a main Ground or installed directly to a clean, bare metal surface on the chassis of your 2012 Ford Explorer. If you ran the white Ground wire from your 4-Way to the tail lights then you could possibly be getting some residual signal which could be causing your hazard lights to flash. Go ahead and disconnect the Ground wire and Ground it to...
    view full answer...

  • Blue Ox Diode Tail Light Wiring Kit Compatibility with 2008 Ford Taurus X
  • The Blue Ox Tow Bar Wiring Kit - 4 Diodes # BX8848 will work well for your 2008 Ford Taurus X. When using the BrakeBuddy # HM39530 you won't need to use a relay or anything to change the functions. It is a simple installation with no additional fuses, bypass systems, or relays needed. You will not need to remove fuses to tow. It is recommended to run the engine for at least 5 minutes prior to a trip and every 4-6 hours to circulate the fluids in your Taurus to reduce wear when towing....
    view full answer...

  • Parts Needed to Flat Tow 2013 GMC Acadia AWD
  • Yes, the setup you mentioned is complete for flat towing your 2013 GMC Acadia. The base plate kit part # BX1708 is a confirmed fit and will work great with the Blue Ox Avail # BX7420 tow bar that you mentioned. This is the nicest tow bar around so you'll really like it and it comes with safety cables. For wiring the Blue Ox Tow Bar Wiring Kit # BX8848 and the umbilical adapter # BX88206 would have you covered. Instead of having to manually pull the fuse the part # BX88274 would...
    view full answer...

  • Troubleshooting Diode Trailer Wiring Installed on Vehicle Where Turn Signal Flashes Both Sides
  • It sounds like you have the turn signal and running light circuits ran backwards so that when either blinker circuit is activated you end up with both lights flashing. This is because the running lights run to both sides of the vehicle and the stop/turn circuits go to each side specifically.
    view full answer...

  • Recommended Wiring From Motorhome to RV 4-Pin Trailer Connector
  • For a wiring system for your 2018 Nissan Rogue to do what you desire will required the Blue Ox Tow Bar Wiring Kit - 4 Diodes # BX8848 and a 4-way connector on the front of your vehicle. Your 2018 Nissan Rogue is not to be flat towed, but rather towed on a trailer if it is AWD or on a tow dolly if it is FWD. I recommend the Roadmaster Tow Dolly # RM-2050-1 for that and also brake controller # 90195 for the brakes. You will need to hardwire your motorhome wiring for that brake controller...
    view full answer...

  • Why is RoadMaster Tail Light Wiring Kit # RM-155 Not Recommended For a 2011 Chevrolet Malibu LT
  • Neither one of our manufacturers, RoadMaster or Blue Ox, recommend to use the bulb and socket type of lighting when flat towing a 2011 Chevrolet Mailbu LT. Usually it is because of limited space in the taillight housing that does not allow the bulb and socket to fit properly. We go by what the manufacturers recommend, since they have already done a test fit on the vehicle. The RoadMaster Diode Wiring Kit, part # RM-154, or the Blue Ox Wiring Kit, part # BX8848 is recommended for your...
    view full answer...


Do you have a question about this Tow Bar Wiring?
