Bottle JackItem # ALL647503
This item qualifies for Free Shipping
This heavy-duty hydraulic bottle jack is a perfect addition to a garage, shop, or to keep with you on the road. The bottle jack locks into place for a stable, safe lift. The extension screw provides additional lift height.
Features:
Specs:
Note: This jack is designed to lift and stabilize 40,000 lbs and should not be used to lift over 40,000 lbs.
Begin using the bottle jack by placing it on solid, level ground in a vertical position under the vehicle or object you wish to lift. Determine the best lifting point to support the jack and line up the piston ram underneath it. Once everything is lined up correctly, turn the lever switch at the base of the piston clockwise to allow you to move the piston up and down. After you have the vehicle or object lifted to the desired height the jack will automatically lock into place. To unlock the jack, simply turn the lever at the base of the piston counterclockwise and the hydraulics will slowly move in a downward motion.
California residents: click here
Video of Powerbuilt Bottle Jack - 9-11/16" to 17-5/8" Lift - 40,000 lbs
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

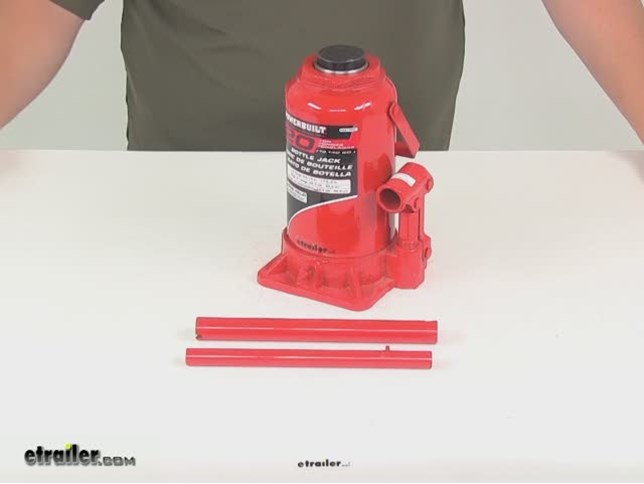

Today we're going to show you the Powerbuilt Bottle Jack. Part number a ALL647503. Now this jack is rated at 20 tons or 40,000 pounds. All right. Let's go ahead and cover some dimensions of our jack here. First off, as it sits right now it's about 9 9/16 inches tall. This actually unscrews and when it's fully extended it's going to be about 17 5/8 inches tall.
You'll also notice on top it has a texture on there. That helps grip whatever surface you're lifting with. The base is constructed from a cast-iron material about 5 inches wide by 5 1/2 inches. This is the valve right here, and when using the provided handle to operate the valve, counterclockwise to open it up, that will allow the jack to go down. Clockwise to tighten the valve, and then you can pump up the jack and lift. Our handle actually stores within itself like that, and when you need to use it, just flip it around, put it together and you can operate the jack with it. When you need to transport, it has a built-in handle. All right.
Lets go ahead and show the jack in a typical application. Find a safe spot to lift by. In this case we use the cross member. We'll go ahead and thread it up all the way. Take up as much space as possible.
We'll close the valve with our handle and we'll operate the jack. Once you've got it to the right height, go ahead and bring in your jack stand. Of course, the jack stand does not come with this. We'll go ahead and operate the valve one more time to lower it onto our jack stand. We'll relieve all the pressure and let the jack stand do the work. Our Jack here is designed to lift but not hold weight.
You can move it out of the way if you want or leave it in place. When you're done doing your service work to your trailer, tighten up the valve and raise up your trailer and remove your jack stand. Now we'll go ahead and turn the valve to open, slowly we'll bring our trailer down. We'll go ahead and move it out of the way. Go ahead and thread the top back down. While it's open you can go ahead and push this down or it might be easier to go ahead and just stand on it to compress it. With that, that will finish it for part number a ALL647503 our 20 ton Powerbuilt Bottle Jack.
Average Customer Rating: 5.0 out of 5 stars (3 Customer Reviews)
This heavy-duty hydraulic bottle jack is a perfect addition to a garage, shop, or to keep with you on the road. The bottle jack locks into place for a stable, safe lift. The extension screw provides additional lift height.This is one serious heavy duty jack. I will be carrying this when we go RV ing. It fits perfect in a water tight Army ammunition box. This will lift any travel trailer, or motorhome. Rated at 40000 lbs. As with all my orders from etrailer quality and shipping speed is excellent. 549599
Very sturdy and well built bottle jack , I have limited space to carry this jack in my tool box located on my trailer, but it fits perfectly in the space I had selected! 725366
Great jack at a great price 272555
