Powerbuilt Bottle Jack - 6-3/16" to 12-1/16" Lift - 4,000 lbs

Powerbuilt Bottle Jack - 6-3/16" to 12-1/16" Lift - 4,000 lbs

Item # ALL640405

lowest price pledge

Retail:$36.95

Our Price: $23.64

You Save: 36%
Tools

Orders above $99 qualify for Free Shipping

Shipping Weight: 5 lbs

Quantity:
In Stock, Ships Today
Powerbuilt Bottle Jack - 6-3/16" to 12-1/16" Lift - 4,000 lbs 4000 lbs ALL640405
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

In Use/Installed


  • Vehicle Tools
  • Shop Tools
  • Service Ramps and Jacks
  • Bottle Jack
  • Powerbuilt
  • 12-1/16 Inch Lift
  • 4000 lbs
This heavy-duty hydraulic bottle jack is a perfect addition to a garage, shop, or to keep with you on the road. The oversized cast iron base allows for a more stable lift. The bottle jack locks into place for a stable, safe lift. Lowest Prices for the best tools from Powerbuilt. Powerbuilt Bottle Jack - 6-3/16" to 12-1/16" Lift - 4,000 lbs part number ALL640405 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (2)
  • Q & A (11)
  • Videos (2)
  • Photos
  • Why etrailer?

Powerbuilt Tools - ALL640405

This heavy-duty hydraulic bottle jack is a perfect addition to a garage, shop, or to keep with you on the road. The oversized cast iron base allows for a more stable lift. The bottle jack locks into place for a stable, safe lift.


Specs:

  • Weight capacity: 4,000 lbs
  • Lift: 6-3/16" - 12-1/16"
  • Base dimensions: 3" wide x 3-1/2" long
  • 1-Year warranty


Features:

  • Raises, lowers, and stabilizes high profile vehicles, house foundations, and heavy equipment
  • Great for garages, shops, or to keep as a spare in your vehicle
  • Handle locks into place to assure a secured upright position
  • Steel saddle and cast handle socket
  • Meets ANSI standards


Note: This jack is designed to lift and stabilize 4,000 lbs and should not be used to lift over 4,000 lbs.


Using a Bottle Jack

Begin using the bottle jack by placing it on solid, level ground in a vertical position under the vehicle or object you wish to lift. Determine the best lifting point to support the jack and line up the piston ram underneath it. Once everything is lined up correctly, turn the lever switch at the base of the piston clockwise to allow you to move the piston up and down. After you have the vehicle or object lifted to the desired height the jack will automatically lock into place. To unlock the jack, simply turn the lever at the base of the piston counterclockwise and the hydraulics will slowly move in a downward motion.



640405 Alltrade Tools Powerbuilt Hydraulic Bottle Jack - 12-1/16" lift - 2 Ton






California residents: click here

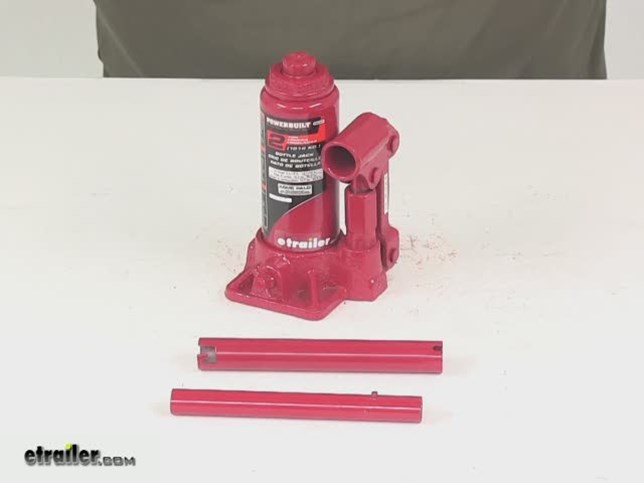

Video of Powerbuilt Bottle Jack - 6-3/16" to 12-1/16" Lift - 4,000 lbs


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Powerbuilt Tools - Vehicle Tools - ALL640405 Review

Today we're going to be taking a look at part number ALL640405, this is the Powerbuilt bottle jack rated at 4,000 pounds. The jack is hydraulic operated, it's going to be used to raise and lower loads up to 4,000 pounds. It's going to be great for the garage, workshop, or to keep in your vehicle maybe as a spare or as your primary jack. It's got the nice handle, it's very easy to assemble, two pieces slide together and then they interlock. The other end of the handle is designed to go over the release valve to operate that, that way you don't have to do it using your hand or any other type of tool. The jack's going to feature a lift range of 6 3/16" and with it all the way up and the screw top extended all the way out, it's going to give us a maximum lift of 12 1/16".

That screw top is going to provide some extra height. It's got a nice rugged design you can see how those indentions cross there, that's going to allow us to really grab onto the frame for a nice secure hold while we're lifting. Particular measurement of the diameter of that top portion right there, that's going to give us a measurement of about 7/8". It's also got the nice heavy duty base for strength and durability as well as a steel saddle and cast handle socket. This base is going to give us a measurement from edge to edge here at the widest point, looks to be about 3 3/4" and then measuring this direction, edge to edge it's about 3 5/8". The piece down here at the bottom, this is going to be our screw pin release valve and again we have the other side of the handle to operate that fairly easy.

Now you do want to make sure that the screw pin is all the way closed, that would be turning it clockwise before we're wanting to use the jack. Then we can place our handle inside that pump right there, that will pump this up and down. That's going to raise that center cylinder. Really easy operation. It's going to help raise up the vehicle and then we can place some jack stands beneath the vehicle for support and to really spread out that support and then when we're ready to lower the vehicle down onto the jack stands we can simply place our handle over the valve, turn that slowly counterclockwise and as weight's applied that center cylinder is going to depress fully into the jack. Now when you're ready to store this you always want to store it with the jack in the fully lowered position, that's going to prevent the critical areas of the jack from exposure which is going to prevent them from excessive corrosion.

That's going to do it for our review of part number ALL640405, this is the Powerbuilt bottle jack with a capacity of 4,000 pounds. .


Customer Reviews

Powerbuilt Bottle Jack - 6-3/16" to 12-1/16" Lift - 4,000 lbs - ALL640405

Average Customer Rating:  5.0 out of 5 stars   (2 Customer Reviews)

This heavy-duty hydraulic bottle jack is a perfect addition to a garage, shop, or to keep with you on the road. The oversized cast iron base allows for a more stable lift. The bottle jack locks into place for a stable, safe lift.

- ALL640405
by:

Works as advertised. Thanks! 401311



- ALL640405
by:

Both items arrived early and in good condition. The service was (as always) excelent! I will definitely purchase from etrailer again. 208101


2
2

Ask the Experts about this Powerbuilt Tools
Do you have a question about this Tool?


  • Trailer Jack to Lift Horse Trailer to Change Tire
  • We have a couple of options that you might like. First, you could use what is called a farm jack, # RP7033400. This is a stand alone jack meaning it does not get attached to the trailer. But farm jacks have many uses and will work well to help lift the trailer to change a tire. They're especially great on uneven terrain compared to other jacks. A similar device that is more compact is a bottle jack, # ALL640405. This jack is easier to store since it is smaller than a farm jack but is...
    view full answer...

  • Will One Tire be Off the Ground on the Same Side the Anderson Rapid Jack is Used
  • Trailers tend not to have a suspension that travels 8 or more inches, which is the amount of lift provided by the Rapid Jack # AM3620. If the axles are far enough apart or the ground is not level it could be an issue though. That's why its tough to beat a good ol' bottle jack such as # ALL640405.
    view full answer...

  • Can Scissor Jacks be Used to Lift an RV 1 Foot Off the Ground
  • Scissor jacks such as # JSC-30-IND are not meant to lift up vehicle or trailer so I do not recommend them for this application. What I recommend is to use leveling blocks such as # CAM44515 for a 10-pack. You can drive right up onto these blocks though it may be difficult to get it up to a foot tall without using a bunch of them stacked like a pyramid. Another option is to use a bottle jack such as # ALL640405 to lift the vehicle and then use the blocks or jack stands to hold the...
    view full answer...

  • Alternative to Using Scissor Jacks to Lift a Truck to Change a Tire
  • Scissor jacks such as # UF48-979031 aren't designed to lift wheels off of the ground but just to provide support on trailers or RVs to limit side to side movement. What I recommend is a bottle jack such as # ALL640405 which costs less and is rated for much more weight.
    view full answer...

  • Recommended Bottle Jack for Utility Trailer Spare Tire Change
  • It is wise to keep a bottle jack handy for any trailer tire replacement. The vehicle jack is often designed to specifically go with that vehicle and the capacities can be very different as well as the style for proper function as the frames can be very different. For your 5x10 utility trailer, I recommend the Powerbuilt Bottle Jack - 6-3/16" to 12-1/16" Lift - 4,000 lbs # ALL640405 which depending on your loaded trailer weight should be more than sufficient. If you need more than...
    view full answer...

  • Manual Operation of Damaged Lippert Auto Leveling Landing Gear System
  • If your 2015 Heartland Road Warrior 5th wheel is sitting too low to allow you to couple it to your 5th wheel hitch you can try operating your landing gear manually with the hand crank tool that should have been supplied. Even if the powered landing gear is not working manual operation should still be possible since all powered jacks and landing gear include this feature for cases where electrical power is lost. Look for a plastic cap on the top of the jack's gearbox housing, as shown in...
    view full answer...

  • Bottle Jack Recommendation for Supporting Yakima Rack and Roll Trailer to Change Spare
  • The only type of trailer jack we can recommend for changing a trailer spare is a bottle jack like the part # ALL640405 which would work well with your Yakima Rack and Roll trailer like part # Y08107.
    view full answer...

  • Can Ultra-Fab Power Twin Stabilizer Jack Level a Trailer and Lift the Tires Off the Ground
  • Ultra-Fab stabilizer # UF39-941705 can be used to both stabilize and level trailer. But it is not designed to lift the trailer tires off of the ground. You would need to use a jack for that. I like bottle jacks such as # ALL640405 because they are compact and easy to store. This one is rated for 2 tons so that is more than enough to lift one side of the trailer to change a tire.
    view full answer...

  • Fully Retracted Height of Powerbuilt 4K Bottle Jack ALL640405
  • The Powerbuilt 4K Bottle Jack # ALL640405 when fully retracted to its lowest height stands 6-3/16-inches tall. This is with the cylinder fully retracted and with the threaded top cap fully tightened.
    view full answer...

  • Could Powerbuilt Bottle Jack # ALL640405 Work on 2016 Kia Sorento
  • The Powerbuilt Bottle Jack # ALL640405 has the lifting capacity of 4,000 lbs. Your Sorento weighs near that depending on how it's equipped, but since this would not be lifting the entire weight of your vehicle and only one corner at a time it would work well. For a jack with more lifting height the part # ALL620471 which can lift 21 inches would be the better choice.
    view full answer...

  • Can Blaylock EZ Jack and Wheel Chock Harm Trailer Tires or Suspension
  • None of our experience with wheel chocks like the Blaylock EZ Jack and Wheel Chock # EZ-JACK suggests that they present any risk of damage to a trailer tire or suspension. I suppose if someone drove up on theEZ-JACK and did not have the tire centered properly this would place more weight on only a part of the tire tread; naturally this would not be good but unless the tire already had an issue (incorrect inflation, excessive tread wear, etc) there should not be any negative results. Bottle...
    view full answer...
