Loadstar ST225/75D15 Bias Trailer Tire with 15" White Wheel - 5 on 4-1/2 - Load Range D

Loadstar ST225/75D15 Bias Trailer Tire with 15" White Wheel - 5 on 4-1/2 - Load Range D

Item # AM3S862

lowest price pledge

Retail:$160.26

Our Price: $127.77

You Save: $32.49
Tires and Wheels

This item qualifies for Free Shipping

Shipping Weight: 44 lbs

Quantity:
In Stock, Ships Today
Tires and Wheels AM3S862 - Steel Wheels - Powder Coat - Kenda
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos


  • Tire with Wheel
  • 15 Inch
  • 5 on 4-1/2 Inch
  • 225/75-15
  • Load Range D
  • Steel Wheels - Powder Coat
  • Bias Ply Tire
  • Standard Rust Resistance
  • Kenda
Bias tire has a ply rating of 8 and a 2,540-lb maximum load at 65 psi. The 15" diameter x 6" wide steel trailer wheel features a 5 on 4-1/2 bolt pattern and a corrosion-resistant powder coat finish. Lowest Prices for the best tires and wheels from Kenda. Loadstar ST225/75D15 Bias Trailer Tire with 15" White Wheel - 5 on 4-1/2 - Load Range D part number AM3S862 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (4067)
  • Q & A (26)
  • Videos (1)
  • Photos
  • Why etrailer?

Kenda Tires and Wheels - AM3S862

Bias tire has a ply rating of 8 and a 2,540-lb maximum load at 65 psi. The 15" diameter x 6" wide steel trailer wheel features a 5 on 4-1/2 bolt pattern and a corrosion-resistant powder coat finish.


Features:

  • Loadstar special trailer tire outshines other bias tires
    • Flatter tread offers improved stability for excellent handling
    • Special trailer tire design
      • Couples the strength of a bias tire with the durability and stability of a radial tire
      • Created specifically for trailers - not intended for use on other vehicles
    • Advanced rubber compound
      • Longer tread wear
      • Low rolling resistance for smooth ride
  • 8-Spoke steel wheel by Dexstar
    • Resists rust with white powder coat finish over e-coat
  • Tire-and-wheel assembly meets Department of Transportation specifications


Specs:

  • Rim dimensions: 15" diameter x 6" wide
  • Bolt pattern: 5 on 4-1/2"
  • Wheel capacity: 2,150 lbs
  • Wheel bolt size: 1/2"-20
  • Pilot diameter: 3.19"
  • Tire size: ST225/75D15
    • Section width: 8.4"
    • Outer diameter: 28.1"
  • Tire capacity:
    • Load range: D
    • Ply rating: 8
    • Maximum load: 2,540 lbs at 65 psi
    • Maximum speed: 81 mph (speed rating M)
  • Limited 2-year warranty


Note: The overall capacity of this tire-and-wheel assembly is limited to the lowest rated component. Do not fill your tire to a pressure greater than that indicated on the tire itself or on the wheel that it is mounted to.


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


3S862 Dexstar 8-Spoke 15" White Wheel and Loadstar K550 Bias Tire - LR D

3S862DX

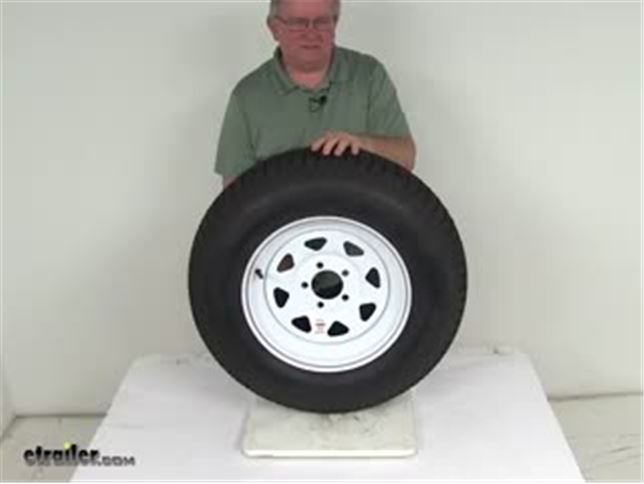

Video of Loadstar ST225/75D15 Bias Trailer Tire with 15" White Wheel - 5 on 4-1/2 - Load Range D


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Kenda Tires and Wheels - Tire with Wheel - AM3S862 Review
