Price: $58.95

Kenda Loadstar 5.30-12 Bias Trailer Tire with 12" White Wheel - 5 on 4-1/2 - Load Range C

Item # AM30820

lowest price pledge


Our Price: $58.95

Orders above $99 qualify for Free Shipping


In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
kenda tires and wheels 12 inch 5 on 4-1/2 loadstar 5.30-12 bias trailer tire with white wheel - load range c
kenda tires and wheels bias ply tire 12 inch
kenda tires and wheels tire with wheel 12 inch loadstar 5.30-12 bias trailer white - 5 on 4-1/2 load range c
kenda tires and wheels tire with wheel 5 on 4-1/2 inch
kenda tires and wheels bias ply tire 12 inch am30820

Customer Photos

kenda tires and wheels tire with wheel 12 inch am30820
kenda tires and wheels tire with wheel 12 inch am30820
kenda tires and wheels tire with wheel 12 inch am30820
kenda tires and wheels tire with wheel 12 inch am30820
kenda tires and wheels tire with wheel 12 inch am30820
kenda tires and wheels tire with wheel 12 inch loadstar 5.30-12 bias trailer white - 5 on 4-1/2 load range c
kenda tires and wheels bias ply tire 12 inch am30820
kenda tires and wheels bias ply tire 12 inch
kenda tires and wheels tire with wheel 12 inch am30820
kenda tires and wheels tire with wheel 12 inch loadstar 5.30-12 bias trailer white - 5 on 4-1/2 load range c
kenda tires and wheels bias ply tire 12 inch am30820
kenda tires and wheels tire with wheel 12 inch am30820


  • Tire with Wheel
  • 12 Inch
  • 5 on 4-1/2 Inch
  • 5.30-12
  • Load Range C
  • Steel Wheels
  • Bias Ply Tire
  • Spoke Wheel
  • Kenda
Bias tire has a ply rating of 6 and a 1,045-lb maximum load at 80 psi. The 12" diameter x 4" wide steel trailer wheel features a 5 on 4-1/2 bolt pattern and a corrosion-resistant powder coat finish. Lowest Prices for the best tires and wheels from Kenda. Kenda Loadstar 5.30-12 Bias Trailer Tire with 12" White Wheel - 5 on 4-1/2 - Load Range C part number AM30820 can be ordered online at or call 800-298-8924 for expert service.

Kenda Tires and Wheels - AM30820

Bias tire has a ply rating of 6 and a 1,045-lb maximum load at 80 psi. The 12" diameter x 4" wide steel trailer wheel features a 5 on 4-1/2 bolt pattern and a corrosion-resistant powder coat finish.


  • Trailer tire by Kenda Loadstar is designed for excellent handling at high speeds
  • Steel wheel by Dexstar has 8-spoke design
    • Resists rust with e-coat and white powder coat finishes
  • Tire-and-wheel assembly meets Department of Transportation specifications


  • Rim dimensions: 12" diameter x 4" wide
  • Bolt pattern: 5 on 4-1/2"
  • Wheel capacity: 1,250 lbs
  • Wheel bolt size: 1/2"-20
  • Pilot diameter: 3.19"
  • Tire size: 5.30-12
    • Section width: 5.6"
    • Outer diameter (when inflated): 21.9"
  • Tire capacity:
    • Load range: C
    • Ply rating: 6
    • Maximum load: 1,045 lbs at 80 psi
  • Limited 2-year warranty

Note: The overall capacity of this tire-and-wheel assembly is limited to the lowest rated component. Do not fill your tire to a pressure greater than that indicated on the tire itself or on the wheel that it is mounted to.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"

30820DX Dexstar 8-Spoke 12" White Wheel and Kenda Loadstar K353 Bias Tire - LR C

Related Products

Customers compare AM30820 to these similar products

Customers Who Purchased This Tires and Wheels Also Bought...

Replacement parts available for this product

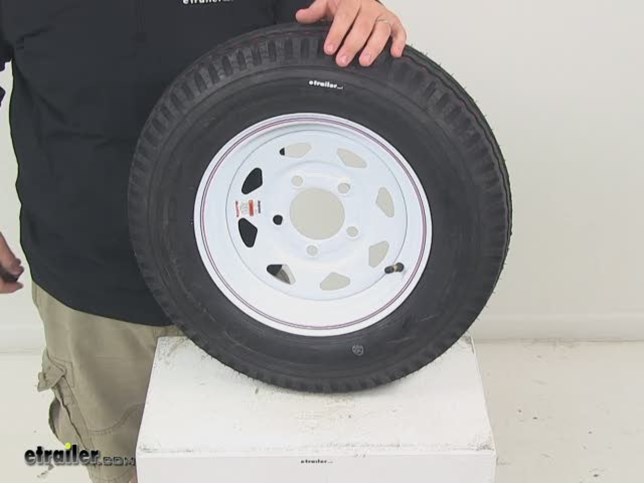

Video of Kenda Loadstar 5.30-12 Bias Trailer Tire with 12" White Wheel - 5 on 4-1/2 - Load Range C

Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

Video Transcript for Kenda Tires and Wheels AM30820 Review

Today we're going to review part number AM30820. This is the Kenda 5.30-12 bias trailer tire mounted on a 12" Dexstar white spoke wheel. We'll start with the rim dimensions. The diameter of this wheel would be 12", which are measured inside-to-inside. The width of this wheel is 4" wide. This wheel has a bolt pattern, which has 5 lugs 4.5" bolt pattern.

The best way to measure on a wheel that will have an odd number of lugs, like in this case 5 lugs. Is if you would draw a circle through the center of each bolt hole and measure the diameter of that circle, that will give you the bolt pattern. So in this case if we measure from the center of this hole to that edge of that circle we've drawn would be 4.5''. So the bolt pattern will be 5 lugs 4.5'' bolt pattern. This wheel has a weight capacity of 1,250 pounds at 90 psi.

It uses a wheel bolt size of a 1/2"-20. Another critical measurement is the pilot hole diameter, which is the large hole in the center here. This will go over the hub on your trailer, measured diameter of that is 3.19''. This wheel does come with a white powder coat finish. Now, we move on to the tire.

This tier is Loadstar size 5.30-12, has a load range of C, which is a 6 ply rated tire. The maximum load carrying capacity on this tire is 1,045 pounds at 80 psi. This tire is a bias constructed tire, which would mean the belts will run the length of the tire. This will give a little bit firmer ride when compared to radial design tire. One last measurement we're going to do is the overall diameter of this tire and it would be 22''.

That should do it for part number AM30820.
