Kenda 4.80-12 Bias Trailer Tire with 12" White Wheel - 4 on 4 - Load Range C

Kenda 4.80-12 Bias Trailer Tire with 12" White Wheel - 4 on 4 - Load Range C

Item # AM30620

lowest price pledge

Our Price: $69.37

Tires and Wheels

Orders above $99 qualify for Free Shipping

Shipping Weight: 18 lbs

Quantity:
AM30620 - 4 on 4 Inch Kenda Tire with Wheel
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos


  • Tire with Wheel
  • 12 Inch
  • 4 on 4 Inch
  • 4.80-12
  • Load Range C
  • Steel Wheels - Powder Coat
  • Bias Ply Tire
  • Standard Rust Resistance
  • Kenda
Bias tire has a ply rating of 6 and a 990-lb maximum load at 90 psi. The 12" diameter x 4" wide steel trailer wheel features a 4 on 4 bolt pattern and a corrosion-resistant powder coat finish. Lowest Prices for the best tires and wheels from Kenda. Kenda 4.80-12 Bias Trailer Tire with 12" White Wheel - 4 on 4 - Load Range C part number AM30620 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (4031)
  • Q & A (118)
  • Videos (1)
  • Photos
  • Why etrailer?

Kenda Tires and Wheels - AM30620

Bias tire has a ply rating of 6 and a 990-lb maximum load at 90 psi. The 12" diameter x 4" wide steel trailer wheel features a 4 on 4 bolt pattern and a corrosion-resistant powder coat finish.


Features:

  • Trailer tire by Kenda is designed for excellent handling at high speeds
  • Steel wheel has 8-spoke design
    • Resists rust with e-coat and white powder coat finishes
  • Tire-and-wheel assembly meets Department of Transportation specifications


Specs:

  • Rim dimensions: 12" diameter x 4" wide
  • Bolt pattern: 4 on 4"
  • Wheel capacity: 1,250 lbs
  • Wheel bolt size: 1/2"-20
  • Pilot diameter: 2.84"
  • Tire size: 4.80-12
    • Section width: 4.80"
    • Outer diameter (when inflated): 20.5"
  • Tire capacity:
    • Load range: C
    • Ply rating: 6
    • Maximum load: 990 lbs at 90 psi
  • Limited 2-year warranty


Note: The overall capacity of this tire-and-wheel assembly is limited to the lowest rated component. Do not fill your tire to a pressure greater than that indicated on the tire itself or on the wheel that it is mounted to.


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"




30620DX 8-Spoke 12" White Wheel and Kenda K353 Bias Tire - LR C

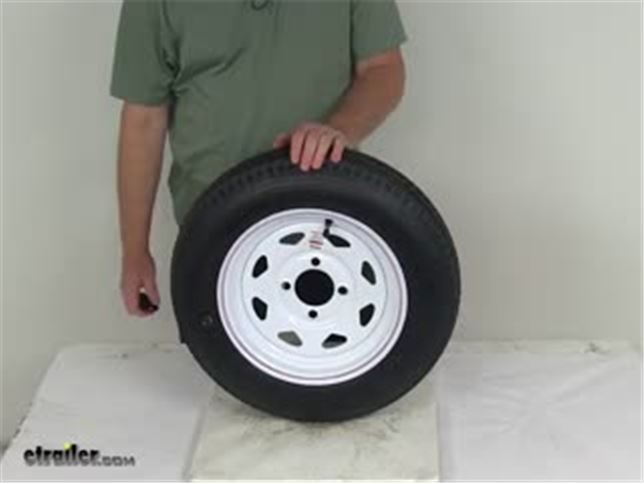

Video of Kenda 4.80-12 Bias Trailer Tire with 12" White Wheel - 4 on 4 - Load Range C


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Kenda Tires and Wheels - Tire with Wheel - AM30620 Review


Customer Reviews

Kenda 4.80-12 Bias Trailer Tire with 12" White Wheel - 4 on 4 - Load Range C - AM30620

Average Customer Rating:  4.9 out of 5 stars   (4031 Customer Reviews)

Bias tire has a ply rating of 6 and a 990-lb maximum load at 90 psi. The 12" diameter x 4" wide steel trailer wheel features a 4 on 4 bolt pattern and a corrosion-resistant powder coat finish.

- AM30620
by:

Great product and fast shipping! 165754


Comments

Working great. Recommend keeping them covered to prevent dry rotting. I keep mind covered and have no problems.

Cory S - 12/17/2015

16190

- AM30620
by:

Look great and gift recipient very happy. If he complains, I'll try to remember to update, but unlikely. I can say that he's very happy with this combo. I selected it because the combo is rated for 65 mph where most are rated for less than 50. I ordered a spare tire mount and didn't notice the "out of stock" note but got a call from etrailer asking if I wanted to hold the order. They let me cancel that part of the order and sent the wheel/tire combo quickly. I will order again from them, based on this, my first purchase from etrailer. thanks guys and gals of etrailer. 442037



- AM30620
by:

Tires have performed well. They are on a boat trailer and we just got back from a 4000 mile trip up to NY and back. No problems driving 70mph for hours at a time. They still have some tread left but I'll probably replace them before our trip next year. The price was excellent compared to my local tire store that couldn't come close to matching the price. And they were deliver with in a few days. Great customer service as initial order had one rim with to many bolt holes. They corrected the problem very quickly. Highly recommend. 271763



- AM30620
by:

I have more confidence and feel safer with the new tires (4.80-12) than the factory tires (4.80-8) installed on my 12 foot boat trailer. I feel that the trailer can be pulled at a higher speed without fear of a blow out which is necessary under certain driving conditions. Delivery of the new tires was super fast from etrailer. Thumbs up. 124614



- AM30620
by:

I recently bought a used pop-up camper trailer that uses this type of tire. The camper is 16 years old. I did an internet search to run the date codes and found that the tires were as old as the trailer so I decided to replace them. I got these tires and just finished a 3,100 mile road trip on them yesterday. They were inexpensive, included the wheel rim, and performed great on our trip. They even held up after a leaf spring broke, causing the tire to rub against the wheel well until we could stop the car. The tire tread looks great and appears to have many miles left on them. The manufacturer states a max speed of 65 mph. We limited ourselves to that speed and didn’t feel like we were being slowed down. I highly recommend these tires (and don’t forget the spare!). 520159



- AM30620
by:

I replaced a set of 4.80 x8 tires and wheels, It raised the trailer about 4". There was enought space between the the tires and fender with out repostioning the fenders. Oonly miles will tell now on the tire quality. Center hole was slighty larger but still lines the holes up easy. 96450


Comments

Wheels fit and look good. The rubber on my tires is wearing rather quickly. I put the boat over the scales my last camping trip. It only had 850 lbs on the trailer axle.le. That is about normal, however my tires will e worn out in under 800 miles.

Les I - 08/25/2014

6453

- AM30620
by:

Very happy with these tires. They are way better than the ones I originally bought from Tractor Supply and took back. The tires I got at Tractor Supply looked good, but after a friend stopped by and saw them, he told me that they were only a two ply and not a good tire to take my boat trailer on a three hundred mile trip. I'm not very educated on tires, and when he explained that I needed a better tire that was a 6 ply and hi-speed rated, I came on line and found the info that helped me out and make this purchase here. Very glad I listened. For a few dollars more I got a tire that looks great and has the rating I needed. Came fast too. This is now my go to place for tires! 216974



- AM30620
by:

Great wheel and tire. I ordered 3 each, one for a spare. 1 box with one tire came yesterday, the other 2 came today. I wish they would have came all at once since the tracking number was for the 1 wheel and I was not provided with the other tracking number I did not know if I was getting the whole shipment. I used them on an old pop up trailer that I converted to haul my dirt bike 166230



- AM30620
by:

I have enjoyed etrailer parts for several years, always good prices and always very fast delivery. Also, your web designer should be given an A+ for making a site that is easy to navigate and visualize the parts. With my last purchase I learned that you have great videos too. After I received the new wheel/tires I went to remove the old ones from the trailer and noticed that both hubs were too sloppy. I wiped off a couple big globs of grease but could not find the cotter pin that must be removed so I could give the castle nut an extra turn or two. I saw the flat spot on the spindle and something in between a notch on the castle nut but under the grease and dirt I could not figure out what I was looking at. I went to your website and found your Etrailer video that described and showed me exactly what I had to do. I went back to the trailer and in 15 minutes both wheels were on and the trailer was ready to go. 521108



- AM30620
by:

I have been looking for larger wheels for my trailer for some time. No one local (remote NC Mountains) had or seemed able to find 4on4 12" wheels and tires. I found you on the internet. I was pleased that you had a great selection of wheels/tires, and exactly what I wanted. the response to the order was instant, giving an approximate ship date.I placed the order Sunday night, the shipment arrived Wednesday. I am Impressed by that as well as your excellent customer relations, like the message inside the box lid.Yes our relationship will continue. 31291



- AM30620
by:

ordered two 4.80X12 tires, two each spindles, bearings and two hubs(2000lb) to upgrade a harbor freight trailer for long distance towing. The E-trailer bearings are made in China, tires are made in US. Tires appear to be about one inch larger in diameter compared to new Harbor Freight tires that came with the trailer package. Shipping- what can I say! If I could get everything shipped as fast as E-trailer shipped I would never need to shop in a store again. All the items arrived in a single HEAVY box 55236



- AM30620
by:

Etrailer.com once again came through with good quality tires and rims for a better price than I could find locally. Also local stores only sell Load range B while these are Load Range C. And Free Shipping! Also Etrailer.com has a terrific website, loaded with information to help choose the correct tire/rim/accessories that will fit, no hassle. I bought these 12" tires to replace the 8" ones on a boat trailer. They look great and give me more clearance. All of my trailers use tires and rims from Etrailer. Thanks. 120034



- AM30620
by:

I just received my tire/wheel order and everything is as expected. No muss, no fuss! The trailer is apart for new paint, lights/wiring, etc., so it will be a while before it does any towing. However, I did mount the tires to make sure everything fit correctly and it did. The only thing I need to do is raise the fenders an inch or two to adjust tire clearance for the new 12" tires in lieu of the old 8" wheels. This was expected and no big deal. Overall, as a first time customer, I am very impressed with the level of personal service and quick response on my questions and order. Next time, I won't waste time looking elsewhere.... 60239



- AM30620
by:

Top quality product and excellent service as usual. 185614


Comments

Tires are fine. No problems at all.

Tom B - 04/16/2016

17487

- AM30620
by:

Just finished a harbor freight 4 x 8 trailer and turning it into a kayak trailer. Class B tires came with the trailer and I am immediately replacing them with the Kenda Class C 4.80 x 12" from etrailer.com. This gives me a higher speed tire and at least I can "feeL" safer at 65 mph or so if I have to speed a little to go around a car or on the Interstate. Very impressed with these tires and fast shipping received. Here is picture of trailer. 302619


Comments

My Kenya tires still going strong 1 year later. I have about 3000 miles on the tires with most trips at 60-70 mph. I have repacked my wheel bearings at 1500 miles just because I like to err on the safe side. No flats, no problems - Highly recommend.

Eddie R - 10/02/2017

28631

- AM30620
by:

I have yet to attach the tire/wheel to my trailer, but I must say it is exactly what I was looking for. 4.80, 12", 4 on 4 trailer wheels are not as widely use (it seems) as the 5 bolt wheels so there aren't as many options out there. In the end, this tire/wheel combo was priced well enough and seems to match what I was looking for. The service I received on my order was definitely wonderful. My tire arrived earlier than expected, was given an improved shipping method, and arrived in a well protected box, fully inflated and ready to mount! 27536



- AM30620
by:

These tires and wheels arrived quickly and are just what I needed. I've had good luck with the Kenda tires in the past and these tires with the rims were less expensive than having tires mounted locally. I was pleasantly surprised to find out the wheels themselves were made in the US. The other thing to consider when getting tires is the age of the tire. You can easily tell the manufacture date by looking at the imprint on the side of the tire that has the week and year they were made. Both tires I got were manufactured within the last year. Finally just want to say that the customer service from etrailer is fantastic. 509160



- AM30620
by:

I use these on our Bunkhouse motorcycle camper. It came with 8"wheels. We tow it with our Corvette. I felt sorry for the little 8" wheels and tires flying through Nevada. The 10 "wheel and tire work perfectly. I also want to use the little camper towed by our Can Am Renegade 1000 so the new 10" wheel and tires give me a bit more clearance for off-road use. This company is the very best. The staff is very friendly and helpful. I've bought trailer hitches, tires, wheels, and camper accessories for our Ambulance RV conversion and not once been disappointed. Shipping has been lightning fast and they have the best prices around. etrailer continues to be my"go to" place. 657631



- AM30620
by:

This is the 4th purchase and thru never disappoint 651507



- AM30620
by:

I hope i purchased the correct tires ? I took the name and numbers off old tires i plan on installing this weekend. The tires look great so far 650215



- AM30620
by:

Tires and wheels look great, fit perfect. Have not pulled trailer yet. Only probable was with UPS delivery, it got to 20 miles away and sat for 3 days before it was delivered, UPS did not want to get it here early. 645030



- AM30620
by:

Found just I was looking for, website is great. My order shipped sooner than I expected and I had it in 3 days. Great service again from etrailer, I will be back. 636690



- AM30620
by:

Great tires for a great price. 636532



- AM30620
by:

great tire and wheel I use it as a spare. the best part was I ordered the wrong size the first time and etrailer made the exchange quick and easy. 636523



- AM30620
by:

The product works as expected and a is good quality. The customer service however is even better. The etrailer.com staff went above and beyond to help me get exactly what I was looking for. 614363



- AM30620
by:

Great product and price! 610842



- AM30620
by:

Tires just came yesterday so I can't comment on performance yet but the shipping was unbelievable. I ordered them Monday morning and they were at my house Tuesday afternoon. 608610



- AM30620
by:

You just can’t beat great prices, quick delivery and consistent products. Thanks again! 604828



- AM30620
by:

I haven't used them yet, 9" of snow in Iowa, but I can't wait until spring. Rims and tires look great. Thanks etrailer! 589292



- AM30620
by:

Good pair of tires. Looks great on my trailer. Came on time and everyone was very helpful. 579438



- AM30620
by:

I called and sent some pictures of my trailer tires. The service representative helped me find what I need. The order came within a few days (delivery included in the price). The tires look great. 564066



- AM30620
by:

Just what I was looking for. Good price and fast shipping 558923



- AM30620
by:

Tires look like as advertised. Fast shipping. Ready to go camping. 554447



- AM30620
by:

I had a large selection to choose from and it was easy to order the exact wheel and tire I wanted. It looks good on my tailor and I received it in 3 days. I'm a happy guy. 554408



- AM30620
by:

Excellent retail website. All products logically presented and a great selection. Found and ordered new tires for my trailer in minutes with all the proper information displayed. Everything arrived on-time and in good order. I'll be back for more in the future. 553320



- AM30620
by:

Fast shipping and great service! Thank you! 546055



- AM30620
by:

Ordered them on Monday had them on Wednesday. WOW. Just what I wanted and for the right price . also got a 2 inch channel coupler ,I could not find one where I live, every Thing I get from them is priced right and delivered on time. Great. Service 540435



- AM30620
by:

The wheel assemblies arrived quickly and are as represented on website The wheels and tires seem quite nice. I am using them to replace smaller 4.8x8 tires and wheels on my Hot Dog cart making this change will increase ease of moving cart by hand and I believe make highway travel safer over all. 540106



- AM30620
by:

Tire and wheel arrived a day sooner than expected. It looks like it is just what I needed. 525430



- AM30620
by:

Great looking wheels and tires, fast shipping and they keep you informed. Great company 525216



- AM30620
by:

I just needed one wheel and tire, but without it I wasn't going anywhere. This company is great. They shipped it the same day I ordered it and I could not be happier with the service. 514634



- AM30620
by:

The tires for my trailer arrived without any problems. They were packaged in a heavy duty container and ready to put on my trailer. The description on the order page was accurate and allowed me to compare to other tires they had. Not only did I get exactly what I needed and wanted, I did not have to go out to shop for them and I also got a very good price for quality tires already mounted and ready to put on the trailer. 512503



- AM30620
by:

Great product and a major upgrade to the small 8in tires. I got my order in two days which was a big plus. 504478



- AM30620
by:

Both tires are slightly out of round, one more than the other. It is obvious when I jack the trailer up and spin the wheels. It’s not a huge deal for me since I only use the trailer locally, but not sure if I’d want to make a long haul with them. Visually the rims and tires look great. 489798



- AM30620
by:

The tire performed perfectly on my pwc trailer throughout the summer on short trips and also on a 1200 mile round-trip. I've had no issues. This was a great value and the right solution for me. 489299



- AM30620
by:

Great service, very helpful with questions and delivered as promise. Item fit lime a glove . Awsomme. Thank you 481825



- AM30620
by:

Great product, fast delivery 481230



- AM30620
by:

They are just fine thank you 474948



- AM30620
by:

Very happy with the tire rim combinations. Been on a couple long trips and no issues. 459377



- AM30620
by:

Nothing spectacular, just exactly what was advertised and what I needed. Shipped promptly and arrived quickly. I have only used them for a couple of miles so far. 453415


Comments

A year later, with over ten thousand miles on the wheels, and I am thoroughly happy. The trailer & load weigh about 500 lbs, and I expect at least another ten thousand miles on the tread, maybe 20 or 30.

Alan - 11/20/2018

45886
50
3831
Show More Reviews

Ask the Experts about this Kenda Tires and Wheels
Do you have a question about this Tires and Wheel?


  • What is Speed Rating of Kenda 4.80-12 Bias Trailer Tire with 12-Inch White Wheel # AM30620
  • The majority of trailer tires will be rated for speeds up to 65-mph. Unless a tire or wheel/tire combination is specifically rated for a different maximum speed you can conclude that its rating is 65-mph. This is the case for the Kenda # AM30620 that you referenced which does carry a 65-mph maximum speed rating. The linked article on trailer tires may be of interest to you.
    view full answer...

  • Replacement 12 Inch Wheel and Tire for a Harbor Freight/HaulMaster Trailer
  • When measuring for bolt pattern on an even bolt pattern you would measure from the center of one hole to the center of the hole diagonally across from it. In your picture you started measuring at the 1 inch mark. So if the adjacent measurement is 2-13/16 or 2-7/8 inches on center as it looks in your picture then the diagonal is 4 inches. For a replacement tire and wheel for your trailer you can use # AM30540. I also recommend a spare tire carrier such as # MT70214.
    view full answer...

  • Kenda vs Taskmaster Wheel and Tire Comparison for 4.80-12 on 4 Bolt Wheel
  • The Kenda Wheel and Tire part # AM30620 and the Taskmaster part # TTWAS12B4WMHP you referenced are very similar in a lot of ways. White wheel, 4 on 4 inch bolt pattern, Load Range of C, but the big difference is the speed rating. The Taskmaster is rated for speeds up to 81 MPH and the Kenda is only for up to 65 mph.
    view full answer...

  • Recommended 12 Inch Tire With Wheel Combination With 4-On-4 Inch Bolt Pattern
  • Yes, as long as you have fender clearance you can use a 4.80-12 wheel with 4 on 4 inch wheels. It will require an additional 2.5 inches for just the tire to clear. I recommend the Kenda 4.80-12 Bias Trailer Tire with 12" White Wheel - 4 on 4 - Load Range C # AM30620. This combination handles very well at high speeds and the wheel has a white powder coat over an e-coat for rust resistance. I've attached a video to help. If you want a radial option, I recommend the Kenda Karrier...
    view full answer...

  • Availability of 4.80 X 12 Tire that Fits 4 Inch Wheel
  • The closest metric trailer tire size to a 4.80x12 is going to be a 145/80-12. The two tires we have in that size are # AM10140 and # AM10130. These tires fit 12" x 4" wheels. # AM10130 has a maximum load capacity 1,220 lbs at 65 psi # AM10140 has a maximum load capacity of 1,520 lbs at 80 psi. I have included demonstration videos of these tires for you to check out.
    view full answer...

  • Trailer Tire and Wheel With 4 on 4 Bolt Pattern
  • The largest tire and wheel combination you can get with a 4 on 4" bolt pattern is going to have a 13" rim and 175/80-13 tire. This will give you a tire and wheel that is a total of 24" in diameter and 6.6" wide, which will be 7.9" larger in diameter and 2" wider than your current set up. Depending on the capacity you need, your options for this are the Loadstar # AM3S040, which has a 1,100 lb capacity at at 35 psi or the Loadstar # AM3S130 which has a 1,360 lb capacity at 50 psi.
    view full answer...

  • Comparison Of Taskmaster And Kenda 12-Inch Bias-Ply Tire Wheel Combo
  • The Taskmaster, part # TTWAA12WS and the Kenda, part # AM30620 are very similar. They are both 6-ply 12 inch bias ply tires and are Load Range C tires mounted on a 12 inch 8-spoke steel wheel. The wheels have a 4 on 4 bolt pattern. The only difference between these two combos is the pilot hole on the wheel. The # TTWAA12WS combo has a pilot hole diameter of 2.5 inches and the # AM30620 pilot hole measures 2.84 inches diameter.
    view full answer...

  • What is the Speed Rating of the Kenda Bias Trailer Tire with 12 inch Wheel # AM30620
  • All of the tires we carry at this point have a speed rating of 65 miles per hour, including this Kenda Bias Trailer Tire with 12 inch White Wheel, part # AM30620.
    view full answer...

  • Installing Larger Tires on Boat Trailer with 4.80-8 Tires
  • You can use larger 4-on-4 wheels/tires on your boat trailer as long as you keep about 2-1/2-inches clearance above the tires to allow for normal suspension travel. Your 4.80-8 tires are 16-inches in diameter and the nearest larger size on a 4-on-4 wheel is 215/60-8 part # AM3H290 which is 18.3-inches in diameter. This tire will reduce you fender clearance by about an inch. If you refer to the linked article on tire sizes you'll be able to see the various sizes and their load ratings...
    view full answer...

  • Trailer Tire Replacement for Size 4.80-12
  • Looking at your current fender clearance I would not recommend going with a wider and taller tire than what you have. Sticking with a 4.80-12 would be your best option. For just a tire in tha size we have the part # TT48012C which would work well. For a tire and wheel with the same 4 bolt pattern you have you'd want the part # AM30620.
    view full answer...

  • Availability of Trailer Wheels with 5-on-5-Inch Bolt Pattern
  • The 5-on-5-inch wheel bolt pattern is less common these days but we do offer lots of choices in both wheels alone and wheels with a tire pre-mounted. The linked page will show you all items in this bolt pattern. For example, for a wheel only we offer silver finish 15 x 5-inch # AM20427 and white powder-coat finish # AM20428. Or for a tire-with-wheel we offer items like # TTWAS15B5SM, which is a silver 15 x 5 wheel with a ST205/75D15 bias-ply trailer tire. If you prefer to switch your...
    view full answer...

  • Loadstar or Kenda Tires
  • Kenda is the name of the tire manufacturer, and Loadstar is the name of the model or tread design of the particular tire. If you click on the second thumbnail photo under the photo on the product description page, and scroll your cursor over it, you can see Loadstar printed on the tire. The part # AM30620 is a load range C tire with a 990 lb capacity at 90 psi. For maximum tire life and performance, trailer tires should be kept at the maximum pressure shown on the tire sidewall.
    view full answer...

  • Availability of Trailer Wheel and Tires in Size 4.80-12
  • We have trailer wheels that have the tire size 4.80-12 mounted on them. We have the part # AT12R45WM for if you have a 5 on 4-1/2 inch bolt pattern or for a 4 on 4 inch bolt pattern you'd want the part # AM30620.
    view full answer...

  • Does Trailer Wheel Pilot Diameter Matter when Picking Out New Wheels
  • A slightly larger pilot diameter doesn't matter as long as the wheel is a lug-centric wheel and not a hub-centric wheel. If your wheel are attached with lug nuts then you have a lug-centric wheel. If instead you use wheel bolts then the wheel is hub-centric and the pilot diameter needs to be exact. Without knowing what your current tire size is it would be hard for me to know if the # AM30620 would be the correct replacement wheel and tire for you, but if you happen to have a 4.80-12...
    view full answer...

  • Availability of Trailer Wheels with 5 on 5 and 5 on 5-1/2 Bolt Pattern
  • The 5 on 5 and 5 on 5-1/2 bolt patterns are not common any longer. We do have a few options though and I have included links to the right for you. If you wanted to switch to a more common bolt pattern you would have to replace the hubs. And for that I would need to know the inner and outer bearing numbers stamped into the bearings. I have also included a link that shows how to measure for bolt pattern.
    view full answer...

  • DOT Trailer Tire Recommendation to Replace a 18.5x8.5x8 Tire
  • The closest trailer tire size we offer to your 18.5x8.5x8 tire size would be a 215/60-8. This is essentially the same size as what you have. For a replacement tire I would recommend the part # AM1HP28. This is a DOT tire that has 1,165 lbs of capacity per tire when inflated to 70 psi that should work well for you. I attached an FAQ article on trailer tires for you to check out as well.
    view full answer...

  • Can a Trailer Wheel with Larger Center Pilot Hole Fit the Same Hub as Wheel with Smaller Pilot Hole
  • Yes, since the wheels you have now attach to the hub using lug nuts you can go with a wheel that has a larger pilot hole than the previous wheels. You just can't go to a smaller pilot hole. A wheel that attaches using lug nuts centers on the hub using those lug nuts. This is called a lug-centric wheel. If the wheel attached with bolts then the pilot hole would have to be exact since the wheel would center on the hub via the pilot hole. This is called a hub-centric wheel. So in...
    view full answer...

  • Availability of Trailer Wheels with 5 on 5-1/2 inch Bolt Pattern
  • The 5 on 5-1/2 bolt pattern is very rare nowadays. We only have that bolt pattern available in 15 inch wheels # TTW550555WS1. The most common bolt patterns now for 10 inch wheels will either be a 4 on 4 inch or a 5 on 4-1/2. To use either of these wheels you would have to change the hubs on your trailer. To select the correct hubs I would need to know the inner and outer bearing numbers stamped into the sides of the bearings. The other option is to replace the axle with a new one....
    view full answer...

  • Availability of 4.80-12 Trailer Tire on 4 Lug 4 Inch Bolt Circle Wheel
  • We offer several different wheel/tire combos that feature a 4.80-12 tire on a 12 inch rim with a 4 lug 4 inch bolt circle. We have a 4.80-12 load range C with a 990 lb capacity available on a white steel wheel, part # AM30620, a galvanized wheel, part # AM30630 or an aluminum wheel, part # AM30677. A load range B tire with a 785 lb capacity is available on a white steel wheel, part # AM30540 or a galvanized wheel as part # AM30550. I have also linked you to our trailer tire FAQ...
    view full answer...

  • Replacement Tires and Wheels for a 1995 Tracker Trailstar Pontoon Trailer with 20.5x8-10 Tires
  • The metric equivalent to a 20.5 x 8-10 is an ST205/65-10. There are 2 different bolt patterns in this size: 4 on 4 and 5 on 4-1/2. You will want to measure the bolt pattern to make sure you get the correct one. Other important information you will need is the capacity of the existing tires. I have included some links that will help with measuring bolt pattern and trailer tires. I have also linked all of the tire and wheel combinations we have for the ST205/65-10 size.
    view full answer...

  • Recommendation for 4.80 x 12 Trailer Tire and Wheel Combo for Highway Speeds
  • We have numerous 4.8-12 tire/wheel combos available depending on the bolt pattern you need. For a 4 on 4 bolt pattern, I recommend Kenda 4.80-12 Bias Trailer Tire with 12 inch White Wheel, # AM30620. This is a load range C tire with a 6 ply rating and 990 pound capacity at 90 psi. It comes with a 12 inch white rim. This tire/wheel combo is rated for a maximum speed of 65 miles per hour. For a 5 on 4-1/2 bolt pattern, I recommend Kenda 4.80-12 Bias Trailer Tire with 12 inch White Wheel,...
    view full answer...

  • Does it Matter If New Camper Wheels have Larger Center Diameter than Older Wheels
  • If your trailer hubs secure the wheels with lug nuts then it's okay if the pilot diameter (wheel center hole) is larger than needed as the lug nuts are what center the wheels to the hub. If the hub uses bolts instead to secure the wheel then it is important that the wheel center hole matches perfectly as it's what centers the wheel to the hub. Most Coleman campers are going to use lug-centric setups based on our experiences but it is possible you have something different going on.
    view full answer...

  • Measuring for Bolt Pattern for Replacement Wheels on a Pontoon Boat Trailer
  • It is likely that you have 5 on 4-1/2 inch bolt pattern wheels since there is no 5 on 4-1/4. Measuring for bolt pattern on a odd numbered lug hole wheel can be tricky. You pretty much have to remove the wheel from the hub. You can also measure from the center of one bolt hole to the center of the adjacent bolt hole. If that distance is 2-5/8 inches then you do have 5 on 4-1/2 wheels. I have linked a how-to article that explains how to measure for bolt pattern. I have linked the wheels...
    view full answer...

  • How to Pick out Replacement Bearings for Boat Trailer
  • The best way to find the correct replacement bearings is to get the numbers stamped onto the metal of the inner and outer bearings currently on the trailer. With those numbers you will be able to find the correct replacement bearings, races, and seals. Another option is to measure the spindle of your trailer. You can use a micrometer to get the diameter where the seal, inner, and outer bearings ride. See picture. I have included a link to a video on inspecting trailer bearings that should...
    view full answer...


Do you have a question about this Tires and Wheel?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality tires and wheels for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate tires and wheel information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Photos by:
Theodore B
Expert Research:
Michael L
Expert Research:
Sarah L
Expert Research:
Robert G
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Jameson C
Expert Research:
John H
Expert Research:
Adam R
Updated by:
Laura H
Expert Research:
Lori W
Expert Research:
Jeffrey L
Updated by:
Mary E
Updated by:
Sarah W
Updated by:
Isabelle B

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.


Product Experts Available Now!

Call 800-298-8924
