Kenda 4.80/4.00-8 Bias Trailer Tire with 8" White Wheel - 4 on 4 - Load Range B

Kenda 4.80/4.00-8 Bias Trailer Tire with 8" White Wheel - 4 on 4 - Load Range B

Item # AM30000

lowest price pledge

Retail:$52.98

Our Price: $30.83

You Save: 42%
Tires and Wheels

Orders above $50 qualify for Free Shipping

Shipping Weight: 10 lbs

Arrives before Christmas with Ground or 3 Day Shipping.
Quantity:
In Stock, Ships Today
AM30000 - Standard Rust Resistance Kenda Tire with Wheel
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos

Bias tire has a ply rating of 4 and a 590-lb maximum load at 60 psi. The 8" diameter x 3-3/4" wide steel trailer wheel features a 4 on 4 bolt pattern and a corrosion-resistant powder coat finish. Lowest Prices for the best tires and wheels from Kenda. Kenda 4.80/4.00-8 Bias Trailer Tire with 8" White Wheel - 4 on 4 - Load Range B part number AM30000 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (4332)
  • Q & A (38)
  • Videos (1)
  • Photos
  • Why etrailer?

Kenda Tires and Wheels - AM30000

  • Tire with Wheel
  • 8 Inch
  • 4 on 4 Inch
  • 4.80/4.00-8
  • Load Range B
  • Steel Wheels - Powder Coat
  • Bias Ply Tire
  • Kenda
  • Standard Rust Resistance

Bias tire has a ply rating of 4 and a 590-lb maximum load at 60 psi. The 8" diameter x 3-3/4" wide steel trailer wheel features a 4 on 4 bolt pattern and a corrosion-resistant powder coat finish.


Features:

  • Trailer tire by Kenda is designed for excellent handling at high speeds
  • Steel wheel resists rust and corrosion
    • White powder coat finish over e-coat primer
  • Tire-and-wheel assembly meets Department of Transportation specifications


Specs:

  • Rim dimensions: 8" diameter x 3-3/4" wide
  • Bolt pattern: 4 on 4"
  • Wheel capacity: 910 lbs
  • Wheel bolt size: 1/2"-20
  • Pilot diameter: 2.5"
  • Tire size: 4.80/4.00-8
    • Section width: 4.6"
    • Outer diameter (when inflated): 16.1"
  • Tire capacity:
    • Load range: B
    • Ply rating: 4
    • Maximum load: 590 lbs at 60 psi
  • Maximum speed: 65 mph
  • Limited 2-year warranty on tire
  • Limited 1-year warranty on wheel



Notes:

  • These 4.80/4-8 tires fit in the same space as a 4.80-8 size tire, but are not an exact match. On a trailer with 4.80-8 tires, we recommend either replacing all tires/wheels with 4.80/4.8 tires, or replacing one or more with 4.80-8 tires.
  • The overall capacity of this tire-and-wheel assembly is limited to the lowest rated component. Do not fill your tire to a pressure greater than that indicated on the tire itself or on the wheel that it is mounted to.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"




30000 Solid 8" White Wheel and Kenda K371 Bias Tire - LR B

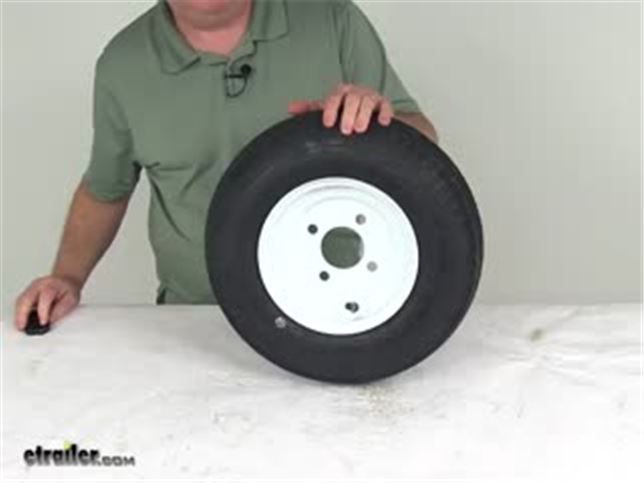

Video of Kenda 4.80/4.00-8 Bias Trailer Tire with 8" White Wheel - 4 on 4 - Load Range B


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Kenda Tires and Wheels - Tire with Wheel - AM30000 Review
