Heavy-duty 16" x 6" trailer wheel with offset has 8 on 6-1/2 bolt pattern and 4.9" pilot diameter. Rustproof aluminum wheel features an attractive star spoke pattern. Improved clamp force technology ensures that wheel stays in place. Lowest Prices for the best tires and wheels from HWT. Aluminum Hi-Spec Series 04 Star Mag Wheel w/ -8 mm Offset - 16" x 6" Rim - 8 on 6-1/2 part number TTWAL04167865HD can be ordered online at etrailer.com or call 800-298-8924 for expert service.
106.87
4.9541
Select Vehicle:change vehicle
summer hauling headquarters

Price: $106.87

Aluminum Hi-Spec Series 04 Star Mag Wheel w/ -8 mm Offset - 16" x 6" Rim - 8 on 6-1/2

Item # TTWAL04167865HD

lowest price pledge

Our Price: $106.87

This item qualifies for free shipping

Quantity:

zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
HWT Tires and Wheel
HWT Tires and Wheel
HWT Tires and Wheel
HWT Tires and Wheel

Videos


  • Wheel Only
  • 16 Inch
  • 8 on 6-1/2 Inch
  • Aluminum Wheels
  • Boat Trailer Wheels
  • Spoke Wheel
  • HWT



HWT Tires and Wheels - TTWAL04167865HD

Heavy-duty 16" x 6" trailer wheel with offset has 8 on 6-1/2 bolt pattern and 4.9" pilot diameter. Rustproof aluminum wheel features an attractive star spoke pattern. Improved clamp force technology ensures that wheel stays in place.


Features:

  • Heavy-duty aluminum wheel is durable, lightweight, and rustproof
  • Hi-Spec Series 04 star spoke pattern is attractive
  • Front and back of wheel are clear coated
  • Improved clamp force (ICF) technology helps to keep wheel securely in place
    • Bulletproof joint created between wheel and hub when properly installed
    • No need to retorque after initial installation
  • Valve stem is included
  • High-quality wheel meets DOT specifications


Specs:

  • Rim dimensions: 16" diameter x 6" wide
  • Bolt pattern: 8 on 6-1/2"
  • Wheel bolt size: 1/2"-20 or 9/16"-18
  • Pilot diameter: 4.9"
  • Offset: -8 mm
  • Capacity: 3,960 lbs
  • Lifetime warranty against structural defects


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.


Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)


Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)


Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


AL04167865HD HWT Heavy Duty Hi-Spec Series 04 Star Spoke 16x6 Aluminum Trailer Wheel with Offset - 8 on 6.5 - Silver

Compare to AM22692







Related Products



Customers compare TTWAL04167865HD to these similar products





Customers Who Purchased This Tires and Wheels Also Bought...







Video of Aluminum Hi-Spec Series 04 Star Mag Wheel w/ -8 mm Offset - 16" x 6" Rim - 8 on 6-1/2


Videos are provided As a guide only. Refer To manufacturer
installation instructions And specs For complete information.




Video Transcript for HWT Tires and Wheels TTWAL04167865HD Review

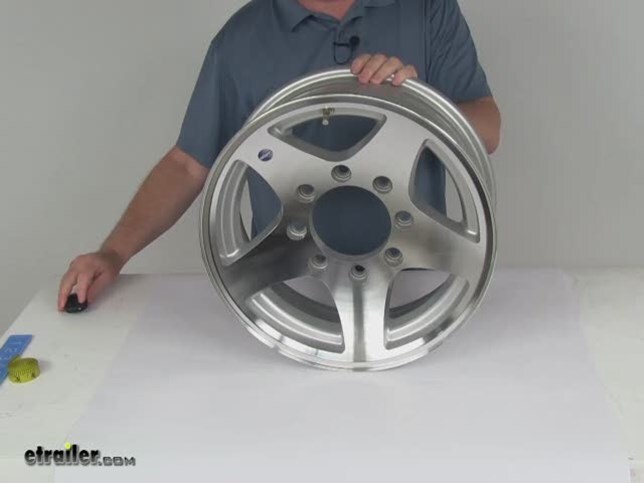

Today we're going to take a look at the HWT 16 inch x 6 inch Silver Hi Spec Series 04 Aluminum Trailer Wheel with the 8 on 6 and a half inch bolt pattern. Now this wheel's a heavy duty aluminum wheel which is very durable, lightweight and rust proof. The design is the Hi Spec Series 04 which is a star 5 spoke design which is very attractive. Has a nice machine polish face and then silver accent between the spokes. The front and the back of the wheel are all clear coated for protection. Now this is a high quality wheel that will meet the Department of Transportation's specifications. This is a heavy duty wheel and it does include the high pressure metal valve stem already pre-installed.

A few specs on this, the diameter which will be measured inside to inside is going to be 16 inches. If we take our tape measure, you can see if we go inside to inside all the way across, be right at 16 inch diameter. The width on the wheel again will be measured inside to inside, or bead seat to bead seat, right at 6 inches so 16 x 6. The bolt pattern on this wheel is 8 on 6 and a half inch bolt pattern. If you ever want to measure the bolt pattern, all you have to do on a wheel that's an even number of lugs, like in this case 8, is you just pick one of the holes and then measure directly from the center of that hole right across to the center of the hole right across from it. On this wheel, it would be measured 6 and a half inches so gives us the 8 on 6 and a half inch bolt pattern.

Now this wheel does use the wheel lug size of either a half inch by 20 or 9/16 by 18. The pilot hole diameter, which is the large hole here in the center of the wheel goes over the hub on your trailer, you can put a tape measure on that. It's going to be right at 4.9 inches. The load capacity on this wheel is 3960 pounds and this wheel does have a offset. It's a negative offset.

An offset on a wheel is determined by this mounting surface right here. When this mounting surface lines up directly with the center line of the wheel, that's a zero. That's the starting point. Now if this mounting surface moves back towards the trailer this way, to the back of the wheel which in this case it does, it's negative offset. This goes back 8 millimeters so when the mounting surface goes back, it does pull the wheel and tire out a little bit from your trailer. That should do it for the review on the HWT 16 x 6 Silver Hi Spec Series 04 Aluminum Trailer Wheel with the 8 on 6 and a half inch bolt pattern..


Customer Reviews

Aluminum Hi-Spec Series 04 Star Mag Wheel w/ -8 mm Offset - 16" x 6" Rim - 8 on 6-1/2 - TTWAL04167865HD

Average Customer Rating:  5.0 out of 5 stars   (41 Customer Reviews)

Heavy-duty 16" x 6" trailer wheel with offset has 8 on 6-1/2 bolt pattern and 4.9" pilot diameter. Rustproof aluminum wheel features an attractive star spoke pattern. Improved clamp force technology ensures that wheel stays in place.
- TTWAL04167865HD

by: Collin01/08/2017


My RV had a flat and to my surprise it was the rim that was leaking. I didn't know anything about rims so I wasn't sure how or where to order a suitable replacement. I called etrailer and their representative was very helpful. With their help I was able to quickly determine the size and characteristics of a suitable replacement. I then shopped around (local dealers, the OEM website, and other third party vendors) only to find that etrailer had the best selection and prices. After ordering the rim, I received confirmation that it shipped that same day. I was surprise too when it arrived the next day. DIYers are always looking for suppliers of quality products at the best prices so I'll continue to use etrailer in the future. 330961


- TTWAL04167865HD

by: Eric H.04/04/2017


I received exactly what I ordered, After a delay due to Mfg. backorder. Packaging was good, but a little more protection on the rim edges would be nice. I chose these wheels because of the higher "G" load rated Goodyear tires purchased locally which are replacing the poor Quality OEM "E" rated tires which came on my trailer in 2009.The wheels look great too! All correspondence with personnel at etrailer, both by phone and e-mail was exceptional! They kept me informed as much as could be expected, and even offered other wheels to choose when the MFG. backorder time was unknown. I will definitely recommend etrailer. 362433


- TTWAL0414545

by: Ron R07/16/2015

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Exactly what I wanted. The wheel matches the wheels on my 2006 Aluma MC210 motorcycle trailer perfectly. The wheel is even by the same manufacturer. The explanation online of the wheel was on target and allowed me to make a perfect match. I ordered it on Monday and received it Thursday. Thank you! 212268


Comments

Great!

Ron R - 07/16/2016

19437
- TTWAL04156545

by: Josh B.10/06/2012

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


This are good wheels for the price. I am happy with the purchase and love the look on my trailer. One thing that isn't visible in the picture is the paint on these wheels. The outer surface of the "star" pattern is machined aluminum but the area between the spokes and the inner surface of the wheel are painted sliver. The paint doesn't look bad but it was a little suprising. If you are wondering why a wheel only costs about $100 dollars, it's because they are made in China. With that being said, quality seems to be fairly decent. I would recommend this product to anyone. 56561


- TTWAL04156545

by: Bill T09/21/2016

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Best experience ever. Order was shipped quickly, wheels arrived double boxed, in mint condition. Excellent product quality. Upgraded to D load range 15's, hoping they do a little better on the long highway trips to the many lakes here in the PacNW. 297196


- TTWAL0412545

by: Robert P.09/06/2013

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Looks great and matches my motorcycle they are awesome 98652


- TTWAL041244

by: Bryan02/08/2013

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Your customer service / sales associates where top notch with knowing your products inside and out. The only thing was the first associate didnt inform me that the caps was not included in the price of the wheel, I had to call back, cancell the original order and place another on and she helped me get the order up to the price for free shipping. The quality of the wheel is out standing, not to mention the price compared to other manufactures. 65481


- TTWAL04156545

by: Wayne J.04/18/2011

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


The wheel looks better in person than on the website, but the presentation on the website is excellent. The brushed aluminum gives the wheel a stylish look, and it really gives the trailer a finished look with new tires & lugnuts. I definately would highly recommend this wheel. One hint - make sure whoever mounts the tires is very careful not to scratch the wheel, and uses weights adhered to the inside of the wheel not to scratch the outside also. 11918


- TTWAL0413545

by: Erik H.06/28/2016

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Excellent customer service prior to placing my order, quick shipping and the rims dressed up our little pop-up camper very nicely! I will use etrailer.com again and will recommend to friends and family. 265838


- TTWAL04156655

by: Dan N06/05/2017

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


The wheels are an exact match for my 2007 MasterCraft Phoenix trailer. I purchased the wheels as spares so that they match the primary trailer wheels. The quality is spot on and they mounted up well. 388862


- TTWAL04156545

by: Randy W.05/04/2015

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Rims look fantastic. Customer service was even better. One of the parts I needed was backordered. They called right away and were flexible enough to allow an exchange and arranged quick shipping. I was a little apprehensive about shipping aluminum rims but the packaging was outstanding and everything arrived in good shape. Would definitely recommend etrailer. 190056


- TTWAL0412545

by: David04/02/2013

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


This rim is exactly as advertised..Along with K353, 480-12, load C bias tire, it was a perfect match to Malones XT trailer up grade for its spare tire, for a significant savings...Am very pleased and will do further business with Etrailer with complete confidence in their product line, low prices and fast shipping, with excellent packaging of their products. 73809


- TTWAL0414545

by: TimB12/06/2015

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


This is a sharp looking set of wheels. This is my second purchase from Etrailer for a set of these wheels. I think the mag wheels are what sold my old travel trailer. I liked these wheels so much, I bought a second set for my new travel trailer. You cannot beat the price, quality or delivery time. 233245


- TTWAL04156545

by: BILL05/02/2015

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


GREAT WHEELS, ARRIVED IN PERFECT CONDITION WITHIN A WEEK, FREE SHIPPING, GREAT CUSTOMER SERVICE. 189417


- TTWAL0413545

by: David P.08/26/2015

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Everything arrived very quickly and was exactly what I ordered. etrailer had a great variety of products allowing me to order all the different parts I needed for my boat trailer in a single order. I have already placed additional orders based on how good my first experience was! 221828


- TTWAL0414545

by: Michael04/08/2017

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


I bought this wheel to have a spare for my tandem axle boat trailer. I haven't actually used it yet but it matches the existing wheels almost exactly and the bolt pattern is correct. The wheel seems fine and hopefully I won't need to actually use it. 364674


- TTWAL04156545

by: Michael02/23/2013

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Wheels are exactly as described, packaged well and in perfect shape, not to mention the rapid shipping. The whole process was painless and I will be back for more. Thank you all.. MB 67536


Comments

Is this rim offset zero 0?

-- comment by: Robert - 04/24/2013

1448

The offset on most trailer wheels is 0. We only note offset in our product descriptions if it is not 0.

-- Patrick B - 4/25/2013

- TTWAL04167655

by: Dan Miller09/23/2016

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


I was a bit worried at first ordering wheels and tires on line. But to my great relief everything went great and when I had a question after the delivery etrailer was right there for me 300350


- TTWAL0414545

by: Bryan S.07/04/2016

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Nice wheel , fits my boat perfectly. I am using this one for a spare that was missing on my express bay boat and it almost matches perfectly.cant beat this wheel for the money! 268019


- TTWAL0414545

by: Frank C09/16/2016

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Great people to deal with. Very knowledgeable and prompt service. Product received quickly and packaged well. Thank you for the excellent customer service. 295274


- TTWAL041344

by: DougT03/20/2014

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


The products delivered were great looking and our customer really liked the wheels. Thanks for the efficient service. Will definitely be coming back. 121347


- TTWAL0413545

by: Jeff06/02/2016

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


The detailed item description and specifications helped me make the correct decision. I especially appreciated the free shipping. 255955


- TTWAL04156545

by: Don in MO03/05/2014

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


This is one sharp set of wheels! Will look great on my travel trailer. Delivery as always was super fast. 118535


- TTWAL041244

by: Mike C11/12/2014

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Great looking wheel fast shipping would recommend this wheel. FYI Its on my Harley with a sidecar... 160552


- TTWAL0412545

by: Bob R12/13/2012

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Good looking wheels. Too bad they were shipped in a box with metal staples that scratched the wheels. 61305


- TTWAL0414545

by: Gino Mangiapane06/10/2016

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


It matched exactly. Etrailer.com has been great. They have everything for my boat trailers. 259808


- TTWAL0414545

by: Scott12/24/2016

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Great service fast shipping No photos yet waiting for tires to be mounted Thanks 327780


- TTWAL04167655

by: roger04/22/2016

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


easy ordering. fast shipment.item arrived in perfect condition. will order again. 246548


- TTWAL0414545

by: Jeff G03/09/2017

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Great product and customer support. Quick delivery and great price. 350309


- TTWAL04156545

by: Mark09/27/2016

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Matched my existing wheels perfectly. Exactly what I needed. 300559


- TTWAL0414545

by: Danny Y04/07/2017

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Great service, easy to order, customer friendly. 364019


- TTWAL04156655

by: Shawn Boozer08/26/2016

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Two years of use and they have held up well. 288033


- TTWAL04156545

by: ED D06/04/2016

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Nice wheel and delivered when needed. 257148


- TTWAL0414545

by: Shad05/31/2016

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Product as advertised! Fast shipping 254360


- TTWAL0414545

by: Ward B07/01/2017

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Exactly as described. No issues! 400955


- TTWAL0414545

by: mark E Mcdaniel06/30/2016

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


great just like the other 2 266579


- TTWAL04156655

by: D,B.02/22/2017

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


quick shipping gd service 344658


- TTWAL0413545

by: Nice!06/23/2016

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Strong and light weight 264114


- TTWAL0414545

by: Paul u09/22/2016

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Perfect fast delivery 297524


- TTWAL0414545

by: PhillipA04/26/2017

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


No issues to report. 372528


- TTWAL04156545

by: Ed02/19/2015

Review from a similar HWT Hi-Spec Series 04 in Tires and Wheels


Renee very helpful 175302


42
42


Ask the Experts about this HWT Tires and Wheels
Do you have a question about this Tires and Wheel?





    • Why etrailer.com?

      At etrailer.com we guarantee:

    • Highest quality tires and wheels for the best price.

      Our Lowest Price Pledge ensures you will never overpay for the parts you need.
    • Real product know-how.

      We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
    • Most detailed, accurate tires and wheel information available.

      Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
    • Installations, made easy.

      We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
    • Fast shipping.

      Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
    • Personalized service for life.

      We provide one-on-one, personalized service from the ordering process through the life of your product.
    • Trusted since 1946.

      We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
    • Returns Policy

      Satisfaction Guarantee
      Need to return an item? Read our Returns Policy. Please note that we cannot exchange items. You can also cancel unshipped items. Contact our Customer Service team at 800-298-8924 to find out more about how to cancel your order.

    Info for this part was:


    Edited by:
    Leah B

    Installed by:
    Jeff D

    Photos by:
    Zach O

    Written by:
    Mary E

    Updated by:
    Sarah W

    At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.




    ^
    About Us
    photos and videos
    1,056,204

    Original Photos & Videos

    Produced to make sure you know what you are getting and you get exactly what you need.

    installations
    35,570

    Installations Completed

    To make sure products work and fit the way they are supposed to.

    etrailer call center
    2,476,511

    Phone Calls & Emails Answered

    1,125,924 phone calls and 1,350,587 emails to help find the right solution.

    etrailer training
    400+

    Average Hours of Product Training

    We get to know our products firsthand so experts can better help you.

    etrailer service
    71

    Years of Quality Customer Service

    Assisting our neighbors and customers, face to face at the counter.

    etrailer experts
    193,357

    Pages of Expert Information

    Created to make sure you have all the answers to your questions, from real experts.
