Aluminum HWT Hi-Spec Series 03 Mod Trailer Wheel - 15" x 6" Rim - 5 on 4-1/2

Aluminum HWT Hi-Spec Series 03 Mod Trailer Wheel - 15" x 6" Rim - 5 on 4-1/2

Item # AM22627

lowest price pledge

Retail:$181.22

Our Price: $86.82

You Save: 52%
Tires and Wheels

Orders above $99 qualify for Free Shipping

Shipping Weight: 17 lbs

Quantity:
In Stock, Ships Today
HWT Tires and Wheels - AM22627
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Videos


  • Wheel Only
  • 15 Inch
  • 5 on 4-1/2 Inch
  • Aluminum Wheels
  • Boat Trailer Wheels
  • Best Rust Resistance
  • HWT
Sturdy, stylish aluminum trailer wheel is lightweight, provides superior corrosion protection and meets Department of Transportation standards. Lowest Prices for the best tires and wheels from HWT. Aluminum HWT Hi-Spec Series 03 Mod Trailer Wheel - 15" x 6" Rim - 5 on 4-1/2 part number AM22627 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (107)
  • Q & A (9)
  • Videos (1)
  • Photos
  • Why etrailer?

HWT Tires and Wheels - AM22627

Sturdy, stylish aluminum trailer wheel is lightweight, provides superior corrosion protection and meets Department of Transportation standards.


Features:

  • Durable, corrosion-resistant aluminum construction
  • Hi-Spec series 03 design is unique and appealing
  • Front and back of wheel are clear coated
  • Improved clamp force (ICF) technology helps to keep wheel securely in place
    • Bulletproof joint created between wheel and hub when properly installed
    • No need to retorque after initial installation
  • Attractive modular pattern
  • High-quality wheel meets DOT specifications


Specs:

  • Rim dimensions: 15" diameter x 6" wide
  • Pilot hole diameter: 3.19"
  • Bolt pattern: 5 on 4-1/2"
  • Wheel bolt size: 1/2"-20
  • Capacity: 2,150 lbs
  • Rim takes valve stem with a 0.453 diameter only - AM20904, AM20903
  • Lifetime warranty against structural defects


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"




22627 HWT Hi-Spec Series 03 Aluminum Mod Wheel - 15"






Video of Aluminum HWT Hi-Spec Series 03 Mod Trailer Wheel - 15" x 6" Rim - 5 on 4-1/2


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

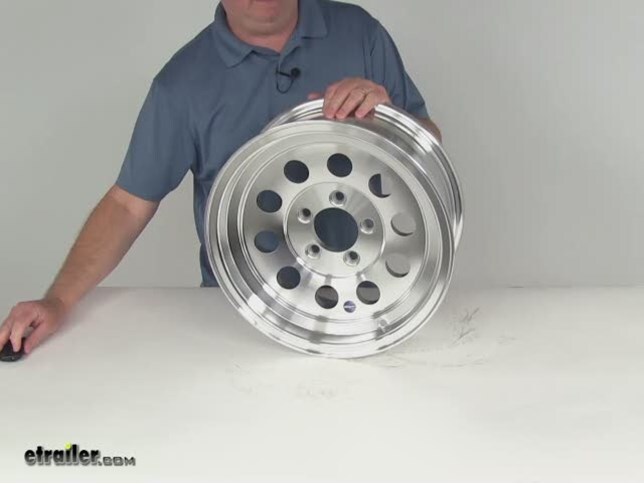

Video Transcript for HWT Tires and Wheels - Wheel Only - AM22627 Review

Today we're going to review part number AM22627. This is the HWT 15" by 6" High-Spec Series 03 Silver Modular Aluminum Trailer Wheel with the 5" on 4 and 1/2" Bolt Pattern. Now this wheel is a durable, corrosion resistant aluminum construction. It's very lightweight. The design on this is a very HI-Spec series 03 modular design. When they say modular design, it has the round holes all the way around.

It has the silver accents. It's a very attractive wheel. If you notice the face of the wheel and the lip is all a machine polished finish that gives a shine to it. Then they clear coat the front and even the back of the wheel to protect that finish. Now this wheel does use the ICF technology which is improved clamp force. That's designed to help keep the wheel securely in place so there's no need to re-torque it after your initial installation.

This is a high quality wheel. Meets the Department of Transportation's specifications. A few specs on this starting with the diameter of the wheel. Now the diameter's always measured inside to inside. It's 15".

We're going to take a tape measure and we're going to put it right on there. You can see 15" for the diameter. The width is the same way, inside to inside or bead seat to bead seat. As you can see, 6" so 15" by 6". The bolt pattern on this wheel is a 5" on 4 and 1/2" bolt pattern. Now if you go to measure the bolt pattern on a wheel like this that's an odd number of lugs, what you'll need to do is pick one of the holes like this one and then you'll measure from the center of that hole directly across to either one of these holes, but you'll measure to the outer edge.

Center of the starting hole to the outer edge. Let's do this one to this one and that'll give you an idea of the bolt pattern. We'll take our tape measure and go center to outer edge and you can see is right at 4 and 1/2". 5" on 4 and 1/2" bolt pattern. This wheel does use the wheel lug size of a 1/2" by 20". The pilot hole diameter which is the large hole here in the center of the wheel goes over the hub of your trailer. The diameter of that opening is going to be right at 3.19 inches and the weight capacity on this wheel is 2,150 pounds. That should do it for the review on part number AM22627. This is the HWT 15" by 6" Hi-Spec Series 03, Silver Modular Aluminum Trailer Wheel with the 5" on 4" and 1/2" Bolt Pattern.
