Aluminum HWT Series S5 Split Spoke Trailer Wheel - 12" x 4" Rim - 5 on 4-1/2 - Black

Item # AM22319HWTB

lowest price pledge

Our Price: $67.44

This item qualifies for Free Shipping

Select Ground or 3 Day Shipping for delivery before Christmas

Quantity:

In Stock
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

spin image icon
hwt tires and wheels 12 inch 5 on 4-1/2 aluminum series s5 split spoke trailer wheel - x 4 rim black
hwt tires and wheels wheel only 12 inch aluminum series s5 split spoke trailer - x 4 rim 5 on 4-1/2 black
hwt tires and wheels 12 inch am22319hwtb

Customer Photos

hwt tires and wheels wheel only 12 inch am22319hwtb

Videos


  • Wheel Only
  • 12 Inch
  • 5 on 4-1/2 Inch
  • Aluminum Wheels
  • Boat Trailer Wheels
  • Split Spoke Wheel
  • HWT
Sturdy, stylish aluminum trailer wheel is lightweight, provides superior corrosion protection and meets Department of Transportation standards. Improved clamp force (ICF) technology ensures that it stays in place once properly mounted. Lowest Prices for the best tires and wheels from HWT. Aluminum HWT Series S5 Split Spoke Trailer Wheel - 12" x 4" Rim - 5 on 4-1/2 - Black part number AM22319HWTB can be ordered online at etrailer.com or call 800-298-8924 for expert service.



HWT Tires and Wheels - AM22319HWTB

Sturdy, stylish aluminum trailer wheel is lightweight, provides superior corrosion protection and meets Department of Transportation standards. Improved clamp force (ICF) technology ensures that it stays in place once properly mounted.


Features:

  • Durable, corrosion-resistant aluminum construction
  • Hi-Spec Series S5 split-spoke design with black interior is unique and appealing
  • Front and back of wheel are clear coated
  • Improved clamp force (ICF) technology helps to keep wheel securely in place
    • Bulletproof joint created between wheel and hub when properly installed
    • No need to retorque after initial installation
  • High-quality wheel meets DOT specifications


Specs:

  • Rim dimensions: 12" diameter x 4" wide
  • Bolt pattern: 5 on 4-1/2"
  • Wheel bolt size: 1/2"-20
  • Capacity: 1,520 lbs
  • Pilot diameter: 3.19"
  • Lifetime warranty against structural defects


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.


Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)


Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)


Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


22319HWTB Hi-Spec Series S5 Split-Spoke Aluminum Wheel - Black - 12"







Economy - This item

Aluminum HWT Series S5 Split Spoke Trailer Wheel - 12" x 4" Rim - 5 on 4-1/2 - Black


Aluminum HWT Series S5 Split Spoke Trailer Wheel - 12" x 4" Rim - 5 on 4-1/2 - Black
HWT Tires and Wheels

169 reviews

Code: AM22319HWTB

In Stock

Our Price: $67.44


  • Tires and Wheels
  • Wheel Only
  • 12 Inch
  • Split Spoke Wheel
  • 5 on 4-1/2 Inch
  • Aluminum Wheels
  • Boat Trailer Wheels
  • HWT


Sturdy, stylish aluminum trailer wheel is lightweight, provides superior corrosion protection and meets Department of Transportation standards. Improved clamp force (ICF) technology ensures that it stays in place once properly mounted.

more information →
Compare Similar Products
Economy
Price: $62.78
$4.66 Less

Aluminum Split Spoke Trailer Wheel - 12" x 4" Rim - 4 on 4


Aluminum Split Spoke Trailer Wheel - 12" x 4" Rim - 4 on 4
HWT Tires and Wheels

169 reviews

Code: AM22318HWT

In Stock

Retail:$76.26

Our Price: $62.78


  • 4 on 4 Inch


Sturdy, stylish aluminum trailer wheel is lightweight, provides superior corrosion protection and meets Department of Transportation standards.

more information →
Value
Price: $95.49
$28.05 More

Aluminum HWT Hi-Spec Series 03 Mod Trailer Wheel - 14" x 5-1/2" Rim - 5 on 4-1/2


Aluminum HWT Hi-Spec Series 03 Mod Trailer Wheel - 14" x 5-1/2" Rim - 5 on 4-1/2
HWT Tires and Wheels

87 reviews

Code: AM22327

In Stock

Our Price: $95.49


  • 14 Inch
  • Modular Wheel


Sturdy, stylish aluminum trailer wheel is lightweight, provides superior corrosion protection and meets Department of Transportation standards.

more information →
Premium
Price: $164.07
$96.63 More

Westlake ST205/75R15 Radial Tire w 15" Jaguar Aluminum Wheel - 5 on 4-1/2 - LR D - Gray


Westlake ST205/75R15 Radial Tire w 15" Jaguar Aluminum Wheel - 5 on 4-1/2 - LR D - Gray
Westlake Tires and Wheels

12 reviews

Code: LHAWLSJ301G


Our Price: $164.07


  • Tire with Wheel
  • Radial Tire
  • Load Range D
  • 205/75-15
  • 15 Inch
  • Westlake


Radial tire has 8-ply rating and 2,150-lb max load at 65 psi. 15" x 5" Aluminum wheel has 5 on 4-1/2 bolt pattern. Nitrogen fill maintains tire pressure. 1-Year No Excuses Guarantee on tire. Complimentary roadside assistance included.

more information →

Related Products



Customers compare AM22319HWTB to these similar products





Customers Who Purchased This Tires and Wheels Also Bought...

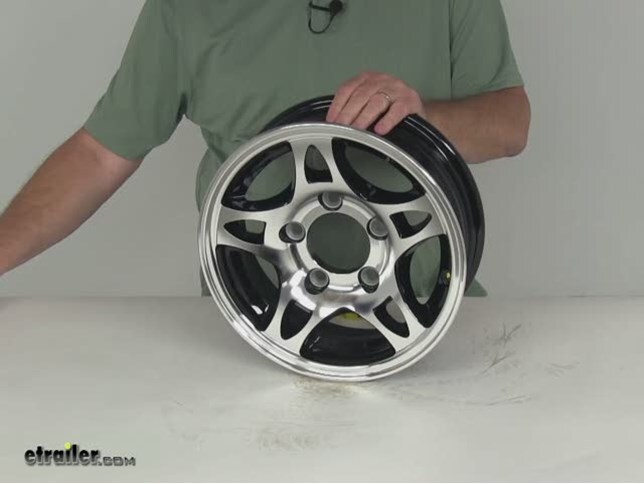

Video of Aluminum HWT Series S5 Split Spoke Trailer Wheel - 12" x 4" Rim - 5 on 4-1/2 - Black


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for HWT Tires and Wheels AM22319HWTB Review

Today we're going to review part number AM22319HWTV. This is the HWT 12 inch by 4 inch Series S5 Black Split-Spoke Aluminum Trailer Wheel with the 5 on 4 and a half inch bolt pattern. This wheel as a durable, corrosion-resistant aluminum construction. It's very light weight. The design of the wheel is a Hi-Spec Series S5 split-spoke design, you can see the split spokes right here. It has a machine polished face and lip, and if you'll notice the accent in between the spokes is black.

It's a very attractive looking wheel. Now the face being machine polished gives a nice shine to the wheel and they do do a clear coating on the front and the back of the wheel to protect hat finish. Now this wheel does use the ICF technology, which is improved clamp. This is designed to help keep your wheel securely in place so there's no need to retorque after your initial installation. This is a High-quality wheel, it does meet Department of Transportation specifications. A few specs on this, starting with the diameter.

The diameter on this wheel, which is measured inside to inside, is going to be 12 inches. So we'll take a tape measure and we'll go inside to inside. You can see right at 12 inches for the diameter. The width, same way. Inside to inside or bead seat to bead seat.

We're right at 4 inches, so 12 inches by 4 inches. The bolt pattern on this wheel is a 5 on 4 and a half inch bolt patter. If you go to measure that on a wheel that has an odd number of lugs, in this case 5, just pick on of the holes, we'll pick this one, and then you're going to measure from this hole directly across to either on of these holes. The key to measuring it is from the center of the starting hole to the furthest edge. If we take our tape measure and go center to furthest edge it's 4 and a half inches so 5 on 4 and a half inch bolt pattern. This does use a wheel lug size of a half inch by 20.

The pilot hole diameter, which is the large hole here in the center of the wheel, this goes over the hub on your trailer. The diameter of that opening is going to be right at 3.19 inches. The weight capacity on this wheel is 1,520 pounds. That should do it for the review on part number AM22319HWTV. This is the HWT 12 inch by 4 inch Series S5 Black Split-Spoke Aluminum Trailer Wheel with the 5 on 4 and a half inch bolt pattern.


Customer Reviews

Aluminum HWT Series S5 Split Spoke Trailer Wheel - 12" x 4" Rim - 5 on 4-1/2 - Black - AM22319HWTB

Average Customer Rating:  4.9 out of 5 stars   (169 Customer Reviews)

Sturdy, stylish aluminum trailer wheel is lightweight, provides superior corrosion protection and meets Department of Transportation standards. Improved clamp force (ICF) technology ensures that it stays in place once properly mounted.

- AM22319HWTB

by: Speed A06/11/2017


Very nice wheels and caps, Looks great on the trailer I put behind my Trike. 391848



- AM22319HWTB

by: Ed G.07/20/2017


Excellent, matches my Sno-Pro OEM one exactly. Admittedly I have not had to actually use it beause it is a spare tire for my trailer, however, I am certain that buying it and attaching it to the trailer is the very reason I have never needed it!!! :-) 408220



- AM22319HWTB

by: Edward06/02/2017


Wheels look great . Thanks etrailer you do what you say you are going to do. Thanks again. 387788



- AM22319HWTB

by: A.Castillo11/23/2016


Great thanks for the on time delivery and the free shipping. Wheel looks awesome! 319036


Comments

Still great looking wheels. Lot of friends are asking where did i purchased them.

A.Castillo - 11/24/2017

31221

- AM22319HWTB

by: Dwayne Holt06/30/2016


Nice looking wheel very pleased with product and shipping time 266650



- AM22319HWTB

by: Larry Houle07/05/2014


outstanding product, well packaged and on time 139422



- AM22319HWTB

by: bill04/26/2017


fit perfect look good 372676



- AM22318HWTB

by: Dan C05/31/2017

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


To start, these wheels are beautiful. Upon receiving my two wheels, I first tested them to make sure they fit the 4 on 4 lugs on the Hub I also received from etrailer, they did fit perfectly. Shipping was immediate, receiving them across the country in perfect condition. I must comment on several reviews I have read concerning etrailer.com. Their service is excellent. I di order a part that is manufactured in Canada, and it was shipped in the original cartons that they were placed in from Canada. Upon receiving my order, half of the product was missing, yet I received a duplicate of the other half of the order. I immediately notified etrailer.com about the mix up and explained I was facing critical time restraints because I was building a Pull-Behind motorcycle trailer and needed to complete my build by the 18th of June when I am leaving for a 3 week motorcycle tour across our Great Country. etrailer came through fantastically. They immediately emailed me a prepaid UPS label to return the mis-sent products and located the crucial parts I needed to complete my build. The correct parts were located in another state, so etrailer had those parts Drop Shipped straight to my residence. I received those parts today, May 30, 2017 in plenty of time to complete my build to begin my journey I have been planning for over two years. etrailer.com really went above and beyond the norm for your typical Customer Service received from what seems to be most retailers. I will admit I was concerned my trip would be ruined because of the reviews I had read about etrailer.com. However, I have since ordered custom aluminum wheels, cap, fenders and several other parts having full confidence they will arrive in short order. Even over Memorial Day weekend I order the fenders I needed and received notification they had shipped on Saturday, right in the middle of the First major holiday of the summer. I have been writing reviews for a major retailer for several years now and depend on honest people to write honest reviews about experiences they have had with any type of retailer. However, my first experience with etrailer has totally and completely shut down anything negative, I will NOT HESITATE a single second to order from etrailer.com in the future. They took great care in getting my order right. I realize that with my hundreds, if not thousands of orders I have made over the years from just about every online retailer, this experience that could have very easily turned ugly, was handled with extreme urgency and professionalism. etrailer.com made and uncontrollable error, but corrected it like a Great Company should, stood up at the plate, took responsibility and handled it to my Complete and utter Satisfaction! 5-Stras from me to you etrailer.com, you have earned my complete respect as an honest business with excellent Customer Service as equally important as making a profit! Thank You!! 386793



- AM22318HWTB

by: stewart04/23/2013

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


excellent online purchase. i called to get some details on this wheel and Bridget was more than helpful with my questions. the shipping was fast and the online tracking tool was most convenient. the wheel is top quality and very well made. etrailer.com is a pleasure to do business with. thanks to all... 77444


Comments

i have no complaints after a year.would definitely buy again if need be.highly recommend.

stewart - 04/23/2014

3704

- TTWALS5156545B

by: Jim07/12/2017

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


I received my wheels yesterday when the people at the tire shop opened the box there was scratches all around one and pieces cut out of other does know one inspect the product before sending it did not happen in transit you can see that when I called there comment was send pics will send new ones mail bad ones back so move my trailer again and pay again to mount no thanks I'll have to live with my purchase thanks 404601



- TTWALS5167865HDB

by: Wayne S.01/13/2015

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Excellent. The 8 year old wheels had worn out. Replaced them with these. In just a few minutes on the phone with Debora, we identified what we needed and they were on their way to Yuma AZ. I had been pacing while the tire dealer was trying to find replacements. After an hour I got on the phone and the solution was found in short order. Thank you ETrailer and Debora. Wayne S. 168849



- TTWALS556655B

by: Michael P.01/09/2015

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


I bought these for my 2010 29ft Travel Trailer, it originally had white spoke steel wheels. These wheels are excellent qaulity and made the trailer look much better. When i had them mounted only one wheel needed any weight to balance it, my tire guy couldnt believe it. I have bought a lot of products over the last couple of years from E Trailer and these guys deliver, very fast shipping, knowledgable staff to answer any questions you have. The prices are the lowest around with free shipping. I dont even look anywhere else anymore. Thanks e Trailer, keep up the good work!!! 168417



- TTWALS514545B

by: Eddie A.03/26/2014

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Wheels look great. These are an excellent upgrade for my boat trailer. I really do appreciate the professional and courteous help I received from etrailer. As with my other purchases, it was fast easy and delivery was as promised. Both Deborah H. and Wayne H. were a big help with my order. Thanks again! 122305



- TTWALS5167865HDB

by: mjljr04/21/2015

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


The First wheel showed up quickly. Too bad it had a large gouge in the rim area. The box was in perfect condition, telling me that the damage was done at the factory, not during shipping. I snapped a picture and sent it to Etrailer. Got an e-mail the next morning informing me that a replacement was being shipped out. Now Thats Service :-) The Wheel: Well, it's round and heavy built. The fit and finish is perfect. It's the same manufacturer as the wheel that came on our 5th wheel (14,780 lbs) but different design. It will work great as a 2nd spare. Will look much better if used than the white steel wheel's that scream "Look at me, I'm having a bad day". 186920



- TTWALS51354B

by: Rick B.06/21/2015

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Wheels fit perfectly and have gotten many good comments on the look. 206086



- AM22319HWT

by: Michael C.07/13/2017

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Once the rims arrived at the warehouse. I received my order in 2 days. These rims are perfect. No flaws. Ordered to replace the white spokes on the trailer to dress it up and match go with the rims on the trike kit. Mom and I are very pleased. 405452



- AM22318HWTB

by: Ed W.06/10/2014

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


What a great addition to my motorcycle pull behind trailer! I changed the old white spokes out for these real nice looking wheels and it made all the difference. Everyone that sees the difference have positive comments on how much it changed the overall look.. e Trailer shipped my order quickly and everything was very well packaged to eliminate any chance of damage occurring during shipping, Very Happy! 134983



- TTWALS5156545

by: Jerry T.01/08/2014

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


I AM VERY PLEASED WITH THE LOOK AND QUALITY OF THIS WHEEL. I REPLACED RUSTY STEEL WHEELS WITH THESE NEW ALUMINUM SPOKE WHEELS AND IT MADE A MAJOR UPGRADE TO MY 1995 MODEL TRAILER. I ADDED BEFORE AND AFTER PIC'S... 112268



- TTWALS514545B

by: David07/29/2016

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Great site! Best prices! Shipped as expected! Had a blowout on the boat trailer that ruined the wheel. With these prices decided to upgrade all the wheels. Looks much better. 277413



- TTWALS51354B

by: charles04/07/2013

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


As always,I was impressed by the service I received when I ordered my Wheels.I went with the free shipping to keep the already low price down,To my surprise Etrailer notified me they upped the shipping to three day shipping without any additional charge,Who does that ! I couldn't of been happier when I received them a couple days later and mounted new tires the same day and went fishing the next. Thanks again Guys, 74602



- TTWALS5156545B

by: Gary05/03/2015

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Great product ...I would highly recommend. Fit & Finish is done very professionally. Just a great looking wheel. Would highly recommend 189513



- TTWALS556655B

by: Ron M03/31/2014

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


I am so pleased with my new trailer rims. They far exceeded my expectations. I'm telling everyone that etrailer.com is the place to go. 123011



- TTWALS5167865HD

by: Bob W.08/03/2017

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


We purchased 4 of these wheels and paired them with the Taskmaster Provider tires for our Montana 5th wheel. We needed a 6.5 inch wheel with 110psi specification in order to use the new tires. We haven't had any issues with the wheels or the valve stems which were included with the wheels. Since installing them, we have put 5,000 miles on them, they have performed flawlessly. Perfect fit, function, and nice style. If you had the 4.10 inch chrome center caps from your old wheels like I did, they fit perfectly on these wheels. 414358



- AM22318HWT

by: Es Carr07/30/2017

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


From the initial click online to receiving my wheels at my front door, etrailer.com has provided me excellence in customer service, timely delivery, and perfectly a packaged product. The wheels are on a trailer that I pull behind a 2012 Honda Gold Wing with a Motor Trike Kit on the front end. We're headed for Denver, CO in a couple of weeks so when I dig the trailer out of my garage, I'll snap a few Pic and email them to you. Now I guess you'll have to add a Motorcycle to the page with the vehicles you service. 412608



- TTWALS5156545

by: Dirl Steffe, Jr.04/21/2017

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Was promptly notified when the wheels I ordered were temporarily out-of-stock and told when to expect them to be shipped. The wheels and other items arrived as soon as they were received from the supplier within the week. This is great communication and excellent customer service !! Upon getting the wheels and accessories I was very pleased with the quality of everything and the wheels look fantastic !! Keep up the good work etrailer .. I would highly recommend you to others !! Thanks for everything. 372326



- TTWALS51354B

by: Val P.07/31/2014

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Love the rims, valve stems, and chrome wheel nuts. Had radial tires mounted and both spun balanced. Very little weight was added. Carla was super great in handling my order. We even used a coupon to reduce the cost. Delivery was very prompt and tracking was helpful. Will order again without hesitation! I would suggest that the 2" box staples that are placed on the rim boxes are placed on the back side of the rim so the clear coat/rim is not scratched by the staple during shipping. 143872



- TTWALS5156545

by: Matt C.05/31/2015

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Very happy, love the way these dress out my trailer and the quality is great. 199213



- TTWALS556655B

by: Jon G.06/22/2016

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Wheels arrived in almost no time at all... Typical for Etrailer really, this team has never dragged out any of my orders. I will say that two of the four rims received did have some clear coat damage from contact with something. If this was an expensive street rod wheel I may have been furious but these are for a camper. Some wheel prep, a little clear coat work and BAM, handled. Not sure if damage was from the manufacturer or done during storage or packing. 263814



- TTWALS514545

by: Mark the Mariner03/31/2015

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Outstanding experience! Website was easy to use and full of detailed info on their offerings. Picked new wheels to resemble my Toyota Tundra's OEM wheels. Needed some tire advice so called the tech line and got great advice. Prices where very competitive, parts arrived and where boxed in first class packaging that could be reused if I needed to make a return (I didn't). They will be my "go to" trailer parts source from now on! 181875



- TTWALS556655B

by: DennisY01/22/2016

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Service with he gentleman I dealt with was excellent where he made sure that the rim I was choosing was the one I needed. He took the time to review this and the order was facilitated in a clear and very comprehensive English. He communicated well and his response were also very clear. Thank you as this purchase was made easier and much more pleasant. And yes I would recommend your company to anyone who wishes your products. 236006



- TTWALS514545B

by: Bob P.06/15/2017

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Very impressed with the etrailer purchasing experience. They provide regular updates and follow up with you until the product is delivered. And even with the free shipping the wheels arrived a couple days early. And the wheels arrived with quality packaging and in perfect condition. Biggest concern I had was confirming the wheel type & bolt pattern, which they provided excellent video to help you sort out. 394388



- TTWALS51354B

by: Ken U.06/04/2012

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Very nice set of mag trailer wheels. I placed them on a black trailer and the two tone black and silver make it pop. I bought these to replace a set of chrome wheels that came with the trailer. The wheels, though chrome, were cheap. The center of the wheel was not welded in true to the rim. When I went to balance the old wheels, they could not, as the wheel was actually warped. These being mags are true. 42762



- TTWALS5156545B

by: Cody B08/16/2013

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


From the start, the guys at etrailer.com were on the ball. The wheels arrived very promptly and I was even upgraded to faster shipping at no additional charge. If you're on the fence about this product or this company, just go with it! You will not be disappointed. I have another trailer project in the works and I will be ordering these same wheels from these guys. Thanks for a job well done guys! 95375



- TTWALS514545B

by: John V.10/06/2013

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Well I was able to contact the customer service with good results. My concern was the delivery time. I had plans to use my trailer and travel within 9 days. Luckily I received the wheels the day before travel and had them installed with no problem. The fitment guide was just what I needed as a trailer is different from vehicle sizes. So now installed the look perfect and I am one happy customer. 102702



- TTWALS5156545B

by: Kurt04/10/2015

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


These aluminum wheels are fine looking and nicely finished. We replaced the rusting steel wheels on a motorcycle trailer and it looks new again. Shipping was quick and free. Can't beat it. 184655



- TTWALS51354B

by: JohnB04/07/2015

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Wheels came packaged very well, very impressed with detail. Wheels looked awesome. Mounted right away. Makes trailer look 100 percent better. The guys at e-trailer did a fantastic job! 183784



- TTWALS5167865HD

by: Chris Camis07/30/2017

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Wheels showed up and look great. This is the best price I could get on these wheels anywhere and they are an exact match of what was originally on my fifthwheel. etrailer saved me again. I've made several purchases through them and they hit the mark every time. They have even bailed me out mid vacation by sending parts to an rv park address in Ouray, Colorado on a timeline. 412635



- TTWALS5156545B

by: John04/21/2016

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


These are very nice wheels, for sure, but the really impressive thing was the etrailer customer service. The wheel model I picked was not in stock, and I received emails from etrailer reps offering an alternative model that was in stock and could ship immediately. I approved the change, and a few days later, I had my wheels. My horses and I thank you, etrailer. 246369



- TTWALS514545B

by: Nick H.09/03/2017

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Fantastic service, quick delivery and friendly people. It is great doing business with Etrailer. Tires were as advertised. Very happy and they look great. 428379



- TTWALS5156545B

by: Bruce R.04/07/2016

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


I freaked a little when by the time I went back on to the site to order the wheel and tire the phone option was gone due the time of day I went back in, but everything I thought I was ordering was just as it was supposed to be and it is a match to the other 4 wheels on my trailer. Just have to mount and balance it now, and I will have a spare tire. 243258



- TTWALS5156545B

by: Dale10/23/2014

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


This is great looking wheel. Really spiced up my race car hauler. I highly recommend etrailer -- they were very proactive about keeping me informed when the product was not in stock. They called me to find out when I needed it and then gave me regular updates (calls and emails) keeping me informed. The wheels arrived on time and are fantastic. 157668



- AM22318HWTB

by: Wayne08/02/2016

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


The staff were great over the phone and selected a nice affordable upgrade to replace my rusted (stock white) rims. Shipped fast with no hassles. 278774



- AM22318HWTB

by: Harry T.10/15/2016

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


the wheels are far better than expected. Excellent product and recommend to everyone!!!! The finish is flawless and the design fits in perfectly with my project. This was a perfect upgrade from smaller wheels that were previously on the trailer. Still working on the project and will send pictures when my project is completed. 307324



- TTWALS514545

by: Tim E.01/06/2017

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Great service, as usual. The prices are about the same as other sites, but their service and quick shipping set them apart. I never have to worry about my orders taking 2-3 weeks to get here. They also take extra care in packaging shipments to ensure safe arrival. I will continue to use them for future orders. Thanks. 330272



- TTWALS5167865HD

by: Lew Miller05/14/2014

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


From my original phone call to Cathy, to the delivery which was made on time to the price which was great and free delivery what's not to like? Cathy said delivery might be on a Friday but probably on Monday. It did arrive on Friday. Will check out their other products and make etrailer my go to source. Thanks! 130700



- TTWALS5156545

by: Charlie J.06/15/2016

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


I ordered these wheels for my little Casita camping trailer. My order was slightly delayed by the manufacture but etrailer kept me well informed of the order status. The wheels arrived in good condition in little over a week. I must say the quality exceeded my expectations. Excellent! Dealing with etrailer is a pleasure. 261436



- TTWALS5156545

by: Wes04/23/2015

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


Nice and god to work with when ordering. fast free shipping ,excellent condition and quality when received. Thank You! 187747



- TTWALS51354B

by: Patrick L04/10/2015

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


From great customer service by Mark to an excellent add to a Shorelander trailer I am very pleased with the entire experience. While the standard Shorelander rims tend to fade and lose the shine, these rims bring the trailer alive. Thanks for the great service and look forward to working with etrailer in the future. 184630



- TTWALS5167865HD

by: Jerry H10/14/2017

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


The wheel looks the same as the Sendel T-03 16x6.5-8 it is replacing due to a crack and this one has a much heavier spoke than the the one that came on the Keystone Alpine 5th wheel trailer. Thinking of replacing the remaining to be safe. The people at etrailer were outstanding to work with ! 442654



- TTWALS5156545B

by: john s.08/23/2016

Review from a similar HWT Hi-Spec Series S5 in Tires and Wheels


the aluminum wheels that i ordered fit perfectly on my 5th wheel and they are beautiful. delivery was only 4 working days which was great, thank you etrailer. i would especially like to thank Lisa for helping me and expediting my order she was very courteous and knowledgeable about the product. 286851


61
180
Show More Reviews

Ask the Experts about this HWT Tires and Wheels
Do you have a question about this Tires and Wheel?


  • Aluminum HWT Wheel Compatibility With Timbren Axle-Less Trailer Suspension System With Hubs
  • The Timbren Axle-Less Trailer Suspension System with Hubs - 5 on 4-1/2 - Off-Road Tires - 1,200 lbs # A12WS545 is compatible with the Aluminum HWT Series S5 Split Spoke Trailer Wheel - 12" x 4" Rim - 5 on 4-1/2 - Black # AM22319HWTB. With these wheels you most likely want valve stems # AM20903. For tires, I recommend the Kenda Karrier S-Trail ST145/R12 Radial Trailer Tire - Load Range D # AM10130. You may also be interested in the Trailer Wheel Center Cap, Stainless Steel, 3.19"...
    view full answer...

  • 12 Inch Wheels With a Chrome Look for a Small Trailer
  • There are wheels available in the style you are looking for, but in order to get the right fit, you need to know your wheel's bolt pattern. If you take a look at the help article on determining wheel bolt pattern I've attached it will explain how to figure it out. For 12 inch wheels, the bolt patterns available are 5 on 4-1/2 inch and 4 on 4 inch. A great option for a 5 on 4-1/2 inch bolt pattern would be the Dexstar Steel Mini Mod Trailer Wheel - Chrome # AM20152, which has a 1,250...
    view full answer...

  • Determining Offset for 12 X 4 Spare Wheel for Triton Snowmobile Trailer
  • The best thing to do is check a current wheel on your trailer for offset. To determine if your trailer wheels have an offset, remove a wheel from your trailer and measure from the mounting surface of the wheel (where the wheel mounts to the hub) to the inside and outside beads. The difference between these two measurements is the offset. Trailer wheels usually have zero offset, meaning that the rim of a trailer wheel lines up directly under the center of the wheel. We offer a variety...
    view full answer...

  • Available 12-Inch Aluminum Trailer Wheel with ST145/80-12 Radial Tire Already Mounted
  • Most of the photos I found showing the 2015 Forest River Flagstaff 176LTD pop-up camper trailer show it equipped with 12-inch white steel spoked wheels with the 5-on-4-1/2 bolt pattern, such as # AM31199DX. But we do offer the aluminum wheel you referenced, HWT Series S5 Split Spoke AluminumTrailer Wheel # AM22319HWTB with a ST145/80-12 radial tire already mounted. For this item order part # AM31206HWTB. This wheel/tire combination is rated for 1,220-lbs at 65-psi inflation pressure....
    view full answer...

  • Availability of Custom Wheel/Tire Package
  • As we don't have the equipment necessary to mount tires to the rims, we don't sell the # AM10140 tire mounted on the # AM22319HWTB wheel you asked about. You'd need to purchase the wheel and tire separately, and have them mounted at your local tire shop. The wheel/tire combos we sell aren't balanced in the traditional sense. When the tires are mounted to the rims, the high (heavy) spot on the wheel is matched to the low (light) spot on the tire, which leaves the wheel and tire somewhat...
    view full answer...

  • Is there a Tire and Wheel Combo Available with the Americana Aluminum HWT S5 Wheel # AM22319HWTB
  • The closest solution I could get for you would require you to go with a 13 inch diameter wheel, you can get a similar rim as the Americana Aluminum HWT Series S5 Trailer Wheel # AM22319HWTB with a tire mounted to it. For that you would want the Kenda KR25 Radial Trailer Tire with 13" Aluminum HWT Black Wheel # AM32001HWTB. This is the only rim and tire combo we offer that has the bolt pattern of 5 on 4-1/2 in the same style as the wheel you want, the tire is a ST175/80R13 which has an...
    view full answer...

  • Will a 5.30x12 Trailer Tire Fit on a 12 x 4 Aluminum Trailer Wheel
  • Yes, the 5.30x12 tires you have will fit the HWT Series S5 wheel # AM22319HWTB. For a valve stem you can use # AM20904 rated for up to 100 psi.
    view full answer...

  • What Color Are Americana Series S5 Wheels # AM22319HWTB
  • The Americana Aluminum HWT Series S5 Trailer Wheel, part # AM22319HWTB, you referenced has an aluminum face with a black interior. We do not offer all black 12 inch wheels.
    view full answer...

  • Are 12-Inch, 5 on 4-1/2 Wheels With 8 Spokes Available?
  • We can check off nearly all of those requirements for you with the Taskmaster Steel 8-Spoke Trailer Wheel, # 240545WSG1, which has a galvanized finish, or # TTW240545WS1, which is the same wheel but in white. Similarly, there is an option in black which meets all but one of your requirements. The Dexstar Steel Mini Mod Trailer Wheel, # AM20153, has everything you want, minus the eight spokes. You may also want to take a look at the Aluminum HWT Series S5 Split Spoke Trailer Wheel - Black,...
    view full answer...

  • Will a ST145/80-12 Sized Tire fit the Aluminum HWT Series S5 Split Spoke Trailer Wheel AM22319HWTB
  • Yes, your trailer tire that is sized ST145/80-12 is going to fit the trailer rim part # AM22319HWTB. Your tire size is designed to fit 12 x 4 inch rims like what this is. I attached a review video for this rim for you to check out as well.
    view full answer...


Do you have a question about this Tires and Wheel?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality tires and wheels for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate tires and wheel information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Photos by:
Theodore B
Expert Research:
Michael H
Installed by:
Jeff D
Expert Research:
Jameson C
Updated by:
Laura H
Expert Research:
Jeffrey L
Updated by:
Sarah W

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.




^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
