Dexstar Steel Mini Mod Trailer Wheel - 16" x 6" Rim - 6 on 5-1/2 - Silver Powder Coat

Dexstar Steel Mini Mod Trailer Wheel - 16" x 6" Rim - 6 on 5-1/2 - Silver Powder Coat

Item # AM20746

lowest price pledge

Retail:$75.61

Our Price: $50.95

You Save: 33%
Tires and Wheels

This item qualifies for Free Shipping

Shipping Weight: 26 lbs

Arrives before Christmas with Ground or Free Shipping.
Quantity:
In Stock, Ships Today
Dexstar Standard Rust Resistance Tires and Wheels - AM20746
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos

Silver power coated, 16" steel wheel features a 6 on 5-1/2 bolt pattern and meets Department of Transportation standards. Lowest Prices for the best tires and wheels from Dexstar. Dexstar Steel Mini Mod Trailer Wheel - 16" x 6" Rim - 6 on 5-1/2 - Silver Powder Coat part number AM20746 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (109)
  • Q & A (14)
  • Videos (1)
  • Photos
  • Used (1)
  • Why etrailer?

Dexstar Tires and Wheels - AM20746

  • Wheel Only
  • 16 Inch
  • 6 on 5-1/2 Inch
  • Steel Wheels - Powder Coat
  • Dexstar
  • Standard Rust Resistance

Silver power coated, 16" steel wheel features a 6 on 5-1/2 bolt pattern and meets Department of Transportation standards.


Features:

  • Sturdy steel construction
  • Excellent corrosion resistance
    • Silver powder coat finish over e-coat primer
  • Modular design
  • High-quality wheel meets DOT specifications
  • Made in the USA


Specs:

  • Rim dimensions: 16" diameter x 6" wide
  • Bolt pattern: 6 on 5-1/2"
  • Wheel bolt size: 1/2"-20
  • Pilot diameter: 4.27"
  • Capacity: 3,050 lbs
  • Limited 2-year warranty


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"




20746DX Dexstar Modular Morton Silver Wheel - 16"

017-255-2J

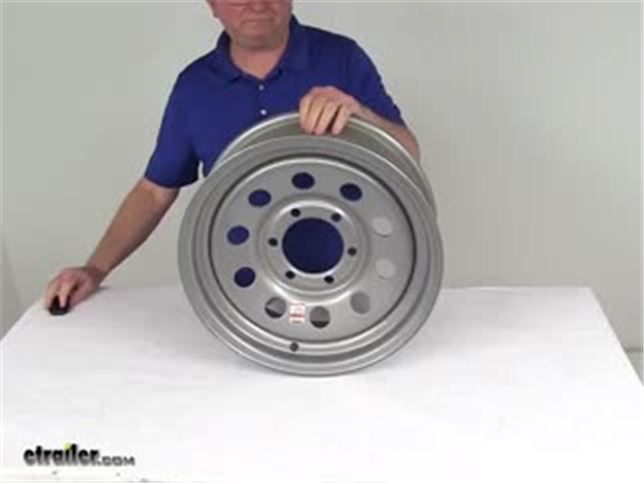

Video of Dexstar Steel Mini Mod Trailer Wheel - 16" x 6" Rim - 6 on 5-1/2 - Silver Powder Coat


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Dexstar Tires and Wheels - Wheel Only - AM20746 Review


Customer Reviews

Dexstar Steel Mini Mod Trailer Wheel - 16" x 6" Rim - 6 on 5-1/2 - Silver Powder Coat - AM20746

Average Customer Rating:  4.9 out of 5 stars   (109 Customer Reviews)

Silver power coated, 16" steel wheel features a 6 on 5-1/2 bolt pattern and meets Department of Transportation standards.

- AM20746
by:

Just what I wanted and needed packed well arived 1 day earlier than promised best first time experiance ever highly recommend etrailer !!!!! 723138



- AM20746
by:

A year later they are still the nicest part of my old horse trailer. I went from the 15" wheel to these in a 16" size and the old 4 horse tows better than it ever has with my horses in it. Thanks etrailer! 718767



- AM20746
by:

Delivered in record time. Thank you. 706133



- AM20746
by:

I ordered four of these. They were well packaged and arrived in perfect condition. Made in the USA. Moving from 15” to 16” rims so I can run bigger, E rated, tires on my trailer. 669425



- AM20746
by:

The AM20746 wheel was purchased as a spare. The product was exactly as depicted on the web site. Teresa was very professional and knowledgeable. The etrailer.com tracking feature was very detailed and also included a link to UPS tracking. This was my first purchase with etrailer but if future needs arise it will not be the last. I would highly recommend etrailer. 668718



- AM20746
by:

Had one spare for my 30' Haulmark , I wanted two for good measure on longer road trips and ETRAILER had my exact rim. PERFECT 667305



- AM20746
by:

This rim is for a 1997 vermeer chipper, I purchased it because we need a spare tire for it. The rim is really nice looking and the same design as the stock rims. It cost $460 to have road side service fix your flat on a commercial vehicle. The price for a this rim and a tire $128, I hate going out and doing jobs when the repairs are almost as much as my jobs mainly if you have a crew to pay also. Plus the down time waiting for the road service to get to you. Now we do the repairs ourself save money and not 3 hours or more down time. Etrailer has great products and the price is great also. I payed shipping because the price is perfect, and they get it to you right away.. Thanks etrailer. Will be a long time customer.. 612958



- AM20746
by:

So far so good! 611042



- AM20746
by:

I got exactly what I ordered in a timely manner... I was satisfied with the products material and workmanship.. I now have new brakes and wheels on my trailer and lights as well... It looks great and works well... Thank you for your Great products and I will definitely be buying more products in the future... 606753



- AM20746
by:

I received everything in a timely and good condition manner.. It was exactly what I ordered with no problems... I will definitely be a repeat customer... 100% As I ordered a 100 % Satisfied Customer... 606558



- AM20746
by:

Good price and product fast shipping. 592559



- AM20746
by:

I placed my order on Saturday night and received the product on Monday.great product . 588141



- AM20746
by:

Ordered on 11/19 and received in perfect condition on 11/21 Appears to be a quality piece at a great price Customer service followed up immediately after delivery Very satisfied with the product and etrailer service 584426



- AM20746
by:

Thank for the fast shipping. I should have ordered 2. 522408



- AM20746
by:

I bought this wheel to use for my spare tire. Looks great and appears to be good quality. No complaints 515363



- AM20746
by:

Fit and looks good thanks to Melissa and her extra effort. Priced the same as my tire supplier in fact 2 bucks less. 504335


Comments

On customers 16 ft. Cattle trailer, no complaints from him.

Terry - 05/04/2019

54844

- AM20746
by:

Fast shipping, great packaging 488129



- AM20746
by:

I finally have a spare tire for my dump trailer! Like the fact that this an US made product! 458280


Comments

My spare wheel is working fine!

James - 12/08/2018

46524

- AM20746
by:

Husband was very pleased with the quality of this rim, a very well made rim. This will be used for a spare tire for his car trailer have already told numerous friends about the quality of the rim. 432836



- AM20746
by:

The rims were everything I expected. I have no complaints and would buy them again. 337523



- AM20746
by:

Dexstar 1 star, eTrailer.com Customer Service 5+++ stars These 5 Dexstar wheels were my 2nd set of Dexstar wheels. The first in 2001 when Dexter axle still owned and operated Dexstar. It was frustrating to realize the sloppy manufacturing quality when compared to my originals. Specifically, 4 of the 5 wheels had quite visible lateral runout. And, of course I didn't realize until I went to pickup my new wheels and tires from tire dealer mounting and saw the 4 of the 5 wheels with the largest amt of wheel weights I have ever seen on light truck tires covering up to 1/3 of the rim face front and rear. After dismounting & checking with a dial indicator, one was .048", one other was over .030, & didn't bother to check the others. One wheel was straight, however. 4 of 5 wheels had quality checking pen marks on the rear of the wheels - so they did undergo some type of human inspection. Phone calls plus eMails to Dexstar request lateral runout production tolerance specifications, and casual 'hey can you help me out here ' inquiries as to what criteria they used for warranty replacements, all met with no response. Focused pursuit of a response from Dexstar mfg over 5 days and a wkend resulted in discovering that Dexstar had only one person assigned to quality, who also is responsible for determining warranty work. [It's been over 2 wks and still no response]. No wheel specification documentation is available from Dexstar website or googling. I'm now under the impression that Dexstar's business model like others, requires that their distributors deal with these types of issues, and not directly with the manufacturer. Again, it was painful to witness such deterioration of quality since my first set of wheels, and yet they are still manufactured here in the U.S. This is one of a very few occasions in the past 20ys that I would give a single star in a review. In addition to the tolerance issues, the powder coating was questionable on 3 of the 5, and most of the wheels chipped (albeit small) rather easily wherever the tire mounting machine touched the wheels. My original painted wheels were quite durable for the first 12 yrs in the sun. But it all worked out even better in the end as eTrailer.com didn't hesitate to offer choices of a solution from a refund to upgrades to correct this. eTrailer topped it off with literally a painless return process. 324637



- AM20746
by:

Nice rimes. 286766



- AM20746
by:

Nice looking American made wheels. Well worth the extra couple dollars. 279272



- AM20746
by:

great product with great service 275210



- AM20746
by:

Ordered 6 rims for my triple axle toyhauler to upgrade from trailer tires to LT tires. Rim have been perfect with zero signs of rust...great powdercoating! Attached pic shows 2 of the new 16" rims installed with LT tires compared to the old black 15" rims with a trailer tires. 239188



- AM20746
by:

Fast shipping and product was as described. Thanks. 202650



- AM20746
by:

The wheels look great, and the service was prompt and courteous. 155348



- AM20746
by:

Very good quality wheel and finish. 142284



- AM20746
by:

LOOK GOOD,MATCH FACTORY COLOR 130821



- AM20746
by:

I ordered the wheel on Monday and it was delivered on Thursday. The wheel appearance is a very close match to the original. It appears to be very well made and I hope it holds up better than the old wheel it is replacing. 103369



- AM20785
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


great 392729



- AM20761B
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


Only place online I know of to get black 8 lug steel wheels. Put 5 of these on my all black dump trailer with brand new chrome lug nuts and they look NASTY! They are also rated for the heavy weight I need unlike some other knock offs out there. Long time Etrailer customer here and they have so much selection compared to anyone else they keep sucking me back in! 269304



- AM20757
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


Very high quality steel wheel (made in USA) made it affordably possible to replace the inferior quality, unsafe gravity cast Chinese wheels and crappy OEM tires on our Hyperlite XLR. Upon purchase of the XLR, we immediately bought a set of five so that we could run the Michelin RIB tire at 80psi. No "China Bomb" blow-outs, no problems. Everyone should do this for safety and piece of mind. These wheels should be industry standard! 383333


Comments

One year later we are still enjoying the quality and piece of mind these wheels have delivered Along with the Michelin tires, we have yet to have any failures at all. 3500 mile trip to Fort Worth and back...no problems. The Dexstar wheels not only are performing perfectly, they still have a factory-fresh appearance due to in my opinion quality construction and quality finishing. They still look new! These wheels are the best and they allow us to use the best tires. Very pleased with the Dexstar wheel.

Bill R - 06/04/2018

39228

- AM20761B
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


Great product, excellent service shipping and follow up. Ordered Sat night, package arrived Tuesday.. etrailer and Dexter have earned a customer for life. Impressive! 413866



- AM20797
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


Excellent product for a good price. Well satisfied with the timely manner that I received my order. Great job on getting the product to me. 729426



- AM20761B
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


Great. 728107



- AM20761B
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


Nice wheel at a great price,etrailer has super fast shipping and are great people to deal with. 726687



- AM20761B
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


So far so good. I bought this for a heavy equipment trailer and it seems to be a good solid tire. Time will tell. 717175



- AM20789
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


Good price and fast shipping 708380



- AM20794
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


Hard to find the heavyweight wheels sometimes. Etrailer has them, at a decent price and these guys have great customer service. Quick shipping without any hassles. Will be shopping here again in the near future and will recommend whenever possible. Thanks guys! 642966



- AM20761B
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


Very good product 603721



- AM20757
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


Clean, simple, good finish. 599725



- AM20797
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


Very prompt service. Thank you !!! 563902



- AM20742
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


Great customer service . My order was delivered a few days early because it was upgraded to express delivery . Tks 542398



- AM20794
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


Good rim 518150



- AM20789
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


Super Fast shipping! Product was packaged to insure no damage 486678



- AM20761B
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


Working just fine, exactly the right product for the job. 477526



- AM20761B
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


excellent customer service, fast delivery and great product! 471407



- AM20794
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


Excellent just what I expected 455722



- AM20742
by:

Review from a similar Dexstar Mini Mod in Tires and Wheels


Exactly what I ordered. Shipped same day. Great service! 446997


50
109
Show More Reviews

Ask the Experts about this Dexstar Tires and Wheels

Do you have a question about this Tires and Wheel?


  • Can Dexstar Steel Mini Mod Wheel # AM20746 Be Used on Tandem Axle 14,640 Pound Trailer
  • The Dexstar Steel Mini Mod Trailer Wheel # AM20746 features a 3,050 pound weight capacity so you won't be able to use it on your trailer that has a 14,640 pound GVWR . Based on this weight you will ideally want at least a 3,660 pound weight capacity on each of the tire/wheel combos. The highest capacity 16 inch wheels we have available with a 6 on 5-1/2 inch bolt pattern is with either the HWT Aluminum S5 # AM22658HWTB or the HWT Aluminum Split Spoke # AM22658HWT which both feature...
    view full answer...

  • Availability of 16" Wheel to Fit 5.2K Dexter Trailer Idler Hub Assembly with 6 on 5-1/2" Pattern
  • Yes, we have a variety of wheels and tire/wheel combos for 16" wheels that are compatible with the 6 on 5-1/2" bolt pattern of the Dexter Trailer Idler Hub Assembly # 8-213-5UC1. One of the most popular combinations is the Goodyear Endurance ST235/80R16 Radial Tire w 16" White Spoke Wheel # 724858519AT. The Endurance tire is one of the top (if not the top) trailer tires on the market. The white spoke wheel is a little plain but it is pretty common for trailers. If you'd like something...
    view full answer...

  • How to Pick Out a Replacement Rim for a Horse Trailer
  • The Dexstar Steel Mini Mod Trailer Wheel # AM20746 that you referenced is a 16 inch diameter wheel with a 6 on 5-1/2 inch bolt pattern. I am assuming this is the same style of wheel that will look similar to what you currently have. Now to determine if this rim will fit what you have on your trailer you will need to make sure that your trailer tire size is designed to fit a 16 inch rim. You will need to find the size of the tire stamped on the sidewall. If the size ends in 16 then you...
    view full answer...

  • Recommended Made in USA 16 x 6 Trailer Wheels With 6 on 5-1/2 Bolt Pattern
  • There are wheels made here in the USA but to get the right one I'd need to know your wheel bolt pattern and the wheel diameter you need. If you are unsure of what your wheel bolt pattern is or how to find it, I've added a link to a help article on how to determine wheel bolt pattern for you to take a look at. If you get back to me with that information I'd be happy to help you find the best wheel for your trailer.
    view full answer...

  • What Is The Difference Between Galvanized And E-Coating On Trailer Wheels
  • The difference between E-Coat and Galvanized finish is the material and the method by which they are applied. Galvanizing involves the application of a heavy layer of molten zinc. E-coating is the process of immersing the part in a bath of water-soluable paint while being connected to an electrical power source set at a certain voltage. E-coating is widely used in the automobile industry due to the smooth surface and the ability to apply paint over it. If the item is being used...
    view full answer...

  • Backspacing for Dexstar Steel Mini Mod Trailer Wheel # AM20746
  • Since Dexstar Steel Mini Mod Trailer Wheel # AM20746 has a zero offset the backspacing would be half the overall width of the wheel which on a 16 x 6 wheel is about 7 inches. That would make the backspacing 3-1/2 inches.
    view full answer...

  • Replacement Trailer Wheel for 2006 Cardinal 5th Wheel
  • For just a wheel the part # AM22657 that you referenced would work well though as it is the same size as what your trailer has. It looks like you actually have the part # AM20746 though as that closer matches what you have in the picture you submitted. Here's how to tell a tire's age. The DOT number code will be stamped on one side of the tire, near the bead area. This tire identification number will start with the letters DOT, then the next two numbers or letters are the plant code...
    view full answer...

  • Dexstar Wheel Availability in 16 Inch and 6 on 5-1/2 Inch Bolt Pattern
  • Dexstar does not make that directional wheel in a 16 inch option. It is only available in 13 inch, 14 inch, and 15 inch options. I've attached the link to all your wheel options for the 16 inch wheels with the 6 on 5-1/2 inch bolt pattern you are seeking so you can see all your options. The Dexstar Steel Mini Mod Trailer Wheel # AM20746 or the Dexstar Steel Spoke Trailer Wheel # AM20741 are probably the closest in style.
    view full answer...

  • Does Dexstar Steel Mini Mod Trailer Wheel - 16" x 6" - 6 on 5-1/2 Have an Offset
  • Dexstar Steel Mini Mod Trailer Wheel # AM20746 does have a zero offset. We only mention the offset if the wheel has either a positive or negative offset. The ones that do not mention an offset will have a zero offset.
    view full answer...

  • How Large is the Hub Bore on the Trailer Hub and Drum Assembly AKHD-655-6-K
  • I went out to our warehouse and measured the Trailer Hub and Drum Assembly part # AKHD-655-6-K for you. The hub bore is 3.409" therefore that would be the minimum hub bore on your trailer wheels. Almost all of the trailer wheels we offer with a 6 on 5-1/2" lug pattern have a hub pilot hole sufficient for this. For example, the Dexstar Steel Mini Mod Trailer Wheel part # AM20746 has a 4.27" hub pilot hole.
    view full answer...

  • Can Replacement Wheel with Larger Pilot Hole be Used on Older Gooseneck Trailer
  • As long as the hubs on your gooseneck trailer feature wheel studs and the wheels attach using lug nuts going with a wheel like the Dexstar # AM20746 that you referenced that has a larger pilot hole diameter is not an issue at all. This is referred to a lug-centric wheel setup and since the wheels are centered to the hub using lug nuts the pilot hole doesn't matter (unless it's too small to fit over the hub). This is what the vast majority of trailers use but since you have an older...
    view full answer...

  • Is Dexstar Steel Mini Mod Trailer Wheel # AM20746 Compatible with Dexter Hub # 8-213-5UC1
  • The Dexstar Steel Mini Mod Trailer Wheel # AM20746 that you referenced has a 6-on-5-1/2-inch bolt pattern that does match that on the 6000-lb-rated Dexter Hub Assembly # 8-213-5UC1. The grease cap included in this hub kit, which also does come with bearings and races, has an outer diameter of 2.44-inches, so the hub's bore will naturally be very slightly larger than that. For your 12-inch front wheels we offer hubs with 2 different 4-bolt bolt patterns, 4-on-4-inch and 4-on-5-inch. The...
    view full answer...

  • Dexstar Trailer Wheel that is 16 inch in Width by 6 inch Wide Mini Mod in Silver Powder Coat
  • We have a Dexstar Mini Mod wheel that is 16 inch in diameter by 6 inches in width that is silver powder coat with the part # AM20746. This has a lower weight capacity at 3,050 lbs though.
    view full answer...

  • Availability of Replacement Hub for Mobile Home Axle
  • Mobile home axles are meant to be used one time and then discarded, which is why finding replacement parts for them is nearly impossible in most circumstances. I checked the measurements you provided, looking for seals and bearings that would match so I could find the correct hub, and couldn't find a hub that's compatible with the spindle dimensions you gave me which isn't surprising. Your best bet would be to replace your existing mobile home axle with a trailer axle that uses standard...
    view full answer...


Do you have a question about this Tires and Wheel?


Used Items Available

Condition: Surface Scratches

Notes: Item has cosmetic surface scratches. Otherwise new and unused.

Our Price: $52.17

Secure Checkout


  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality tires and wheels for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate tires and wheel information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Expert Research:
Michael L
Expert Research:
Michael H
Expert Research:
Jameson C
Expert Research:
Jeffrey L
Written by:
Lindsey S
Installed by:
Jeff D
Updated by:
Laura H
Updated by:
Mary E
Updated by:
Sarah W

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
