Dexstar Steel Mini Mod Trailer Wheel - 15" x 6" Rim - 5 on 4-1/2 - White Powder Coat

Dexstar Steel Mini Mod Trailer Wheel - 15" x 6" Rim - 5 on 4-1/2 - White Powder Coat

Item # AM20551

lowest price pledge

Retail:$63.17

Our Price: $41.18

You Save: 35%
Tires and Wheels

Orders above $50 qualify for Free Shipping

Shipping Weight: 18 lbs

Arrives before Christmas with Ground or 3 Day Shipping.
Quantity:
In Stock, Ships Today
AM20551 - 15 Inch Dexstar Tires and Wheels
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos

White power coated, 15" steel wheel features a 5 on 4-1/2 bolt pattern and meets Department of Transportation standards. Lowest Prices for the best tires and wheels from Dexstar. Dexstar Steel Mini Mod Trailer Wheel - 15" x 6" Rim - 5 on 4-1/2 - White Powder Coat part number AM20551 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (24)
  • Q & A (7)
  • Videos (1)
  • Photos
  • Why etrailer?

Dexstar Tires and Wheels - AM20551

  • Wheel Only
  • 15 Inch
  • 5 on 4-1/2 Inch
  • Steel Wheels - Powder Coat
  • Dexstar
  • Standard Rust Resistance

White power coated, 15" steel wheel features a 5 on 4-1/2 bolt pattern and meets Department of Transportation standards.


Features:

  • Sturdy steel construction
  • Excellent corrosion resistance
    • White powder coat finish over e-coat primer
  • Modular design
  • High-quality wheel meets DOT specifications
  • Made in the USA


Specs:

  • Rim dimensions: 15" diameter x 6" wide
  • Bolt pattern: 5 on 4-1/2"
  • Wheel bolt size: 1/2"-20
  • Pilot diameter: 3.19"
  • Capacity: 2,150 lbs
  • Limited 2-year warranty


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


20551DX Dexstar Modular White Wheel - 15"

017-232-1W

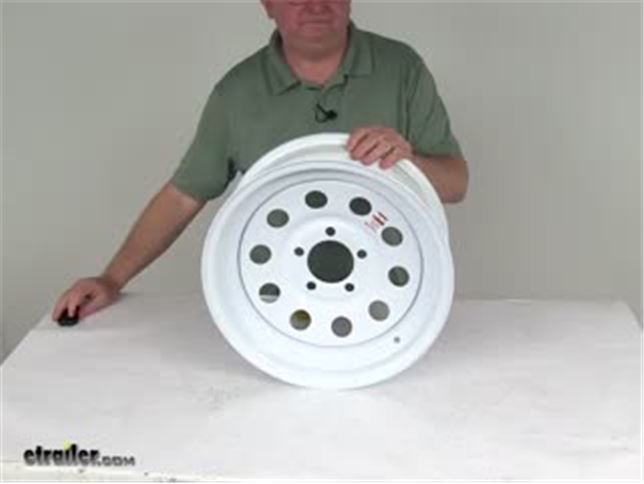

Video of Dexstar Steel Mini Mod Trailer Wheel - 15" x 6" Rim - 5 on 4-1/2 - White Powder Coat


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Dexstar Tires and Wheels - Wheel Only - AM20551 Review


Customer Reviews

Dexstar Steel Mini Mod Trailer Wheel - 15" x 6" Rim - 5 on 4-1/2 - White Powder Coat - AM20551

Average Customer Rating:  4.8 out of 5 stars   (24 Customer Reviews)

White power coated, 15" steel wheel features a 5 on 4-1/2 bolt pattern and meets Department of Transportation standards.

- AM20551
by:

This is a nice wheel, a great upgrade from the small 4.8x12 tires. I have three of these wheels. Single axle with full size spare. Running a 225/75r15. 573085



- AM20551
by:

Exact replacement for my 2001 Pace Trailer. Purchased 11/2018. Excellent wheels. 725040



- AM20551
by:

These wheels have been good so far, especially for the price. Mounted brand new Taskmaster Contender tires on these wheels when I got them. The tire place did mention they were surprised how much weight it took to balance them since they are made in the USA wheels but they did balance fine and I've not had any issues, maybe they just said that because I didn't buy them from their store, who knows. 719236



- AM20551
by:

Other than a few blemishes on wheels, and some chipped powder coating, the wheels work great and look good! 704272



- AM20551
by:

Looks like a good quality rim. Fit well and should give plenty of good service in years to come. Used for a "rebuild" on a 1976 vintage utility trailer. 694270



- AM20551
by:

Rims ordered and arrived as expected. The rims seem to be of high quality and finish. 556497



- AM20551
by:

All items were just as described Very good products excellent ,easy ordering and very fast shipping. 515452



- AM20551
by:

I wanted the 15 inch rims to allow a higher capacity tire to be installed on my rv. You offered an American made product from a well know company at a very competitive price and useful advise on making the upgrade. Could not be more satisfied with the product and service. 491707



- AM20551
by:

These wheels look great on my trailer I pull behind my 23T roadster. Thanks, cory 407347



- AM20551
by:

Bought a set of 4. Perfect for my ATV trailer. They made my trailer look new. 387214



- AM20551
by:

As always, accurate description, quick shipper, well packaged. Thanks!! 381039



- AM20551
by:

Nothing wrong with these rims just two items I noticed that emphasize you get what you pay for....1. I plan to paint the back side of the rims before installing them. When received the exterior side was coated well but the inside (side facing the trailer) was not completely coated with paint. 2. The plate where the lugs touch is perfectly flat. That will work but a higher quality rim would have some dimples in the plate to add springiness and would act to keep the lugs torqued. The capacity of the rims (both load carrying and psi) are not stamped or written on the rims anywhere. I hope nobody needs to know that information down the road. Shipping was extremely quick and they were well packaged so etrailer.com gets an A+ for their effort. 334317
