Tires and Wheels
/
Dexstar
/
Wheel Only
/
15 Inch
/
6 on 5-1/2 Inch
/
Steel Wheels - Powder Coat
Dexstar Steel Spoke Trailer Wheel - 15" x 6" Rim - 6 on 5-1/2 - Silver Powder Coat
(9 reviews)
Price: $39.57
In Stock
Dexstar Steel Spoke Trailer Wheel - 15" x 6" Rim - 6 on 5-1/2 - Silver Powder Coat
Item # AM20535
Our Price: $39.57
Orders above $99 qualify for Free Shipping
- Wheel Only
- 15 Inch
- 6 on 5-1/2 Inch
- Steel Wheels - Powder Coat
- Standard Rust Resistance
- Dexstar
- All Info
- Reviews (9)
- Q & A (7)
- Videos (1)
- Photos
- Why etrailer?
Dexstar Tires and Wheels - AM20535
This 15" x 6" steel trailer wheel has a 6 on 5-1/2 bolt pattern and a 4.27" pilot diameter. Rust-resistant Starlite silver powder coat finish.
Features:
- Steel wheel with 8-spoke design is sturdy and corrosion resistant
- 2-Step finishing process includes e-coat primer and Starlite silver powder coat finish
- Meets DOT standards
- Made in the USA
Specs:
- Rim dimensions: 15" diameter x 6" wide
- Bolt pattern: 6 on 5-1/2"
- Wheel bolt size: 1/2"-20
- Capacity: 2,830 lbs
- Pilot diameter: 4.27"
- Offset: 0
- 2-Year limited warranty
Determining the Bolt Pattern
The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.
To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)
On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)
Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.
- If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
- If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
- If D = 3", then the bolt pattern is 5 on 5"
- If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"
20535DX Dexstar 15x6 Steel 8-Spoke Rim - 6 on 5.5 - Starlight Silver

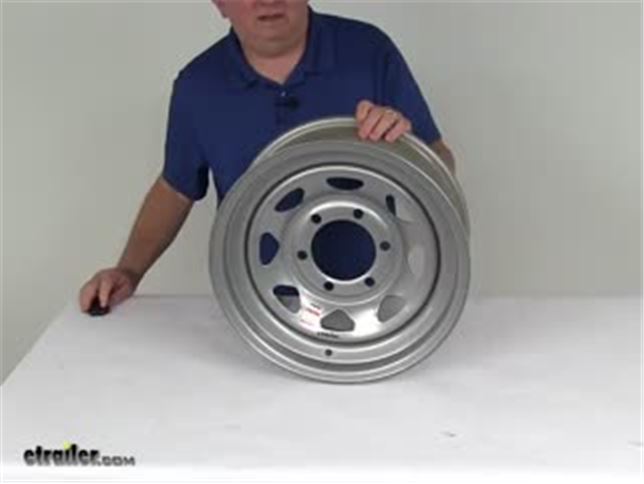

Video of Dexstar Steel Spoke Trailer Wheel - 15" x 6" Rim - 6 on 5-1/2 - Silver Powder Coat
Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.
Video Transcript for Dexstar Tires and Wheels - Wheel Only - AM20535 Review
Speaker 1: Today we're gonna take a look at the Dexstar 15" x 6" Silver Spoke Steel Trailer Wheel with the six on 5 1/2" bolt pattern. Now this wheel is a sturdy steel construction. It's a silver powder coat finish over an E-coat primer on the front and the back of the wheel. Gives you excellent corrosion resistance.It is your standard eight spoke trailer pattern design. There's your eight spokes. This is high quality wheel.
It meets the DOT or Department of Transportation specifications. This is made by Dexstar, which means it is made in the USA.A few specs on this we're gonna measure. The diameter, which is 15" and that's always measured bead-seat to bead-seat, so inside to inside. When a tire is mounted on here, the tire beads would seat right in here, so that's what you're measuring. So if we go inside to inside, take a tape measure here, and there's your 15" diameter.The roof would be the same way, bead-seat to bead-seat, so inside to inside, 6" so 15 x 6" size wheel.
The bolt pattern on this is a six on 5 1/2" bolt pattern and it you want to measure that on a wheel like this, it's an even number of lugs, six lugs. All you'd pick is one of the holes and then measure from the center of that hole directly across to the center of the hole right across from it. So again, if we take our tape measure, we go center to center, 5 1/2". So six lug, 5 1/2" bolt pattern. This does use a wheel lug size of a 1/2" inch x 20.
The pilot hole diameter, that's this large hole here in the center wheel goes over the hub on your trailer, that diameter is 4.27", and the weight capacity on this wheel is 2,830 pounds.That should do it for the review on the Dexstar 15" x 6" Silver Spoke Steel Trailer Wheel with the six on 5 1/2" bolt pattern.
Customer Reviews
Dexstar Steel Spoke Trailer Wheel - 15" x 6" Rim - 6 on 5-1/2 - Silver Powder Coat - AM20535
Average Customer Rating: 4.7 out of 5 stars (9 Customer Reviews)
This 15" x 6" steel trailer wheel has a 6 on 5-1/2 bolt pattern and a 4.27" pilot diameter. Rust-resistant Starlite silver powder coat finish.
- AM20535
by: Brian02/03/2018
nice product fast shipping 472505
- AM20535
by: William10/20/2018
Good for a spare. Just needed a tire. 576046
- AM20535
by: Paul12/01/2018
Good looking strong wheel, perfect for my application. Great price and fast shipping with tracking. Thank you. 587661
- AM20535
by: Douglas11/25/2018
Very helpfull with product. Very curdeus when placing order. Sent e Mail with up dates on order and when item delivered. Will shop with E trailer again. Great experience 585168
- AM20535
by: Thomas07/09/2018
etrailer was the only place I could find this ram that will fit my 2007 trailer. The price for the rim was very cheap and the right one I need, the seller was very helpful. etrailer has what you need. What every I need for my trailer I will shop at etrailer. Thanks for your service 539676
- AM20535
by: Steve06/04/2018
Rim arrived quickly and in perfect cond ition 517422
- AM20535
by: Tom04/18/2018
Nice rims, great price 497702
- AM20535
by: Billy03/13/2018
Looks good , received really quick . 484282
- AM20535
by: Don R12/23/2017
i would not be proud to put a MADE IN USA stamp on these. welds look OK. obvious machine welds and lots of spatter which does not make sense. rim bead welds were not cleaned up. weights may have problems sticking on some spots. paint job is minimal, didnt stick in some places and didnt get in deep between the two pieces of the rim. i didnt mind the middle not being painted but they will rust quick from the bad paint outside. ALSO paint chipped easily from ETRAILER not packaging them properly. 462524
9
9
Ask the Experts about this Dexstar Tires and Wheels
Do you have a question about this Tires and Wheel?
- What Size Tires Fit 15x6 Inch Steel Trailer Wheels
- The 15x6 inch wheel # AM20535 will accept 205/75-15 tires, 225/75-15 tires, and 7.00-15LT tires. I have linked the 15 inch tires we carry for you.
For a valve stem you can use # AM20904.
view full answer... - Parts Needed to Convert Trailer to Timbren Axle-Less Suspension System
- The Timbren Axle-less System, part # TASR5200S03, you've picked out works great with the wheel, part # AM20535, and brake assemblies, part # 23-458-459, that youv'e also selected.
In addition to those you also need 12 inch hub and drum assemblies, part # AKHD-655-6-EZ-K, that fit the Timbrens. You also may want to get new hardware for the brakes using part # BRKH12.
Other than that all you may need is a support beam to go across the trailer between the Timbrens. This depends if...
view full answer... - Trailer Wheels with 6 on 5-1/2 Bolt Pattern and at Least 4-1/2 Pilot Hole to Fit 225/75-15 Tires
- Wow, you've got a lot going on in that question. First of all we'll get the math out of the way: Tell your dad I'm sorry but 4.29 minus 4.25 equals 0.04. So 4.29 is the larger number by 4 hundredths of an inch. On another hand, he's correct that a 225/75-15 tire can fit a 7 inch wide rim. It actually fits on a 6 and 6-1/2 inch as well and generally with trailers skinnier is better so the tire is more directly under the weight. But all three widths fit which means the Lionshead, part...
view full answer... - Replacement Options for a 15" Wheel with a 6 on 5-1/2" Bolt Pattern
- We do have a wide variety of 15" trailer wheels that have a 6 on 5-1/2" bolt pattern that I have linked for you to filter through.
Most of these have a pilot hole with a diameter that is about 4.25" wide, but then we do have some options, like the Dexstar Conventional Steel Wheel # AM20514 with a smaller 3.65" diameter pilot hole. The pilot hole diameter of each wheel is listed on their product page.
If you aren't concerned with having a pilot hole that is the same diameter as what...
view full answer... - What is Standard 6 Bolt Wheel Pattern for 16 inch Trailer Wheel
- 6 on 6 inch is not a standard trailer bolt pattern so we won't be able to get that for you. The closest would be a 6 on 5-1/2 inch bolt pattern 16 inch wheel like the part # TTW660655SM1. If this is a trailer application most likely this is the bolt pattern you need.
I attached a help article on determining bolt patterns for you to check out as well.
view full answer... - Trailer Rims that is 15 inch Diameter, 6 on 5-1/2 Bolt Pattern and 4.25 in Pilot Diameter
- We have an aluminum trailer wheel that is 15 inch in diameter, 6 on 5-1/2 inch bolt pattern, and pilot diameter of 4.25 inches, part # TTWAL0614545S.
Or for a steel one that matches all of the same criteria we have the part # 560655SM1 this is a mod style wheel though.
view full answer... - Will 4.25 inch Diameter Center Cap Fit on Trailer Wheel # AM20535
- Yes, a center cap like what you have that measures 4.25 inches in diameter would fit the wheel part # AM20535 that you referenced. It has a pilot diameter that is 4.27 inches in diameter so it would fit well with a 4.25 inch cap.
view full answer...
