Tires and Wheels

/

Dexstar

/

Wheel Only

/

15 Inch

/

6 on 5-1/2 Inch

/

Steel Wheels - Powder Coat

Dexstar Conventional Steel Wheel - 15" x 6" Rim - 6 on 5-1/2 - Black Powder Coat

Dexstar Conventional Steel Wheel - 15" x 6" Rim - 6 on 5-1/2 - Black Powder Coat

Item # AM20514

lowest price pledge

Retail:$98.88

Our Price: $62.80

You Save: 36%
Tires and Wheels

This item qualifies for Free Shipping

Shipping Weight: 23 lbs

Arrives before Christmas with Ground or 3 Day Shipping.
Quantity:
In Stock, Ships Today
AM20514 - 6 on 5-1/2 Inch Dexstar Tires and Wheels
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos

Videos

Black powder coated, 15" steel trailer wheel features a 6 on 5-1/2 bolt pattern and meets Department of Transportation standards. Lowest Prices for the best tires and wheels from Dexstar. Dexstar Conventional Steel Wheel - 15" x 6" Rim - 6 on 5-1/2 - Black Powder Coat part number AM20514 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
  • All Info
  • Reviews (73)
  • Q & A (75)
  • Videos (1)
  • Photos
  • Why etrailer?

Dexstar Tires and Wheels - AM20514

  • Wheel Only
  • 15 Inch
  • 6 on 5-1/2 Inch
  • Steel Wheels - Powder Coat
  • Dexstar
  • Standard Rust Resistance

Black powder coated, 15" steel trailer wheel features a 6 on 5-1/2 bolt pattern and meets Department of Transportation standards.


Features:

  • Sturdy steel construction
  • Excellent corrosion resistance
    • Black powder coat finish over e-coat primer
  • Conventional design does not have spokes
  • High-quality wheel meets DOT specifications
  • Made in the USA


Specs:

  • Rim dimensions: 15" diameter x 6" wide
  • Bolt pattern: 6 on 5-1/2"
  • Wheel bolt size: 1/2"-20
  • Pilot diameter: 3.65"
  • Offset: 0
  • Capacity: 2,600 lbs
  • Limited 2-year warranty


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


20514DX Dexstar Conventional Black Steel Wheel - 15"

017-118-1T

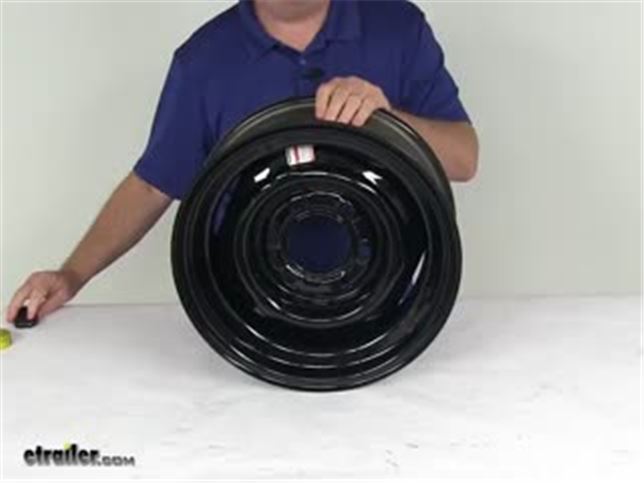

Video of Dexstar Conventional Steel Wheel - 15" x 6" Rim - 6 on 5-1/2 - Black Powder Coat


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Dexstar Tires and Wheels - Wheel Only - AM20514 Review


Customer Reviews

Dexstar Conventional Steel Wheel - 15" x 6" Rim - 6 on 5-1/2 - Black Powder Coat - AM20514

Average Customer Rating:  4.9 out of 5 stars   (73 Customer Reviews)

Black powder coated, 15" steel trailer wheel features a 6 on 5-1/2 bolt pattern and meets Department of Transportation standards.

- AM20514
by:

Great product, perfect for my needs. Customer service second to none. Thank you. 653119



- AM20514
by:

Very good wheel fit perfect 653950



- AM20514
by:

The rims are very good quality and fit really well on my project, would recommend to anyone that is looking for this type of rim it also fits on my 1957 Chevy 3200 which are just like my original ones. 491925



- AM20514
by:

3's a charm. The first one received was out of round giving the tire a "hop". Etrailer was quick to get me a second one that happened to bent. They were quick to respond again and had the 3rd wheel checked by a local tire shop before send it. The wheel mounted a balance fine and seems well made. Etrailer did everything right in taking care of the issues. Thank you. 163340



- AM20514
by:

I've had these wheels on the trailer for about 8 months now and I couldn't be happier with performance and looks. Great wheel. These replaced split rims. 552337



- AM20514
by:

We ordered these rims for a 1964 Chevy truck. The order was packed well and I was happy with the visible quality. There were no material defects, the paint was consistently applied though along the edge there were a few minor scuffs which woud not necessarily be visible when a tire is put on it. I was very satisfied with the product. 725564



- AM20514
by:

five stars. [Thumbs up] 724894



- AM20514
by:

Great wheel. Arrived without a flaw. 719361



- AM20514
by:

I was restoring an old one horse trailer and the rims were rusted and bent. These fit exactly and had the smaller pilot hole for my application. Prompt service and correct stuff as usual from etrailer. 661056



- AM20514
by:

Hard wheel to find ordered on a Friday afternoon and received it Monday morning. Missouri to Washington st. Amazing service. I will remember them in the future. 588124



- AM20514
by:

Excellent product 579269



- AM20514
by:

excellent product 561973



- AM20514
by:

Good Quality product. 489453



- AM20514
by:

Worked out good 486241



- AM20514
by:

Great products, and service was top not ch. 485676



- AM20514
by:

Solid rim! Very nice construction. Thank you etrailer for another great buy! 484385



- AM20514
by:

Fit perfect on my 1955 airstream overla nder. 482883



- AM20514
by:

Very good customer service, received the wheel sooner than expected. I for sure use your company again! good job 479236



- AM20514
by:

I ordered two of these wheels on line Tuesday night and they delivered on Thursday afternoon. WOW great service!! The wheel fit my old hub perfect. Thanks for great service 475073



- AM20514
by:

Product was as advertised, excellent quality . Fast shipping and excellent packaging. 474686



- AM20514
by:

Very happy with product and appearance. Bought this as a spare to match my original wheels on my '58 Chevy Apache. I haven't gotten a flat yet so I haven't actually used it but it does fit well, looked good out of the box and was as described. I have recommended it to other classic car/truck owners. 469766



- AM20514
by:

Excellent product and at least it is made in the USA. Looks great on the 66 vintage trailer. Waiting for the caps to arrive and hopefully it will "doll it up" even more. Will share a photo once I get the baby moons on. 460519



- AM20514
by:

Received on time and in great shape. Packaging was very good. No damage. 444760


Comments

These wheels went on my 1970 Timberline trailer and fit perfectly. Thanks

Dave E - 10/21/2018

44881

- AM20514
by:

So far tires and wheels have worked I would expect them too. 430792



- AM20514
by:

After searching for steel wheels with vintage style caps, I purchased these wheels after speaking with the customer support people, that assured me the caps would fit and these would fit my Airstream, I bought these along with the Cone style caps, I had them powder coated the color we wanted, they turned out great, and great customer service. 422985



- AM20514
by:

Great looking rim. Got them for my 1968 Airstream Safari. Love the fast and free shipping. Thanks. 417430



- AM20514
by:

Excellent service. Exactly what I needed to replace some old worn out and unmatched wheels on a tandem trailer setup. 411464



- AM20514
by:

etrailer consistently exceeds my expectations ! The follow up is second to none after the order. I just received a mystery package from an automotive supplier bought many many weeks ago. Not a word from them after the order. So long I forgot. The selection and pricing is fantastic. 401376



- AM20514
by:

Nice quality wheels for a fair price. These wheels are not cheaply made foreign imports. They were actually much heavier than I expected them to be. The powder coat finish was of very nice quality as well. The ordering process was quick and easy, and the free shipping was super fast. They were packaged very well, and even the animal that is my UPS driver couldn't damage them. A perfect transaction overall! 389680


Comments

I am still quite pleased with them. Thank you for checking.

Duane - 06/08/2018

39466

- AM20514
by:

Exactly what I wanted, super fast shipp ing 367704



- AM20514
by:

Received items quickly and they were exactly what I wanted. Thanks 361881



- AM20514
by:

Received wheels quickly and well packaged. No damage whatsoever. These wheels appear to be high quality both in workmanship and paint quality. Installing these wheels on our 1971 Airstream, the old wheels were a little rusty. We have restored our Airstream and wanted the wheels looking nice, too. I have purchased many items from Etrailer and these wheels just add to the positive experience I have had with Etrailer. They have great prices, and extremely fast shipping. 359878



- AM20514
by:

Great wheels at a great price. They run true and have a glossy tough finish. I've purchased two sets in the past and will order more. Free shipping is the best reason to shop here. Thanx! 359102



- AM20514
by:

I MADE MY ORDER & AND GOT A PHONE CALL WITH IN A HOUR ABOUT MY ORDER THAT IT WAS GOING TO TAKE LONGER TO GET LIKE 4 WEEKS AND IT SOUNDED LIKE LONGER SO I SAID LOOK IN TO IT & SEE WHAT YOU CAN DO THIS TOOK PLACE ON A TUESDAY EVEING NEXT THING I GOT A EMAIL TWO DAYS LATER & GOT MY PRODUCT ON THAT FOLLOWING MONDAY. GREAT SERVICE!!!!!!!!!!!! 346633



- AM20514
by:

I have a 1964 16' Avion travel trailer with no spare. Want to keep the original look with the hub caps and was very pleased etrailer had the perfect rim in stock and at a great price. A little silver paint and it will match perfectly. 338733



- AM20514
by:

good job 337660



- AM20514
by:

Excellent quality, exact size and dimensions need to replace original equipment on 1976 Hale Trailer. 337487


Comments

Both items are performing the function for which it was manufactured.

L D - 02/05/2018

34283

- AM20514
by:

Excellent customer service. Received my order earlier than expected! 5 stars. 314023



- AM20514
by:

I ordered these to upgrade the 14" wheels on my Ford Courier pickup for better tire options. The wheels look identical to mid 50's ford steel wheels except with a 6x5.5 bolt pattern and my '54 ford hubcaps fit perfect. I was surprised the wheels arrived in 3 days. I'll have to update with pics after paint and tires. 310303



- AM20514
by:

We're very happy with this very high quality wheel. The finish on the wheel is consistently glossy and looks durable. The welds holding the wheel center to the barrel also look very good. Most importantly, the wheel is straight and works perfectly for our application. eTrailer has great customer service, excellent communication, and fast shipping. We look forward to doing business with them again. 310046



- AM20514
by:

Great product, best price I could find and customer service was excellent!! Thanks much!! 307067



- AM20514
by:

very fast ship, putting rim on home made trailer fit perfect. Haven't mounted tire but don't expect any problem 305677



- AM20514
by:

Fantastic. Couldn't be happier. Made in USA and looks awesome, great price too! 293871



- AM20514
by:

FIT CORRECTLY NICE WHEELS 290280



- AM20514
by:

looks good 284426



- AM20514
by:

The only wheels for my 1955 Silverdome trailer! Thanks again! 283081



- AM20514
by:

I replaced all 4 split rims on my 63 Airstream with these. They are a perfect replacement and they even fit the cone shaped metal hub caps. Look and preform wonderfully. 278037



- AM20514
by:

The wheels arrived promptly and in good condition. The finish is excellent; too bad I have full Airstream wheel covers! They balanced easily. 273331



- AM20514
by:

i just had tires mounted on these rims. the guys at the shop could not find this size rim in black (a must). etrailer is my first choice to shop for all things trailer. thanks everyone! 255316



- AM20514
by:

Recently had my four wheels mounted and balanced. Two of the four had severe misalignment issues where the mounting surface was welded in a little tilted in the barrel of the wheel. Wheel weights would not be able to counter the alignment issues. With this aside, overall the wheels are nice with good quality powder coating. Customer service was excellent throughout the purchasing process. 248015


50
75
Show More Reviews

Ask the Experts about this Dexstar Tires and Wheels

Do you have a question about this Tires and Wheel?


  • Baby Moon Cap Compatibility with 16 Dexstar Conventional Steel Wheel # AM20758
  • You can determine whether either of our baby moon hubcaps, part # AM90086 or part # AM981306, will fit a wheel by measuring the outer diameter of the inner ring and then the outer diameter of the inner ring with one of the tabs (see attached photo). The Baby Moon Cap # AM90086 has an inside diameter of 9-1/4" and will fit 5-lug conventional trailer wheel sizes of 13", 14" and 15". The Pointed Baby Moon Cap # AM981306 has an inside diameter of 10-1/4" and is compatible with 6-lug conventional...
    view full answer...

  • Recommended Off-Road Wheels and Tires for Timbren Axle-Less Trailer Suspension
  • Thanks for the purchase of the Timbren Heavy-Duty Axle-Less Trailer Suspension - 4" Lift Spindle - Off-Road Tires - 3,500 lbs # ASR35HDS02 with the Dexter Trailer Hub and Drum Assembly # 8-201-9UC3-EZ which will be a great addition for your trailer; we definitely have wheels and tires that will be a perfect match. You will need a wheel with a matching 6 on 5-1/2" bolt pattern and I also recommend going with a bias tire because they have stiffer sidewalls than radial tires, meaning it...
    view full answer...

  • Replacement Options for a 15" Wheel with a 6 on 5-1/2" Bolt Pattern
  • We do have a wide variety of 15" trailer wheels that have a 6 on 5-1/2" bolt pattern that I have linked for you to filter through. Most of these have a pilot hole with a diameter that is about 4.25" wide, but then we do have some options, like the Dexstar Conventional Steel Wheel # AM20514 with a smaller 3.65" diameter pilot hole. The pilot hole diameter of each wheel is listed on their product page. If you aren't concerned with having a pilot hole that is the same diameter as what...
    view full answer...

  • How To Determine The Trailer Wheel Replacement Needed
  • There are a few measurements needed to ensure you get the correct wheel replacement, but it is difficult to determine from just a picture. I've attached articles to help with the proper fit by measuring the bolt pattern of your wheel, the width from bead seat to bead seat, and the diameter. If you need further help, send me the photos and the dimensions you have and I'd be happy to assist.
    view full answer...

  • Will Phoenix Baby Moon Wheel Cover PX1307SS Fit Dexstar 15 inch Conventional Wheel AM20514
  • Yes, the Phoenix USA Baby Moon Hub Cover # PX1307SS that you referenced does fit on the Dexstar Conventional Steel Wheel # AM20514 that you referenced. This cover was designed to fit 15 inch conventional wheels just like this.
    view full answer...

  • Recommended Trailer Tires for Maximum Load Capacity and Speed Rating
  • All 15-inch trailer wheels in your 6-on-5-1/2 wheel bolt pattern are the size 15 x 6. These wheels, shown on the linked page, themselves have varying weight ratings, from 2600-lbs for the Dexstar Conventional Steel Wheel # AM20514 to 2830-lbs for the Sendel aluminum wheel # AM22654. The reason I mention this is that apart from your chosen tire capacity your wheels themselves may be overloaded. Our resident wheel and tire guru said that any given trailer wheel is more likely to withstand...
    view full answer...

  • Comparison of Steel vs Aluminum Trailer Wheels?
  • The actual weight of aluminum wheels versus steel wheels will depend on the design. For instance the Aluminum Sendel Series T02 Machined Trailer Wheel - 15" x 6" Rim - 6 on 5-1/2 # AM22654 will weigh 20 lbs and the Aluminum Bobcat Trailer Wheel # LHSO311B will be 17 lbs. Similarly, the Dexstar Steel Spoke Trailer Wheel - 15" x 5" Rim - 5 on 4-1/2 - White Powder Coat # AM20422 will be 17 lbs versus the 22 lbs of the Dexstar Conventional Steel Wheel - 15" x 6" Rim - 6 on 5-1/2 - Black Powder...
    view full answer...

  • 15 Inch Wheels Compatible with Baby Moon Caps for 1949 Dual Axle Travel Trailer
  • For 15 inch wheels we have the conventional wheels like # AM20514 that work with the baby moon caps # AM981306 or # AM90086. The conventional wheels we carry are only available in the 5 on 4-1/2 bolt pattern or the 6 on 5-1/2 inch bolt pattern. If you are interested in trading out your trailer hubs, we can get you hubs that will fit with these wheels. I'll just need to know what your bearings are for your current hubs. This is printed on the face of your bearings and I need both...
    view full answer...

  • Baby Moon Cover Recommendation for Dexstar Conventional Wheel AM981306
  • Yes, the baby moon covers part # AM981306 that you mentioned would fit the Dexstar Conventional wheels part # AM20514 that you have.
    view full answer...

  • Replacement Dexstar Wheel for Dexstar 15 by 6 inch Conventional Wheel with 2.6k Capacity
  • If the wheel you have is a conventional wheel that looks like the part # AM20514 then it would be an exact replacement. The dimensions and weight capacity are the same as the numbers you listed as well.
    view full answer...

  • Conventional Trailer Wheel that is 15 inch in Diameter with 6 Lug Bolt Pattern
  • The part # AM20514 should work very well for you. This is a 15 inch diameter wheel with a 6 on 5-1/2 inch bolt pattern. For a radial tire in the ST225/75R15 size you would want the part # AM10303.
    view full answer...

  • Choosing Replacement Tires and Wheels for Older Trailer
  • We do have a large selection trailer tires and wheels available. In order to pick out the correct replacement tires for your trailer, I recommend checking for the size that is currently mounted. This will be listed on the tire's sidewall and I have attached an article that further explains trailer tire sizing that you might find helpful. The closest wheels we have available with a 6 on 5-1/2 inch bolt pattern to the 3-1/2 inch pilot hole diameter you mentioned is a conventional wheel...
    view full answer...

  • Hub Cap for Dexstar 15x6 Inch Conventional Steel Wheel with 6 on 5-1/2 Bolt Pattern
  • For the 15 inch conventional steel wheel # AM20514 you can use baby moon hub cap # AM981306. I have included a link to a video review of this wheel for you.
    view full answer...

  • Recommended Baby Moon Center Cap for 15-Inch 6-Lug Conventional Trailer Wheel
  • Our Baby Moon Hubcaps, parts # AM90086 and # AM981306, both fit conventional type steel trailer wheels like # AM20514. For your 15-inch 6-lug wheel you will want to use part # AM981306. This chrome-plated center cap snaps on.
    view full answer...

  • Rim for 2013 Airstream Travel Trailer That Works With 225-75/15 Tires
  • There are going to be rims that work with your 2013 Airstream's 225-75/15 tire so you will need a 15" rim, but to get the correct one you will need to know your wheel's bolt pattern. I have linked a help article for you which details exactly how you can measure to find this. From there you can choose the style of wheel and color that you'd like. For example our most popular rim is the Dexstar # AM20514 which is a steel rim with a black powder coat and has a 6 on 5-1/2 bolt pattern. Another...
    view full answer...

  • What is the Offset for Dexstar Conventional Steel Trailer Wheel, # AM20514
  • The Dexstar Conventional Steel Wheel, # AM20514, that you have referenced has a zero offset. This rim is 15 inches by 6 inches and has a 6 on 5-1/2 bolt pattern. It accepts bolt size 1/2 Inch-20 and has a pilot diameter of 3.65. If this matches your existing wheels on your 2004 Airstream trailer then this rim will fit. I have included a link to an FAQ article on how to determine bolt pattern for reference. The article covers a couple of different methods for determining bolt pattern....
    view full answer...

  • Trailer Wheel and Tire Recommendation that has Capacity Over 3,000 lb
  • To get a wheel and tire combo that has a capacity of over 3,000 lbs per wheel you will have to look into upgrading to a 16 inch setup as the highest capacity for a 15 inch wheel is 2,830 lbs. The Contender wheel and tire part # A16RTK6SM would be a great choice as it has a capacity of 3,520 lbs per wheel/tire and has a 6 lug bolt pattern which is very common on 15 inch trailer wheels like your trailer would have. This is also priced really well too. You have to upgrade the size of everything...
    view full answer...

  • What Size Wheel Has Weight Capacity of 3,000-Lbs or More For 6K Axle with 6 on 5-1/2 Bolt Pattern
  • The highest weight capacity available for a 15 inch wheel with a 6 on 5-/12 inch bolt pattern is 2,830 lbs. You will need to use a 16 inch wheel with a 6 on 5-1/2 inch bolt pattern to get a wheel that has a 3,000-lb or higher weight capacity. I have the Dexstar Conventional 16 x 6 Steel Wheel, part # AM20758, that has a 6 on 5-1/2 inch bolt pattern and a weight capacity of 3,040 lbs at 80 psi. Also available is the Dexstar 16 x 6 White Spoke Steel Wheel, part # AM20741. This is...
    view full answer...

  • What is the Weight Capacity and Air Pressure Ratings on the 15 X 6 Inch Steel Wheel - 6 on 5-1/2
  • The weight capacity and air pressure ratings on the Dexstar White Spoke Wheel - 15 x 6 - 6 on 5-1/2, part # AM20532, and the Dexstar Galvanized Spoke Wheel - 15 x 6 - 6 on 5-1/2, part # AM20534, is 2,600 lbs at 80 psi. The Dexstar Black Steel Wheel - 15 x 6 - 6 on 5-1/2, part # AM20514 is 2,600 lbs at 75 psi. The only difference would be the design and finish of the wheels. The Dexstar # AM20514 is a solid black steel wheel. The Dexstar # AM20532 and Dexstar # AM20534 are the...
    view full answer...

  • 6-on-5-1/2 Bolt Pattern 15-Inch Trailer Wheel with 3.65-Inch Pilot Hole
  • When choosing a new hub/drum you want to match up a few things, including your wheel size and the set of bearings used in the hub. The bearings in the new hubs have to be the same as those in your current hubs in order for them to fit on your spindles. You also need to match the wheel bolt pattern and the hub weight capacity. I have linked for you both our page for hubs in your bolt pattern and that are compatible with 15-inch trailer wheels and also our page for trailer wheels in your...
    view full answer...

  • Correct Wheels Caps For The Dexstar Conventional Steel Wheel part # AM20514
  • I do have the correct wheel caps for the Dexstar Conventional Steel Wheel part # AM20514 but the Americana Baby Moon Trailer Wheel Center Cap part # AM90086 are not a confirmed fit. For the correct wheel caps for your Dexstar wheels, you will need the Americana Pointed Top Baby Moon Trailer Wheel Center Cap part # AM981306.
    view full answer...

  • Trailer Tires to Replace P235/70-15 Car Tires on a Horse Trailer with Dually Wheels
  • You definitely need to replace the tires with trailer tires. Trailer tires are built with a thicker sidewall than car tires to handle more vertical load. The steel wheels are pretty much the same as the black steel wheels such as # AM20514 so they are likely going to be fine. The smallest dually wheels we have are 16 inch, # TTW660865SDX1C, which uses an 8 on 6-1/2 bolt pattern. On the wheels you have you could likely use a 225/75-15 size which would only be 0.394 inches more narrow...
    view full answer...

  • What is the Capacity of a 15x6 Inch Trailer Wheel with 5 on 4-1/2 Bolt Pattern
  • There are different capacities depending on the wheel. For 15x6 wheels with a 5 on 4-1/2 bolt pattern we have the following capacities: # AM20522 and # AM20524 are rated for 2050 pounds at 75 psi # AM20504 is rated for 1820 pounds at 75 psi # AM22627, # AM20551, and # AM20537 are rated for 2150 pounds at 65 psi You would not use passenger vehicle wheels on a trailer. They are not rated for that application and often the offset and/or bolt pattern is not right for a trailer.
    view full answer...

  • Will Dexter Hub and Drum for 5200 Pound Axles and 6 on 5-1/2 Bolt Pattern Fit a 15 Inch Wheel
  • Hub and drum assembly # 8-201-5UC3 is designed for use with 16 to 18-1/2 inch wheels but will fit a 15 inch black conventional steel wheels like # AM20514.
    view full answer...

  • Will White Spoked Trailer Wheels Accept Baby Moon Center Caps
  • If you are referring to Baby Moon wheel center caps like # AM90086 and # AM981306 these will fit on conventional trailer wheels. Part # AM90086 fits 13, 14 and 15-inch 5-lug trailer wheels like # AM20404 and has an inner diameter of 9-1/4-inches. Part # AM981306 fits 15-inch 6-lug conventional trailer wheels like # AM20514 and has an inner diameter of 10-1/4-inches. These center caps do not fit white spoke wheels like # TTW560545WS1. For reference I linked our main page for all wheel...
    view full answer...

  • Selecting Replacement Trailer Wheel for 1957 Airstream Trailer
  • You can select a replacement trailer wheel for your 1957 Airstream (yes, I am envious!) using the page I linked for you. You will want to click the filters on the page to choose your size, etc. You'll want to choose a new rim that has the required weight rating and the same bolt pattern and offset as your others. I linked an article to help you confirm your Airstream's wheel bolt pattern. A wheel's offset is how far from the wheel's center the tire tread center will be. Positive offset...
    view full answer...

  • What Size Wheel Pilot Hole is Required When Using 5,200 LB or 6,000 LB Dexter Hub and Drums
  • The maximum hub bore measurement for the 5,200 LB or 6,000 LB Dexter hub and drum assembly is 3.622 inches. You will want to choose a wheel whose pilot hole is just slightly larger. A great option would be our Dexstar Conventional Steel Wheel, # AM20514, which has a pilot hole that measures 3.65 inches. I have included a short video for you.
    view full answer...

  • Will Kenda 7.00-15LT # AM10414 Tire Fit a Dexstar # AM20514 Wheel for a 27 foot Airstream Trailer
  • My technical contact at both Dexstar and Kenda told me that you can use the Dextar Steel Wheel # AM20514 with the Kenda # AM10414 7.000-15LT tire and you will have a complete set. You will want to make sure that the pilot hole on the new wheels will fit the hub of your Airstream. The diameter is 3.65 inches. We do not mount tires here, however, the tires and wheels can be mounted by any local tire store in your area.
    view full answer...

  • Looking for 15 inch Vintage Steel Rim and 7.00-15LT Tire for Spare Tire on Older Travel Trailer
  • We offer a 7.00-15LT tire as part # AM10414. I believe the rim you're looking for is what's referred to as a 'Vintage Steel Wheel', like part # AM20501 for a 6 inch wide rim or # AM20395 for a 5 inch wide rim. The wheel has a 4 on 9.44 inch wheel bolt pattern, as shown in the provided photo.
    view full answer...

  • Are Trailer Wheels Marked for Where to Mount Trailer Tires
  • Yes they are marked with the red dot for the radial run out. If you took the wheel to a shop to have them mounted they would know where to put the tire on the rim # AM20514. Typically the yellow dot indicates the point on the tire that SHOULD be mounted next to the valve stem for the best balance. The red dot is the uniformity mark. As well as not being able to manufacture perfectly weighted tires, it's also nearly impossible to make a tire which is perfectly circular. Every tire...
    view full answer...


Do you have a question about this Tires and Wheel?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality tires and wheels for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate tires and wheel information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Expert Research:
Jackie C
Expert Research:
Mike L
Expert Research:
Michael H
Expert Research:
Jeff D
Expert Research:
Reno H
Expert Research:
Jameson C
Expert Research:
John H
Expert Research:
Adam R
Updated by:
Laura H
Updated by:
Mary E

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.
