Dexstar Vintage Steel Wheel w/ +5 mm Offset - 15" x 5" Rim - 4 on 9.44 - Silver

Dexstar Vintage Steel Wheel w/ +5 mm Offset - 15" x 5" Rim - 4 on 9.44 - Silver

Item # AM20395

lowest price pledge

Our Price: $187.25

Tires and Wheels

This item qualifies for Free Shipping

Shipping Weight: 17 lbs

Quantity:
In Stock
Dexstar Standard Rust Resistance Tires and Wheels - AM20395
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Videos


  • Wheel Only
  • 15 Inch
  • 4 on 9.44 Inch
  • Steel Wheels - Powder Coat
  • Standard Rust Resistance
  • Dexstar
Get that vintage look for your trailer with this silver star-pattern trailer wheel. The 15" steel wheel features a 4 on 9.44 bolt pattern and meets Department of Transportation standards. Lowest Prices for the best tires and wheels from Dexstar. Dexstar Vintage Steel Wheel w/ +5 mm Offset - 15" x 5" Rim - 4 on 9.44 - Silver part number AM20395 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (7)
  • Q & A (29)
  • Videos (1)
  • Photos
  • Why etrailer?

Dexstar Tires and Wheels - AM20395

Get that vintage look for your trailer with this silver star-pattern trailer wheel. The 15" steel wheel features a 4 on 9.44 bolt pattern and meets Department of Transportation standards.


Features:

  • Sturdy steel construction
  • Excellent corrosion resistance
    • Silver powder coat finish over e-coat primer
  • Star pattern creates vintage look
  • Positive offset ensures that the wheel is positioned closer to the trailer frame
  • High-quality wheel meets DOT specifications
  • Made in the USA


Specs:

  • Rim dimensions: 15" diameter x 5" wide
  • Bolt pattern: 4 on 9.44"
  • Wheel bolt size: 1/2"-20
  • Offset: +0.5"
    • Mounting surface of wheel sits outside of rim centerline
  • Load rating: 1,680 lbs
  • Limited 2-year warranty


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


20395DX Dexstar Vintage 494 Steel Wheel - 15"

017-120-1S

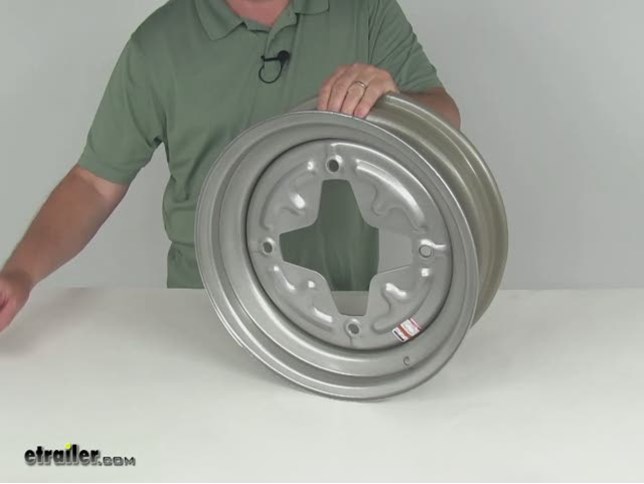

Video of Dexstar Vintage Steel Wheel w/ +5 mm Offset - 15" x 5" Rim - 4 on 9.44 - Silver


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Dexstar Tires and Wheels - Wheel Only - AM20395 Review

Today I'm going to review part # AM20395, this is the Dexstar Vintage 15 inch x 5 inch Steel Trailer Wheel with the 4 on 9.44 bolt pattern and a 1/2 inch positive offset in silver and color. This wheel is a sturdy steel construction. They use a nice silver pwoder coat finish over an e coat primer on the front and back of the wheel. This gives you excellent corrosion resistance. This is a vintage design; has the star pattern to it. It does have the 1/2 inch positive offset to ensure that he wheels position closer to the trailer frame basically on the offset most trailer wheels, this mounting surface that goes up against the hub on your trailer is usually positioned right at the center line of the wheel.

On some wheels they do give an offset to have them clear brakes or something from underneath the trailer. In this one they moved this mounting surface a 1/2 an inch positive, which means to the outside, which in turn will pull the tire and wheel closer to the trailer frame. This is a high quality wheel; does meet the Department of Transportation specifications. It is made in the USA. A few specs on this. The dimension is 15 inches in diameter and 5 inches wide.

When you do measure that you want to make sure your measuring inside the inside where the tire beads would seat. The same on the width, inside to inside because what your measuring on the dimensions is when the tire is seated on here the beads seat right here so that's what should be measures. The diameter is going to measure inside to inside. Let's put a ruler on that. If you go inside to inside you'll see 15 inches for the diameter.

The width again inside to inside. You'll see 5 inches. Now the bolt pattern; this is a vintage bolt pattern. It's a very large bolt pattern. You can see the four holes. On a wheel that has an even number of holes, in this case four, you just measure from the center of one hole directly across to the center of the hole right across from it.

On this one, if we put a ruler on it, you will see it gives you the 9.44 bolt pattern. This does use a wheel lug size of a 1/2 inch x 20. The load range is 1,680 lb. Again, just to mention it does use a 1/2 inch positive offset which moves this mounting surface 1/2 inch to the outside of the wheel which in turn makes the wheel move closer to the trailer frame. That should do it for review part # AM20395, the Dexstar Vintage 15 inch x 5 inch Steel Trailer Wheel with the 4 on 9.44 bolt pattern, 1/2 inch positive offset in silver and color. .


Customer Reviews

Dexstar Vintage Steel Wheel w/ +5 mm Offset - 15" x 5" Rim - 4 on 9.44 - Silver - AM20395

Average Customer Rating:  4.7 out of 5 stars   (7 Customer Reviews)

Get that vintage look for your trailer with this silver star-pattern trailer wheel. The 15" steel wheel features a 4 on 9.44 bolt pattern and meets Department of Transportation standards.

- AM20395
by:

Wheel arrived in 3 days of ordering, looks like a quality product and will order again for parts for my 1969 red dale trailer. Thanks for prompt service and N/C shipping 568981



- AM20395
by:

The rims I ordered fit perfectly and were exactly what I wanted. It took a lot less time than I expected to get them. The agent I spoke with was very polite and helpful. I will recommend etrailer.com to my friends. 449715



- AM20395
by:

Customer service is second to none and every product that I have purchased from you guys has been excellent. You have had and will continue to have all my business. 439501



- AM20395
by:

Wheel was delivered timely after ordering. I had been looking locally for this wheel for some time. Good find and good quality. 335824



- AM20395
by:

This wheel is exactly what I needed, and fits the trailer perfect. It was a tough wheel to find, and etrailer provided great service helping to make sure it would fit my trailer. Excellent service - A+ 231036



- AM20395
by:

it fits, thanks 187600



- AM20395
by:

product was as advertised great service delivered on time pretty amazing because it is christmas week will definatley keep using your services 28431


Comments

I have a 1977 Prowler 20 double axle trailer. what would be the proper wheel and tire for a spare?

-- comment by: Gene P - 01/01/2014

2497

To determine that, we need to what tires and wheels are currently on the trailer. The tire size will be on the sidewall of the tire and that will provide most of the information. The only other bit we would need, would be the GVWR, Gross Vehicle Weight Rating, and the bolt pattern of the wheel. GVWR will be on the plate or engraving that indicates the other trailer capacities, usually it is on the frame close to the coupler. Bolt pattern will require some measuring, but I have linked to an article that will walk you through that procedure.

-- Patrick B - 1/3/2014

7
7

Ask the Experts about this Dexstar Tires and Wheels
Do you have a question about this Tires and Wheel?


  • Replacement 7.00 x 15 Tires for 1971 Frolic Camper Trailer
  • Though I would not be able to speak to an entire era, I can tell you that the tires we carry are tubeless and you would not want to use a tubeless tire on a wheel designed for tube tires. If you are using a tubeless rim I recommend replacing your current 7.00 x 15 LT tires with new ones, part # AM10414. If you need a new rim the only option we carry that is 4 lugs and has a 15" diameter is the Dexstar Vintage Steel Wheel # AM20501 or # AM20395 and they have a 4 on 9.44 bolt pattern. I...
    view full answer...

  • Spare Wheel & Tire For 4 Bolts On 9.44 & 7.00x15lt Tire
  • Since your tires are 7.00X15LT, the "15" in that tire size means that they are on 15 inch rims. If you need it I have articles attached that explain how to measure a trailer tire and wheel. When you measure make sure you're measuring inside to inside at the tire bead seat. The same with the width, inside to inside because what you're measuring on the dimensions is where the tire is seated. I also have videos attached that show(s) how to measure a tire and wheel. The recommended...
    view full answer...

  • Replacement Wheel Needed for a 1975 Taurus Camper
  • We may have a solution for you but you will need to remeasure your current bolt hole pattern. I went out to the warehouse and measured from the center of one bolt hole directly to the center of the bolt hole next to it for the Dexstar Vintage Steel Wheel w/ +5 mm Offset # AM20501 and # AM20395 and I found the distance to be 6-5/8". These wheels have what is called a 4 on 9.44" bolt pattern. This is typically found by measuring bolt holes directly across from another. If you can determine...
    view full answer...

  • Vintage 4 on 9.44 inch Bolt Pattern Trailer Wheel Recommendation
  • It sounds like you are looking for a vintage style trailer wheel that has the 4 on 9.44 inch bolt pattern. I attached a link to a page that has all of these style wheels we offer, but if you are looking for a 15 inch version you would want part # AM20395. I attached a review video for this wheel for you to check out as well.
    view full answer...

  • Recommended Wheels Compatible With 8 on 6-1/2 Bolt Pattern
  • The Dexstar Vintage Steel Wheel w/ +5 mm Offset - 15" x 5" Rim - 4 on 9.44 - Silver # AM20395 will only fit hubs with 4 bolts. Your 4 bolts should be a little short of the 6-1/2 inches apart...I believe around 6-3/8 inches. These will work for you if you have that style hub. If I misunderstood and you have a 6 bolt pattern then I recommend the old style Dexstar Conventional Steel Wheel w/ +0.5" Offset - 16" x 6" Rim - 8 on 6-1/2 - Black # AM20766 which works with the baby moon caps...
    view full answer...

  • Availability of Trailer Wheels With 4 x 9.44 Bolt Pattern
  • We do offer replacement trailer wheels (rims) with the 4 x 9.44-inch bolt pattern, such as part # AM20501 from Dexter which is a 15 x 6-inch wheel. We also offer this bolt pattern in other wheel sizes; those part numbers are linked for you: # AM20208, # AM20312 and # AM20395. For this vintage style wheel we no longer have replacement hub/drum assemblies. At right is a link to all hub/drum assembly sizes we do offer.
    view full answer...

  • Need Replacement Wheel For 4 Bolt Dexter Axle on Old Hitchhiker Trailer With 225/75/15 Tire
  • The only 15 inch wheels that we currently have available have a 4 on 9.44 bolt pattern. You will need to check the bolt pattern on your trailer to make sure it is the same. To check the bolt pattern measure center to center on lug nuts directly across from each other. The only 4 bolt wheels that are a size 15 wheel are a vintage style 4 on 9.44, part # AM20395, and part # AM20501. The Dexstar Vintage Steel Wheel w/ plus 5 mm Offset - 15 x 6 Rim, part # AM20501, will fit your 275/75/15...
    view full answer...

  • Vintage Trailer Wheel Availability for a 1973 Prowler Trailer
  • You might be able to use a vintage wheel if the center to center distance from one bolt hole to the other bolt hole of your existing wheels is 9.44 inches (a little over 9-7/16 inches). We have the following vintage wheels: 13 inch wheel # AM20208 14 inch wheel # AM20312 15 x 5 inch wheel # AM20395 15 x 6 inch wheel # AM20501 Take the measurement and you will know if this rim will fit. Feel free to email me a picture of your wheel as well.
    view full answer...

  • Looking for 15 inch Vintage Steel Rim and 7.00-15LT Tire for Spare Tire on Older Travel Trailer
  • We offer a 7.00-15LT tire as part # AM10414. I believe the rim you're looking for is what's referred to as a 'Vintage Steel Wheel', like part # AM20501 for a 6 inch wide rim or # AM20395 for a 5 inch wide rim. The wheel has a 4 on 9.44 inch wheel bolt pattern, as shown in the provided photo.
    view full answer...

  • Recommended Replacement 3,500 Lb Trailer Axle
  • For you to upgrade your system you will need a new axle along with the hub. It looks like you were looking at the Dexstar Vintage Steel Wheel, part # AM20395. This is a 4 lug wheel that would be used on a 3,500 lb axle. I will make some recommendations for 3,500 lb systems for you. I would recommend a system that includes the hubs or for a system with brakes a system that includes the hub, drums, and brakes. One system I recommend is the Dexter Trailer Axle with Idler Hubs, part...
    view full answer...

  • 15 Inch Wheel/Tire Combo with 4 Lugs for Older Camper
  • We offer a wheel and tire that are sold separately that might very well work for your application. The 215/75-15 isn't a typical trailer tire size, but a 205/75-15 like # AM1ST92 is definitely in the ballpark, being only about 1/4 inch smaller in diameter than your existing tire. The only 15 inch wheel we offer with a 4 lug bolt pattern is a Dexstar Vintage Trailer Wheel, part # AM20395. If this isn't the wheel you have, please let me know. The # AM1ST92 mentioned above is a load...
    view full answer...

  • Replacement Wheel Recommendation for a Vintage Camper Trailer
  • Yes, the Dexstar Vintage Steel Wheel # AM20395 should work well for you. This is a 15 inch rim with a 4 on 9.44 inch bolt pattern like what you have.
    view full answer...

  • Availability of Vintage Style 4-Bolt Trailer Wheels
  • We offer four vintage-style trailer wheels with the 4-on-9.44-inch bolt pattern that can be seen on the linked page. These wheels are available in 13-, 14- and 15-inch diameters. Note that all four of these wheels have a 5mm positive offset, meaning that the tire will be 5mm closer to the trailer frame that with a wheel having no offset. Weight capacities range from 1315-lbs for the 13-inch x 4-1/2-inch # AM20208 to 2330-lbs for the 15 x 6 # AM20501.
    view full answer...

  • Replacement Wheel and Tire for 1968 RoadRunner
  • The p235/75d15 tires on your 1968 RoadRunner are passenger tires and though there is not a trailer tire in that size, we do have similar sizes. As for the wheel I would need to know what bolt pattern you need, such as 5 on 4-1/2" which is a very common size. If you are unsure of your bolt pattern I have added a link to a help article which details how to find this. The photo you sent did not come through but I did look up the RoadRunner to get an idea of what you may be looking for....
    view full answer...

  • Vintage Axle Replacement Bearings
  • We have wheels for the 4 on 9.44 inch bolt pattern like # AM20395 but we don't carry any hubs to fit them. If you are able to pull a hub and get the bearing numbers which are printed on the face of the inner and outer bearing I may be able to help with bearing replacements. If you can't see the bearing numbers, then you can use a digital caliper like # PTW80157 to measure your spindles in the bearing and seal locations. I'll also need the outer seal diameter to assist. I've attached...
    view full answer...

  • Availability of a Trailer Wheel to Use as a Spare for Old 4-Bolt Wheel with Larger Center Hole
  • You might be able to use a vintage wheel if the center to center distance from one bolt hole to the other bolt hole of your existing wheels is 9.44 inches (a little over 9-7/16 inches). We have the following vintage wheels: 13 inch wheel # AM20208 14 inch wheel # AM20312 15 x 5 inch wheel # AM20395 15 x 6 inch wheel # AM20501 But if the wheels you have now attach to the hub using wheel bolts instead of lug nuts then these vintage wheels will not fit. It is hard to tell...
    view full answer...

  • Determining Axle Size/Capacity in Pounds for a 1973 Prowler Camper Trailer
  • The trailer will have a plate or sticker on it that will list the VIN number. The weight rating of the axle should be listed on that same plate or sticker. Also, the axle could have a tag or plate on it that will list the weight capacity. You can also tell the weight capacity of the axle by measuring the diameter of the axle. Here is a list that will show the axle weight capacity based on the axle diameter: Typical Axle Diameters Based on Axle Capacity - 1,000-lb - 2,000-lb Axles:...
    view full answer...

  • 1/2 inch Coarse Threaded Wheel Bolt Recommendation
  • We have two 1/2 inch coarse threaded wheel bolts. The part # 7-23 that is 2-1/4 inches in length and the part # 090753 that is 1-5/8 inches.
    view full answer...

  • Recommendation for a Replacement Wheel for 1973 Prowler Travel Trailer
  • Good news either wheel will work for you. If you are trying to just replace one wheel you would want to check to see what size you have on the other side of your trailer and match them up, but if you are replacing both then you can choose either the # AM20501 or the # AM20395. Both will accommodate your tire size of ST205-75D15. I have linked our Help Article on Tire Sizing for your convenience.
    view full answer...

  • 15 Inch Steel Trailer Wheel with 4 on 9.44 Bolt Pattern for Home Made Trailer with 7.00-15 Tires
  • We do have a couple of steel wheels with the 4 on 9.44 bolt pattern in a 15 inch. We have wheel # AM20501 which is a 15 x 6 inch wheel rated for 2,330 pounds. And we have # AM20395 which is a 15 x 5 inch rated for 1,680 pounds. Both wheels have a 1/2 inch positive offset (the tire will be 1/2 inch closer to frame than wheel with zero offset). The 7.00-15 tire size will fit either size wheel.
    view full answer...

  • Replacement Wheels for a Vintage 1973 Prowler Travel Trailer
  • We do have some vintage 4-bolt wheels, see link, but the smallest is a 13 inch. It is hard to tell if they are split rims or not. The wheel in the picture does not look too bad at all. An over the counter steel cleaner from an auto parts store should do the trick. They may even have a specialty item for wheels. You are going to have to remove the tires and check the insides of the rim. A tire shop should be able to do that for you can can also clean the insides of the wheels and...
    view full answer...

  • ST205/75/15 Spare Wheel And Tire Combo For A 1974 Pull Behind Camper
  • Yes, and I have the perfect combination for you. For this, you will want a 15" wheel and ST205/75/D15 tire. I recommend purchasing these items separately as we do not have a pre-assembled wheel and tire combo in the dimensions you have posted. For a 15" wheel compatible with the 4 on 9.44 bolt pattern on your trailer's axles, I recommend using the Dexstar Vintage Steel Wheel part # AM20395. This wheel retains a similar look to the wheels currently on your trailer and has a +.5 offset...
    view full answer...
