White power coated, 14" steel wheel features a 5 on 4-1/2 bolt pattern and meets Department of Transportation standards. Lowest Prices for the best Tires and Wheels from Dexstar. Dexstar Steel Spoke Trailer Wheel - 14" x 5-1/2" Rim - 5 on 4-1/2 - White Powder Coat part number AM20352 can be ordered online at etrailer.com or call 800-298-8924 for expert service.
$38.95
Select Your Vehicle

View Cart

Tires and Wheels > Wheel Only > 14 Inch > 5 on 4-1/2 Inch > Steel > White > Dexstar


Dexstar Steel Spoke Trailer Wheel - 14" x 5-1/2" Rim - 5 on 4-1/2 - White Powder Coat

Dexstar Tires and Wheels

(21 reviews)


Code:   AM20352

Price:$38.95


Shipping Special

Shipping Weight: 18.08 pounds

Quantity:






Dexstar Tires and Wheels - AM20352

White power coated, 14" steel wheel features a 5 on 4-1/2 bolt pattern and meets Department of Transportation standards.

Features:

  • Sturdy steel construction
  • Excellent corrosion resistance
    • White powder coat finish over e-coat primer
  • 8-Spoke pattern
  • High-quality wheel meets DOT specifications
  • Made in USA


Specs:

  • Rim dimensions: 14" diameter x 5-1/2" wide
  • Bolt pattern: 5 on 4-1/2"
  • Wheel bolt size: 1/2"-20
  • Pilot diameter: 3.19"
  • Capacity: 2,040 lbs at 65 psi
  • Limited 2-year warranty


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"




20352 Dexstar 8-Spoke White Wheel - 14"

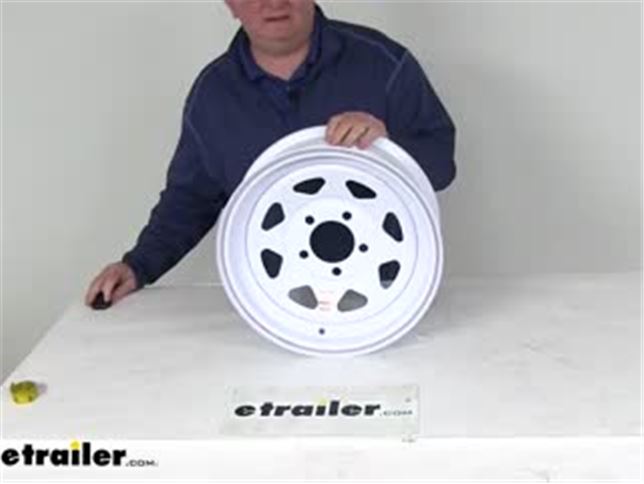

Video of Dexstar Steel Spoke Trailer Wheel - 14" x 5-1/2" Rim - 5 on 4-1/2 - White Powder Coat


Videos are provided as a guide only. Refer to manufacturer
installation instructions and specs for complete information.



Video Transcript for Dexstar Tires and Wheels AM20352 Review

Today we're going to review the part number AM20352. This is the Dexstar 14-inch by 5 1/2 inch Steel Spoke Trailer Wheel. Has the the 5, 1, 4 and-a-half inch bolt pattern, is white in color. This wheel is a sturdy steel construction. Has the nice white powder coat finish over e-coat primer on the whole wheel from and back. Give you excellent corrosion-resistance.

This is your standard 8-spoke trailer wheel pattern design. This is a very high-quality wheel that meets the Department of Transportation's specifications. The rim dimension on this is 14 inches in diameter, 5 and-a-half inches in width. If you go to measure that the way you would measure on a wheel, you're actually going to measuring inside the inside or bead seat to bead seat. Basically when a tire is mounted on here, the tire beads with seat right here. If we measure inside the inside, you can see 14-inch diameter.

We'll do the same on the width, inside to inside which is the bead seat to bead seat. If we put the ruler on the width, you can see it's 5 1/2 inches. 14 inches diameter, 5 1/2 inches of width. The bolt pattern on this wheel is a 5 on 4 1/2 inch bolt pattern. If you want to measure the bolt pattern on a wheel that is an odd number lugs like in this case 5, you just pick one of the wheel holes to start with then you'll measure from that hole the center of that hole directly across to either one of the holes right across from it. When you measure it, you're actually going to starting hole.

You'll do from the center. The hole you go to would be the further edge, the outer edge. In this case we're going to measure from this hole to this hole. Again, the starting hole start at the center, the outer edge, furthest edge is 4 1/2 inches. 5 on 4 1/2 inch bolt pattern.

This wheel does you a half inch by 20 wheel lug size. The pilot hub diameter which is the large hole here in the center of the wheel goes over the hub on your trailer. The diameter of that opening is going to be right at 3.19 inches. The weight capacity on this wheel is 2040 pounds. That should do it for the review on part number AM20352. The Dexstar 14-inch by 5 1/2 inch Steel Spoke Trailer Wheel with the 5 on 4 1/2 inch bolt pattern. .




Customer Reviews

Dexstar Steel Spoke Trailer Wheel - 14" x 5-1/2" Rim - 5 on 4-1/2 - White Powder Coat - AM20352

Average Customer Rating:  4.9 out of 5 stars   (21 Customer Reviews)

White power coated, 14" steel wheel features a 5 on 4-1/2 bolt pattern and meets Department of Transportation standards.


- AM20352

by: Jack F08/15/2013


Ordered the Dexstar rim to match what I had on the other side of the trailer, pretty much a routine purchase but I was IMPRESSED by the quick turn around after placing my order PLUS they provided faster shipping at no extra charge. Spent some time looking at other items that are available and will definitely use etrailer again. I have already told a friend about the site. Good Job and Excellent Customer Service !!!!! 95133






- AM20352

by: Craig A.12/03/2014


Wheel order went quickly and arrived on my porch days later. Couldn't have been easier. Would suggest to packaging dept to NOT use staples to position cardboard between product. First jolt from carrier broke it loose and left staples exposed to product which could have damaged product painted finish. 163261






- AM20352

by: Randy C07/18/2012


Excellence !!!! Was unsure of product, so I called. Customer Service was; Knowledgeable, Courteous, Friendly. Plus Shipping was SUPER FAST. If I ever need anything else, this is the place I will go !! I will recommend to everybody. Thank You, RandyC 48372






- AM20352

by: Howard B.02/12/2011


This transaction has been awsome. To have a company over excell on a sale and with super rapid shipping is getting hard to find on the internet these days. This company could teach a lot of others what customer service is all about. I will be a repeat customer, Thank you very much. 7071






- AM20352

by: Dan Jaspers04/16/2012


the rim i ordered as the type i needed. When i ordered it i was told it would monday or tuesday of next week, but i recieved it the following day. i really appreciate the fast service i got. i'm going to buy more things from you . t thanks again 37442






- AM20352

by: SteveG04/20/2015


Great product knowledge during customer service call. I was able, with their help, to order exactly what I needed. Received in a few days and was pleased with the quality and workmanship. Thanks for a great buying experience! 186619






- AM20352

by: Rick F.06/15/2012


Exactly what I needed. Arrived a day earlier than expected. Had a tire mounted and balanced on it within 2 hours of the UPS truck pulling out of my driveway! Another great eTrailer purchase experience! 44231






- AM20352

by: Rich T.09/18/2014


We were very satisfied with your company's service. We would definitely order products from you again. Thank you for excellent service and your timely delivery. 152007






- AM20352

by: CHARLES12/18/2014


Received product in excellent shape and in good time. Will keep this site bookmarked for future needs. Great information on determining exactly what you need. 166213






- AM20352

by: terry06/10/2015


all products purchased arrived with no problem. already have wheel with tire mounted on my trailer. happy with purchase. thanks. terry 202146






- AM20352

by: JL3966603/22/2011


Ordered on a Sunday night, delivered on Wednesday. Great service and appears to be a great product for the price. 10106






- AM20352

by: Fran H09/18/2012


Excellent service and line of products offered. No need to shop anywhere else. Thank all of you at e-trailer. 55076






- AM20352

by: sawdustman07/18/2014


Like always, super fast shipping, great price and great product. Good job!! 141967






- AM20352

by: Ron S01/29/2013


Boxed to perfection, shipped well before promised. Thanks etrailer.com 64515






- AM20352

by: Zeke04/15/2014


Great Product and a great price. Fast delivery. Would recommend. 125160






- AM20352

by: Tony R12/21/2012


Great shipping time placed my order and 3 days it was in hand ! 61837






- AM20352

by: Aaron08/20/2014


Very fast shipping and very helpful web site. 147723






- AM20352

by: Randy Hall01/19/2012


very nice product, perfect fit,great qu ality 29957






- AM20352

by: Kelley R12/13/2014


Received product before tracking said. 165438






- AM20352

by: Mike Maz12/02/2012


Excellent - once again. THANK YOU!! 60471






- AM20352

by: michael03/02/2014


if you need they got it ,thanks 118154




21
21


Ask the Experts about this Dexstar Tires and Wheels


  • Recommend Replacement Trailer Tire and Wheel for E78 14ST Tire
  • The closest trailer tire size we will have available for an E78 14 ST tire is a 205/75-14 tire. Before ordering replacement tires or wheels, you will want to measure to make sure you will have clearance. The overall diameter of this size tire is 26.3 inches, and the width is 7.8 inches. For a replacement wheel and tire combination, we have the Kenda Trailer Tire w/ 14 Inch White Wheel, part # AM3S440. You will want to check the weight capacity of your axle or trailer, as this wheel and...
    view full answer...

  • Replacement Tires and Wheels for a Utility Trailer with P185/70R14 Tires and 5 on 4-1/2 Wheels
  • I would recommend replacing the tires along with the wheels on your utility trailer. The tires that you currently have on your trailer are passenger car tires which can be identified by the P at the beginning of the tire size and it is not a common trailer tire size. Trailer tires will have an ST, or special trailer, designation on the tire size. Trailer tires are constructed with a stronger sidewall and can handle higher air pressures which are needed when carrying a load on a trailer....
    view full answer...

  • Recommend Replacement Spare Trailer Wheel and Tire For Utility Trailer w/ 185/75R14 Tires
  • The closest replacement tire size we have for your existing 185/75R14 tire is going to be a 205/75-14, like the Kenda Tire and Wheel # AM3S440. You would need to measure on your trailer to see if you will have room to mount this tire. The overall diameter of this size tire is 26.3 inches, and the width is 7.8 inches. The load capacity of the # AM3S440 is 1,760 lbs at 50 PSI. Using the different-sized spare for emergency would be acceptable to get where you are going, in an emergency...
    view full answer...

  • 14 Inch Trailer Wheels Rated for 2040 Pounds at 65 PSI for ST205/75R14 Trailer Tires
  • We have Dexstar wheel # AM20363 that will accept the 205/75-14 Load Range D tire. The wheel is rated for 2,040 lbs at 65 psi just like the tire. It has a 5 on 4-1/2 bolt pattern. Another option is white spoke wheel # AM20352 or white mini mod # AM20365. Or we have aluminum wheel # AM22330HWTB or # AM22329, both rated the same. If you need galvanized for corrosion resistance we have # AM20364. I have linked videos of all of these wheels for you.
    view full answer...

  • Spare Tire and Wheel Recommendations for a Nitro Dual Axle Boat Trailer
  • The 14 inch tire on your boat trailer is most likely a 5 on 4-1/2 bolt pattern. You will need a 14 inch wheel to match the other wheels on your trailer. I have included a link to an FAQ that shows how to measure for bolt pattern. The wheel that you referenced, # AM20504, is a 15 inch wheel and it has an offset which is not all that common. If you just want a wheel, # AM20352, is the most common. In the event that your wheels do have an offset, you would use # AM20304. For a standard...
    view full answer...

  • Will the Dead Bolt Spare Tire Lock # 4324 Work with a Wheel and Tire Rack or Just Block A Stud Hole
  • The Dead Bolt Spare Tire Lock, # 4324, is designed to block one of the stud holes in the wheel. The adjustable design of the lock will fit rims from 1/4 to 7/8 inches thick so it may be possible to use it to lock a wheel to a spare tire rack of carrier. As long as the thickness of the wheel and rack or carrier are less than 7/8 inches thick, this lock should work to secure the wheel. I produced a short video showing the Dead Bolt spare tire lock and a wheel, # AM20352 and spare tire...
    view full answer...

  • How to Measure Width and Bolt Pattern on a Trailer Wheel
  • To measure the width of a trailer wheel you will measure from where the tire beads will seat on the wheel. That will be from the inside of the inner wheel flange to the inside of the outer wheel flange, not from edge to edge of the wheel. To measure the bolt pattern on a wheel with an even amount of lugs ( 4-lug, 6-lug, 8-lug ) you will measure from the center of two bolt holes directly across from each other. If the wheel is a 5-lug wheel you will measure from the center of one hole...
    view full answer...

  • Is Tire Weight Capacity Listed per Tire or Per Axle
  • It would seem that the 1,750 rating that your tire has is the weight rating, but most ST205/75-14 tires with a Load Range of C have a 1,870 lb capacity at 50 psi like part # AM10229. That would mean that when you combine the two tires you have an overall tire rating of 3,500 lbs. I attached a help article on trailer tires for you to check out as well.
    view full answer...

  • What is the Difference Between the Dexstar Mini Mod Wheels and the Steel Spoke Wheels
  • Both the Dexstar Steel Spoke Trailer Wheel # AM20352 and the Dexstar Steel Mini Mod Trailer Wheel # AM20365 that you referenced are made of the same material and have the same powdercoat finish so either would be just as great as the other when being submerged. If I were you I would pick the design that you think looks better since aside from that the wheels are identical. I attached review videos for both wheels for you to check out as well.
    view full answer...

  • Will an ST215/75-14 Trailer Tire Fit on a 6 Inch Wide Wheel
  • If your trailer uses a 5 on 4-1/2 bolt pattern then you can use wheel # AM20352 which is 5-1/2 inches wide. Or for a tire and wheel combo with a Load range C 215/75D14 bias trailer tire use # AM3S550. A 215/75-14 tire will fit on a 6 inch wide rim. The rim width is not the issue since the tire width is over 8 inches so there will be no clearance issue.
    view full answer...

  • What Size Trailer Wheel Will Accept a 215/75-14 Trailer Tire
  • A trailer tire size 215/75-14 will fit on a 14 by 6 inch trailer wheel. The Dexstar Steel Spoke Trailer Wheel, # AM20354, is a 14 by 6 inch wheel so it will accept the tires. This is a galvanized wheel with a 5 on 4-1/2 bolt pattern. If you need a conventional steel wheel, use # AM20352.
    view full answer...

  • Rim Recommendation for the Karrier ST205/75R14 Radial Trailer Tire - Load Range D # AM10235
  • The Karrier ST205/75R14 Radial Trailer Tire - Load Range D # AM10235 that you referenced is rated for 65 psi as the max. The Dexstar Steel Spoke Trailer Wheel # AM20352 is also rated for 65 psi so it would work well. Both of these have the same weight capacity at 2,040 lbs when inflated to 65 psi. The rim has a 5 on 4-1/2 inch bolt pattern. You will need to verify that you have the same bolt pattern for this rim to work for you. I attached an FAQ on determining bolt patterns for you...
    view full answer...

  • Does the Wheel In Kenda 215/60-8 Bias Trailer Tire with 8
  • I have included a picture of the wheel only from tire and wheel combo # AM3H325. The wheel is designed with a safety bead. Compare it to a wheel like # AM20352 and you can see the similarities in the design and beads.
    view full answer...

  • How to Identify Trailer Axles
  • Depending on how the trailer was made, there will be a few spots you can check to identify the axle. First, if the trailer was pre-made by a specific company, you may be able to find this information in either the paperwork or on a placard somewhere on the frame. Sometimes, the axle identity is stamped into the axle itself or into the hub if it was purchased as a complete assembly. If you cannot find any markings or notation for the axle, you will need to look for replacement parts...
    view full answer...

  • Rim Needed for Spare Tire on Tracker Boat Trailer
  • A 205/75-14 tire is typically installed on a 5-1/2 or 6 inch wide 14 inch diameter rim. Assuming that your hub has a 5 on 4-1/2 inch bolt pattern, a standard white powder coated 14 inch rim like part # AM20352 would be a good choice. If you need a tire as well, we do not carry a wheel/tire combo with a D rated tire, but we do offer the 205/75D-14 radial tire that is sold separately as part # AM10235.
    view full answer...

  • What is the Backspacing of the Dexstar Steel Spoke Trailer Wheel # AM20352
  • The backspacing for this Dexstar Steel Spoke Trailer Wheel # AM20352 is 3-1/4 inches. I determined this by taking the wheel width (5-1/2 inches) adding 1 inch for both wheel lips (6.5) and then dividing that by 2 to give the backspacing of 3-1/4 inches. This is what the formula would look like. (5.5+1)/2=3.25 I attached an FAQ on trailer wheels and tires for you to check out also.
    view full answer...

  • What is the Offset of the Dexstar Steel Spoke Trailer Wheel, # AM20352
  • You are correct. The offset for the Dexstar Steel Spoke Trailer Wheel, # AM20352, is zero.
    view full answer...

  • Recommended Trailer Wheel for a 215/75D14 Tire on a 2004 Boat Trailer
  • You provided the necessary information - thank you! I recommend a steel spoke wheel like the Dexstar # AM20352 because it is a sturdy steel construction plus a white powder coat finish. The white powder coat finish will provide excellent corrosion resistance because the powder coat is over an e-coat primer. I added a link showing you all the 14-inch wheels we currently offer for you too. The capacity is 2,040 pounds at 65 psi and bolt pattern is 5 on 4-1/2 inches. I also included...
    view full answer...

  • Changing to Higher Rated Tires on Travel Trailer
  • The set-up you propose sounds like a fine option, with the exception of the metal valve stems. The # AM20352 wheels you mention (along with all the 14 inch wheels we offer) have a .453 hole in the rim for inserting the valve stem. The # AM20906 uses a .625 hole. I'd recommend using the # AM20904 valve stems which are compatible with the # AM20352 wheels and are good up to 80 psi. It's important you keep the tires fully inflated to the pressure listed on the sidewall, which in this case...
    view full answer...

  • Offset and Pilot Diameter of Taskmaster 14 x 6 Steel 8-Spoke Trailer Wheel # TTW460545WS1
  • The Taskmaster 14 x 6 rim you referred to, part # TTW460545WS1 has a zero offset. The wheel has a 3.27 inch pilot diameter, but we don't have a center cap compatible with that pilot diameter. Dexstar makes a very similar wheel, part # AM20352. This wheel also has a zero offset, and has a 3.19 inch pilot diameter. The # 319EZ would work perfectly with this wheel.
    view full answer...

  • High Capacity Trailer Tire Recommendation Size 205/75R14
  • In the 205/75-14 tire size you are considering there is a Load Range D tire, part # AM10235 that has a capacity of 2,040 lbs at 65 psi. Since this capacity is per tire you would have more than enough capacity since you will be using two of these tires. Total tire capacity would be 4,080 lbs. For a rim you would want the part # AM20352 as this is a 14 inch rim with a 5 on 4-1/2 inch bolt pattern.
    view full answer...

  • Lug Nut Torque for a Trailer Wheel
  • 90-95 ft lbs of torque is probably about right for your trailer rims. If you check out the lug nut torque chart that I attached you will see that nearly all of the torque specs are that and higher.
    view full answer...

  • Trailer Tire Recommendation for a Trailer with 185/70R14 Tires
  • The tire size you listed isn't a common trailer tire size, it's most likely a passenger vehicle tire. On a trailer you should only use ST specialty trailer rated tires since they are designed for the vertical load associated with trailer. The closest trailer tire size to what you have is the 205/75-14 like the part # AM1ST84. This size will be about 2 inches taller than what you currently have so you will need to make sure you have room for 1 inch less of fender clearance. I attached...
    view full answer...

  • What is the Weight Capacity of the Steel Spoke Trailer Wheel # AM20352
  • Yes. The capacity of the Dexstar Steel Spoke Trailer Wheel - 14 inch x 5-1/2 inch Rim - 5 on 4-1/2 - White Powder Coat, # AM20352, is 1870 pounds at 50 psi.
    view full answer...

  • Availability of Kenda 205/75R/14 Load Range D Tires Mounted
  • We do offer a 205/75R/14 Load Range C tires mounted on 5 bolt on 4.5 inch pattern steel spoke wheels, part # AM32153, but we do not offer that wheel/tire combination in Load Range D. This combination is not a commonly used application and our supplier does not offer it. Also, going up from a load range C to D tire probably will not increase your trailer's weight capacity since you will still be limited to the weight capacity of your axles. You can, however, get a 205/75R/14 Load Range...
    view full answer...

  • Replacement Axle with Brake Flanges for Rockwood Pop-Up Camper 1940 LTD with 12-Inch Wheels
  • We do indeed offer complete axle kits that include the axle beam and spindles, electric brake assemblies, hub/drums along with bearings, races, seals, etc but we just do not happen to have a complete 2200-lb kit that will fit your 12-inch rims so we can help you select individual parts. You have the option of having brake flanges welded to your axles (by a certified welder) that would allow you to install drum brake assemblies and new hubs/drums. The linked article describes the items...
    view full answer...

  • Are 14 Inch Wheels Available With 5 On 5 Bolt Pattern
  • The 14 inch wheels we carry have a 5 on 4-1/2 bolt pattern like part # AM20352. We also carry 14 inch tire/wheel combos with a 5 on 4-1/2 bolt pattern like part # TTWA14B45WS. I have attached links to the wheels and tire/wheel combos we do carry. I am not aware of any manufacturer that carries a 14 inch wheel with a 5 on 5 bolt pattern. We do offer 15 inch wheels with that bolt pattern. I have attached a link to the 15 inch wheels we offer you can take a look at.
    view full answer...

  • Offset of Dexstar # AM20352 14 Inch Trailer Wheel
  • According to Dexstar, their # AM20352 has a zero offset. The wheel has a 5 lug on a 4-1/2 bolt circle. It's compatible with a 1/2 in wheel bolt/stud and has a 3.19 inch pilot diameter. The wheel has a 2040 lb capacity at 65 psi. I've linked you to some trailer tire FAQ articles that you might find helpful.
    view full answer...

  • What are the Dimensions of Dexstar Steel Spoke Trailer Wheel # AM20352
  • The Dexstar Steel Spoke Trailer Wheel # AM20352 that you referenced measures 14-inches in diameter and 5-1/2-inches wide. This wheel itself has a maximum load capacity of 2040-lbs at its maximum pressure rating of 65-psi. The tire that is installed on this rim may have a different (lower) load rating and if sold together as a pre-mounted wheel-with-tire the quoted rating will be that of the lower-rated of the two items. This is usually the tire rating. This wheel will accept tire sizes...
    view full answer...

  • How to Pick Out a Hub and Wheel for a Dolly Trailer
  • Sounds like you need hubs and wheels. We do not carry any wheels with built-in hubs. To pick out hubs to match your spindles you will need a few more measurements from your spindle. Using a dial caliper or micrometer you will need to get the measurements for the seal, inner, and outer bearings area of the spindle. See the picture I attached to see where exactly to measure. Once we have that information we can find out what hubs would fit your spindle, and then from there what wheels...
    view full answer...
