Price: $22.19

Dexstar Solid Center Steel Wheel - 13" x 4-1/2" Rim - 4 on 4 - White Powder Coat

Item # AM20202

lowest price pledge

Retail:$25.95

Our Price: $22.19

Orders above $50 qualify for Free Shipping

Select Ground or 3 Day Shipping for delivery before Christmas

Quantity:

Only 2 in stock. Order soon.
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

dexstar tires and wheels 13 inch 4 on solid center steel wheel - x 4-1/2 rim white powder coat
dexstar tires and wheels wheel only 13 inch solid center steel - x 4-1/2 rim 4 on white powder coat
dexstar tires and wheels wheel only
dexstar tires and wheels 13 inch am20202

Videos


  • Wheel Only
  • 13 Inch
  • 4 on 4 Inch
  • Steel Wheels
  • Solid Center Wheel
  • Dexstar
White powder coated, 13" steel trailer wheel features a 4 on 4 bolt pattern and meets Department of Transportation standards. Lowest Prices for the best tires and wheels from Dexstar. Dexstar Solid Center Steel Wheel - 13" x 4-1/2" Rim - 4 on 4 - White Powder Coat part number AM20202 can be ordered online at etrailer.com or call 800-298-8924 for expert service.



Dexstar Tires and Wheels - AM20202

White powder coated, 13" steel trailer wheel features a 4 on 4 bolt pattern and meets Department of Transportation standards.


Features:

  • Sturdy steel construction
  • Excellent corrosion resistance
    • White powder coat finish over e-coat primer
  • Solid center design does not have spokes
  • High-quality wheel meets DOT specifications
  • Made in the USA


Specs:

  • Rim dimensions: 13" diameter x 4-1/2" wide
  • Bolt pattern: 4 on 4"
  • Wheel bolt size: 1/2"-20
  • Pilot diameter: 2.65"
  • Capacity: 1,660 lbs
  • Limited 2-year warranty


Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

Bolt Pattern - Odd

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: "5 on 4-1/2" means 5 bolt holes with 4-1/2" measured to a point halfway between the opposite bolt holes.)

Bolt Pattern - Even

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: "8 on 6-1/2" means 8 bolt holes with 6-1/2" from the center of one hole to the center of another on the opposite side.)

Bolt Pattern - Side

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

  • If D = 2-5/8", then the bolt pattern is 5 on 4-1/2"
  • If D = 2-3/4", then the bolt pattern is 5 on 4-3/4"
  • If D = 3", then the bolt pattern is 5 on 5"
  • If D = 3-1/4", then the bolt pattern is 5 on 5-1/2"


20202DX Dexstar Solid Center White Steel Wheel - 13"

017-288-1W







Economy - This item

Dexstar Solid Center Steel Wheel - 13" x 4-1/2" Rim - 4 on 4 - White Powder Coat


Dexstar Solid Center Steel Wheel - 13" x 4-1/2" Rim - 4 on 4 - White Powder Coat
Dexstar Tires and Wheels

7 reviews

Code: AM20202

Only 2 in stock. Order soon.

Retail:$25.95

Our Price: $22.19


  • Tires and Wheels
  • Wheel Only
  • 13 Inch
  • Solid Center Wheel
  • 4 on 4 Inch
  • Steel Wheels
  • Dexstar


White powder coated, 13" steel trailer wheel features a 4 on 4 bolt pattern and meets Department of Transportation standards.

more information →
Compare Similar Products
Economy
Price: $30.54
$8.35 More

Dexstar Steel Mini Mod Trailer Wheel - 13" x 4-1/2" Rim - 4 on 4 - Black


Dexstar Steel Mini Mod Trailer Wheel - 13" x 4-1/2" Rim - 4 on 4 - Black
Dexstar Tires and Wheels

Code: AM20242

In Stock

Our Price: $30.54


  • Modular Wheel


This 13" diameter x 4-1/2" wide steel trailer wheel has a 4 on 4" bolt pattern and a 2.65" pilot diameter. Rust resistant black powder coat finish.

more information →
Value
Price: $85.48
$63.29 More

Loadstar ST175/80D13 Bias Trailer Tire with 13" White Wheel - 4 on 4 - Load Range C


Loadstar ST175/80D13 Bias Trailer Tire with 13" White Wheel - 4 on 4 - Load Range C
Kenda Tires and Wheels

3103 reviews

Code: AM3S120

In Stock

Retail:$95.95

Our Price: $85.48


  • Tire with Wheel
  • Bias Ply Tire
  • Load Range C
  • 175/80-13
  • Spoke Wheel
  • Kenda


Bias tire has a ply rating of 6 and a 1,360-lb maximum load at 50 psi. The 13" diameter x 4-1/2" wide steel trailer wheel features a 4 on 4 bolt pattern and a corrosion-resistant powder coat finish.

more information →
Premium
Price: $131.19
$109.00 More

Dexstar Vintage Steel Wheel w/ +5 mm Offset - 15" x 6" Rim - 4 on 9.44 - Silver


Dexstar Vintage Steel Wheel w/ +5 mm Offset - 15" x 6" Rim - 4 on 9.44 - Silver
Dexstar Tires and Wheels

19 reviews

Code: AM20501

Only 2 in stock. Order soon.

Our Price: $131.19


  • 15 Inch
  • Vintage Wheel
  • 4 on 9.44 Inch


Get that vintage look for your trailer with this silver star-pattern trailer wheel. The 15" steel wheel features a 4 on 9.44 bolt pattern and meets Department of Transportation standards.

more information →

Related Products



Customers compare AM20202 to these similar products





Customers Who Purchased This Tires and Wheels Also Bought...

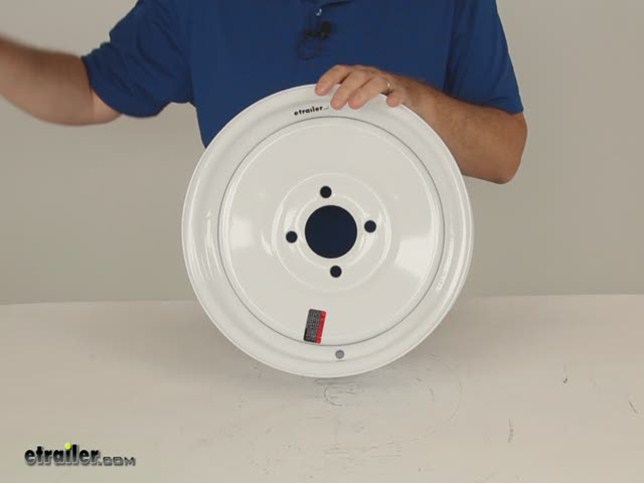

Video of Dexstar Solid Center Steel Wheel - 13" x 4-1/2" Rim - 4 on 4 - White Powder Coat


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Americana Tires and Wheels AM20202 Review

Today we're going to review part number AM20202. This is the Americana, 13 inch by four and a half inch, solid center, steel trailer wheel with the four on four bolt pattern and white in color. This wheel is a sturdy steel construction. Has a nice white cover coat finish over an e-coat primer on the whole wheel. This will give excellent corrosion resistance. This design is the solid center design.

It doesn't have any spokes or holes. This is a high quality wheel that will meet the Department Of Transportation specifications. A few dimensions on this. It is a 13 inch diameter and a four and a half inch wide wheel. When you go to measure a wheel what you're going to be measuring is where the tire seats on the wheel. When you mount a tire onto this wheel, the beads would actually sit right here around the beads seats.

When you measure the dimension, the diameter is going to be measured bead seat to bead seat, so inside the inside, not outside the outside. Basically if you put a ruler on bead seat to bead seat you can see 13 inches diameter. We'll do the same on the width, inside the inside or bead seat to bead seat. In this case the width of the wheel is going to be four and a half inches. So 13 inch diameter, four and a half inches wide. Now the bolt panel on this as you can see is a four lug, four inch bolt pattern. The best way to measure the bolt pattern, especially on a wheel that has even number of lugs like in this case four, just pick any hole then measure from that hole center directly across to the center of the hole right across from it.

If we go center to center you can see four inches. Four on four inches is the bolt pattern. It does use a wheel bolt size of a half inch by 20. The pilot hole diameter, right here, this is the large hole in the center that goes over the hub on your trailer. The diameter on that is going to be 2.84 inches, and the right capacity on this wheel is 1,660 pounds. But that should do it for the review on part number AM20202, the Americana, 13 inch by four and a half inch, solid center, steel trailer wheel with the four and four inch bolt pattern.

.


Customer Reviews

Dexstar Solid Center Steel Wheel - 13" x 4-1/2" Rim - 4 on 4 - White Powder Coat - AM20202

Average Customer Rating:  5.0 out of 5 stars   (7 Customer Reviews)

White powder coated, 13" steel trailer wheel features a 4 on 4 bolt pattern and meets Department of Transportation standards.

- AM20202

by: Leon R.08/16/2016


I placed an order for one 13" wheel, 4 at 4 pattern with a very polite young lady. I had looked up the one I needed on their easy to use (I'm proof) website. The wheel was in stock and then on my front porch in just a couple of days via UPS. Product was exactly what I needed and did not require any modifications. 284456


Comments

This wheel has performed perfectly.

Leon R - 08/21/2017

27457

- AM20202

by: Ron V.10/28/2016


After I placed my order I read all kinds of bad feedback which kind of scared me. I placed my order late on sunday night, it was at my door Thursday when I got home from work. Everything was correct, I could not be happier. THANK YOU! 311700



- AM20202

by: Roy H.03/14/2017


The rims I bought were built with what has to be 10 or 12 gauge steel. Stronger then some chrome car wheels that I have bought. Thanks. 352525



- AM20202

by: Ron S.09/11/2016


I was impressed with the clever packaging. Been in use for a year and fit & Finnish are great and have been holding up great ! 293449



- AM20202

by: John O.10/09/2016


The wheels of are of great quality. Very pleased with the fit and finish. I would highly recommend etrailer. 305006



- AM20202

by: Rick G.07/25/2016


I can't ask for more. it fits it works and looks good.... 276245



- AM20202

by: Ron R.07/20/2015


Good sturdy wheel. /fast delivery. 213125


7
7

Ask the Experts about this Dexstar Tires and Wheels
Do you have a question about this Tires and Wheel?


  • Replacement Options for a 13 Inch Rim with a 2.5 Inch Diameter Pilot Hole
  • At this time we do not have a 13 inch, 4 on 4 rim with a 2.5 inch diameter pilot hole but I may have a couple of options available for you. Finding a wheel with a matching pilot diameter is only a concern if you have hubs that are hub-centric. This type of hub uses the hub bore in order to center the wheel. This is what makes matching the pilot hole diameter extremely important. Wheel bolts are typically used instead of lug nuts to attach the wheel on these style hubs. This type is more...
    view full answer...

  • Is the Diameter of a Trailer Wheel Pilot Hole Important When Choosing a Replacement Wheel
  • A pilot hole that is larger would not be a problem as long as the wheel is stud piloted (the wheel is centered on the hub by the studs and lug nuts). You will be able to tell if the hub uses wheel bolts or lug nuts. If it uses wheel bolts, it is a hub-centric wheel and you will need one with the correct pilot hole diameter. If it uses lug nuts then it is stud piloted. The Dexstar Conventional Steel Wheel, # AM20202, is the only conventional, non-spoke wheel we carry that is 13 x 4-1/2...
    view full answer...

  • Availability of a 13 Inch Trailer Wheel with 4 on 4 Bolt Pattern and 2-1/2 Inch Pilot Hole
  • The pilot hole on trailer wheel # AM20202 is 2.84 inches. Wheel # AM20222DX is closer at 2.65 inches. None of the 13 inch wheels with the 4 on 4 bolt pattern that we carry have a pilot hole at 2.5 inches. The pilot hole only matters if 1) the wheel secures to the hub using wheel bolts instead of lug nuts or 2) the wheel secures with lug nuts but the pilot hole is smaller than what the hub requires. If the wheel secures to the hub with lug nuts then this means that the wheel centers...
    view full answer...

  • Availability of 13 inch Diameter Trailer Rim that is 4-1/2 inches Wide and has 4 Bolt Pattern
  • We don't have the # AM20214 available in a 4 on 4 inch bolt pattern. There are only 3 rims we offer that are 13 inch in diameter, are 4-1/2 inches wide and have a 4 on 4 inch bolt pattern. They are part numbers # AM20222, # AM20202, and # AM20224.
    view full answer...

  • Diameter and Section Width of 165/65-8 and 215/60-8 Tires
  • If my math's correct, a 165/65-8 tire like part # AM1HP22 has a section width of 6.6 inches and a diameter of 16.5 inches. A 215/60-8 tire like part # AM1HP28 has a section width of 8.9 inches and a diameter of 18.1 inches.
    view full answer...

  • White Powdercoated Dexstar Wheel and Tire Recommendation for Scamp Camper
  • The part # AM20222 is going to look just like the part # AM20222DX. The # AM20202 has a 1,660 lb capacity like you noticed as well as a 4 on 4 inch bolt pattern like you said you needed. For a tire the part # AM10210 would be a great option as well.
    view full answer...

  • Recommended Wheel for a 1976 Rolco Tandem Boat Trailer with ST175/80D-13 Tires
  • Based on your tire size of ST175/80D13, your tire will fit rim widths of 4-1/2, 5 and 5-1/2. The wheel I recommend is the Americana solid center steel wheel # AM20202. It has a rim dimension of 13-inches x 4-1/2-inches wide. The bolt pattern is 4 on 4 inches and a load rating of 1,660 pounds at 65 psi. The pilot hole is 2.84 inches. Note that the only time the pilot hole matters is if the wheel attaches to the hub using wheel bolts and not lug nuts. If you are using lug nuts, then...
    view full answer...

  • Recommended Wheels and Tires Compatible with Baby Moon Caps
  • There are not 12 inch wheel available in the style you desire, however there are 13 inch wheels. I recommend the Dexstar Conventional Steel Wheel with Offset - 13" x 4-1/2" Rim - 5 on 4-1/2 - Black # AM20214. We have the combined wheel and tire option for you in the Loadstar ST175/80D13 Bias Trailer Tire with 13" Black Wheel with +.5 Offset - 5 on 4-1/2 - LR D # AM31241 rated for a maximum load of 1610 lbs at 65 psi each. Then you can use the Americana Baby Moon Trailer Wheel Center...
    view full answer...

  • Can a 205/75-15 Trailer Tire Fit In Place of a 185/80-13 Trailer Tire
  • As far as height, a 185/80-13 tire will be about 24.4 inches tall. A 205/75-15 tire will be 27.1 inches tall. This is a difference of 2.7 inches, meaning that the larger tire size will be 1.35 inches closer to the fenders. But you also have to worry about the extra width. A 185 has a section width of 7.2 inches. A 205 has a section width of 8.1 inches. This means that the larger size will be nearly a full inch closer to the trailer frame. If the height and width are fine then you...
    view full answer...

  • What Size Trailer Tires Fit on a 13 x 4-1/2 Inch Trailer Wheel
  • On a 13 x 4-1/2 inch wheel such as # AM20202, you can use tire size 175/80-13 or size 185/80-13. I have included links to the tires we have in each of these sizes. I have also included a link to our help article on trailer tires for you to view.
    view full answer...

  • Replacement 13 Inch Trailer Tire Needed for Old Utility Trailer With 4 Lug Bolt Pattern
  • I went out to the warehouse and verified that the Americana Conventional Steel Wheel, # AM20202, is stamped for 1,660 lbs at 65 psi. This wheel has a 4 on 4 inch bolt pattern and is 13 inches in diameter by 4-1/2 inches wide. If you want new tires as well, I recommend checking out the Kenda Karrier ST175/80R13 Radial Trailer Tire, # AM10210, or the Kenda Loadstar ST175/80D13 Bias Trailer Tire, # AM1ST77. These are load range D tires with a weight capacity of 1,610 lbs at 65 psi. If...
    view full answer...
