Offset Trailer Spare Tire Carrier by Dutton-Lainson

Item # DL22120

lowest price pledge

Retail:$45.44

Our Price: $39.13

Spare Tire Carrier

Orders above $99 qualify for Free Shipping

Shipping Weight: 7 lbs

Quantity:

In Stock
Spare Tire Carrier DL22120 - 3 Inch Frame - Dutton-Lainson
zoom in icon
zoom out icon
pop out icon replay 360 icon
horizontal rotate icon

Product Images

3d view icon
Spare Tire Carrier DL22120 - 3 Inch Frame - Dutton-Lainson
DL22120 - 3 Inch Frame Dutton-Lainson Frame Mount
DL22120 - 4-Bolt,5-Bolt Dutton-Lainson Spare Tire Carrier
Dutton-Lainson Spare Tire Carrier - DL22120
Dutton-Lainson 3 Inch Frame Spare Tire Carrier - DL22120
DL22120 - 4-Bolt,5-Bolt Dutton-Lainson Frame Mount
DL22120 - 3 Inch Frame Dutton-Lainson Spare Tire Carrier
DL22120 - 4-Bolt,5-Bolt Dutton-Lainson Spare Tire Carrier
Dutton-Lainson Frame Mount - DL22120

In Use/Installed

Spare Tire Carrier DL22120 - 3 Inch Frame - Dutton-Lainson
Dutton-Lainson 3 Inch Frame Spare Tire Carrier - DL22120
DL22120 - 3 Inch Frame Dutton-Lainson Frame Mount

Customer Photos


  • Frame Mount
  • 4-Bolt
  • 5-Bolt
  • 3 Inch Frame
  • Offset Style
  • Dutton-Lainson
Lowest Prices for the best spare tire carrier from Dutton-Lainson. Offset Trailer Spare Tire Carrier by Dutton-Lainson part number DL22120 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (45)
  • Q & A (16)
  • Videos (2)
  • Photos
  • Why etrailer?

Dutton-Lainson Spare Tire Carrier - DL22120


Extends spare tire up and away from trailer and boat. Heavy-duty steel construction, fits wheel sizes from 9" - 14", 4 or 5-hole rims (will only fit on 5 on 4-1/2 bolt pattern) and trailer frames up to 3" wide and 5" tall. Mounting hardware included. Zinc TUFFPLATE finish.

Features:

  • Heavy duty steel construction
  • Fits wheel sizes 9" to 14"
  • Fits trailer frames up to 3" wide x 5" tall
  • Mounting hardware included to install on trailer and hold tire on carrier
  • Zinc plated TUFFPLATE finish
    • Zinc plated yellow chromate TUFFPLATE finish has three times the corrosion resistance of standard zinc plated trivalent chrome process and 30 percent greater corrosion resistance when compared to powder coated finish. Results of lab test using 5 percent neutral salt spray confirms our TUFFPLATE finish provides in excess of 500 hours against First Red Rust and in excess of 100 hours of First White Corrosion.
  • Carrier measurements: 4-1/2" side offset and 4-3/4" high offset from box
  • Wheel mounting plate measurements: 4" wide and 5-7/16" tall
  • Made in the USA

22120 Trailer Spare Tire Carrier by Dutton-Lainson Model 6121




Video of Offset Trailer Spare Tire Carrier by Dutton-Lainson


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.

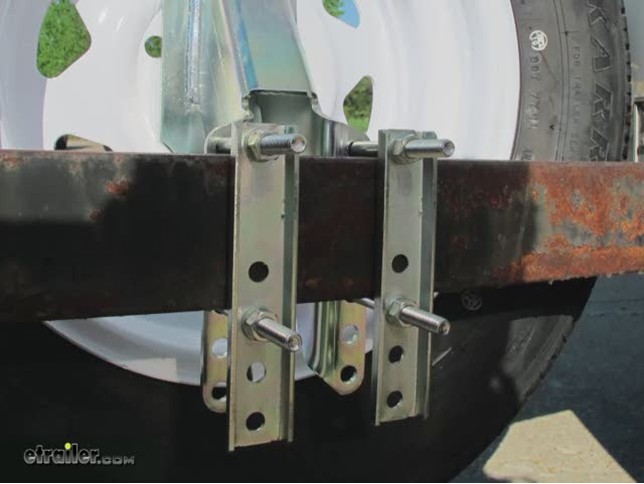

Video Transcript for Dutton-Lainson Offset Trailer Spare Tire Carrier Installation

Today on our Road Master Trailer, well be installing the Dutton-Lainson Spare Tire Carrier, part number DL22120. This will be in conjunction with our new spare tire, part number AM32395. First, well take our spare tire carrier bracket and find the position on the frame where were going to mount it. Next, well take the bolts and brackets and get them set up to the top mount. On the back side for our attachment will be a lock washer and nut. Once we get them set to the frame, well go ahead and insert the bottom bolts and fasteners.

Ill go ahead and tighten them down finger tight to get them in position. Once we have them lined up and secured, well go ahead and tighten them down. Now with our bracket tightened down, its secured to the frame of the trailer. Next, we need to go ahead and install the carriage bolts that will secure the spare tire. To do this, well put the carriage bolt to the back side of the spare tire carrier and the insert the serrated washer.

The serrated washer will hold the carriage bolt in place. Next, before we put on the bottom carriage bolt, well slide our spare tire on to see which two lower options well be using for this spare tire. As you can see with this bolt pattern, it lines up with the offset hole. Lets go ahead and set the spare tire side and insert the lower carriage bolt into the offset hole and then well install the serrated washer. Now with both carriage bolts in place, well go ahead and set our spare tire back into position.

To secure it, well first install the flat washer then a lock washer and nut. Once we have them both in place, we can go ahead and tighten it down. With that, it will complete our install of the Dutton-Lainson Spare Tire Carrier, part number DL22120 along with our spare tire, part number AM32395.


Customer Reviews

Offset Trailer Spare Tire Carrier by Dutton-Lainson - DL22120

Average Customer Rating:  4.8 out of 5 stars   (45 Customer Reviews)


- DL22120

by:


Very easy to install and very well built. Bridgett was extremely helpful. All in all a very good experience with Etrailer. 217801


Comments

Its great. Works as described. Glad I bought from ETrailer

Ben - 08/07/2016

20088

- DL22120

by:


I have a 26 foot boat with a tandem axle trailer. I must travel quite a bit to reach the ocean. Having two spare tires gives piece of mind. I have the exact product on the starboard side of the trailer and have now installed another spare tire on the port side of the trailer. Most trailer frames are either 3" or 4" tall however, the DMH trailer frame is 5" tall and this product fits perfect. One suggestion that I would make is that all hardware (bolts, nuts, washers, etc.) be stainless steel. I noticed that the older bracket hardware is showing signes of rust from salt air exposure. Shipping was very good and I would purchase from this vendor again. 44898



- DL22120

by:


Good and sturdy, easy to install. Looks like a quality product. 195153


Comments

THe carrier is a quality item that has lasted well. I would recommend it.

Arty S - 05/28/2016

18090

- DL22120

by:


Great fit on the trailer, great price and simple installation. I do have a complaint in regards to fit fitment though. Due to width of my 205/65-10 tires, I had to fab a small spacer to keep from contacting the bracket. I also had to bore out the center security hole to use a standard wire cable lock as it was only originally big enough for a very small wire lock. Despite the modifications I had to make, I'm still satisfied with the purchase! Please be aware that modifying products can affect warranties and may create safety issues. I am a professional, please consult a professional before making modifications. 12629



- DL22120

by:


I bought this tire mount along with a tire for my tandem boat trailer. The quality of the finish and hardware will allow this to last for a long time. The product description and shipping have sold me on etrailer.com. 392585



- DL22120

by:


I bought 2 wheels and 3 tires to replace some old tires on my double PWC trailer. Put both new wheels on yesterday and mounted the extra on an old wheel for a spare. Mounted this to the trailer using spare tire carrier and everything worked out great. The tires and wheels look great and the spare mounted without any problems to the trailer. 57804



- DL22120

by:


Very impressed with how easy it was to find what I needed. I purchased this product to use on my galvanized boat trailer to hold my spare tire. This seems to be a very sturdy corrosion resistant mount and locks on to the trailer frame very easily....total install time was less than 10 minutes. The only issue I have with this mount is that the bolts that hold the tire on are not the same size as the lugs on the trailer tire. However, I would definitely recommend this product as a quality spare tire carrier. 21898



- DL22120

by:


All products acquired through etrailer has not only been of quality but at a very reasonable price. I am very satisfied with my purchases. I inadvertently deleted the other review thinking it was a duplicate. It was for another item. The tire, the mounting bracket, and the front mount hitch were of considerately less cost than going through another provider. I am very satisfied with this company and would highly recommend them to others. 331467



- DL22120

by:


Sturdy bracket...seems worth the cost. 91181



- DL22120

by:


Great spare tire mount for boat trailer I have a late model Tahoe Q4 Fish & Ski combo boat, and the trailer came without a spare tire. After locating a spare, I needed a way to mount it and found this bracket on the etrailer.com site. Shipping was prompt and the product mounted quickly and easily to the trailer frame rail without interfering with the side of the boat. Seems quite sturdy and durable. Made in the USA, too! 3816



- DL22120

by:


Received the spare tire holder and lock right on time. Great quality and am very satisfied. Will purchase from here again. 472343



- DL22120

by:


This is a very good quality product. Heavy duty stuff. I love it but it won't fit my trailer. That's my fault because I mis-measured. Wish I could use this product. I really like it. Also Customer Service was very prompt and helpful in the return. I will be back to do business with etrailer.com! 145037



- DL22120

by:


This is the third purchase that I have made from E trailer. All items have arrived as advertised and have been easy to install as noted. I will continue to use E trailer for any items needed. They are a quality company and I thank George for his follow ups. Rocky 571061



- DL22120

by:


I finally got it mounted on my trailer. It fit well once the rough spots on the bolts were dealt with but this is common on bolts with coatings on them. It is going to be nice to finally have the spare out of my pickup bed and on the trailer where it belongs. 469829



- DL22120

by:


It is a nice product an the only reason I did not give it a 5 star was that the neck of the tire carrier should extend a little further to accommodate the tire width. I just had to mount the tire from the opposite end or backwards due to the depth of the rim. 271625



- DL22120

by:


Bracket seems to work well with provided hardware. Made in the USA, which was important to me. A few burrs in the holes which required filing for the shoulder bolts to fit completely on the unthreaded portion, but basically it fit my application just fine. 77712



- DL22120

by:


Sturdy mount, was of heavy construction and well zinc -plated. Fit was just as advertised. Tire studs were long enough to accommodate the aluminium trailer wheel. Fast shipping, excellent service in every way from E-Trailer. THANK You! 77409



- DL22120

by:


this is exactly the spare tire carrier I needed for my boat trailer. The fit,2x5 inch frame,Zinc Galv finish and perfect offset/rise for a 5 hole,14 inch wheel!Great price and quick delivery even when part was backordered!! 5 stars!!!!!! 206400



- DL22120

by:


Product arrived a day early. ...always nice. Easy to install, only took about ten minutes and that included getting a couple of wrenches! Very sturdy bracket....should last a long time. I highly recommend this tire mount bracket. 266094



- DL22120

by:


I received and installed this spare tire holder on my boat trailer. Super easy installation, and a very sturdy bracket. Looks like it should lat a long time. I'd buy another one for sure. 544256



- DL22120

by:


I have only installed the tire carrier and it is sturdy, and looks good. the other products all look quality made. the help I got from your staff was prompt and accurate. thank you 244128



- DL22120

by:


Just as advertised....great quality and simple to install. Product was the best price and arrived ahead of schedule. etrailer - you guys are the best. Thanks for all you do. 102584



- DL22120

by:


It took me maybe 10 minutes to install this product. And it works great. It gives me about 8 inches of ground clearance on my wishbone framed trailer. 50307



- DL22120

by:


As advertised. Easy installation. Seems very secure once installed. Excellent response to my order, with prompt notifications and shipping. 44249



- DL22120

by:


Easy install. Tire is held off a good distance so it is not in the way. Robust steel and bolts. This should hold up for a long time. 188163



- DL22120

by:


Received on time as estimated. High quailty product, installed easily and looks and functions (ordered tire lock also) really great. 214116



- DL22120

by:


Nice quality products. Fast shipping and excellent pricing. The website is terrific with installation videos. Thanks 320440



- DL22120

by:


Great spare tire mount. Very sturdy and fits trailers with larger frame rails (3"X5"). Easy to mount as well. 91608



- DL22120

by:


Holy Moses the shipping was insane. Ordered Wednesday and received Friday. Products are quality. Thank you. 558084



- DL22120

by:


The spare tire carrier is doing the job, but I do wish that the attaching hardware was at least galvanized. 291912



- DL22120

by:


I would recommend them to friends and family. We have purchased other product from them before :) 350373



- DL22120

by:


Part delivered as shown on line. Delivery was fast. Excellent communication with etrailer! 118544



- DL22120

by:


fit right on the trailer as predicted based on the item description. 408563



- DL22120

by:


arrived promptly, in good condition and was exactly as advertised. 404820



- DL22120

by:


Fit my boat trailer and the spare perfect. Very easy to install. 84372



- DL22120

by:


Universal fit. Simple installation. Made in USA !!! 227100



- DL22120

by:


Very heavy duty - well constructed Fast shipping 310354



- DL22120

by:


Fit up well. Description accurate. No issues! 400954



- DL22120

by:


You find any as cheap or with as good a quality 143004



- DL22120

by:


Well made and useful item for mounting a spare 545937



- DL22120

by:


Fit well, solid product. Made in USA! 511506



- DL22120

by:


Execellent - as usual. THANK YOU!! 60473



- DL22120

by:


Easy installation. 444096



- DL22120

by:


Lowest price! 143507



- DL22120

by:


Works great. 493183


48
48

Ask the Experts about this Dutton-Lainson Spare Tire Carrier
Do you have a question about this Spare Tire Carrier?


  • Recommended Spare Tire Carrier For Boat Trailer Made In USA
  • For your Spare Tire Carrier, I recommend the Trailer Spare Tire Carrier and Dolly Bracket by Dutton-Lainson # DL22144. Not only is this spare tire carrier made in the USA, it also has a really nice function for your boat trailer in that it can be used to help move your trailer in a straight line. This carrier will fit 4 on 4 bolt pattern or 5 on 4-1/2 inch bolt pattern with 8, 9, or 12 inch tires. Another option I recommend is the Offset Trailer Spare Tire Carrier by Dutton-Lainson...
    view full answer...

  • Bolt-On Spare Tire Carrier for Aluminum I-Beam Boat Trailer
  • Our range of clamp-on trailer spare tire carriers is displayed on the linked page. You will want to choose one to both fit your frame dimensions and your spare's wheel bolt pattern. I like the MaxxTow # MT70214 for its 100-lbs weight rating and compatibility with both 4-lug and 5-lug trailer wheels. This fits frames up to 3-inches wide x 5-inches tall.
    view full answer...

  • Spare Tire Carrier Compatible With Aluminum Motorcycle Trailer
  • We do not have any aluminum spare tire carriers so unfortunately nothing that can be welded to your aluminum trailer. The best option is to use a bolt on option that is either galvanized like # CE27310G or is zinc coated like # DL22120 or # FSTC1000301 to avoid galvanic corrosion from the dissimilar metals.
    view full answer...

  • Spare Tire Carrier Recommendations for a Loadmaster Tampa Dual Axle Trailer
  • Out of the spare tire carriers we have, I am sure that we will be able to find one that will hold the spare tires on your trailer. I have incldued a link to all of the options for you to view. Besides the space where you can mount a spare tire carrier or carriers, you will also need to make sure that the wheels have a compatible bolt pattern. For example, the Offset Trailer Spare Tire Carrier, # DL22120, is designed for 9 to 14 inch wheels with 4 or 5 lugs, bolt circles up to 5-on-4-1/2....
    view full answer...

  • Can the Offset Trailer Spare Tire Carrier # DL22120 be Mounted Horizontally
  • As long as you have the necessary clearance on your trailer to fit your spare tire onto this Offset Trailer Spare Tire Carrier, part # DL22120, and you secure it well you should have no problem installing this # DL22120 in any direction that you wanted. You may also be interested in purchase a Spare Tire Carrier Lock, part # 262DAT.
    view full answer...

  • Can Spare Tire Carrier Be Mounted On Trailer Wall
  • From the photo you sent, it looks like you have aluminum trailer walls, so the first thing you will want to consider is the strength of the walls. Since the Offset Trailer Spare Tire Carrier, part # DL22120 is designed to be mounted on a trailer tongue or frame, you will want to make sure that the location you choose is strong enough and able to handle the weight. You will want to consider strengthening the wall by reinforcing with a metal plate on the inside of the wall between the...
    view full answer...

  • Corrosion Resistant Spare Trailer Tire Carrier
  • The CE Smith Offset Spare Trailer Tire Carrier # CE27310G is galvanized. The included hardware is zinc coated to resist corrosion. Unfortunately, we do not have any spare tire carriers that are completely stainless steel. Another option is the Dutton-Lainson Carrier # DL22120. It has a zinc plated yellow chromate TUFFPLATE finish.
    view full answer...

  • Why Can Dutton-Lainson Offset Spare Tire Carrier # DL22120 Only be Used with Wheels Up to 14 Inches
  • I checked into this with Dutton-Lainson, and the limitation on the # DL22120 offset spare tire has to do with the weight of the 15 inch tire and wheels, and not with the physical size. The welds on the carrier are not rated to handle the weight of standard 15 inch trailer tire and wheels. This carrier has a offset of 4-1/2 inches to the side and 4-3/4 upward. I pulled one from the warehouse and the wheel mounting plate measures 5-7/16 inches tall and 4 inches wide.
    view full answer...

  • What Size are the U-bolts Included with RoadMaster Spare Tire Carrier for Tow Dolly Part RM-2000-7
  • The RoadMaster Tow Dolly is a 3x3 inch tongue and the U-bolts are threaded just at the ends so they will really only fit a 3x3 inch tongue or trailer frame. Of course you do have the option of buying longer U-bolts if you have a 3x4 or 3x5 trailer tongue or frame. We also have other trailer frame and tongue mounted spare tire carriers you may be interested like Fulton Hi-Mount Spare Tire carrier, part # FSTC1000301 or Dutton-Lainson Offset Spare Tire Carrier part # DL22120.
    view full answer...

  • Do Torsion Axles Come with Hubs and How Do they Attach to a Trailer Frame
  • We do not currently carry any torsion axles unless you count the Timbren Axle-less systems. I have included a link to the axles that we carry. Torsion axles will normally have what is basically a long L-bracket welded to the top of them. The standard method of attachment is to bolt them directly to the bottom of the trailer frame. Torsion axles are not as easy to order from tractor or trailer supply shops because you also have to consider start angle and articulation. Bolt size 5/8...
    view full answer...

  • Spare Tire Carrier Recommendation for a 15 inch Wheel With 6 Lugs
  • I would recommend you get a Fulton Hi-Mount Spare Tire Carrier # FHDSTC0101. This carrier will fit most 6 lug wheels with up to a 16-1/2 inch diameter so it should work well for your 15 inch wheel. The Offset Trailer Spare Tire Carrier # DL22120 that you referenced will only work on trailer wheels up to 14 inches in diameter so it would not work for you.
    view full answer...

  • Trailer Mounted Spare Tire Carrier Manufactured in the USA
  • The Dutton-Lainson # DL22120 spare tire carrier is manufactured in the USA, and would be an excellent choice for you.
    view full answer...

  • Recommended Spare Tire Carrier for 6 Lug Wheel on a Boat Trailer
  • As long as your trailer frame isn't wider than 3 inches and taller than 5 inches, the Fulton Hi-Mount Spare Tire Carrier, part # FHDSTC0101 is what I'd recommend. The carrier fits wheels up to 16-1/2 inches in diameter. You can see an install video featuring this carrier by clicking the provided link.
    view full answer...

  • Availability of Spare Tire Carrier for 5 Inch Bumper
  • If your bumper is 5 inches by 5 inches, we do not carry anything that would work, but if the bumper is not thicker than 3 inches, the Dutton Lainson # DL22120 or the Fulton # FHDSTC0101 would work for you.
    view full answer...

  • Frame Mounted Spare Tire Carrier Recommendation for Good Ground Clearance
  • For an offset spare tire carrier that would mount to the frame of your Little Guy Rough Rider trailer that would be high enough to give you good ground clearance check out the Offset Trailer Spare Tire Carrier by Dutton-Lainson # DL22120. This carrier can attach to a variety of frame sizes and would give you great ground clearance. I attached a review video for this carrier for you to check out as well.
    view full answer...

  • Spare Tire and Lock Recommendations Between Fulton and Dutton-Lainson
  • Lock # 262DAT will fit both spare tire carriers # FSTC1000301 and # DL22120. It is designed to fit 1/2 inch wheel studs. The other lock you mentioned, # FSTL0603, is for 1/2 inch wheel studs. For a spare tire carrier I prefer the Dutton-Lainson carrier # DL22120 because it can fit taller frames (up to 3x5 inch) should you ever need it to and Dutton-Lainson does make a quality product.
    view full answer...


Do you have a question about this Spare Tire Carrier?




  • Why etrailer.com?

    At etrailer.com we guarantee:

  • Highest quality spare tire carrier for the best price.

    Our Lowest Price Pledge ensures you will never overpay for the parts you need.
  • Real product know-how.

    We make sure that the products we sell are what we say they are, and that they work the way they are supposed to work. Get real advice from a real person who has the knowledge and expertise needed to solve your problem.
  • Most detailed, accurate spare tire carrier information available.

    Because we take providing accurate product information seriously, we take our own detailed product photos, demo videos and installation videos, as well as verify measurements, instructions, and vehicle fit information.
  • Installations, made easy.

    We love helping people and have the most highly-trained customer service, hands-on experience, step by step videos and installation instructions.
  • Fast shipping.

    Your order is automatically routed to get out of our warehouse and to your door as quickly as possible. Receive free shipping on orders over $99.
  • Personalized service for life.

    We provide one-on-one, personalized service from the ordering process through the life of your product.
  • Trusted since 1946.

    We've been serving customers since our parts store first opened in 1946 and continue to be recognized by our customers, our vendors and third parties for exceptional service.
  • Returns Policy

    Satisfaction Guarantee
    Need to return an item? No problem. Please read our Returns Policy for more information.

Info for this part was:

Expert Research:
Michael L
Expert Research:
Sarah L
Expert Research:
Jameson C
Expert Research:
Adam R
Installed by:
Cole B
Expert Research:
Jeffrey L
Photos by:
Jeffrey L

At etrailer.com we provide the best information available about the products we sell. We take the quality of our information seriously so that you can get the right part the first time. Let us know if anything is missing or if you have any questions.



Product Experts Available Now!

Call 800-298-8924


^
About Us
photos and videos
1,056,204

Original Photos & Videos

Produced to make sure you know what you are getting and you get exactly what you need.

installations
35,570

Installations Completed

To make sure products work and fit the way they are supposed to.

etrailer call center
2,476,511

Phone Calls & Emails Answered

1,125,924 phone calls and 1,350,587 emails to help find the right solution.

etrailer training
400+

Average Hours of Product Training

We get to know our products firsthand so experts can better help you.

etrailer service
71

Years of Quality Customer Service

Assisting our neighbors and customers, face to face at the counter.

etrailer experts
193,357

Pages of Expert Information

Created to make sure you have all the answers to your questions, from real experts.
