Get improved handling with minimal sway and body roll for your vehicle with this suspension enhancement kit. StableLoad pads feature quick-disconnects and a hinged design so you can easily return to your original ride when not hauling or towing.
Features:
The lower factory overload springs on your truck are designed to help compensate for a large payload. When you are hauling a heavy load, your truck's standard leaf springs can't always counteract the weight of it. As a result, if you hit a bump when your suspension is fully loaded, the leaf springs will give and cause your truck to bottom out. The overload springs help keep this from happening by mounting beneath the leaf springs to provide points of contact for the stressed springs.

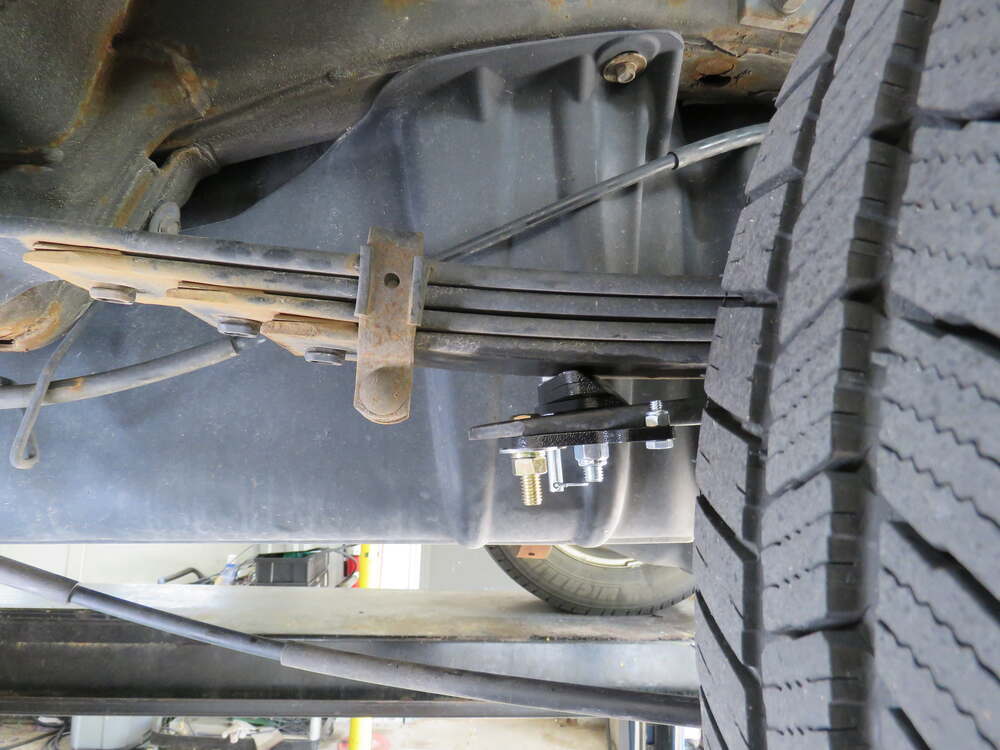

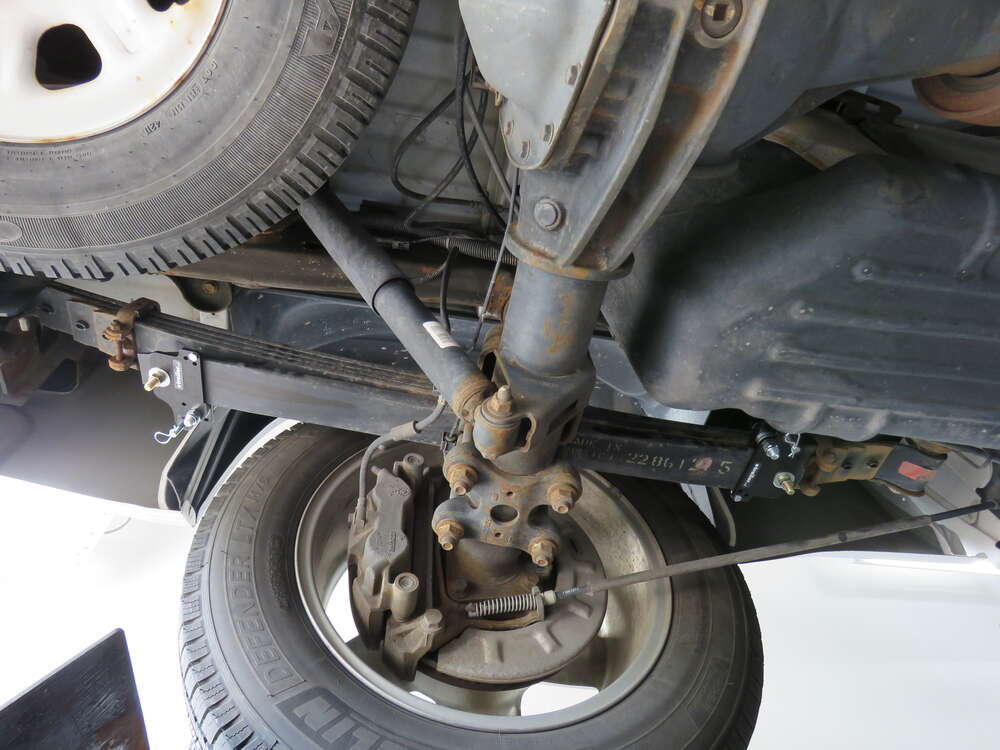

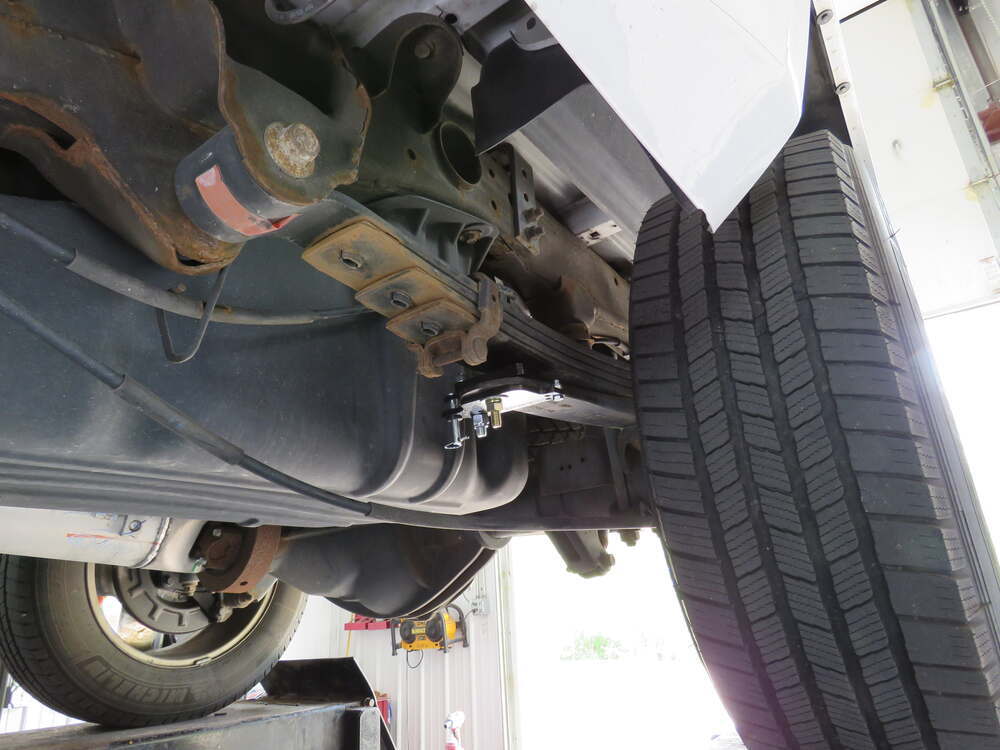

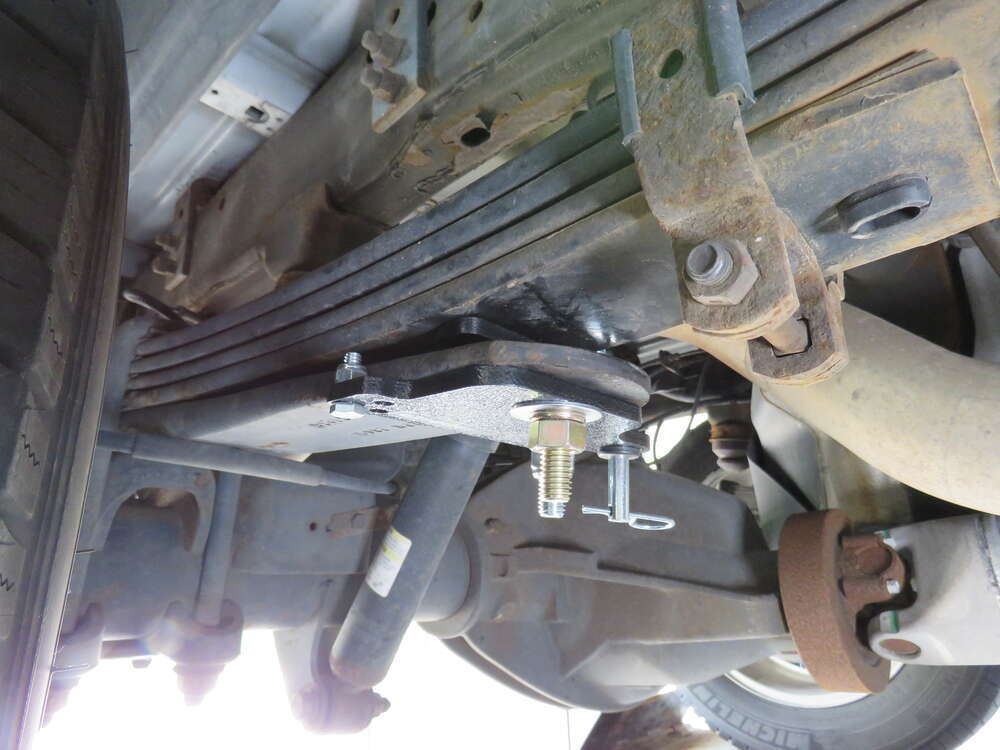

There is natural gap between your truck's standard leaf springs and its lower overload springs. This gap allows the upper leaf springs to flex a bit before making contact with the overload springs, but having this gap creates a situation where bounce (or jounce) often occurs. StableLoads are designed to fill the gap between your standard springs and your overload springs. This pre-activates the overload springs, ensuring that they are engaged from the start instead of engaging only when your leaf springs make contact, at which point you've probably already felt the jarring.
By enhancing your lower overload springs in the way described above, you will notice less sway and body roll. This is due to the pre-loading effect of the StableLoads, which helps to better distribute the weight of your payload over the entirety of your factory suspension. This is the primary difference between StableLoads and many air bag overload systems.
With air bag suspension enhancement, the load in your truck is being taken on by the air bags. Air bags are designed to level your truck, and they operate as intended when they're under a normal load. But if you are hauling or towing a particularly heavy load, this type of suspension enhancement can create some problems. In order to get the correct amount of leveling and to ensure that your suspension won't bottom out, you will likely have to fill the air bags to a very high psi. Doing this effectively removes the load from your factory suspension. As a result, your truck's suspension is no longer able to operate as it was designed. This can lead to handling issues, such as porpoising, sway, or body roll.
If you currently have this problem with your air bag system, you can add StableLoads to your suspension and get the best out of both products. StableLoads are effective on their own, but they've also been tested with aftermarket air bag suspension systems. The two enhancements work particularly well together if you have a heavy payload. By installing StableLoads between your lower overload springs and your standard leaf springs, you are already adding support to your suspension to help prevent bottoming out, which air bags work to prevent as well. As a result, you won't have to fill the bags nearly as full, which means that they won't take as much of the load off of your factory suspension, thus allowing your suspension to function as designed - only better.
Quick Disconnect

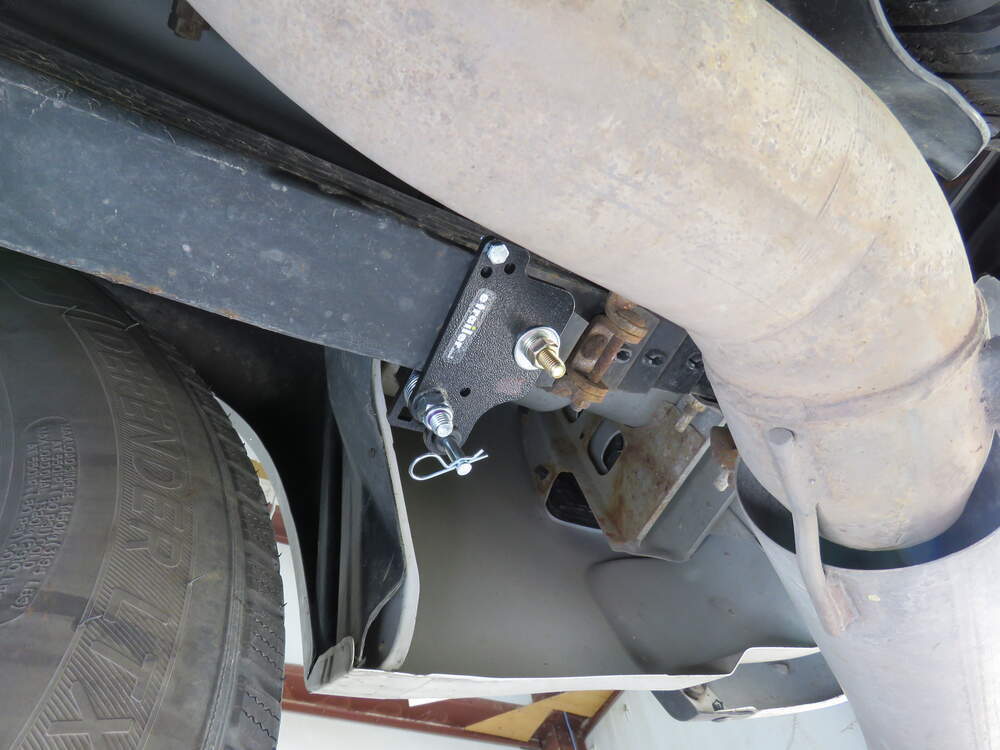

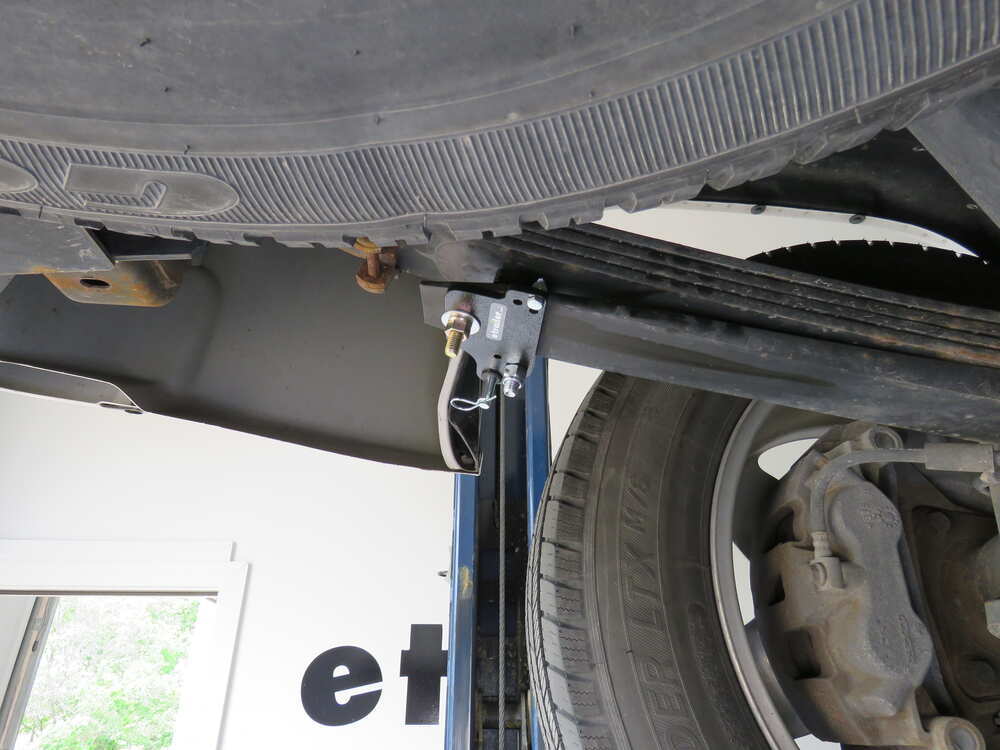

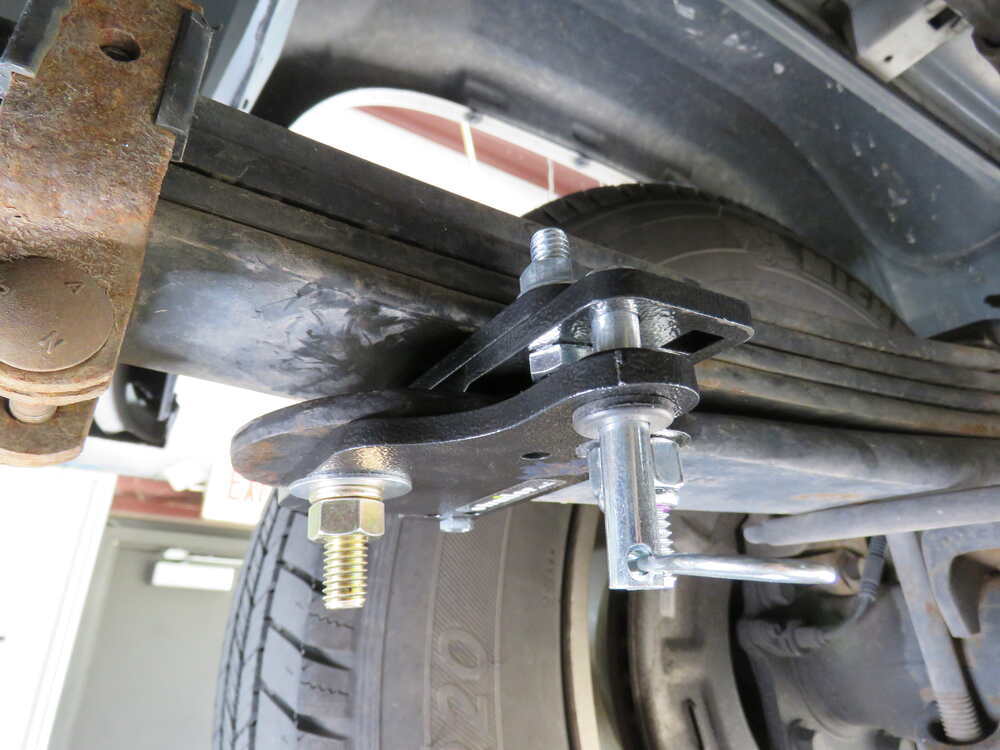

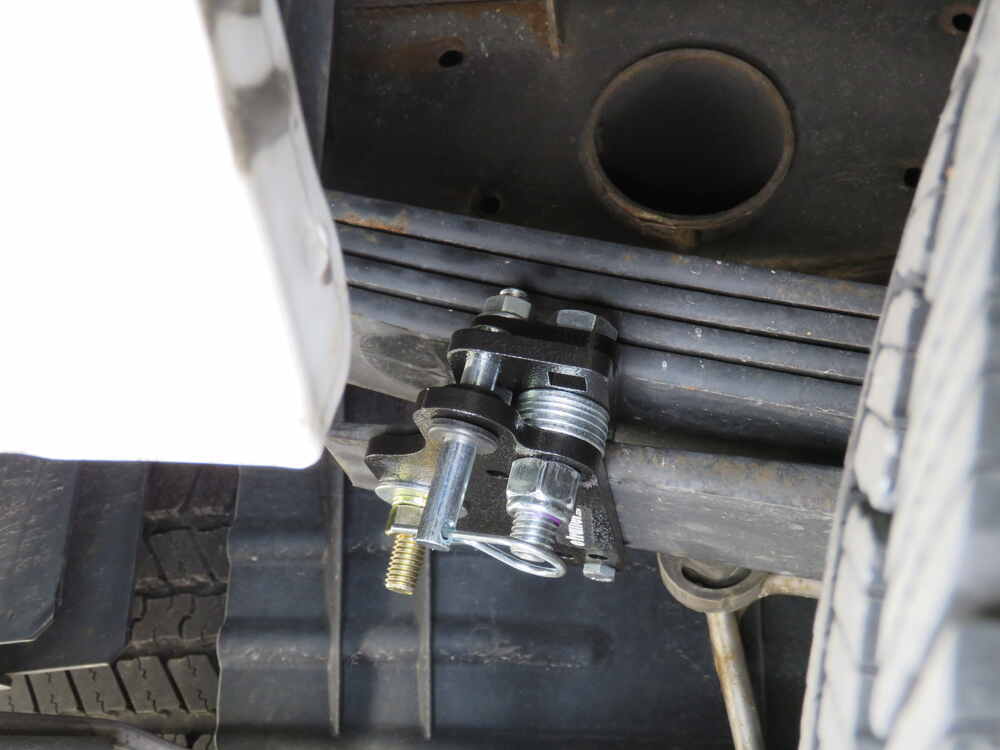

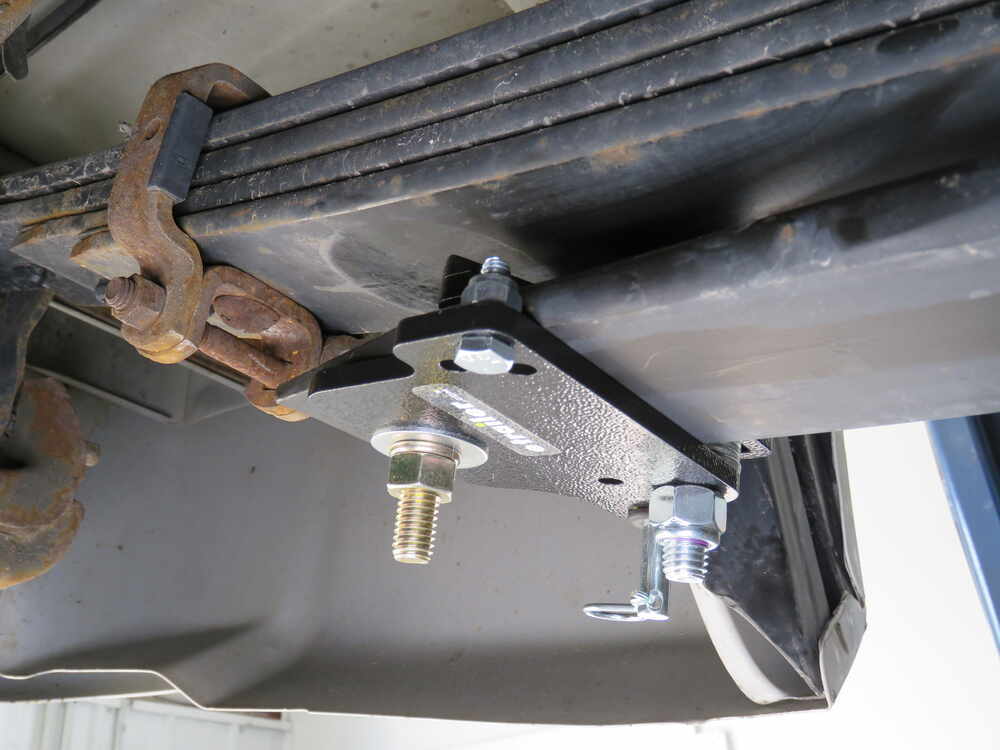

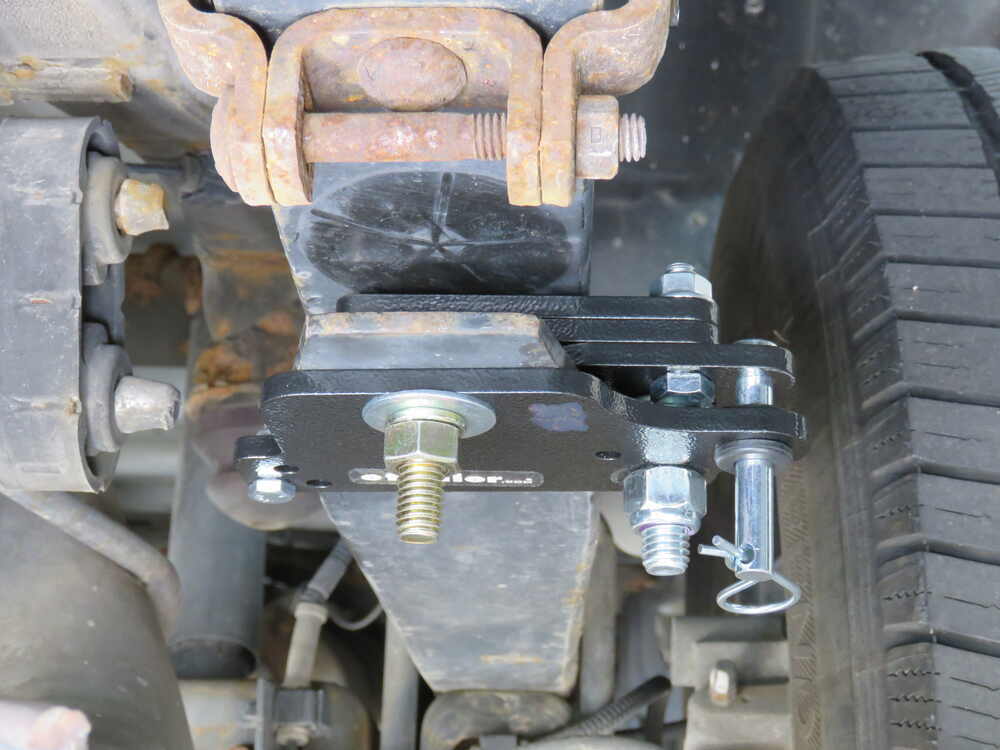

These StableLoads can be quickly and easily engaged and disengaged. The quick-disconnect design allows you to pivot the wedge pack - the piece that sits between the springs - in and out of position with a standard ratchet and 3/8" extension (not included). As a result, you can get a stable load when you're weighted down and then return to your regular ride when you're done hauling.
Tested and Proven Winner
TorkLift's StableLoads were tested against vehicles with no suspension enhancement and vehicles with air bags that were inflated to 100 lbs; and the results are clear. By adding StableLoads to your suspension your vehicle will ride smoother, causing less wear and tear on your suspension and tires. The trucks that were tested were loaded with 2,800 lbs. The degree of movement was then recorded, using an inclinometer, when the trucks encountered the 3 most common types of handling problems: side-to-side sway, porpoising, and body roll.
Side-to-side sway is triggered when your vehicle encounters uneven ground, such as a pot hole, and the suspension gives way when it cannot counteract the weight of the heavy load being carried. This creates a side-to-side bouncing motion. As you can see in the graph above, air bags provide an advantage over no suspension upgrades. But the StableLoads offer dramatic improvement over both the standard suspension and the air bag suspension.
Porpoising is the rising and falling action your vehicle makes when driving over an object like a speed bump. Having too much bounce can make you feel like you're riding in the back of a school bus. As you can see in the graph, there is virtually no difference in porpoising between trucks with standard suspension systems and those with air bags. Only the StableLoad offers improvement for this type of problem.
Body roll occurs when your heavy load transfers unevenly as you navigate a turn, causing one side of your vehicle to lean dramatically. In some cases this can lead to your truck's tires coming off of the ground and it could even cause your vehicle to roll over if it is too top heavy. Again, according to the graph above, air bags offer no help with this problem. It is only with the StableLoads that stability improves.
easy on easy off
Drilling the springs can be a challenge,but got it done.
Drilling the springs can be a challenge,but got it done.
I HAVE NOT INSTALLED THE PRODUCT, SO I CANNOT COMMENT ON IT. WILL DO IN TIME
not impressed ---over rated for the pri ce.
I installed these on my 2017 ford f250. Pull a 5th wheel. I can't tell you how good they work. Levels everything out and pulls great.
It's not a silver bullet but does exactly what they were designed to do, engage the overload springs. They took up the first inch and half of sag when I loaded my camper, which was exactly what I wanted. Have a Dodge so had to drill holes in the overloads which is never fun. Easy to engage and disengage, not disappointed.
These StableLoads work great and were easy to install with no drilling. They significantly reduced the side to side rocking when my 3.6k lbs camper is mounted. They also helped to eliminate some of the angular momentum pitch when cornering. Definitely a big bang for the buck suspension mod.
Install was easy on Ram 3500 but haven't loaded the camper to check them out.
Product arrived quickly with free shpg. Complete with instructions which I'll tackle bright and early Memorial Day weekend. Good price, good service.
