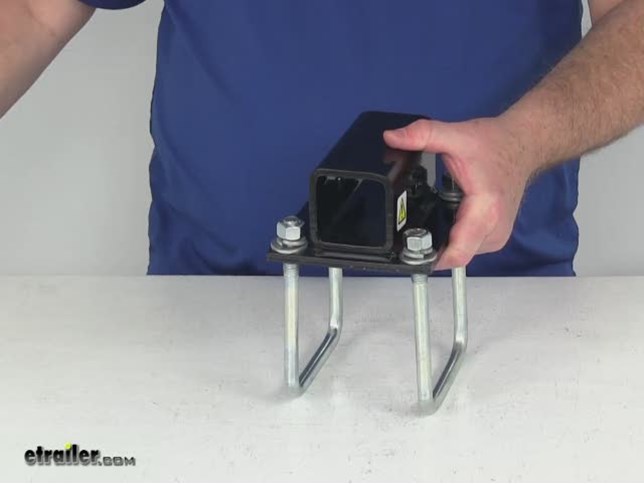

Ultra-Fab 2" Motor Home Trailer Hitch Receiver for 4" x 4" Bumpers

Ask the Experts about this Ultra-Fab Products RV and Camper Hitch

• Can the U-Bolts On the Ultra-Fab Motor Home Trailer Hitch Receiver Be Turned
  The Ultra-Fab 2" Motor Home Trailer Hitch Receiver part # UF35-946401 has a bolt hole spacing of 5" front to back and 4" side to side so it does not sound like it would work for you. However, we do have the Stromberg Carlson 2" Motor Home Hitch Receiver part # BA-100 which has a bolt hole spacing of 5" front to back and 5" side to side so it does sound like it would work for you although I am not quite sure of the intended purpose.
  view full answer...
• Rear Bumper Hitch Solution for 4 inch Bumper with Limited Clearance Above Bumper
  Due to the limited clearance you have above your rear bumper you'd need to install a bumper hitch that hangs below the rear bumper like the Buyers Products # 3371804060 as the # UF35-946401 needs to install above the rear bumper.
  view full answer...
• Trailer Hitch Recommendation for Prowler Fifth Wheel
  Best solution we'd have is the Curt Multi Fit hitch part # 13703 which fits frame widths between 22 and 72 inches apart (outside to outside) and fits all frame styles. Only issue is this is a Class III hitch and we don't have any Class IV or V hitches available that are similar. This has a capacity of 3,500 lbs trailer weight. I attached an install video for more info for you to check out as well.
  view full answer...
• Recommended Bumper Hitch for a 1988 Fleetwood Yukon Wilderness with 4-1/4 x 4 Bumper
  I have a solution for you, but the Ultra-Fab 2" Motor Home Trailer Hitch Receiver part # UF35-946401 will only fit bumpers up to 4" x 4" . For your 4-1/4" x 4" bumper, I recommend the Buyers Products RV Bumper Receiver Hitch item # 337RVA24. The u-bolts will actually fit bumpers up to 4-1/2" wide so your 4-1/4" wide bumper won't be an issue. The fit will be tight enough that you would not have any play. It's perfect for a bike rack, cargo carrier, or any other cargo accessory. Keep...
  view full answer...
• Frame Mounted Trailer Hitch for Travel Trailer
  We do indeed offer some hitches that are designed to bolt to the frame of your travel trailer. If the frame members on your travel trailer are between 18-51 inches apart, the Curt Hitch # C13701 would be an excellent choice, with it's tongue weight capacity of 500 lbs. For frame members between 22-72 inches apart, use the Curt Hitch # 13703, which has a tongue weight capacity of 350 lbs.
  view full answer...
• What Determines Cargo Weight Limit for Hitch Carrier Installed on RV Bumper Hitch
  The amount of actual cargo weight you can safely transport on a hitch cargo carrier installed in a bumper-mounted hitch is determined by the lowest-rated component. Those components consist of the RV's bumper, the hitch such as # UF35-946401 that is mounted on it, and the cargo carrier itself. The lowest-rated of the three items will determine overall capacity. If you have a 500-lb-rated cargo carrier like Curt # C18153 and install this in the 200-lb-rated Ultra-Fab RV Hitch # UF35-946401...
  view full answer...
• Bumper Mounted Hitch Recommendation for a 2017 Starcraft Satellite 17RB Travel Trailer
  As long as the 4 inch square bumper on your 2017 Starcraft Satellite 17RB travel trailer is made of steel and welded its entire length then you would need hitch # UF35-946402 because it is the model for 4x4 inch bumpers. I have linked a video of this hitch for you. The combined weight of your carrier and the tote tank isn't very much but you will still want to check the trailer literature to make sure that the bumper is rated for carrying weight and. if so, the amount of weight it can handle.
  view full answer...
• Trailer Hitch for 1995 Chevy G20 Van
  There is a hitch receiver that could work for your 1995 Chevy G20 van, but not a trailer bumper hitch. Instead, so long as your van does NOT have a step bumper, I recommend the Draw-Tite # 75121 hitch. This is a 2" hitch that is a complete bolt-on installation so there will be no drilling required in your Chevy's frame. I have added a link to a video of this hitch being installed on a '94 van for you to check out so you can see the process involved.
  view full answer...
• Mounting Ultra Fab # UF35-946401 Under Bumper
  It is acceptable to mount the Ultra Fab # UF35-946401 underneath the bumper. Make sure the 200 lb capacity of the receiver or the capacity of the bumper (whichever is lower) is not exceeded. This receiver is meant to mount to a 4 inch Steel RV bumpers, and not to a car or truck. It is not intended to be used for towing purposes.
  view full answer...
• Hitch Availability for Rear of 2010 Carriage Carri-Lite 5th Wheel Trailer
  I was able to find many photos of your 2010 Carriage Carri-Lite 5th wheel trailer, but I was not able to confirm the specs for its bumper or frame width. We offer two types of trailer hitch for use on the back of an RV such as your 5th wheel, a bumper-mount type like the Ultra-Fab 2-Inch Motor Home Trailer Hitch # UF35-946401 (see linked video) as well as a frame-mount multi-fit receiver such as # UF35-946403, both rated for use with accessories, not towing. All options can be seen on the...
  view full answer...
• Recommended Cargo Carrier and Hitch for Rear of Travel Trailer
  We do not offer a bolt-on cargo carrier, but you could certainly use a hitch mounted carrier. The first step would be to install a hitch like the Curt # E-100. The hitch is compatible with 4 inch square bumpers, and offers a 350 lb tongue weight capacity, which means that the weight of the carrier used plus the weight of the gear carried upon it could weigh no more than 350 lbs. Because of the extended distance between the rear axle and the back bumper of the average travel trailer,...
  view full answer...
• Trailer Hitch Receiver and Bike Rack for Use on 2007 Jayco Jay Feather 19H Trailer
  The best hitch type for your 2007 Jayco Jay Feather 19H Trailer will depend on its construction, specifically its bumper. I checked the Jayco website for details about its bumper but no information is offered. So, you'll just want to check your owner's manual for information and guidance related to mounting an accessory hitch. If the bumper is a 4-inch square type then you can use a bolt-on hitch like the Ultra-Fab 2-Inch Motor Home Trailer Hitch Receiver for 4 x4-Inch Bumpers, part...
  view full answer...
• Recommended Hitch Receiver and Bike Rack for Use Behind Trailer
  Starting with the hitch receiver for your trailer, if you indeed have a 4 x 4 inch bumper, the Ultra-Fab # UF35-946401 that you referenced is what I recommend. This is designed to attach to 4 inch x 4 inch square bumpers with the included hardware and U-bolts. If you are just looking to use the 2 inch receiver for hitch-mounted accessories like bike racks, this is a great option and it will work well. Moving on to the bike rack, the Kuat Beta was a really nice 2-bike hanging-style rack,...
  view full answer...
• Bumper Hitch that Can Fit Bumper of 2011 JayFeather That's 4.5 inch by 1.5 inch
  The best solution we have is going to be the Ultra Fab hitch part # UF35-946401 which is designed to attach to a bumper that is 4.5 inches tall and 4 inches wide. Since your bumper is narrower you'd need to come up with spacers to take up the additional width. I attached an install video for this for you to check out as well.
  view full answer...
• Solutions for Towing Forest River Roo Travel Trailer and Carrying Bikes Simultaneously
  There are a few different options that might work for you. A towing bike rack can be a good option depending on the tongue weight of your camper. The Curt # C18013 used in conjunction with an extra long ball mount like # 2736 or # D-28 (choose the one with the rise or drop you're needing) might be a good option, but keep in mind that the tongue weight capacity of the hitch would be reduced by the weight of the rack and the bikes. For instance, say the three bikes weigh 100 lbs. The rack...
  view full answer...
• Why Cant the Bumper Mounted Hitch Recevier UF35-946401 Be Installed on Decorative Bumper Cover
  The Ultra-Fab 2 Inch Motor Home Trailer Hitch Receiver # UF35-946401 is not designed for use on decorative aluminum bumper covers because the installation of the receiver and the weight of the accessory used in the receiver would likely damage the decorative aluminum cover. When the bumper cover becomes damaged, the receiver would no longer be installed securely enough on the bumper and could move while a hitch accessory is being used.
  view full answer...
• Installation of a Ultra-Fab 2-Inch RV Trailer Hitch Receiver Part UF35-946401 on a 4-Inch Bumper
  You are correct. The Ultra-Fab 2-inch motor home trailer hitch receiver # UF35-946401 is designed to bolt around a 4-inch RV bumper and the receiver opening will be on the topside of the bumper. This receiver is designed for mounting accessories like a bike rack, and not for towing purposes. It has a 200 pound capacity. Make sure you do not exceed the weight rating of your RV bumper. So if the bumper has a lower weight rating, you will want to go by the lower weight rating.
  view full answer...
• RV Hitch and Cargo Carrier Recommendations to Allow Transporting 190-lb Generator
  We offer two varieties of trailer hitch receivers for use on RVs, the bolt-on 4 x 4 inch-bumper-mount type such as the Ultra-Fab 2-Inch Motor Home Trailer Hitch Receiver # UF35-946401 that you referenced, and the higher-capacity multi-fit frame-mount type like the Curt # C13701. I suggest you check your RV owner's manual for any guidance or restrictions regarding the use of bumper- or frame-mount hitches and accessories. For safety and capacity I suggest a frame-mount hitch for your application. The...
  view full answer...
• Dual Hitch Recommendation for Flat Towing Car and Carrying Bike Rack at the Same Time
  Sounds like you want to install the Ultra Fab Hitch part # UF35-946401 vertically so that the opening faces up instead of behind the RV. I can't safely recommend you do that since the hitch hasn't been tested in the orientation. A better option would be something like the # RM-077-4 that has a 4 inch rise built into it so that you can install the rack in the upper opening and use your tow bar in the lower one.
  view full answer...
• Installing Ultra-Fab # UF35-946401 Bumper Mounted Receiver on 2 x 2 Pipe Bumper on RV
  When you describe a 'pipe bumper' do you mean that its round, or is constructed of square tube? If it's a round pipe, I wouldn't recommend attaching a receiver to the bumper as any tongue weight (downward force applied to the receiver) would rotate the receiver tube downward. If you're talking square tube, the Ultra-Fab # UF35-946401 wouldn't be your best option as the threaded portion is about 1-3/4 of an inch long. It wouldn't cinch tight enough, plus the spacing between the legs...
  view full answer...
• Receiver Size of Ultra-Fab 2-Inch Bumper Mount Hitch # UF35-946401
  The Ultra-Fab 2-Inch Bumper Mount Hitch, part # UF35-946401, is only available with a 2-inch receiver opening. All of the RV bumper mount hitches will have a 2-inch size receiver opening. Trailer hitch receiver sizes are available in three different sizes, 1-1/4 inch, 2-inch, and 2-1/2 inch. The two most common sizes would be the Class I and Class II 1-1/4 inch, and the Class III and Class IV 2-inch. The Class V 2-1/2 inch size is used on heavy-duty trucks. I am including a link...
  view full answer...
• What is the Weight Limit on Ultra-Fab 2 Inch Motor Home Trailer Hitch Receiver
  The Ultra-Fab Motor Home Trailer Hitch Receiver, # UF35-946401, was designed with the RV/trailer application in mind. As such the additional torque from accessories bouncing in the receiver was taken into account when the weight capacity of 200 pounds was given to the hitch. You might want to consider going with something rated a little higher, like # E-100, or # UF35-946402, which both have a 350 pound capacity, because with your intended load you will be getting close to the tongue...
  view full answer...
• Is Trailer Hitch capacity Reduced When Using Curt Multipurpose Ball Mount # D210
  The Curt Multipurpose Ball Mount, part # D210 will not reduce the weight capacity of your trailer hitch. The # D210 does have a 7,500-lb towing capacity and a 750-lb tongue weight capacity so you will need to make sure you do not exceed those capacities when using this ball mount.
  view full answer...
• Hitch Receiver Size of Ultra-Fab 2-Inch Bumper Mount Hitch # UF35-946401
  The Ultra-Fab 2-Inch Bumper Mount Hitch, part # UF35-946401, is only available with a 2-inch receiver opening. All of the RV bumper mount hitches we carry have a 2-inch size receiver opening. We have the Brophy Hitch Reducer, part # HT02, that will reduce a 2-inch hitch to a 1-1/4 inch size, because it is a sleeve design it will not reduce the tongue weight capacity. Since you did not mention what you will be doing with the bumper mount hitch, I cannot for sure recommend the # HT02...
  view full answer...
• Will Ultra-Fab Motor Home Trailer Hitch # UF35-946401 Fit a 2008 Chrysler Aspen
  The Ultra-Fab Motor Home 2-Inch Trailer Hitch, part # UF35-946401, is intended for installation on the rear of motor homes that have an exposed 4-inch bumper. Installation requires that the bumper be fully open in order to allow the U-bolts to attach securely. This hitch is not suitable for use on your 2008 Chrysler Aspen. The bumper on your vehicle is designed to protect the passengers in the event of an impact. Even if you removed part of the bumper cover to expose the bumper itself,...
  view full answer...
• Weight of Ultra-Fab 2 Inch Motorhome Receiver # UF35-946401
  Minus the packaging and the U-bolts, the 2 inch bumper mounted motor home receiver weighs right at 5 lbs. This particular receiver is intended for hitch accessories only, not for towing purposes. The weight capacity of the receiver is 200 lbs or the capacity of the bumper its attached to, whichever is lower. If used on the rear of a trailer, make sure the hitch mounted accessory is approved for use on the rear of a trailer, as an accessory on the rear of a trailer will be subjected to much...
  view full answer...
• Recommended Bike Rack and Hitch Receiver for Travel Trailer Bumper
  Thanks for the photo. The Swagman Around the Spare Deluxe 2 Bike Rack for RV Bumpers # S80501 and the Swagman Platform-Style 2 Bike Rack for 2" Hitches or RV Bumpers # S64663 are great options for your 2016 Pacific Coachworks Northland Travel Trailer. The bumper has to be completely enclosed is the explanation you are likely seeking. The Tube with fully welded enclosed ends is ideal and is normal for many applications but not all. You can alternatively use the Curt RV Bumper 2" Trailer...
  view full answer...
• Is there a Bumper Mount Hitch that Will Fit a 4-3/8 Inch Bumper on an Arctic Fox Trailer
  Bumper mount hitch # UF35-946402 is designed specifically for 4 inch square bumpers so I cannot recommend it on a 4-3/8 inch wide bumper. Hitch # BA-100 would be a better fit since it fits 4-1/2 x 4 inch bumpers. All of the other options are either going to be 4 x 2 or 4 x 4. Also check with the trailer manufacturer to make sure the bumper is rated for use with a hitch.
  view full answer...
• Recommended Hitch Solution for Carrying Bicycle on Rear of RV with C-Channel Bumper
  The Curt # E-3S hitch you mentioned is recommended for use on a truck step bumper, as shown in the provided diagram. A bolt-on hitch like the Ultra-Fab # UF35-946401 would be a better choice. This hitch is designed to fit bumpers that are up to 4-1/2 by 4 inches. The bolt on receiver has a 200 lb capacity, but you'll need to check with the RV manufacturer to determine the capacity of the bumper. You'll need to abide by whichever capacity is lowest. I'd also recommend using a bike rack...
  view full answer...
• Recommended 2 Inch Receiver for Zero Turn Lawnmower Fertilizer Spreader
  We don't have anything like the # 13333 that has mounting holes 10 inches apart. For your application you will need to either customize a fit for that part or use a different style like the Ultra-Fab 2" Motor Home Trailer Hitch Receiver for 4" x 4" Bumpers # UF35-946401 which could be bolted to a strong frame crossbeam for your unique need. Another option is to use the Reese Towpower 3-Way ATV Hitch w/ Ball Mount Adapter - 2,000 lbs # RP7065100 for this custom application.
  view full answer...

Do you have a question about this RV and Camper Hitch?
