Adjustable Width Trailer Hitch Receiver for RVs, 18" to 51" Wide

Adjustable Width Trailer Hitch Receiver for RVs, 18" to 51" Wide

Item # C13702

lowest price pledge

Retail:$272.84

Our Price: $190.20

You Save: $82.64
RV and Camper Hitch

This item qualifies for Free Shipping

Shipping Weight: 45 lbs

Quantity:
In Stock, Ships Today

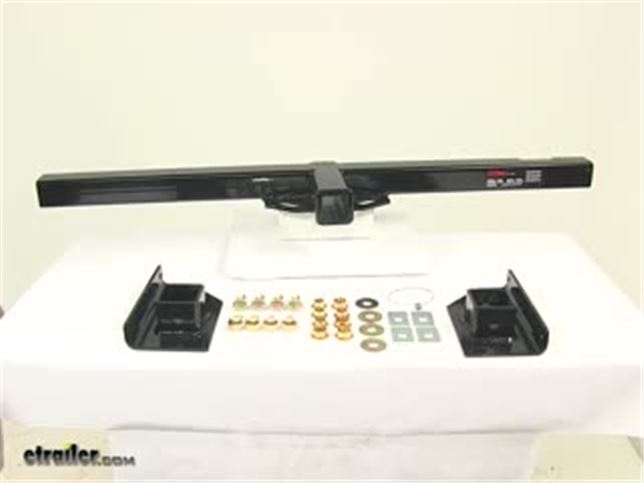

C13702 - 18 - 51 Inch Wide Frame Curt Frame Mount Hitch
zoom in icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.
Please enter a valid email address.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

pop out icon replay 360 icon
horizontal rotate icon

Product Images

Customer Photos


  • Frame Mount Hitch
  • 18 - 51 Inch Wide Frame
  • 500 lbs TW
  • 600 lbs WD TW
  • Bolt-On
  • Weld-On
  • Curt
  • 5000 lbs GTW
  • 6000 lbs WD GTW
  • 2 Inch Hitch
Adjustable trailer receiver hitch designed for use on RVs can be bolted to the vehicle frame or welded on for a no-drill application. Powder coated steel is sturdy and corrosion resistant. Lowest Prices for the best rv and camper hitch from Curt. Adjustable Width Trailer Hitch Receiver for RVs, 18" to 51" Wide part number C13702 can be ordered online at etrailer.com or call 800-298-8924 for expert service.


  • All Info
  • Reviews (10)
  • Q & A (117)
  • Videos (2)
  • Photos
  • Why etrailer?

Curt RV and Camper Hitch - C13702

Adjustable trailer receiver hitch designed for use on RVs can be bolted to the vehicle frame or welded on for a no-drill application. Powder coated steel is sturdy and corrosion resistant.


Features:

  • Universal hitch designed for use on RVs and motorhomes
  • Heavy-duty side brackets allow for maximum adjustability
    • Slide along hitch body to match the width of your vehicle frame
    • Work on box frame, C-channel frame, or I-beam frame
    • Let you position tube mounts toward the front or rear, putting the hitch body in the best location for clearance
  • Hardware included
  • High-gloss black powder coat finish resists rust, corrosion, and is resistant to scratches and UV damage
  • Strong, secure all-frame attachment
  • Solid construction for maximum strength and safety


Specs:

  • Receiver opening: 2" x 2"
  • Rating: Class III
    • Maximum gross trailer weight: 5,000 lbs
      • Maximum GTW when used with weight distribution: 6,000 lbs
    • Maximum tongue weight: 500 lbs
      • Maximum TW when used with weight distribution: 600 lbs
  • Distance between mounting bolt holes: 8-5/8"
  • Limited lifetime warranty


Notes:

  • For use with RV-approved accessories only.
  • The main hitch body tube can be trimmed so the ends are flush with the frame brackets. After trimming, coat the bare metal with paint to protect against rust and corrosion.
  • If welding this hitch, all welding surfaces must be cleaned to bare metal or the weld will not be the required strength and may void the warranty.
Dimension

13702 Adjustable Width Trailer Hitch Receiver for RVs, 18" to 51" Wide



C13702 Installation InstructionsInstallation Details C13702 Installation instructions



Video of Adjustable Width Trailer Hitch Receiver for RVs, 18" to 51" Wide


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for Curt RV and Camper Hitch - Frame Mount Hitch - C13702 Review

Today we're going to be taking a look at the Curt adjustable width trailer hitch for RVs. This universal hitch is designed for use on RVs and motor homes. It's going to come with everything that you see laid out here on the table. It's also going to come with some detailed installation instructions to help walk you through that whole process step by step. The unique design of this hitch that makes it a universal design is really these slide along frame brackets. These heavy duty side brackets are going to allow for maximum adjustability.

They slide over the ins of the hitch and then you can slide these to wherever you need for your application. This particular hitch is designed to fit frame widths from 18 inches to 51 inches wide. It's going to work on box frames, C-channel frame, or I-beam frame. It's going to let you position the two mounts inward or toward the front or the rear. That's going to allow you to put the hitch body in the best location for clearance for your particular application. Now installation hardware is all laid out here on the table that is included for bolt on installation.

If you are doing a bolt on installation, drilling is required. You'll need to drill into the tubing of the hitch to get these attached to it. Once you have your location set, then you'll need to drill into the frame of your RV or motor home to get these brackets attached to it as well. The unit can be welded on as well. If you choose to do that, but again the hardware for a bolt on installation is included. Now the hitch itself is going to feature a high gloss black powder coated finish, it's going to do a great job at resisting rust and corrosion.

It's going to be resistant to scratches and UV damage. It's going to feature secure all-frame attachment. It's a nice steel construction for maximum strength and safety. Your receiver opening is a two inch by two inch opening. The pin holes on this unit will accept a standard 5/8 inch diameter pin or hitch lock.

You're going to have your nice large safety chain connection points. One on each side of your two inch by two inch receiver tube. It's going to feature a class three rating. The maximum gross trailer weight capacity is 5,000 pounds or 6,000 pounds if used with weight distribution. Tongue weight maximum is 500 pounds or 600 pounds if used with weight distribution. On these brackets that attach to the framing of RV and motor home, the distance between these mount holes that's going to be eight and 5/8 of an inch. From the center of the hitch pin hole to the receiver opening is two and a half inches. From the cross tube to the opening is six and a quarter. From the back of the cross tube to the receiver opening is eight and 3/4 of an inch. Curt also puts a limited lifetime warranty on this unit. Now please keep in mind that this is for use with RV approved accessories only. The main hitch body tube can be trimmed so that the ends are flush with the frame brackets, 51 inches end to end all the way down to 18 inches. If you have your frame brackets located right here, you're going to have a lot of excess. That can be trimmed off for a nice clean installation overall finish. Now if you do that, you will want to coat the bare metal with paint to protect against rust and corrosion. If welding this hitch, all welding surfaces must be cleaned to bare metal or the weld will not be the required strength and may void the warranty. That's going to do it for today's look at the adjustable width trailer hitch for RVs.


Customer Reviews

Adjustable Width Trailer Hitch Receiver for RVs, 18" to 51" Wide - C13702

Average Customer Rating:  4.7 out of 5 stars   (10 Customer Reviews)

Adjustable trailer receiver hitch designed for use on RVs can be bolted to the vehicle frame or welded on for a no-drill application. Powder coated steel is sturdy and corrosion resistant.

- C13702
by:

Good quality product but had to make modifications to make it fit my Cardinal Estate's wide frame. Don't recommend doing that unless you're a good welder 610715



- C13702
by:

Hitch has worked really good. Did a trip to Moab UT. No problems. Very happy with purchase 588636



- C13702
by:

Although its still sitting on the shop floor it looks great and is heavy duty !! and i am very impressed with shipping came 4 days earlier then expected, that is why its still on the shop floor waiting to be installed I pre scheduled it at the time i expected it. at the welding shop . I called them they could not get it in earlier ( I guess they are not etrailer ) 438128



- C13702
by:

Was able to modify this hitch to fit my needs and its working very well. 573827



- C13702
by:

Bought a new Jeep Wrangler 2-door that I wanted to tow cross country. The existing hitch on my Gulfstream BT Cruiser was only rated at 3500 lbs. and I wanted to upgrade that to 5000 lbs. which was allowable after checking all the weight measurements. Found this adjustable hitch on etrailer.com and thought it would work for me. I mounted the brackets and cross bar temporarily to center the receiver and then mark where I needed to drill into the cross bar. Removed the bar and drilled using a step drill bit and finally the regular drill bit. Mounted everything up loosely, then tightened moderately to make sure everything fit right. Then loosened each bolt, applied red loctite, and torqued to spec. Towed the Wrangler over 4500 this past fall and the hitch worked perfectly. Can't be happier. 495600



- C13702
by:

Product is very well built and looks nice. You may not want pictures of it, as I am installing it on the front of my pick-up to carry a bike rack. The hitches made for the truck put the hitch right in the middle of the license plate--this one will ride very nicely below the air dam below the bumper. 554569



- C13702
by:

Installed this hitch on a bus conversion. Installation went well with few modifications. 459809



- C13702
by:

Hitch was perfect and installed easily. The powder coating and hardware were high quality. 455806



- C13702
by:

Excellent quality, The price was right. Received the product quickly. 447070


Comments

No problems at all. Built for the long haul.

Michael H - 10/29/2018

45195

- C13702
by:

Great product and solid connection to the front of the Discovery 2. Some out of the box thinking to install but most was cutting to fit. All mount points original in frame and slide mounts on hitch were great. Used upside down on mounts and then hung between frame rails. 420583


10
10

Ask the Experts about this Curt RV and Camper Hitch
Do you have a question about this RV and Camper Hitch?


  • Trailer Hitch for 2016 Forest River Columbus Fifth Wheel
  • There are different hitch receivers which may work for your 2016 Forest River Columbus depending on the width of its frame. The Curt Adjustable Width Trailer Hitch Receiver # C13702 works with box frame, C-channel frame, or I-beam frames that are 18" to 51" wide and has a maximum tongue weight of 500 lbs and maximum gross trailer weight of 5,000 lbs. The Curt Adjustable Width Trailer Hitch Receiver # 13703 works with box frame, C-channel frame, or I-beam frames that are 22" to 72" wide...
    view full answer...

  • Recommended Motorcycle/Scooter Carrier With Hitch Receiver For Motorhome
  • You do not need a bumper to add a hitch and carrier for your scooter. I recommend the Adjustable Width Trailer Hitch Receiver for RVs, 18" to 51" Wide # C13702 or the # UF35-946403 which adjusts from 47-1/8 to 77 inches. Either of these hitch receivers will mount to your motorhome frame so a bumper is not needed. This can be used with the MaxxTow MaxxHaul Aluminum Motorcycle Carrier for 2" Hitches - 400 lbs # MT70101 for your scooter. I recommend the Motorcycle Soft Loops # 06303...
    view full answer...

  • Front Hitch Receiver for 2015 Ford Transit
  • We do not have any custom-fit front hitches for your 2015 Ford Transit T350 but we do offer universal-fit RV-type frame-mount hitches that could potentially work for you. These will require drilling into the frame for bolt-on installation. You can see all such hitches on the linked page. It will be necessary to check along the vehicle frame to determine if there is enough space for the hitch mounting flanges. All of these options can be welded on and several also offer bolt-on installation...
    view full answer...

  • Trailer Hitch That Fits 2015 Winnebago Trend
  • We have a trailer hitch that does fit your 2015 Winnebago Trend based on the dimensions you listed but since your frame is 55 inches from outside to outside the part # C13702 won't fit as it's max width is 51 inches. Instead you'd want the Curt # 13703 which fits up to a 72 inch wide frame width. This hitch also has a capacity of 3,500 lbs which would be more than enough for your application.
    view full answer...

  • Trailer Hitch and Hitch Scooter Carrier for Class A RV and Honda Helix Scooter
  • We offer several 2-inch trailer hitches that are suitable for installation on the frame of an RV. All can be seen on the linked page. For transporting your Honda Helix you will want the highest-rated RV hitch we have available, either Curt # C13702 or the similar # C13701. Both offer the same 500-lb tongue weight (TW) capacity but hitch # C13701 has 2-inches of drop in the receiver tube. If ground clearance is not a concern use either one, but if it is a concern then use the hitch without...
    view full answer...

  • Trailer Hitch Receiver for 2018 Forest River Heritage Glen Trailer
  • The Curt Adjustable Trailer Hitch Receiver - 18"-51" Wide - 2" Drop # C13701 or the Curt receiver # C13702 are both great options for your 2018 Heritage Glen 282RK. These are rated for tongue weights of up to 500 lbs. I did a little research on your Yamaha 3500 generator dimension and based on what I found, I recommend using a cargo carrier like the TorkLift Lock and Load 27-3/4" x 24" Maximum Security Cargo Tray - 2" Hitches # TLA7752 or a more basic cargo carrier like # C18153. For...
    view full answer...

  • Trailer Hitch Recommendation for a 2016 Winnebago Fuse on a Ford Transit T350 Chassis
  • I do have a possible solution for you but there aren't any aftermarket custom fit hitches that are confirmed to fit RV models on the 2016 Ford Transit T350. But take a look at Curt adjustable trailer hitch # C13702. This is essentially the same design as the hitch in the picture you have included. I wish we had a custom fit option for you but an adjustable hitch is the best option.
    view full answer...

  • What is the Difference Between Curt Trailer Hitches # C13701 and # C13702
  • These are actually the exact same trailer hitch with the only difference being that the # C13701 has a 2" drop while the # C13702 doesn't. Both are Class III hitches with a 2" receiver that is rated for 5,000 lbs GTW (gross trailer weight) and 500 lbs TW (tongue weight). They fit frame widths from 18" - 51" and have a 1/4" bracket thickness. These Curt trailer hitches are made in the USA and come with a limited lifetime warranty. Review videos and installation instructions have been...
    view full answer...

  • Recommendation on a Trailer Receiver Hitch for a 2014 Keystone Cougar 5th Wheel Trailer
  • We offer a few fame mounted trailer hitches for RVs and travel trailers. To determine which hitch will fit your trailer, a measurement of the outside to outside width of the trailer frame will be needed. If your trailer frame measures between 22 to 72 inches, then The Curt Adjustable With Trailer Hitch, # 13703, will work well. If your trailer frame measures between 18 to 51 inches wide, then Curt Hitch # C13702 will work depending on \the weight of the trailer you want to tow. However,...
    view full answer...

  • Recommended Trailer Hitch Receiver for 2006 Winnebago Outlook on E-450 Chassis
  • For your 2006 Ford E-450 chassis for your Winnebago Outlook, there is not a Class V hitch available. My recommendation is the Adjustable Width Trailer Hitch Receiver for RVs # C13702 which does have a 2 inch receiver and is rated for 5,000 lbs towing and 500 lbs tongue weight or 6,000 lbs towing and 600 lbs tongue weight when using a weight distribution system. For your trailer wiring, I recommend the Upgraded Heavy Duty ModuLite Circuit Protected Vehicle Wiring Harness with Install...
    view full answer...

  • Recommended Rear Trailer Hitch for 2018 Forest River Cherokee Wolf Pack Toy Hauler 5th Wheel Trailer
  • For your 2018 Forest River Cherokee Wolf Pack Toy Hauler 5th Wheel, I recommend the Curt Adjustable Width Trailer Hitch Receiver for RVs, 22" to 72" Wide # 13703. This hitch is an easy bolt on design compatible with towing up to 3,500 lbs with a 350 lb tongue weight. This can be used for an RV compatible bike rack or other accessories as well. If you need a higher capacity, I recommend the Curt # C13702 or 2 inch drop # C13701 both of which are rated for up to 5,000 lbs or up to 6,000...
    view full answer...

  • Trailer Hitch Option for a 2004 Keystone Cougar 281EFS With Slide Out Cargo Tray Removed
  • The Curt RV hitch part # C13702 is a universal fit trailer hitch that can fit trailer frames that are between 18 and 51 inches apart measured from outside to outside. If you have clear access to the frame with the tray removed and it fits the mentioned dimensions the hitch would work well for you. For a hitch with a wider width range you would want the part # 13703 instead. This fits nearly all frame styles and has a range of 22 to 72 inches.
    view full answer...

  • Side Brackets on Curt Trailer Hitch C13702 are too Tight to Slide On and Off Hitch Tube
  • The issue is most likely caused by some excessive powder coating on the brackets, hitch tube, or both for hitch # C13702. It is permissible to sand away excessive powder coat. Some light lubrication will also help. Those two things will probably do the trick but if it still needs a little persuasion might I suggest a rubber mallet rather than a sledge so as not to damage the hitch.
    view full answer...

  • Trailer Hitch Options for Travel Trailer
  • There are trailer hitches that fit travel trailers, so long as your 2018 Heartland North Travel Trailer has a box frame, C-channel frame, or I-beam frame. If it is between 22" and 72" wide there is the Curt Adjustable Width Trailer Hitch # 13703 or if it is 18" to 51" wide there is the Curt Adjustable Width Trailer Hitch # C13702. There can be bolted like you wanted or welded on; please note there is a capacity difference: Hitch # 13703 has a towing capacity of 3,500 lbs and tongue weight...
    view full answer...

  • Determining If Front-Mounted Hitch Will Fit on 2003 Itasca Horizon Class A Motorhome
  • We do offer universal-fit hitches for RVs that you can see on the linked page. These include both frame-mount and bumper-mount types. For a front installation chances are that you will need to use a frame-mounted hitch like # C13702 on your 2003 Itasca Horizon Class A motorhome. But since equipment can vary from one MH to another you'll want to contact Itasca with your RV's VIN to find out what they say about hitch installation on your specific RV. If they give you the all-clear to install...
    view full answer...

  • How to Attach Both a Spare Tire and Cargo Carrier on the Back of an RV
  • I have the perfect option for you. For starters, you will need a hitch if you do not already have one and for that I recommend the Adjustable Width Trailer Hitch Receiver part # C13702. This hitch fits RV's with frame widths from 18" - 51" apart when measuring from the outside of each rail. The Roadmaster Hitch Mounted Spare Tire Carrier part # RM-195225 can be added to give you a way to carry your spare tire. The great thing about this carrier is that it can be swung downward for easy...
    view full answer...

  • Recommended Hitch for a Forest River Camper
  • There is only one RV receiver hitch available with a tow rating that high, which is the Curt Adjustable Receiver for RVs # C13702. This is a Class III hitch with a maximum tongue weight capacity of 500 lbs and a maximum gross trailer weight of 5,000 lbs, though it will only work if your Forest River has a frame that is between 18 and 51 inches wide. If you have a wider frame, there is another adjustable RV receiver from Curt, # 13703, which is designed for frames between 22 and 72 inches,...
    view full answer...

  • Bolt Hole to Receiver Face and Bracket Top to Receiver Top for Curt Hitch C13702 and Draw-TIte 5350
  • On Curt trailer hitch # C13702 from the face of the receiver to the center of the nearest set of bolt holes is approximately 4.25 inches. From the top of the brackets where they attach to the bottom of the frame to the top of the receiver tube is 2 inches. The same measurements can be found on the Draw-Tite hitch # 5350.
    view full answer...

  • Trailer Hitch for 1999 Fleetwood Flair Motorhome with Tongue Weight Rating Over 250 lbs
  • We do have universal trailer hitches like the Curt Adjustable Trailer Hitch Receiver # C13702 which is a bolt-on or weld-on application and fits frames from 18" to 51" wide. This is specifically designed for use with hitch accessories only and is not to be used with towing. It does have a 500 lb tongue weight capacity though. I am not sure what the tongue weight rating for our 1999 Fleetwood Flair motorhome is but as long as it isn't below the 500 lb mark you can use this to the full...
    view full answer...

  • Recommended Trailer Hitch Receiver for RV with F-53 Chassis Towing Tow Dolly with a 2017 Ford Escape
  • The two highest rated trailer hitch receivers we have for RV's are both Class III hitches rated for 5,000 pounds gross trailer weight and 500 pounds of tongue weight. Curt hitches # C13702 and # C13701 are adjustable and will fit RV frames from 18 inches to 51 inches wide. You'll need to measure to make sure they will fit your RV's frame. The major difference between them is the # C13701 has a 2 inch drop. Both can either be welded or bolted to the frame.
    view full answer...

  • Frame-Mounted Hitches for 5th Wheel Trailers
  • Trailer makers do not usually include frame dimensions in their website specs, and I found this to be true for Keystone. Also, since there are currently 19 different models of 5th wheel trailer in the Montana High Country series it is possible that frame dimensions could differ between models and model years. The best ways to confirm your frame width are to crawl under the trailer and remove the panels that are blocking access for measuring or to contact Keystone with your VIN so that they...
    view full answer...
