LaSalle Bristol Cable-Actuated RV Waste Valve for Black Water Tank - Spigot to Hub - 36" Cable

LaSalle Bristol Cable-Actuated RV Waste Valve for Black Water Tank - Spigot to Hub - 36" Cable

Item # 34466N4AB36GM
Retail:$129.89
Our Price: $73.47
You Save: 43%
RV Waste Valves
Shipping Weight: 1.89 lbs
Add to cart
In Stock
zoom in icon
slider vertical icon
zoom out icon
Comment field cannot be left empty.
Name field cannot be left empty.

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

Customer Photos

Videos

Need help with installation?
Locate installers near me
Replace the waste valve from your RV's black-water tank with this cable-actuated gate valve. 36" Cable lets you open and close the valve even if it's in a hard-to-reach place. Non-stick seals resist cracking. Installs on 3" pipe. Great Prices for the best rv waste valves from LaSalle Bristol. LaSalle Bristol Cable-Actuated RV Waste Valve for Black Water Tank - Spigot to Hub - 36" Cable part number 34466N4AB36GM can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.
  • All Info
  • Reviews (27)
  • Q & A (0)
  • Photos

LaSalle Bristol RV Waste Valves - 34466N4AB36GM

  • Single Waste Valve - Cable Actuated
  • Straight Valve
  • 3 Inch Hub
  • 3 Inch Spigot
  • LaSalle Bristol
  • Stationary Valve

Replace the waste valve from your RV's black-water tank with this cable-actuated gate valve. 36" Cable lets you open and close the valve even if it's in a hard-to-reach place. Non-stick seals resist cracking. Installs on 3" pipe.


Features:

  • Waste valve assembly allows wastewater to travel from your tank when valve is open
  • 36" Long cable allows valve to be placed in secure location or hard-to-reach spot
    • Easy-to-grip handle on end of cable mounts in a convenient location so you can open or close the valve without crawling under your RV
    • Cable is lubricated for smooth, effortless movement
  • Lubricated valve seals resist leaking
    • Non-stick coating keeps sewage off of the seals
    • No drying or cracking like non-lubricated rubber seals
  • Sturdy plastic valve body resists water damage
  • Thick steel cable is durable and long-lasting
    • Protective coating limits corrosion
  • Simple installation
    • Hub end fits over your sewer pipe
    • Spigot end slides into your sewer pipe
    • Secure valve to pipe with ABS solvent cement (3447530889 - sold separately)
  • NSF approved
  • Made in the USA


Specs:

  • Application: 3" diameter black-water sewer pipe
  • Cable length: 36"
  • 1-Year warranty

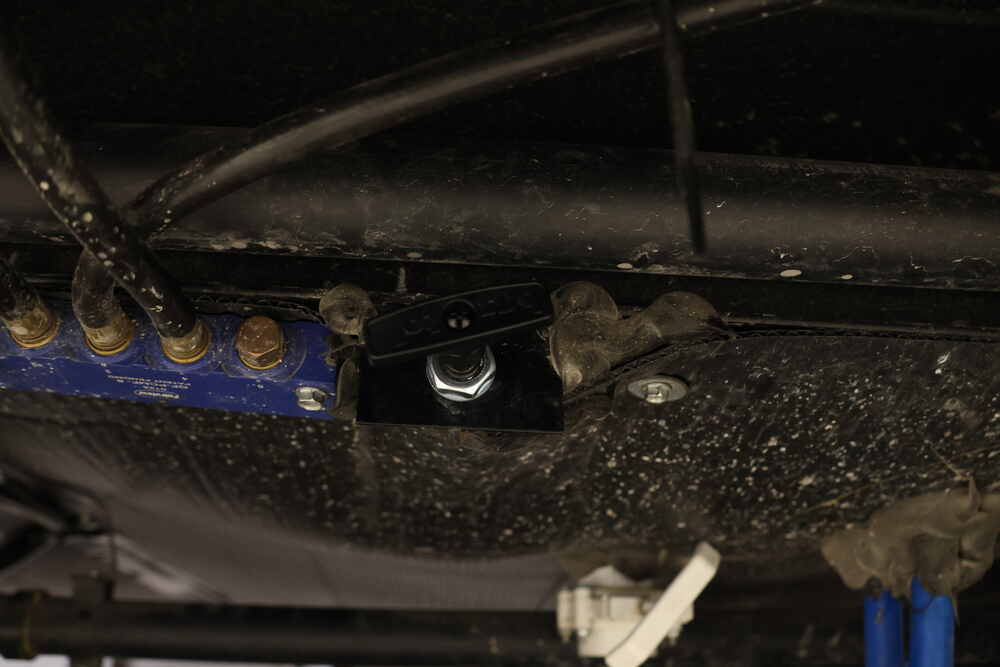

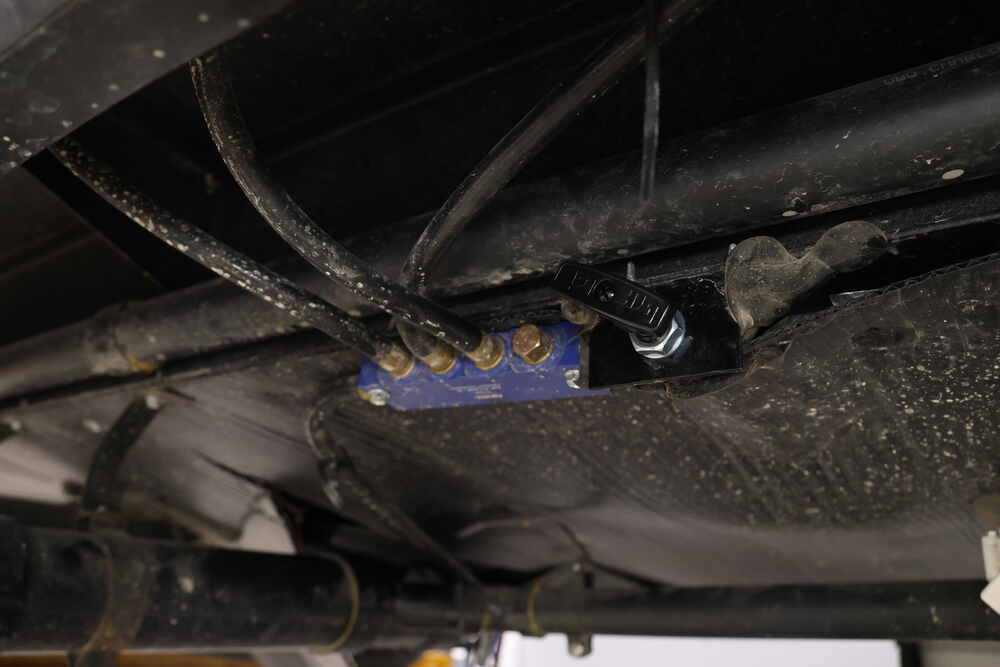

Pull Cable for Easy Dumping

This cable-actuated RV waste tank valve has a 36" long cable, allowing you to easily open and close the valve even when it is positioned in a hard-to-reach location. Simply install the valve between your RV's sewer pipes and mount the handle on the end of the cable in a convenient, easy-to-access place.

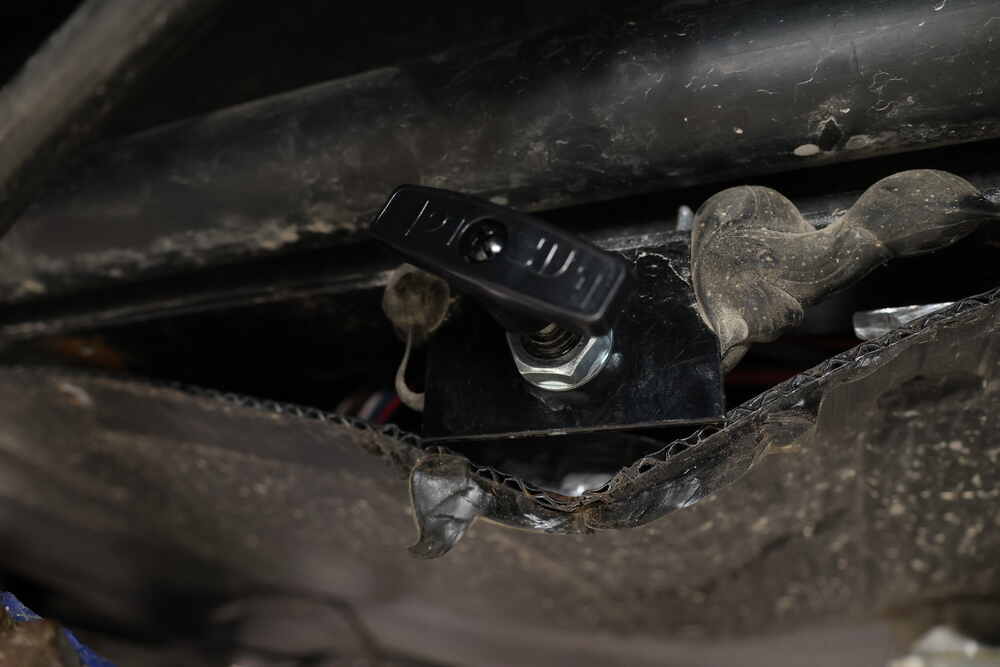

Pulling Valve Cable and Black Handle

When you're ready to dump your black-water tank, just pull the handle to open the valve. And when you're finished dumping, just push the handle back in to close the valve. No need to crawl under your RV to access the valve itself.

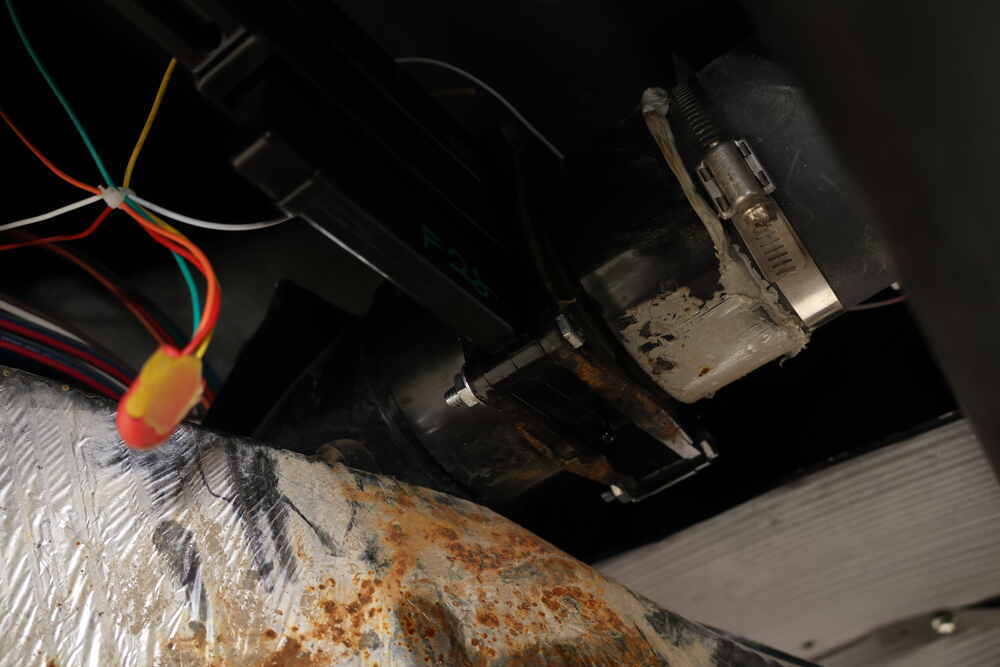

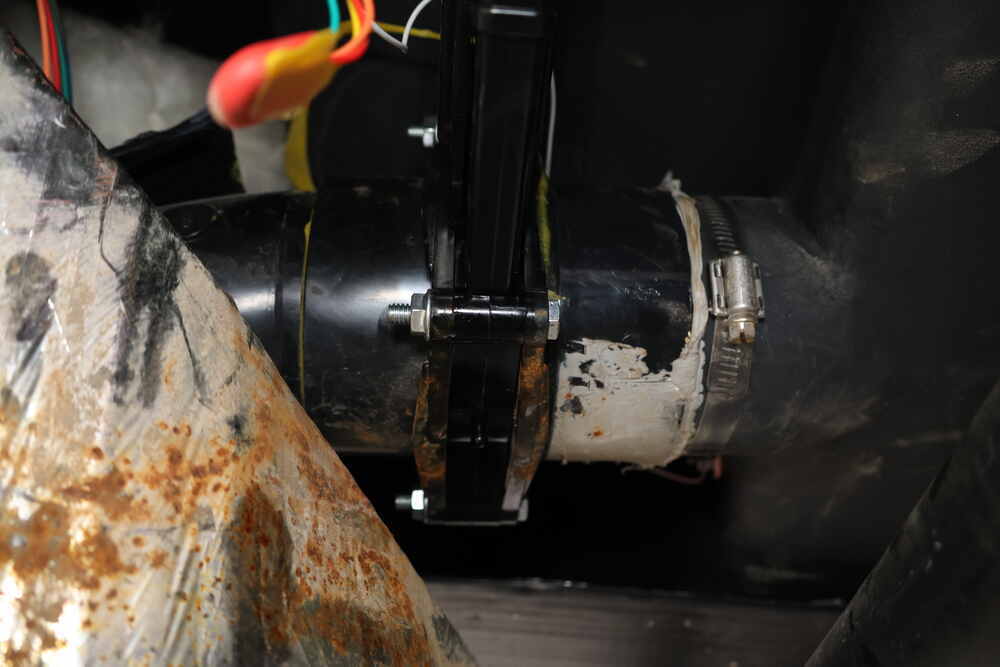

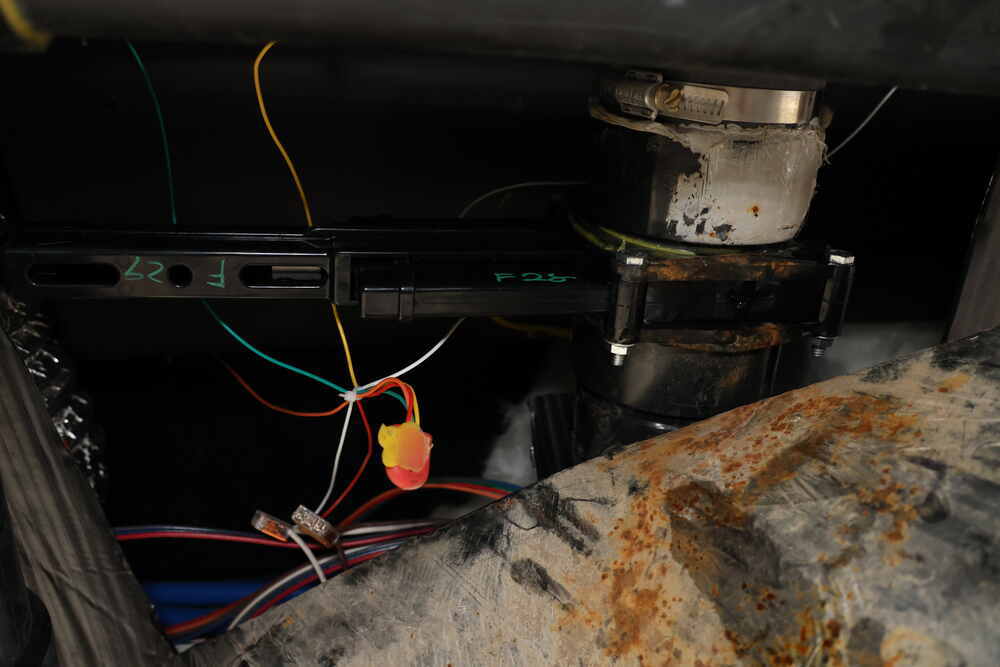

Replacing Your RV Waste Valve

Before getting started on the installation, you'll want to empty your RV's black-water tank and flush out the sewer pipes. This will help to ensure that your working environment is as clean as possible.


This waste valve is designed to replace your existing valve, which should have a hub end and a spigot end. After removing the old valve and flanges, lightly coat the outside of the new valve's spigot and the inside of its hub with ABS solvent cement (sold separately). Do the same with the open ends of your RV's sewer pipe. Then, insert the smaller spigot end of the valve into your 3" pipe, and slide the larger hub end over the pipe on the opposite side.



66N4AB36GM La Salle Bristol Dump Valve for Camper or Motorhome Black Water Holding Tank - Termination Valve - 3" Diameter - Hub to Spigot - 3' Cable





Customer Satisfaction Score:


Customer Reviews

LaSalle Bristol Cable-Actuated RV Waste Valve for Black Water Tank - Spigot to Hub - 36" Cable - 34466N4AB36GM

Average Customer Rating:  4.7 out of 5 stars   (27 Customer Reviews)

Replace the waste valve from your RV's black-water tank with this cable-actuated gate valve. 36" Cable lets you open and close the valve even if it's in a hard-to-reach place. Non-stick seals resist cracking. Installs on 3" pipe.

by:

This item was sticking out of shipping box. No apparent damage.
Photos sent.
Better packaging might be in order?



by:

Good quality valve. Works smoothly. The 36" cable will simplify dumping considerably.

Robert

7/29/2023

Working very well. Exactly as planned.



by:

In needing to replace the Black tank valve in my 2019 Grand Design Imagine, I contacted etrailer to order the part. They were so helpful in getting me the correct parts in excellent timing. If any further parts are needed, I will definitely call them for advice as well as parts needed. Thank You for prompt service as well as advice.



by:

Not good slow leak.

Etrailer Expert

Jenny N.

8/24/2023

The valve does have a one year warranty. I can send you the details if you would like.



by:

I installed this cable valve in a 1999 Ford E350 ambulance camper conversion last year on the grey water tank drain. I often venture off-pavement and needed to mount the drain as high up as possible to keep it safe, but still wanted easy access to the dump valve. I'd never seen one of these before, but as soon as I saw it, I knew it was the solution! I mounted the pull handle inside one of the exterior storage storage compartments, so it is also well protected.



by:

We are so thankful for etrailer.com being on the road and fast delivery. You will be my go too from now on!



by:

This is the OEM drop in replacement for my 2017 Grand Design Imagine 2600rb trailer. It comes with fittings to glue onto your pipes; I removed and discarded them; the flanges on the trailers piping exactly match this valve. I did find the screws that come with it are too short. They are 1/4 x 20 x 1.5" long. You need at least 2" screws and 2.25" would be best. I tried replacing this valve (due to me damaging it) with the Valterra valve (less $$) as I thought I could cut that cable to exact length thus making the pull smoother. That did not work out. I cannot get the allen set screw to hold the cable tight enough. So I am back to OEM as this cable does NOT separate from valve and the 36" cable is pretty much the exact length I need anyway. As a tip, replace this at same time as other valves so you can loosen all valves and it gives just enough slack in pipe to move out of the way and slide the new one in.



by:

Well I thought it was going to take forever to get my product in the mail but it only took 2 or 3 days I will continue to get products from etrailer thank u etrailer



by:

Fast shipping and the right part.



by:

Has worked perfect for over a year now. Easy install. If for your black tank like mine was, flush your tank really well during dump and leave the valve open for a few days to let the tank dry.



by:

Fonctionne encore très bien



by:

Second order. Hot water tank first. Fast shipping. Great products. Definitely reccomend.



by:

Great price, the right product, and fast delivery!



by:

Was perfect



by:

Works very well, and what i expected.



by:

exactly what I needed and quick deliver y.



by:

Easy install works great



by:

Looks good to me. Cannot wait to put it on and try it out.



by:



by:



by:



by:



by:



by:



by:


25
27
Show More Reviews

See what our Experts say about this LaSalle Bristol RV Waste Valves

  • Availability of LaSalle Bristol Waste Valve with Near 9 Foot Long Cable
    LaSalle Bristol makes a waste valve similar to the # 34466N4AB36GM which has a 120 inch long cable as part number # 34466N4AB120GM. 120 inches is 10 feet which is as close as we can get to the size you are looking for. The measurement is from the base of the valve to the end of the black outside tubing.
    view full answer...
  • Can Gate Valves Be Replaced Without Cutting And Gluing In New Fittings
    The LaSalle Bristol Cable-Actuated RV Waste Valve # 34466N4AB36GM will come with gaskets in between the valve and spigot/hub fittings, which I do recommend swapping over as well as these are the most easily worn components. Doing the install this way prevents the need to cut and glue in any fittings and is honestly way less time consuming. You won't need either hub or spigot fitting since the gate valve is the only thing you're swapping in so it doesn't really matter. We unfortunately...
    view full answer...
  • How To Tighten A Loose Black Water Valve Cable On A LaSalle Bristol Cable-Actuated Waste Valve
    In order to fix your loose cable on your LaSalle Bristol Cable-Actuated RV Waste Valve for Black Water Tank # 34466N4AB36GM, you will need to tighten the set screw that holds the cable to the valve stem. To do this. you're going to need to first loosen the set screw at the end of the cable housing (shown below). After this is done, you will then need to slide the valve actuator body off of the valve body itself to expose a yet another set screw. This will be located on the opposite end...
    view full answer...
    Image 1 for Image 2 for
  • Black Water Waste Valve Recommendation for a 2004 Mckenzie Medallion
    I can definitely help you figure out what replacement valve you need for the black water system on your 2004 Mckenzie Medallion, but I'll need you to take a look at your system first since we don't have any kind of information on what waste valves you need. The black water side of things uses a 3" diameter pipe so you just need to determine whether your replacement valve needs hub or spigot connections. A hub fitting installs over a spigot fitting so you'll be able to tell what you need...
    view full answer...
    Image 1 for
  • Determining The Correct Length Cable Actuator For A Black Tank Waste Valve
    While I won't be able to tell you the exact length cable you'll need I can help point you in the right direction. The first step is going to be to figure out exactly how your current valve is mounted so that you can remove it and choose the correct replacement. The LaSalle Bristol Cable-Actuated RV Waste Valve for Black Water Tank # 34466N4AB36GM you were looking at is a Spigot to Hub design. The spigot end with sit inside of a hub and the hub end with sit over a pipe. The hub and spigot...
    view full answer...
  • Black Tank Valve Is Stuck Open
    Your black tank valve could be stuck for a couple of reasons. At the valve there could be an ice jam preventing the valve door from closing fully. There could be something else blocking the valve door. Let's say your grandson dropped some Hot Wheels into the toilet and now they are stuck at the valve. Another possibility is that the valve door or pull cable are stuck in some way. I would suggest forcing as much lubricant as possible into the cable and around the valve door to see if you...
    view full answer...
  • Recommended Black Tank Waste Valve Replacement For Tight Areas
    Since the placement of the blank waste valve handle makes it hard to operate I recommend switching out the valve with a cable actuated valve that will allow you to place the handle exactly where you need it. The LaSalle Bristol Cable-Actuated RV Waste Valve for Black Water Tank # 34466N4AB36GM comes with a 36" cable that will allow you to easily activate your valve without having to fight the tire. The valve can easily be removed from the fittings by removing the four bolts through it...
    view full answer...
  • Replacing the Blackwater Waste Valve and Cable on a 2018 Heartland RV Bighorn Fifth Wheel
    If you're looking to replace your blackwater waste valve and cable, then I recommend going with an actuated cable valve. For these, LaSalle Bristol offers two options while Valterra offers none. Which of the two Bristols you choose will depend on your current setup. The first, part # 34466N4BB72GM, has a 72" cable and a spigot to spigot connection. The second, part # 34466N4AB36GM, has a 36" cable and a spigot to hub connection. You will need to review your setup to find which connection...
    view full answer...
  • Replacement Black Water Tank valve for 2013 Arctic Fox
    If the sewer line you have is a 3 inch sewer line that slips into the both sides of the valve you have now the part # 34466N4BB72GM will fit and work well. You will need to use ABS solvent like # 3447530889 to install it as well. If instead one side fits into the valve and the other fits over you'd want the part # 34466N4AB36GM.
    view full answer...
  • Will Shorter Cable Length for RV Waste Valve Make Operation Smoother
    The straighter and shorter you can make the dump cables they smoother they will operate to a certain extent. So if you can get away with the shorter 36 inch long cable version part # 34466N4AB36GM instead of the # 34466N11AB72GMA that you referenced this would work well.
    view full answer...
  • Replacement Cable-Actuated Waste Valve Options For A 2012 Keystone Montana
    I don't know the length of the cable used for valves on your Montana so you'll want to measure the length to determine the correct replacement. To make the swap out easy I recommend just unbolting the old valve from the system and then swap in the new valve (without the flanges it comes with). This will make it a much faster swap out and prevent you from having to cut or glue any pipes. I've listed the sizes we currently offer below by cable length: Black 36" # 34466N4AB36GM 48" # 34466N4AB48GMA 72"...
    view full answer...
  • Replacement Cable-Actuated Waste Valves For A 2016 Winnebago Destination 37FL 5th Wheel
    There unfortunately isn't a guide that tells us the length of the cables that were used in your Winnebago so you would have to trace the cables to determine the correct length needed. From Valterra we only have the 72" length, which you were already looking at with part # TC1372. With LaSalle Bristol we have a few different sizes so that you can get exactly what you need: Black 36" # 34466N4AB36GM 48" # 34466N4AB48GMA 72" # 34466N4AB72GMA 96" # 34466N4BB96GM 120" # 34466N4AB120GM Gray 36"...
    view full answer...
  • Can You Cut To Length The LaSalle Bristol Cable-Actuated RV Waste Valve
    The LaSalle Bristol Cable-Actuated RV Waste Valve, # 34466N4AB120GM is not designed to be trimmed. However, there are multiple lengths available: - 36" Cable # 34466N4AB36GM - 48" Cable # 34466N4AB48GMA - 72" Cable # 34466N4AB72GMA - 96" Cable # 34466N4AB96GMA - 120" Cable # 34466N4AB120GM Make sure you use LaSalle Bristol ABS Solvent Cement # 3447530889 to secure the connection.
    view full answer...
  • Is There a Specific Length of Cable Needed For Spigot to Hub Black Water Valve
    There actually isn't any way for us to know what length of cable you need when replacing the black water valve on your 2018 Montana Legacy 3130RE so you would need to either take some measurements or make an educated guess. The good news is there are plenty of options for length: - LaSalle Bristol Cable-Actuated RV Waste Valve for Black Water Tank - Spigot to Hub - 36" Cable # 34466N4AB36GM - 48" Cable # 34466N4AB48GMA - 72" Cable # 34466N4AB72GMA - 96" Cable # 34466N4AB96GMA - 120" Cable...
    view full answer...
  • Which RV Waste Valve Body w/ Flexible Cable Can be Trimmed Down Shorter
    We had one customer try to cut the cable of the LaSalle valve # 34466N4AB36GM and they said they weren't able to reassemble the cable after doing so as the set screw wouldn't get tight enough so I would not recommend this valve if your plan is to cut it. We know the Valterra # TC372 can be cut down and work well so this would be your best option.
    view full answer...
  • Replacement For Leaking Cable-Actuated Black Water Waste Valve
    It is likely the correct fix yes, and the replacement cable actuated waste valve you need is the LaSalle Bristol Cable-Actuated RV Waste Valve for Black Water Tank - Spigot to Hub - 36" Cable # 34466N4AB36GM, 48" Cable # 34466N4AB48GMA, or 72" Cable # 34466N4AB72GMA. To install it use LaSalle Bristol ABS Solvent Cement # 3447530889.
    view full answer...
  • How To Attach The LaSalle Bristol RV Lug Adapter with Flange To A Cable Actuated Waste Valve
    No, the LaSalle Bristol RV Lug Adapter with Flange # 34466V13B can easily be bolted to the LaSalle Bristol Cable-Actuated RV Waste Valve for Black Water Tank # 34466N4AB36GM. You'll simply need to remove the four bolts on the waste valve and remove one side (either the spigot or hub) and replace it with the new flange.
    view full answer...
  • Replacement Cable Actuated Waste Valve Options For A 2011 Keystone Montana High Country 5th Wheel
    Determining the correct replacement for your old waste valves is going to depend on the brand and length of your current cables. If you have Valterra branded valves you could reuse the cables you have and avoid rerouting new cables. You could simply pick the least costly option for the black # TC372 and gray # TC172 valves and just hang onto the new cables. You can remove the four bolts holding your old valves in place and then swap in the new valves so you can void having to cut or glue...
    view full answer...
  • Do Hub and Spigot Connections Need to be Cut Off to Swap Out Drain Valve
    It depends on what type of waste valve you currently have. If you have a Valterra Bladex then you can replace the waste valve body with part # T1001VP for a 1-1/2" diameter or part # T1003VPM for a 3" diameter. If you have a different brand or you aren't able to swap out the valve body then you will need to replace it with the hub and spigot ends like part # 34466N11AB36GM or # 34466N4AB36GM respectively.
    view full answer...
  • What is Shortest Cable Length for RV Sewer Dump Valve
    The shortest cable length for the RV dump valves is 36 inches like the part # 34466N4AB36GM you referenced. You can loop the cable to take up the extra slack and it will work fine. The bigger the loop you can make the better as that will allow the cable to slide the easiest. We do have an electric version of this with the part # E40-8 as well.
    view full answer...
  • How To Install The LaSalle Bristol Cable-Actuated RV Waste Valve
    The abs cement isn't going to come loose and will require you to cut the pipe a bit further back and using a coupling # D50-2935 and more straight pipe to get back to where it originally sat for the valve. That being said, you can also just unbolt the valve from the flanges and do the same with the # 34466N4AB36GM you were looking at, swap it in, and bolt it in place with the old flanges. I've attached a video below where I did this with a double waste valve to help walk you through the...
    view full answer...
  • Handle Extensions For RV Holding Tank Waste Valves
    Yes, we carry the Extension Rod Kit for Valterra Waste Valve # T1046-12VP, which comes with two adjustable extension rods to increase the length of your valve handle. We also carry cable-actuated waste valves like the LaSalle Bristol Cable-Actuated RV Waste Valve for Black Water Tank - Spigot to Hub # 34466N4AB36GM, which can make opening your waste valves easy peasy.
    view full answer...
  • Installation of LaSalle Bristol 34466N4AB36GM Cable Actuated RV Waste Valve On RV
    If the current valve you're using can be disassembled so that the flanges can be removed from the valve body, you'll have a pretty easy install. Remove the 4 bolts holding the existing flanges to he valve body you're wanting to replace then slide out the valve body. Remove the flanges from the new valve and slide in the new valve. Then bolt hole spacing is an industry standard, so as long as the old valve has the 4 bolts that allow you to remove the flanges, you should be good to go. If...
    view full answer...
