MaxxAir RV Vents and Fans - MA00-04500K

The rain sensor on this powered roof vent automatically closes the dome and shuts off the fan in rain or snow. The reversible, 10-speed fan has a thermostat to regulate airflow inside your RV. Ceiling fan mode circulates air when vent is closed.


Features:

  • Roof vent with fan and thermostat moves air in and out of your RV, camper, or enclosed trailer
    • Vent allows air to circulate while your RV remains locked and secure
  • Rain sensor automatically closes the dome and shuts off the fan when it gets wet
    • Once sensor is dry, the fan will automatically restart and open the lid
  • 12V DC, variable-speed fan has 2 modes of operation
    • In manual mode, 10 speed options let you increase or reduce airflow
    • In auto mode, fan turns on and off based on preset temperature of thermostat
  • Reversible fan can either bring air in or exhaust air out
    • Circulates air like a ceiling fan when the vent is closed
  • Remote control with LCD screen allows you to set the thermostat and the fan speed and direction
    • Storage cradle mounts to wall
    • Includes hardware and 2 AAA batteries
  • Flush-mounted keypad on vent lets you operate the fan, the thermostat, and the rain sensor
  • Translucent, smoke-colored dome (or lid) is made of high-density polypropylene
    • Seamless, low-profile appearance when closed
  • 2 Powered lifting arms support the dome to keep it open
    • No hand cranking is needed to open dome - use remote or keypad
    • Manual knob lets you operate dome in the event of a power loss
  • Bug screen keeps insects out and is easy to remove for cleaning or maintenance
  • Fuse-protected, ball bearing motor is sealed to keep out dust, dirt, and moisture
  • Rubber weather seal helps prevent leaks when vent is closed
  • Molded-in mounting flange is constructed of UV-resistant ABS plastic
    • Smooth edges won't cut you during installation
  • Mounting tabs on flange allow for no-drill, tool-free installation of FanMate vent cover (sold separately)
  • White interior trim piece (or garnish), insulated electrical connectors, and hardware are included for installation
    • Roof sealant sold separately
  • 2-Wire design
    • Black wire is power
    • White wire is ground


Specs:

  • Fits: roofs 2" - 6-1/2" thick
    • Opening size: 14" wide x 14" long
  • Overall dimensions (outside of flange to outside of flange): 18-1/8" long x 16-1/2" wide
    • Garnish dimensions: 16-1/4" long x 16-1/2" wide
  • Vent extends above roof:
    • When closed: 3-3/4"
    • When open: 12-1/2"
  • Overall fan diameter: 12"
  • Fan capacity: 900 CFM
  • Quantity of fan blades: 10
  • Power draw: 5 amps
  • Warranty:
    • 2-Year limited on vent assembly
    • Limited lifetime on dome


Note: Not for use above tubs, showers, or range cooking surfaces.


Automatic Rain Sensor

MaxxFan Plus Rain Sensor

The MaxxFan Plus has a rain sensor that detects when it starts to rain or snow. The sensor then automatically closes the roof vent and shuts the fan off, preventing the interior of your RV or trailer from getting wet. This allows you to leave your vent open and running without having to worry about the weather. Once the sensor has dried, you'll be able to open the vent and turn the fan back on. To deactivate the rain sensor, press the rain sensor button on the keypad.


Reversible, Variable-Speed Fan with Thermostat

MaxxFan Plus Fan Motor

The 12-volt, variable-speed fan has 2 modes of operation: manual and auto. When the fan is in manual mode, you can choose from 10 different speeds to increase or reduce the airflow as needed. Auto mode works in conjunction with the fan's thermostat.


To enter auto mode, press the auto mode button on either the remote control or keypad. Once the fan is in auto mode, the thermostat is activated with a set temperature of 78 degrees F. Pressing the arrow keys on either the remote or keypad changes the set temperature in 1 degree increments. When the thermostat is set, it senses the room temperature and automatically turns the fan on if it is above the set temperature. The fan shuts off when the set temperature has been reached. If the room temperature rises, the fan turns on again. This keeps your RV cool and comfortable and saves you from having to adjust the fan by hand. The auto mode also saves energy by running the fan no more than necessary, especially while you're away or asleep.


This fan is reversible, which means you are able to both exhaust stale air out of your RV and bring fresh air in from the outside. To enter ceiling fan mode, close the vent while the fan is still running. The fan then circulates the air inside your RV like a ceiling fan.


The fan has a fuse-protected, ball bearing motor that is sealed to keep out dust, dirt, and moisture.


Remote Control and Keypad

Remote for MaxxFan Plus

The remote control has a built-in LCD screen so that it's easy to see the current settings. The remote enables you to operate the vent and fan from afar, including opening or closing the dome and turning the fan on or off. With the remote, you can also control the fan speed, the direction of the airflow, and the set temperature for the thermostat.


The remote comes with a cradle, which mounts to the wall. When it's not in use, the remote can be stored in the cradle. Hardware and 2 AAA batteries are included. The low-battery indicator located on the top-center area of the screen lets you know when it's time to change the batteries.


Keypad for MaxxFan Plus

Like the remote control, the flush-mounted keypad on the vent allows you to operate the vent, the fan, and the thermostat. The rain sensor can only be activated or deactivated from the keypad.


Powered-Lift Dome with Twin Arms

MaxxFan Plus Dual Arms

The dome on this roof vent is constructed of durable high-density polyethylene, and it is translucent so that some natural light can shine through. When it's closed, the dome provides a seamless, low-profile appearance that blends into the roof of your RV.


This powered-lift dome opens and closes automatically, which means no hand cranking is needed. And unlike a dome that has only 1 arm, this dome is supported by 2 sturdy arms so that it will not flutter during high winds or while you are driving.


The dome has a sensor that will automatically shut off the lift motor when an obstruction is encountered or when the dome reaches the end of its travel. So, for example, if the dome cannot open all the way under your vent cover, a sensor will stop the dome once it has opened as far as it can.


MaxxFan Plus Manual Knob

And a manual hand knob is built into the underside of the vent to allow you to open and close the dome if your RV loses power.


Removable Bug Screen

MaxxFan Plus Bug Screen

This vent has a bug screen that helps keep insects and debris out of your RV. It is secured to the vent with 4 built-in retainer clips. These clips make it easy to remove the screen for cleaning or maintenance. Just rotate the clips, and the screen will pop out.


Installation

The MaxxFan Plus vent fits standard 14" x 14" openings in the roof of an RV, camper, or enclosed trailer. A white interior trim piece (or garnish), insulated electrical connectors, and hardware are included for installation. The vent also has a molded-in mounting flange that is lined with a rubber weather seal, which helps prevent leaks. Roof sealant (sold separately) is required for installation.


To install, connect the two wires on the vent to your RV's electrical system. The black wire is for power, and the white wire is for ground. Then insert the MaxxFan Plus into the opening in the roof and mount the flange to the roof. To finish, trim the garnish as needed to fit the thickness of your roof and install it.


MaxxFan Plus With FanMate Cover

For extra rain protection, install a MaxxAir FanMate vent cover (sold separately) using the molded mounting tabs located on the flange. The tabs are designed to align with the integrated brackets on the FanMate, allowing for a no-drill, tool-free installation. These tabs also have rubber inserts that prevent water from seeping in under the flange.



00-04500K Max Air Max Fan Plus RV and Trailer Roof Vent w/ Rain Sensor - Smoke Dome



MA00-04500K Installation InstructionsInstallation Details MA00-04500K Installation instructions

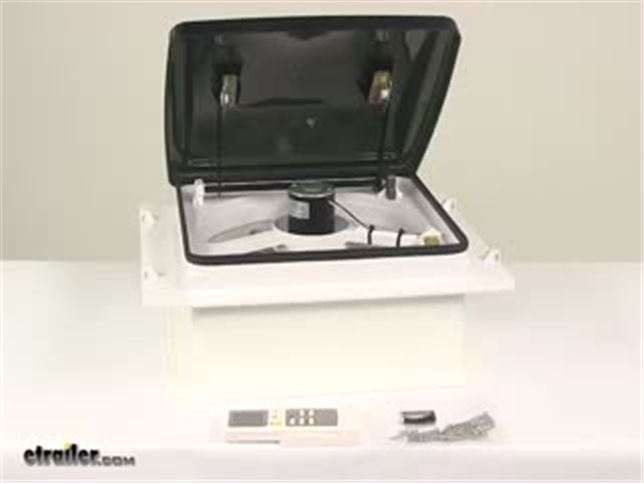

Video of MaxxFan Plus Roof Vent w/ 12V Fan, Thermostat, and Remote - Powered Lift - 10 Speed - Smoke


Videos are provided as a guide only. Refer to manufacturer installation instructions and specs for complete information.




Video Transcript for MaxxAir RV Vents and Fans MA00-04500K Review

Today, we're going to be taking a look at the MaxxAir MaxxFan Plus. This is a trailer roof vent. It's going to feature a reversible variable speed fan that's going to allow you to precisely control air movement in and out of your RV. It's going to feature a 10 speed design, and it can be used as a ceiling fan. It will operate when the lid is in the closed position, which is really going to help circulate air inside your trailer. A few key features that I want to mention while we have the lid open. Is you're going to notice, right here, that it has a really nice rubber seal that goes around the perimeter of the opening.

That's going to do a great job at creating a tight, water tight seal with the lid closed. That's really going to help keep dirt and moisture out of this area here. This component right here is going to be the motor. This is a sealed, ball bearing motor. It's built to last a long time.

Right here is going to be a built in rain sensor. This is going to automatically detect moisture, and when it detects moisture it'll automatically turn the fan off and close the lid. If you open the lid manually, the rain sensor will not close the fan lid, so keep that in mind. This is going to be a smoke colored lid. Plastic construction. Knife drawn durable design.

It is translucent, so it will let some light in. It's also going to feature two lifting arms. That's going to provide sturdy support for the lid when it's open. It's really going to help withstand high winds without fluttering, and it can remain fully open while you're driving. I'm going to go ahead and close it, and then we'll go over some other features.

Now, this unit does feature an adjustable thermostat that's going to let you control the temperature inside your RV or trailer while you're away or sleeping. Ultimately, what that does is that helps save energy by running the fan no more than necessary. It is going to feature an automatic setting of 78 degrees, so you would push the thermostat button and hold that down to set it to that temperature. It can be adjusted in increments of 1 degree. Just follow the outline that's in the included instructions when it comes to adjusting that. I, also, want to point out that it comes with the interior trim piece or garnish, so this is included. It's going to give the inside a nice, clean finished look. I'm going to set that aside, so we can go over some more details about the fan itself. Now, one of the other things that you'll notice is that it is a nice low profile plastic dome. When it's in the fully closed position and installed on your application, it is only going to sit above the roof about 3 3/4". That's measuring from the bottom of the flange to the top of the dome right here. When it's in the fully open position, that's going to extend the opening to about 12 1/2" above the roof. That's going to extend the overall height about 12 1/2" above the roof. It's going to have the molded end, white plastic flange that's got your mount holes that's kind of punched. They're not all the way through, but it does indicate where to install your hardware. That's going to help prevent leaks. It's also going to feature a flush mounted keypad. That's this right here. It's very easy to access. It's very easy to use, and it's very easy to clean. It's going to come with a remote control. This is going to allow you to easily control all of the functions of the fan without actually having to reach up and push a button. The remote control's a nice feature. It's got a nice large display on it that's a digital display, and it's going to come with a wall cradle and hardware to get that installed. It's also going to come with the included batteries. It's going to feature a removable insect screen. That's just got these retaining knobs that you can just rotate out of the way to remove that. It allows for easier removal and easy cleaning. Again, that interior trim piece or garnish is included. It's also going to feature these waterproof, molded mounting tabs. These are going to allow for fast and tool free installation of a MaxxAir FanMate Vent Cover. If you want to do that, that is sold separately. Now, this is going to be a standard opening size, or it's going to fit into a standard vent opening size or fan opening size. It does make it really easy to replace or upgrade an old vent model or an old vent. It's going to come with all the necessary electrical connectors and hardware to get the unit fully installed. Now, this is designed to fit roofs with a thickness of 2" to 6 1/2" thick. If the roof is less than 2" thick, the sealing must be built up. It requires 12V DC and minimum of 5Amp service. When it comes to the fan specifications, the fan itself is going to give us a diameter of about 12". That's going to be a 10 blade design. The unit's designed to install into a roof opening of 14" x 14" or 14 1/4" x 14 1/4", right in that area. Again, everything that you need for the installation is included. It is a good idea to get some caulk or sealant to put around the flange, just to create a nice weather tight and water tight seal. The last thing that I want to mention is I just want to go ahead and go over the overall dimensions. We're just going to be taking a look at the length and width of the unit. If we're measuring here one point of the flange to the same point on the other side, outside edge to outside edge, we're looking at about 18 1/8". Then, if we take a look at the measurement that we have front to back, that's going to measure about 16 1/2". Again, right here you're going to notice it just has a sticker right here that it does have a rain sensor. You're going to have your control knob for manual adjustment. Then, you're going to have your keypad that's going to allow for automatic adjustment as well as the remote that allows you to control all the functions of the fan. You're going to have the ability to open and close. You're going to have the ability to control the rain sensor. You're going to have the ability to control the on and off function of the fan as well as the speed. This is the thermostat button, and then you're also going to have the ability to control the direction that the fan blades are spinning. That's going to do it for today's look at the MaxxAir MaxxFan Plus Trailer Roof Vent.
