MaxxAir MaxxFan Mini Roof Vent w/ 12V Fan - Manual Lift - 4 Speed - Black

Part Number: MA00-04401M

In Stock

$180.40

Thank you! Your comment has been submitted successfully. You should be able to view your question/comment here within a few days.

Error submitting comment. Please try again momentarily.

Product Images

maxxair rv vents and fans vent 12v fan ma00-04401m

maxxair rv vents and fans vent roof maxxfan mini w/ 12v fan - manual lift 4 speed black

maxxair rv vents and fans roof vent 12v fan

maxxair rv vents and fans 12v fan plastic ma00-04401m

maxxair rv vents and fans vent plastic maxxfan mini roof w/ 12v fan - manual lift 4 speed black

maxxair rv vents and fans roof vent plastic ma00-04401m

maxxair rv vents and fans vent 12v fan maxxfan mini roof w/ - manual lift 4 speed black

maxxair rv vents and fans roof vent 12v fan ma00-04401m

Show All (17) Product Images

Show Fewer Product Images

Customer Photos

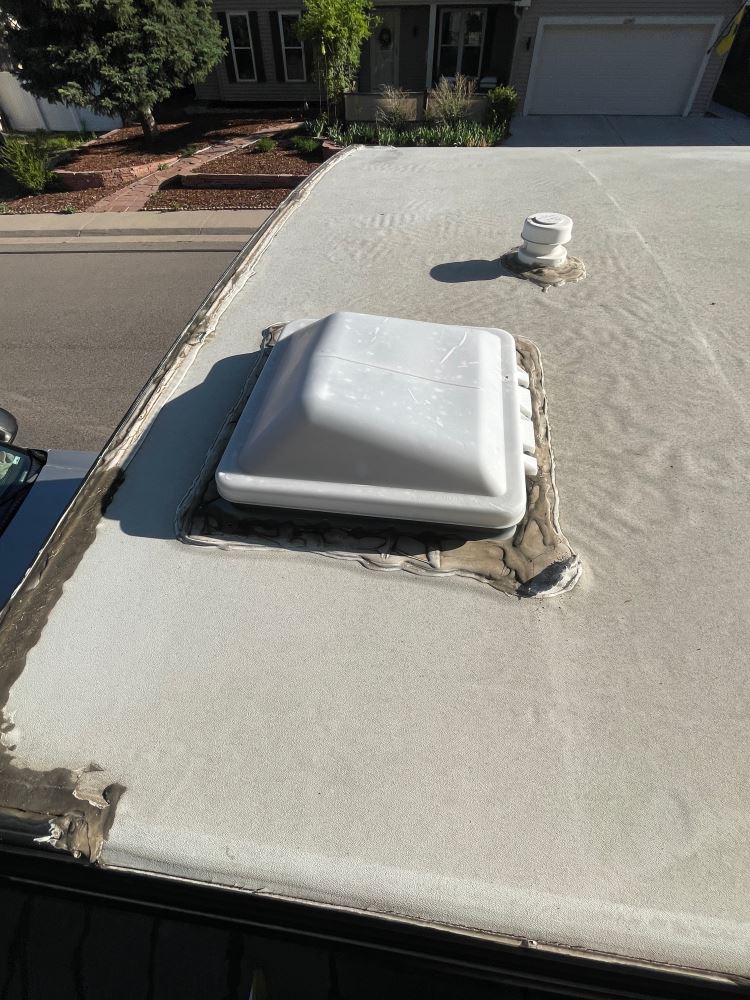

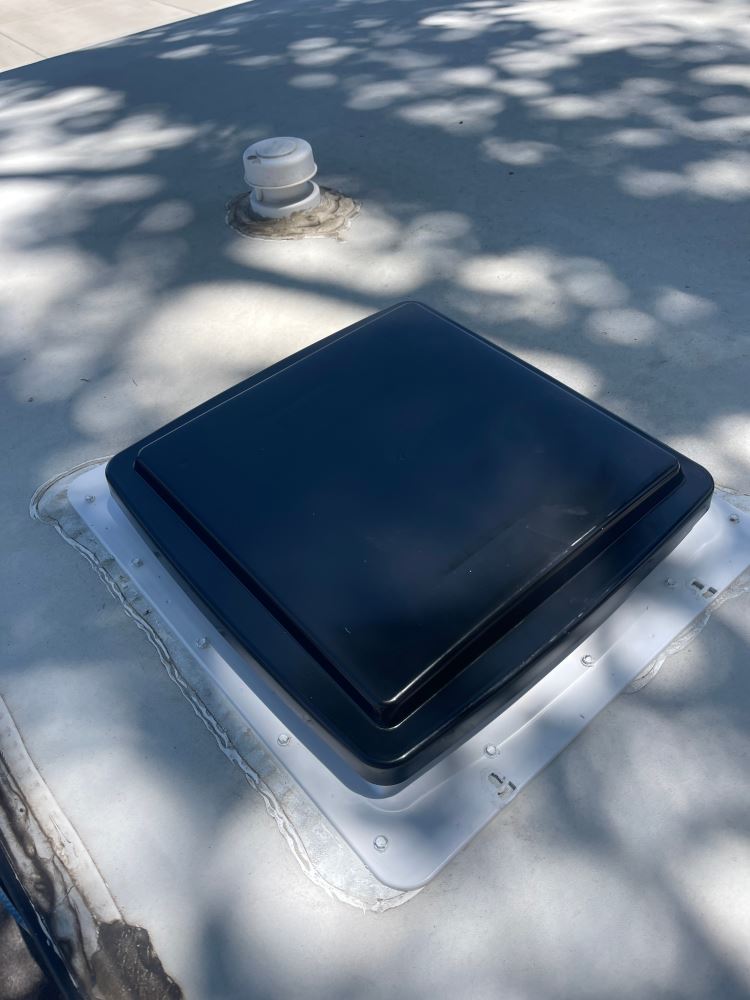

MaxxAir MaxxFan Mini Roof Vent w/ 12V Fan - Manual Lift - 4 Speed - Black customer photo

Show All (8) Customer Images

Show Fewer Customer Images

Videos

Breaking Down the MaxxAir MaxxFan Mini Roof Vent w/ 12V Fan

Show All (1) Videos

Show Fewer Videos

Need help with installation?

Locate installers near me

MaxxAir Mini roof vent with exhaust fan moves air out of your RV, camper, or enclosed trailer. Circulates air like a ceiling fan when the lid is closed. Black-colored dome has a low-profile when closed. Manual lifting arms keep the dome open. Great Prices for the best rv vents and fans from MAXXAIR. MaxxAir MaxxFan Mini Roof Vent w/ 12V Fan - Manual Lift - 4 Speed - Black part number MA00-04401M can be ordered online at etrailer.com or call 1-800-940-8924 for expert service.

All Info
Reviews (165)
Q & A (0)
Related Parts
Photos

MAXXAIR RV Vents and Fans - MA00-04401M

Highlights

Compact low-profile design: Sits just 2-7/8" above the roof when closed.
Adaptable roof compatibility: Works with roofs 1" to 6-1/2" thick.
4-speed 12V fan: Adjusts airflow to suit comfort levels.
Tool-free setup: No-drill installation with flange mounting tabs.
Vent circulation option: Functions like a ceiling fan when closed.
Durable black dome: Provides a sleek and seamless appearance.

Features to know about

Low-Profile Design for Sleek Aesthetics: 2-7/8" Dome Height

If you're looking for a roof vent that's as discreet as it is functional, the MaxxAir MaxxFan Mini delivers with its low-profile dome design. At just 2-7/8" above the roof when closed, it seamlessly blends with your vehicle, reducing drag and maintaining your RV's sleek appearance.

Effortless Air Circulation: 4-Speed 12V DC Fan

Keeping your RV, camper, or trailer fresh and ventilated shouldn't be a struggle. The MaxxAir Mini Fan with its 12V DC motor offers four variable speed options, allowing for optimal air exhaust and circulation even when the vent is closed. Enhance your on-the-road comfort with air that moves like a gentle ceiling fan breeze.

Quick and Easy Installation: Tool-Free Mounting

Take the stress out of setting up your roof vent with the MaxxAir MaxxFan Mini's easy-to-install design. Thanks to its built-in mounting tabs on the flange, you can add a FanMate vent cover without drilling or tools — saving you time and hassle, so you can focus on your adventure.

Designed for All Roof Types: Fits 1" to 6-1/2" Roofs

Whether your RV has a thin or thick roof, the MaxxAir Mini Fan is designed to fit! It accommodates roofs from 1 inch to 6-1/2 inches thick, and is compatible with standard 14" x 14" openings, making it an ideal choice for a variety of vehicles and setups, including teardrop trailers and compact campers.

Convenient Manual Operation: Simplified Control Mechanism

Control your vent with ease using the manual knob and locking mechanism. The two lifting arms keep the dome secure and supported, so you can adjust and lock it effortlessly, providing a smooth user experience without any complications.

Specs

Compatibility

Fits: roofs 1" - 6-1/2" thick

Vent Dimensions

Vent extends above roof (when closed): 2-7/8"
Overall fan diameter: 12"

Performance

Fan capacity: 900 CFM

Warranty

2-Year limited warranty: on vent assembly
Limited lifetime warranty: on dome

00-04401M Max Air Max Fan Mini RV and Trailer Roof Vent - Black Dome

Customer Satisfaction Score:

98% were satisfied with this product

2% of customers were not satisfied

etrailer mistake
Wrong item was ordered
Defective

2% of customers were not satisfied

etrailer mistake
Wrong item was ordered
Defective

4.6

165 reviews

5 Stars		(126)
4 Stars		(26)
3 Stars		(5)
2 Stars		(1)
1 Star		(7)

by: John 12/05/2022

by: Tom 04/13/2023

by: Mark 10/31/2022

by: James03/09/2023

by: Renato07/08/2023

by: Ricky 09/07/2022

by: Scott 08/26/2021

by: Craig 09/01/2021

by: Craig 09/04/2021

by: Rowdy06/17/2021

by: Dave 07/19/2023

by: Troy 07/15/2023

by: Kevin08/04/2023

by: Gary 06/07/2021

by: James 02/09/2021

by: Danny 10/31/2021

by: Michael 09/30/2021

by: Ronald08/21/2022

by: Suzanne 08/21/2022

by: Jody 08/21/2022

by: Carol 07/09/2023

by: Luis 07/20/2022

Fast shipping, great price!

by: Doug 07/21/2022

Nice looking fan
1

by: Degraw06/24/2021

Works excellent high quality

by: John06/21/2021

I have not installed yet but the product looks good.

165

Show More Reviews

See what our Experts say about this MAXXAIR RV Vents and Fans

Do you have a question about this RV Vents and Fan?

Difference Between MaxxAir MaxxFan Mini Roof Vent and MaxxFan Roof Vent
The difference between the MaxxAir MaxxFan Mini Roof Vent # MA00-04401M and the MaxxFan Roof Vent # MA00A04401K does indeed simply have to do with its profile. The MaxxAir Mini Roof Vent will only extend 2-7/8 inches above the roof when it's closed compared to 4-1/4 inches on the standard model. The MaxxFan Mini will also work with a thinner RV/Camper roof as it is compatible with roof thicknesses of 1 inch to 6-1/2 inches (compared to 2 inches to 6-1/2 inches on the standard unit). As...
view full answer...
Replacing Roof Vent on 2007 Triple E Topaz 5th Wheel
Hi Dave, welcome back! That does sound like the standard 14" x 14" opening, maybe just a tad off. I'm sure your old vent was designed for the same opening size so you won't have any issues adding in a new vent like the MaxxAir MaxxFan # MA00-04401M or # MA00-07500K. One way or another any replacement is going to fit the 14" x 14" standard. Worst case you might have to slightly modify the opening for it to fit properly. Do you have any exciting plans with your 5th wheel this summer?
view full answer...
Why is My MaxxAir Fan Not Working When I Push the Auto Temp Button the Green Light Comes On?
Hello Andrew, I am sorry to hear that your MaxxAir Fan is acting up. I was able to look up your order from last November and it looks like you have the # MA00-04751KSX. Here is some troubleshooting you can try to get it work: - Check power supply to make sure you are getting the full 12V by using something like a Hook Probe Circuit Tester # PTW2993 - Inspect fuses and connections. - Make sure the fan is not set to "Auto Off" and try turning it on manually instead of using the temperature...
view full answer...
Can MaxxAir MaxxFan Mini Roof Vent Be Mounted On A Wall?
Hello Steve. We do offer vent fans such as the MaxxAir MaxxFan Mini Roof Vent w/ 12V Fan # MA00-04401M which can be mounted on a side wall. That said, all of the fans we offer need to be wired to a power source, and we do not have anything with a rechargeable battery. These vents are reversable so they can bring air in or out. Just keep in mind that these vents are designed to be mounted on a roof. You will need to make sure your wall is thick enough (at least 1" thick). Also, mounting...
view full answer...
Recommended Tire Chains For ST225/75R15 Tires On A Travel Trailer
For ST225/75R15 tires you can use the Titan Chain Low Profile Tire Chains # TC1142. These chains are rated for both on-road and off-road use. Rubber adjusters like part # TCMA1 can be purchased separately to take out any slack in the chain.
view full answer...
Recommended Reversible MaxxFan Mini Roof Vent
That is correct. The MaxxAir MaxxFan Mini Roof Vent item # MA00-04401M is not reversible, it only moves air one way which is out. For a reversible fan you will want the MaxxFan Plus Roof Vent item # MA00-04500K. It has a ten speed fan motor, powered lift, thermostat, rain sensor, remote, and most importantly is reversible. I have linked an installation video below to help you get it set up.
view full answer...
Is MaxxAir MaxxFan Mini Roof Vent w/ 12V Fan Switch Circuit Board Accessible
The switch circuit board is accessible for the MaxxAir MaxxFan Mini Roof Vent w/ 12V Fan # MA00-04401M once you're able to pull down the control panel, but since connecting the power wires is part of the installation you might consider just tying in your second switch at that point and using it almost like a breaker.
view full answer...
Availability of MaxxAir MaxxFan LP 00-04301 Or Replacement Motor
We do have the MaxxAir MaxxFan Mini Roof Vent # MA00-04401M which is the same as the MaxxAir LP 00-04301 with a black lid versus the white lid. We currently do not carry the white lid version or a replacement motor for either of these.
view full answer...
Can The MaxxAir MaxxFan Mini Roof Vent Replace A Fan-Tastic 1200 Series RV Roof Vent
The MaxxAir MaxxFan Mini Roof Vent # MA00-04401M is a 14" x 14" vent just like your Fan-Tastic 1200 series roof vent so you'll have no problem swapping it out. This vent will come with screws to mount it but you'll want to pick up some butyl tape # AL28FJ and a couple tubes self leveling sealant # 34427034145-1 for waterproofing.
view full answer...
Is There a Remote Compatible With The MaxxAir MaxxFan Mini Roof Vent # MA00-04401M?
You will need a different fan like the MaxxFan Plus Roof Vent # MA00-04500K to have a remote controlled fan. The MaxxAir MaxxFan Mini Roof Vent # MA00-04401M is not capable of being used with a remote. The circuit board does not allow for this type of functionality on the smaller fan and it is only controllable through the keypad.
view full answer...
What is Power Consumption of MaxxAir MaxxFan Mini RV Roof Vent part # MA00-04401M
The max amperage draw of the MaxxAir MaxxFan Mini RV roof vent part # MA00-04401M that you referenced is 5 amps.
view full answer...
Where To Find The Model Number On A MaxxAir MaxxFan Vent
The model number for your MaxxAir vent like the MaxxAir MaxxFan Mini Roof Vent w/ 12V Fan # MA00-04401M, can be found on a sticker stamped on the upper side, if you can't find it there you can also find it located on the bottom and visible when the screen is removed.
view full answer...
Could Fan Wiring of MaxxFan Mini Roof Vent Get Switched to Reverse Direction of Fan
Yes, since the fan of the MaxxAir MaxxFan Mini Roof Vent w/ 12V Fan # MA00-04401M is 12 volt you could reverse the direction of the fan by reversing the polarity of the motor.
view full answer...
Recommended Roof Vent Covers for a Trailer with Automatic Open Roof Vent
The best roof vents we offer for your trailer are going to be the MaxxAir FanMate RV and Trailer Roof Vent Covers part # MA00-955002 for black, part # MA00-955003 for smoke, or part # MA00-955001 for white. The reason for this is because they have the tallest inside clearance measurements of 9-1/2". These will work just fine for your two standard roof vents but for the electric open roof vent, you will need to take a bit of caution. Judging from the photo it looks like it might not fit...
view full answer...
Is the MaxxAir MaxxFan Mini Roof Vent MA00-04401M Reversible
The MaxxAir MaxxFan Mini Roof Vent part # MA00-04401M is not reversible, it only moves air one way which is out. If you're looking for a reversible fan that moves air both in and out, I recommend the MaxxFan Plus Roof Vent part # MA00-04500K which is the next step up from the above fan as far as features go. This one features a ten speed fan motor, powered lift, thermostat, rain sensor, remote, and more.
view full answer...
Replacement Manual Lift Operator for Maxxair Vent Part Number MA00-04401M
The part shown in the photo you kindly provided is the manual lift operator. We offer a replacement as part # MA10-20281K-3CF which is compatible with the # MA00-04401M MaxxAir MaxxFan Mini you have.
view full answer...
Outer Flange Measurements for MaxxAir MaxxFan Mini Roof Vent
I went out and measured the outside to outside points on the flange for the MaxxAir MaxxFan, part # MA00-04401M, and it's 16-1/4 square. It does fit the standard 14 x 14 vent opening which is what you'll find on most trailers and it's for roofs from 1 inch to 6-1/2 inches thick.
view full answer...
Version of MaxxAir MaxxFan Mini Roof Vent That Will Let Light Through
The MaxxAir MaxxFan Mini Roof Vent w/ 12V Fan - Manual Lift - 4 Speed # MA00-04301M that you referenced would not let any light in since the lid is totally solid so for a semi-opaque lid you'd want the smoked version part # MA00-04401M.
view full answer...
Where is Power Switch of MaxxAir MaxxFan Mini Roof Vent
Both the power and speed buttons are directly on the unit of the MaxxAir MaxxFan Mini Roof Vent w/ 12V Fan - Manual Lift - 4 Speed - Smoke # MA00-04401M.
view full answer...
Comparison of MaxxAir MaxxFan "Mini Roof Vent and MaxxFan Roof Vent
The MaxxAir MaxxFan "Mini" Roof Vent w/ 12V Fan, # MA00-04401M and the MaxxFan Roof Vent w/ 12V Fan, # MA00A04401K are very similar but there is a difference in the profile. The MaxxAir Mini, # MA00-04401M will set at 2-7/8" above the roof when closed compared to 4-1/4" for the # MA00A04401K. The Mini will also work better with a thin roofed RV/Camper as it is compatible with roof thicknesses of down to only 1" where as the # MA00A04401K needs to have a roof at least 2" thick. Otherwise,...
view full answer...
Can Fan of MaxxAir MaxxFan Operate with Lid of Vent Open 1-1/2 inches
Yes, the fan of the MaxxAir MaxxFan Mini Roof Vent # MA00-04401M can actually operate with the lid closed to move air in the trailer so you can operate it with the lid opened 1-1/2 inches.
view full answer...
Replacement Lifting Mechanism for MaxxAir 7000K Roof Vent Fan
It sounds like you could be referring to either Replacement Operator Mechanism part # MA10-20281K-1AF or Replacement Lift Arm part # MA10-20222KS which are both fits for a MaxxAir 7000K Roof Vent Fan. If you need a different part let me know but these are all that's available for the lifting mechanisms aside from the Replacement Lift Motor part # MA10-20270. If you're looking for a less complicated replacement that would be the MaxxAir MaxxFan Mini Roof Vent part # MA00-04401M which is...
view full answer...
Roof Vent Cover For MaxxAir MaxxFan Mini Vent.
Not knowing the exact dimensions of the cover you have I can't say for sure that it will or won't work. However, I can tell you the the vent cover that is designed to work with the mini maxx is 25" long x 18-1/8" wide x 10-1/4" tall on the outside and 26-1/2" long x 16-3/4" wide x 9-1/2" tall on the inside and the vent area is 15-1/2" wide x 10-1/4" tall. So If your unit can match those specs you will be good to go. If your current cover will not work then we do have an option that is...
view full answer...
Identifying What Maxxfan Model Number
The model number for fans such as the MaxxAir MaxxFan Mini Roof Vent, # MA00-04401M is listed on the upper side of the assembly itself. Please see the attached image. You will best identify this by opening the vent and climbing on top of the RV. Otherwise you will need to remove the screen and pull down the fan assembly from the inside.
view full answer...
